| Type | Caravan |
| Brand | Atlantic |
| Model | High Terrain HT200-1RD |
| Chassis | Roadrunner 6" chassis & A-frame, Supa-galvanised with Hammertone finish |
| Suspension | Oz Trekker shock & coil independent suspension with 12" brakes |
| Wheels & Tyres | 16" alloy wheels with 265/75 Cooper ST Maxx all terrain tyres |
| Exterior Cladding | Silver composite panel, side and rear checker plate (550mm high) |
| Awning | Rollout awning |
| Windows | Double-glazed with built-in roller blinds and screens |
| Entry Door | Security door |
| Interior Layout | Rear door, queen bed, ensuite, kitchen, dinette (floor plan HT202-1 RD) |
| Bed | Queen size inner spring pillow top mattress with lift-up slated base |
| Kitchen | Gas/electric cooktop, mini grill, microwave, 2-door fridge/freezer, rangehood |
| Bathroom | Shower, washing machine, towel rails |
| Entertainment | 24" flat screen TV/DVD combo, CD/MP3/radio player |
| Air Conditioning | Reverse cycle air conditioner |
| Electrical System | 2 x 120Ah AGM batteries, BM Pro HA charger, 2 x solar panels, 12 pin flat + Anderson plug |
| Lighting | LED throughout including reading lights, annex lights, side markers |
| Water System | 12V Lyons pressure hatch, external 240V & 12V/USB outlets |
| Safety | Smoke detector, fire extinguisher, breakaway unit, electric brakes on all wheels |
| Additional Features | Front tunnel boot with 2 access doors, 2 x power hatches, 4 bar bumper bar, jerry can holders included |
| Country of Manufacture | Australia |
Frequently Asked Questions - High Terrain HT200-1RD ATLANTIC
What is the maximum towing capacity required for the High Terrain HT200-1RD?
The High Terrain HT200-1RD is a heavy off-road caravan. It typically requires a tow vehicle with a towing capacity of at least 3500 kg. Always check your vehicle's specifications and ensure the caravan's ATM (Aggregate Trailer Mass) does not exceed that limit.
Can the solar panels power all appliances off-grid?
The caravan comes with 2 x solar panels and 2 x 120Ah AGM batteries. This setup is sufficient for LED lighting, water pump, 12V fridge, and small electronics. High-draw appliances like air conditioning or microwave may require generator or shore power.
How do I maintain the double-glazed windows?
Clean the double-glazed windows with a mild detergent and soft cloth. Check the seals regularly for cracks or leaks. Lubricate the roller blinds and screens with silicone spray if they become stiff.
What type of gas is used for the cooktop and grill?
The caravan uses LPG (liquefied petroleum gas) from the 2 x 5kg rubber coated gas cradles. Ensure gas is turned off at the bottles when not in use and check for leaks with soapy water after connecting.
How often should I service the independent suspension?
The Oz Trekker independent suspension should be serviced every 12 months or 10,000 km, whichever comes first. Grease the shock absorber mounts and coil springs as recommended in the manual.
Can I add extra solar panels or batteries?
Yes, the BM Pro HA charger is lithium compatible and can handle additional panels. The roof has space for extra solar panels, and the battery compartment can accommodate upgraded lithium batteries. Consult an authorized installer.
What is the correct tyre pressure for the 265/75 R16 tyres?
Recommended tyre pressure for the Cooper ST Maxx 265/75 R16 is typically 45-55 psi (3.1-3.8 bar) for highway use, and 25-30 psi (1.7-2.1 bar) for off-road. Always adjust based on load and conditions.
How do I operate the roll-out awning?
The roll-out awning extends by turning the crank handle (included) in the appropriate direction. Ensure the awning is securely pegged and tied down in windy conditions. Retract it fully before traveling.
Is the washing machine vented or condenser?
The washing machine is typically a vented or condenser type depending on the model year. Vented models require external venting through the caravan wall, while condenser models do not. Check your manual for details.
Where can I find replacement parts or accessories?
Replacement parts and accessories for the Atlantic High Terrain HT200-1RD are available through authorized Atlantic dealers in Australia. Common items like light bulbs, gas struts, and filters can be ordered online. Always use genuine parts.
User questions about High Terrain HT200-1RD ATLANTIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Caravan in PDF format for free! Find your manual High Terrain HT200-1RD - ATLANTIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. High Terrain HT200-1RD by ATLANTIC.
USER MANUAL High Terrain HT200-1RD ATLANTIC
At Atlantic Caravans our focus is on building the ideal home on the road for your Australian caravan holiday.
Our premium custom built caravans are proudly Australian made for Australian conditions and can be built to suit your individual needs.
We know there is no substitute for "the great Australian caravan holiday", which is why our caravans provide the perfect place to share those special moments with your family and friends.
HIGH TERRAIN
MAJOR FEATURES
REVERSE CYCLE AIR CONDITIONER
WASHING MACHINE
MICROWAVE
SHOWER
QUEEN BED
AMPLE STORAGE
FLAT SCREEN TV
16" ALLOY WHEELS w/ 265/75 TERRAIN TYRES
ROADRUNNER 6" CHASSIS & A-FRAME
2 X SOLAR PANELS
OZ TREKKER SHOCK & COIL SUSPENSION
ROLLOUT AWNING
HIGH TERRAIN
HT162-1 MD
HT173-1 MD

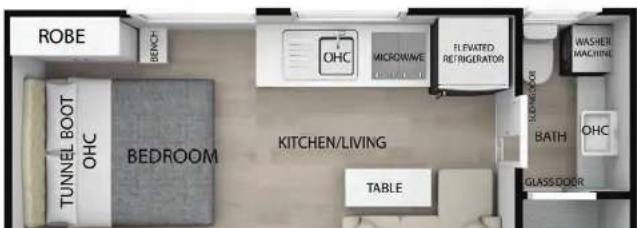

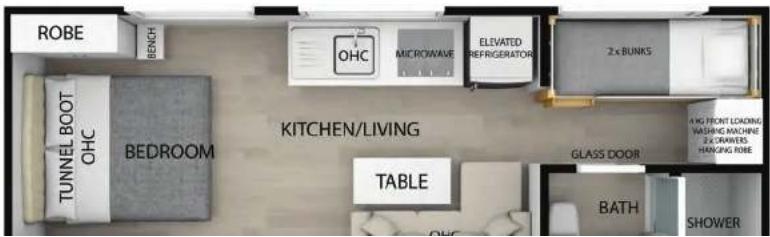

FLOOR PLANS
HT202-1 RD
HT212-1 FMD
HIGH TERRAIN
STANDARD FEATURES
| CHASSIS | BASE | INTERIOR | BASE |
| 6" Chassis & A frame | ● | Under bench slide out pantry (on selected layouts) | ● |
| Supa galvanised chassis with Hammertone finish | ● | Contemporary modular furniture | ● |
| 07 Treikker® 3500kg independent suspension w/ 12" brakes | ● | Smooth white ply walls & ceiling | ● |
| 16" Alloy wheels with 265/75 Cooper ST Maxx all terrain tyres | ● | Steel sided drawers | ● |
| 8" Jockey wheel | ● | Drop down door to end of dinette (on selected layouts) | ● |
| D0358 hitch | ● | Positive lock catches to all drawers & doors & concealed catches in OHC | ● |
| ● | 25mm Laminte benchtopsCaravan jack with jacking points | ● | |
| Electric brakes to all wheels | ● | Recessed cooktop | ● |
| One piece timber floor with Gal lined protection | ● | Comfortable queen size, inner spring, pillow top mattress | ● |
| Easy lift drop down jacks | ● | Lift up, slated bed base with extension | ● |
| 2 x 5kg rubber coated gas cradles | ● | Perspex splashback full height in kitchen & ensuite | ● |
| Fold out step with LED light | ● | 2 x Towel rails | ● |
| Wood box - located on rear bar | ● | Smoke detector & fire extinguisher | ● |
| Protective elbows and recovery points to rear of main chassis rails | ● | Ensuite sliding door (on selected layouts) | ● |
| 4 Bar bumper bar | ● | Gas struts to all overhead cupboards | ● |
| EXTERIOR | BASE | APPLIANCES | BASE |
| Double-glazed windows w/ built-in roller blinds & screen | ● | Gas/electric cook top & mini grill | ● |
| Security door | ● | Rangemouth | ● |
| Front tunnel boot with 2 x access doors & galvanised lining | ● | Microwave | ● |
| Roll out awning | ● | 2 door refrigerator/freezer | ● |
| 2 x Power hatches | ● | CD/Mp3/Radio player | ● |
| 2 x Roof hatches (on selected models) | ● | Reverse cyclic AC | ● |
| 12V Lyons pressure hatch | ● | 24"Flat screen TV/DVD combo unit | ● |
| Silver composite panel cladding | ● | Washing machine; size/type will vary depending on model | ● |
| Side and rear checker plate, 550mm high | ● | Swift Allrescoft slide out kitchen fitted into tunnel boot light above* | ● |
HIGH TERRAIN
STANDARD FEATURES
&UPGRADES
| ELECTRICAL | BASE | CHASSIS UPGRADES | BASE |
| 2 x 120Ah AGM batteries | ● | AL-KD® ESO® or Dexter® DSCO | ○ |
| BM Pro® HA (lithium compatible) charger transformer | ● | Cruisemaster D045G | ○ |
| Odyssey digital information display | ● | Hot dip galvanised chassis | ○ |
| 2 x Solar panels | ● | Chassis raiser | ○ |
| 12 Pin flat plug + Anderson plug | ● | Extra 16" spare wheel & bracket | ○ |
| Breakaway unit fitted to A-frame | ● | Extra jerry can holders | ○ |
| External 240V & 12V/USB outlets | ● | ||
| 12V/USB points both sides of bed located in nooks | ● | ||
| Single 240V outlets both sides of bed located in nooks | ● | ||
| Double 240V outlets in lounge/dinette, kitchen & ensuite area | ● | ||
| Bargman light at entrance | ● | ||
| LED side markers, clearance lights, taillights | ● | ||
| LED lights throughout | ● | ||
| 1 x Tunnel boot light; road side only* | ● | ||
| 2 x LED reading lights in bedroom | ● | ||
| 2 x LED bars fitted front & rear | ● | ||
| 3 x LED annex lights: 1 extra in lieu if tunnel boot lights* | ● | ||
| Fan in bed room | ● | ||
| EXTERNAL UPGRADES | BASE | INTERNAL & ELEC UPGRADES | BASE |
| K4 slide out sink fitted to tunnel boot: Weber © Baby QQ* | ○ | Single bed option (on selected models) | ○ |
| Grip Sport® tilt & lift bike rack (2 or 4 bikes) fitted to A frame | ○ | 6" Bed bolster | ○ |
| Extra drawers | ○ | ||
| Pull out foot rest and draw under or lift up foot rests | ○ | ||
| Leather seating | ○ | ||
| Dinette infill cushion to form a bed | ○ |
