Product Type Caravan
Brand Atlantic
Model High Terrain HT173-1 MD
Overall Length 6.5 m (approx.)
Overall Width 2.3 m (approx.)
Overall Height 2.8 m (approx.)
Unladen Weight 1200 kg (approx.)
Maximum Permissible Mass 1500 kg (approx.)
Electrical System 12V DC / 230V AC with battery charger
Water Tank Capacity 40 L fresh water, 30 L waste water (approx.)
Gas System Two 13 kg gas cylinders (optional)
Main Functions Sleeping area, kitchenette, dinette, storage compartments
Heating and Cooling Gas/electric heater, roof vent fan
Maintenance Regular check of seals, tire pressure, battery, gas lines
Safety Features Smoke detector, CO detector, fire extinguisher, emergency exit
Spare Parts and Repairability Available through authorized Atlantic dealers
General Information Off-road capable chassis, reinforced suspension

Frequently Asked Questions - High Terrain HT173-1 MD ATLANTIC

What is the towing weight of the High Terrain HT173-1 MD?
The maximum permissible mass is approximately 1500 kg. Ensure your tow vehicle is rated for at least this weight.
How do I connect the caravan to mains electricity?
Use a standard 230V hookup cable with a Type F plug (CEE 7/7). Connect to a suitable outdoor socket and ensure the caravan's circuit breaker is off before connecting.
How do I fill the fresh water tank?
Locate the external filler cap, usually on the side of the caravan. Use a hose or container to fill with potable water. Do not overfill.
How do I operate the gas system?
Ensure gas cylinders are turned on and regulators are properly fitted. Open the gas valve on the cylinder and then on the appliance. Check for leaks with soapy water.
What type of battery does the caravan use?
It uses a 12V lead-acid or AGM deep-cycle battery (typically 100Ah). The battery compartment is accessible from outside.
How do I level the caravan?
Use a spirit level on the floor. Place levelling ramps under the wheels on the low side and adjust the corner steadies to stabilize.
What is the recommended tire pressure?
Refer to the tire sidewall or caravan manual. A typical pressure is around 2.5 bar (36 psi) for cold tires.
How do I maintain the roof vent?
Regularly clean the vent cover with mild soap and water. Check the seal for cracks and lubricate the crank mechanism annually.
Can I sleep on the dinette?
Yes, the dinette converts into a bed. Remove the cushions and pull out the slatted base. Add the filler cushion for comfort.
Where can I get spare parts?
Contact an authorized Atlantic dealer or service center. Provide the model number HT173-1 MD for accurate parts.

User questions about High Terrain HT173-1 MD ATLANTIC

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Caravan in PDF format for free! Find your manual High Terrain HT173-1 MD - ATLANTIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. High Terrain HT173-1 MD by ATLANTIC.

USER MANUAL High Terrain HT173-1 MD ATLANTIC

At Atlantic Caravans our focus is on building the ideal home on the road for your Australian caravan holiday.

Our premium custom built caravans are proudly Australian made for Australian conditions and can be built to suit your individual needs.

We know there is no substitute for "the great Australian caravan holiday", which is why our caravans provide the perfect place to share those special moments with your family and friends.

THREE YEARS 3 YEAR STRUCTURAL WARRANTY

All Atlantic Caravans are protected by our 3 year structural warranty and our one year all-inclusive warranty.

For further information on warranty speak to your local dealer or visit atlanticaravans.com.au

ATLANTIC High Terrain HT173-1 MD - 2

HIGH TERRAIN

MAJOR FEATURES

REVERSE CYCLE AIR CONDITIONERATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 1

WASHING MACHINEATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 2

MICROWAVEATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 3

SHOWERATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 4

QUEEN BEDATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 5

AMPLE STORAGEATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 6

FLAT SCREEN TVATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 7

16" ALLOY WHEELS w/ 265/75 TERRAIN TYRESATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 8

ROADRUNNER 6" CHASSIS & A-FRAMEATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 9

2 X SOLAR PANELSATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 10

OZ TREKKER SHOCK & COIL SUSPENSIONATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 11

ROLLOUT AWNINGATLANTIC High Terrain HT173-1 MD - MAJOR FEATURES - 12

Interior view of a modern multi-room camping area with a large bed, built-in kitchen, and a small table with fruit and food.

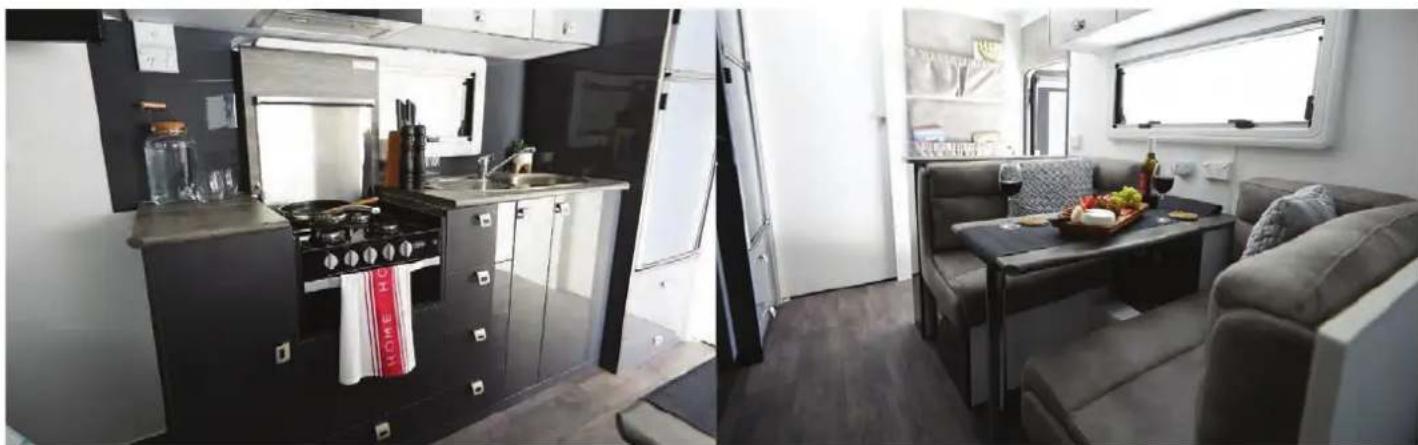

Interior view of a modern RV cabin with a gas stove, kitchen, and sofa.

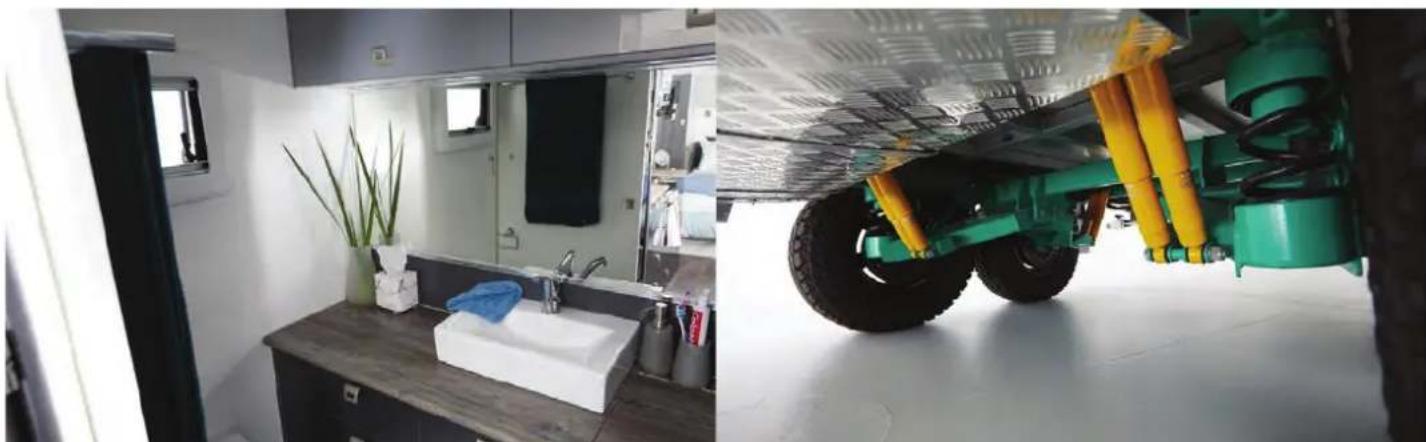

Interior view of a modern bathroom with a wooden sink, mirror, and parked toilet; side view shows a green car suspension on the lift.

All images are for illustration purposes only. Actual model/style may vary depending on floor plan and extras.

HIGH TERRAIN

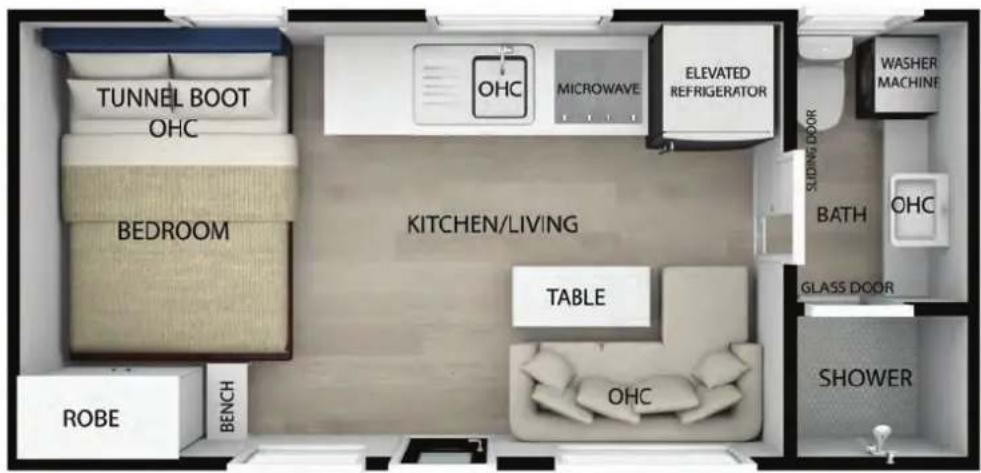

HT162-1 MDTUNNEL BOOT OHC BEDROOM ROBE BENCH KITCHEN/LIVING TABLE OHC MICROWAVE ELEVATED REFRIGERATOR WASHER MACHINE SLIDING DOOR BATH OHC GLASS DOOR SHOWER

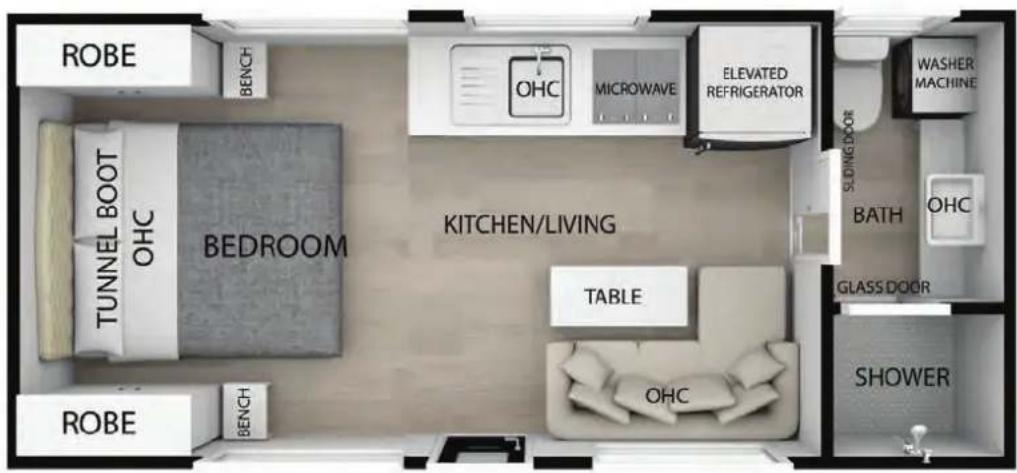

HT173-1 MDROBE BENCH TUNNEL BOOT OHC BEDROOM KITCHEN/LIVING OHC MICROWAVE ELEVATED REFRIGERATOR WASHER MACHINE SLIDING DOOR BATH OHC GLASS DOOR SHOWER ROBE BENCH TABLE OHC

Interior view of a vehicle chassis with black plastic components and wiring.

Close-up of a solar panel mounted on a white DOMETIC air conditioner unit.

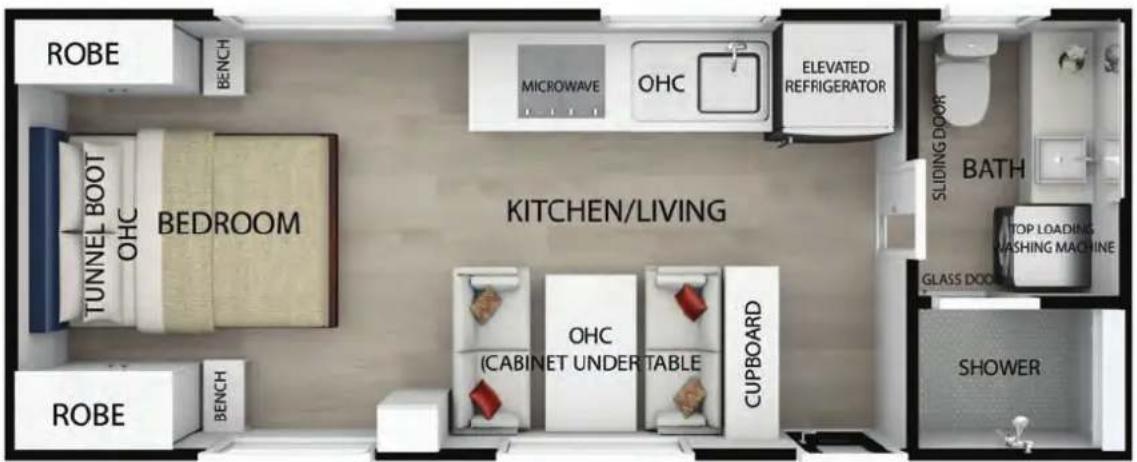

HT202-1 RDROBE BENCH TUNNEL BOOT OHC BEDROOM KITCHEN/LIVING MICROWAVE OHC ELEVATED REFRIGERATOR SLIDING DOOR BATH TOP LOADING WASHING MACHINE GLASS DOOR SHOWER ROBE BENCH OHC (CABINET UNDER TABLE) CUPBOARD

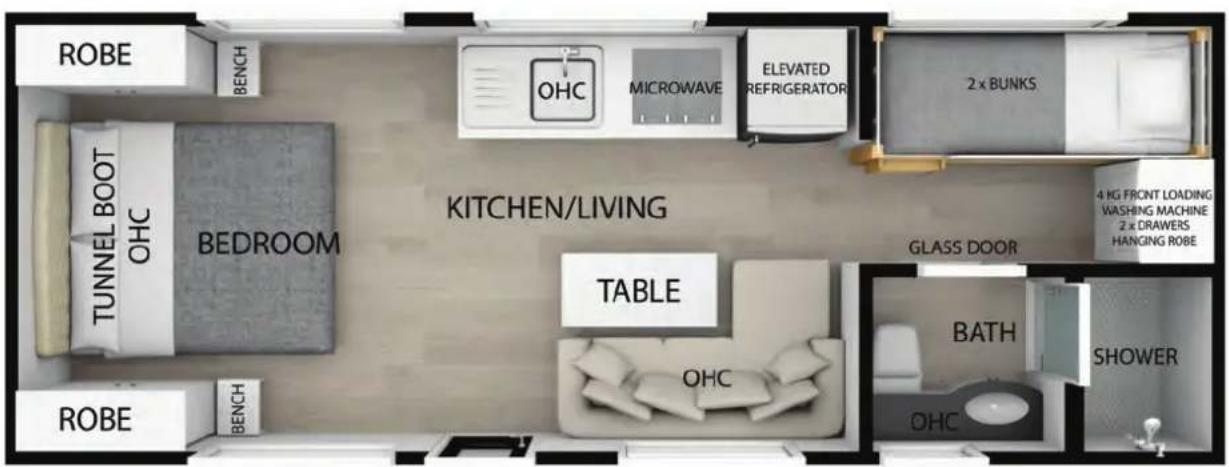

HT212-1 FMDROBE BENCH TUNNEL BOOT OHC BEDROOM KITCHEN/LIVING TABLE OHC ROBE BENCH MICROWAVE ELEVATED REFRIGERATOR 2 x BUNKS GLASS DOOR 4 KG FRONT LOADING WASHING MACHINE 2 x DRAWERS HANGING ROBE BATH SHOWER OHC

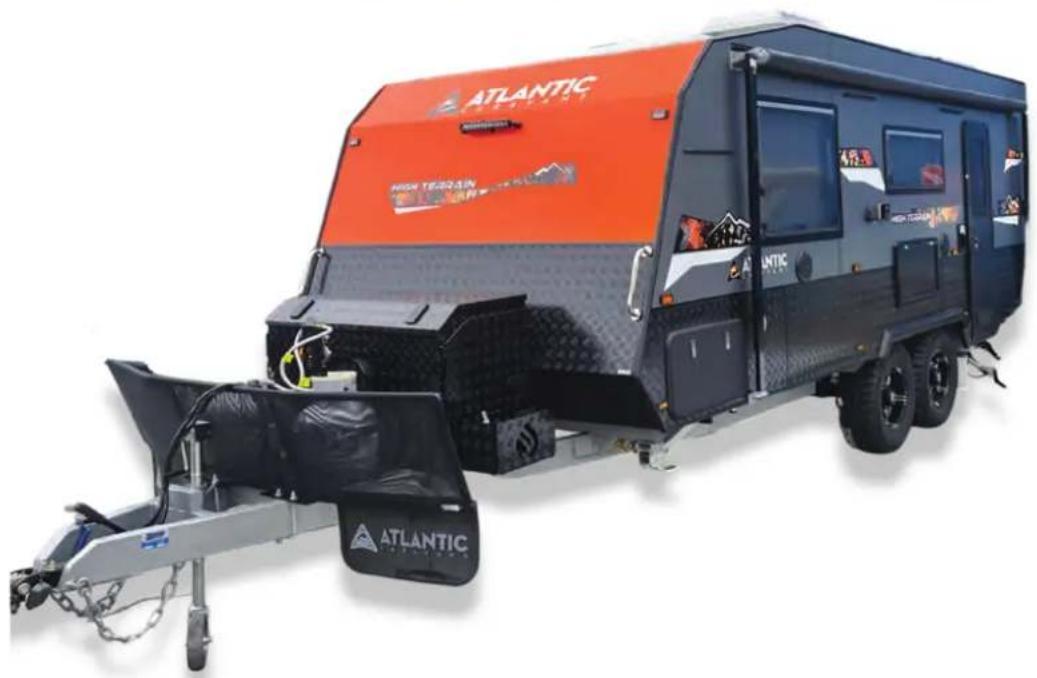

Exterior view of an Atlantic military-style mobile vehicle with orange and black panels.

CHASSISBASEINTERIORBASE
6" Chassis & A frame●Under bench slide out pantry (on selected layouts)●
Supa galvanised chassis with Hammertone finish●Contemporary modular furniture●
OZ Trekker® 3500kg independent suspension w/ 12" brakes●Smooth white ply walls & ceiling●
16" Alloy wheels with 265/75 Cooper ST Maxx all terrain tyres●Steel sided drawers●
8" Jockey wheel●Drop down door to end of dinette (on selected layouts)●
DO35® hitch●Positive lock catches to all drawers & doors & concealed catches in OHC●
●25mm Laminte benchtopsCaravan jack with jacking points●
Electric brakes to all wheels●Recessed cooktop●
One piece timber floor with Gal lined protection●Comfortable queen size, inner spring, pillow top mattress●
Easy lift drop down jacks●Lift up, slated bed base with extension●
2 x 9kg rubber coated gas cradles●Perspex splashback full height in kitchen & ensuite●
Fold out step with LED light●2 x Towel rails●
Wood box - located on rear bar●Smoke detector & fire extinguisher●
Protective elbows and recovery points to rear of main chassis rails●Ensuite sliding door (on selected layouts)●
4 Bar bumper bar●Gas struts to all overhead cupboards●
EXTERIORBASEAPPLIANCESBASE
Double-glazed windows w/ built-in roller blinds & screen●Gas/electric cook top & mini grill●
Security door●Rangehood●
Front tunnel boot with 2 x access doors & galvanised lining●Microwave●
Roll out awning●2 door refrigerator/freezer●
2 x Power hatches●CD/Mp3/Radio player●
2 x Roof hatches (on selected models)●Reverse cycle AC●
12V Lyons pressure hatch●24"Flat screen TV/DVD combo unit●
Silver composite panel cladding●Washing machine; size/type will vary depending on model●
Side and rear checker plate; 550mm high●Swift Alfresco® slide out kitchen fitted into tunnel boot: light above*●

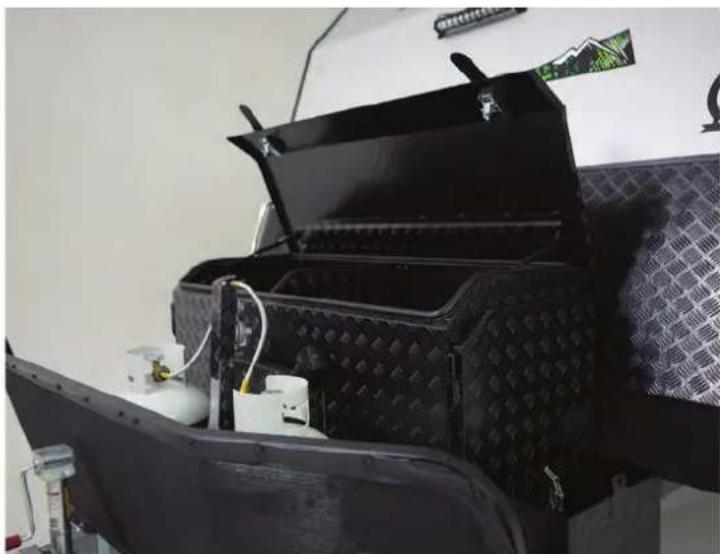

Large tool box fitted to A frame with Jerry can holders, storage area with slide●
Digital TV antenna●
External picnic table & TV V bracket with TV point●
PLUMBINGBASEUPHOLSTERYBASE
Gas/electric hot water system with tempering valve●Padded bed head●
Stainless steel kitchen sink & mixer tap●Above door pad●
Ceramic vanity basin & mixer tap●Cloth or faux leather upholstery coverings●
Shower rose with flexi hose●Loose lay style upholstery●
Ceramic toilet●Roller blind on entrance door●
One piece moulded shower unit●Magazine pouch●
2 x 95L Water tanks with checker plate protection & lockable fillers●
1 x 95L Grey water tank with checker plate protection●
12V Water pump●
2 x 9kg Gas bottles fitted on A-frame●
Water tap on A frame with checker plate guard●
Gas bayonet●
Sullage hose●
External shower●

HIGH TERRAIN

STANDARD FEATURES

&UPGRADES

ELECTRICALBASECHASSIS UPGRADESBASE
2 x 120Ah AGM batteries●AL-KO® ESC® or Dexter® DSC®○
BM Pro® HA (lithium compatible) charger transformer●Cruisemaster DO45®○
Odyssey digital information display●Hot dip galvanised chassis○
2 x Solar panels●Chassis raiser○
12 Pin flat plug + Anderson plug●Extra 16" spare wheel & bracket○
Breakaway unit fitted to A-frame●Extra jerry can holders○
External 240V & 12V/USB outlets●
12V/USB points both sides of bed located in nooks●
Single 240V outlets both sides of bed located in nooks●
Double 240V outlets in lounge/dinette, kitchen & ensuite area●
Bargman light at entrance●
LED side markers, clearance lights, taillights●
LED lights throughout●
1 x Tunnel boot light; road side only*●
2 x LED reading lights in bedroom●
2 x LED bars fitted front & rear●
3 x LED annex lights; 1 extra in lieu if tunnel boot light*●
Fan in bed room●
EXTERNAL UPGRADESBASEINTERNAL & ELEC UPGRADESBASE
K4 slide out sink fitted to tunnel boot: Weber © Baby Q®*○Single bed option (on selected models)○
Grip Sport® tilt & lift bike rack (2 or 4 bikes) fitted to A frame○6" Bed bolster○
Extra drawers○
Pull out foot rest and draw under or lift up foot rests○
Leather seating○
Dinette infill cushion to form a bed○
Pull out bench (on selected models)○
2600W Inverter○
DC to DC charger○
Extra 240V outlets or 12V/USB outlets○
RV Wi-Fi○
Extra AGM or lithium batteries○
Additional solar panel/s○
*NOTE: All Weber © Baby Q® units will be supplied loose
APPLIANCE UPGRADESBASEPLUMBING UPGRADESBASE
Diesel or gas ducted heater○Continuous HWS○
Refrigerator/freezer upgrades○Extra 95L fresh water tank○
TV upgrades○Water filter & tap to kitchen sink○
Extra Sirocco 12V fan/s○Extra external gas bayonet○
Sat King Pro satellite dish including VAST Box○
Reverse camera kit incl 7" screen or mirror mounted screen○
LEGEND
● Indicates standard on this model○ Indicates available upgrade on this model
