INSTALLATION GUIDE
for the
SB-POL-SLINGSUBP/10W3v3-4
SB.POL.SLINGSUBP/10W3v3.2
SKU# 94639 (4 Ω) & 94640 (2 Ω)
2015-Up Polaris Slingshot
SB POL SLINGSUBP/10W3V3 INSTR_SKU# 011483
! IMPORTANT
If you choose to perform the installation yourself, it is absolutely vital that the Stealthbox ^* be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.
With proper installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble
SB POL SLINGSUBP/10W3V3 INSTR_SKU# 011483
INCLUDED HARDWARE
| 1 2 153814 | 8 - 32 x 1/2" Pan Head Phillips Machine Screw | |
| 2 1 153850 | ABS Plate | |
| 3 2 153855 | M6 - 1 x 50mm Hex Drive Flanged Button Head Screw | |
| 4 4 153858 | Nylon Plastic Washer | |
| 5 2 153853 | M6 - 1 x 25mm Hex Drive Flanged Button Head Screw | |
| 6 4 153856 | M6 - 1 U Nut | |
| 7 1 153849 | Bottom Bracket | |
| 8 1 150285 | Nylon Cable Tie | |
| 9 1 153847 | Top Bracket | |
| - 1 153857 | 3/4" x 3/4" EPDM Foam (not shown) | |
| - 1 150249 | Foam Tape (not shown) | |
SB POL SLINGSUBP/10W3V3 INSTR_SKU# 011483
POWER RECOMMENDATION
JL Audio recommends high quality amplifiers such as the JL Audio MX500/1. The diagram below shows the recommended crossover settings for the MX500/1. For a detailed description of the amplifier settings, consult the owner's manual for the amplifier. If another amplifier is being used, please reference this illustration and use similar settings on that amplifier.
Slide the seat forward.
Open the storage compartment, and remove the compartment door.
Route speaker cable into the storage compartment.
STEP 4
Slide an M6 - 1 U-Nut over each of the holes in the Bottom Bracket, as shown. Be sure the U-Nuts are oriented outward.
SB POL SLINGSUBP/10W3V3 INSTR\_SKU# 011483
STEP 5
Position the Bottom Bracket assembly behind the hinge, under the storage compartment, as shown. The center, flat section of the Bottom Bracket should be placed against the rear plastic panel. Center the Bottom Bracket below the storage compartment opening.
Slide an M6 - 1 U-Nut over each of the outer holes in the Top Bracket, as shown. Be sure the U-Nuts are oriented downward.
Position the Top Bracket assembly behind the rear plastic panel, with its center cutout around the compartment latch, as shown. Position the ABS Plate between the Top Bracket and the compartment latch, aligning the holes in both parts.
STEP 8
From inside the storage compartment, pass the Nylon Cable Tie through one of the inner holes in the Top Bracket and ABS Plate, around
With the Top Bracket in the horizontal position, fully tighten the Nylon Cable Tie so that each of the M6-1 U-Nuts on the Top Bracket is aligned with the factory holes in the rear plastic panel.
Remove the adhesive backing from the 3/4" x 3/4" EPDM Foam, and attach the foam to the rear panel, above the storage compartment opening, as shown.
Connect the speaker cable to the terminal cup on the back of the enclosure, and slide the Stealthbox ^® into the storage compartment.
Slide a 1/4" Nylon Plastic Washer over each of the two M6 - 1 x 50mm Hex Drive Flanged Button Head Screws. Pass an assembly through each of the holes in the top of the enclosure, and thread it into the M6 - 1 U-Nut.
Do not fully tighten at this time.
STEP 12
Slide a 1/4" Nylon Plastic Washer over each of the two M6 - 1 x 25mm Hex Drive Flanged Button Head Screws. Pass an assembly through
SB POL SLINGSUBP/10W3v3 INSTR_SKU# 011483
STEP 13
Lift up on the enclosure, and fully tighten both M6 - 1 x 50mm Hex Drive Flanged Button Head Screws and both M6 - 1 x 25mm Hex Drive Flanged Button Head Screws.
Pictured is the Stealthbox fully installed.
Slide the seat back.
Note: For optimum performance, we recommend applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.
SB POL SLINGSUBP/10W3V3 INSTR_SKU# 011483
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox ^® !


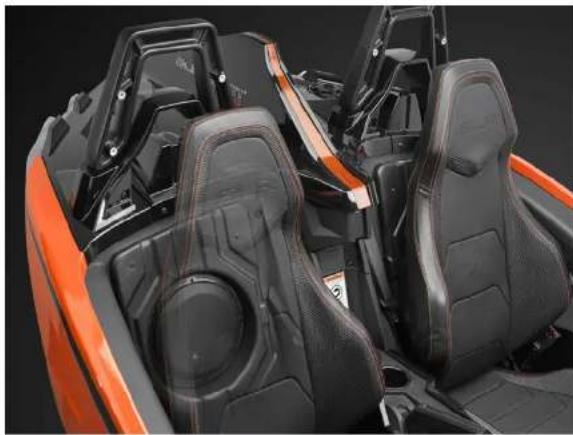

Interior view of a black and orange sports motorcycle cab with leather seats and seat covers (no visible text or symbols)MID/HIGH FREQUENCY DRIVER FITMENT
SB-POL-SLINGSPKRS/M770 speaker pods are also available for your vehicle. Each weatherproof pod is
designed for a perfect fit and houses a premium JL Audio component system.
SB-POL-SLINGSPKR/M770
SKU# 94636
