USER MANUAL GR-B450RQHL LG

Please read this manual carefully before operating your set and retain it for future reference

CONTENTS

IMPORTANT SAFETY INFORMATION .... 3

INSTALLATION 10

INNER PARTS 11

OPERATIONS 13

Starting

Before Setting The Temperature

Door Alarm

Self Test

Controls For Freezer Compartment

Controls For Refrigerator Compartment

Express Freeze / Super Chill (Optional)

Child Lock (Optional)

Convertible Corner/Fresh Zone (Optional)

Green Ion Door Cooling

Ice Beam Door Cooling (Optional)

Vegetable Drawer (Optional)

Defrosting

Deodorizer(Optional)

Ice Making (Optional)

Water Dispenser (Optional)

Smart Diagnosis (Optional)

Hygiene Fresh (Optional)

Power Cut Ever Cool (Optional)

Lamp Replacement

Inverter On feature (Optional)

SUGGESTIONS ON FOOD STORAGE ..... 22

CLEANING 23

IMPORTANT SAFETY INFORMATION

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is a safety alert symbol. It alerts you to safety messages that inform you of hazards that can hurt or seriously injured or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be hurt or seriously injured if you don't follow instructions.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

⚠️ Keep ventilation openings, in the appliance enclosure or in the built-in-structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartment, unless they are recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance requires special disposal procedures. When disposal, please consult with services agent or a similarly

IMPORTANT SAFETY INFORMATION

If gas used is R600a

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

Never startup an appliance showing any signs of damage. If in doubt, consult your dealer.

DISPOSAL OF YOUR OLD APPLIANCE

1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities

2. The correct disposal of your old appliance will help prevent potential negative consensus for the environment and human health.

3. For more detailed information about the disposal of your old appliances, please contact your city office, waste disposal service or the shop where you purchased the product.

(*NOTE - 1,2,3 are applicable for Jordan Regulations and other countries as per applicability)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Dedicated outlet should be used.

• Using several devices at one outlet may cause fire

Do not allow the power plug to face

upward or to be

squeezed at the back of the refrigerator.

Plug may get damaged, which causes fire or electric shock.

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Do not allow the power cord to bend or pressed by heavy object.

It may damage the power cord and cause fire or electric shock.

Do not extend or modify the length of the power plug.

It damages the power cord and cause electric shock or fire.

Unplug the power plug while cleaning, handling or replacing the interior LED lamp of the refrigerator.

• It may cause electric shock or injury.

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection

may cause fire or electric

Make sure of grounding.

Incorrect grounding may cause breakdown and electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit.

The tempered glass on door can be broken by impact, do not touch the broken parts you may injured.

2. When using the refrigerator

Do not place heavy object dangerous object (container with liquid) on the refrigerator.

It may fall and cause injury, fire or electric shock when

Do not cling to the door or the shelves of the door or home bar of the freezer or the cool chamber.

It may make the refrigerator fall over or damage the hands. Especially, do not

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in wet

place or place where

water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not use or store inflammable materials like ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator.

• It may cause explosion or fire.

Do not use drier to dry the inside,

nor light a candle to remove odor

It may cause explosion or fire.

Do not store medicine or academic

materials in the refrigerator.

When the material with strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Do not use the combustible spray near the refrigerator.

It may cause fire

Install in places away from the fire

such as the place where flammable gas is leaked. It may cause fire.

Do not place flower vase, cup, cosmetics,

medicine or any container

with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Use the submerged refrigerator only after checking it.

It may cause electric shock or fire.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

During the handling / delivering, installation if used gas is (1) Tetrafluoroethane (R134a) - in spite of being Environment friendly & Non flammable, it may cause irritation to skin, eyes with small amount of vapor, hence proper

ventilation across the Refrigerator area is must. (2) Natural Gas

(isobutene, R600a)

- is an environment-

friendly refrig

even a small amount (80-90g) is

amount (oo 50g) is combustible. When

the gas is leaked

due to severe damage during delivering,

installing or using the refrigerator, any spark may cause fire or burn.

Do not allow any person except the qualified engineer to disassemble, or alter the refrigerator.

It may cause injury,

electric shock or fire

When disposing the refrigerator, remove the packing materials like gasket from the door.

It may cause to lock out the child.

Do not insert hand or metal stick into the exit of cool air, cover, bottom of the refrigerator heat proof

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or

thinner.

Deterioration of insulation of

electric parts may cause

electric shock or fire.

When any strange smell or smoke is detected from the refrigerator, disconnect the power plug.

immediately and

contact to the

service center.

It may cause fire.

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected

risk such as fire, electric

shock, deterioration of stored

materia: of chemical reaction.

Install the refrigerator on a solid and level floor.

Installing it on an unstable

place may cause injury by

falling down the refrigerator

when door.

What to do with your old refrigerator,

Your refrigerator contains liquid

(refrinant lubricant) made of

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

In case of thunder and lightning, or if not

in use for a long

period of time,

detach the power plug.

There is a danger of

electric shock or fire

Place all the components

in the right

places before

connecting the

power.

Do not remove the

back cover.

Never leave lit candles on the fridge,

high risk of causing

fire or product

damage.

CAUTION

Violating these directions may cause injury or damage to health, house or furniture.

Always be careful, please.

Do not touch food or containers at the

freezer with wet

hands.

It may cause frostbite.

Wait for 5 minutes or longer when

reconnecting the plug.

It may cause the operation

of the freezer to fail.

Do not put bottle in the freezer.

It may freeze the contents to

break the bottle to cause injury.

Pull out the power plug not by grasping the

cord. But by the plug of its

end.

It may cause electric shock or

short circuit to fire.

Carry the refrigerator with the handle bar

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

Do not insert hand into the bottom of

IMPORTANT SAFETY INFORMATION

Completely empty inside before taking out the container from the door.

Do not put any living animal in the refrigerator.

Do not lean on the doors, Hinges may deregulate themselves, causing air leak and performance deterioration

Movable parts like shelf, basket, etc should be handled with care. May get damaged or break if dropped.

Opening or closing the door of the refrigerator may cause injury to the person around it, please be careful.

Opening or closing the door may cause feet or hands to be caught in the chink in door or child hand get hurt by the corner.

Do not use the carbonated water. The gas pressure may cause leakage.

Clean the water tank according to the instruction.

Use only water. If any other liquid is used, the operation of the system may be deteriorated. If a problem occurs by using any liquid other than water, the manufacturer will not be responsible.

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND

MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location.
   Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear for better performance and to aid in door closing.
   Leveling screws can be turned easily by tipping the cabinet slightly.
   Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Don't install this appliance below 5°. It may cause the debasement of the refrigerator

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to storing food, leave your refrigerator on for 8 to 12 hours (Evercool). Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

Inverter-On feature (Optional)

Minimum requirement: UPS/ Inverter should be in ON condition having minimum 600VA capacity along with minimum 120Ah capacity battery connected with the refrigerator's power supply socket.

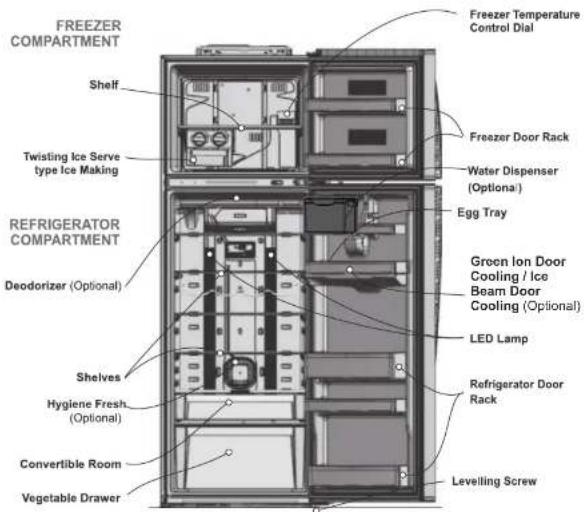

INNER PARTS

HIGH CAPACITY MODEL CONFIGURATION

FREEZER COMPARTMENT Shelf Twisting Ice Serve type Ice Making REFRIGERATOR COMPARTMENT Deodorizer (Optional) Shelves Hygiene Fresh. (Optional) Convertible Room Vegetable Drawer Freezer Temperature Control Dial Freezer Door Rack Water Dispenser (Optional) Egg Tray Green Ion Door Cooling / Ice Beam Door Cooling (Optional) LED Lamp Refrigerator Door Rack Levelling Screw

- This guide covers several different models. The refrigerator you have purchased may
have some or all of the features shown above. To keep a position of inner parts like as baskets, drawers and shelves supplied by
- To keep a position of inner parts like as baskets, drawers are manufacturer is the most efficient usage for energy saying.
- Due to continuously development, model specification subjected to change.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature
  sensor
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and

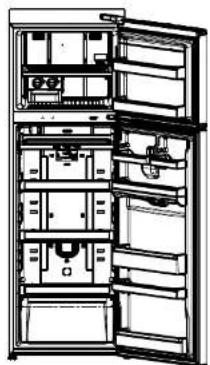

INNER PARTS (Factory Recommended Location)

GL-*4**

Technical line drawing of an open refrigerator with internal compartments and ventilation slots (no text or labels)

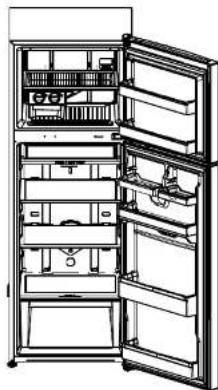

GL-*3**

Line drawing of an open refrigerator with doors open, showing internal compartments and shelves (no text or symbols)

This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.

To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

Due to continuously development, model specification subjected to change.

SUGGESTION FOR ENERGY SAVING

- Please do not keep the door open for a long time, close door in the shortest time.

- Too much food are not advised to be put in enough space should be kept for cool air circulating freely.

OPERATIONS

STARTING

When your refrigerator is firstly installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

BEFORE SETTING THE TEMPERATURE

• The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings(the controls for the refrigerator and freezer compartments) not be changed unless necessary.
• This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
• The default setting of the temperature control button for the refrigerator compartment is '3' or '4'
  The default setting of the temperature control dial for freezer is '4' (for Regular Model) The default setting of the temperature control dial for freezer is '3' (for Power Cut EverCool Model)
• This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.

DOOR ALARM

When the door of the refrigerator is open for 1 minute, an alarm will sound three times. If the door remains open for more than a minute, the alarm will repeat every 30 seconds.

SELF TEST

• Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
• If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.

CONTROLS FOR FREEZER COMPARTMENT

• The higher number the control setting is, the lower the temperature of the freezer compartment becomes.
• Since the temperature of the refrigerator and freezer compartments is controlled with a fixed amount of cooled air, the refrigerator compartment will be warmer if the freezer compartment becomes colder.
• When the Freezer compartment is not enough cold in winter, adjust the control for the freezer to High (4/5) ● /●
  * For achieving temperature in Freezing, Energy and Storage Test, Freezer control may be required to set at “●” or “●●”

OPERATIONS

CONTROLS FOR REFRIGERATOR COMPARTMENT

FOR INTERNAL CONTROLLER MODEL

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

To control the refrigerator temperature, press the REF. TEMP CONTROL button.

Whenever pressing the button, LED emitting the light. The temperature is set in 7 steps, from MIN to MAX cooling (MIN = warmest, MAX = coldest temperature)

FOR EXTERNAL CONTROLLER MODEL

Display graphic can be different, depend on the type of your refrigerator.

• Display 'A' • Display 'B'

• Press 'FRIDGE' button to control refrigerator temperature.
• Whenever pressing the button, the LED emits light.
• Press 'Hygiene Fresh' button to operate hygiene fresh motor (optional).
  • The number showing up on the LED luminesce indicate the temperature of refrigerator compartment.
• You can select the desired setting point seven steps, from '0°C' to '6°C'

• Display 'A'

• Press (b) button, refrigerator temperature will be down by 1°C
• Press (a) button,1) Hygiene fresh motor will be on. 2) Power mode ON 3) OFF
  • Display 'B'

OPERATIONS / FEATURES

When the refrigerator is first turned ON the EXPRESS FREEZE / SUPER CHILL feature can be turn ON. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.

If warm food is placed into the refrigerator, EXPRESS FREEZE / SUPER CHILL can be started with the button on the control panel. EXPRESS FREEZE / SUPER CHILL will shut off when the temperature reaches the proper level or it can be shut off manually by pressing the EXPRESS FREEZE / SUPER CHILL button.

EXPRESS FREEZE* (For External Micom)

SUPER CHILL* (For Internal Micom)

CHILD LOCK (OPTIONAL)

- CHILD LOCK

Press and hold the child lock button for 3 seconds to lock the child lock. When it is locked, the Lock LED will be on and the other button will not operate. To unlock, press and hold the CHILD LOCK button for 3 seconds again.

Note: This feature will be unlocked by itself, if the refrigerator is switched off.

Display A

Display 'B'

CONVERTIBLE CORNER (OPTIONAL)

• When the door is opened, the warmer air can't influence in the fresh zone. So you can store food more fresh in it.
• Inserted convertible room must be placed at its position. If door is opened, it can't fill the role of it.

Position of the knob to be adjusted as per type of food to be stored.

OPERATIONS / FEATURES

GREEN ION DOOR COOLING / ICE BEAM DOOR COOLING (OPTIONAL)

• The Tourmaline Pouch in the duct cover purifies the air and helps stored foods remain fresh longer.
- If water of foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered owing to the escape of cool air.

VEGETABLE DRAWER (OPTIONAL)

Cell Fresh Crisper

It keeps your vegetables fresh by holding moisture & prevents them from getting rotten

Absorb moisture Overly humid Release moisture Humid deficiency Lattice

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.

DEODORIZER (OPTIONAL)

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to the user and the food.

How to use

• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may get damaged.

- When storing food with strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

Re-Using of Deodorizer

OPERATIONS / FEATURES

ICE MAKING (OPTIONAL)

Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
• To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop into the ice cube box.

WARNING

• Do not use anything other than water.
• Fill the water up to the marked line.

Ice Trays Ice Cube Box

WATER DISPENSER (OPTIONAL)

• Pour water after the water tank is in position.
- Necessarily separate the water tank to clean it or when not in use - When the water tank is not in position after filling it with water, water can leak out by the valve.
• Pouring water in the water tank

1. Open the cover cap and pour water into the water tank.

2. Close the cover cap.

3. The water tank is optional removable part which can be applied to enlarge the storage capacity. You can use the upper basket after removing the water tank and closing up the hole with a plug

The plug is enclosed with the egg tray.

Cover Cap

Caution

Do not use anything other than water, even hot water needs to be cooled before being poured in to the water tank. Do not fill more than the indicated level.

Do not fill more than the indicated level

SMART DIAGNOSIS (Only for Selected External Micom Models)

Smart diagnosis function is.

Use this function when calling the Customer Call Centre and receive precise diagnosis when the Refrigerator malfunctions or fails. Use it only when advised by the consultant and not otherwise.

How to use the function

1. Close all refrigerator doors, and press and hold display lock button to make it locked

state. If the display is already in locked state, press and hold lock button to reset the lock and press and hold the lock button again to make it locked state.

CAUTION

If it passes 5 minutes in locked state, smart diagnosis function will not be activated, so be careful.

1. Press and hold fridge temperature button for 3 seconds or longer. (All display screens will be turned off, and in a while, 3 will be displayed on the fridge temperature display part.)

< Model with Hygiene Fresh Filter >

1. Open all refrigerator compartment and freezer compartment doors, and place the telephone near the speaker hole at the top right side. Check if the speaking side(microphone) of the telephone is toward the speaker hole.

1. Do not take away the telephone while data is being transmitted.

During the data transmission for smart diagnosis wait with the telephone placed near the speaker hole at the top right side. The remaining time for data transmission is displayed on the display screen.

CAUTION

The transmission sound may be irritating. Do not take away the telephone until the sound stops for good diagnosis.

1. After the completion of the data transmission, listen to the explanation of the consultant about the result of the smart diagnosis. When the data transmission is completed, along with the display of the data transmission completion, the refrigerator will be automatically turned off and on a few seconds later. Listen to the explanation of the consultant about the result of the analyzed diagnosis and follow the instructions.

SMART DIAGNOSIS (Only for Selected Internal Micom Models)

Smart diagnosis function is...

Use this function when calling the Customer Call Centre and receive precise diagnosis when the Refrigerator malfunctions or fails. Use it only when advised by the consultant and not otherwise.

How to use the function

First, call LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent.

1. Open all the doors of the refrigerator.
2. Press the refrigerator control (REF TEMP) button for 3 sec or more.

1. If the buzzer sounds 4 times (Frequency of SDS Buzzer is 2000Hz, 0.2sec Off/0.2sec On 4 times) place the phone near the speaker hole in the top right hand side door hinge.

1. Ensure the microphone of the telephone is towards the speaker hole.

2. Do not take away the telephone while data is being transmitted.

CAUTION

The transmission sound may be irritating. Do not take away the telephone until the sound stops for good diagnosis.

1. During the data transmission for smart diagnosis, hold the telephone 10cm away from the speaker hole and avoid any background noises. After inputting SDS, SDS buzzer will ring. After completion of the data transmission, the consultant will explain the result of the smart diagnosis and advice accordingly. When the data transmission is completed, the refrigerator will be automatically turned off and on a few seconds later.

Be aware!

• Difference of the regional call qualities may have influence on the function.
  • If you use home phone, better communication performance will enable much better service.
  • Smart diagnosis data transmission may not be successful if the call is made from a mobile phone with poor network reception.

OPERATIONS

HYGIENE FRESH (OPTIONAL)

CAUTION

Before installing or using the product, make sure to read the owner's manual carefully to use the product accurately as intended. This HYGIENE FRESH filter has the antibacterial function of removing the virus or bacteria inside the refrigerator and the deodorizer function to remove the scent.

The function has tested and has been certificated by authorized institutions Intertek

Switch over to use mode

Switch over to use mode.

- To use the HYGIENE FRESH filter, press the ○ button on the display panel on the front side of the door and switch over to the AUTO or POWER mode.

(Whenever you press the button, the HYGIENE FRESH filter will be switched to OFF → AUTO → POWER → OFF.)

CAUTION

When the user switches to AUTO or POWER mode, the LED around the filter is also turned on. Open the door to check whether the LED around the filter is also turned on. Do not put in your finger or alien particles inside the fan. It can be caused of an injury or malfunction.

CAUTION

• Do not wash the HYGIENE FRESH filter by using water because it can be caused of malfunction.
• This filter may not be effective for all types of bacteria and virus.
  • This is effective to remove the bacteria which is not on the food in the refrigerator.

You can purchase the HYGIENE FRESH filter at the nearest distributor or the service center.

OPERATIONS

POWER CUT EVER COOL (OPTIONAL)

Power Cut Ever Cool is a unique cooling retention function by removing heat from the freezer and the refrigerator compartment during the power off condition.

This function is a patented technology of LG Electronics

Power Cut

EverCool

CAUTION

During "Power Cut Ever Cool" functioning, dew formation may happen on the inner walls of the refrigerator. This is a normal phenomena and will not harm the product functioning in anyway. When the Power will resume, the dew on the inner walls will be automatically removed. Incase, excess dew is formed. Please remove the same with the help of a soft cloth.

During Power ON/OFF, Valve gets activated and will make a onetime sound.

• Do not open the valve cover.
- Do not disassemble the PCM tank (mounted on the top side) in freezer compartment.
- When your refrigerator is firstly installed, allow 24 hours for the temperature to stabilize prior to filling it with fresh or frozen foods. In the event of power cut after stabilization, it must be powered for at least 8 hours after power cut to have the maximum cool air retention capability.

Important point for Better performance of Evercool Function.

1) Evercool's performance may be deteriorated if the PCM is not freezed properly.
2) In order to maintain Evercool performance don't keep freezer knob at warm setting (1-2).
3) Do not open the door frequently during power cut off to maintain long time retention (cooling effect).

LAMP REPLACEMENT

NOTE : This product applies LED Lamp which cannot be replaced by the user. Please contact authorized service centre for the lamp replacement.

INVERTER-ON FEATURE (Optional)

1. While using this feature, the refrigerator will work on basic requirement as required by the product.
2. The results of the inverter-On feature may vary depending on the number of appliances that are running on inverter.
3. For optimum running of refrigerator during Inverter-On mode, it is recommended to switch off the other appliances which are not in use.
   A. It is recommended to confirm the quality of food items before supplementation

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Loading for Freezing - it is recommended to load newly introduced foods on the following position for freezing:

Newly Introduced Food

- Freezer Door Basket, marked ** is -12^ compartment, that is suitable for short term storage of frozen food (optional).

REFRIGERATOR COMPARTMENT

• Avoid placing moist food on deep interior refrigerator shelves, it could freeze by direct contact with chilled air. To avoid this it is better to store food in the covered container.
• It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it

CLEANING

WATER DISPENSER

Grille

Wipe with a clean, damp cloth and then dry using dry cloth.

Water Tank

1. Water Filling

It is not necessary to remove the water tank in order to fill it (it can be filled by opening the water tank cap).

NOTE

- Before closing door, close the cap and clamp tightly.

- Do not use liquids containing sugar or carbonated drinks.

2 Disassembly

Lift the water tank, gripping a side and bottom of water tank.

NOTE

Before disassembly of water tank, drain all water from the dispenser.

3 Assembly

If by some cause the water tank is dislocated, place it again at its original position. Verify that the valve is assembled correctly in the hole of the door. Once assembled push down and check the tank position with line.

CLEANING

Water Tank

1. Remove the tank cover.

1. Clean the inside and outside of the cover and cap with dishwashing detergent and rinse throughly under running water. Dry the water with a cloth.

2. Clean th inside and outside of the water tank with dishwashing detergent and rinse throughly under running water. Dry the water with a cloth.

It is important that your refrigerator is kept clean to prevent undesirable odors. Spilled food should be wiped immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR · Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wine

WARNING

Always remove power cord from the wall outlet prior to cleaning. Wipe excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Caution for Cleaning - Not to use : Surface active agent, Car wax, Anti-corrosive, All sorts of oil, Gasoline, Acids, Wax.
• Mild detergents, dish washable solutions and soapy water can be used
  • Careless usage can lead to colour change.

Caution

1. Use lukewarm water when cleaning

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator. To avoid damaging the leveling screw(s), turn them all the way into the base.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.

Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Anti-Condensation

Caution

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to OFF position does not remove power from the light circuit

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should in such a position that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.

IMPORTANT WARNINGS

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed). DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

Disposal of the old appliance

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

"(For CENELEC countries) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision."

* CENELEC countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI, MK, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR, GB

"This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDEDI

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper positionAppliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

LG

Life's Good
