USER MANUAL GR-M442YPQ LG

Please read this manual carefully before operating your set and retain it for future reference.

Safety Precautions & Instructions

To prevent injury to the user and property damage, the following precautions and instructions must be followed. Incorrect operation due to ignoring of precautions and instruction will cause harm or damage.

Important Safety Precautions:

1. Do not modify the power cord length or width with other appliances, don't replace the power cord with the damaged or unspecified power cord.
   It will cause electric shock or fire. If the power cord is damaged, it should be replaced by authorized service person as specified by the manufacturer.

2. Plug in the power socket property.

Loose plug-in causes electric shock or fire due to heat generation.

1. Do not switch ON/OFF the refrigerator with wet hands.

It may cause electric shock

1. Use only dedicated power socket for supply to refrigerator.

Do not use an extension cord; otherwise it will cause overloading and intermittent tripping of other appliances or household lights.

1. Never splash water on your refrigerator.

It may cause short circuit.

1. Do not store

Do not slate explosive and chemicals inside the refrigerator.

1. Grounding (Earthina)

In the event of an electric short circuit, grounding (Earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock, this appliance must be grounded. Consult a qualified electrician or service person if you have doubts on whether the appliance is properly grounded. Improper use of the grounding plug can result in an electric shock.

Important Safety Instructions:

1. Figure 10: microcomputer will be processed installed and installed as a solution installation instructions.

2. 2016, 18:59 AM MELLO PROPERTY REATED AND LOCATED DEPT OF THE CHINA FINANCIAL

3. Never unplug your refrigerator by pulling on the power cord. Always grip plug money and pull it straight out from the o

4. When moving your appliance away from the wall, be careful not to roll over the power cord or damage it in any way.

5. Unplug the power card from outlet for clearing or other requirements. Never touch it with wall hands because you can get an

electric shock or be hur

1. Mount downa, preea, pull out, or hual the pree card, because clamma of pree card may cause a line or circle

2. Novel damage, success, pursuit, of the use of power cars, because damage of power cars may cover a line of debris.

- SHOCK.

1. After your refrigerator is in operation, do not touch the cold surface in the air

hands are damp or wet. Skin could adhere to these extremely cold surfaces.

1. Never place class utenelle or products, which contains liquid items in the freezer compartment, because the expansion of

liquid items due to freezing causes the breakage of glass utensils or products.

■ The meanings of the symbols used in this manual are as shown below.

DANGER You will be killed or seriously injured if you don't follow instructions. WARNING You can be killed or seriously injured if you don't follow instructions. CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

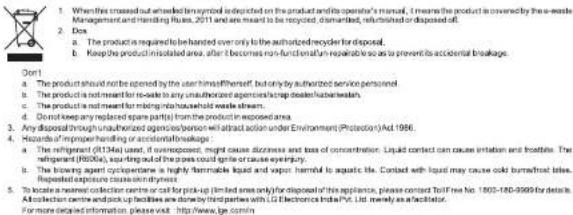

Disposal of your old appliance (as per e-waste Rules)

1. When crosses out unbroken symbol indicated on the product and its operator's manual, it means the product is covered by three-sea management and Handling Rules. 2011 and are not to be recycled, dismantled, refurbished or disposed off. 2. Does a. The product is required to be handed over only by the authorizedizer for disposal. b. Keep the product in isolated area, after it becomes non-functional repairless so as to prevent its accidental breakage. 3. Any disposal through unauthorized agencies/person will attract action under Environment (Protection) and 1986. 4. Risks of improper handling or accident breakdowns: a. The refrigerant (01/34) use, if otherwise, might cause discesis and loss of concentration. Liquid contact can cause irritation and irritability. The refrigerant (0000s), starting out of the process could ignite or cause eye injury. b. The browing agent cyclopropane is a highly fmable liquid and soap harmful to aquatic life. Contact with liquid may cause cold burn/frost bites. Repeated exposure cause skin dryness. 5. To locate a reserve collection center or call for pick-up (Limited areas only for disposal of this appliance, please contact Tnife No. 100-100-9999 for detail). A collection center and pick-up facilities are done by/Tinfield Partners Ltd Electronics India Inc. Ltd. namely as an facilitator. For more detailed information, please visit: http://www.leg.com/in

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

- Using several devices at one outlet may cause tire.

• The electric leakage breaker may damage food and the dispenser may be leaked.

Do not allow the power plug to face upward

or to be squeezed at the back of the

refrigerator. Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Do not allow the power cord bent or pressed

Do not extend or modify the length of the

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning, handling the Interior lamp of the refrigerator.

• It may cause electric shock or injury.

Do not pull out the cord or touch the power plug with wet hands.

It may cause electric shock or injury.

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

Do not cling to the door or the shelves of the door or sit on drawer.

It may make the refrigeratorfallen down or damage the hands. Especially, do notallow the childrenlo do the above.

2. When using the refrigerator

Do not place the heavy object or the dangerous object

(container with liquid) on the refrigerator.

1. 2017年1月1日

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place where

water or rain splashes. Deterioration of insulation of electric parts may cause electric leakage.

Do not use or store inflammable materials like ether, benzene, alcohol, medicine,

LP gas, spray or cosmetics near or in the

refrigerator.

It may cause explosion or fire.

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Do not use the combustible spray near the refrigerator.

It may cause fire.

Avoid the heating devices.

It may cause fire.

Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.

Use the submerged refrigerator only after checking it.

It may cause electric shock or fire.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

During the handling / delivering, installation if used gas is (1) Tetrafluoroethane (R134a) - in spite of being Environment friendly & Non flammable, it may cause irritation to skin, eyes with small amount of vapor, hence proper ventilation across the Refrigerator area is must.

(2) Natural GAs (Isobutene, R600a) - is the environment-friendly refrigerant, even a small amount (80-90g) is combustible. When the gas is leaked by the severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center. It may cause fire.

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the

Install the refrigerator ona solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill

(exhaust hole) at the backside.

It may cause electric shock or injury.

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

CAUTION

Violating this direction may cause injury or damage to health house or furniture. Always be careful, please.

Do not touch food or containers in the freezer with wet hands.

It may cause frostbite.

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

Do not put glass bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Pull out the power plug not by grasping the cord but the plug of its

end.

It may cause electric shock or

IMPORTANT SAFETY INFORMATION

CAUTION

Violating this direction may cause injury or damage to health house or furniture. Always be careful, please.

Do not insert the hands into the bottom of

the refrigerator.

The Iron plate of the bottom may cause injury.

Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.

Otherwise, your hands may be slipped & can cause injury.

Opening or closing the door/drawer of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feel or hands to be caught in the chink in door or the child may get hurt by the corner.

Do not put any living animal in the refrigerator.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY. IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND

MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location.
   Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Don't install this appliance below 5 °C. It may cause the debasement of the refrigerator.
6. Unpack the Cover Lower and screw on the front plate with the help of two screws (supplied with the product)

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. You have a model with bar-type handle, assemble the handle according to instruction card.
4. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
5. Prior to storing food, leave your refrigerator on for 2 or 3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

Please keep it handy for future reference

1. Installation Guidelines

a) Maintain required distance between walls.
b) Leveling of legs for proper alignment.
c) At a first time do not start /run refrigerator for minimum 3 hrs.
d) Use three pin 6 Amp socket with proper earthing.
e) Run the refrigerator for 6 hrs. Without loading food stuff /

2. Usage Guidelines

a) For cooling control rotate knob.
b) Store food stuff such as Bread, Snacks etc. in Fresh Zone.
c) Store food stuff at a proper distance from each other & in
closed container in refrigerator compartment shelf area
d) Store vegetables & Fruits in Tray Vegetable.
e) Cover or wrap all foods that you put into your refrigerator
with polythene or aluminium foil.

3. Useful Tips for Energy Saving

a) Do not place refrigerator in direct sunlight.
b) Place the refrigerator in ventilated are
c) Do not open the door frequently. Close door in shortest possible time.
d) Do not keep Hot food directly inside refrigerator

Take the leg from the refrigerator and fix to the base by rotating it in clock wise direction.

Strong and even floor

Unskilled installation may cause vibration and noise. If the floor to install the refrigerator on is not even, make the refrigerator level by rotating the leveling leg clockwise ( mm^-1 ) to raise the unit, and clockwise ( mm^-1 ) to lower it.

Carpet or floricket on which a refrigerator is installed may be discarded by heat from the bottom of the refrigerator. So, it is necessary to place a thick pad below the refrigerator.

A proper distance from adjacent items

Please keep the refrigerator at a proper distance from other things. Too small a distance (from adjacent) items may result in lowered freezing capability and increased electricity charges consumption.

Where is free from heat or coal gas

Please where ambient temperatures are high, freezing capability is deteriorated and electric charge is increased. Coal gas and smoke may decrease the appearance of refrigerator.

Use a three pin 6 Amp socket

Select a three-pin & Amp socket having proper Earthing & protection device (Fuse or MOB) for ensuring the long save operating.

NOTE

- Install the refrigerator at a place where the ambient temperature is 5°C - 43°C. Too high or low ambient temperature may cause functional troubles.

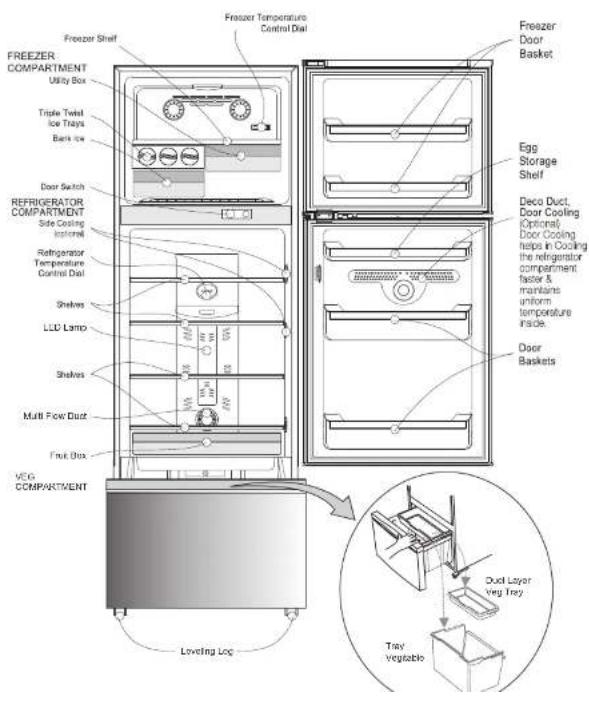

Identification of Parts

Freezer Shelf Freezer Temperature Control Dial Freezer Door Basket FREEZER COMPARTMENT Utility Box Triple Tidal Ice Trays Barc Ice Door Switch Refrigerator COMPARTMENT Side Cooling Inletrol Refrigerator Temperature Control Dial Shelves LLD Lamp Shelves Multi Flow Dust Fruit Box VEG COMPARTMENT Leveling Log Egg Storage Shelf Deco Duct, Door Cooling (Optional) Door Cooling helps in Cooling the refrigerator compartment faster & maintains uniform temperature inside. Door Baskets Dual Layer Veg Tray Tiny vegetable

Features

Deodorizer / डिओडोराइजर

Before setting the temperature

• When your refrigerator is first installed, allow it 24 hrs to stabilize at normal operating temperature prior to filling it with fresh or frozen foods. Then adjust the knobs to get satisfactory results as per instruction given below. If operation is interrupted, allow 6 minutes delay before restarting.
• The default setting of the control button for the refrigerator compartment is middle (3 LEDs are ON).

CONTROLS FOR REFRIGERATOR COMPARTMENT

SUPER COOL The Feature shall be quick cooling of the foods. When ▶ is allowed to prevent it. Beasured supply of LED or its parts of cool and dry, if the temperature is not temperature is too low. Yes. REFF TEMP

Operation

Refrigerator temperature

You can set refrigerator temperature using the button. Whenever pressing the button, the LED emit light. The temperature of the compartment is loword as the LED luminance from "cold" to "coldest". You can select the desired setting point by pressing the button, LED glows from cold to coldest point. If three LED glow, it means that refrigerator operates in normal position. For economic electricity set the LED to the cold position.

Super cool

If G is pressed for 5 second refrigerator goes to Super Cool mode, in this case super cool LED grows. This function allows you to gear up for any urgent cooling needs. In this mode the compressor runs continuously for a few hour giving you cold water and ice when you need it. This function is very helpful for parties and special occasion, where the refrigerator is subjected to heavy load and you need instant cooling of the food. The super cool system released when the temperature of refrigerator compartment get specified degree.

SUPER COOL COLD COLEDEST Press this button for 5 seconds and super cool button will turn on

Memory back-ups

In case of power failures, your refrigerator setting will keep in memory and as soon as the power on, your last refrigerator settings will be restored.

Temperature control

- Refrigerator

Your refrigerator has two controls that let you regulate the temperature in freezer and refrigerator compartments. You can set the refrigerator temperature using the refrigerator temperature control, whenever pressing the button, the LED emit light. The temperature of the compartment goes down as the LED luminesce from cold to coldest. You can select the desired set point in five (5) steps between cold to coldest.

Operation

Temperature control

- Freezer

377 L

● Freezer Temp Control - 1, 2, 3, 4, 5, 6, 7,

8,9

Setting at "9" the freezer compartment

becomes coldest, but the refrigerator

becomes warmer because less cold air

WITH FLOW INTO THE LIFRIGERATOR

compartment.

• In cold weather the unit operates less and the freezer compartment has a tendency to warm up. For colder freezer, turn the freezer temp. control to "6" - "7" & refrigerator temp. control to cold.
• In hot weather or to load more food in refrigerator, refrigerator compartment has a tendency to warm up for colder refrigerator turn the freezer temp, control to "1" - "2" to direct more cold air into the refrigerator compartment, and the refrigerator temp, control to "Coldest".
• If you load lot of food in the freezer or open its door frequently, its temperature could go warmer. In this case, set the freezer temp. control dial between "7" and "9" to cool it. Return the freezer temp. control dial to the original position after usage.

Ice making

Your refrigerator has Triple twist ice tray

• to make ice cubes,

fill the ice tray with water upto the water level mark

and insert in its position.

• to remove ice cubes,

hold the knob of the tray and turn gently in the clock wise direction, ice cubes drop in the bank ice.

Instruction to use bank ice

Use bank ice only to store ice cubes.

Do not make ice in it, as it may break.

Instruction to disassemble veg drawer

Step 1 - Open refrigerator compartment door fully

Step 2 - Pull out the vegetable drawer, and then lift duel layer veg tray to remove as shown in fig. Do not store more than 4 kg in soft tray veg or it may be broken.

Step 3 - Slightly lift up and pull out the veg drawer until it reaches to the next slopper. Now you can remove

Ice Trays
Bank Ice

Operation

Fruit Box

Do not pull out the box fully at one go, it may fall on your legs. Do not store more than 7.5 kg in the fruit box or it may be brok

Defrosting

• Defrosting takes place automatically in every 8 hours of actual compressor running.
- The defrost water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.

Deodorizer

• By using a catalyst, deodorizing performance is guaranteed.
• Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

How to Use

• As the catalyst is located in cooling air outlet in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air outlet with a sharp tip because the deodorizer catalyst may be damaged
• When storing food with a strong odor, wrap it or store it in a container with lid because odor may be passed to other food.

Lamp Replacement

Refrigerator Lamp / Freezer Lamp

Refrigerator provided LED lamps for illumination. If found non-functional call service person to replace the lamps.

Vita Light

Vita Light (Optional)

• LED lamp is operated automatically for all day. It makes vegetable to photosynthesize.
  • Sealing structure keep the humidity

Important Safety Instruction

Warning

▲ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the dangerous circuit.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures.
When disposal, please consult with service agent or a similarly qualified person.

Operation

# TEMPERATURE CONTROL

- Freezer Temp. Control - 1\~9 Setting at "9", the freezer compartment becomes coldest. But the refrigerator compartment becomes warmer because less cold air flows into the refrigerator compartment.

(controls air flow to refrigerator & freezer compartment) 5 4 3 3 ~ 4 Rotation Direction 2 1 X 1 ~ 2 Rotation Direction

Operation

# TEMPERATURE CONTROL

• Initially set the Refrigerator Temp. Control Med/normal and the Freezer Temp. Control at Normal Leave it operating for 8 hours to stabilize. Then adjust the compartment temperature according to your desire.

Condule leno through compressor running line!

Max: Summer / Max load

Med. Monsoon / Normal bed Mr. Wimer / Small bed

- Refrigerator Temp. Control (MIN. MED/NORMAL, MAX) (MIN-1, MED/NORMAL-3\~4, MAX-7) The higher the setting, the colder the refrigerator compartment will become.

Your Requirement		Control Area	Control Position	Controlling Direction
Freezer	Refrigerator
Normal Ice Making	Fast Cooling	Freezer Knob	Position towards 1
Fast Ice Making	Normal Cooling		Position towards 9
Normal Ice Making	Normal Cooling	Refrigerator Knob	Position towards Min
Fast Ice Making	Fast Cooling		Position towards Max

How to get good results

Don't open the refrigerator door too often, hot air will enter and increase the temperature.

Close the door properly, make sure that there is no gap between the gasket and the cabinet of your LG refrigerator.

Wipe excessive moisture on food or place it inside containers or plastic bags. This will help in retaining its freshness for a longer period of time.

Feel free to call your LG Customer Information Centre (CIC) / Branch / LG Representative in case your refrigerator has suffered a damage in transit.

It is recommended to use Voltage Stabilizer (0.5KVA) if power fluctuations are frequent and out of specified

Suggestions

Cleaning

CleaningofInteriorPartsisrecommended.Washall compartmentswithamildbakingsodasolution,thenrinse anddrythecompartment.Usealukewarmsolutionofmild soapordetergenttocleantheexteriorfinishofyour refrigerator.Wipewithaclean,dampclothandthendry.

During average length vacations, you will probably find best to leave there refrigerator operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent our formation. To operate again, let there refrigerator run for 8-hrs. For stabilization.

अवकाशकेदौरान

While shifting the refrigerator, two people should carry it for its safety. Fasten the door with tape or lock to prevent opening of the refrigerator.

स्थानान्तरण

Freezercompartmentshelf

Storevarious/frozenfoodsuchasmeal,fish,frozensnecks,etc.

Suggestion on Food storage

Freezer compartment door basket

Store small packaged frozen food. Temperature is likely to increase as door

opens. So, do not store long-term food such as ice cream.

Egg Storage basket

Place this egg box in the proper location.

Refrigerator compartment shelf

Store side dishes or other food at a proper distance from each other for effective cooling.

Refrigerator compartment door basket

Store water bottles, small packaged food or beverages such as milk, juice, beer, etc..

Tray Veg

Store vegetables or fruits.

Duel Layer Veg Tray

Stores small size vegetable items like lemon, chilly, ginger, garlic, tomato etc.

Fruit Box

To store fruits.

Storing Food

■ Store fresh food in the refrigerator compartment.
- Do not store food which becomes unusable easily at low temperatures, such as bananas, and meons. - Allow hot food to cool prior to storing: placing hot food in the refrigerator could spoil other food, and les te higher energy consumption.
- When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps feed to keep its taste and nutrients.
- Please keep food at a distance of at least 15 mm from the air vents.
- Do not open the dear frequently. Opening the dear has warm an enter the refrigerator, and cause temperatures to rise.
- Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
■ To adjust the temperature control easily, do not store food near the temperature control day.

Freezer compartment

• Do not store glass bottles in the freezer compartment, they may break when frozen.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf or in utility box, not in the door basket.

Refrigerator compartment

• Avoid pacing moist food in top remgerster shelves, it could freeze from direct contact with chilled air.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spelling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always

Before Calling for Service

Check for yourself

Type of Complaint Probable Cause		Remedy
1. Refrigerator does not work.	-House fuses brown-Power Supply Oil.-Stabilizer not working properly	Call an electrician and get it connected.Check that the refrigerator main supply plug is connected to the wall socket and that the supply is on. Check that the fuse is intact in the supply line. Please play power cord of refrigerator directly in the wall socket and then check, if it works then get the stabilizer checked by Stabilizer Repairing Centre.
2. Refrigerator attempts to start, does not operate.	-Low Voltage.	Install a line-to-correcting transformer in the mains, or a Voltage Stabilizer.
3. Refrigerator compartment - Low Cooling	-Restriction of coil air circulation.-Improper thermostat setting of Freezer Temp. Control: Refrigerator Temp. Control.-Entry of hot air.	Provide space in between the claims. If the sheathes are covered with cloth or polytherms, remove it.Sed the Refrigerator Temp. Control Knob to order (Max 5-7) position.Freeze Temp. Control Knob to be adjusted accordingly. All position 8 Proser will be ordered.Opening and closing of the doors too often will result in fact as from outside pushing into the refrigerator causing the temperature to go up. Reduce the frequency of opening of the doors.
	-Storing hot foods.	Avoid standing hot foods in the refrigerator, cool them to room temperature before placing them inside the refrigerator.
4. Formation of water drops on exterior of refrigerator.	-Jigh humidity during monsoon season.	During the monsoon, when the humidity in the atmosphere reaches around 90% water droplets may form around the edges of the refrigerator cabinet, especially the top portion. This moisture should be wired off periodically. Contact our syndrome to check the door seal or proper and uniform contact with the cabinet.
5. Refrigerator Compartment — Overcooling	-Inocrect setting of Refrigerator Temp. Control Knob.	Lower the setting (1-3) of Refrigerator Temp. Control Knob to move the Refrigerator Compartment warmer.
6. Small	-Inproper covering and wrapping of bcd.	Wrap and cover food stuffs property. Place caps on bottles and other liquid stoves.
7. Difficulty in formation office and ice-cream.	-Inocrect setting of Freezer Temp. Control Knob.-Bowls used Uses Ice-rays for ice making.	For faster ice & ice-cream formation adjust the Freezer Temp. Control Knob to position 8.
8. Noise	-Normal out-of-cut-in noise	Whenever refrigerator starts & stop there is no se of Thermostat out-off cut-in & Compressor stereotop. This is a normal phenomenon.

समर्या - समाधान
