EnviraScape Lilly - Scent diffuser HOMEDICS - Free user manual and instructions

Product Type	Tabletop Relaxation Fountain
Brand	HoMedics
Model	EnviraScape Lilly
Material	Glazed Ceramic
Power Supply	120V AC, 60Hz (via included AC adapter)
Pump Type	Submersible electrical pump
Water Capacity	Sufficient to fully submerge pump (exact capacity not specified)
Usage	Indoor use only
Sound Feature	Soothing sound of cascading water
Safety Features	Automatic shut-off not specified; manual on/off switch; drip loop recommended
Maintenance	Change water periodically; clean with vinegar-water mix; clean pump inlet with brush
Warranty	Limited one year
Color	Unique natural glazed finish (varies per unit)

Frequently Asked Questions - EnviraScape Lilly HOMEDICS

How do I assemble the EnviraScape Lilly fountain?

Unpack the fountain and place on a level surface. Insert the tube into the pump (Fig. 2). Attach the A/C adaptor jack to the base power cord, but do not plug into outlet yet. Fill the ceramic bowl with enough water to fully submerge the pump (Fig. 4). Plug the cord into a 120V household outlet. The switch on the power cord controls the fountain; rotate to turn on/off.

Why is my pump making noise?

Noise usually indicates the pump is not fully submerged in water. Ensure the water level is above the minimum level. If the pump gurgles or spews, check the water level and refill as needed. Also check for kinks in the tubing or obstructions in the pump inlet.

How often should I change the water?

Periodically change the water according to water condition. Keeping water clean prevents stickiness and micro-organism growth. Use distilled water to minimize mineral build-up. Add water regularly to maintain optimal level and avoid running the pump dry.

Can I use essential oils or fragrance in the fountain?

The product is designed as a water fountain for relaxation sound, not as a scent diffuser. Adding oils may damage the pump or void the warranty. Use only tap or distilled water.

How do I clean the pump?

Unplug the fountain from the electrical outlet. Remove the pump from the base. Use a small brush or stream of water to remove any debris from the pump inlet and impeller area. Monthly maintenance extends pump life.

What type of water should I use?

Use tap or distilled water. Distilled water is recommended to prevent mineral build-up. Do not use water above 86°F (30°C). Avoid using water with chemicals or additives.

What should I do if the pump stops working?

Check the circuit breaker or try a different outlet to ensure power. Inspect the pump discharge and tubing for kinks or obstructions. Flush out any algae build-up. Remove the pump inlet and check if the rotor is broken or jammed. Always unplug before handling.

Can I leave the fountain plugged in and running continuously?

The fountain is designed for continuous use, but never leave it unattended. Unplug when not in use and before cleaning. Ensure the cord forms a drip loop to prevent water from running into the outlet.

How do I adjust the water flow?

It is recommended to set the pump at its highest speed initially and later adjust to a lower setting if desired. Be sure to unplug the pump before adjusting the speed setting.

How should I store the fountain when not in use?

Unplug the fountain, empty all water, and let it dry completely. Store in a dry, cool place. Do not store with water inside, as it may cause damage or mold.

USER MANUAL EnviraScape Lilly HOMEDICS

Distributed by HOMEDICS®

GARANTÍA LIMITADA POR UN AÑO

Distributed by HOMEDICS®

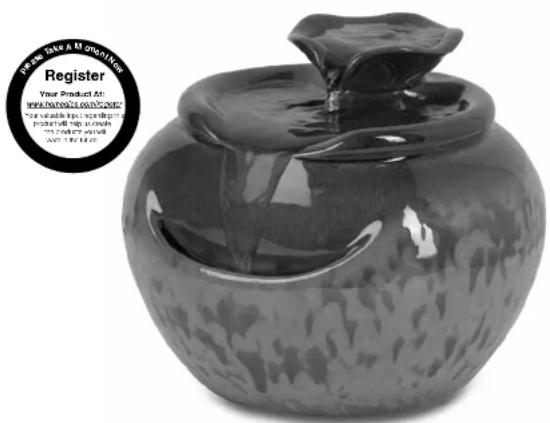

CERAMIC TABLETOP RELAXATION F O U N T A I N

enviraScape LILY

Distributed by

HOMEDICS

The soothing sounds of nature

Thank you for purchasing EnviraScape, HoMedics' tabletop relaxation fountain. This, like the entire HoMedics product line, is built with high-quality craftsmanship to provide you years of dependable service. We hope that you will find it to be the finest product of its kind.

EnviraScape enables you to create an all-encompassing environment with sound. The sound of flowing water enhances your environment by promoting relaxation. Only EnviraScape offers you the luxury of these vital benefits with its creative design which adds beauty to any indoor environment.

EnviraScape Features

• Innovative, artistic design enhances the environment at home or at work.
  • The soothing sound of cascading waters creates a stress free ambiance.
• Improves concentration by masking distractions so you can stay focused.
• Durable electrical water pump can be operated from any indoor electrical outlet.

IMPORTANT SAFETY INSTRUCTIONS:

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

DANGER

- To reduce the risk of electric shock:

• Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
- Do not reach for an appliance that has fallen into water. Unplug it immediately.
- Do not place or store appliance where it can fall or be pulled into a tub or sink.
- Do not place in or drop into water or other liquid.
- Do not connect to any voltage other than that shown on the pump
- Do not pump flammable liquids.
- Do not use water above 86 Fahrenheit.

CAUTION:

The pump must be completely sub-

merged in water.

If the

pump is making noises, most

likely it is not completely

submerged

in water.

CAUTION:

Only set the fountain and fountain parts on waterproof

surfaces

WARNING

-To reduce the risk of burns, fire, electric

shock or injury to persons:

• An appliance should never be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts or attachments.
• Close supervision is necessary when this appliance is used by or near children, invalids or disabled persons.
• Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by HoMedics; specifically any attachments not provided with the unit.
• Never operate this appliance if it has a damaged cord, plug, pump, cable or housing. If it is not working properly, if it has been dropped or damaged, return it to Homedics Service Center for examination and repair.
• Keep cord away from heated surfaces.
• Never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not carry this appliance by power cord or use cord as handle.
  • To disconnect, remove plug from outlet
  • This appliance is designed for indoor use only.
  Do not use outdoors.

SAVE THESE INSTRUCTIONS

Caution—Please read all instructions carefully before operating

• Never leave the appliance unattended, especially if children are present.
• Never cover the appliance when it is in operation.
• This unit should not be used by children without adult supervision.
• Connect the pump with the proper voltage as indicated on the pump label.
  • Always keep the cord away from high temperature and fire.
• Unplug the pump from power source before cleaning, maintenance or disassembling.
  • To get the best flowing effect, product must be placed on a flat surface and should never be placed on an electrical appliance.
• Never let pump run dry, as this will shorten life of the pump.
• Do not lift, carry, hang, or pull the pump by the power cord.
• Operate with tap or distilled water.

ASSEMBLY AND INSTRUCTIONS FOR USE

NOTE: Due to the natural beauty of glazed ceramics, every LILY will have its own unique coloration.

1. Unpack the product and place on a level surface.
2. Insert the tube into the pump (Fig. 2).
3. Attach the A/C adaptor jack to the base power cord. DO NOT plug into outlet at this time. (Fig. 3)
4. Fill the ceramic bowl with enough water to ensure the pump is fully submerged (Fig. 4).
5. Plug the cord into 120V household outlet. The switch located on the power cord controls the fountain. If pump doesn't operate, rotate in-line switch once to turn "on" and once more to turn "off". Monthly maintenance will add to your pump's life.

NOTE: Ensure that the electrical cord loops below the electrical outlet to form a 'Drip Loop' (Fig. 5). This will prevent water from running down the cord into the electrical outlet.

Fig. 1

Fig. 2

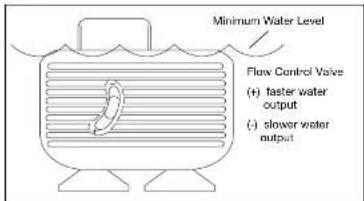

Attention:

In order to get

best results,

please operate pump complete submerged.

Keep the water

level above the

minimum water

level ALL THE TIME

TIME.

Fig. 3

Fig. 4

Fig. 5

MAINTENANCE:

1. To keep water clean:

Periodically change water and clean the product according to the water condition. Keeping the water clean prevents the water from becoming sticky and forming micro-organisms. We recommend distilled water to prevent mineral build-up.

1. To clean off hard water deposits on the base:

Use a mixture of vinegar and water to clean and remove any mineral build-up on the base and pump.

1. Keeping the water at an optimum level:

Add water periodically to keep water level at an optimum level and to avoid shortening the life of the pump. NOTE: Never let the pump run dry.

1. Fountain Storage

Unplug the fountain from the electrical outlet, empty the water, let the fountain dry completely, and store in a dry, cool place.

5 To clean the pump:

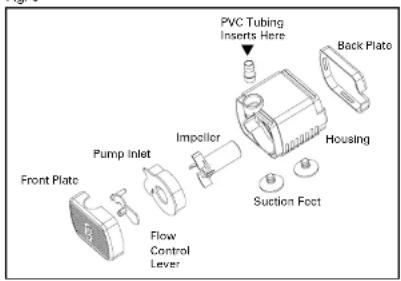

Unplug from electrical outlet. Remove it from the base of the fountain. Use a small brush or stream of water to remove any debris (Fig. 6)

Fig. 6

Caution:

All servicing of this fountain must be performed by authorized HoMardins service personnel only.

TROUBLESHOOTING

- If the pump fails to operate, check the following:

Check the circuit breaker, or try a different outlet to make sure the pump is getting electrical power. NOTE: Always disconnect from electrical outlet before handling the pump.

Check the pump discharge and tubing for kinks and obstructions. Algae build-up can be flushed out.

Remove the pump inlet to access the impeller area. Turn the rotor to ensure it is not broken or jammed.

NOTE: Monthly maintenance will add to your pump's life.

- If the pump gurgles, spews, or "burps":

Check the water level to make sure the pump has enough water to function.

- Obtaining a desired water level:

Check the water level daily the first week to measure the rate of evaporation; refill with water as needed.

NOTE: It is recommended the pump be set at its highest speed and later adjusted to a lower setting if desired. Be sure to unplug the pump before adjusting the speed setting.

Distributed by HOMEDICS®

Email: [e-mail]

Monday – Friday 8:30am – 7:00pm (EST)

1.800.466.3342

LIMITED ONE YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of one year from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HovMedics product, contact a consumer relations representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.

HoMedics does not authorize anye, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers. To obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse: accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair, or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFIDUS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTION IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or reassaled products, including but not limited to sale of such products on Internal auction sites and/or sales of such products by surplus or bulk vessels. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMetics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from country to country. Because of individual country regulations, some of the above limitations and exclusions may not apply to you. For more information regarding our product line in the USA, please visit: www.homodics.com

Distributed by HOMEDICS®
