USER MANUAL P400 AAXA Technologies

1080p FULL HD

User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause injury or death.

DO NOT use while driving

DO NOT expose to water or wet surfaces. Electric shock may occur

DO NOT expose the projected LED image to your eyes or the eyes of others

DO NOT block or restrict airflow from ventilation holes as this may cause the projector to overheat

Keep the projector, battery, or charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery with sharp objects
• Do not heat the product or expose it to high temperature.
• Do not wet it or place it in any liquid

Caution for Headphone Use

• Prolonged use at high volume may impair your hearing.
  • High volume during walking or driving may cause distractions and result in injury or death

Table of Contents

Chapter 1: P400 at a Glance

P400 Introduction 1

Keypad 2

Accessories 3

Chapter 2: Getting Started

Powering On / Off 4

Focus Adjustment / Throw

Distance 5

Connecting to Speaker or

Headphones 6

Loading External Content 7

Chapter 3: Menu Screens

Main Menu 10

Brightness Menu 11

Video Player Menu 12

Photo Menu 16

Connecting to Device via 20

Digital AV

Music Player Menu 23

Ebook Viewer 26

Chapter 4: Settings Menu

Picture Settings 28

Sound Settings 29

Option Settings 30

Chapter 5: Technical Details

Troubleshooting 31

Specifications 35

Notes 36

P400 at a Glance

Chapter 1

Main Unit

TF Card Slot

Power Switch

DC Port

P400 QQXQ TECHNOLOGIES

Digital AV Port

Focus Adjustment

Headphone Out

USB-A Port

Exterior view of a black rectangular electronic device labeled P400 with visible ports and ventilation grille (no readable text beyond branding)

Control Keypad

Cooling Fan

Navigation Pad

Volume Down Volume

Up OK Main Menu Navigation menu Exit/Back

The keypad can be used to navigate through the menus.

Accessories

Line drawing of a cable and plug assembly (no text or symbols)

Power Adapter

Black remote control interface with various function buttons and icons

Remote

*Under various circumstances, the actual accessories may be different from those shown in the pictures above.

Additional accessories are available for purchase at www.aaxatech.com

Getting Started

Chapter 2

Powering ON the projector

1. Connect the power cord to the P400.
2. Connect the other end of the power cord into the wall power source.
3. Toggle the On / Off switch on the side of the projector to the "ON" position - the projector should automatically turn on.

Powering OFF the projector

1. To turn off the projector, toggle the "Power Switch" to the "OFF" position. This will fully turn off the projector.

Focus Adjustment / Throw Distance

Throw Distance Chart

Throw DistanceUnits: Inches	Diagonal SizeUnits: Inches
20	32
30	48
40	64
50	80
60	96
70	112
80	128
90	144
100	160

DIAGONAL SCREEN SIZE 16:9 Aspect Ratio

Throw Ratio 0.7:1

Projection Angle: 100% Offset

*minimum throw distance: 6 inches

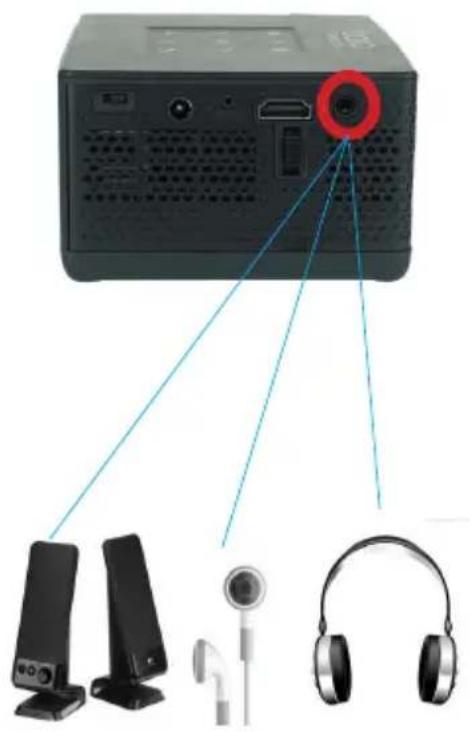

Connecting Speakers / Headphones

Diagram showing a computer monitor with a red circular button and three separate devices (no text or symbols visible)

Step 1: Connect your speakers/headphones to the projector's audio port.

Step 2: Ensure that the projector and/or the headphones are powered on.

Step 3: Place the headphones on and enjoy!

*CAUTION: Prolonged use of headphones at a high volume may impair hearing.

Loading External Content

The P400 can read files directly from both a TF Card and USB Drive.

Supported file types include: MP3 / WMA / OGG / WAV AVI / JPG / GIF/ BMP (up to 64 GB) (up to 64 GB)

Loading External Content Cont.

How to insert your USB Drive

• Slide your USB Drive into the USB port.
  • Gently slide the drive until it cannot go in any further.

Close-up of a black electronic device with two ventilation fans and a USB cable inserted, showing a red circular connector (no text or symbols visible)

(up to 64 GB)

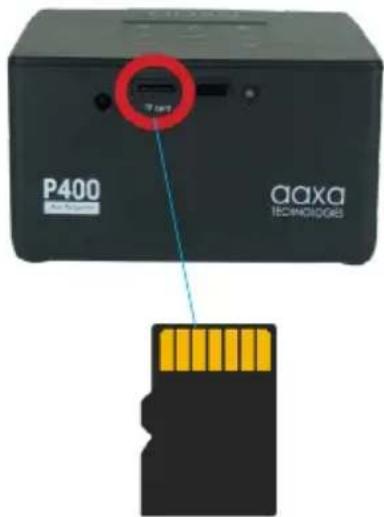

How to insert your TF Card

• Slide in your TF card into the TF card slot on the side of the P400 (as shown in picture).
  • Gently slide the TF card until it clicks into place.

P400 QAXA TECHNOLOGS

(up to 64 GB)

Loading External Content Cont.

Once your TF Card or USB Drive is inserted into the projector, the TF Card or USB Drive Storage will be loaded automatically and the content can be found through the Photos, Videos and Music icons located on the Main Menu, depending on the file type you wish to play. Loaded content can also be found through the Text icon, located within the Settings Menu.

The P400 features a built in PMP (Portable Media Player) function.

This function allows the projector to play videos, pictures, music files, and text directly from your connected devices.

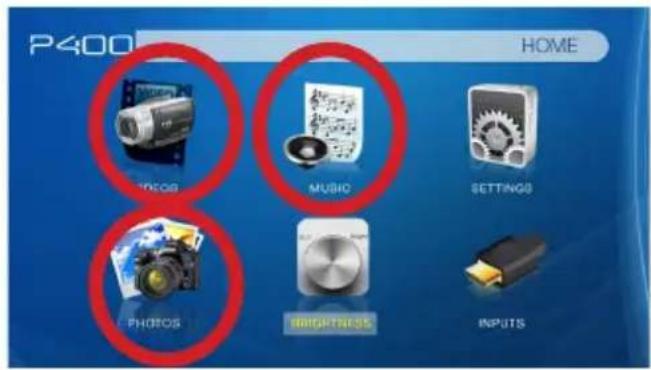

• Press the left and right directional buttons to choose an icon from the main menu.
• To select a menu option, press the "OK" button in the middle of the navigation pad.
• To go back to the previous screen, press the "Back" button.
• To return to the main menu, press the "Return" button twice.

Brightness Menu

To change the brightness on your P400:

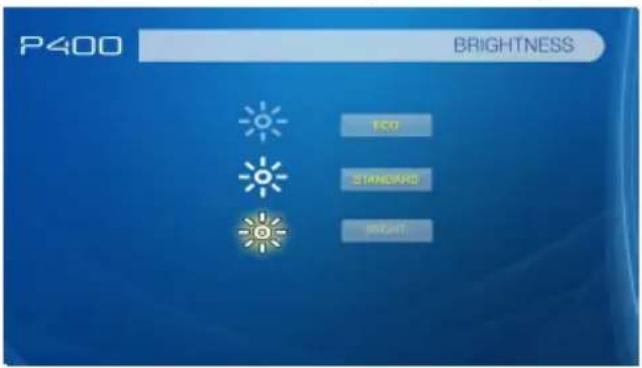

• Select the "Brightness" icon (Fig. 3.1)
• Select the brightness you wish (Fig. 3.2)
• Choose among Eco, Standard and Bright
• NOTE: Only Eco and Standard Mode are available when using off battery

P400 HOME VIDEOS MUSIC SETTINGS PHOTOS ECCDCNTICS INPUTS

P400 BRIGHTNESS ECO STANDARD RIGHT

Fig. 3.1 Fig. 3.2

Video Player Menu

Opening a file:

• Select the "Video" icon (Fig. 3.1).
• From the submenu (Fig. 3.2), select the storage media with the stored files.
• Choose which file you wish to play.

Fig. 3.3

P400 HOME VIDEO MUSIC SETTINGS PHOTOS PROGRESS INPUTS

Fig. 3.4

P400 DATA SOURCE BIG CADA USB

The P400 will show all folders and supported videos files you have on your USB or TF drive.

Video Player Menu

While Playing Videos

While playing videos, the volume is adjustable. Further controls are available in the video player submenu - which is accessed through the "OK" button.

*Review Specification section of this manual for supported video formats.

Volume Down Volume Up < OK > menu V ↗

Enter Video Player Submenu

- To open/hide the video playback menu, use the "OK" or "Down" Buttons on the projector or remote

Video Player Submenu

Playing Videos

The Video Player Submenu can be accessed by pressing "OK" during video playback. To exit the Video Player Submenu, press the "Back" button. To navigate the Playback Menu, use the directional buttons on the navigation pad to highlight the option you wish to choose (see fig. 3.5).

- To open/hide the video playback menu, use the "OK" and "Back" buttons on the projector.

< OK > menu V ↙

Move selection left

Move selection right

Confirm selection

Fig. 3.5

00:00:59 / 00:04:20 Pause FB FF Prev. Next Stop Aspect

Video Playback FAQ

How do I loop a video?

1. Choose either USB or TF Card for playback

1. Navigate the folders until you reach the file you wish to play.

2. Highlight the file you want to play, then confirm the selection.

3. Move selection on video player menu to "Repeat 1", and confirm the selection.

4. The video will now loop after playback is finished.

Photo Menu

Opening A File:

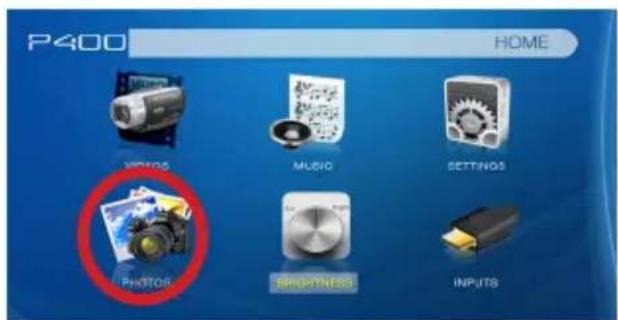

• Select the "Photo" icon (Fig. 3.4).
• From the submenu (Fig. 3.5), select the storage media with the stored files.
• Choose which file you wish to play.

Fig. 3.4

P400 DATA SOURCE PC No.1/2/3 USB

The P400 will show all folders and supported image files you have on your USB or TF Card drive.

Use the navigation buttons to select folders or files.

Photo Menu

While Viewing Pictures

While viewing pictures, further controls are available in the Photo Submenu - which is accessed through the "OK" button.

< OK > menu V S

Previous Picture

Next Picture

Enter Photo Player Submenu

- To open/hide the Photo Playback menu, use the "OK" and "Back" Buttons on the projector.

Photo Submenu

Viewing Pictures:

The Photo Submenu can be accessed by pressing "OK" during picture slide-show playback. To exit the Photo Submenu, press the "Back" button or wait 5 seconds. To navigate the playback menu, use the directional buttons on the navigation pad to highlight the option you wish to choose (Fig 3.6).

*Review Specification section of this manual for supported picture formats.

< OK > V

Move selection left

Move selection right

OK Confirm selection

Fig 3.8

00:00:59 / 00:04:20 II

Photo Slideshow FAQ

How do I play a slideshow?

1. Choose either USB or TF Card for playback

1. Navigate to the folder that contains the pictures you wish to view in the slideshow.
2. Confirm selection of the first picture.
3. Press "play" in the photo menu
4. Slideshow will now play.
5. NOTE: Selecting "Repeat All" will loop slideshow.

How do I manually control the slideshow?

1. After selecting the photo you wish to be displayed, you can press "play" to start the slideshow (as outlined in the previous FAQ).
2. To manually control the slideshow, you must stop the slideshow with the "pause" button.
3. You may use the navigation pad on the top of the projector to flip through the pictures in the current playlist.
4. You can change the SlideShow duration in the Settings Menu (Main Menu -> Settings -> Picture -> Slideshow Time)

Connecting to a Device via Digital AV

The P400 has a Digital AV port for ultimate connectivity flexibility. A digital AV cable is required to connect your P400 to your other device.

In the Main Menu

Select "INPUT" icon Connectivity to Multimedia Devices

P400 INPUT USB/AL AS

Select "Digital AV" icon

The P400 can connect to many media devices including: computers, laptops, iPhones, iPads, DVD players, smart phones, cameras, video game consoles and other peripherals with ease.

*Some smartphones & devices require video out capabilities and adapters to be displayed with the P400. Check with your phone manufacturer.

Connecting to Digital Video Input

Step 1:

Connect one end of the Digital AV Cable to your device's Digital AV port.

Step 2:

Connect the other end of the Digital AV Cable to your P400's Digital AV port.

Step 3:

In the Main Menu, select the "Digital AV" Icon. Your P400 should now be mirroring the content from your device.

Note:

If you're connecting to a computer or laptop and the projector does not automatically mirror it, read onto the next page for more information.

Connecting to a Computer Cont.

Step 4:

Enabling Digital Video output on your Computer – To enable Digital Video output on your computer most computers require “turning on” the video output feature. Each computer is different. Please consult your owner’s manual for instructions to enable Digital Video output. Below are standard instructions for a Windows 10 computer – not all systems are the same.

Step 5:

I O P K L : M < > / A1 B B

Press Windows+P to toggle through display settings. Select either "Duplicate" or "Extend" depending on your viewing option

*NOTE: different operating systems may differ

Step 6:

Scale and layout

Change the size of text, apps, and other items

100% (Recommended)

Custom scaling

Resolution

1920 × 1080

Orientation

Landscape

Multiple displays

Multiple displays

Duplicate these displays

1. Right click on computer desktop and select "Screen Resolution"

2. Display Properties window will pop up

3. If a secondary monitor is grayed out, click on it and select "Extend these displays" in the "Multiple Displays" drop down

4. If the image is blurry or the text is not legible, adjust the screen resolution. We recommend 1920x1080

Music Player Menu

Opening A File:

• Select the "Music" icon (Fig. 3.7).
• From the Submenu (Fig. 3.8), select the storage media with the stored files.
• Choose which file you wish to play.

Fig. 3.7

P400 HOME VIDEOS MUSIC SETTINGS PHOTOS GRAPINGS INPUTS

Fig. 3.8

P400 DATA SOURCE CMD CARD USB

The P400 will show all folders and supported audio files you have on your USB or TF Card drive.

Use the navigation buttons to select folders or files.

Music Player Menu

Listening To Audio:

To adjust the volume, use the left and right button on the projector or the volumes keys on the remote. To navigate the playback menu, push the "OK" button to open the menu and use the directional buttons on the navigation pad to highlight the option you wish to choose.

*Review Specification section of this manual for supported audio formats.

Volume Down Volume Up • To open/hide the music playerback menu, use the "OK" and "Back" button on the projector. Once the music playback menu is hidden, the left and right buttons OK Confirm selection

Fig 3.9

00:00:59 / 00:04:20 II

Music Playback FAQ

How do I loop a song?

1. Choose either USB or TF Card for playback

1. Navigate the folders until you reach the file you wish to play.
2. Highlight the file you want to play, then confirm the selection.
3. Move selection on music player menu to "Repeat 1," and confirm the selection.
4. The song will now loop after playback is finished.

How do I create a song playlist?

1. Insert your media device (either TF card or USB) into computer.
2. Make a new folder on media device (folder name will be the name of the playlist).
3. Transfer songs from computer to the new folder, name accordingly.
4. Remove media device from computer and insert into projector.
5. Navigate to Audio section, then choose appropriate media device.
6. Navigate to your playlist folder.
7. Start at first song.
8. Playback will follow each successive song on the list.

*To create a special order for the list, add numerical numbering to the beginning of each file.

E-Book Viewer Menu

Opening A File:

• The E-Book Viewer is located in the Setting's Menu
• Select the "Settings" Icon
• Select the "Text Viewer" icon (Fig. 3.10)
• Choose the file you wish to play.

P400 SETTINGS BRIGHTNESS SOUND ADVANCED PICTURE TEXT VIEWER

Fig. 3.10

The P400 will show all folders and supported text files you have on your USB or TF Drives.

Use the navigation buttons to select folders or files.

Viewing Text Files:

The P400 Micro Projector allows you to view text files. Select the file you want to view in the file menu for the particular storage device on which the file is stored. You can press the left and right arrow buttons on the directional pad or remote to flip through the pages you have in the present folder.

Note: Microsoft Office and PDF file formats are not supported. To view a slideshow convert your slideshow into JPEG pictures first.

Settings Menu

Chapter 4

The Settings Menu can be accessed by selecting "Setting" on the Main Menu

Within the settings menu, there are four more submenus that allow you to customize your P400 to the settings you want.


• Picture Mode
• Brightness
  • Color Temperature
• Aspect Ratio
• Slideshow time
• Screen
• Projection Direction
• Software Update

Sound

• Sound Mode
  • Balance
• Auto Volume
• Surround Sound

Option

• OSD Language
• Restore Factory Default
• Software Version

Text

Picture Settings

Picture Mode

• Changes the picture mode to different settings depending on your usage

Brightness

- Adjusts the brightness of the projection

Color Temperature

- Adjusts the color temperature from warm to cool (red to blue)

Aspect Ratio

- Changes the aspect ratio of the picture - Auto, 4:3, 16:9*, etc.

Slideshow time

- Adjusts the slideshow time

Projection Direction

• Flips the projected image

Software Update (USB)

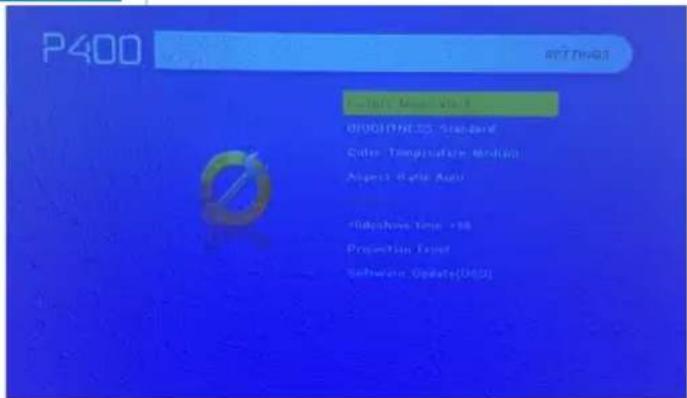

P400 CONTENTS Default Mode Visit OKOUT (Not OK) - Standard Color Temperature Method: Approx Color Angle Radiochange Time: +98 Projection Target Software Update(Units)

*Caution: Some pictures may be cut off when aspect ratio is set incorrectly

**Bright mode should only be used in low temperature environments with adequate clearance of exhaust / intake vents. DO NOT block vents while operating in Bright mode.

Sound Settings

Sound Mode Standard Balance +2 Auto Volume Off Surround Sound Off

Sound Mode

• Changes the sound mode depending on what is currently playing

Auto Volume

- Adjust volume automatically to avoid volume fluctuation

Balance

- Adjust sound balance

Surround Sound

- Adjust surround sound

Option Settings

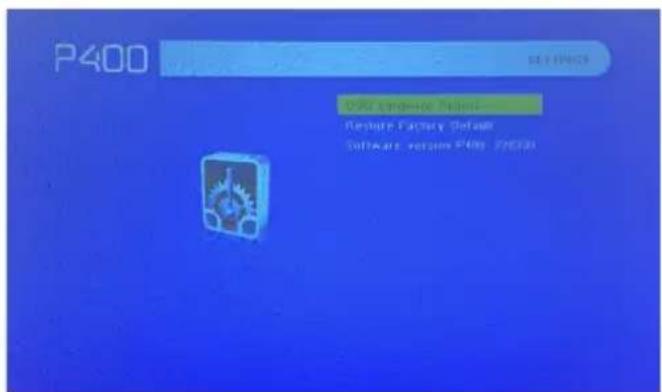

P400 OK Command Help Restore Factory Update Software version P400 27638

OSD Language

• Changes the language of the device. Options include English, Spanish, Chinese, German, French

- Restores the projector to factory settings

Software Version

- Current software version in use

Technical Details

Chapter 5

Troubleshooting

IMAGE IS BLURRED

Possible Causes Solution
The Projector is not in focus. Adjust the focus with the focus adjustment buttons on the remote control until the image comes into focus, or use the focus adjustment buttons on the side of the projector
The Projector is offset from plane / angle of operation.	Move the projector so that it is both 180 degrees and on an evern plane with the screen

NO SYNC, NO SIGNAL

1. Be sure to setup the computer to enable a video signal output. On some laptops this is done by pressing and holding Function F5 key. If using the P400 as an external monitor on Windows based systems, this can be done by selecting "extend my desktop to this monitor". The native resolution of the P400 projector is 1920x1080. Depending on the video driver different resolutions may need to be selected for proper output.

Technical Details

Troubleshooting

THE PROJECTOR DOES NOT TURN ON

Possible Causes Solution
There is no power. Check to ensure the power outlet	source is good.Check the power adapter to ensure a proper connection with the wall outlet as well as the projector.Confirm that the unit is charged and has enough power
Cannot power on the projector To power on the projector	vector, toggle in the PowerSwitch on the side of the unit to “ON”. Make sure to check if the projector is charged when not connecting to a power source.

NO PICTURE / FILE NOT SUPPORTED

Possible Causes Solution
The video source is not properly connected or selected	Check the video source signal to ensure that it is properly connected. Select the current input source by choosing the input desired from the main menu
Incorrect file extension / Video is encoded with incorrect codec	Please refer to “Specifications” page to see which file types and codex are supported. Verify that the file was encoded properly.

Technical Details

Troubleshooting

I can't screen mirror my iOS smartphone

Possible Causes Solution
(For wired connection) Incorrect cables or connectors	To connect your iOS devices to the P400, please use the Official Apple Lightning to Digital AV Adapter and connect via the Digital AV port.
You're not in that “Input Source” Menu After connecting your phone to the P400 projector, in the Home menu, select “Input Source”. In the Input Source menu, select “Digital Input”. Make sure to unlock your iOS device and choose “Trust this computer”.

Technical Details

Troubleshooting

Projector not charging

Possible Causes Solution
There is no power. Check to ensure the power outlet	source is good.Check the power adapter to ensure a proper connection with the wall outlet as well as the projector.
The projector is not set to the “OFF” Mode. Connect	the power cord to the P400. Connect the other end of the power cord into the wall power source. Toggle the “On/ Off” switch to the “OFF” Position.When the projector is fully charged, the LED light on the side of the projector will turn green. Allow approximately 3-4 hours to fully charge the the projector.

无门

Close-up of a black electronic device with a button and control buttons (no readable text or symbols)

Specifications

Brightnes (Boost):

Native Resolution:

Contrast Ratio:

Aspect Ratio:

Projection Lens: Image

Size:

Lightsource:

Color:

Video In:

Audio Output:

Throw Ratio:

TF Card:

USB:

Dimensions:

Weight:

Supported File Formats:

Battery Runtime (Eco):

Power Consumption:

USB Output:

Language:

400 LED Lumens

1920x1080 (1080P)

1000:1

16:9

Manual Focus

10 - 180 inches

LUMINUS 30,000 Hour LEDs

Black/Gray

Digital AV (Compatible with Full Size HDMI™)

2W High-Low Frequency Speaker, 3.5 mm Audio Jack

0.7:1 (Short Throw)

TF Card Slot (64GB maximum)

USB 2.0 (Full Size - 64GB maximum)

4.5" x 4" x 2.3"

19.8 oz

MP3, WMA, OGG, WAV, JPG, AVI, BMP, GIF, JPG, TXT

2 Hours

34 Watts

5V 1A (5 Watts)

English, Spanish, French, German, Italian, Chinese

Notes

aaxa

TECHNOLOGIES

Three glossy spheres (red, blue, green) arranged horizontally on a white background (no text or symbols)

Please direct all customer service inquiries to:

AAXA Technologies, Inc.

17781 Sky Park Cir., Suite #F

Irvine, CA 92614

[phone]

[e-mail]
