USER MANUAL V-CF761HAY LG

Model	V-CF761HAY.CAEPLGT
Language	English+Chinese
Page	32	Color(cover/body)	4/2
Material	Weight 100g	Size(W*H)	150 x 220(mm)
Date	2009.11.10	Designer	Liwei Wang
Part No.	MFL62558834	Description	Owner's manual

Chage Record

	Change content	ECO No.	eta	Designer	Confirm
1
2
3
4
5
6
7
8
9

使用说明书

Interior view of a hotel room with a person in white robe standing by a window overlooking a cityscape and greenery (no visible text or symbols)

吸尘器

强劲吸力

V-CF761HAY

English → Page 19-34

售后服务电话

Illustration showing a plastic bottle emitting smoke next to a vacuum cleaner, with no visible text or symbols.

Illustration of a girl waving with a cable to her ear (no text or symbols)

警告

Line drawing of a vacuum cleaner with handle and control arm (no text or symbols)

Illustration of a tube with three tubes emitting smoke or vapor (no text or symbols)

Cartoon illustration of a smiling robot waving while standing beside a faucet (no text or symbols)

Illustration of a cartoon-style vacuum cleaner with a pointer and motion lines (no text or symbols)

警告

Illustration of a vacuum cleaner connected to a power outlet (no text or symbols)

Line drawing of a vacuum cleaner with a hand operating the valve (no text or symbols)

Illustration of a woman kneeling beside a baby washing a vacuum cleaner (no text or symbols present)

Illustration of a cartoon vacuum cleaner next to a pink door with a no-smoking symbol (no text or labels)

Illustration of a vacuum cleaner connected to a pink bottle (no text or symbols present)

Illustration of a vacuum cleaner connected to a small cup on a small table, with no text or symbols present.

Illustration of a woman pouring liquid from a bucket into a pot next to a vacuum cleaner (no text or symbols present)

Illustration of a girl waving next to a vacuum cleaner (no text or symbols present)

部分名称与连接方法

Illustration showing two steps of a robotic arm performing a task: adding a pink chair to the seat and using a lamp to press a small object (no text or symbols present)

Line drawing of a handheld electric shaver with a probe inserted (no text or symbols)

Illustration of a hand using a pen to apply material to a pink object on a chair (no text or symbols)

Line drawing of a mop handle assembly with a circular detail (no text or symbols)

清洁

① 用尖吸嘴清洁

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

使用

Diagram of a mechanical component with rotation arrows indicating motion (no text or symbols)

② 用棉质抹布擦拭

Line drawing of a hand holding a mechanical device with a handle and lever (no text or symbols)

震动刷头使用方法与清洗方法

震动刷头使用方法

请按图示使用

组合

Illustration of a hand handle assembly with no text or symbols on the diagram itself

最佳效果清扫方法

- 床、床褥、厚棉被

Illustration of a document with arrows indicating direction and a pen-like object attached to it, suggesting writing or editing.

使用

Illustration of a hand holding a pen or stylus above a blank sheet with directional arrows (no text or symbols)

地毯

Technical line drawing of a mechanical or electronic component with no visible text or symbols

注意:

Illustration of a foot using a tool to lift a wooden object, with an arrow pointing to a pink rectangular object (no text or symbols present)

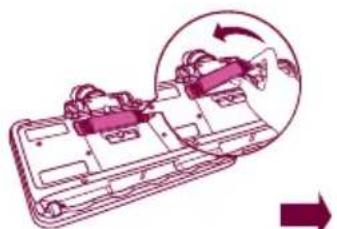

不加抹布时，抹布刷头使用方法

Illustration of a medical device with a circular overlay and internal components (no text or symbols)

Illustration of a vehicle front panel with no visible text or symbols

Technical line drawing of a mechanical component or housing (no text or symbols)

Illustration of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Line drawing of a soldering iron being inserted into a plastic tray (no text or symbols)

集尘桶的拆卸/清理方法

Line drawing of a hand holding a vacuum cleaner with a handle and arrow indicating rotation (no text or symbols)

Illustration of hands assembling or opening a device with a curved arrow indicating rotation (no text or symbols)

手握集尘桶盖子上的小把手，打开集尘桶。

Illustration of two plastic waste bins with pink waste falling into a trash bin (no text or symbols)

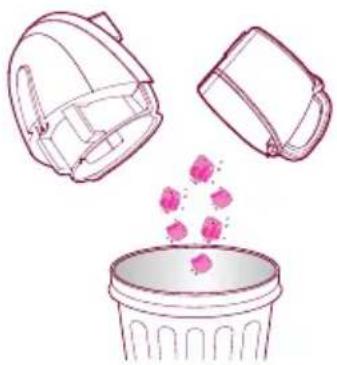

倒掉灰尘

灰尘分离器的清理方法

Diagram of a mechanical component with an eye icon and a downward arrow, no text or symbols present

检查灰尘分离器内部是否有灰尘。

Illustration of a hand holding a mesh component, with a purple arrow indicating direction (no text or symbols)

握住灰尘分离器盖的手柄拆卸盖子。

Illustration of a trash bin with a bucket containing pink waste (no text or symbols)

倒掉灰尘。

Illustration of a pink mechanical component with a central cylindrical feature (no text or symbols)

堵住灰尘分离器盖的小孔，抖掉灰尘。

清洗方法

Line drawing of a spray gun pouring liquid into a bucket and a mug, with no text or symbols present.

Illustration of kitchen utensils and a cup arranged in a circular frame (no text or symbols)

Illustration of hands using a device to adjust or install a component, with no visible text or symbols.

Illustration of hands holding a cup with a lid and a downward arrow indicating compression (no text or symbols)

② 安装灰尘分离器和集尘桶。

Line drawing of a hand holding a vacuum cleaner with a purple arrow indicating the handle (no text or symbols present)

③ 将集尘桶安装在吸尘器上。

Line drawing of a hand holding a vacuum cleaner with a pink arrow indicating left motion (no text or symbols)

一手按住主机盖按钮，另一手取下集尘桶。

Line drawing of a vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

Line drawing of a hand holding a camera lens (no text or symbols)

3 打开电机保护过滤器。

Illustration of a hand holding a keyboard and a pink notebook, with arrows indicating motion (no text or symbols)

4 取出过滤海绵。

清洗方法

Illustration of a faucet pouring liquid into a container with a tool nearby (no text or symbols)

1 冲洗干净

Illustration of a hand cleaning a pink plastic sheet with a battery and a handheld device (no text or symbols)

2 彻底去除水分

Illustration of a pink circular background with three overlapping geometric shapes: a pink rectangle, a white rectangular prism, and a white pen (no text or symbols)

Illustration of a pen and pencil being inserted into a pink notebook, with arrows indicating the process (no text or symbols)

1 将电机保护过滤器装入过滤器外壳内。

② 盖上过滤器盖。

Line drawing of a vacuum cleaner device (no text or symbols)

③ 将组装好的过滤器放入安装部位。

Line drawing of a hand holding a vacuum cleaner's device with a red arrow indicating motion (no text or symbols)

4 装入集尘桶。

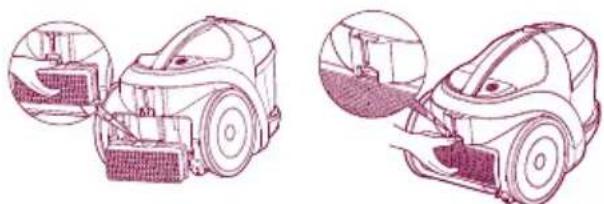

拆卸方法

Illustration of a hand pouring granular material into a container (no text or symbols)

安装方法

Technical line drawings of a robotic car with internal components and structural details (no text or symbols)

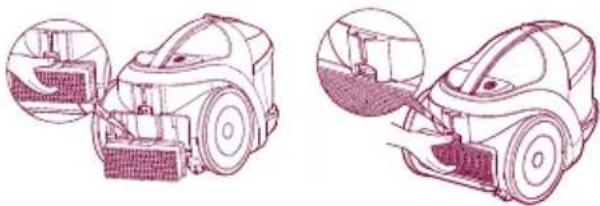

1 抖动排气过滤器进行清洁。

Illustration of a cartoon character with pink hair and rosy cheeks, enclosed in a circular frame (no text or symbols)

使用吸尘器后的保管方法

卷线器按钮

Illustration of a vacuum cleaner with attached arm and seat, showing mechanical components and a close-up inset (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and wheels, showing internal components and mounting features (no text or symbols)

Line drawing of a hand holding a device with a purple arrow indicating left motion (no text or symbols)

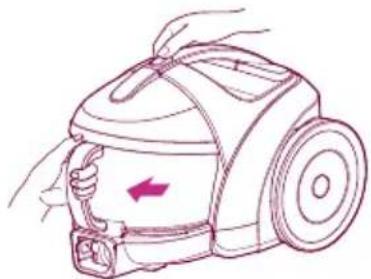

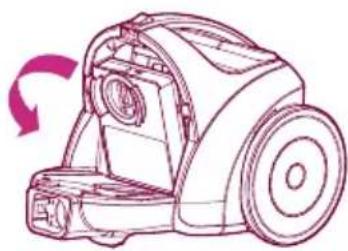

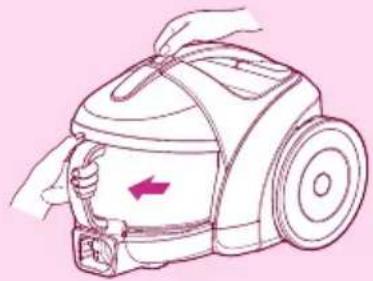

一手按住主机盖按钮，另一手取下集尘桶。

Line drawing of a vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

Line drawing of a hand holding a camera lens (no text or symbols)

③ 打开电机保护过滤器。

Illustration of a hand holding a pen and a notebook, with arrows indicating motion (no text or symbols)

4 取出过滤海绵。

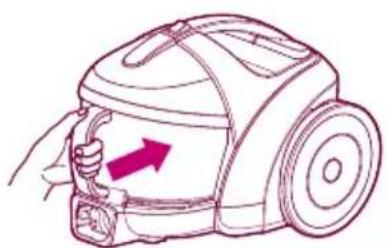

清洗方法
(用凉水清洗)

Illustration of a faucet pouring liquid into a container with a smaller handle (no text or symbols)

1 冲洗干净

Illustration of a hand cleaning a pink cloth, holding a paper, and cleaning a smartphone (no text or symbols present)

2 彻底去除水分

Illustration of a pink and white object with a pink rectangle, enclosed in a pink circle (no text or symbols)

Product specifications 19

Attention before using the appliance 20\~21

Assembling and adjusting the Cleaner 22

Parts description and assembly

Accessories

Using the Accessories, Elbow Tube 23

Using Dust Brush & Upholstery Nozzle

Using and cleaning the Corner nozzle 24

Using the Corner nozzle

Cleaning the Corner nozzle

Using and cleaning the Sani Punch 25

Using the Sani Punch

Cleaning the Sani Punch

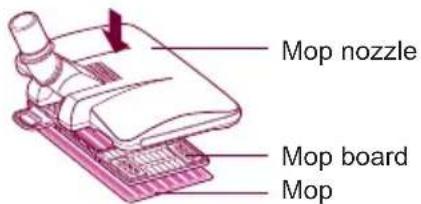

Using the Mop and Mop Nozzle 26

How to separate or empty the dust box 27

How to empty the dust separator

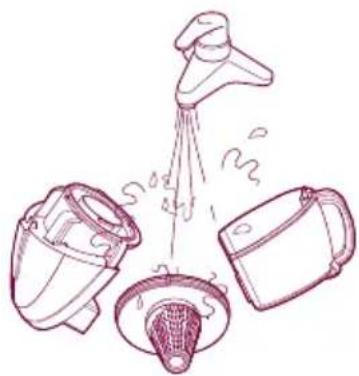

How to clean and assemble the dust box

and separator 28

Cleaning

Assembling

How to separate, clean and assemble the

protection filter of the motor 29

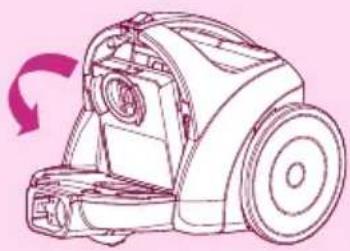

Disassembling

Cleansing

How to separate, clean and assemble exhaust filter 30

Disassembling

Cleansing

Assembling

Check before reporting the trouble 31

If you have a problem 32\~33

Packing List 34

Product specifications

267 256 397

Model: V-CF761HAY

220V\~50Hz

IEC: 1400W

MAX: 1600W

Suction Power: 400W

Net Weight: 4.5Kg

Dust Capacity: 1.2L

Dimension: 256mm x 397mm x 267mm

This appliance complies with the

following GB Directives:

GB4706.1-2005

GB4706.7-2004

GB17625.1-2003

GB4343.1-2009

※ You will not be informed otherwise of any changes in appearance and standard deriving for improvement of product quality.

Attention before using the appliance

Please read all the following information, which contains important instructions for the safety, the use of the appliance.

DANGER

May immediately cause serious injury or death.

WARNING

May possibly cause serious injury or death.

ATTENTION

May possibly cause losses of property or light injury.

DANGER

Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

Illustration showing a bottle emitting a flame next to a cartoon vacuum cleaner, with no visible text or symbols.

Please turn off the power before pulling out the plug to prevent fire or electric shock. Never handle plug or appliance with wet hands. (Do not use the appliance on the power above 220V.)

Illustration of a girl holding a phone with a no-smoking symbol (no text or numbers present)

WARNING

Avoid picking up hard, sharp objects with the cleaner. They may damage the cleaner and the tank.

Do not vacuum the objects like hair ball or big paper ball, otherwise the hose is possibly blocked up. Please clear the hose in time when it is blocked.

Line drawing of a vacuum cleaner with handle and clasp (no text or symbols)

Independently use a socket when the current is ≥15A. It may cause fire when many electric appliances share one socket. In order to avoid the needless danger, you had better not use the prolonged thread of power cord. The current at most 6A is allowed

per cord. lowed

To avoid the danger of fire or electric shock, do not vacuum liquid, blade, flammable substances, or small particles like cement and gesso in cleaning.

no in cleaning.

Unplug cleaner when not in use. Turn off all controls before unplugging.

Illustration of a cartoon vacuum cleaner holding a tool, with no visible text or symbols

Attention before using the appliance

WARNING

Do not let the power cord near the electric heater or other heat source, lest that the cleaner should be deformed or it should cause fire. Do not use the appliance when the power cord or plug is damaged. The damaged power cord or plug must be replaced in the approved service station.

Illustration of a car connected to a power outlet (no text or symbols)

Close supervision is necessary when any appliance is used by or near children. Do not allow vacuum cleaner to be used as a toy or to run unattended at any time.

Do not operate the appliance for long when the nozzle inlet or nozzle outlet is blocked, which may have it deformed or damaged.

Line drawing of a vacuum cleaner with handle and hose (no text or symbols)

In using the appliance, pay attention to the electrostatic effect generated on the telescopic tube and cleaner body.

Line drawing of a vacuum cleaner with motion lines indicating airflow or vibration (no text or symbols)

ATTENTION

Do not allow the non-professional maintenance people to repair.

Illustration of a girl kneeling beside a cartoon-style vacuum cleaner (no text or symbols present)

Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

Illustration of a cartoon-style vacuum cleaner inside a room with a door (no text or symbols)

In winding the power cord, hold the plug before pressing the button of the cord reel. Do not pull the power cord beyond the red warning line, other wise the power cord may be damaged or unable to be wound up. Pay attention to the plug in winding the cord to avoid damaging the surrounding objects.

Illustration of a vacuum cleaner connected to a pink vase with tubing (no text or symbols)

Do not bend, stamp on, or drag the hose. Do not continue to use the hose if it is damaged.

Do not use any heavy or sharp object to press the power cord.

Illustration of a vacuum cleaner operating a small table with a pink object, no text or symbols present

Do not use without dust tank or filters in place. Change tank frequently when picking up very fine materials such as powder.

Illustration of a girl pouring liquid from a container (no text or symbols)

Line drawing of a vacuum cleaner (no text or symbols)

Keep hair, loose clothing, fingers, feet and all parts of body away from the nozzle or movable portion.

Line drawing of a vacuum cleaner (no text or symbols)

Parts description and assembly

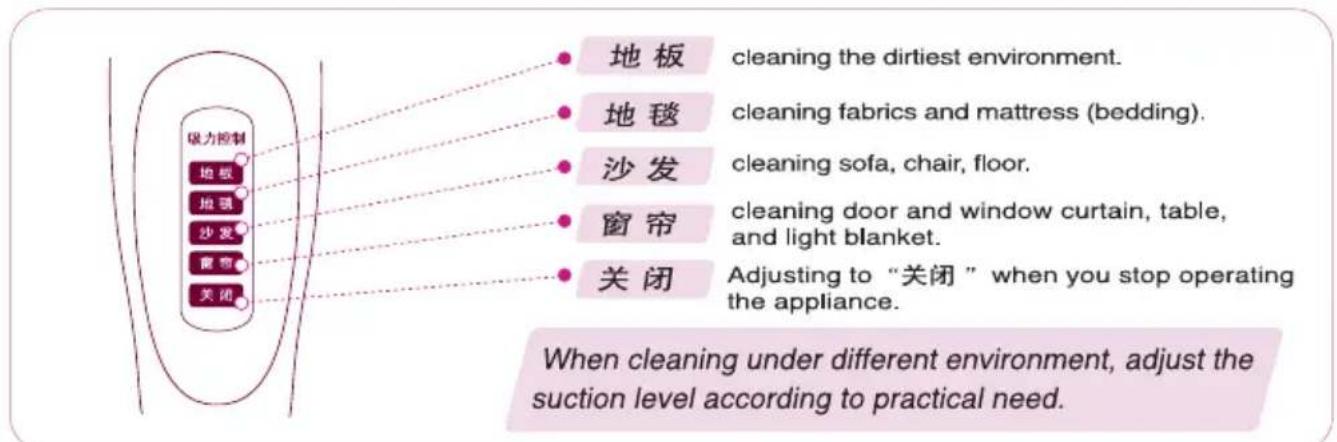

吸力控制 地板 地毯 沙发 窗帘 关闭 地板 cleaning the dirtiest environment. 地毯 cleaning fabrics and mattress (bedding). 沙发 cleaning sofa, chair, floor. 窗帘 cleaning door and window curtain, table, and light blanket. 关闭 Adjusting to “关闭” when you stop operating the appliance. When cleaning under different environment, adjust the suction level according to practical need.

Control button Telescopic tube Flexible Hose Cord winding Button

Accessories • Upholstery Nozzle • Dusting Brush • Crevice Tool • Corner Nozzle • Mop Nozzle Hose • Telescopic Tube Sani punch

Using the Accessories, Elbow Tube

Using Dust Brush & Upholstery Nozzle

▶ Tear the vinyl bag and pull out accessories.

Use it as shown in the diagram

Using method

Nozzle, Crevice can be used for cleaning the place hard to reach.

Illustration showing two steps of a pink toilet seat and lamp installation (no text or symbols)

Nozzle, Crevice

Line drawing of a handheld medical device with a bulb and connector (no text or symbols)

Illustration of a pink car seat being held by a hand using a tool (no text or symbols)

Nozzle, Crevice can be used for cleaning the place hard to reach.

Using and cleaning the Corner nozzle

Using corner nozzle

Assembling

Corner nozzle can be used to clean common floor, also can be used to clean corner when be puckered.

Line drawing of a mop being inserted into a base, showing the handle and base plate (no text or symbols)

Cleaning

1 Use crevice tool to clean

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Using

Corner nozzle makes you more convenient to clean corner and small space.

Illustration of a mechanical component with rotational arrows indicating motion (no text or symbols)

2 Use calico dishcloth to clean

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Using and cleaning the Sani Punch

Using the Sani Punch

Use it as shown in the diagram

Assembling

Line drawing of a connector with attached cable (no text or symbols)

Connect to Hose

Effective cleaning

• bed, bedding, heavy blanket

Illustration of a pen writing on a scroll with directional arrows (no text or symbols)

Using

Set the suction power control switch to "地毯" before vacuuming. Depending on the type of bedding, handing may be awkward or it may cause a lot of noise.

If this is the case, adjust the suction power control switch to a lower setting.

• Light blanket & sheet

Illustration of a clipboard with arrows indicating movement, no text or symbols present

To increase cleaning efficiency for light blankets, lay on top of a bulky blanket and then clean.

• If the punch bar does not move, lift the nozzle slightly off the surface.
• If it does not move, even after doing this, check if the suction power is too low or if the nozzle base is clogged with a foreign object.
  • This Sani Punch nozzle is for effective cleaning of beds and blankets to remove mites and dust.

Cleaning the Sani Punch

The vibrator may break down due to the cleansing of the inhaler with water.

If the dust settles in the box while cleaning, press the button 2 or 3 times. (It will remove most of the dust.)

2 After the cleaning, if there are lots of dusts in the box, separate the box from the inhaler by turning it anticlockwise.

3 Empty the box.

4 Aim at the Spiral, Fix the box into the inhaler by turning it clockwise.

Separate the bottom plate by pressing the buttons in the back.

6 Clean the dirty body of the inhaler carefully with a cloth.

7 Wash the separated bottom plate and dry it in the shade.

8 Arrange the vibrator in order.

9 Insert the joining spiral into the groove.

10 Attach the bottom plate properly by pressing down.

Using the Mop and Mop Nozzle

Using the Mop

When using the mop nozzle, please dry it first.
▶ Always using special mop of LG.
▶ Attach the mop to the bottom of the nozzle with the white surface upturned.
When drying the mop in washing machine, set it to the weakest mode.
▶ Please see the installation diagram of mop board on the right if we use mop nozzle instead of mop.

Technical line drawing of a mechanical device with no visible text or symbols

NOTE: It will be electrical danger when using the mop with excess moisture, and will be harmful to the cleaner.

The mop can not be fixed when it deviates from the fixing place. Mind that do not block the dust suction inlet when fixing the mop.

Using the Mop Nozzle

▶ Depending on different condition, connect or disconnect the mop.

Connecting method

1. Fix the mop according to the method showed on the diagram.

1. After the mop nozzle matches with the mop board, connect the mop nozzle from the top down. When you hear a sound of Ta Ta, it means the connection is ok.

Mop nozzle Mop board Mop

Disconnecting method

1. Disconnect the mop board according to method showed below, and then take down the mop.

Illustration of a foot using a tool to press or install a pink plastic component (no text or symbols visible)

Use method of mop nozzle when the mop is not attached

Illustration of a pink circular device with ventilation slots and a central hub (no text or symbols)

To protect the attaching location of mop, it is recommend connect the mop nozzle according to the left diagram when mop is not used.

Illustration of a pink plastic device with X-shaped metal cross (no text or symbols)

When the mop is not used, you couldn't use the method showed on the left diagram. If not, the mop nozzle will damage the attaching location of mop.

Please clean the mop and mop nozzle as the following diagram.

How to separate or empty the dust box

Warning:

• Empty the box when the dust settles up to the MAX line.
• Too much dust beyond this line may reduce the inhaling power.
• Dust box should be cleaned at least once per 3 months.

Line drawing of a hand holding a vacuum cleaner with a handle, showing mechanical components and a red arrow indicating motion (no text or symbols)

Detach the dust tank when press the button.

Illustration of hands assembling or holding a device with a curved arrow indicating rotation (no text or symbols)

Uncover the dust tank cover by holding its handles.

Illustration of two containers with plastic cups pouring pink paper into a trash bin (no text or symbols)

Empty the dust tank.

How to empty the dust separator

Warning:

• Check the inside of the dust separator when cleaning the dust box.
• Clean the inside of the dust separator, because too much foreign substance such as waste paper or plastic in the dust separator may reduce the inhaling power.
  • Dust separator should be cleaned at least once per 3 months.

Diagram of a medical device with an eye symbol and arrow pointing to it (no text or labels)

Check if the dust has settled in the dust separator.

Hand holding a mechanical component with a red arrow indicating direction (no text or symbols)

Separate the cover by holding its handle.

Illustration of a trash bin with a hand pouring liquid into it (no text or symbols)

Empty the separator.

Illustration of a pink, spiral-shaped object with internal cavity (no text or symbols)

Remove the dust from the small holes cover of the separator.

How to clean and assemble the dust box and separator

Cleaning

Illustration of three kitchen buckets with a water spray from a bucket (no text or symbols)

• Cleanse the dust box, separator and its cover with running water.

Illustration of three kitchen utensils inside a pink circular frame (no text or symbols)

• Dry them in the well-ventilated shade for a day before using.

Assembling

Illustration of a hand holding a mechanical component with a magnified inset showing internal structure (no text or symbols)

1 Attach the cover by inserting the spiral in the cover into the groove.

Illustration of hands holding a cup with a lid and handle, showing a downward arrow (no text or symbols)

② Assemble the dust separator and box.

Line drawing of a hand holding a vacuum cleaner with a purple arrow indicating motion (no text or symbols)

3 Attach the assembled dust box to the body of the cleaner.

Warning: • Do not push the button when you carry the vacuum cleaner. If push the button, it is easy to detach the dust tank from the vacuum cleaner
- If you use the cleaner without assembling the cover of the dust separator, it will increase the noise and reduce the inhaling power when cleaning. So check the assembling once again.

How to separate, clean and assemble the protection filter of the motor

Disassembling

Line drawing of a hand holding a vacuum cleaner with a purple arrow indicating left motion (no text or symbols)

1 Detach the dust tank when press the button.

Line drawing of a vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

2 Detach the protection filter of the motor from the body after disassembling the dust box.

Line drawing of a hand holding a camera lens (no text or symbols)

3 Separate it from the filter cover.

Illustration of a hand holding a pencil and erasing a pink notebook with arrows indicating motion (no text or symbols)

4 Detach the filter.

Cleansing

Illustration of a faucet pouring liquid into a container with a lid, showing mechanical components (no text or symbols)

1 Clean with running water.

Illustration of a hand cleaning a pink cloth, holding a paper and a battery, with another hand holding a pink plastic sheet (no text or symbols)

② Remove the water completely.

Illustration of three electronic devices in a pink circular frame (no text or symbols)

3 Dry in the well-ventilated shade for a day before using.

Warning: • Assembling is done in reverse order of disassembling.

- If you use the cleaner without assembling the protection filter of the motor, noise increases and dust gets into the motor when cleaning, thus leading to the shorter life of the cleaner. So check the assembling once again.

Illustration of a pink notebook being handled with a pencil, showing step-by-step assembly (no text or symbols)

1 Put the filter into the case.

2 Cover the filter.

Line drawing of a vacuum cleaner device (no text or symbols)

3 Fix the assembled filter.

Line drawing of a hand using a vacuum cleaner to lift a component (no text or symbols)

4 Assemble the dust tank.

How to separate, clean and assemble exhaust filter

Disassembling

The exhaust filter should be cleaned at least once half a year. Allow exhaust filter to dry in a shaded location for a dry.

Cover button of the exhaust filter

Cover of the exhaust filter

Exhaust filter button Exhaust filter

Assembling

Cleansing

Illustration of a hand placing a plastic bag onto a trash bin with scattered debris (no text or symbols)

Technical line drawings of a robotic vacuum cleaner with internal components and mounting brackets (no text or symbols)

1 Shake off the exhaust filter.

2 Insert the exhaust filter and join the cover properly until you hear the click of the button.

Illustration of a cartoon girl with pink hair and a smiling face, enclosed in a pink circular frame (no text or symbols)

How to keep the cleaner after using

Cord winding button

Illustration of a vacuum cleaner with attached arm and seat, showing mechanical components and a close-up inset (no text or symbols)

Diagram of a vacuum cleaner with labeled parts and zoomed-in detail view showing mechanical components

• The cord winds up when you press the button.
- Insert the spiral of the inhaler into the groove in the back or at the bottom of the body

Check before reporting the trouble

You won't be happy to waste money by calling for service when there is no trouble with the cleaner. Here is good advice to follow for trouble shooting before calling for service. Read the instructions carefully, and you can remove the trouble by yourself.

If inhaling is not well done?

Stage 1

Check if the control button of the inhaling power has been put to "MAX".

Stage 2

Clean the protection filter of the motor.

Disassembling

Line drawing of a hand holding a device with a purple arrow pointing to it, against a pink background (no text or symbols)

1 Uncover the body by pressing the button of the cover.

Line drawing of a hand holding a camera lens (no text or symbols)

Separate the filter from the cover by holding the handle of the case.

Line drawing of a vacuum cleaner with a circular head and wheels, showing rotational motion (no text or symbols)

2 Detach the protection filter of the motor from the body after disassembling the dust box.

Illustration of a hand holding a pen and a notebook with arrows indicating motion (no text or symbols)

4 Detach the protection filter of the motor.

Cleansing (with cold water)

Illustration of a hand pouring liquid into a container with a water tap, and another container partially submerged in pink liquid (no text or symbols)

1 Cleanse it with running water.

Illustration of hands holding a pink plastic sheet, next to a battery and a magnifying glass (no text or symbols)

2 Remove the water completely.

Illustration of three electronic devices in a pink circular frame (no text or symbols)

3 Dry it in the well-ventilated shade for a day before using.

If you have a problem

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the check list below.

Problem:

The noise increases and the hose shrink. Suction power is abruptly weakened.

Help:

Check the dust tank and suction inlet.

Solution

1 Dust tank full. (Arrive at MAX line) Empty dust tank.

② Motor filter dirty.

Clean the motor filter with brush and water, allow to dry and replace in cleaner.

Is it full? Empty the dust tank in time!

Is the filter OK? Then check the suction inlet.

3 When checking the suction inlet, adjust the suction level to the maximum.

First step

Turn cleaner off and disconnect from electrical outlet, then disconnect nozzle from telescopic tube. Check if it is blocked, and remove any blockages.

Third step

Plug cleaner in, turn on, and check hose end for suction. Remove any obstructions.

If there is still a problem, proceed the second step.

Illustration of a mop with a magnified view showing the handle (no text or symbols)

Second step

Disconnect the telescopic tube from hose. Check if it is blocked, and remove any blockages.

If there is still a problem, proceed the third step.

ck and

If there is also a problem, clean the filter.

Please check before notifying malfunction

If you doubt the product meets with malfunction, please check the cause of such malfunction before contacting with the after-sales service center or agent, so as to ensure efficiency of repair.

Malfunction

The vacuum does not work?

The vacuum does not work?

Cartoon illustration of a character with arms raised, next to a vehicle (no text or symbols)

Peculiar smell exists inside the vacuum cleaner

The power cord can not be scrolled thoroughly into the vacuum cleaner or the power cord can not be fully pulled.

The vacuum cleaner or the discharged air is too heat.

Inner wall of the hose is too dirt.

Check

• Is the plug inserted?
• Is the socket powered on?
- If the hose inserted?
- If the motor heat protection opened?

Troubleshooting

• Insert the plug tight (This product is applicable for 220V)
• Verify the power of socket is on
• Insert the hose tight

• Restart in 2 hours

• When the vacuum cleaner's suction is too large or the motor is under high speed running, they do not belong to the abnormal conditions. So, please use the vacuum cleaner properly.

• If it is the noise rather than the normal motor sound, please phone the repair center.
  • The duster collector is filled up.
  • The filter is clogged.
  • Suction inlet is jammed.
• Drawtube is clogged
• Hose is clogged.
  • Clean out the dust collector.
• Purge the sponge filter with water and air-dry in the shady and cool place for one day.
  • Take out the sucked objects before use.
  Take out the objects inside the drawtube before use.

• Take out the objects inside the hose before use.

• When the motor is running, the rubber band used for fixing the motor will produce a little smell due to the heat, but it will not affect the operation or damage the machine.

• When the machine sucks some water accidentally or the dust collector is not cleaned for a long period of time, the peculiar smell will be produced. So, clean up the dust collector timely.

• Pull out part of the power cord and then re-scroll it.

• Please put forth your strength to pull out the power cord, which will not be damaged.
• The power cord entwined inside the machine or it is caused by high temperature in the summer.
• The cord is bended inside the machine or not coiled around the winder. After the winder is started, the normal operation could be realized.

• Is the suction normal?

- The heat air discharged from the machine is arising from the heat produced by motor. So, the temperature is normal, please use the machine continuously.

- Never suck the water because after mixing of the water and dust, the tube wall will be polluted and the motor will be damaged.

Packing List

Vacuum Cleaner 1

Owner's Manual 1

Upholstery Nozzle 1

Dust Brush 1

Crevice tool 1

Hose 1

Telescopic tube 1

Corner Nozzle 1

Sani Punch 1

Mop Nozzle 1

Card, Service 1

请打电话

LG电子

400-819-9999

售后热线

一线 一号通

LG 电子 (天津)电器有限公司

地址: 中国·天津市北辰区津围公路9号

传真: [phone]

邮编: 300402
