USER MANUAL Machete MFX30D2 Deaf Bonce

1. Introduction.
2. Safety instructions.
3. Wiring diagrams.
4. Recommended enclosure parameters.
5. How to use.
6. Specifications.
7. Dimensions.
8. Box contents.

9. Warranty and maintenance info.

10. Information on disposal of the electrical and electronic equipment (for the European countries with separate waste collection).

GLOBAL SPONSOR

dbDRA

EMMA

european mobile media association

1. INTRODUCTION

Thank you for purchasing this Deaf Bonce product of Machete series! Our company is committed to the creation of extremely high-profile systems with no loss of quality.

To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution's in this manual. Please keep the manual in a safe and accessible place for future reference.

2. SAFETY INSTRUCTIONS

1. Fasten the subwoofer properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the passengers of the car or another vehicle.
2. Before installing the components, if possible store the product in the package in order to avoid accidental damage.
3. Be careful when installing and dismantling the subwoofer! Do not let the subwoofer drop to avoid damage of its moving parts.
4. When working with tools follow safety rules.
5. Before the installation switch off the head unit and all other audio devices to avoid their damage.
6. Make sure that the location of the subwoofer does not hinder the proper operation of mechanical and electrical devices of the vehicle.
7. Do not install components in places exposed to water, excessive humidity, high or low temperature, dust or dirt. ATTENTION!!! The product may be operated at +5 to +40 °C. In case of moisture condensation, allow the product to dry.
8. When drilling or cutting out holes in the body of the car, make sure that there are no cables or any other important construction elements under a selected area or inside it.
9. When stretching back the speaker cables make sure that they are not in contact with sharp edges or moving mechanical devices. Make sure that they are firmly fixed and protected over the entire length.
10. The diameter of the speaker cables must be selected in accordance with the length and applied power.
11. Never stretch the cables outside the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.
12. To protect the cables use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.

CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume!

3. WIRING DIAGRAMS

You should connect both voice coils!

Possible commutation versions are presented on the following pages. Using the data from the diagram below, check the minimum resistance and the connection specified by the manufacturer. Do not expose the amplifier to loads below the predetermined value.

Use these formulas to calculate the resistance of various types of compounds.

CONNECTION OF TERMINALS

10 mm 10 mm

SERIES C O NNECTIO N

Total resistance = ΩSub 1 + ΩSub 2 + ΩSub 3 ...

PARALLEL CONNECTION

EN

Total resistance =

1 ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••

SCHEMES OF ENABLING THE LOAD OF THE SUBWOOFER

VOICE COIL 2+2 Ohm

The subwoofer has two voice coils.

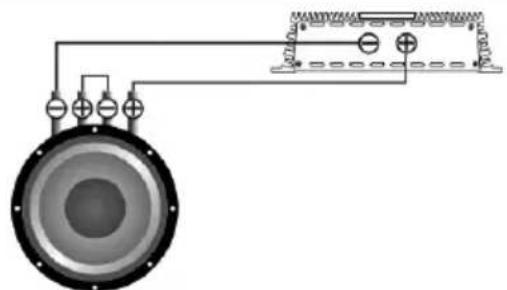

ONE S UBWO OFER, CO ILS I N S ERIE S.

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	4 Ohm

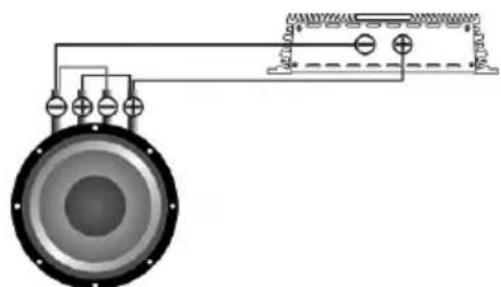

ONE SUBWOOFER, COILS IN PARALLEL

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	1 Ohm

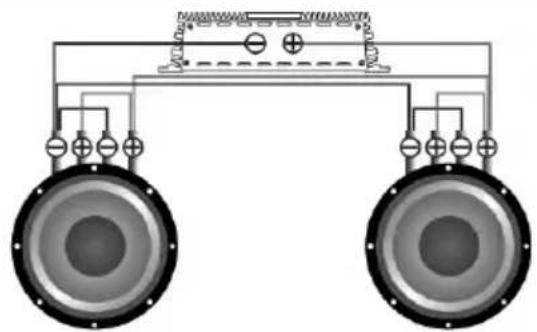

SUB W OOF E R I N S E R I E S, CO I L S I N P A R A L L E L

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	2 Ohm

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	3 Ohm

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	4 Ohm

EN

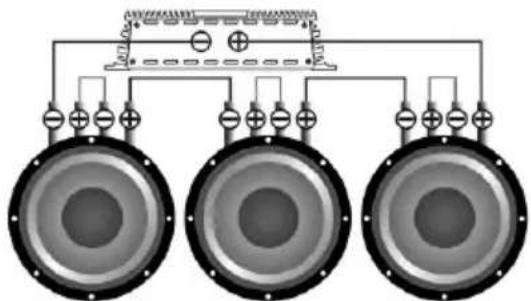

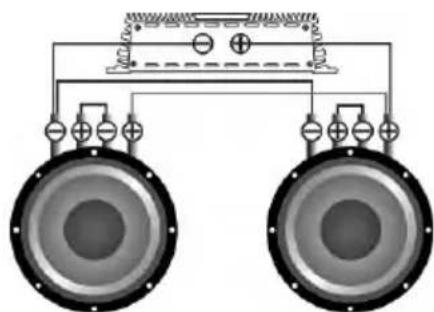

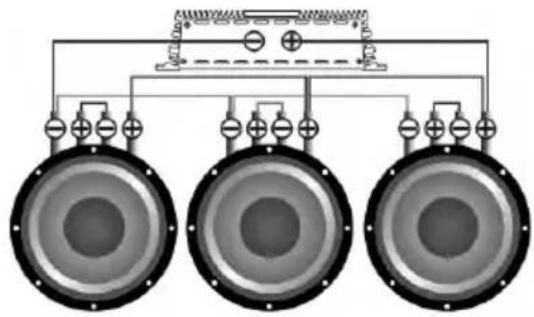

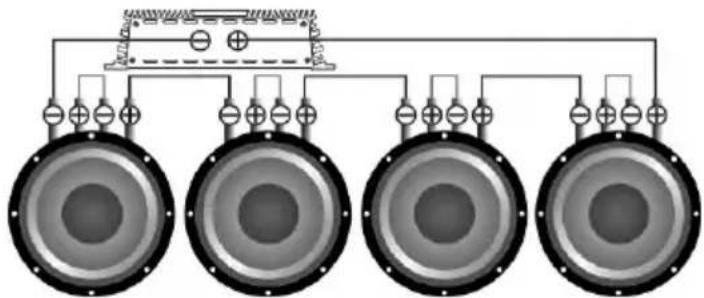

SUBWOOFER IN SERIES, COILS IN SERIES

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	8 Ohm

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	12 Ohm

Diagram of four speakers arranged in a row with power lines and grounding symbols (no text or labels)

Voice coil	Total impedance
2+2 Ohm	16 Ohm

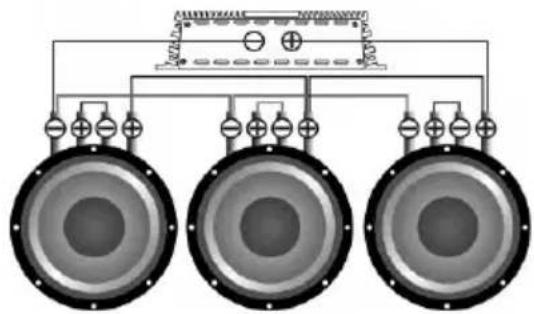

SUBWOOFER IN PARALLEL, COILS IN SERIES

Diagram of two speakers with circuit connections and a central speaker block (no text or labels)

Voice coil	Total impedance
2+2 Ohm	2 Ohm

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Voice coil	Total impedance
2+2 Ohm	1,33 Ohm

Voice coil	Total impedance
2+2 Ohm	1 Ohm

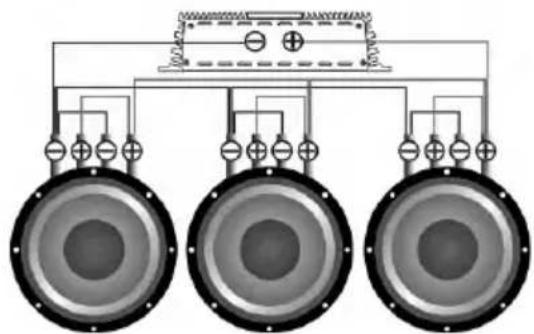

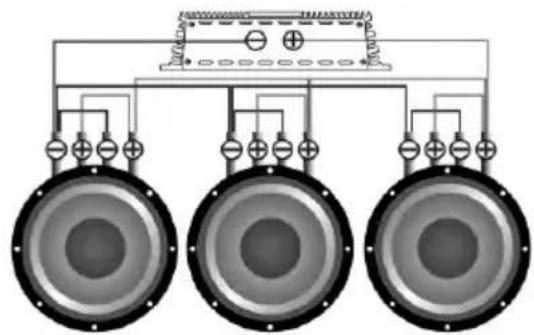

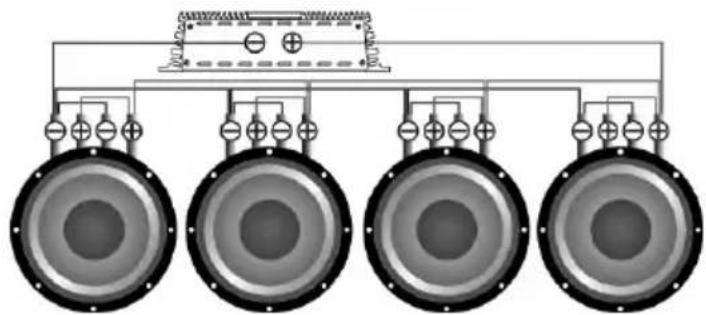

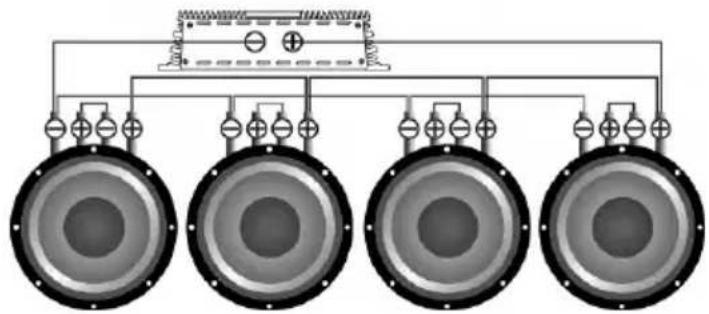

SUBWOOFER IN PARALLEL, COILS IN PARALLEL

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Diagram of four speakers arranged in a row with a central speaker block (no text or symbols)

Voice coil	Total impedance
2+2 Ohm	0,5 Ohm

Voice coil	Total impedance
2+2 Ohm	0,33 Ohm

Voice coil	Total impedance
2+2 Ohm	0,25 Ohm

Caution! High sound pressure can damage your health.

Please be responsible and practice safe sound.

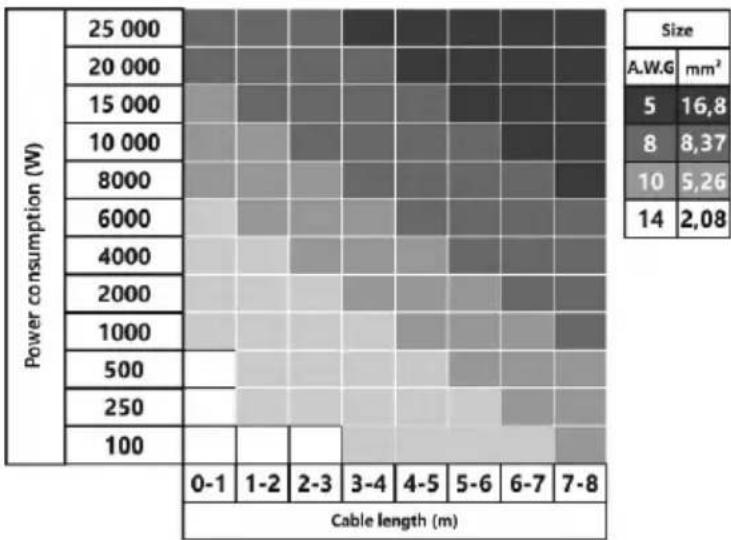

Use the table below to select the desired diameter based on the length and the power consumption.

4. RECOMM E NDED E N CLOS U RE PAR A METR S

Bass reflex box

3D mechanical part diagram showing a housing with labeled components A, B, and w (no text or symbols beyond labels)

W*H*L = body volume

Parameters/Model
MFX30 MFX38

The recommended amount of liters	50	90
Port area, cm^2	150 200
Port length, cm.	62 40
Hz setting	35 35

5. HOW TO USE

The correct choice of the amplifier, its settings and design prolong the lifetime of your subwoofer. You should select an amplifier with a nominal power below the nominal power of the subwoofer. Proper coordination of the head unit (HU) with the amplifier will provide a clean, undistorted signal fed to the subwoofer, which prevents overheating and voice coil damage. Like any other speaker the subwoofer has moving and stationary parts. We strongly recommend that the moving parts of the subwoofer should be warmed up at the beginning of operation. Be extra careful when warming up the parts. Warm up the subwoofer using musical material for 40 hours on medium power. If, during operation at maximum volume you feel strange smell, you should make the volume of the subwoofer low and cool the device down at a low volume.

Recommended settings of the amplifier and HU: Volume of HU should not exceed 80%. The amplifier sensitivity is 50%, subsonic filter frequency (Subsonic) is 5 Hz below the port settings. For example, if you configure the port at 30 Hz, Subsonic is should be 25 Hz. The low pass filter LPF (the filter that cuts all frequencies above those set for the filter) 63-80 Hz, bassboost to 0.

1. SPECIFICATIONS
   EN

Model		MFX38MFX30
Voice coil diameter		3"3"
Cone		Pressed paperPressed paper
Magnet type		FerriteFerrite
Voice coil wire	CCAW	CCAW
Surround		FoamFoam
Power RMS		750 W750 W
Power MAX		3000 W3000 W
Size		15"12"
Frame		Die-cast aluminum Die-cast aluminum

THIELE-SMALL PARAMETERS

Parameters	MFX30 D2	MFX38 D2
Xmax (mm)	22.5	22.5
Impedance	2+2 Ohm	2+2 Ohm
Re Ω	1.4+1.4	1.4+1.4
Fs (Hz)	32.40	30.10
Vas (L)	42	70
Qts	0.48	0.42
Spl (dB/2,83 W/m)	86.82	87.04
BL	19.64	18.16

This specified sensitivity is not directly connected with the sound pressure in the vehicle, and therefore should not be used as the sole indicator for comparison with other subwoofers.

7. DIMENSIONS

RU

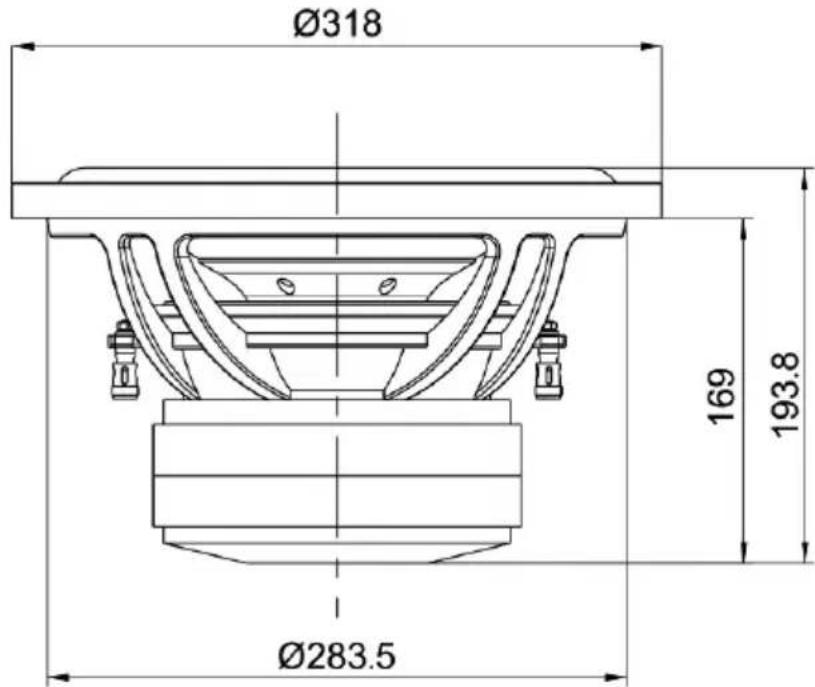

MFX30 D2

Ø318 169 193.8 Ø283.5

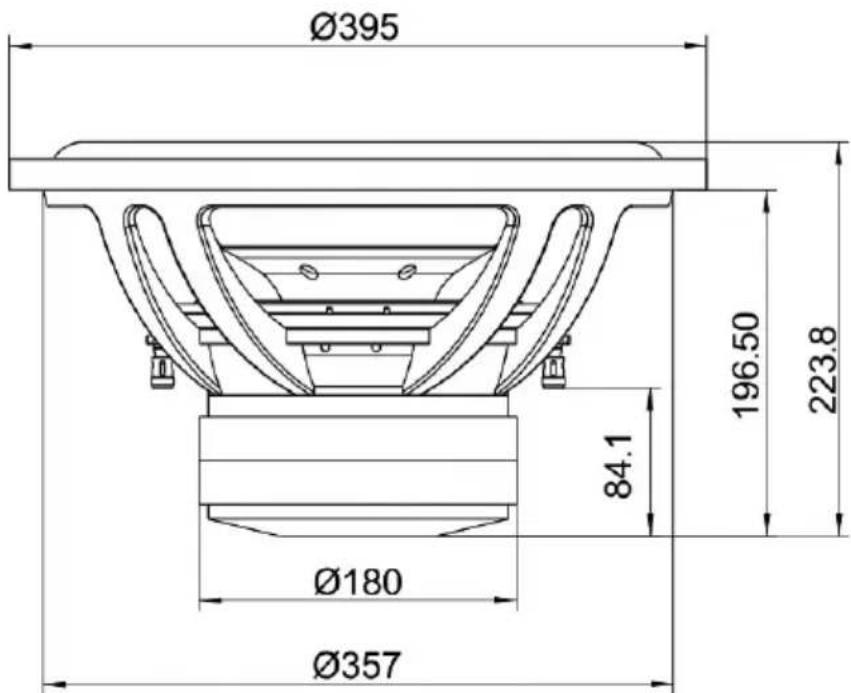

MFX38 D2

Ø395 84.1 Ø180 Ø357 196.50 223.8

8. BOX CONTENTS

1. Subwoofer - 1 pcs.
2. Owner's Manual - 1 pcs.
3. Warranty card - 1 pcs.

9. WARRANTY AND MAINTENANCE

EN

Deaf Bonce products are warranted against defects concerning materials and their manufacturing under normal functioning conditions.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer's discretion. The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in, complete with the original packaging. If the product is no longer under warranty, it will be repaired at the current costs.

Our company does not undertake any liability for damages due to transportation. Our company does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force. For more information visit our website and carefully read warranty card. The manufacturer reserves the right to change design and specification without prior notice.

10. INFORMATION ON ELECTRICAL AND ELECTRONIC EQUIPMENT WASTE (FOR THOSE EUROPEAN COUNTRIES WHICH ORGANIZE THE SEPARATE COLLECTION OF WASTE)

Items marked "crisscrossed wheeled bin" are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.
