USER MANUAL Cable iFi Audio

Plug into a wall outlet that supplies power to audio equipment, or plug into a power extension block that supplies power to audio equipment.

2. Polarity/Earth detection

The following table depicts the different readings and the respective LED colour combinations. Where needed, make the necessary system adjustments.

	Polarity(LED)	Earth(LED)	Status
1		GreenGreen	Normal
2	Red	Green	Polarity error. Live and Neutral connections are reversed.
3	Red	Red	Ground error. Earth is missing or faulty (e.g. resistance too high).
4	Off Off		Cut-out mode. Over-voltage or an electrical short.

Tips: Regardless of the LED colour, the SupaNova will always be actively cancelling noise.

3. Power outlet IEC

Connect to your device.

Specifications

Noise reduction: >40dB (>100x)

Surge Protection: max. 10,000A @ 775V / 8/20uS

Under operating voltage: Maximum operating rating 10A at 250Vac and 15A at 125Vac

Dimensions: 1.8 m (70.8")

Net weight:

USA: 675 g (1.43 lbs)

EUR: 695 g (1.47 lbs)

Warranty period: 12 months

Specifications are subject to change without notice.

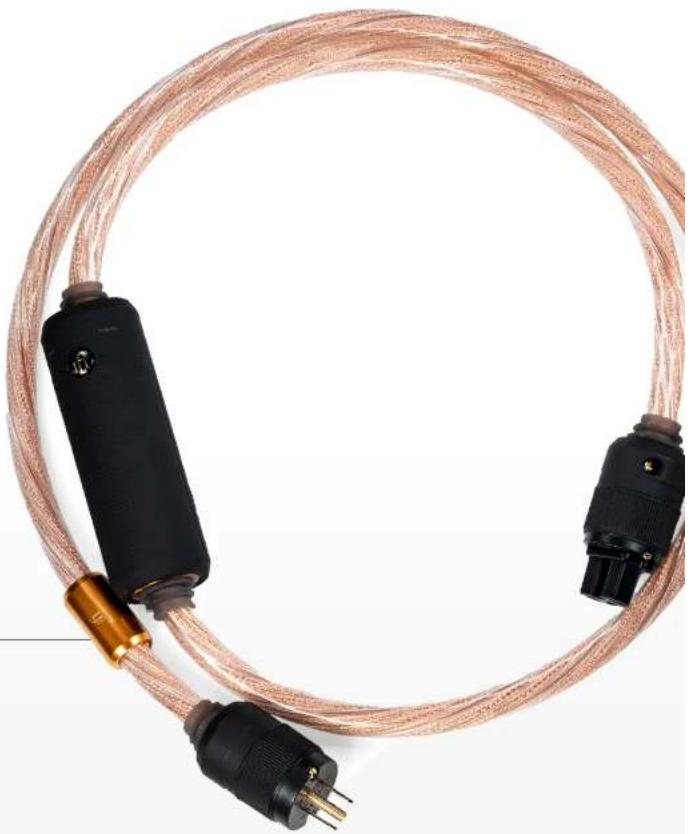

SUPANOVA

ACTIVE POWER CABLE

Tech Lowdown

Coiled copper wire with black and gold connectors, no visible text or symbols

iFi's new SilentPower range tackles mains-related noise to improve audio/AV system performance.

Coiled electronic device with black and gold connectors, no visible text or symbols

SUPANOVA | THE AFFORDABLE HIGH-PERFORMANCE MAINS CABLE

iFi has made a number of 'clean power' products in its nine-year history to date, but one thing it hasn't made is a specialist IEC power cable for home audio components – until now!

The SupaNova is a specialised power cable with a high-end construction that belies its affordable price point. It delivers a serious upgrade over standard mains leads that imbues sound with greater clarity, space and definition.

Close-up of a black electrical plug with a golden cylindrical connector attached to a coiled copper wire (no text or symbols visible)

THE CABLE

Cross-sectional illustration of a multi-layered cable with colored insulation and insulation layers (no text or symbols)

• Five conductors, each made from heavy-gauge, continuous-cast OFHC (Oxygen-Free High Thermal Conductivity) copper, arranged in a geometrically balanced configuration – highly unusual at such a price point.
• Two pairs of live and neutral conductors are arranged either side of the earth conductor, which is positioned at the centre of the cable.
• A further pair of air-dielectric delineators – polymer matrix tubes filled with air – are arranged either side of the earth conductor, keeping the two pairs of live and neutral conductors apart whilst improving the cable's overall dielectric performance and constructive solidity.

Cross-sectional diagram of a multi-core cable showing insulation layers and insulation (no text or symbols)

Air-dielectric delineator

Shotgun Ground line non-twisting design

Polymer matrix

Concurrent shielding for each individual power line

Heavy OFHC continuous cast copper

Polymer matrix

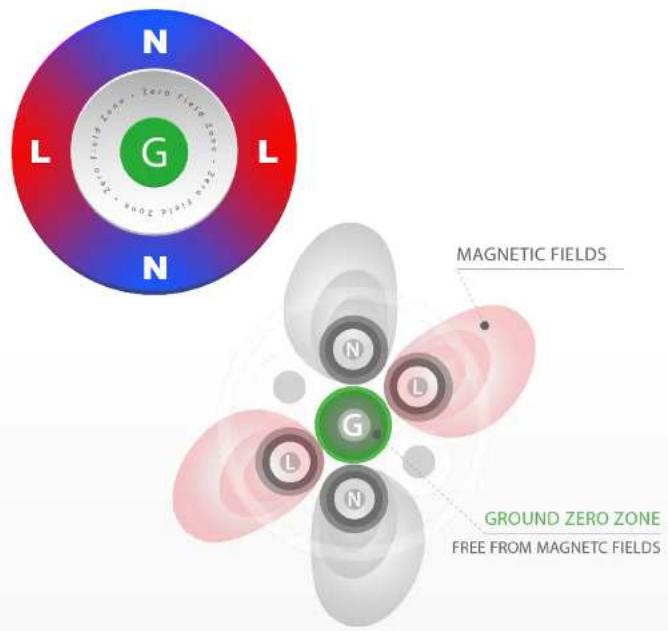

GROUND ZERO

The Nova incorporates five conductors arranged in a geometrically balanced configuration.

The two pairs of live and neutral conductors are arranged either side of the earth conductor, which is positioned at the centre of the cable. The ground conductor is arranged in a shotgun configuration and not twisted around like other mains cable.

As the live and neutral conductors are arranged in a truly balanced configuration, their magnetic fields cancel out each other perfectly. As a result, there is no residual magnetic field being applied to the centre ground conductor, and no unwanted induced voltage on the Ground conductor - iFi calls this design Ground Zero.

N L G L N MAGNETIC FIELDS G L G L N GROUND ZERO ZONE FREE FROM MAGNETIC FIELDS

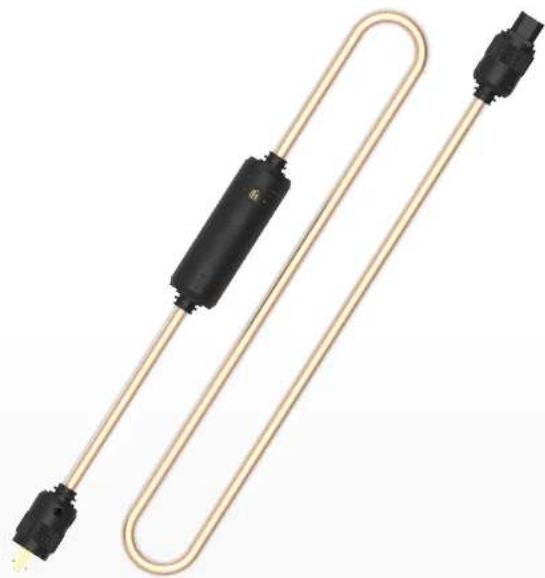

CABLE BREAKDOWN

The cable is finished with a tough yet flexible polymer outer sheath and iFi's bespoke audiophile-grade connectors, complete with 24ct gold plated oxygen-free copper conductors.

Close-up of a black SupaNova battery with coiled copper wires, no visible text or symbols on the device itself.

CABLE BREAKDOWN

Illustration of various types of electrical cables including copper, gray, and white (no text or symbols)

Heavy OFHC continuous cast copper, excellent conductivity

Polymer matrix for protection

Concurrent shield for each power line, internal and external RFI noises are minimised

Polymer matrix unaffected by moisture, amorphous, dimensional accuracy, low dielectric constant

Air-dielectric delineator, best separation between balanced pairs of L and N.

CABLE BREAKDOWN

The net result of this sophisticated mix of materials and construction is a power cable offering constant impedance and superior rejection of EMI/RFI, maintaining the purity of mains electricity feeding each component in an audio or AV system.

While the effect of this cable on sound quality is significant when used on its own, it combines brilliantly with iFi's PowerStation mains conditioning power strip – the PowerStation filters out common mode and differential mode noise from the mains supply, while the SupaNova maintains optimum purity right through to the connected component.

Pure electrical circuit lines without any symbols

POWER CONDITIONING

• The most advanced noise-cancellation system available - iFi's Active Noise Cancellation II. It actively eliminates far more noise across the frequency range than a passive product, even across the lower frequencies
• Wireless Purification System - significantly reduces power-line noise without audible or visible side-effects
• A Ground/Earth connection diagnostic
• Polarity detection - ensures correct polarity at all times
• Over-voltage Surge Protection – auto detection and cut-off circuit

Black cylindrical device with copper wire and 'Earth' label, no visible text or symbols on body

Active Noise Cancellation 2®

Double circular helix power lines design with air-dielectric delineator

Abstract geometric shape with red and blue gradient forming a torus (no text or symbols)

Constant impedance design

Circular icon with a blue S-shaped line and two plug symbols inside, no text or labels present.

True balanced power cable

Shield-shaped icon depicting a cable with colored wires inside (no text or symbols)

Concurrent shielding for each individual power line

SPECIFICATIONS

Noise reduction: >40dB (>100x)
Surge Protection: max. 10,000A @ 775V / 8/20uS
Under operating voltage: Maximum operating rating 10A at 250Vac and 15A at 125Vac
Length: 1.8 m (70.8")
Weights:	US: 675 g (1.49 lbs)
	EU: 690 g (1.52 lbs)
	UK: 695 g (1.53 lbs)
	AU: 673 g (1.48 lbs)

if

i f

warranty

In order to activate the warranty for this iFi product, you must register with the iFi website.

Component:

Serial no:

Terms and Conditions

iFi guarantees that this iFi product shall be free from defects in materials and workmanship for a period of 1 year for parts and labour.

The warranty period begins at the date of retail sale by an authorized iFi distributor/dealer and is subject to the following requirements and understandings:

• It is the responsibility of the buyer within 30 days from the original sale, to register and activate the product warranty with the iFi website.
• The original invoice must be produced for authentication prior to any warranty claim.
• The iFi product must not have been modified in any manner whatsoever, or the warranty will immediately become void.
• The iFi warranty is only valid in the country of original sale and is not transferable.
  • The product must not have been stored in a humid environment; nor subjected to weather, water, or saltwater spray.
• iFi shall not, under any circumstances, be liable for any incidental or consequential damages arising from the loss of property or other damage or losses due to the failure of an iFi product. iFi is not liable for loss of use or inconvenience caused by the failure of an iFi product. iFi is not liable for damage caused to other audio components because of the failure of an iFi product.
• During the warranty period, iFi will repair the product to working order, or, at iFi's discretion, replace the defective module with a similar available product.
• All repairs performed after expiry of the warranty period will be charged to the owner and will carry a 180-day warranty on parts and labour. The customer is responsible for shipping the unit to the iFi distributor in the original packaging. This includes the payment of any shipping charges and related taxes.
• Should any warranty issues arise, iFi's decision is full and final.
