Brand	JUNG
Model	A5232SW
Product Type	Centre plate with anti lock-out function for Venetian blind control
Intended Use	Operation of electrically-driven blinds, shutters, and awnings
Status LED	Yes, indicates lock-out protection activation
Lock-out Protection	Prevents automatic downward movement; can be activated/deactivated
Individual Moving Time Storage	0.5 to 120 seconds, stored permanently
Sun Protection Function (for sensor version)	Automatic shading when brightness exceeds threshold for >2 minutes
Brightness Threshold Adjustment	Via adjuster on back of cover; approx. 5,000 to 80,000 Lux
Sensor Connection	Art. No. ..5232 S..; compatible with sun sensor (Art. No. 32 SD)
Operating Temperature	0 ... +45 °C
Storage/Transport Temperature	-10 ... +60 °C
Switch-over Time for Direction Change	Approx. 1 second
Moving Time Range	0.5 ... 120 seconds
Tolerance of Moving Time	± 0.5 seconds
Brightness Setting (sensor version)	Approx. 5,000 ... 80,000 Lux
Accessories	Sunlight/dawn sensor Art. No. 32 SD; Extension flex Art. No. 32 K
Safety	Installation only by electrically skilled persons; disconnect power before work
Warranty	As provided for by law; send defective device to central customer service

Frequently Asked Questions - A5232SW JUNG

How do I activate lock-out protection?

Press the top of the cover for longer than 4 seconds. The status LED will illuminate and the Venetian blind moves to the upper end position. Lock-out protection is then activated.

How do I deactivate lock-out protection?

Briefly press the top button. The status LED goes out and lock-out protection is deactivated. Note: after a power failure, lock-out protection is automatically deactivated.

How do I save an individual moving time for my blinds?

Press the cover over its entire surface for longer than 4 seconds. The LED flashes and the blind moves to the upper end position. Then press and hold the cover in the ▼ direction until the blind is at the desired position. Release, then press the cover over the entire surface for at least 1 second to store the time. Alternatively, press ▼ or ▲ to discard.

What is the sun protection function and how does it work?

For covers with sensor connection, the sun protection function automatically lowers the blind when brightness exceeds the set threshold for more than 2 minutes. It activates only after the blind has been moved to the upper end position and the control deactivated automatically after 2 minutes. Each manual operation deactivates it.

How do I adjust the brightness threshold for the sun sensor?

Use the adjuster on the back of the cover. It can be set between approximately 5,000 Lux (small sun) and 80,000 Lux (large sun). The factory preset is approximately 15,000 Lux.

Can I use the device without a sun sensor?

Yes, the standard version (Art. No. ..5232..) does not include sensor connection. The sensor version (Art. No. ..5232 S..) is required for sun sensor functionality.

What should I do if the Venetian blind does not respond to commands?

Check that the blind control is properly mounted and connected. Ensure the lock-out protection is not active. If using a sensor, verify correct polarity and that the sensor is connected properly. Also check the power supply.

How do I install the sun sensor?

For covers with sensor connection, install the sun sensor (e.g., Art. No. 32 SD) and connect it to the terminal block as per the sensor and control instructions. Connect with correct polarity to avoid malfunctions.

What is the purpose of the status LED?

The status LED indicates when lock-out protection is activated (illuminated). During the moving time storage procedure, it flashes.

What safety precautions should I take during installation?

Only electrically skilled persons should install and fit the device. Always disconnect the power supply before working on the device or load. Consider all circuit breakers that supply dangerous voltage. The device is not suitable for disconnection from supply voltage.

USER MANUAL A5232SW JUNG

Centre plate with anti lock-out function

Art. No.: ..5232..

Centre plate with anti lock-out function and sensor connection

Art. No.: ..5232 S..

Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or load. At the same time, take into account all circuit breakers that supply dangerous voltage to the device or load.

Danger of electric shock. Device is not suitable for disconnection from supply voltage.

These instructions are an integral part of the product, and must remain with the end customer.

2 Device components

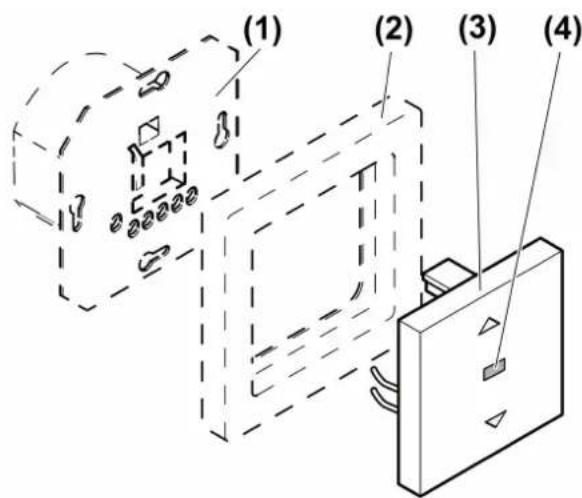

Figure 1: Device components

(1) Venetian blind control
(2) Frame
(3) Cover
(4) Status LED

3 Function

Intended use

• Operation of electrically-driven blinds, shutters and awnings
• Operation on control of the Venetian blind control system

Product characteristics

• Status LED
• Lock-out protection
• The individual moving time from the upper end position is storable

Additional functions for the cover with sensor connection

• Evaluation of a sun sensor
• Brightness threshold adjustable
• Automatic recognition of an outdoor sensor during the first sensor run

Sun protection function for cover with sensor evaluation

The connection of a sun sensor enables automatic shading when it is very bright outside. The brightness threshold that controls the sun protection can be adjusted on the cover. If the measured brightness exceeds the predefined brightness threshold for more than 2 minutes, the Venetian blind moves downwards. The previously stored individual moving time is executed for an outdoor sensor. The stop position is determined by the sun sensor for an indoor sensor.

The sun protection function is only activated if the Venetian blind has been moved to the upper end position and the control has deactivated automatically after 2 minutes. Each manual operation deactivates the sun protection.

If the brightness threshold is fallen short of for more than 15 minutes, the Venetian blind moves back to the upper end position.

4 Operation

Moving the Venetian blind

■ Press top or bottom of cover for longer than one second.

The Venetian blind moves in the desired direction to the end position or stops when the button is pressed again.

Adjusting the slats

■ Press top or bottom of cover for shorter than one second.

The slat position changes in the desired direction for as long as the button is pressed.

Activating lock-out protection

The lock-out protection prevents the Venetian blind from automatically moving down unintentionally. Shutting down on site via the sensors or extensions is disabled.

■ Press top of cover for longer than 4 seconds.

Status LED is illuminated. Venetian blind moves to the upper end position, the lock-out protection is activated.

Deactivating lock-out protection

■ Press top button briefly.

Status LED goes out.

The lock-out protection is deactivated.

i After a power failure, the lock-out protection is deactivated.

Saving individual moving time

If a Venetian blind should not move to the lower end position "ventilation function" or an outdoor sensor is used, a shorter moving time can be stored. A time between 0.5 seconds and 2 minutes can be stored.

■ Press cover over entire surface for longer than 4 seconds.

The Status LED flashes. The Venetian blind moves automatically to the upper end position.

- Keep the cover pressed in the direction ▼ until the Venetian blind is in the desired position.

■ Release cover.

Venetian blind stops.

■ Press cover over entire surface for at least 1 second to store the moving time.

- Or -

■ Press cover ▼ or ▲ to discard the moving time.

The storage mode is exited automatically and the LED ceases to be illuminated.

The individual moving time remains permanently stored. The old moving time will be replaced if a new moving time is stored.
To execute the individual moving time, the Venetian blind must be moved to the upper end position and switch off there automatically after 2 minutes.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

Mounting and connecting

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the corresponding circuit breakers. Cover up live parts in the working environment.

The Venetian blind control is mounted and connected properly (see instructions for the relevant Venetian blind control).

■ Install sun sensor for covers with sensor connection and connect to terminal block (see instructions for the sensors and control).
■ Adjust brightness threshold (see following chapter).

Connect the sun sensor with the correct polarity. If a sensor is connected with reversed polarity, this will result in malfunctions. It might not be possible to operate the cover any more.

■ Mount cover (3) with frame (2) onto the Venetian blind control (1) (figure 1).

Adjusting brightness threshold for cover with sensor evaluation

Figure 2: Back of cover: Adjuster for brightness threshold

The brightness threshold can be adjusted within a range of approx. 5,000 Lux "small sun" to approx 80,000 Lux "large sun" using the adjuster (5) on the back of the cover (figure 2). The adjuster is preset to approx. 15,000 Lux at the factory.

■ Adjust the brightness threshold to the required value. Adjust the brightness threshold value after commissioning if necessary.

6 Appendix

6.1 Technical data

Ambient temperature 0 ... +45 °C

Storage/transport temperature -10 ... +60 °C

Switch-over time for direction change approx. 1 s

Moving time 0.5 ... 120 s

Tolerance of the moving time ± 0.5 s

Brightness setting

Art. No. ..5232.. —

Art. No. ..5232 S.. approx. 5000 ... 80000 lx

6.2 Accessories

Sunlight / dawn sensor Art. No. 32 SD

Extension flex Art. No. 32 K

6.3 Warranty

We reserve the right to make technical and formal changes to the product in the interest of technical progress.

We provide a warranty as provided for by law.

Please send the device with a description of the defect to our central customer service office.

ALBRECHT JUNG GMBH & CO. KG

Vollmestraße 1

58579 Schalksmühle

Telefon: +49.23 55.8 06-0

Telefax: +49.23 55.8 06-2 04

[e-mail]

www.jung.de

Service Center

Kupferstr. 17-19

44532 Lünen

Germany
