USER MANUAL PLMRBT33BK Pyle

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

PYLE

PyleUSA.com

Three PYLE-branded industrial fan models with colorful blades and headgaps, displayed against a white background (no text or symbols visible)

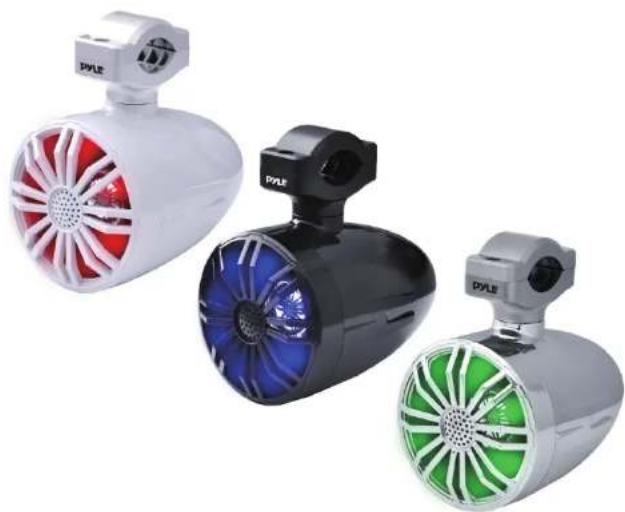

PLMRBT33WT - PLMRBT33BK - PLMRBT33CR

3.5" 2 Pcs. Waterproof Rated Off-Road Speakers

Compact PowerSport Vehicle Speaker System for Motorcycle or Car with RGB Lights and Remote Control

USER GUIDE

Features:

• Motorcycle Box Waterproof Stereo System
• 3.5" Long Excursion Woofer
• Completely Waterproof
• Wireless BT Music Streaming
- Compact & High-Powered Output
• Marine Grade Waterproof Rated Construction
• Weatherproof & Water-Resistant Housing
• Full Range Stereo Sound Reproduction
• Impressive Bass Response
- Sleek Design, Machine Molded Speaker Cabinet Housing
• Rugged, Universal Mount Bracket Design for Roll-Bar / Roll-Cage
• Used for Off-Road Outdoor Vehicles: ATV, UTV, 4x4, Jeeps, Marine Watercraft
- Quick Butt Connector for Speaker Wiring

Technical line drawing of two cylindrical industrial fans or motors with mounting flanges (no text or symbols)

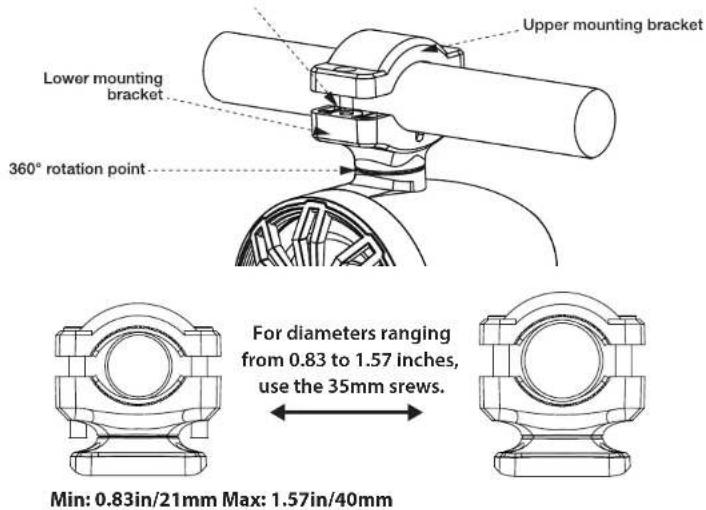

Mounting Bracket

Mounting screws

Two types of mounting screws are provided to accommodate most mounting pole diameters.

Upper mounting bracket Lower mounting bracket 360° rotation point For diameters ranging from 0.83 to 1.57 inches, use the 35mm screws. Min: 0.83in/21mm Max: 1.57in/40mm

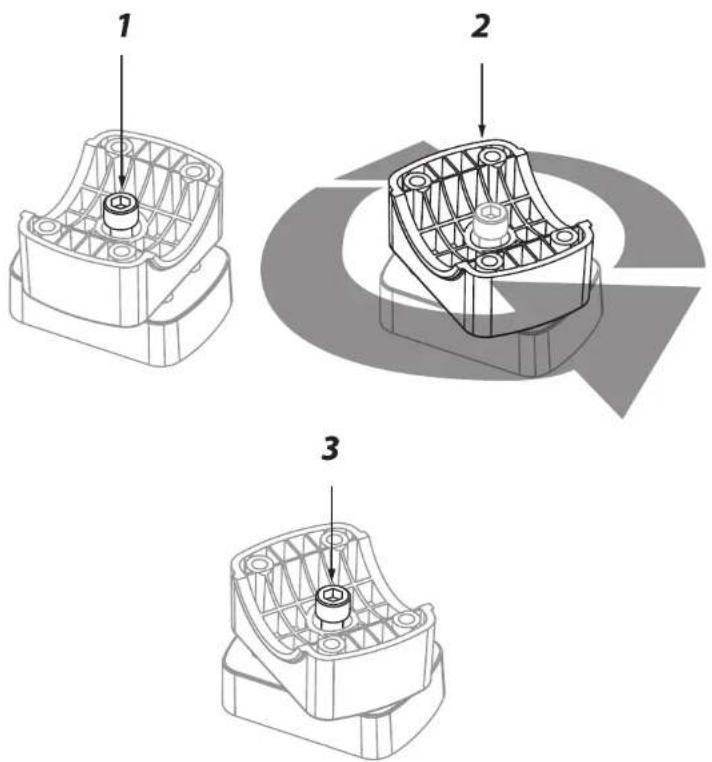

360° Rotation Function

1. Loosen the rotation adjustment screw.
2. Rotate the lower mounting bracket to the desired position.
3. Lock the rotation adjustment screw.

Technical diagram showing three views of a mechanical component with numbered callouts indicating assembly steps.

Remote Control

1. Turn ON/Standby:

Press this key to turn ON unit or switch to stand by mode. At power ON, unit will automatically turn ON and restore to previous status.

2/9. Dynamic Mode Adjust:

Switch to dynamic mode from static color, or switch between dynamic modes.

3/10. Dynamic Speed Adjust:

Adjust dynamic playing speed Press

SPEED + to increase speed and press

SPEED - to decrease Unit will switch to dynamic mode if press this key at static cotor mode.

1 2 3 4 5 MODE + SPEED - DEMO SPEED + COLOR + MODE - BRIGHT + COLOR - BRIGHT - RF Wireless 11 10 9 8 7 6

4/5. Static Color Adjust:

Switch to static color mode from dynamic mode, or switch between static colors.

6. Direct Color Select:

Shortcut key to static colors. When press the specific color key, LED will play the same static color. The direct colors are included in 'COLOR+' and 'COLOR-' operation.

7/8. Brightness Adjust:

Adjust static color brightness. Press BRIGHT + to increase brightness and press BRIGHT - to decrease Unit will switch to static color mode If press this key at dynamic mode.

11. Demo Mode:

Press this key will switch to Demo mode. At demo mode, it plays 17 dynamic modes in loop, each mode repeat 3 times.

• 22 Dynamic Modes
- Card Type RF Remote
• 20 Static Colors
- Ultra Slim Design
• Very Smooth Effects
• Dynamic Demo Mode
- Speed Adjustable
- Easy Remote Pairing
- Brightness Adjustable
- Direct Color Select

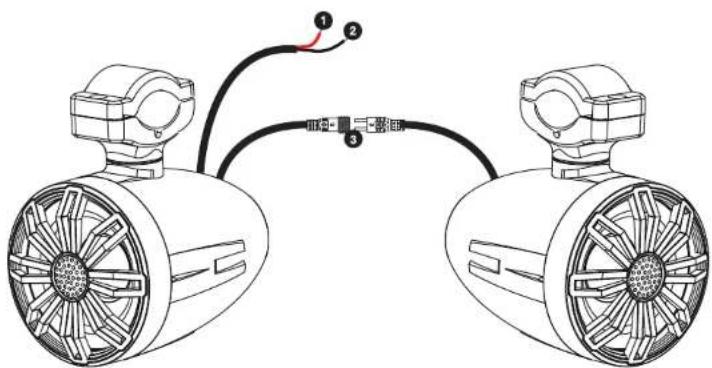

Installation Guide

1. Speaker and RGB power + (red), (DC12V)
2. Speaker and RGB power - (black), (DC12V)
3. Connect to each other (Speaker and RGB wires)

Diagram of two identical motors connected by a cable, showing fan structure and wiring (no text or symbols)

California Prop 65 Warning

! WARNING:

This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov
