Brand	Pyle
Model	PD-IC51RD
Product Type	In-Ceiling Speaker
Speaker Driver Size	5.25 inches
Impedance	8 ohms
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Frequency Response	50 Hz - 20 kHz
Sensitivity	91 dB
Cutout Dimensions	7.28 inches (diameter)
Mounting Depth	3.5 inches
Product Weight	2.2 lbs
Color	Red
Grille Material	Metal (perforated)
Speaker Material	Polypropylene cone with rubber surround
Power Source	Passive (requires amplifier)
Installation Type	Flush mount in ceiling or wall
Wiring Type	Spring-loaded terminals for bare wire
Recommended Amplifier Power	10-60 Watts RMS per channel
Cleaning Instructions	Wipe grille with dry cloth; avoid moisture
Safety Precautions	Turn off power before installation; avoid exposure to water
Repairability	Replaceable driver and grille available via Pyle customer service
Accessories Included	Mounting template, paint mask, grille

Frequently Asked Questions - PD-IC51RD Pyle

What is the recommended amplifier power for the Pyle PD-IC51RD?

The recommended amplifier power is between 10 and 60 Watts RMS per channel at 8 ohms. Exceeding this may damage the speaker.

What is the cutout size needed for installation?

The required cutout diameter is 7.28 inches. Use the included mounting template for precise cutting.

Can I install this speaker in a wall?

Yes, the PD-IC51RD can be installed in ceilings or walls as long as there is at least 3.5 inches of clearance behind the surface.

How do I connect wires to the speaker?

The speaker has spring-loaded terminals. Press down to insert stripped bare wire (14-18 gauge) and release to clamp.

Is the grille paintable?

Yes, the metal grille can be painted to match your ceiling or wall. Use spray paint and ensure it is fully dry before installing.

What type of tweeter does the PD-IC51RD have?

It features a 0.5-inch mylar dome tweeter with a built-in crossover for clear high frequencies.

How do I clean the speaker?

Remove the grille and wipe it with a dry, soft cloth. Avoid using water or cleaning agents as they may damage the speaker components.

Can I use this speaker outdoors?

No, the PD-IC51RD is designed for indoor use only. Exposure to moisture or extreme temperatures can cause damage.

What is the impedance of the speaker?

The speaker has an impedance of 8 ohms, making it compatible with most home amplifiers and receivers.

Does the speaker come with a mounting template?

Yes, the package includes a mounting template, paint mask, and grille to assist with installation.

USER MANUAL PD-IC51RD Pyle

Two views of a beige industrial fan or speaker device with visible internal components and wiring (no text or symbols)

PDIC51RDTAN - PDIC61RDTAN - PDIC81RDTAN

In-Wall / In-Ceiling Dual Speaker System

USER GUIDE

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT. RETAIN THIS OWNER'S MANUAL FOR FUTURE REFERENCE.

Features:

• In-Wall / In-Ceiling System
- 2-Way Stereo Sound
• 1" High Temperature Voice Coil
- Directable 1/2" Polymer Dome Tweeter
- Flush Mounting on Walls or Ceilings
- Wide Frequency Response Range
• Resilient ABS Plastic Enclosure
- Standard Wall or Ceiling Cavity Fit
- Dog-Ear Brackets
• Equipped with Wire Terminals
- Perfect for Custom Installations & Applications
- Cut-Out Template Included

What's in the Box:

• (2) Ceiling Speakers • Mounting Accessories

Technical Specs:

• Construction Material: Engineered ABS
• Impedance: 4-8 Ohms
• Sensitivity: 88 dB

MODEL PDIC51RDTAN PDIC61RDTAN PDIC81RDTAN
Midbass Speaker 5-1/4" 6-1/2" 8"
MAX Power Output 150 Watt 200 Watt 250 Watt
Frequency Response 80Hz-20kHz 70Hz-20kHz 50Hz-20kHz
Cut-Out Dimensions(Diameter x Depth)	6.5" x 2.62"-in.	7.6" x 2.9"-in.	9.37" x 3.2"-in.
Total Unit Dimensions(Diameter x Depth)	7.9" x 2.9"-in.	9.0" x 3.1"-in.	10.7" x 3.5"-in.

Thank you for purchasing this PYLE in-wall/in-ceiling speaker system.

This state-of-the-art product has been carefully designed and manufactured for your installation needs. It has been thoroughly tested to ensure consistent and reliable performance. If you have any questions regarding the installation or operation of your PYLE in-wall/in-ceiling speaker system that are not covered in this manual, please contact your dealer for assistance.

TOOLS NEEDED FOR INSTALLATION

The in-wall/in-ceiling speakers are designed for easy installation.

However, if you are unsure of your ability to properly install these speakers, please contact your dealer or a qualified installer.

Simple line drawing of a 3D rectangular block and a 2D rectangular block with six smaller squares arranged in a row (no text or symbols)

Pencil Phillips #2 screwdriver Measuring tape

Isometric line drawing of a rectangular mechanical part with a circular hole and internal cutouts (no text or symbols)

Utility knife Carpenter's level Awl

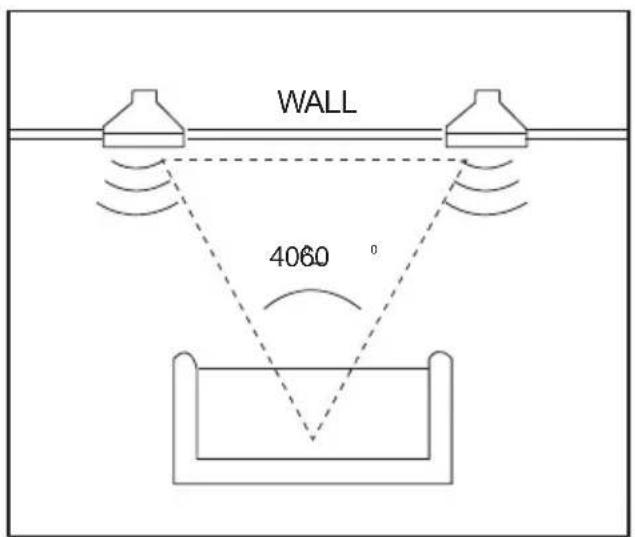

SPEAKER PLACEMENT

Front Speakers

Simple line drawing of a table with two boxes and a central circle connected by a dashed line (no text or symbols)

REAR SPEAKERS

IN-CEILING

Simple line drawing of a conical shape with a horizontal line above it, no text or symbols present.

Proper placement of the speakers is important to achieve the most realistic soundstage possible. These recommendations are for optimum speaker placement. You can make slight adjustments without diminishing the listening experience.

Front speakers should be placed the same distance from each other as from the listening position. They should be positioned at ear level, with tweeters aimed toward the listener for the best sound. In a home theater setup, the surround speakers should be placed slightly behind the listening position.

Ideally, they should face each other and be placed higher than ear level. If that's not possible, position them behind the listener in the wall or ceiling, facing forward. The surround speakers should provide a diffuse, ambient sound, complementing the main program material from the front speakers.

In Dolby® Digital and DTS systems, aim the tweeters toward the listening position at ear level.

SPEAKER CONNECTIONS

Connection Tips

Two black cables with hatched insulation, no text or symbols visible

Front or Rear Speaker Outputs

For optimal sound quality, ensure both speaker wires are the same length. If one speaker is closer to the amplifier than the other, hide the excess wire behind the wall. Speaker terminals have corresponding (+) and (-) terminals. Red denotes the (+) terminal, and black denotes the (-) terminal. It's crucial to connect both speakers the same way: (+) on the speaker to (+) on the amplifier, and (-) on the speaker to (-) on the amplifier. Connecting speakers out of phase results in thin sound, weak bass, and poor stereo imaging. For multi-channel surround sound systems, correct polarity is equally important to preserve the proper ambiance and directionality of the program material.

EXISTING CONSTRUCTION

IN-WALL / IN-CEILING SPEAKERS

Cut the drywall:

Allow at least 12 inch between the wall stud and the speaker cutout for the locking tabs to swivel into place.

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

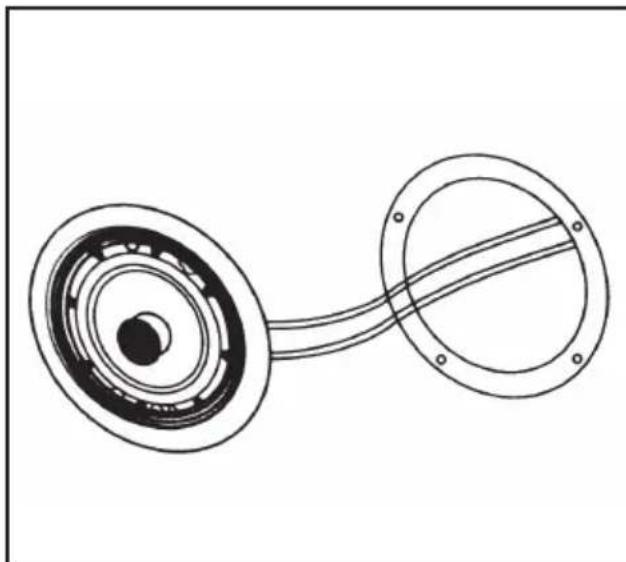

Connect the speaker wires.

Diagram showing a circular object with concentric rings and an outer ring, with directional arrows indicating rotation or movement (no text or symbols)

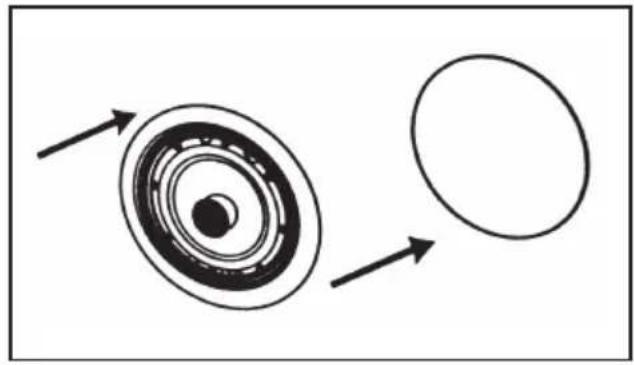

Place the frame in the wall

Swivel tweeter
Strips of adhesive

Tighten the four Phillips head screws, ensuring the locking tabs swivel into place and secure the unit to the rear surface of the drywall.

Adhere the grille: Apply the adhesive strips to secure the grille.

The in-ceiling speakers have adjustable tweeter mounts to direct high frequencies toward the listening position. For models PDIC61RDTAN and PDIC81RDTAN, gently press on the tweeter mount to adjust its position before installing the grille. Do not swivel more than 15 degrees in any direction.

Simple diagram of two concentric circles with a shaded inner circle, no text or symbols present.

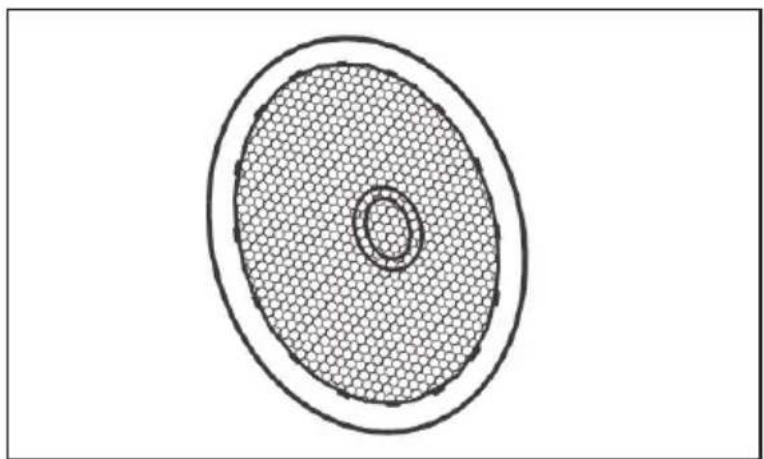

Replace the metal grille.

Cross-sectional diagram of a circular structure with a central oval and concentric rings, no text or symbols present.

for PDIC61RDTAN and PDIC81RDTAN

After installing the grille, you can adjust the tweeter by pressing gently on the mesh.

TROUBLESHOOTING

No sound from any speakers:

• Ensure the receiver/amplifier is on and a source is playing.
• Check all wires and connections between the receiver/amplifier and speakers. Ensure none of the wires are frayed, cut, punctured, or touching each other.

No sound from one speaker:

• Check the "Balance" control on your receiver/amplifier.
• Inspect the wires and connections for any issues.

Low or no bass output:

• Ensure correct polarity (+ and -) connections.
• Consider adding a powered subwoofer to enhance bass output.
• For Dolby Digital or DTS systems, verify the receiver/processor is properly configured and ensure the subwoofer output is enabled.

System shuts off at higher volumes:

• Inspect all wires and connections for frays, cuts, or other damage.
• If using more than one pair of speakers, verify the minimum impedance requirements of your receiver/amplifier.
