USER MANUAL iAG804 OpenVox

IAG804/IAG808 User Manual

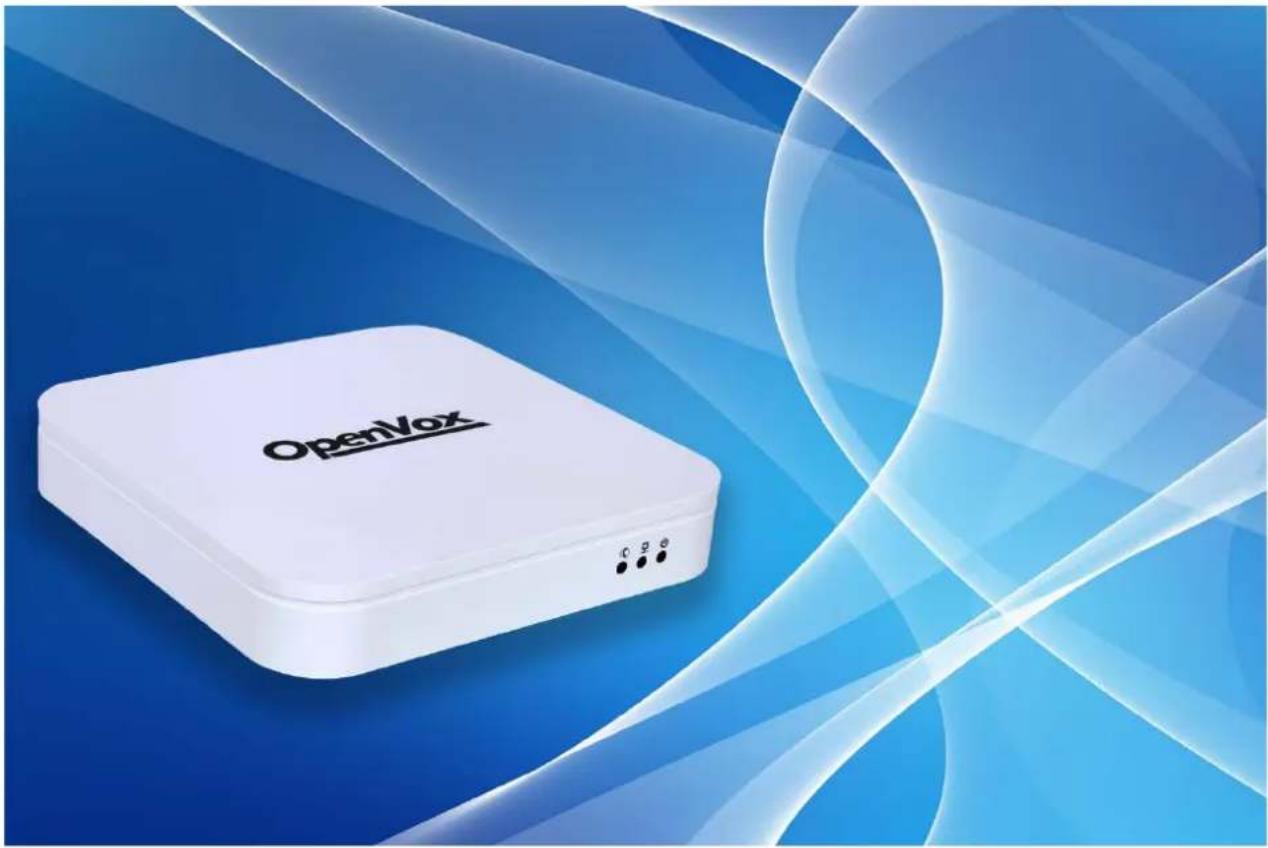

White OpenVox device on a blue abstract background with flowing blue light effects (no text or symbols on device)

Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong, China 518109

Tel: [phone]

Fax: [phone]

Business Contact: [e-mail]

Technical Support: [e-mail]

Business Hours: 09:00-18:00 (GMT+8) from Monday to Friday

URL: www. openvox. cn

Version1.0 (2016-03-03)

Copyright

Copyright ^® 2013 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission.

Condenality

Informaon contained herein is of a highly sensitive nature and is condenal and proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed orally or in wrien form to any party other than the direct recipients without the express wrien consent of OpenVox Inc.

Disclaimer

OpenVox Inc. reserves the right to modify the design, characteriscs, and products at any me without nocaon or obligaon and shall not be held liable for any error or damage of any kind resulting from the use of this document.

OpenVox has made every eort to ensure that the informaon contained in this document is accurate and complete; however, the contents of this document are subject to revision without noce. Please contact OpenVox to ensure you have the latest version of this document.

Trademarks

All other trademarks menoned in this document are the property of their respective owners.

Table of Contents

1. Overview....1

What is IAG804/808? 1

Sample Applicaon 2

Product Appearance 2

Main Features 4

Physical Informaon 4

Soware 4

2. System 6

Status 6

Time 6

Login Sengs 7

General, Cluster, Tools and Informaon 8

Language Seings 8

Scheduled Reboot 9

Reboot Tools 10

Informaon 11

3. Analog....12

Channel Sengs 12

Advanced Sengs 12

Global Sengs 12

Special Funcon Keys 17

4. SIP....18

SIP Endpoints 18

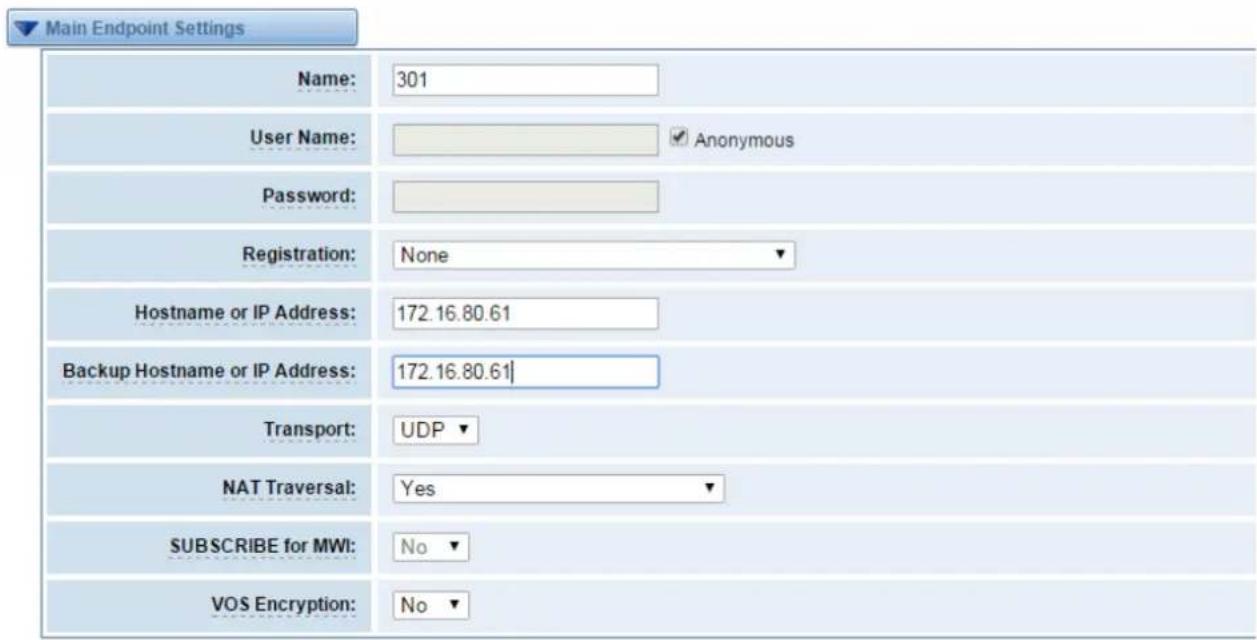

Main Endpoint Seings 18

Advanced: Registraon Opons 21

Call Sengs 22

Advanced: Signaling Sengs 22

Advanced: Timer Sengs 23

Media Sengs 24

Advanced SIP Sengs 24

Networking 24

NAT Sengs 25

RTP Sengs 26

Parsing and Compatibility 27

Security 28

Media 29

5.Roung 30

Call ROUNG Rules 30

Groups 32

6 Network, Advanced and Logs....34

Network 34

Network Sengs 34

VPN Sengs 36

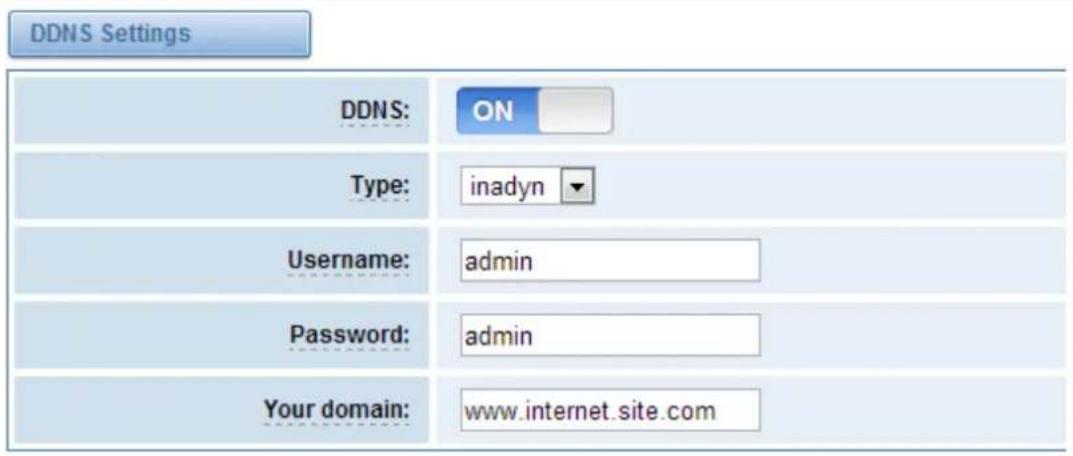

DDNS Sengs 36

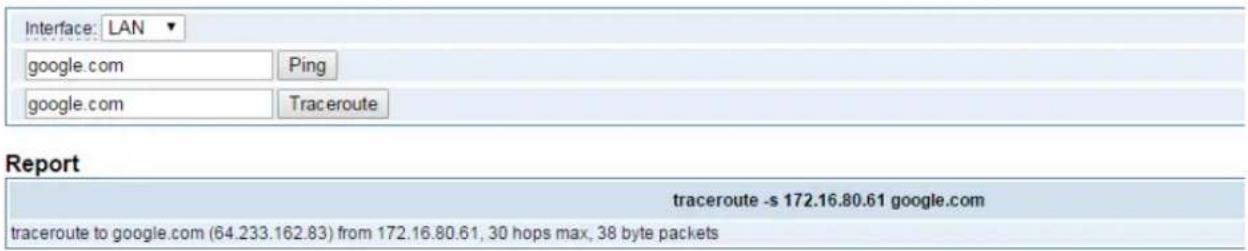

Toolkit 37

Advanced 38

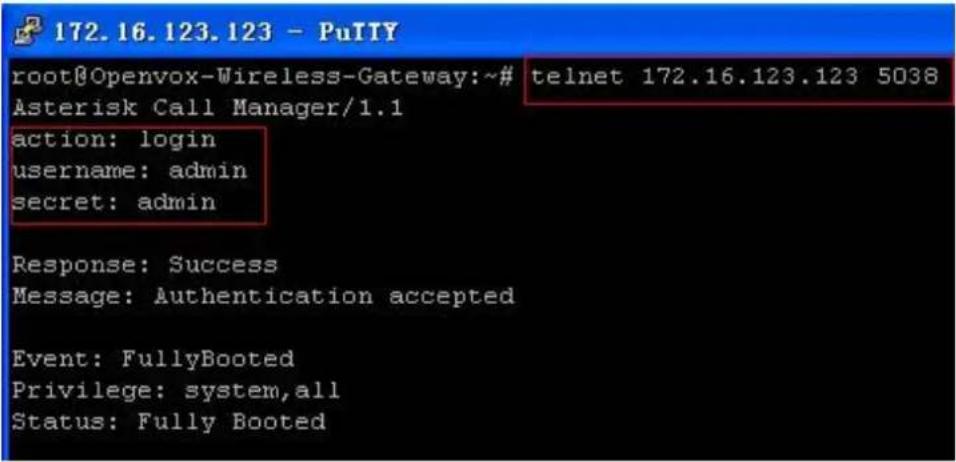

Asterisk API 38

Asterisk CLI 40

Asterisk File Editor 41

Logs 41

1. Overview

What is iAG804/808?

This document is to explain the quad-FXO module of analog gateway.

OpenVox Analog Gateway is an open source asterisk-based Analog VoIP Gateway soluon for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).

There are four models with Analog Gateway, the 4FXS, 8FXS, 4FXO and 8FXO, and there are 4/8 ports in iAG804/808. The Modular Design Analog Gateways are developed for interconnecng the PSTN networks with a wide selecon of codecs and signaling protocol, including G.711A, G.711U, G.729, G.722, G.723, iLBC to quickly reduce communicaon expenses and maximize cost-savings.

The Analog gateway use standard SIP protocol and compatible with Leading IMS/NGN plaorm, IPPBX and SIP servers, support most of the VoIP operang plaorms such as Asterisk, Elasx, 3CX, FreeSWITCH, Broadso etc.

Sample Application

Figure 1-2-1 Topological Graph

Product Appearance

The picture below is appearance of Analog Series Gateway.

White OpenVox network device with ports and indicator lights (no visible text or symbols on main body)

Figure 1-3-1 Product Appearance

① ♀ ② ③ 1 2 3

Figure 1-3-2 Front Panel

1 : System LED
2 : Network interface LED
3: Power Indicator

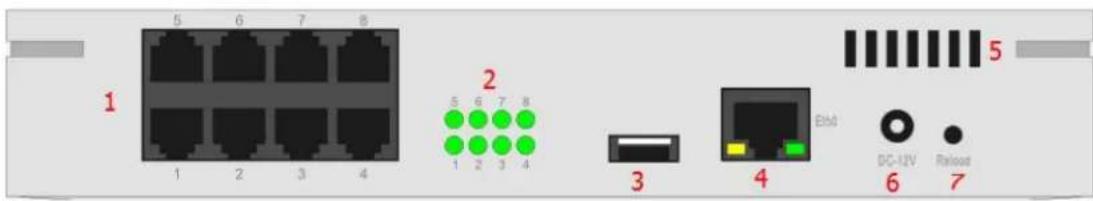

1 5 6 7 8 1 2 3 4 2 5 6 7 8 1 2 3 4 3 4 Ebs0 DC-12V Reload 6 7

Figure 1-3-4 Back Panel

2 : Channel indicator (8)
3 : USB Interface(1)
4 : Ethernet ports (1)
5: Fan vent
6 : Power socket
7 : Reload buon

1 : Analog Telephone Interface (8)

Main Features

Modular design
Based on Asterisk OR
▶ Editable Asterisk ^OR conguraon le
Support T.38 fax relay and T.30 fax transparent, can connually fax mulple page
Echo cancellaon and Stac jier buer
Wide selecon of codecs and signaling protocol
DTMF relay
➢ Ring cadence and frequency seng
MWI(Message waing indicator)
DHCP, DNS/DDNS, NAT Network
VAG and CNG
All hot-swap
➢ Stable performance, exible dialing, friendly GUI
▶ Two-year me warranty

Physical Information

Table 1-5-1 Description of Physical Information

Weight	580g
Size	21cm*21cm*3.6cm
Temperature	-20~70°C (Storage)
	0~40°C (Operaon)
Operaon humidity	10%~90% non-condensing
Power source	12V DC/4A
Max power	16W
LAN port	1

Software

Default IP: 172.16.99.1

Username: admin

Password: admin

Please enter the default IP in your browser to scan and conjure the module you want. Now we oer you two RJ45 Network ports to access to your gateway on the board, ETH1 and ETH2. You can choose either of them and they are the same.

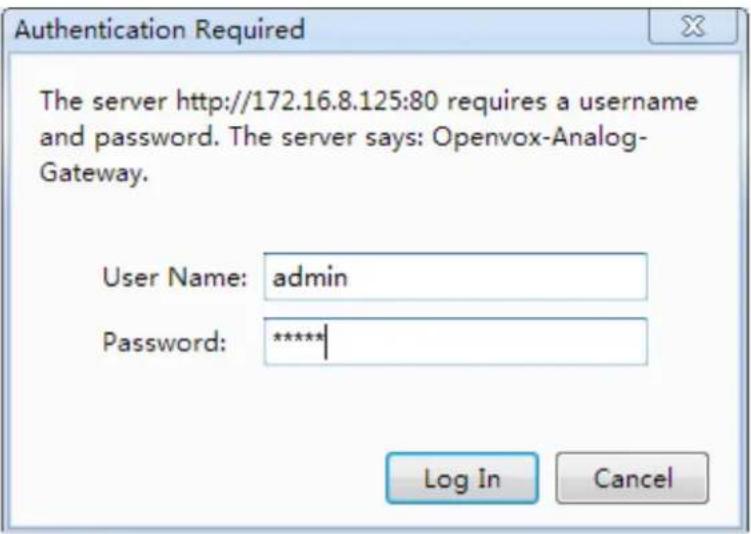

Authentication Required The server http://172.16.8.125:80 requires a username and password. The server says: Openvox-Analog- Gateway. User Name: admin Password: ***** Log In Cancel

Figure 1-6-1 LOGIN Interface

2. System

Status

On the "Status" page, you will see Port/SIP/Network informaon and status.

Port Information
Port	Name	Type	Line Status	Port Status
1	board1-port1	FXO	Disconnected	OnHook
2	board1-port2	FXO	Disconnected	OnHook
3	board1-port3	FXO	Disconnected	OnHook
4	board1-port4	FXO	Disconnected	OnHook
5	board1-port5	FXO	Disconnected	OnHook
6	board1-port6	FXO	Disconnected	OnHook
7	board1-port7	FXO	Disconnected	OnHook
8	board1-port8	FXO	Disconnected	OnHook
SIP Information
Endpoint Name	User Name	Host	Registration	SIP Status	Response Code
9000	9000	172.16.8.182	none	UNREACHABLE
9001	9001	172.16.80.104	none	CK (12 ms)
9002	9002	172.16.8.180	none	UNREACHABLE
Routing Information
Rule Name	From	To
tailover_1	9000	fro-1 9001
tailover_2	9000	9002 9001
tailover_3	9000	fro-1 9002 9001
Network Information
NameMAC AddressIP AddressMaskGatewayRX PacketsTX PacketsLANA0 98:05:01:57 D2172.16.80.61255.255.0.0172.16.0.151464339528

Figure 2-1-1 System Status

Time

Table 2-2-1 Description of Time Settings

Opons	Denion
System Time	Your gateway system me.
Time Zone	The world me zone. Please select the one which is the same or the closest as your city.
POSIX TZ String	Posix me zone strings.
NTP Server 1	Time server domain or hostname. For example, [me.asia.apple.com].
NTP Server 2	The rst reserved NTP server. For example, [me.windows.com].
Auto-Sync from NTP	Whether enable automacally synchronize from NTP server or not. ON is enable, OFF is disable this funcon.

For example, you can congure like this:

Time Settings System Time: 2016-3-3 14:06:15 Time Zone: Hong Kong POSIX TZ String: HKT-8 NTP Server 1: cn.pool.ntp.org NTP Server 2: tw.pool.ntp.org NTP Server 3: Auto-Sync from NTP: ON Sync from NTP Sync from Client

Figure 2-2-1 Time Settings

You can set your gateway me Sync from NTP or Sync from Client by pressing dierent buons.

Login Settings

Your gateway doesn't have administraon role. All you can do here is to reset what new username and password to manage your gateway. And it has all privileges to operate your gateway. You can modify both your "Web Login Sengs" and "SSH Login Sengs". If you have changed these sengs, you don't need to log out, just rewring your new user name and password will be OK.

Table 2-3-1 Description of Login Settings

Opons	Denion
User Name	NOTES: Your gateway doesn’t have administraon role.All you can do here is dening the username and password to manage your gateway. And it has all privileges to operate your gateway.User Name:Allowed characters"-+_+. <>&0-9a-zA-Z". Length: 1-32 characters.
Password	Allowed characters"-+_+. <>&0-9a-zA-Z".Length: 4-32 characters.
ConrmPassword	Please input the same password as 'Password' above.

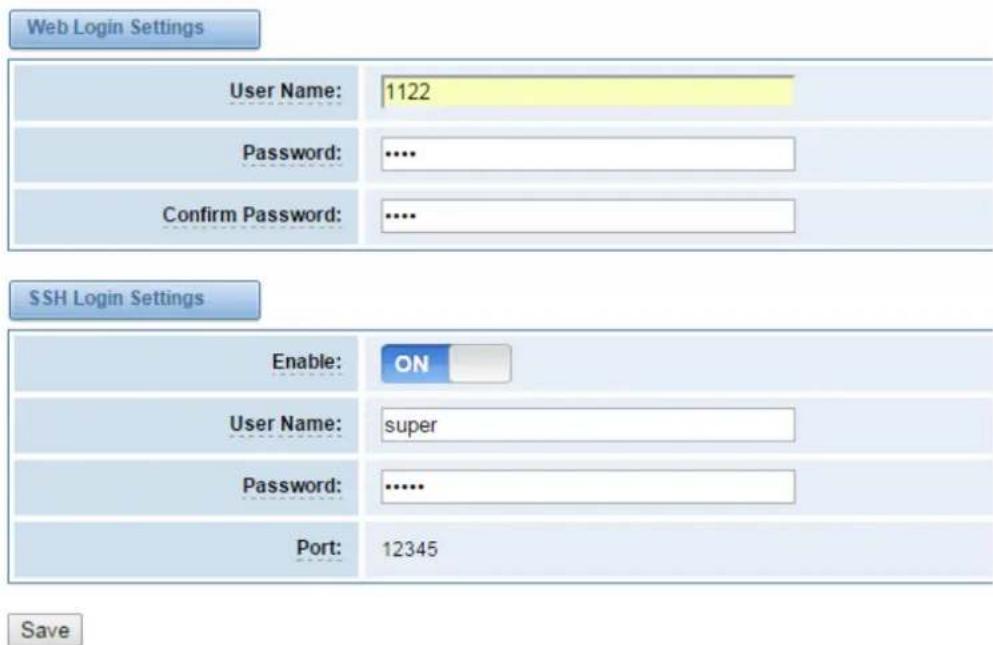

Web Login Settings User Name: 1122 Password: .... Confirm Password: .... SSH Login Settings Enable: ON User Name: super Password: .... Port: 12345 Save

Figure 2-3-1 Login Settings

Notice: Whenever you do some changes, do not forget to save your conguraon.

General, Cluster, Tools and Information

Language Settings

You can choose dierent languages for your system. If you want to change language, you can switch "Advanced" on, then "Download" your current language package. Aer that, you can modify the package with the language you need. Then upload your modied packages, "Choose

File" and "Add", those will be ok.

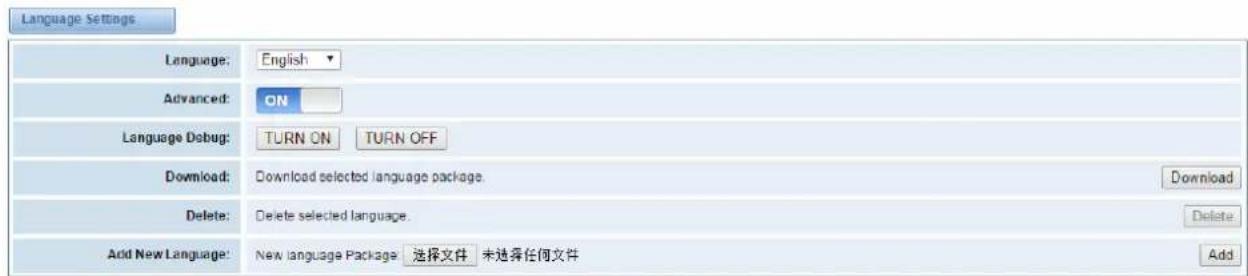

Language Settings Language: English Advanced: ON Language Debug: TURN ON TURN OFF Download: Download selected language package. Delete: Delete selected language. Add New Language: New language Package 选择文件 未选择任何文件 Download Delete Add

Figure 2-4-1 Language Settings

Scheduled Reboot

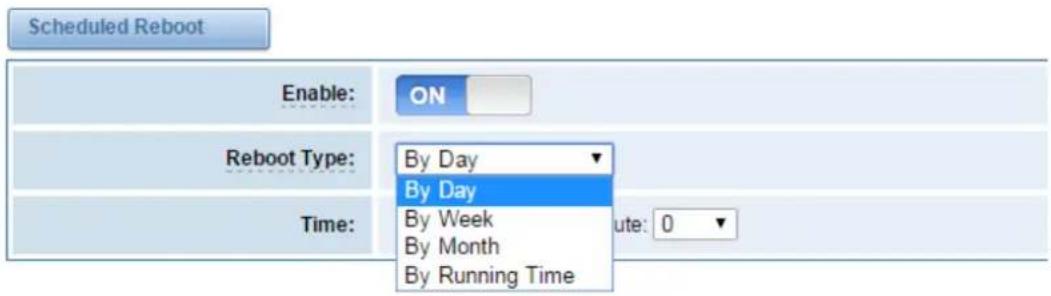

If switch it on, you can manage your gateway to reboot automacally as you like. There are four reboot types for you to choose, "By Day, By Week, By Month and By Running Time".

Scheduled Reboot Enable: ON Reboot Type: By Day By Day By Week By Month By Running Time Time: 0

Figure 2-4-2 Reboot Types

If use your system frequently, you can set this enable, it can helps system work more ecient.

Snmp Agent Enable: ON Save

Figure 2-4-3 Snmp Agent

Cluster

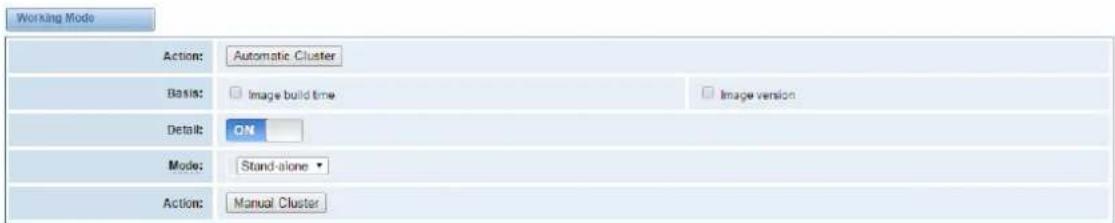

Working Mode Action: Automatic Cluster Basis: Image build time Image version Detail: ON Mode: Stand-alone Action: Manual Cluster

Figure 2-4-4 Working Mode

Reboot Tools

On the "Tools" pages, there are reboot, update, upload, backup and restore toolkits. You can choose system reboot and Asterisk reboot separately.

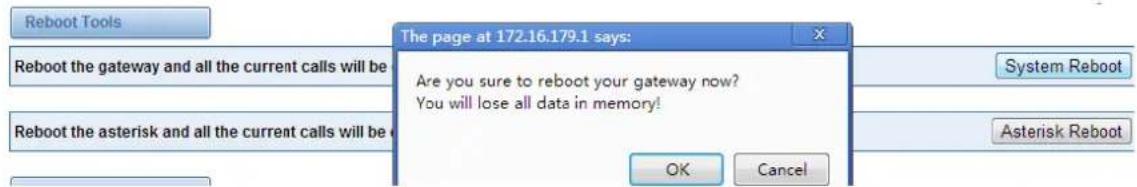

Reboot Tools The page at 172.16.179.1 says: Are you sure to reboot your gateway now? You will lose all data in memory! Reboot the gateway and all the current calls will be Reboot the asterisk and all the current calls will be OK Cancel System Reboot Astenisk Reboot

Figure 2-4-5 Reboot Prompt

If you press "Yes", your system will reboot and all current calls will be dropped. Asterisk Reboot is the same.

Table 2-4-1 Instruction of reboots

Opons	Denion
System Reboot	This will turn o your gateway and then turn it back on. This will drop all current calls.
Asterisk Reboot	This will restart Asterisk and drop all current calls.

We oer two kinds of update types for you, you can choose System Update or System Online Update. System Online Update is an easier way to update your system.

Update Firmware New system file: 选择文件 未选择任何文件 System Update New system file is downloaded from official website and update system. System Online Update

Figure 2-4-6 Update Firmware

If you want to store your previous conguraon, you can rst backup conguraon, then you can upload conguraon directly. That will be very convenient for you.

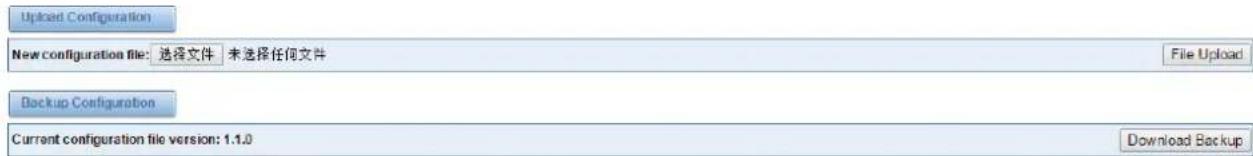

Upload Configuration New configuration file: 选择文件 未选择任何文件 File Upload Backup Configuration Current configuration file version: 1.1.0 Download Backup

Figure 2-4-7 Upload and Backup

Sometimes there is something wrong with your gateway that you don't know how to solve it, mostly you will select factory reset. Then you just need to press a buon, your gateway will be reset to the factory status.

Restore Configuration This will cause all the configuration files to back to default factory values! And reboot your gateway once it finishes. Factory Reset

Figure 2-4-8 Factory Reset

Information

On the “Informaon” page, there shows some basic informaon about the analog gateway. You can see soware and hardware version, storage usage, memory usage and some help informaon.

Model Name:	VS-AGU-E2M0800
Software Version:	1.1.0
Hardware Version:	1.0.0
Slot Number:	1
Storage Usage:	1.7M/63.5M (3%)
Memory Usage:	59.067 % Memory Clean
Build Time:	2016-03-01 17:26:17
Contact Address:	10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong, China 518109
Tel:	[phone]
Fax:	[phone]
E-Mail:	[e-mail]
Web Site:	www.openvox.cn
System Time:	2016-3-3 14:32:39
System Uptime:	0 days 03:59:26

Figure 2-4-9 System Information

3. Analog

You can see much informaon about your ports on this page.

Channel Settings

Port	Type	Name	Line Status	Port Status
1	FXO	board1-port1	Disconnected	OnHook
2	FXO	board1-port2	Disconnected	OnHook
3	FXO	board1-port3	Disconnected	OnHook
4	FXO	board1-port4	Disconnected	OnHook
5	FXO	board1-port5	Disconnected	OnHook
6	FXO	board1-port6	Disconnected	OnHook
7	FXO	board1-port7	Disconnected	OnHook
8	FXO	board1-port8	Disconnected	OnHook

Figure 3-1-1 Channel System

On this page, you can see every port status.

Advanced Settings

Dialing rules is used to eecvely judge whether the received number sequence is complete, in order to mely end receiving number and send out number

The correct use of dial-up rules, helps to shorten the turn-on me of phone call

Global Settings

General Tone duration: 100 Dial timeout: 180 Codec: Ulaw ▼ Impedance: China ▼ Echo cancel tap length: 512 ▼ VAD/CNG: ON Flash/Wink: ON Min flash time: 40 Max flash time: 400 Hangup on polarity switch: OFF

Figure 3-2-1 General Configuration

Table 3-2-1 Instruction of General

Opons	Denion
Tone duraon	How long generated tones (DTMF and MF) will be played on the channel. (in milliseconds)
Dial meout	Species the number of seconds we aempt to dial the specied devices.
Codec	Set the global encoding : mulaw, alaw.
Impedance	Conguraon for impedance.
Echo cancel tap length	Hardware echo canceler tap length.
VAD/CNG	Turn on/o VAD/CNG.
Flash/Wink	Turn on/o Flash/wink.
Min ash me	Min ash me.(in milliseconds).
Max ash me	Max ash me.(in milliseconds).
Hangup on polarity switch	Turn on/o hide caller id funcon.

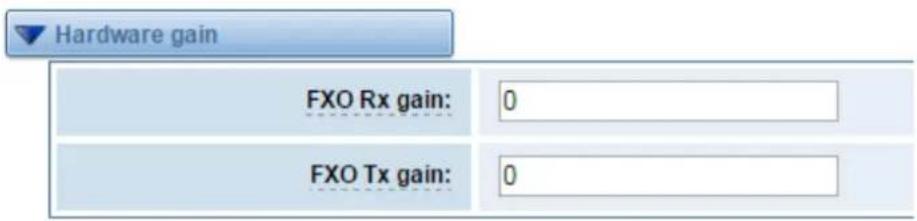

Hardware gain FXO Rx gain: 0 FXO Tx gain: 0

Figure 3-2-2 Hardware Gain

Table 3-2-2 Instruction of Hardware gain

Opons	Denion
FXO Rx gain	Set the FXO port Rx gain. Range: from -150 to 120.
FXO Tx gain	Set the FXO port Tx gain. Range: from -150 to 120.

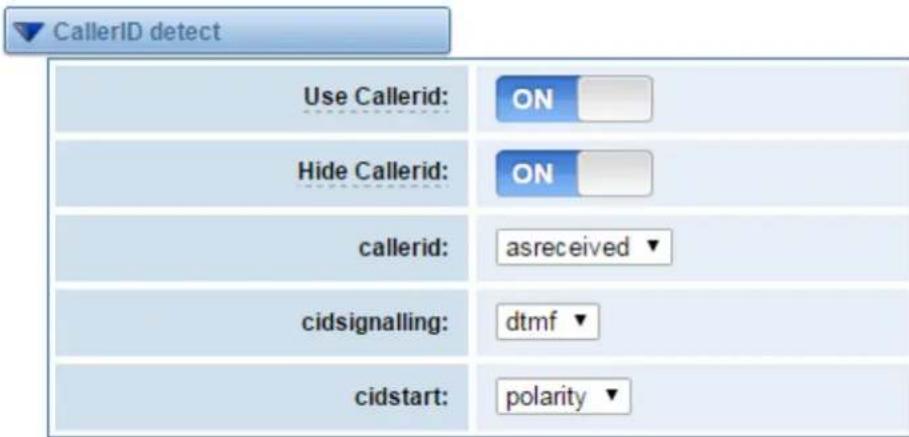

CallerID detect Use Callerid: ON Hide Callerid: ON callerid: asreceived ▼ cidsignalling: dtmf ▼ cidstart: polarity ▼

Figure 3-2-3 CallerID detect

Table 3-2-3 Instruction of CallerID detect

Opons	Denion
Use Callerid	Turn on/o callerid detect funcon
Hide Callerid	Turn on/o callerid detect funcon

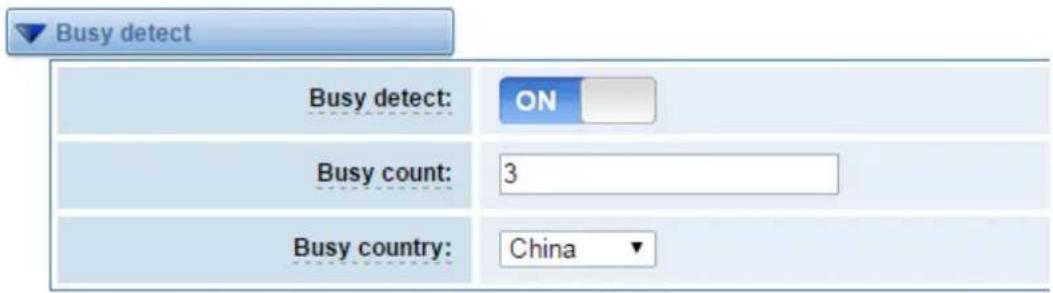

Busy detect Busy detect: ON Busy count: 3 Busy country: China ▼

Figure 3-2-4 Busy detect

Table 3-2-4 Instruction of Busy detect

Opons	Denion
Busy detect	Turn on/o busy detect funcon
Busy count	How many busy tones to wait for before hanging up. The default is 3, but it might be safer to set to 6 or even 8.
Busy country	Set the busy detect country.

Silence detect Silence detect: ON Silence threshold: 250 Max silence: 480 Rx threshold: 38 Tx threshold: 38

Figure 3-2-5 Silence detect

Table 3-2-5 Definition of Silence detect

Opons	Denion
Silence detect	Turn on/o silence detect funcon
Silence threshold	What we consider silence: the lower, the more sensitive, eg:250 is 250ms. Range: 100 to 500(100 to 500ms), default: 250
Max silence	How many silence threshold of silence before hanging up(eg: 16 is 250ms*16=4s). Range: 2 to 1020 (200ms to 512s), default: 80(20s)
Rx threshold	Range:-20 dBm0 to -40 dBm0, default: 20(-20 dBm0), all values are understood to be negave.
Tx threshold	Range:-20 dBm0 to -40 dBm0, default: 20(-20 dBm0), all values are understood to be negave.

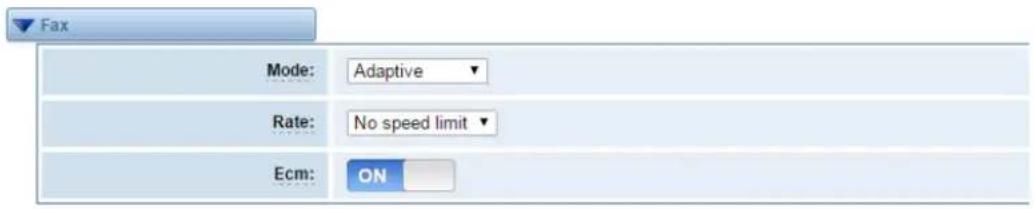

Fax Mode: Adaptive Rate: No speed limit Ecm: ON

Figure 3-2-6 Fax Configuration

Table 3-2-6 Definition of Fax

Opons	Denion
Mode	Set the transmission mode.
Rate	Set the rate of sending and receiving.
Ecm	Enable/disable T.30 ECM (error correcon mode) by default.

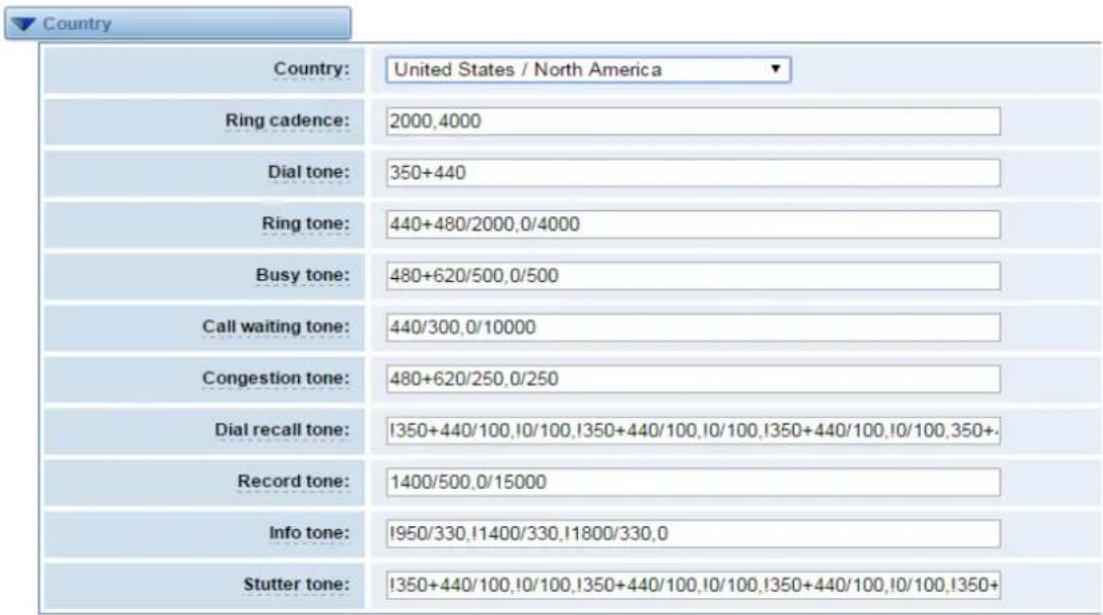

Country: United States / North America Ring cadence: 2000,4000 Dial tone: 350+440 Ring tone: 440+480/2000,0/4000 Busy tone: 480+620/500,0/500 Call waiting tone: 440/300,0/10000 Congestion tone: 480+620/250,0/250 Dial recall tone: I350+440/100,I0/100,I350+440/100,I0/100,I350+440/100,I0/100,350+. Record tone: 1400/500,0/15000 Info tone: I950/330,I1400/330,I1800/330,0 Stutter tone: I350+440/100,I0/100,I350+440/100,I0/100,I350+440/100,I0/100,I350+

Figure 3-2-7 Country Configuration

Table 3-2-7 Definition of Country

Opons	Denion
Country	Conguraon for locaon specic tone indicaons.
Ring cadence	List of duraons the physical bell rings.
Dial tone	Set of tones to be played when one picks up the hook.
Ring tone	Set of tones to be played when the receiving end is ringing.
Busy tone	Set of tones played when the receiving end is busy.
Call waing tone	Set of tones played when there is a call waing in the background.
Congeson tone	Set of tones played when there is some congeson.
Dial recall tone	Many phone systems play a recall dial tone aer hook ash.
Record tone	Set of tones played when call recording is in progress.
Info tone	Set of tones played with special informaon messages (e.g., number is out of service.)
Stuer tone

Special Function Keys

Function Keys None Keys Blind Transfer: ON Blind Transfer: Asked Transfer: *38 Save Cancel

Figure 3-3-1 Function keys

Table 3-3-1 Definition of Function keys

Opons	Denion
None Keys Blind Transfer	None Keys Blind Transfer help.
Blind Transfer	Blind Transfer help.
Asked Transfer	Asked Transfer help.

4. SIP

SIP Endpoints

This page shows everything about your SIP, you can see status of each SIP.

Endpoint Name	Registration	Credentials	Actions
9000	none	9000@172.16.8.182
9001	none	9001@172.16.80.104

Add New SIP Endpoint Delete

Figure 4-1-1 SIP Status

You can click buon to add a new SIP endpoint, and if you want to modify

existed endpoints, you can click buon.

Main Endpoint Settings

There are 3 kinds of registraon types for choose. You can choose "Anonymous, Endpoint registers with this gateway or this gateway registers with the endpoint".

You can congregate as follows:

If you set up a SIP endpoint by registraon "None" to a server, then you can't register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.)

Main Endpoint Settings Name: 301 User Name: Password: Registration: None Hostname or IP Address: 172.16.80.61 Backup Hostname or IP Address: 172.16.80.61 Transport: UDP NAT Traversal: Yes SUBSCRIBE for MWI: No VOS Encryption: No

Figure 4-1-2 Anonymous Registration

For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server.

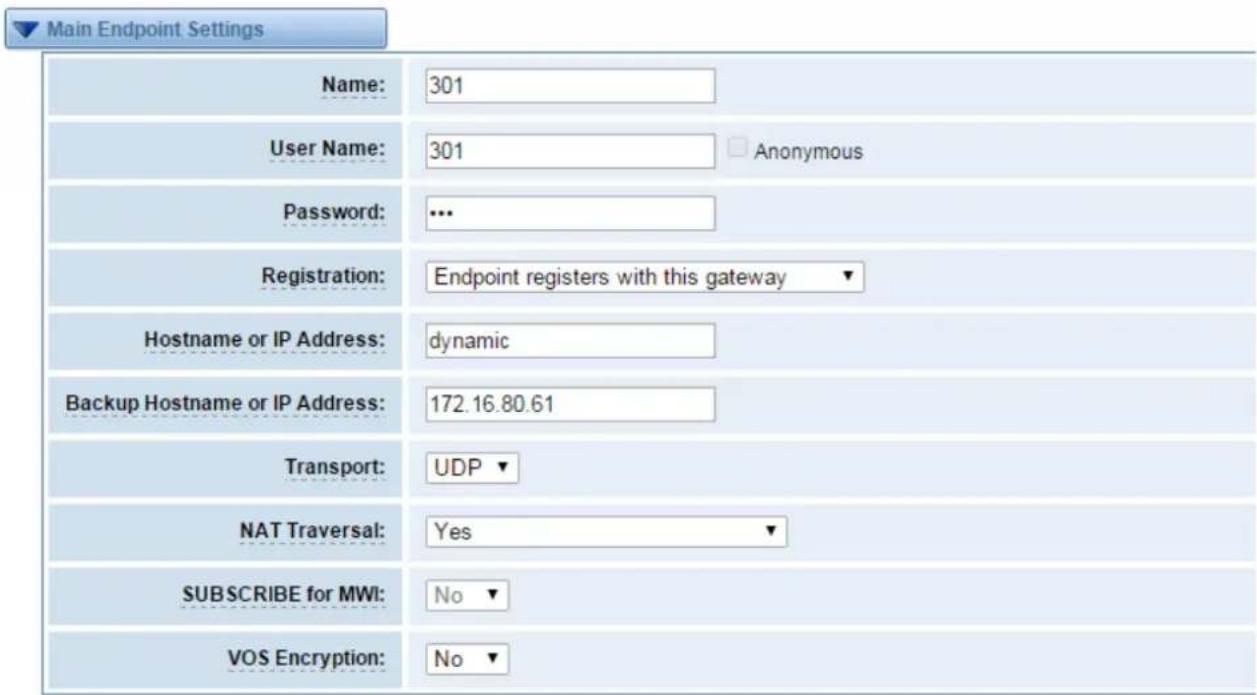

Main Endpoint Settings Name: 301 User Name: 301 Anonymous Password: ... Registration: Endpoint registers with this gateway Hostname or IP Address: dynamic Backup Hostname or IP Address: 172.16.80.61 Transport: UDP NAT Traversal: Yes SUBSCRIBE for MWI: No VOS Encryption: No

Figure 4-1-3 Register to Gateway

Also you can choose registraon by "This gateway registers with the endpoint", it's the same with

"None", except name and password.

Main Endpoint Settings Name: 301 User Name: 301 Anonymous Password: ... Registration: This gateway registers with the endpoint ▼ Hostname or IP Address: Backup Hostname or IP Address: 172.16.80.61 Transport: UDP ▼ NAT Traversal: Yes ▼ SUBSCRIBE for MWI: No ▼ VOS Encryption: No ▼

Figure 4-1-4 Register to Server

Table 4-1-1 Definition of SIP Options

Opons	Denion
Name	A name which is able to read by human. And it's only used for user's reference.
Username	User Name the endpoint will use to authenticate with the gateway.
Password	Password the endpoint will use to authenticate with the gateway. Allowed characters.
Registraon	Whether this endpoint will register to this gateway ro this gateway to the endpoint.
Hostname or IP Address	IP address or hostname of the endpoint or 'dynamic' if the endpoint has a dynamic IP address. This will require registraon.Noce: if the input here is hostname and your DNS has changed, you must reboot asterisk.
Backup Hostname or IP Address	IP address or hostname of the endpoint or 'dynamic' if the endpoint has a dynamic IP address. This will require registraon.Noce: if the input here is hostname and your DNS has changed, you must reboot asterisk.
Transport	This sets the possible transport types for outgoing. Order of usage, when the respective transport protocols are enabled, is UDP, TCP, TLS. The rst enabled transport type is only used for outbound messages until a Registraon takes place. During the peer Registraon the transport type may change to another supported type if the peer requests so.
NAT Traversal	Addresses NAT-related issues in incoming SIP or media sessions.
SUBSCRIBE for MWI	Whether or not to subscribe to receive the MWI.
VOS Encrypon	Whether or not to enable VOS Encrypon.

Advanced: Registration Options

Table 4-1-2 Definition of Registration Options

Opons	Denion
AuthencaonUser	A username to use only for registraon.
Register Extension	When Gateway registers as a SIP user agent to a SIP proxy (provider), calls from this provider connect to this local extension.
From User	A username to identify the gateway to this endpoint.
From Domain	A domain to identify the gateway to this endpoint.
Remote Secret	A password which is only used if the gateway registers to the remote side.
Port	The port number the gateway will connect to at this endpoint.
Quality	Whether or not to check the endpoint's conncon status.
Qualify Frequency	How oen, in seconds, to check the endpoint's conncon status.
Outbound Proxy	A proxy to which the gateway will send all outbound signaling instead of sending signaling directly to endpoints.

Call Settings

Table 4-1-3 Definition of Call Options

Opons	Denion
DTMF Mode	Set default DTMF Mode for sending DTMF. Default: rfc2833.Other opons: 'info', SIP INFO message (applicaon/dtmf-relay);'Inband', Inband audio (require 64kbit codec -alaw, ulaw).
Call Limit	Seng a call-limit will cause calls above the limit not to be accepted.
TrustRemote-Party-ID	Whether or not the Remote-Party-ID header should be trusted.
SendRemote-Party-ID	Whether or not to send the Remote-Party-ID header.
Remote Party IDFormat	How to set the Remote-Party-ID header: from Remote-Party-ID or from P-Asserted-Identity.
Caller IDPresentaon	Whether or not to display Caller ID.

Advanced: Signaling Settings

Table 4-1-4 Definition of Signaling Options

Opons	Denion
Progress Inband	If we should generate in-band ringing.Always use ‘never’ to never use in-band signaling, even in cases where some buggy devices might not render it.Valid values: yes, no never.Default: never.
Allow Overlap Dialing	Allow Overlap Dialing: Whether or not to allow overlap dialing. Disabled by default.
Append user=phone to URI	Whether or not to add ‘; user=phone’ to URIs that contain a valid phone number.
Add Q.850 Reason Headers	Whether or not to add Reason header and to use it if it is available.
Honor SDP Version	By default, the gateway will honor the session version number in SDP packets and will only modify the SDP session if the version number change. Turn this opon o to force the gateway to ignore the SDP session version number and treat all SDP data as new data. This is required for devices that send non-standard SDP packets (observed with Microso OCS). By default this opon is on.
Allow Transfers	Whether or not to globally enable transfers. Choosing 'no' will disable all transfers (unless enabled in peers or users). Default is enabled.
Allow Promiscuous Redirects	Whether or not to allow 302 or REDIR to non-local SIP address.Note that promiscredir when redirects are made to the local system will cause loops since this gateway is incapable of performing a "hairpin" call.
Max Forwards	Seng for the SIP Max-Forwards header (loop prevenon).
Send TRYING on REGISTER	Send a 100 Trying when the endpoint registers.

Advanced: Timer Settings

Table 4-1-5 Definition of Timer Options

Opons	Denion
Default T1 Timer	This mer is used primarily in INVITE transacons. The default for Timer T1 is 500ms or the measured run-trip me between the gateway and the device if you have qualify=yes for the device.
Call Setup Timer	If a provisional response is not received in this amount of me, the call will auto-congest. Defaults to 64 mes the default T1 mer.
Session Timers	Session-Timers feature operates in the following three modes: originate, Request and run session-mers always; accept, run session-mers only when requested by other UA; refuse, do not run session mers in any case.
Minimum Session Refresh Interval	Minimum session refresh interval in seconds. Default is 90secs.
Maximum Session Refresh Interval	Maximum session refresh interval in seconds. Defaults to 1800secs.
Session Refresher	The session refresher, uac or uas. Defaults to uas.

Media Settings

Table 4-1-6 Definition of Media Settings

Opons	Denion
Media Sengs	Select codec from the drop down list. Codecs should be dierent for each Codec Priority.

Advanced SIP Settings

Networking

Table 4-2-1 Definition of Networking Options

Opons	Denion
UDP Bind Port	Choose a port on which to listen for UDP trac.
Enable TCP	Enable server for incoming TCP conncon (default is no).
TCP Bind Port	Choose a port on which to listen for TCP trac.
TCP AuthencaonTimeout	The maximum number of seconds a client has to authenticate. If the client does not authenticate before this meout expires, the client will be disconnected.(default value is: 30 seconds).
TCP AuthencaonLimit	The maximum number of unauthenticated sessions that will be allowed to connect at any given me.(default is:50).
Enable Hostname Lookup	Enable DNS SRV lookups on outbound calls Note: the gateway only uses the rst host in SRV records Disabling DNS SRV lookups disables the ability to place SIP calls based on domain names to some other SIP users on the Internet specifying a port in a SIP peer denion or when dialing outbound calls with suppress SRV lookups for that peer or call.
Enable Internal SIP Call	Whether enable the internal SIP calls or not when you select the registraon opon "Endpoint registers with this gateway".
Internal SIP Call Prex	Specify a prex before round the internal calls.

NAT Settings

Table 4-2-2 Definition of NAT Settings

Opons	Denion
Local Network	Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NATed network.This gateway will replace the internal IP address in SIP and SDP messages with the external IP address when a NAT exists between the gateway and other endpoints.
Local Network List	Local IP address list that you added.
Subscribe Network Change Event	Through the use of the test_stun_monitor module, the gateway has the ability to detect when the perceived external network address has changed. When the stun_monitor is installed and congured, chan_sip will renew all outbound registraons when the monitor detects any sort of network change has occurred. By default this opon is enabled, but only takes eect once res_stun_monitor is congured. If res_stun_monitor is enabled and you wish to not generate all outbound registraons on a network change, use the opon below to disable this feature.
Match External Address Locally	Only substitute the externaddr or externhost seng if it matches.
Dynamic Exclude Stac	Disallow all dynamic hosts from registering as any IP address used for stacly dened hosts. This helps avoid the conguraon error for allowing your users to register at the same address as a SIP provider.
Externally Mapped TCP Port	The externally mapped TCP port, when the gateway is behind a stac NAT or PAT.
External Address	The external address (and oponal TCP port) of the NAT.External Address=hostname :port] species a stac address[:port] to be used in SIP and messages. Examples:External Address=12.34.56.78External Address=12.34.56.78:9900
External Hostname	The external hostname(and oponal TCP port) of the NATExternal Hostname= hostname [:port] is similar to External Address.Examples: External Hostname = foo.dyndns.net.
Hostname Refresh Interval	How oen to perform a hostname lookup. This can be useful when your NAT device lets you choose the port mapping, but the IP address is dynamic. Beware, you might suer from service disrupon when the name server resoluon fails.

RTP Settings

Table 4-2-3 Definition of RTP Settings Options

Opons	Denion
Start of RTP Port Range	Start of range of port numbers to be used for RTP.
End of RTP port Range	End of range of port numbers to be used for RTP.
RTP Timeout	RTP Timeout

Parsing and Compatibility

Table 4-3-4 Instruction of Parsing and Compatibility

Opons	Denion
Strict RFCInterpretaon	Check header tags, character conversion in URIs, and mulline headers for strict SIP compatibility(default is yes)
Send CompactHeaders	Send compact SIP headers
SDP Owner	Allows you to change the username led in the SDP owner string.This led MUST NOT contain spaces.
Disallowed SIPMethods	When a dialog is started with another SIP endpoint, the other endpoint should include an Allow header telling us what SIP methods the endpoint implements. However, some endpoints either do not include an Allow header or lie about what methods they implement. In the former case, the gateway makes the assumpon that the endpoint support all known SIP methods. If you know that your SIP endpoint does not provide support for a specic method, then you may provide a list of methods that your endpoint does not implement in the disallowed_methods opon. Note that if your endpoint is truthful with its Allow header, then there is no need to set this opon.
Shrink Caller ID	The shrinkcallerid funcon removes '(', '', ')', non-trailing '.', and '-' not in square brackets. For example, the caller id value 555.5555 becomes 5555555 when this opon is enabled. Disabling this opon results in no modicaon of the caller id value, which is necessary when the caller id represents something that must be preserved. By default this opon is on.
MaximumRegistraon Expiry	Maximum allowed me of incoming registraons and subscripons (seconds).
MinimumRegistraon Expiry	Minimum length of registrations/subscriptions (default 60).
DefaultRegistraon Expiry	Default length of incoming/outgoing registraon.
RegistraonTimeout	How oen, in seconds, to retry registraon calls. Default 20 seconds.
Number of Registraon Aempts Enter '0' for unlimited	Number of registraon aempts before we give up. 0 = connue forever, hammering the other server unl it accepts the registraon. Default is 0 tries, connue forever.

Security

Table 4-3-5 Instruction of Security

Opons	Denion
Match AuthUsername	If available, match user entry using the 'username' eld from the authencaon line instead of the 'from' eld.
Realm	Realm for digest authencaon. Realms MUST be globally unique according to RFC 3261. Set this to your host name or domain name.
Use Domain as Realm	Use the domain from the SIP Domains seng as the realm. In this case, the realm will be based on the request 'to' or 'from' header and should match one of the domain. Otherwise, the congured 'realm' value will be used.
Always AuthReject	When an incoming INVITE or REGISTER is to be rejected, for any reason, always reject with an identical response equivalent to valid username and invalid password/hash instead of leng the requester know whether there was a matching user or peer for their request. This reduces the ability of an acker to scan for valid SIP usernames. This opon is set to 'yes' by default.
Authencate Opons Requests	Enabling this opon will authenticate OPTIONS requests just like INVITE requests are. By default this opon is disabled.
Allow Guest Calling	Allow or reject guest calls (default is yes, to allow). If your gateway is connected to the Internet and you allow guest calls, you want to check which services you oer everyone out there, by enabling them in the default context.

Media

Table 4-3-6 Instruction of Media

Opons	Denion
Premature Media	Some ISDN links send empty media frames before the call is in ringing or progress state. The SIP channel will then send 183 indicang early media which will be empty - thus users get no ring signal. Seng this to "yes" will stop any media before we have call progress (meaning the SIP channel will not send 183 Session Progress for early media). Default is 'yes'. Also make sure that the SIP peer is congured with progressinband=never. In order for 'noanswer' applicaons to work, you need to run the progress() applicaon in the priority before the app.
TOS for SIP Packets	Sets type of service for SIP packets
TOS for RTP Packets	Sets type of service for RTP packets

5.Routing

Call Routing Rules

Move	Order	Rule Name	From	To	Actions
	1	test_1	9000	9001		✘
	2	test_2	9000	9001		✘
	3	test_3	9000	9001		✘
	4	test_4	9000	9001		✘
	5	test_5	9000	9001		✘
	6	test_6	9000	9001		✘
	7	test_7	9000	9001		✘
	8	test_8	9000	9001		✘
	9	test_9	9000	9001		✘
	10	test_10	9000	9001		✘
	11	test_11	9000	9001		✘
	12	test_12	9000	9001		✘

Figure 5-1-1 Routing Rules

You are allowed to set up new round by, and aer seng round rules,

move rules' order by pulling up and down, click buon to edit the round and

to delete it. Finally click the buon to save what you set shows current round rules. Otherwise you can set up unlimited round rules.

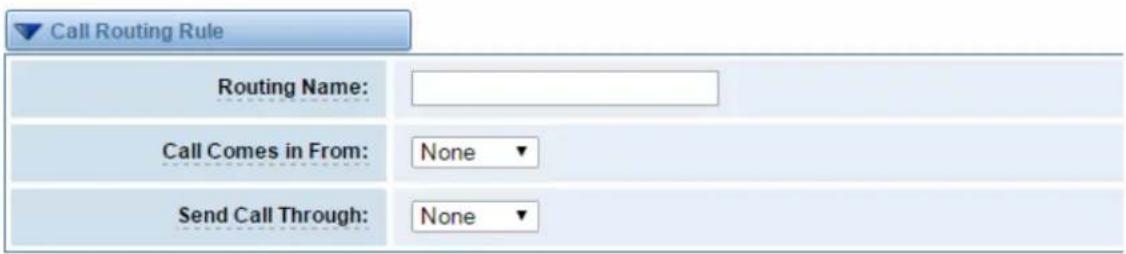

Call Routing Rule Routing Name: Call Comes in From: None ▼ Send Call Through: None ▼

Figure 5-1-2 Create a Call Routing Rule

Modify a Call Routing Rule

Call Routing Rule Routing Name: test_108 Call Comes in From: 9000 Send Call Through: 9001

Figure 5-1-2 Modify a Call Routing Rule

Table 5-1-1 Definition of Call Routing Rule

Opons	Denion
Roung Name	The name of this route. Should be used to describe what types of calls this route matches (for example, ‘SIP2GSM’ or ‘GSM2SIP’).
Call Comes in From	The launching point of incoming calls.
Send Call Through	The desnaon to receive the incoming calls.

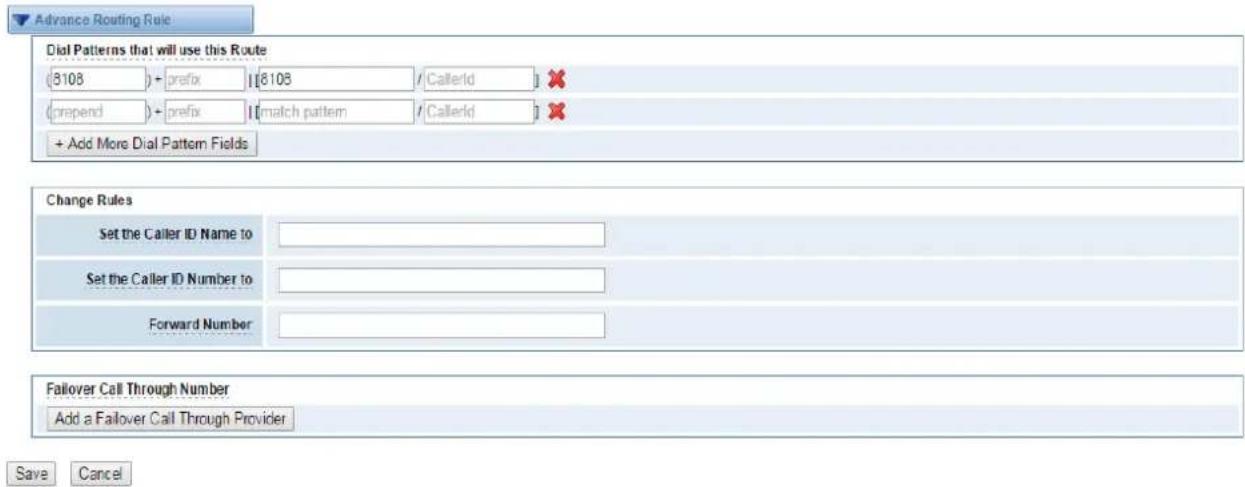

Advance Routing Rule Dial Patterns that will use this Route (5108) + prefix | 8108 / CallerId (prepend) + prefix | match pattern / CallerId + Add More Dial Pattern Fields Change Rules Set the Caller ID Name to Set the Caller ID Number to Forward Number Failover Call Through Number Add a Failover Call Through Provider Save Cancel

Figure 5-1-3 Advance Routing Rule

Table 5-1-2 Definition of Advance Routing Rule

Opons	Denion
Dial Paerns that will use this Route	Callee ID Manipulaon Help
Set the Caller ID Name to	What caller ID name would you like to set before sending this call to the endpoint.
Set the Caller ID Number to	What caller number would you like to set before sending call to the endpoint.
Forward Number	What desnaon number will you dial?This is very useful when you have a transfer call.
Failover Call Through Number	The gateway will aempt to send the call out each of these in the order you specify.

Groups

Group Name	Type	Policy	Members	Actions
all	fko	roundrobin	1,2,3,4,5,6,7,8
SIP	sip	roundrobin	987.1002, 980, 981, 982, 983, 984, 985, 986

New Group

Figure 5-2-1 Group Rules

You can click buon to set new group, and if you want to modify existed group, you

can click buon.

Create a Group

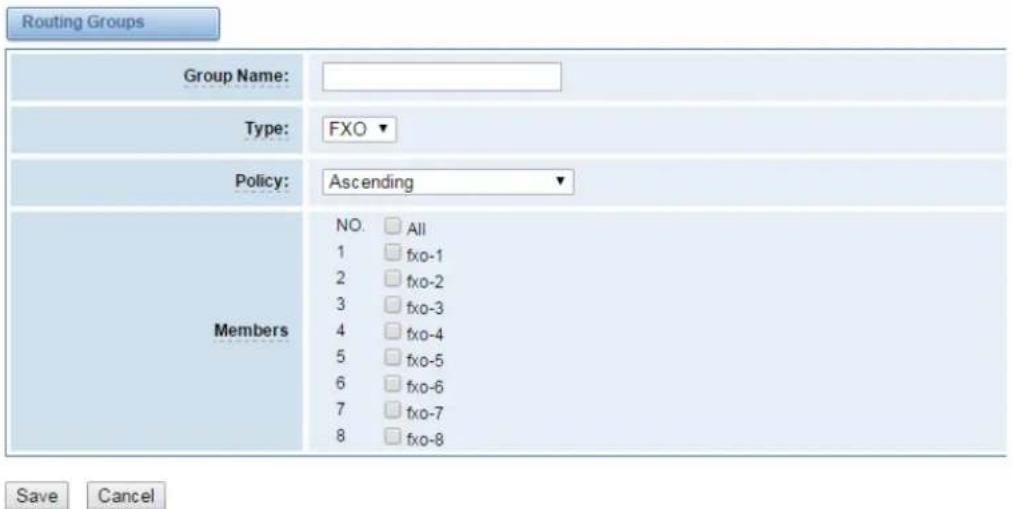

Routing Groups Group Name: Type: FXO ▼ Policy: Ascending ▼ Members NO. All 1 fxo-1 2 fxo-2 3 fxo-3 4 fxo-4 5 fxo-5 6 fxo-6 7 fxo-7 8 fxo-8 Save Cancel

Figure 5-2-2 Create a Group

Modify a Group

Routing Groups Group Name: all Type: FXO ▼ Policy: Roundrobin ▼ Members NO. □ All 1 ✓ fxo-1 2 ✓ fxo-2 3 ✓ fxo-3 4 ✓ fxo-4 5 ✓ fxo-5 6 ✓ fxo-6 7 ✓ fxo-7 8 ✓ fxo-8 Save Cancel

Figure 5-2-2 Modify a Group

Table 5-2-1 Definition of Routing Groups

Opons	Denion
Group Name	The mean of this route. Should be used to describe what types of calls this route match (for example, ‘sip1 TO port1’ or ‘port1 To sip2’).

6 Network, Advanced and Logs

Network

On "Network" page, there are "Network Setngs", "VPN Seng", "DDNS Sengs", and "Toolkit".

Network Settings

There are three types of LAN port IP, Factory, Stac and DHCP. Factory is the default type, and it is 172.16.99.1. When you Choose LAN IPv4 type is "Factory", this page is not editable.

A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC.

LAN IPv4 Interface: eth0 Type: Static MAC: A0:98:05:01:57:D2 IPv4 Settings Address: 172.16.80.61 Netmask: 255.255.0.0 Default Gateway: 172.16.0.1 DNS Servers DNS Server 1: 202.96.134.133 DNS Server 2: 202.96.128.166 DNS Server 3: 8.8.8.8 DNS Server 4: Reserved Access IP Enable: ON Reserved Address: 192.168.99.1 Reserved Netmask: 255.255.255.0 Save

Figure 6-1-1 LAN Settings Interface

Table 6-1-1 Definition of Network Settings

Opons	Denion
Interface	The name of network interface.
Type	The method to get IP.Factory: Geng IP address by Slot Number (System → informaon to check slot number).Stac: manually set up your gateway IP.DHCP: automacally get IP from your local LAN.
MAC	Physical address of your network interface.
Address	The IP address of your gateway.
Netmask	The subnet mask of your gateway.
Default Gateway	Default getaway IP address.
Reserved Access IP	A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC.
Enable	A switch to enable the reserved IP address or not.ON(enabled), OFF(disabled)
Reserved Address	The reserved IP address for this gateway.
Reserved Netmask	The subnet mask of the reserved IP address.

Basically this info is from your local network service provider, and you can ll in four DNS servers.

DNS Servers
DNS Server 1:	221.179.38.7
DNS Server 2:
DNS Server 3:
DNS Server 4:

Figure 6-1-2 DNS Interface

Table 6-1-2 Definition of DNS Settings

Opons	Denion
DNS Servers	A list of DNS IP address. Basically this info is from your local network service provider.

VPN Settings

You can upload the VPN client conguraon, if success, you can see a VPN virtual network card on SYSTEM status page. About the congure format you can refer to the Noce and Sample conguraon.

VPN Settings VPNType: OpenVPN OpenVPN Settings Upload Configuration 选择文件 未选择任何文件 File Upload Notice: 1.The format of the upload file should be like this mmc.ter. gr; 2.The postfix of configuration files should be .conf; 3.The upload file can not include any directory; 4.If still confused please download the sample configuration and refer to it. Sample Configuration Download Samples Save

Figure 6-1-3 OpenVPN Interface

VPN Settings VPNType: PPTP VPN PPTP VPN Settings Server: 0.0.0.0 Account: test Password: .... Domain: Use MPPE: Save

Figure 6-1-4 PPTP VPN Interface

DDNS Settings

You can enable or disable DDNS (dynamic domain name server).

DDNS Settings DDNS: ON Type: inadyn Username: admin Password: admin Your domain: www.internet.site.com

Figure 6-1-5 DDNS Interface

Table 6-1-3 Definition of DDNS Settings

Opons	Denion
DDNS	Enable/Disable DDNS(dynamic domain name server)
Type	Set the type of DDNS server.

Username	Your DDNS account's login name.
Password	Your DDNS account's password.
Your domain	The domain to which your web server will belong.

Toolkit

It is used to check network connectivity. Support Ping command on web GUI.

Interface: LAN google.com Ping google.com Traceroute Report traceroute -s 172.16.80.61 google.com traceroute to google.com (64.233.162.83) from 172.16.80.61, 30 hops max, 38 byte packets

Figure 6-1-6 Network Connectivity Checking

Advanced

Asterisk API

When you make "Enable" switch to "on", this page is available.

General Enable: ON Port: 5038 Manager Manager Name: admin Manager secret: admin Deny: 0.0.0.0/0.0.0.0 Permit: 172.16.123.123/172.16.80.61 Rights System: read: ✓ write: ✓ Call: read: ✓ write: ✓ Log: read: ✓ write: ✓ Verbose: read: ✓ write: ✓ Command: read: □ write: ✓ Agent: read: ✓ write: ✓ User: read: ✓ write: ✓ Config: read: ✓ write: ✓

Figure6-2-1 API Interface

Table 6-2-1 Definition of Asterisk API

Opons	Denion
Port	Network port number
Manager Name	Name of the manager without space
Manager secret	Password for the manager.Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters.
Deny	If you want to deny many hosts or networks, use char & as separator.Example: 0.0.0.0/0.0.0.0 or192.168.1.0/255.255.255.0&10.0.0.0/255.0.0.0
Permit	If you want to permit many hosts or network, use char & as separator.Example: 0.0.0.0/0.0.0.0 or192.168.1.0/255.255.255.0&10.0.0.0/255.0.0.0
System	General informaon about the system and ability to run system management commands, such as Shutdown, Restart, and Reload.
Call	Informaon about channels and ability to set informaon in a running channel.
Log	Logging informaon. Read-only. (Dened but not yet used.)
Verbose	Verbose informaon. Read-only. (Dened but not yet used.)
Command	Permission to run CLI commands. Write-only.
Agent	Informaon about queues and agents and ability to add queue
User	Permission to send and receive UserEvent.
Cong	Ability to read and write conguraon les.
DTMF	Receive DTMF events. Read-only.
Reporng	Ability to get informaon about the system.
CDR	Output of cdr_manager, if loaded. Read-only.
Dialplan	Receive NewExten and VarSet events. Read-only.
Originate	Permission to originate new calls. Write-only.
All	Select all or deselect all.

Once you set like the above gure, the host 172.16.123.123/255.255.0.0 is allowed to access the gateway API. Please refer to the following gure to access the gateway API by puy.

172.16.123.123 is the gateway's IP, and 5038 is its API port.

172.16.123.123 - PuITY root@Openvox-Wireless-Gateway:~# telnet 172.16.123.123 5038 Asterisk Call Manager/1.1 action: login username: admin secret: admin Response: Success Message: Authentication accepted Event: FullyBooted Privilege: system,all Status: Fully Booted

Figure 6-2-2 Putty Access

Asterisk CLI

In this page, you are allowed to run Asterisk commands.

Asterisk CLI Command: ? Execute

Output:

! Execute a shell command agi dump html Dumps a list of AGI commands in HTML format agi exec Add AGI command to a channel in Async AGI agi set debug [on|off] Enable/Disable AGI debugging agi show commands [topic] List AGI commands or specific help aoc set debug enable cli debugging of AOC messages cc cancel Kill a CC transaction cc report status Reports CC stats cdr show status Display the CDR status cel show status Display the CEL status channel request hangup Request a hangup on a given channel

Figure 6-2-3 Asterisk Command Interface
Table 6-2-2 Definition of Asterisk API

Opons	Denion
Command	Type your Asterisk CLI commands here to check or debug your gateway. e.g, type “help” or “?” you will get all help informaon.

If you type "help" or "?" and execute it, the page will show you the executable commands.

Asterisk File Editor

On this page, you are allowed to edit and create conguraon les.

Figure 6-2-4 Configuration Files List

Click "New Conguraon File" to create a new conguraon le. Aer eding or creang, please reload Asterisk.

Logs

On the "Log Sengs" page, you should set the related logs on to scan the responding logs page.

For example, set "System Logs" on like the following, then you can turn to "System" page for system logs, otherwise, system logs is unavailable. And the same with other log pages.

System Logs System Logs: ON Whether enable or disable system log size: 1MB ASTERISK Logs Verbose: ON Notice: ON Warning: ON Debug: ON Error: ON DTMF: ON Auto clean: ON maxsize: 100KB SIP Logs: SIP Logs: ON Auto clean: ON maxsize: 100KB Call Detail Record Call Detail Record: ON Auto clean: ON maxsize: 20MB Save

Figure 6-3-1 System Logs Control

[1970/01/01 07:01:23] Power on [2016/03/03 10:33:00] Power off [1970/01/01 07:01:15] Power on [2016/03/03 15:20:49] Power off [2016/03/03 15:22:07] Power on [2016/03/03 15:28:14] Power off [2016/03/03 15:29:34] Power on [2016/03/04 10:41:04] Restart astmanproxy (keeper). [2016/03/04 10:43:04] Restart astmanproxy (keeper). [2016/03/04 10:45:04] Restart astmanproxy (keeper). [2016/03/04 10:47:05] Restart astmanproxy (keeper). [2016/03/04 10:49:05] Restart astmanproxy (keeper). [2016/03/04 10:51:05] Restart astmanproxy (keeper). [2016/03/04 10:53:05] Restart astmanproxy (keeper). [2016/03/04 10:55:05] Restart astmanproxy (keeper). [2016/03/04 10:57:06] Restart astmanproxy (keeper). [2016/03/04 10:59:06] Restart astmanproxy (keeper). [2016/03/04 11:01:06] Restart astmanproxy (keeper). [2016/03/04 11:03:07] Restart astmanproxy (keeper). [2016/03/04 11:05:08] Restart astmanproxy (keeper). [2016/03/04 11:07:08] Restart astmanproxy (keeper). [2016/03/04 11:09:08] Restart astmanproxy (keeper). [2016/03/04 11:11:08] Restart astmanproxy (keeper). [2016/03/04 11:13:08] Restart astmanproxy (keeper). [2016/03/04 11:15:08] Restart astmanproxy (keeper). [2016/03/04 11:17:09] Restart astmanproxy (keeper). [2016/03/04 11:19:09] Restart astmanproxy (keeper). [2016/03/04 11:21:09] Restart astmanproxy (keeper). [2016/03/04 11:23:09] Restart astmanproxy (keeper).

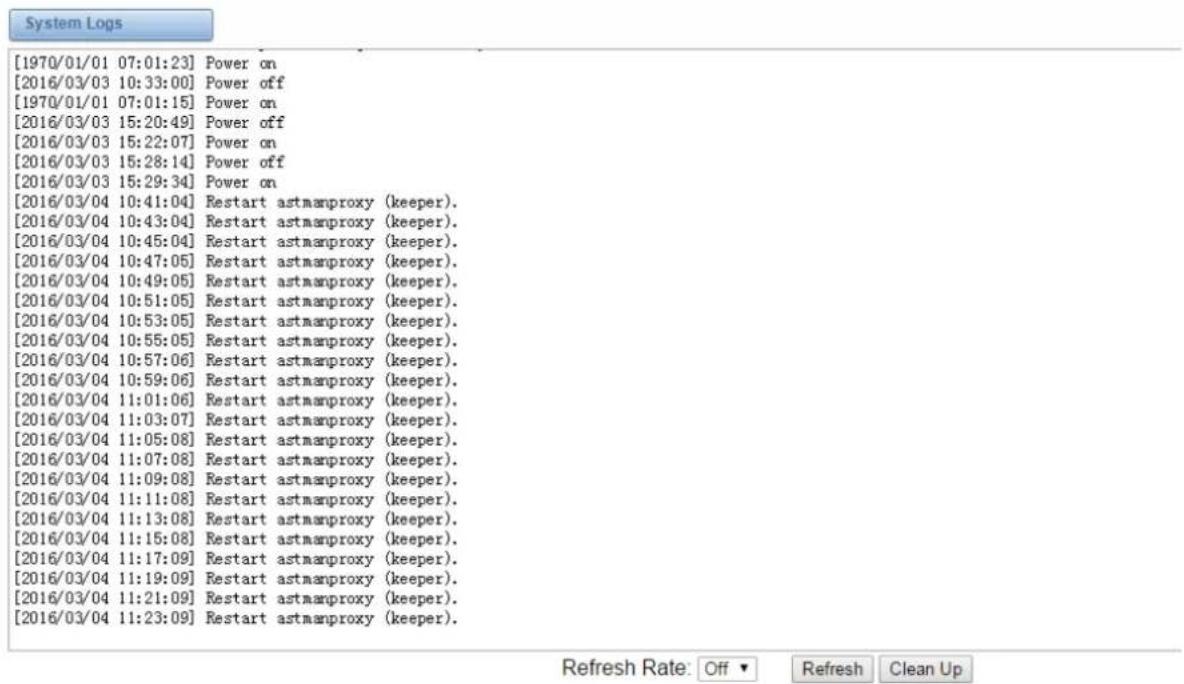

Figure 6-3-2 System Logs Output

Noce: The same to Asterisk Logs and SIP Logs.

Table 6-3-1 Definition of Log Setting

Opons	Denion
System Logs	Whether enable or disable system log.
Auto clean (System Logs)	switch on: when the size of log le reaches the max size, the system will cut a half of the le. New logs will be retained. switch o: logs will remain, and the le size will increase gradually. default on, max size=1MB.
Verbose	Asterisk console verbose message switch.
Noce	Asterisk console noce message switch.
Warning	Asterisk console warning message switch.
Debug	Asterisk console debug message switch.
Error	Asterisk console error message switch.
DTMF	Asterisk console DTMF info switch.
Auto clean (asterisk logs)	switch on: when the size of log le reaches the max size, the system will cut a half of the le. New logs will be retained. switch o: logs will remain, and the le size will increase gradually. default on, max size=100KB.
SIP Logs	Whether enable or disable SIP log.
Auto clean (SIP logs)	switch on: when the size of log le reaches the max size, the system will cut a half of the le. New logs will be retained. switch o: logs will remain, and the le size will increase gradually. default on, default size=100KB.
Call Detail Record	Displaying Call Detail Records for channel.
Auto clean	switch on: when the size of log le reaches the max size, the system will cut a half of the le. New logs will be retained. switch o: logs will remain, and the le size will increase gradually. default on, default size=20MB.

CDR

You can scan your CDR easily on web GUI, and also you can delete, clean up export your CDR information.

Caller ID Callee ID From To Start Time Duration Result from to from to

Filter Clean Filter

Total Records: 258

☐	Caller ID	Callee ID	From	To	Start Time	Duration	Result
☐	9000	81278127	9000	9001	2016-03-04 11:22:02	00:00:01	ANSWERED
☐	9000	81268126	9000	9001	2016-03-04 11:22:00	00:00:01	ANSWERED
☐	9000	81258125	9000	9001	2016-03-04 11:21:58	00:00:01	ANSWERED
☐	9000	81248124	9000	9001	2016-03-04 11:21:55	00:00:01	ANSWERED
☐	9000	81238123	9000	9001	2016-03-04 11:21:54	00:00:01	ANSWERED
☐	9000	81228122	9000	9001	2016-03-04 11:21:52	00:00:01	ANSWERED
☐	9000	81218121	9000	9001	2016-03-04 11:21:51	00:00:01	ANSWERED
☐	9000	81208120	9000	9001	2016-03-04 11:21:49	00:00:01	ANSWERED
☐	9000	81198119	9000	9001	2016-03-04 11:21:47	00:00:01	ANSWERED
☐	9000	81198118	9000	9001	2016-03-04 11:21:45	00:00:01	ANSWERED

1 2 3 4 5 6 7 8 9 10 11 ▶ 1 /26 go
Delete Clean Up Export

Figure 6-3-3 CDR Output

Thank You for Choosing OpenVox Products!
