USER MANUAL my810X SAGEM

252989298_my&10X_en.book Page 3 March 5, 2008 11:06 11 You have just purchased a SAGEM phone, we congratulate you; it is recommended that you read this handbook carefully in order to use your phone efficiently and in the best conditions. Your phone can be used internationally in the various networks (3G, GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz) depending on the roaming arrangements with your operator. This phone is approved to meet European standards. WARNING Depending on the model, network configuration and associated subscription cards, certain functions may not be available. SAGEM™ is a trademark of Sapent Moofee SAFRAN group. 19® Text Input is a trademark of STege Communications Inc. Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of San Microsystems, Inc. in the U.S. and other countries. The WAP navigator and some message softwares (i-mode™) are under licence Openwave. The WAP navigator and the softwares included are the exclusive property of Openwave. For this reason, it is forbidden to modify translate, disassemble or even decampate all or part of these softwares. Wellphone™ and SmartCom™ are registered trademarks owned by SmartCom SARL France. The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc. miniSD™ is a trademark of SD Card Association.

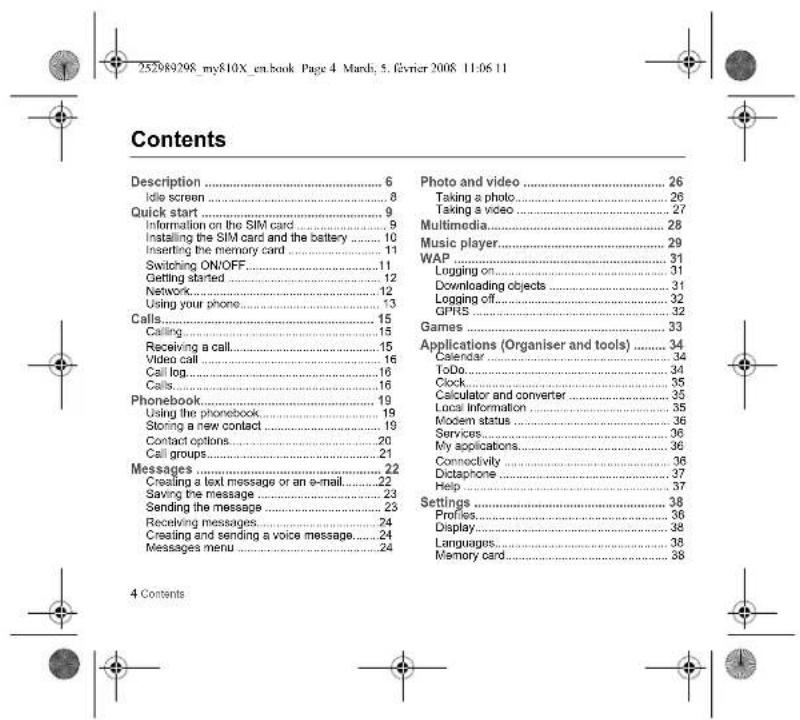

252989298_my810X_en.book Page 4 Mards; 5. février 2008 11:06 11 Contents Description .... 6 Idle screen .... 8 Quick start .... 9 Information on the SIM card .... 9 Installing the SIM card and the battery .... 10 Inserting the memory card .... 11 Switching ON/OFF .... 11 Getting started .... 12 Network .... 12 Using your phone .... 13 Calls .... 15 Calling .... 15 Receiving a call .... 15 Video call .... 16 Call log .... 16 Calls .... 16 Phonebook .... 19 Using the phonebook .... 19 Storing a new contact .... 19 Contact options .... 20 Call groups .... 21 Messages .... 22 Creating a text message or an e-mail .... 22 Saving the message .... 23 Sending the message .... 23 Receiving messages .... 24 Creating and sending a voice message .... 24 Messages menu .... 24 Photo and video .... 26 Taking a photo .... 26 Taking a video .... 27 Multimedia .... 28 Music player .... 29 WAP .... 31 Logging on .... 31 Downloading objects .... 31 Logging off .... 32 GPRS .... 32 Games .... 33 Applications (Organiser and tools) .... 34 Calendar .... 34 ToDo.... 34 Clock.... 35 Calculator and converter .... 35 Local Information .... 35 Modem status .... 36 Services .... 36 My applications .... 36 Connectivity .... 36 Dictaphone .... 37 Help .... 37 Settings .... 38 Profiles .... 38 Display .... 38 Languages .... 38 Memory card .... 38 4 Contents

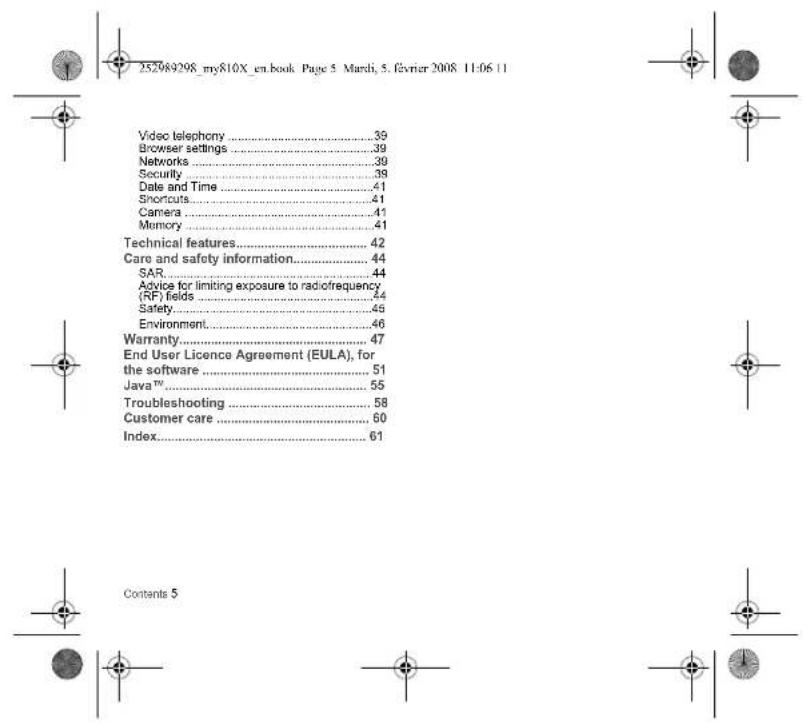

252989298_my810X_en.book Page 5 Mardi, 5. février 2008 11:06 11 Video telephony....39 Browser settings....39 Networks....39 Security....39 Date and Time....41 Shortcuts....41 Camera....41 Memory....41 Technical features....42 Care and safety information....44 SAR....44 Advice for limiting exposure to radiofrequency (RF) fields....44 Safety....45 Environment....46 Warranty....47 End User Licence Agreement (EULA), for the software....51 Java™....55 Troubleshooting....58 Customer care....60 Index....61 Contents 5

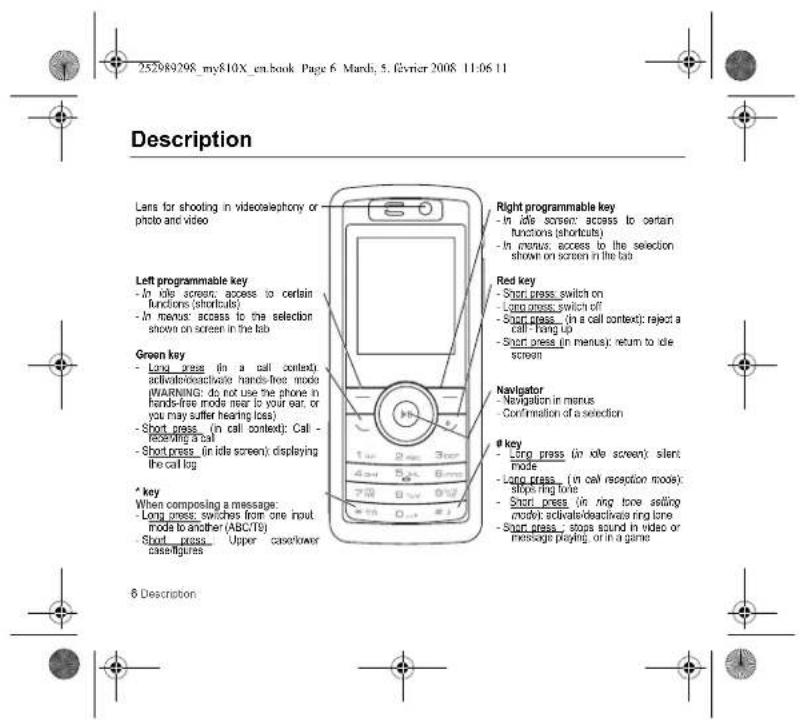

252989298_my810X_en.book_Page_6_March; 5_fèvrier_2008_11:06:11 Description Lens for shooting in videotaphony or photo and video Left programmable key - In idle screen; access to certain functions (shortcuts) - In menus; access to the selection shown on screen in the tab Green key - Long press (in a call context); activate/activate hands-free mode (WARNING); do not use the phone in hands-free mode near to your ear; or you may suffer hearing loss) - Short press (in call context); Call - receiving a call - Short press (in idle screen); displaying the call log * key When composing a message: - Long press switches from one input mode to another (ABC/TB) - Short press Upper case/lower case/figures Right programmable key - In idle screen; access to certain functions (shortcuts) - In menus; access to the selection shown on screen in the tab Red key - Short press switch on - Long press switch off - Short press (in a call context); reject a call - hang up - Short press (in menus); return to idle screen Navigator - Navigation in menus - Confirmation of a selection

key

- Long press (in idle screen); silent mode - Long press (in call reception mode); stops ring tone - Short press (in ring tone setting mode); activate/activate ring tone - Short press stops sound in video or telephone playing, or in a game 6 Description

252989298_my$10X_en.book Page 7 March, 5. février 2008 11:06 11 Lens for shooting in photo and video Short press access to photo Viewfinder A second short press takes the photo Volume setting (when calling) Description 7

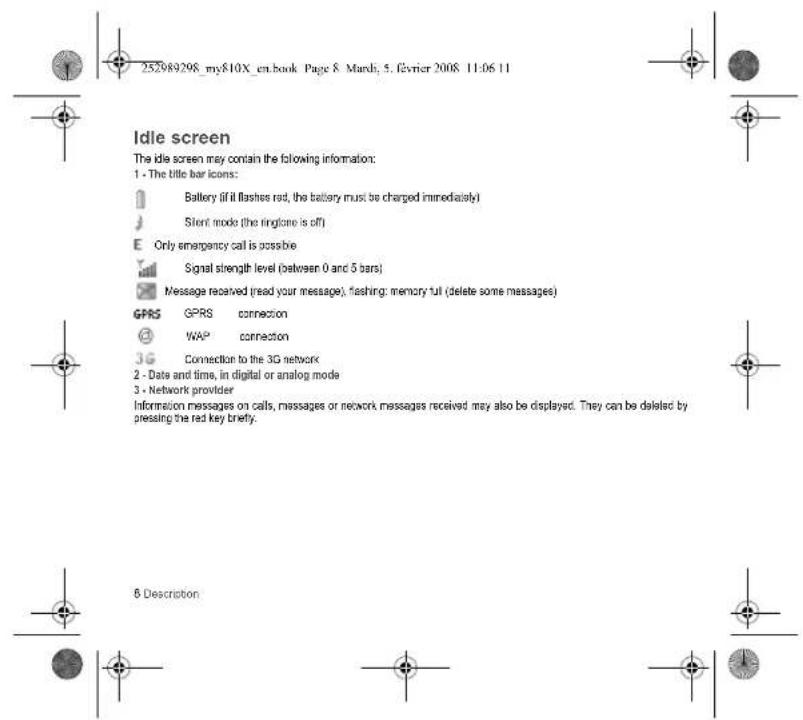

25/29/89/208_my$10X_en.book Page 8 March; 5. février 2008 11:06 11 Idle screen The idle screen may contain the following information: 1 - The title bar icons: Battery (if it flashes red, the battery must be charged immediately) Silent mode (the ringtone is off) Only emergency call is possible Signal strength level (between 0 and 5 bars) Message received (read your message); flashing: memory full (delete some messages) GPRS GPRS connection WAP connection 3G Connection to the 3G network 2 - Data and time, in digital or analog mode 3 - Network provider Information messages on calls, messages or network messages received may also be displayed. They can be deleted by presisting the red key briefly. 6 Description

252989298_my&10X_en.book Page 9 Mards: 5. f#vrier 2008 11-06 11 Quick start Information on the SIM card To use your phone, you need a card called SIM or USIM card. It contains personal information (that you can modify: - Secret codes P/N(s): Personal Identification Numbers), these codes allow you to protect access to your SIM card and phone - Phonebook - Messages - How special services work. WARNING This card must be handed and stared with care in order not to be damaged. If you should lose your SIM card, contact your network provider immediately. Please keep your SIM card out of reach of young children. WARNING Your phone is identified by its IMEI number. While this number down, and do not keep it with your phone, because you may be asked for it in the event of your phone being stolen. In order to prevent it from being used, even with a different SIM card. In order to display the IMEI on your phone's screen, type: *#09#.

25/29/8/208_my$10X_en.book Page 10 March; 5. Février 2008 11:06 11 Installing the SIM card and the battery The SIM card is inserted under the phone's battery. Ensure that the phone is switched off and the charger disconnected. 1 Turn the phone back. Use the latch as a lever to lift the cover. 2 Take out battery if already installed. 3 Side the SIM card, with out corner as shown on the phone, into the card holder with fold face down. 4 Place the battery by positioning first the top of it, as shown on the battery. 5 Place the back cover, clicking in first the upper part then the lower part. 1 2 3 4 5 10 Quick start

252989298_my&10X_en.book_Page_11_March; 5_Février 2008_11:06_11 Inserting the memory card - Open the proactive cover of the slot located on the side of the phone and - insert the memory card pushing it until it clicks into piece. - To remove the card, that make sure that no application is accessing the card, then slightly push the top edge of the card to release it and pull it out of the slot. WARNING The memory card is very fragile. Take care when you insert or remove the memory card. The memory card can be inserted or withdrawn while the phone is in use. However, if may suffer damage if withdrawn during a read or write operation. Ensure that no application accesses the card during its withdrawal. Some memory cards must be formatted with a PC before first use with the phone. Switching ON/OFF When your phone is off, a short press on will turn it ON. When the phone is ON, if your are browsing inside the menus, a short press on will come back to the idle screen. When you are in the idle screen, a long press on will switch OFF the phone. Quick start: 11

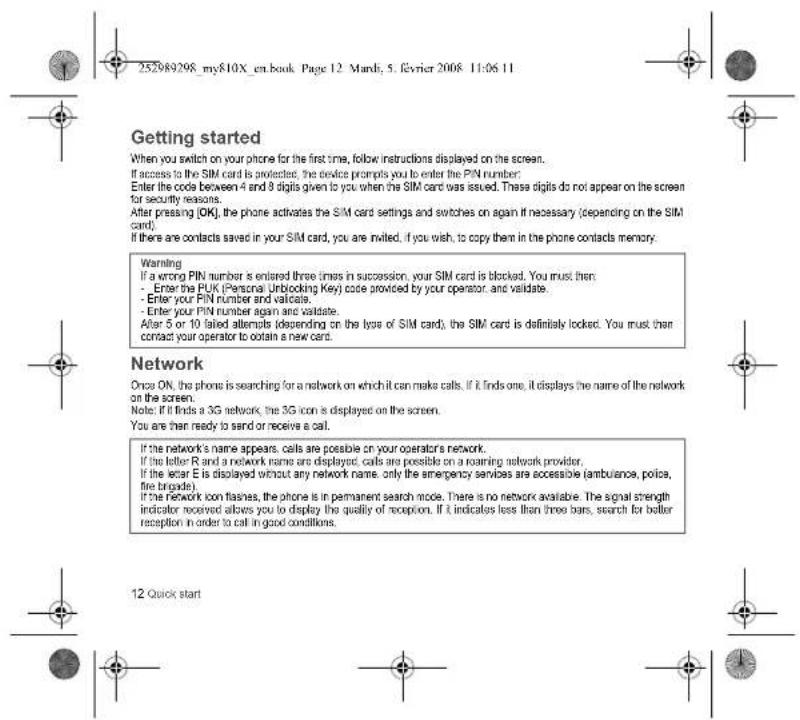

252989298_my&10X_en.book Page 12 March; 5. Février 2008 11:06 11 Getting started When you switch on your phone for the first time, follow instructions displayed on the screen. If access to the SIM card is protected, the device prompts you to enter the PIN number. Enter the code between 4 and 8 digits given to you when the SIM card was issued. These digits do not appear on the screen for security reasons. After pressing (OK), the phone activates the SIM card settings and switches on again if necessary (depending on the SIM card). If there are contacts saved in your SIM card, you are invited, if you wish, to copy them in the phone contacts memory. Warning If a wrong PIN number is entered three times in succession, your SIM card is blocked. You must then: - Enter the PUK (Personal Unlocking Key) code provided by your operator, and validate. - Enter your PIN number and valcals. - Enter your PIN number again and validate. After 5 or 10 failed attempts (depending on the type of SIM card), the SIM card is definitely locked. You must then contact your operator to obtain a new card. Network Once ON, the phone is searching for a network on which it can make calls. If it finds one, it displays the name of the network on the screen. Note: If it finds a 3G network, the 3G icon is displayed on the screen. You are then ready to send or receive a call. If the network's name appears, calls are possible on your operator's network. If the letter P and a network name are displayed, calls are possible on a roaming network provider. If the sector E is displayed without any network name, only the emergency services are accessible (ambulance, police, fire bridge). If the network icon flashes, the phone is in permanent search mode. There is no network available. The signal strength indicator received allows you to display the quality of reception. If it indicates less than three bars, search for better reception in order to call in good conditions. 12 Quick start

252989298, my810X_en.book Page 13 March; 5. Février 2008 11:06 11 Using your phone Improving antenna performance The antenna is integrated in your phone, under the back cover at the tcp. Avoid putting your fingers on this area when the phone is switched ON. If your fingers obstruct the antenna, the phone may have to operate with a higher power ever than usual, decreasing its efficiency quickly. It could also affect the quality of your communications. Increase the battery life of your phone - Don't press the keys when not necessary, each keypress activates the backlight, and uses much power. - Don't construct the antenna with your fingers. - Activation of Bluetooth® lamped reduces the phone battery life. We advise you to deactivate it when not in use. Quick start: 13

252989298_my&10X_en.book Page 14 March; 5. février 2008 11:06 11 Charging the battery Your phone is powered by a rechargeable battery. A new battery must be charged for 4 hours at least before being used for the first time. It reaches its optimum capacity after a few cycles of use. When your battery has been discharged, the empty battery icon flashes. In this case recharge your battery for at least 15 minutes before making any calls in order not to be cut off quickly. To recharge the battery: Connect the charger to a socket. Plug the end of the cable into the bottom connector of the phone. The phone is then charging up. The battery ion scrolls up and down to indicate that it is charging. When the battery is fully charged, the charging stops on its own. Disconnect the cable. When charging the battery may warm up, this is normal. When you charge the battery, the socket on which the charger is plugged must be easily accessible. WARNING If the battery has entirely discharged, the phone cannot start. Plug the phone to the charger. The phone will switch on after a few minutes of charge. You can use the phone again when the Start option is displayed on the screen. WARNING There is danger of explosion if the battery is placed in an incorrectly way or if it is exposed to fire. Do not short circuit it. The battery does not have any part that you can change. Do not try to open the battery casing. Use only the appropriate chargers and batteries as shown in the phone manufacturer's catalogue. The use of other types of chargers or batteries may be dangerous or invalidate the warranty. Used batteries must be disposed of in the appropriate places. We advise you to take the battery out if you plan not to use the phone for extended periods. You are strongly advised not to connect your phone to the charger if it doesn't contain a battery. The charger is a safety step-down transformer, it is forbidden to modify, alter or replace it by another component (power supply plug, clk). 14 Quick start

Dial the number you want to ring. Press

You can adjust the sound level (volume) using the navigator upwards or downwards.

At the end of the conversation press do hang up.

International call

Press 0 (hold down) to display a + x , then dial the country code without waiting for the dial line, then the number of the

called party.

Emergency services

Depending on the network you can obtain the emergency service with or without SIM card or when the keypad is

locked. It is enough to be in an area served by a network.

To obtain the international emergency service, dial 112 then press

Receiving a call

When you receive a call, the number of your caller is displayed when it is presented by the network.

Press to answer, and speak.

To refuse the call. press a

To step the ring lone or the vibrate, without refusing the call, press

Hands-free mode

During a call

- make a long press on the green key and confirm

Dr

- press [ Options] and select Loudspeaker ON then confirm.

WARNING: in this mode do not bring the phone up to your ear

When on a call, pressing [Options] allows you to have access to different functions.

Pressing Mute] allows you to switch off the microphone temporarily when you want that your correspondent does not listen.

Calls 15

If you want to make a video call, select, pressing [Options], the Video call option.

Notes - The recipient must also have a phone with this function

- Videotelephony only operates on the 3G network, check the 3G icon is displayed on the idle screen before making a video call.

Receiving a video call

To answer a video call, you can select to activate or not the camera:

- press OK or ∪ to activate the camera

- press try you do no want to activate the camera.

A prompt asks you if you want to confirm the activation of the loudspeaker.

Call log

The Calls menu allows you to access the call log divided into four lists that you can display by the navigator: all calls, dialled calls, received calls and missed calls.

Various options are proposed: store a number in your phonebook call, send a message, etc.

You can also make a call to a number by pressing the key.

Fast access to the list of calls from the idle screen: press the key

Calls

This menu allows you to manage all the call functions (call forward, displaying numbers, call waiting, voicemail number, etc.).

Call forward

Depending on your subscription, this service allows you to forward incoming calls to a different number or to the voice mailbox. Choose the type of forwarding you want from the options available.

Any key

This menu allows you to answer to a call pressing any key.

Auto response

This menu allows your phone to answer automatically to a call when it is connected to a car kit.

16 Calls

252989298, my$10X_en.book Page 17 March; 5. février 2008 11:06 11 Blacklist The blacklist is used to limit failures on automatic calls (calls generated by the automatic redial function or by applications: data, fax (or example). When several automatic calls failed with a number (number busy or unknown), this number is put in the blacklist and no automatic call will be done with this number any more until you delete it from the blacklist. Note: this function does not apply to the calls performed manually. Display numbers Send my number You can decide whether or not your phone's number will be displayed on the phone of the person you call. - Yes: your phone's number will be displayed on the phone of the person you call. - No: your phone's number will not be displayed on the phone of the person you call. - Preset: the picture default mode. My number On outgoing calls: status of the Display numbers function. On incoming calls: status of the Display numbers function when you have forwarded the incoming calls to another number. Caller's Number On outgoing calls: status of the Display numbers function when your call is forwarded to another number. On incoming calls: status of the caller's Display numbers function. Call waiting (Network dependent service) During a call, you may be informed that a caller is trying to reach your you hear a special tone. The caller's number is displayed on the screen. Auto redial This menu allows you to call back a caller you have not managed to reach. You can sell the redial function to inactive, on request or systematic. If you choose On demand, your phone will offer to redial your caller automatically if this number is busy. Calls 17

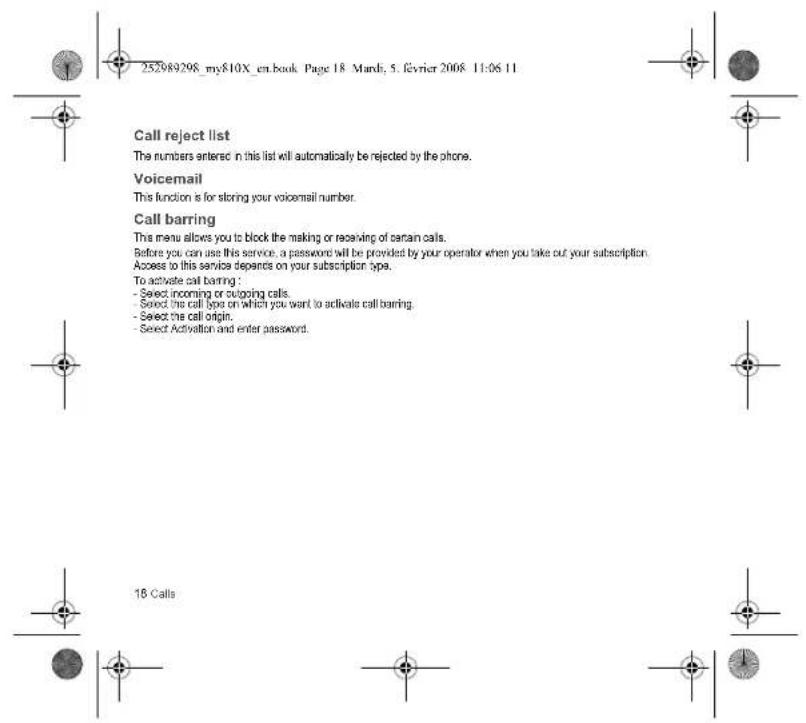

252989208_my&10X_en.book. Page 18 March; 5. février 2008 11:06 11 Call reject list The numbers entered in this list will automatically be rejected by the phone. Voicemail This function is for storing your voicemail number. Call barring This menu allows you to block the making or receiving of certain calls. Before you can use this service, a password will be provided by your operator when you take out your subscription. Access to this service depends on your subscription type. To activate call barring : - Select incoming or outgoing calls. - Select the call type on which you want to activate call barring. - Select the call origin. - Select Activation and enter password. 18 Calls

252989298_my&10X_en.book_Page_19_March, 5_Février 2008_11:06:11 Phonebook Using the phonebook Enter the Phonebook menu. the contacts list is displayed if you already get some (otherwise, go to Storing a new contact). The iron displayed next to a contact's name shows in which phonebook the contacts is stored. ■ contact stored in the SIM card ■ contact stored in the phone You can search for a contact quickly by typing the first letters. You can display it by pressing OK. Storing a new contact - Display the Phonebook, press [Options]. Add new contact then Mobile or SIM. - Enter the first name and press OK. - Enter the last name and press OK. - Enter the number and press OK. Note: you can fill other fields if you store the contact in the phone memory (email, address, ring/one, photo, etc.) - Press [ Save] to store it. Phonebook 19

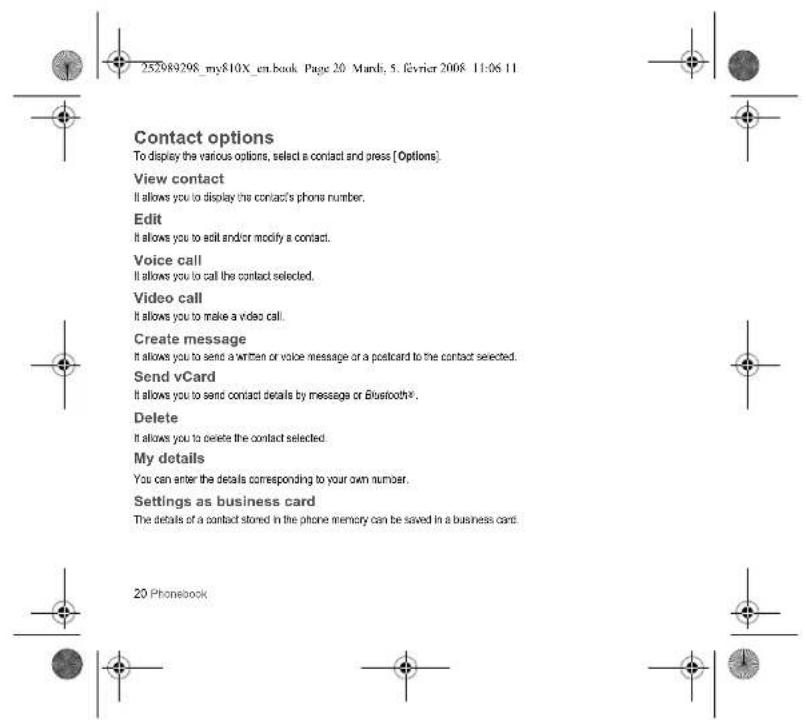

252989298_my$10X_en.book Page 20 March; 5. Évrier 2008 11:06 11 Contact options To display the various options, select a contact and press [Options]. View contact It allows you to display the contact's phone number. Edit It allows you to edit and/or modify a contact. Voice call It allows you to call the contact selected. Video call It allows you to make a video call. Create message It allows you to send a written or voice message or a postcard to the contact selected. Send vCard It allows you to send contact details by message or Bluetooth'. Delete It allows you to delete the contact selected. My details You can enter the details corresponding to your own number. Settings as business card The details of a contact stored in the phone memory can be saved in a business card. 20 Phonebook

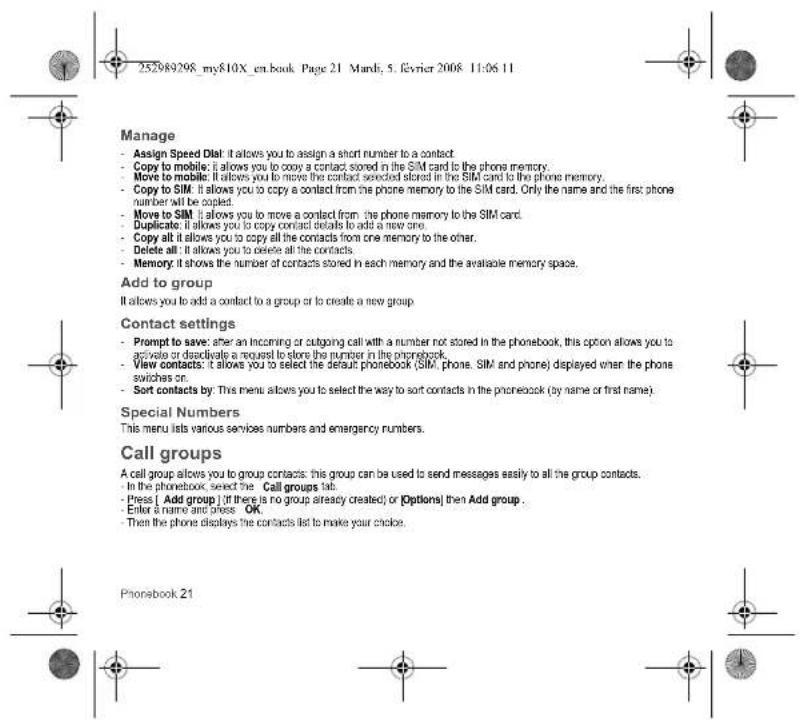

252989298_my&10X_en.book Page 21 March; 5. Février 2008 11:06 11 Manage - Assign Speed Dial: it allows you to assign a short number to a contact. - Copy to mobile: it allows you to copy a contact stored in the SIM card to the phone memory. - Move to mobile: it allows you to move the contact selected stored in the SIM card to the phone memory. - Copy to SIM: it allows you to copy a contact from the phone memory to the SIM card. Only the name and the first phone number will be copied. - Move to SIM: it allows you to move a contact from the phone memory to the SIM card. - Duplicate: it allows you to copy contact details to add a new one. - Copy all it allows you to copy all the contacts from one memory to the other. - Delete all it allows you to delete all the contacts. - Memory: it shows the number of contacts stored in each memory and the available memory space. Add to group It allows you to add a contact to a group or to create a new group. Contact settings - Prompt to save: after an incoming or outgoing call with a number not stored in the phonebook, this option allows you to activate or deactivate a request to store the number in the phonebook. - View contacts: it allows you to select the default phonebook (SIM phone SIM and phone) displayed when the phone switches on. - Sort contacts by: This menu allows you to select the way to sort contacts in the phonebook (by name or first name). Special Numbers This menu lists various services numbers and emergency numbers. Call groups A cell group allows you to group contacts: this group can be used to send messages easily to all the group contacts. - In the phonebook, select the Call groups list. - Press [ Add group ] (if there is no group already created) or [ Options] then Add group . - Enter a name and press OK. - Then the phone displays the contacts list to make your choice. Phonebook 21

252989298_my&10X_en.book Page 22 March, 5. Février 2008 11:06 11 Messages The Messaging menu contains the following message types: text messages (SMS, MMS): voice messages and e-mail. MMS is a Multimodal Message Service, which allows you to enclose photos, audio files, and others rich contents to your messages; these messages can even be composed of several slides. MMS are differently changed to SMS are. Please contact your network provider to get more information on their cost and the service availability. Creating a text message or an e-mail - Select Messages/Create new. - Send Message or E-mail. Note: The [Options] key allows you to select various options for typing the text. There are two input modes. To switch from one mode to another (ABC mode/T9 mode), make a long press on - To switch into upper case/lower case/figures make a short press on - Also you can make your choice by selecting [Options]input mode. - ABC mode: it allows you to type letters: press on one key several times to make the letter wanted appear (for example: press twice the key to display it, - abc lower case text - ABC upper case text - abc first letter of the word in upper case - 123 mode: it allows you to type figures - T9 mode (see below for using it) - abc TB lower case text - ABC T9 upper case text - ABC TS first letter of the word in upper case 22 Messages

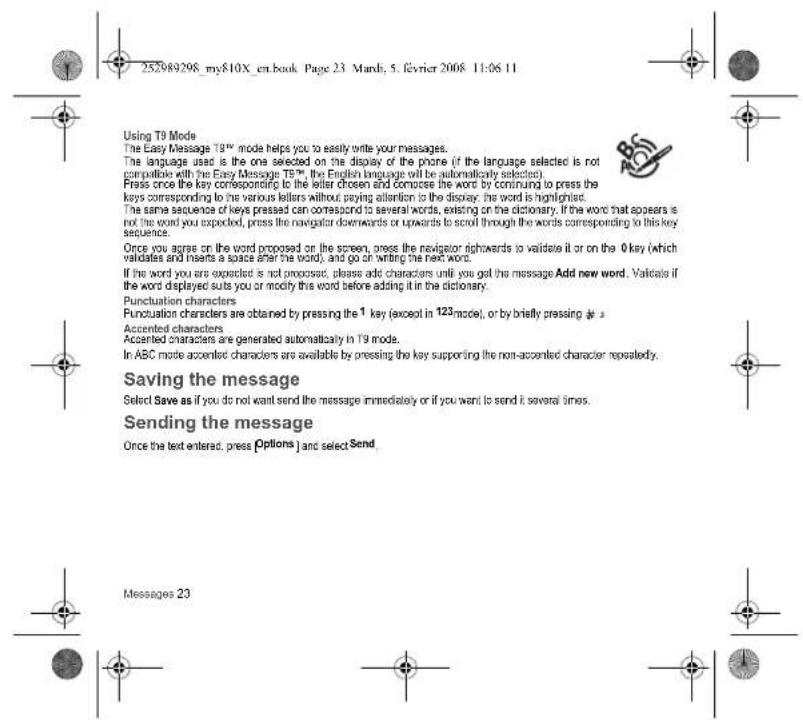

Using T9 Mode The Easy Message T9™ mode helps you to easily write your messages. The language used is the one selected on the display of the phone (if the language selected is not compalio with the Easy Message T9™, the English language will be automatically selected). Press once the key corresponding to the letter chosen and compose the word by continuing to press the keys corresponding to the various letters without paying attention to the display: the word is highlighted. The same sequence of keys pressed can correspond to several words, existing or on the dictionary. If the word that appears is not the word you expected, press the navigator downwards or upwards to scroll through the words corresponding to this key sequence. Once you agree on the word proposed on the screen, press the navigator rightwards to validate it or on the 0 key (which validates and inserts a space after the word), and go on writing the next word. If the word you are expected is not proposed, please add characters until you get the message Add new word. Validates if the word displayed suits you or modify this word before adding it in the dictionary. Punctuation characters Punctuation characters are obtained by pressing the 1 key (except in 123mode), or by briefly pressing # Accented characters Accented characters are generated automatically in T9 mode. In ABC mode accented characters are available by pressing the key supporting the non-accented character repeatedly. Saving the message Select Save as if you do not want send the message immediately or if you want to send it several times. Sending the message Once the text entered, press [Options] and select Send.

252989298_my&10X_en.book Page 24 March; 5. Février 2008 11:06 11 Receiving messages When you receive a message, the phone plays the ring tone that you selected, and a message icon comes on the screen of your phone. If you do not read the messages, this icon remains displayed on the screen. When it flashes, the memory is full. Receiving icons, backgrounds or tunes can take several seconds. An icon is flashing when the download of your message is in progress. Note that you have two different possibilities for receiving MMS automatically or manually. - If the « automatic mode » is activated, you will receive the MMS directly on your phone. - If « manual mode » is activated, then you will receive only a notification in your Inbox, meaning that a MMS is available on the MMS Server; select Retrieve in the options when you want to retrieve the MMS from the network. Please contact your network provider to put more information on icons, backgrounds or tunes downloading. Received messages are stored in the SIM card or in the phone until you choose to delete them. Creating and sending a voice message You can record a voice message and enclose it to a MMS to send it to a recipient. - Select Messages/Create newVoice message. - Press [ Start ] to record your voice message. - Press Stop [ once completed. - Press [ Options ] and select.Add to join it to a MMS. Then you can send it. Messages menu Create new This menu allows you to create a message, a voice message or a e-mail. Inbox This menu is divided in two lists: the SMS or MMS messages received and the e-mail received. Messages are issued in chronological order, the latest one being displayed first. The quantity of Not Read and Not Retrieved messages is shown. Not Retrieved and Not Read messages are shown in bold. Drafts In this menu there are the messages created saved as drafts. When you select a message and press [Options], various options can be selected. 24 Messages

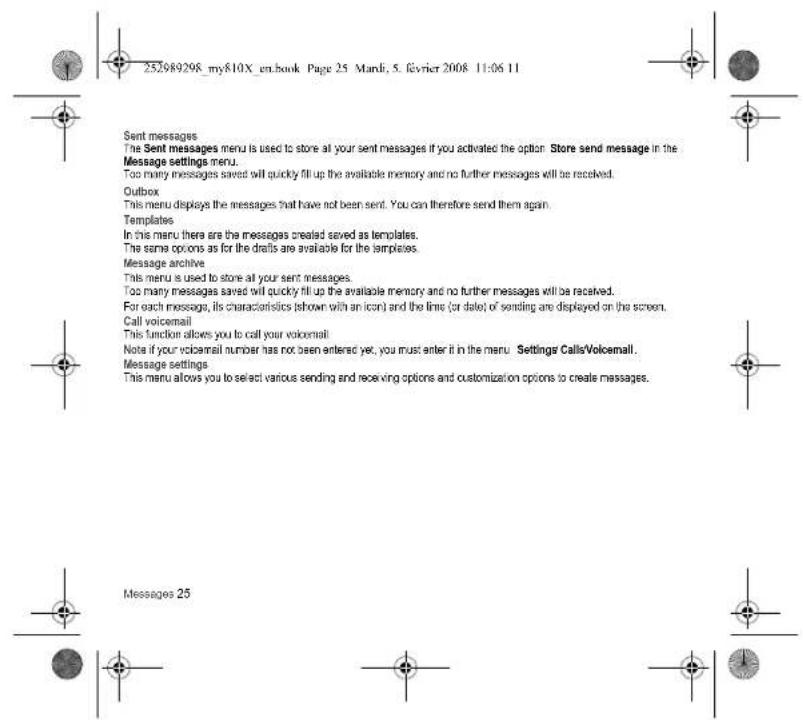

The Sent messages menu is used to store all your sent messages if you activated the option. Store send message in the

Message settings menu.

Too many messages saved will quickly fill up the available memory and no further messages will be received.

Outbox

This menu displays the messages that have not been sent. You can therefore send them again.

Templates

In this menu there are the messages created saved as templates.

The same options as for the drafts are available for the templates.

Message archive

This menu is used to store all your sent messages.

Too many messages saved will quickly fill up the available memory and no further messages will be received.

For each message, its characteristics (shown with an icon) and the time (or date) of sending are displayed on the screen.

Call voicemail

This function allows you to call your voice-mail

Note if your voicemail number has not been entered yet, you must enter it in the menu. Settings Calls/Volcemall.

Message settings

This menu allows you to select various sending and receiving options and customization options to create messages.

Messages 25

252989298, my&10X_en.book Page 26 March; 5. Février 2008 11:06 11 Photo and video The Camera menu allows you to take photos and use them for different purposes. For instance, you can send them to another phone or an Internet address, store them, use them as wallpapers or screen savers. Taking a photo Settings before taking a photo Pressing [Options], various options can be selected: • Take photo : to take the photo. • Go to video : by default, the phone is set in photo mode, you can select the video mods. • Change camera: to change from one lens to another. • Timer: to take a photo with a 5, 10 or 15 second time delay. • Camera mode: to select luminosity. • Effects: to select an effect. • Settings: to select storage location, click sound, photo format and quality. Taking a photo - Select the Camera menu. Look into your phone display and position your subject: Move your phone to position your photo. - Press OK, the photo is taken and automatically saved. It stays on the phone display. - If you want to send the photo immediately, press OK. The creating message screen is displayed to type a text if necessary. Options once the photo taken • Send: allows you to send the photo by MMS or Bluetooth®. • New: allows you to take a new photo. • Delete: allows you to delete the photo. • Rename: allows you to modify the name of a photo. • Add to contact: allows you to assign a photo to a contact; • Set as wallpaper: allows you to select the photo as a wallpaper. Note: using the camera during a call may disturb the call quality. 26 Photo and video

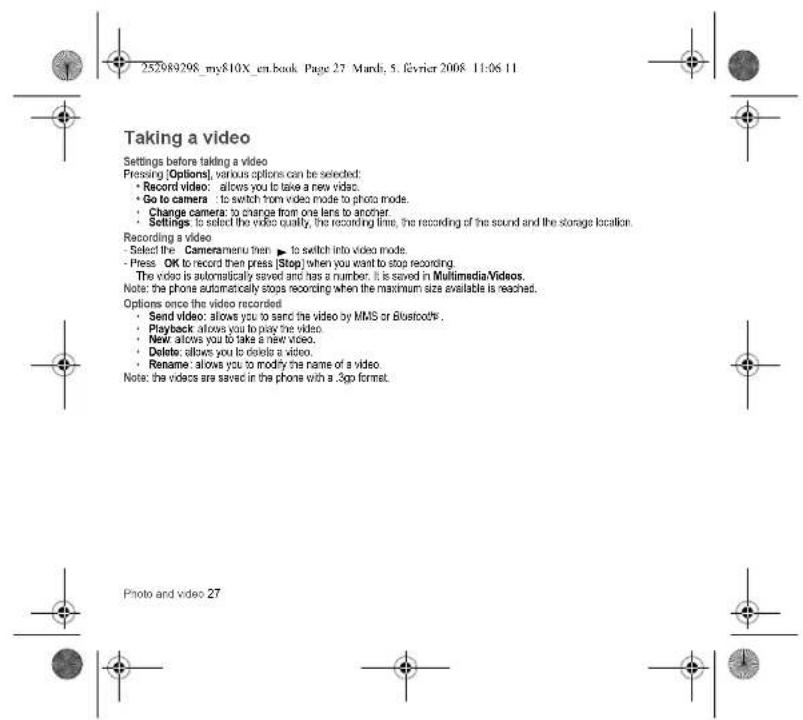

25/989208_my$10X_en.book Page 27 March; 5. Février 2008 11:06 11 Taking a video Settings before taking a video Pressing [Options], various options can be selected: • Record video: allows you to take a new video. • Go to camera : to switch from video mode to photo mode. • Change camera: to change from one lens to another. • Settings: to select the video quality, the recording time, the recording of the sound and the storage location. Recording a video • Select the Camerameru then ▶ to switch into video mode. • Press OK to record then press [Stop] when you want to stop recording. The video is automatically saved and has a number, it is saved in MultimediaVideos. Note: the phone automatically stops recording when the maximum size available is reached. Options once the video recorded • Send video: allows you to send the video by MMS or Blustooths . • Playback allows you to pay the video. • New allows you to take a new video. • Delete: allows you to delete a video. • Rename: allows you to modify the name of a video. Note: the videos are saved in the phone with a .3gp format. Photo and video 27

25/989208_my$10X_en.book Page 28 March; 5. février 2008 11:06 11 Multimedia The Multimedia menu contains the directories of all the multimedia objects recorded in your phone and the downloaded objects (photos, videos, ringtones, musics, bookmarks, games, etc.). To display the various options, press [Options] after having selected an object. 28 Multimedia

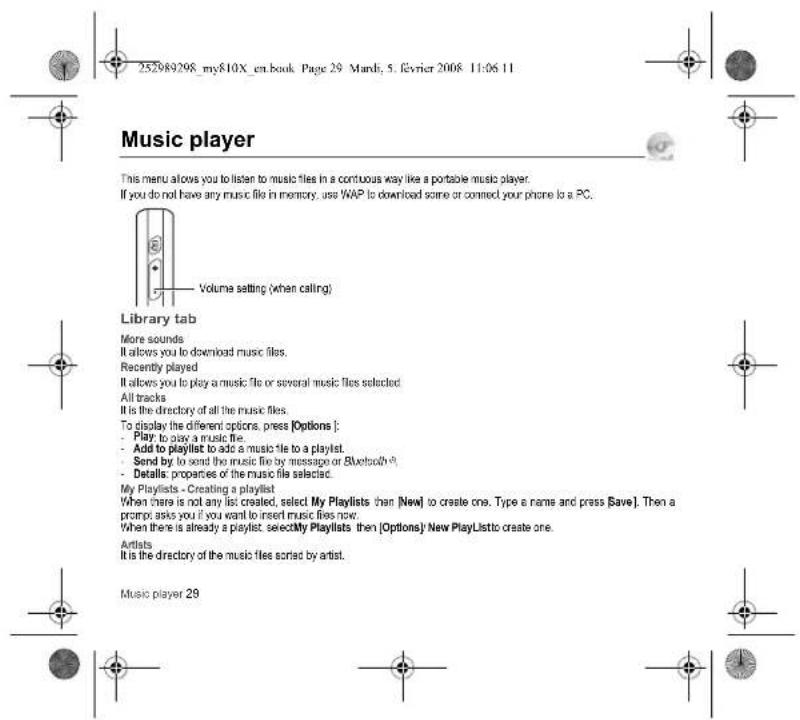

252989298_my&10X_en.book Page 29 March, 5. Février 2008 11:06 11 Music player This menu allows you to listen to music files in a continuous way like a portable music player. If you do not have any music file in memory, use WAP to download some or connect your phone to a PC. Volume setting (when calling) Library tab More sounds It allows you to download music files. Recently played It allows you to play a music file or several music files selected. All tracks It is the directory of all the music files. To display the different options, press [Options]: - Play to play a music file. - Add to playlist to add a music file to a playlist. - Send by to send the music file by megapao or Bluetooth®. - Details: properties of the music file selected. My Playlists - Creating a playlist When there is not any list created, select My Playlists then [New] to create one. Type a name and press [Save]. Then a prompt asks you if you want to insert music files now. When there is already a playlist, select My Playlists then [Options] New PlayListto create one. Artists It is the directory of the music files sorted by artist. Music player 29

252989208_my$10X_en.book. Page 30 March, 5. Février 2008 11:06 11 Albums It is the directory of the music files sorted by the. Player tab It allows you to play a music file or several music files selected. To display the different options, press [Options]: - Play to play music files of the playlist. - Add to playlist: to add a music file to a playlist. - Remove: to remove the music file selected from the playlist. - Play mode: to select the way to play the music files. - Set as ringtone: allows you to select the music file as a ringtone. - Send By: to send the music file by message or Bluetooth. - Extend to play the music file with headphones. - Sort: to sort the playlists. - More sounds: to download new music files from WAP. - Details: properties of the music file selected. 30 Music player

252989208_my&10X_en.book Page 31 March; 5. Février 2008 11:06 11 WAP The browser function allows you to log onto certain Internet sites. You can log onto sites that allow you to download ringtones, icons, animated screens/sensors, Java™ applications, videos to your phone. The WAP navigator is under licence: OPENWAVE RSA Data Security The WAP navigator and the softwares included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even decompile all or part of these softwares. Logging on The connection to a service on the GPRS network is not out if an incoming call is received. You can answer the call. If you are logging onto the GSM or GPRS network, the @ symbol flashes, the meaning of the cost of the call starts as soon as it stops flashing. Downloading objects Some Internet sites allow you to download ringtones, icons, animated screens/sensors, games or JAVA™ applications. Once downloaded, they are stored in your phone's memory. You can then save them in your phone (same operation as used for downloading using messages). WAP 31

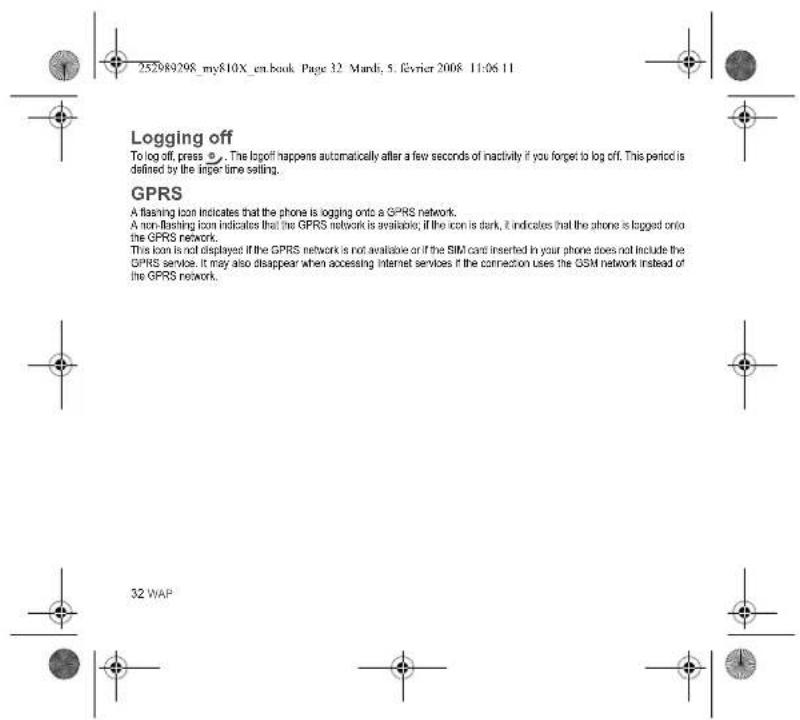

252989298_my&10X_en.book Page 12 March; 5. Février 2008 11:06 11 Logging off To log off, press o... The logoff happens automatically after a few seconds of inactivity if you forget to log off. This period is defined by the longer time selling. GPRS A flashing icon indicates that the phone is logging onto a GPRS network. A non-flashing icon indicates that the GPRS network is available, if the icon is dark, it indicates that the phone is logged onto the GPRS network. This icon is not displayed if the GPRS network is not available or if the SIM card inserted in your phone does not include the GPRS service. It may also disappear when accessing Internet services if the connection uses the GSM network instead of the GPRS network. 32 WAP

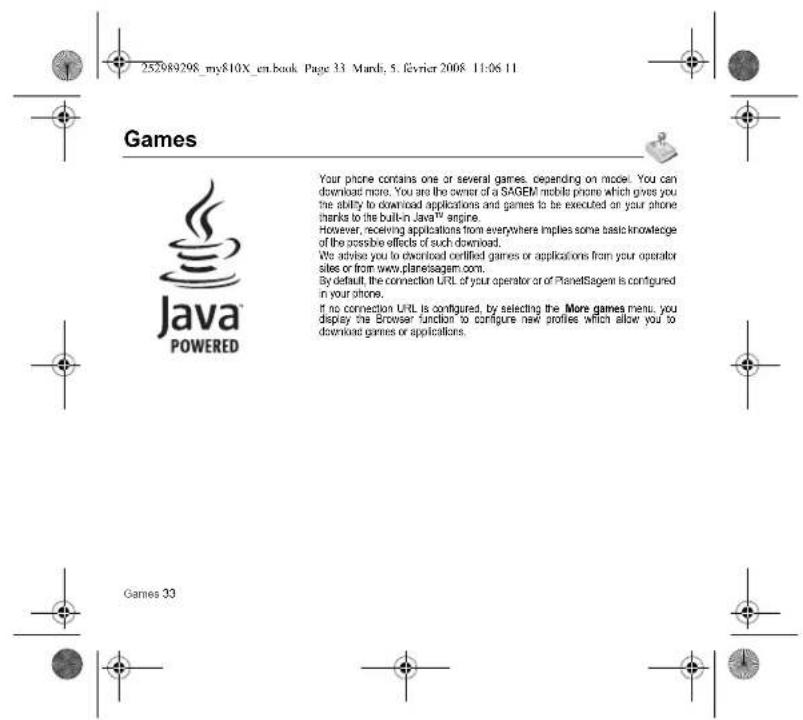

25/989208_my$10X_en.book Page 33 March; 5. Évrier 2008 11:06 11 Games Java® POWERED Your phone contains one or several games, depending on model. You can download more. You are the owner of a SAGEM mobile phone which gives you the ability to download applications and games to be executed on your phone thanks to the built-in Java™ engine. However, receiving applications from everywhere implies some basic knowledge of the possible effects of such download. We advise you to download certified games or applications from your operator sites or from www.planetSagem.com. By default, the connection URL of your operator or of PlanetSagem is configured in your phone. If no connection URL is configured, by selecting the More games menu, you display the Browser function to configure new profiles which allow you to download games or applications. Games 33

Applications (Organiser and tools)

Calendar

This menu gives you access to your diary and get to a day, week, month or specific date. It lets you add events, access the global online for all live events and manage them by event readers.

- Add written event: Add vocal event: allows you to add events of the text or voice type. Fill in the different items. Save the

FARO

- Delete: allows you to delete events by selection of a data.

- Memory: allows you to view the memory capacity used by the different functions of your phone (audio, video, picture, etc.).

- Categories: allows you to display the different event categories and know the number of events in each category.

The other manus are

See month: allows you to access copies on a month-by-month basis.

- See week: allows you to access events on a week-by-week basis.

- See today allows you to access the events for the current day and the actions possible on any event

See date: always you to access events at a specific date.

- Settings allows you to select various sellings for the awards.

2017

ToDo

This menu allows you to add ToDo's, access category-based ToDo management and delete one or all the ToDo's.

If there are not any ToDo, you directly access to the options below.

- Add written ToDo/Add vocal ToDo: allows you to add ToDo of the text or voice type. Fill in the different items. Save the

TaDq

- Settings applies you to select various settings for the ToDo

Imped allows you to import a ToDo from a Multimedia directory.

If there is a ToDo press [Options] to display the options.

34 Applications (Organiser and tools)

252989298_my$10X_en.book Page 35 Mardi, 5. février 2008 11:06 11 Clock Alarm This menu allows you to set and activate the alarm, - Select [ New] or Options/ New. - Enter the time selected for the alarm. - Select Enable - Select [ New] and select the alarm activation recurrence. Press OK The alarm works even when the phone is switched off. - The alarm icon appears on the idle screen. Stop Watch This menu allows you to use the chronometer function and to state the lap times. Timer This menu allows you to use the timer function. Calculator and converter This menu allows you to use your phone as a calculator. Use the following keys to make calculations: - Add - Subtract - Multiply - Divide The following keys are used for: - Engis. convert or add to memory - Double - > > # >: Decline point. Local information This menu is used to activate reception of local information broadcast by the network. You can choose whether you want to receive this information or not (please contact your network provider). Applications (Organiser and tools) 35

252989298_my&10X_en.book Page 36 March; 5. Février 2008 11:06 11 Modem status This menu allows you to know the modem connection status. Services This item may not be present on your phone's menu, as its contents depends on your SIM. My applications This menu contains the applications you have downloaded. Connectivity You can exchange with other devices (PC, mobile phones, personal assistants, printers, etc.) various data: pictures, sounds, photos, videos, Tools tasks, organiser events, contacts, etc. Data exchange can be done through: -a USB cable. -a Bluetooth * connection. If you have inserted a memory card in your phone, it is considered as an additional memory in the Windows exponer files directory; you can copypaste. If you want to exchange objects between the phone memory and a PC, you must install the Wellphone software: select Multimedia to open, from the PC, the phone files explorer. To save contacts, events or tasks, the Wellphone Multimedia software available from http://www.wellphone.com must be installed on a PC. Note: if a call comes in during an exchange of data with your PC, the link will be interrupted and will have to be manually re-started. Bluetooth® Your phone can be used with a Bluetooth® connection in order to communicate with other devices equipped with Bluetooth® for example: an audio connection with a pedestrian kit, a car kit or a data connection with a PC. Bluetooth® is a free wireless connection, with a 10 metre maximum range. 36 Applications (Organiser and tools)

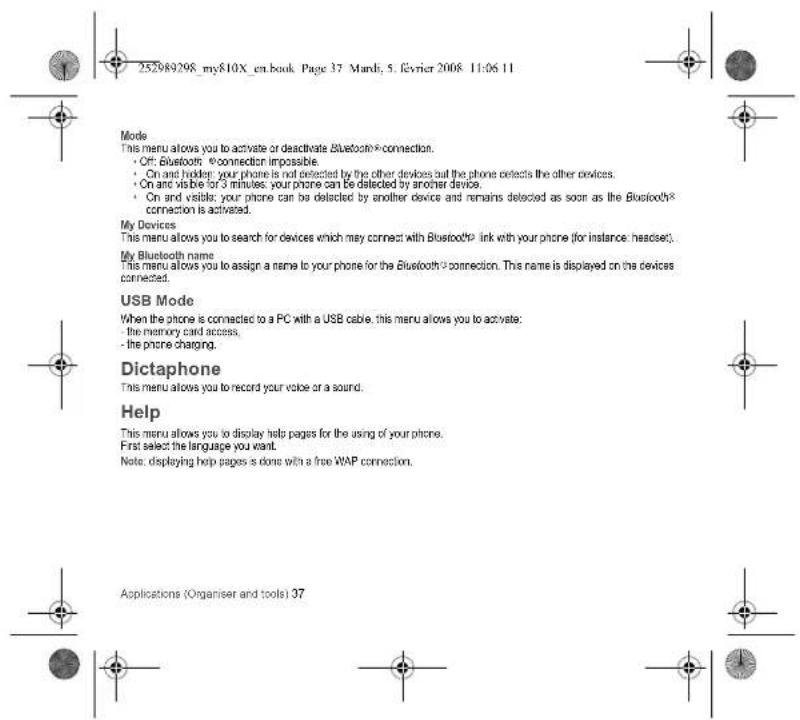

252989298_my&10X_en.book Page 37 March; 5. Février 2008 11:06 11 Mode This menu allows you to activate or deactivate Bluetooth® connection. • On: Bluetooth ®connection impossible. • On and holder: your phone is not detected by the other devices all the phone detects the other devices. • On and visible for 3 minutes: your phone can be detected by another device. • On and visible: your phone can be detected by another device and remains detected as soon as the Bluetooth® connection is activated. My Devices This menu allows you to search for devices which may connect with Bluetooth® link with your phone (for instance: headache). My Bluetooth name This menu allows you to assign a name to your phone for the Bluetooth® connection. This name is displayed on the devices connected. USB Mode When the phone is connected to a PC with a USB cable, this menu allows you to activate: - the memory card access, - the phone charging. Dictaphone This menu allows you to record your voice or a sound. Help This menu allows you to display help pages for the using of your phone. First select the language you want. Note: displaying help pages is done with a free WAP connection. Applications (Organiser and tools) 37

252989298_my&10X_en.book Page 38 March; 5. Février 2008 11:06 11 Settings Profiles This menu allows you to set profiles containing selections of different ringtones, volume to adapt them to various circumstances (for instance, depending on where you are (all work, at home, etc.) you will select such or such profile. Display This menu allows you to customize your screen by choosing a different presentation. Wallpaper Press the navigator. You can select a wallpaper through the phone default wallpapers and the pictures downloaded | More files) or no wallpaper (Not displayed). Select [Save] once your choice made. Backlight You can select the backlight intensity and the inactivity time after which the phone will automatically switch into economic mode (screen off). Two possibilities to quit this mode: Any Key or Red Key. Startup/Shutdown animation These menus allow you to display an animation when the phone is switched on and off. Operator logo This menu allows you to display your operator's logo on the idle screen (depending on model). Languages This menu allows you to choose your phone's display language. Memory card - Auto run : allows you to launch a navigation of a predefined contents in the memory card. - Memory: allows you to display the available memory space of the memory card. 38 Settings

252989298_my&10X_en.book Page 39 March; 5. Février 2008 11:06 11 Video telephony This menu allows you to select the default parameters for the video calls. Browser settings This menu allows you to set various parameters needed for the browser connection. You can add or modify URL addresses. Networks This menu allows you to configure network preferences. - Search: to activate (automatically or manually) one of the networks accessible in the area in which your are located. - Preferred networks: to view all the pre-registered networks. - Settings: to select your network: GSM or 3G. Security This menu allows you to configure your phone's security settings. Keypad lock This menu allows you to lock the keypad to avoid unwanted key presses. - Automatic after a few seconds, the keypad is locked. To unlock it press the * and OK keys from the idle screen. - Manual: lock the keypad pressing the * and OK keys from the idle screen. PIN protection This menu allows you to activate or deactivate the PIN code when switching on the phone Modify PIN code This menu allows you to activate and modify your phone's PIN. To modify the PIN, select Modify PIN code and [Select] Enter pin and validate. Enter new PIN twice and validate. To activate or deactivate the PIN, select the Control PIN menu and [Select] Enter PIN and validate. Select Activate or Deactivate and validate. Settings 39

Modify PIN2 code You have a second PIN number to allow you to access certain functions (*). Proceed as above in order to activate, deactivate or modify PIN number 2 of your phone. Phone lock This menu allows you to activate a code which will be requested when the phone is switched on if a different SIM card is used. This code is automatically linked to the SIM card installed when the phone is activated. This code is a sound code to protect the phone if stolen. To activate or deactivate the code. - Select Lock mode and [Select]. - Select Enable or Disable and [Save]. - Enter 0000 (the factory code, by default) and validate. To modify the phone code. - Select Change lock code and [Select]. - Enter the out codes and validate. Enter the new code and validate. - Enter the code again to confirm it and validate. Confidentiality This menu allows the activation or deactivation of automatic deletion, after power often, of outgoing calls, messages stored or organiser events. Select Activate or Deactivate and validate. Operator This menu allows you to modify the call barring. Access to this service depends on your type of subscription. (*) These functions may or may not be available depending on your SIM card. 40 Settings

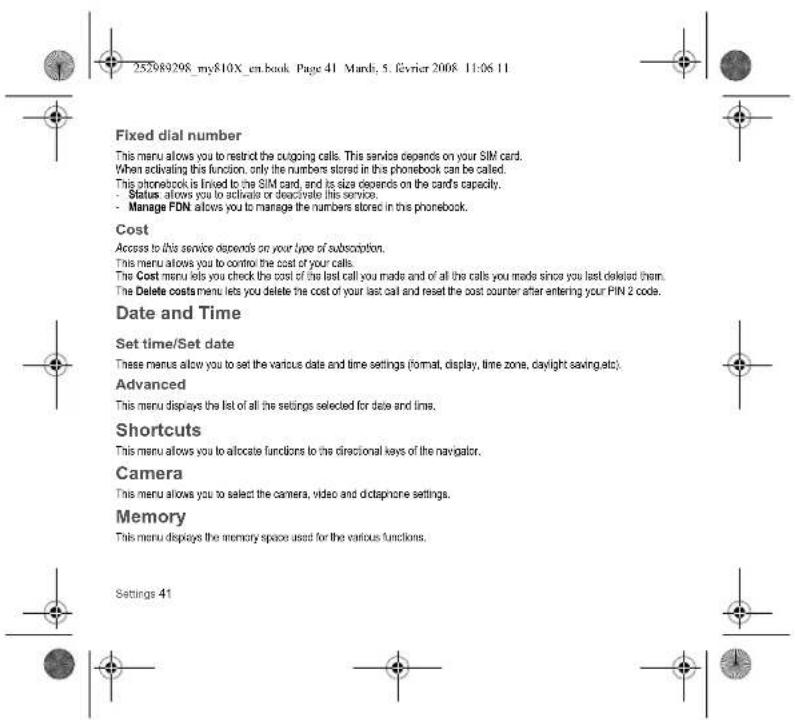

252989298, my$10X_en.book Page 41 March; 5. février 2008 11:06 11 Fixed dial number This menu allows you to restrict the outgoing calls. This service depends on your SIM card. When activating this function, only the numbers stored in this phonebook can be called. This phonebook is locked to the SIM card, and its size depends on the card's capacity. - Status allows you to activate or deactivate this service. - Manage FDN allows you to manage the numbers stored in this phonebook. Cost Access to this service depends on your type of subscription. This menu allows you to control the cost of your calls. The Cost menu lets you check the cost of the last call you made and of all the calls you made since you last delete them. The Delete costs menu lets you delete the cost of your last call and reset the cost counter after entering your PIN 2 code. Date and Time Set time/Set date These menu allows you to set the various date and time settings (format, display, time zone, daylight saving etc). Advanced This menu displays the list of all the settings selected for date and time. Shortcuts This menu allows you to allocate functions to the directional keys of the navigator. Camera This menu allows you to select the camera, video and dictapnore settings. Memory This menu displays the memory space used for the various functions. Settings 41

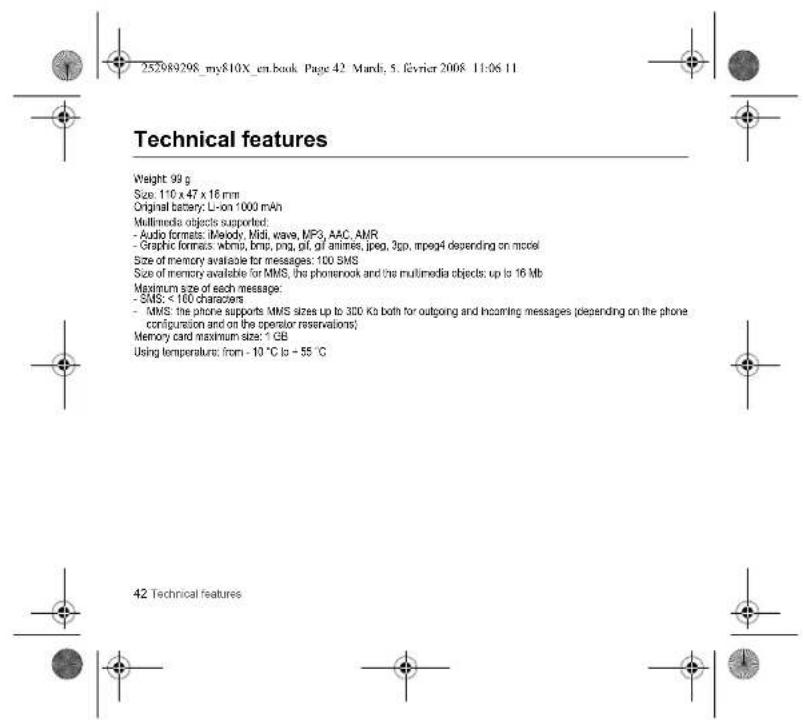

25/29/89/208_my$10X_en.book Page 42 March; 5. Février 2008 11:06 11 Technical features Weight: 99 g Size: 110 x 47 x 16 mm Original battery: Li-ion 1000 mAh Multimedia objects supported: - Audio formats: iMbody, Midi, wave, MP3, AAC, AMR - Graphic formats: wbms, bmt, png, plf, glf, animes, jpeg, 3gp, mpeg4 depending on mccel Size of memory available for messages: 100 SMS Size of memory available for MMS, the phonenook and the multimedia objects: up to 16 Mb Maximum size of each message: - SMS: < 100 characters - MMS: the phone supports MMS sizes up to 300 Kb both for outgoing and incoming messages (depending on the phone configuration and on the operator reservations) Memory card maximum size: 1 GB Using temperature: from - 10 °C to - 55 °C 42 Technical features

Care and safety information

SAR

THIS MODEL MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear was 1.3 W/kg (*). As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in this user guide (**).

As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic charges to the power level of the device to ensure it only uses the minimum level required to reach the network.

The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a 'hands-free' device to keep the mobile phone away from the head and body. Additional information can be found on the websites of the World Health Organization (http://www.who.int&mf)

Advice for limiting exposure to radiofrequency (RF) fields

For individuals concerned about limiting their exposure to RF fields, the World Health Organization (WHO) provides the following advice:

Precautionary measures: Present scientific information does not indicate the need for any special precautions for the use of mobile phones. If individuals are concerned, they might choose to limit their own or their children's RF exposure by limiting the length of calls, or using "hands-free" devices to keep mobile phones away from the head and body.

Further information on this subject can be obtained from the WHO home page http://www.who.in/rah-amf WHO Fact sheet 183 June 2008.

(1) The tests are carried out to accordance with international guidelines for testing.

(**) Please see the Distance of operation section about body worn operation, page 46.

44 Care and safety information

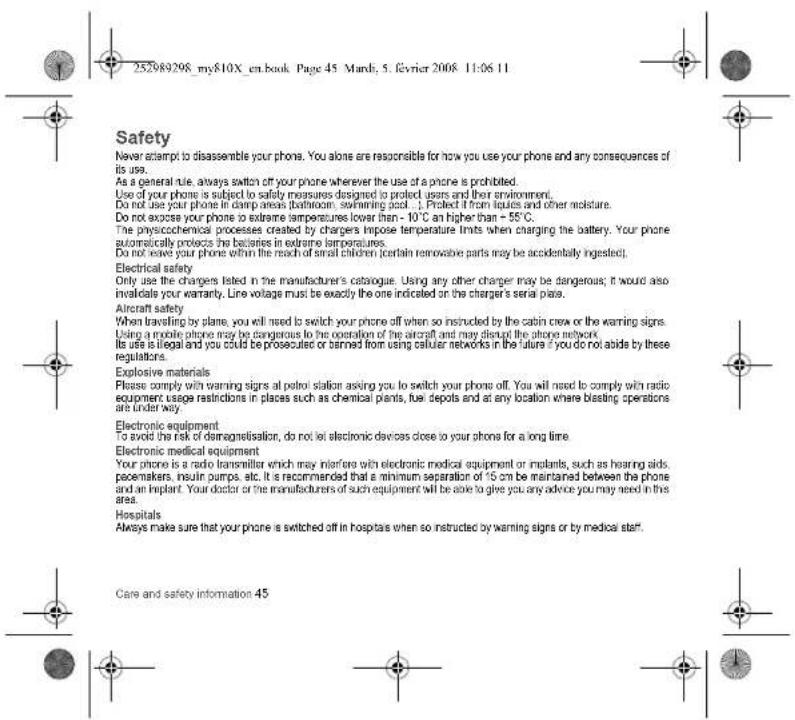

252989298, my$10X en. book Page 45 March; 5. février 2008 11:06 11 Safety Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in clamp areas (bathroom, swimming pool ...). Protect it from liquies and other moisture. Do not expose your phone to extreme temperatures lower than - 10°C an higher than - 55°C. The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety Only use the chargers listed in the manufacturer's catalogue. Using any other charger may be dangerous; it would also involve you warranty. Line voltage must be exactly the one indicated on the charger's serial plane. Aircraft safety When travelling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network. Its use is illegal and you could be prosecuted or saved from using cellular networks in the future if you do not abide by these regulations. Explosive materials Please comply with warning signs at petrol station asking you to switch your phone off. You will need to comply with radio equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are under way. Electronic equipment To avoid the risk of demagnetisation, do not let electronic devices close to your phone for a long time. Electronic medical equipment Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 15 cm be maintained between the phone and an implant. Your doctor or the manufacturers of such equipment will be able to give you any advice you may need in this area. Hospitals Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff. Care and safety information 45

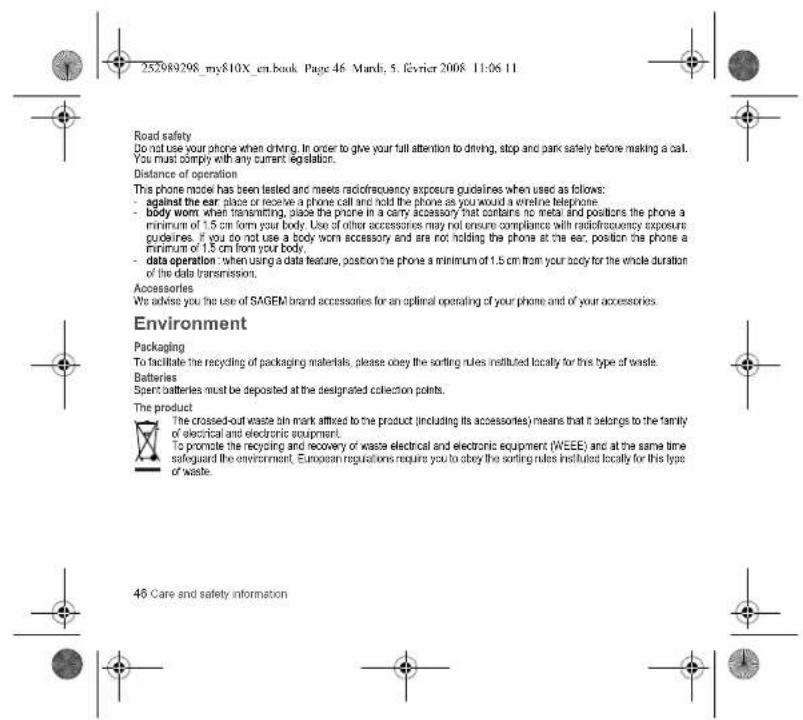

25/29/89/208_my$10X_en.book Page 46 March; 5. Fevrier 2008 11:06 11 Road safety Do not use your phone when driving. In order to give your full attention to driving, stop and park safety before making a call. You must comply with any current legislation. Distance of operation This phone mode has been tested and meets radiofrequency exposure guidelines when used as follows: - against the ear, place or receive a phone call and hold the phone as you would a wireline telephone. - body worn when transmitting, place the phone in a cavity accessory that contains no metal and positions the phone a minimum of 1.5 cm from your body. Use of other accessories may not ensure compliance with radiofrequency exposure guidelines. If you do not use a body worn accessory and are not holding the phone at the ear, position the phone a minimum of 1.5 cm from your body. - data operation: when using a data feature, position the phone a minimum of 1.5 cm from your body for the whole duration of the data transmission. Accessories We advise you the use of SAGEM brand accessories for an optimal operating of your phone and of your accessories. Environment Packaging To facilitate the recycling of packaging materials, please obey the sorting rules instituted locally for this type of waste. Batteries Spare batteries must be deposited at the designated collection points. The product The crossed-out waste bin mark affixed to the product (including its accessories) means that it belongs to the family of electrical and electronic equipment. To promote the recycling and recovery of waste electrical and electronic equipment (WEEE) and at the same time safeguard the environment. European regulations require you to obey the sorting rules instituted locally for this type of waste. 46 Care and safety information

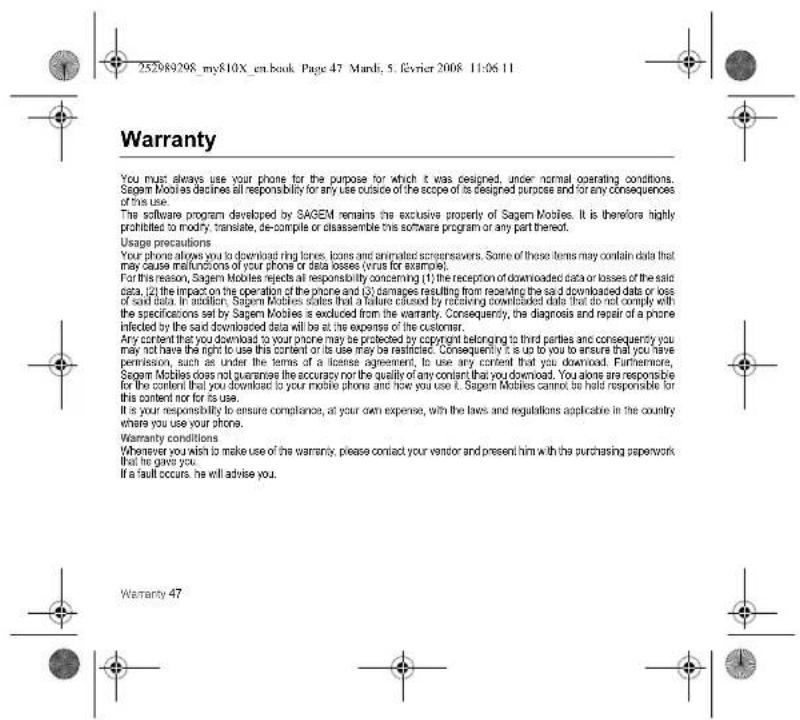

252989298_my&10X_en.book Page 47 March; 5. Février 2008 11:06 11 Warranty You must always use your phone for the purpose for which it was designed, under normal operating conditions. Sagem Mobles declines all responsibility for any use outside of the scope of its designed purposes and for any consequences of this use. The software program developed by SAGEM remains the exclusive property of Sagem Mobles. It is therefore highly prohibited to modify, translate, de-compile or disassemble this software program or any part thereof. Usage precautions Your phone allows you to download ring lanes, icons and animated screensavers. Some of these items may contain data that may cause malfunctions of your phone or data losses (virus for example). For this reason, Sagem Mobles rejects all responsibility concerning (1) the reception of downloaded data or losses of the said data, (2) the impact on the operation of the phone and (3) damages resulting from receiving the said downloaded data or loss of said data. In addition, Sagem Mobles soles that a failure caused by receiving downloaded data that do not comply with the specifications set by Sagem Mobles is excluded from the warranty. Consequently, the diagnosis and repair of a phone infected by the said downloaded data will be at the expense of the customer. Any content that you download to your phone may be protected by copyright belonging to third parties and consequently you may not have the right to use this content or its use may be restricted. Consequently it is up to you to ensure that you have permission, such as under the terms of a license agreement, to use any content that you download. Furthermore, Sagem Mobles does not guarantee the accuracy nor the quality of any content that you download. You alone are responsible for the content that you download to your mobile phone and have you use it. Sagem Mobles cannot be held responsible for this content nor for its use. It is your responsibility to ensure compliance, at your own expense, with the laws and regulations applicable in the country where you use your phone. Warranty conditions Whenever you wish to make use of the warranty, please contact your vendor and present him with the purchasing paperwork that he gave you. If a fault occurs, he will advise you. Warranty 47

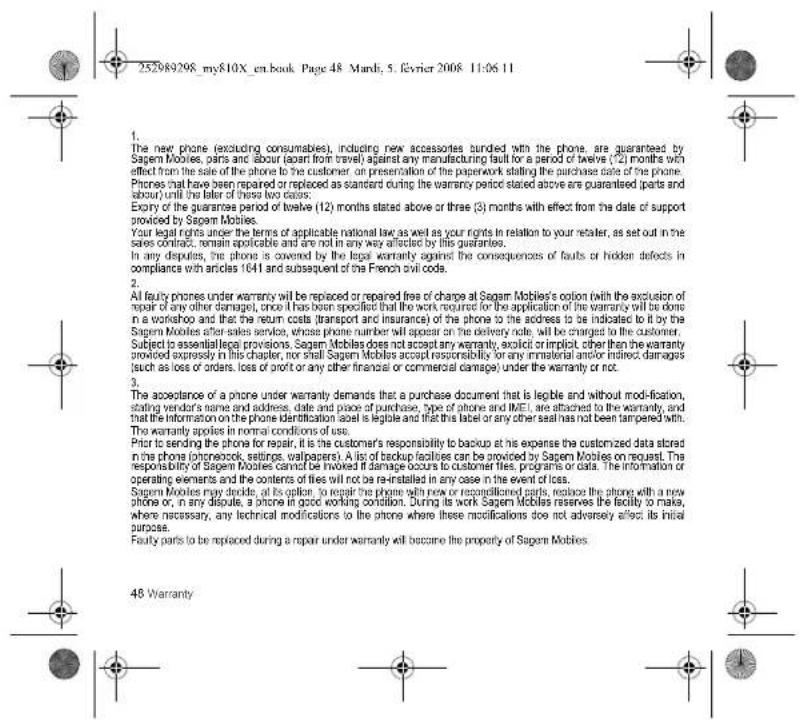

252989298_my&10X_en.book Page 48 March; 5. Évrier 2008 11:06 11 1. The new phone (excluding consumables), including new accessories bundled with the phone, are guaranteed by Sagem Mobiles, parts and abour (aert from travel) against any manufacturing fault for a period of twelve (12) months with effect from the sale of the phone to the customer, on presentation of the paperwork stating the purchase date of the phone. Phones that have been repaired or replaced as standard during the warranty period stated above are guaranteed (parts and about) until the later of these two cases. Expiry of the guarantee period of twelve (12) months stated above or three (3) months with effect from the date of support provided by Sagem Mobiles. Your legal rights under the terms of applicable national law, as well as your rights in relation to your retailer, as set out in the sales contract, remain applicable and are not in any way affected by this guarantee. In any disputes, the phone is owned by the legal warranty against the consequences of faults or hidden defects in compliance with articles 1641 and subsequent of the French civil code. 2. All faulty phones under warranty will be replaced or repaired free of charge at Sagem Mobiles's option (with the exclusion of repair of any other damaged, once it has been specified that the work required for the application of the warranty will be done in a workshop and that the return costs (transport and insurance) of the phone to the address to be indicated to it by the Sagem Mobiles after-sales service, whose phone number will appear on the delivery note, will be charged to the customer. Subject to essential legal provisions. Sagem Mobiles does not accept any warranty, explicit or implicit, other than the warranty provided expressly in this chapter, nor shall Sagem Mobiles accept responsibility for any immaterial and/or indirect damages (such as loss or orders, loss of profit or any other financial or commercial damage) under the warranty or not. 3. The acceptance of a phone under warranty demands that a purchase document that is legible and without modification, stating vendor's name and address, date and place of purchase, type of phone and IMET, are attached to the warranty, and that the information on the phone identification label is legible and that this label or any other seal has not been tampered with. The warranty applies in normal conditions of use. Prior to sending the phone for repair, it is the customer's responsibility to backup at his expense the customized data stored in the phone (onneelock, settings, wallpapers). A list of backup facilities can be provided by Sagem Mobiles on request. The responsibility of Sagem Mobiles cannot be involved if damage occurs to customer files, programs or data. The information or operating events and the contents of files will not be re-installed in any case in the event of loss. Sagem Mobiles may decide, all its option, to repair the phone with new or reconditioned parts, replace the phone with a new phone or, in any dispute, a phone it good working condition. During its work Sagem Mobiles reserves the facility to make, where necessary, any technical modifications to the phone where these modifications do not adversely affect its initial purpose. Faulty parts to be replaced during a repair under warranty will become the property of Sagem Mobiles. 48 Warranty

252989298_my&10X_en.book Page 49 March; 5. Février 2008 11:06 11 The phone repair and standsill time during the warranty period may not lead to an extension of the warranty period as stated in article 1 above, provided no other vital provisions have been agreed. The application of the warranty is subject to the full payment of the sums due for the phone when the request for support is made. 4. The following are excluded from the warranty: Breakdowns or malfunctions due to non-compliance with the installation and use instructions, to an external cause of the phone check, lighting, line, ventilation, transit, water damage of any type, contact with various equies or any harmful agent, unsuitable electric current...), to modifications of the phone made without the written consent of Sagem Mobiles, to a servicing fault, as described in the documentation supplied with the phone, to lack of supervision or care, to poor environmental conditions of the phone (especially temperature and hygrometry, effects of variations in electric voltage, interference from the mains network or earth) or even due to a repair, a call-out (opening or trying) to open the phone) or to servicing done by personnel not approved by Sagem Mobiles. Damage resulting from inadequate packaging and/or poor packing of the phone sent back to Sagem Mobiles. Normal wear and tear of the phone and accessories. Communication problems linked with a poor environment, especially: Problems accessing and/or logging onto the Internet, such as breakdowns of the access network, the failure of the subscriber's or his correspondent's line, transmission fault (poor geographic coverage by radio transmitters, interference, disturbance, failure or poor quality of phone lines...), a fault inherent to the local network (cabling, file server, user phone) and/or transmission network fault (interference, disturbance, failure or poor quality of the network...). Change of parameters of the cellular network made after the phone was sold. Supply of new software versions. Current providing work, delivery of consumables, installation or replacement of these consumables... Call-outs for phone or software mobile or adder without the written consent of Sagem Mobiles. Faults or disruptions resulting from the use of products or accessories not compatible with the phone. Phones returned to Sagem Mobiles without having complied with the return procedure specific to the phone covered by this warranty. The opening or closing of a SIM operator key and call-outs resulting in the non-operation of the phone resulting from the opening or closing of SIM operator key done without the agreement of the original operator. Warranty 49

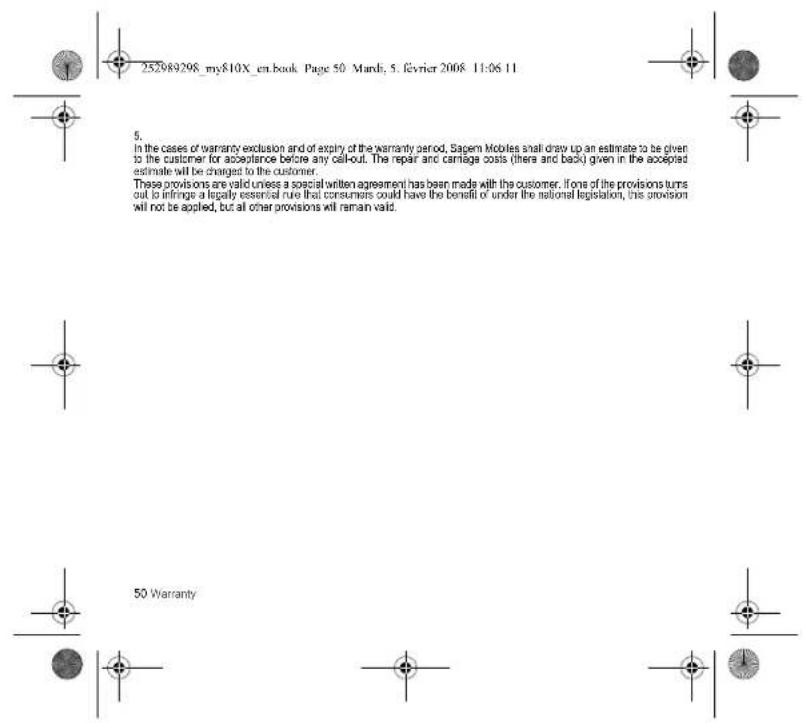

252989208_my610X_en.book. Page 50 March; 5. février 2008 11:06 11 5. In the cases of warranty exclusion and of expiry of the warranty period, Sapem Mobiles shall draw up an estimate to be given to the customer for acceptance before any call-out. The repair and cartilage costs (there and back) given in the accepted estimate will be charged to the customer. These provisions are valid unless a special written agreement has been made with the customer. If one of the provisions turn out to infringe a legally essential rule that consumers could have the benefit of under the national legislation, this provision will not be applied, but all other provisions will remain valid. 50 Warranty

252989298_my&10X_en.book Page 51 March; 5. Février 2008 11:06 11 End User Licence Agreement (EULA), for the software CONTEXT AND ACCEPTATION OF THE AGREEMENT You have acquired a Mobile Phone device ("DEVICE"), manufactured by Sagem. Mobiles (SAGEM), that includes software either developed by SAGEM itself or licensed third party Software suppliers ("SOFTWARE COMPANIES") to SAGEM with the rights to sub-license it to the purchaser of the device. Those installed software products whatever their company of origin, and wherever the name of the company of origin is indicated of not in the DEVICE documentation, as well as associated media, printed materials, and "online" or electronic documentation ("SOFTWARE") are protected by international intellectual property keys and licenses. The SOFTWARE is licensed, not sold. All rights reserved. IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"). DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSEAD, PROMPTLY CONTACT SAGEM FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICES, FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT). SOFTWARE includes software already installed on the DEVICE ("DEVICE Software"), and Software contained on the CD-ROM disk ("Companion CD"), if any is supplied with the product. ORANT OF SOFTWARE LICENCE This EULA grants you the following licence: DEVICE Software. You may use the DEVICE Software as installed on the DEVICE. All or certain portions of the DEVICE Software may be imperable if you do not have and maintain a service account with an appropriate Mobile Operator, or if the Mobile Operator's network facilities are not operating or configured to operate with the DEVICE software. COMPANION CD. If any is supplied, additional software for your personal computer is included with your DEVICE. You may install and use the software component(s) contained in the Companion CD only in accordance with the terms of the printed or online and user license agreement(s) provided with such component(s). In the absence of an end user license agreement for particular component(s) of the Companion CD, you may install and use only one (1) copy of such component(s) on the DEVICE or a single computer with which you use the DEVICE. End User Licence Agreement (EULA), for the software 51

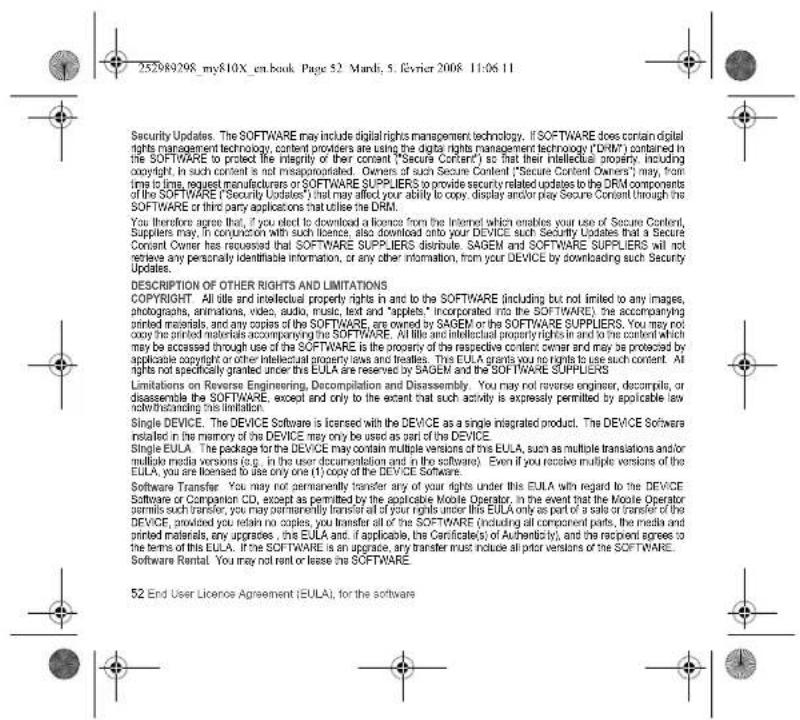

Security Updates. The SOFTWARE may include digital rights management technology. If SOFTWARE does contain digital rights management technology, content providers are using the digital rights management technology ("DRIM") contained in the SOFTWARE to protect the integrity of their content ("Secure Content") so that their intellectual property, including copyright, in such content is not misappropriated. Owners of such Secure Content ("Secure Content Owners"), may, from time to time, request manufacturers or SOFTWARE SUPPLIERS to provide security related updates to the SRM components of the SOFTWARE ("Security Updates") that may afford your ability to copy, display and/or pay Secure Content through the SOFTWARE or third party applications that utilise the DRM. You therefore agree that, if you elect to download a licence from the Internet which enables your use of Secure Content, Suppliers may, in conjunction with such licence, also download onto your DEVICE such Security Updates that a Secure Content Owner has discussed that SOFTWARE SUPPLIERS distribute. SAGEM and SOFTWARE SUPPLIERS will not retrieve any personally identifiable information, or any other information, from your DEVICE by downloading such Security Updates. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS COPYRIGHT: All title and intellectual property rights in and to the SOFTWARE (including but not limited to any images, photographs, animations, video, audio, music, text and "apples," incorporated into the SOFTWARE), the accompanying printed materials, and any copies of the SOFTWARE, are owned by SAGEM or the SOFTWARE SUPPLIERS. You may not copy the printed materials accompanying the SOFTWARE. All title and intellectual property rights in and to the content which may be accessed through use of the SOFTWARE is the property of the respective content owner and may be protocoled by applicable copyright or other intellectual property laws and treaties. This EULA grants you no rights to use such content. All rights not specifically granted under the EULA are reserved by SAGEM and the SOFTWARE SUPPLIERS Limitations on Reverse Engineering, Decompilation and Disassembly. You may not reverse engineer, decomplies, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding the limitation. Single DEVICE. The DEVICE Software is licensed with the DEVICE as a single integrated product. The DEVICE Software installed in the memory of the DEVICE may only be used as part of the DEVICE. Single EULA. The package for the DEVICE may contain multiple versions of the EULA, such as multiple translations and/or multiple media versions (e.g., in the user documentation and in the software). Even if you receive multiple versions of the EULA, you are licensed to also only one (1) copy of the DEVICE Software. Software Transfer. You may not permanently transfer any of your rights under this EULA with regard to the DEVICE Software or Compartment CD, except as permitted by the applicable Mobile Operator. In the event that the Mobile Operator permits such transfer, you may permanently transfer all of your rights under this EULA only as part of a safe or transfer of the DEVICE, provided you retain no copies, you transfer all of the SOFTWARE (including all component parts, the media and printed materials, any upgrades, this EULA and, if applicable, the Certificate(s) of Authenticity), and the recipient agrees to the terms of this EULA. If the SOFTWARE is an upgrade, any transfer must include all prior versions of the SOFTWARE. Software Rental. You may not rent or lease the SOFTWARE. 52 End User Licence Agreement (EULA), for the software

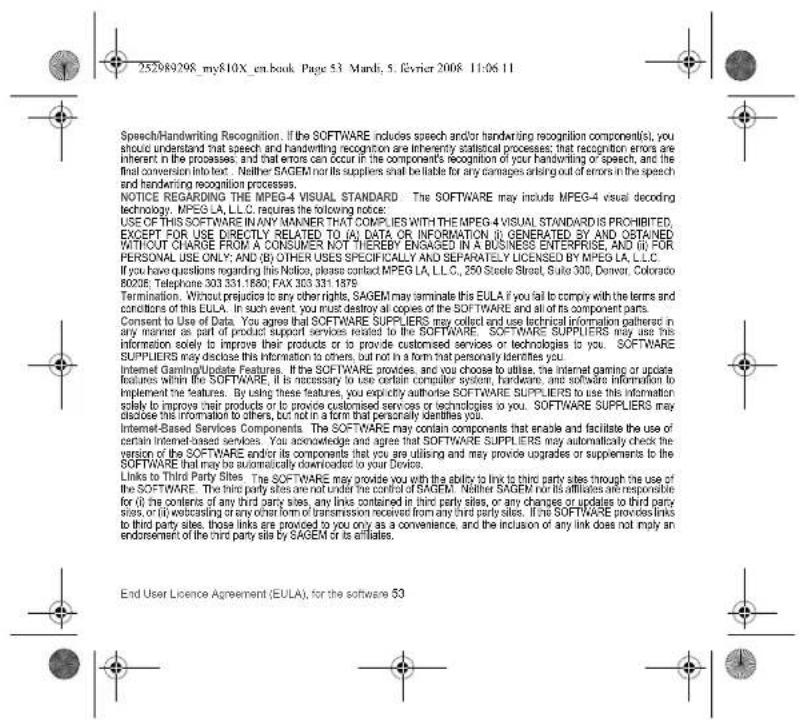

Speech/Handwriting Recognition. If the SOFTWARE includes speech and/or handwriting recognition component(s), you should understand that speech and handwriting recognition are inherently statistical processes; that recognition errors are inherent in the processes, and that errors can occur in the component's recognition of your handwriting or speech, and the final conversion into text. Neither SAGEM nor its supplies shall be liable for any damages arising out of errors in the speech and handwriting recognition processes. NOTICE REGARDING THE MPEG-4 VISUAL STANDARD. The SOFTWARE may include MPEG-4 visual decoding technology, MPEG LA, LLC; requires the following notice: USE OF THIS SOFTWARE IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION; (i) GENERATED BY AND OSTAINED WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (iii) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, LLC. If you have questions regarding this Notice, please contact MPEG LA, LLC., 250 Steele Street, Suite 300, Denver, Colorado 80208; Telephone [phone]; FAX [phone] Termination. Without prejudice to any other rights, SAGEM may semilate this EULA if you fail to comply with the terms and conditions of this EULA. In such event you must destroy all copies of the SOFTWARE and all of its component parts. Consent to Use of Data. You agree that SOFTWARE SUPPLIERS may collect and use technical information gathered in any manner as part of product support services related to the SOFTWARE. SOFTWARE SUPPLIERS may use this information solely to improve their products or to provide customised services or technologies to you. SOFTWARE SUPPLIERS may disclose this information to others, but not in a form that personally identifies you. Internet Gaming/Update Features. If the SOFTWARE provides, and you choose to utilise, the Internet gaming or update features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to implement the features. By using these features, you explicitly authorise SOFTWARE SUPPLIERS to use this information solely to improve their products or to provide customised services or technologies to you. SOFTWARE SUPPLIERS may disclose this information to others, but not in a form that personally identifies you. Internet-Based Services Components. The SOFTWARE may contain components that enable and facilitate the use of certain Internet-based services. You acknowledge and agree that SOFTWARE SUPPLIERS may automatically check the version of the SOFTWARE and/or its components that you are utilising and may provide upgrades or supplements to the SOFTWARE that may be automatically downloaded to your Devices. Links to Third Party Sites. The SOFTWARE may provide you with the ability to link to third party sites through the use of the SOFTWARE. The third party sites are not under the control of SAGEM. Neither SAGEM nor its affiliates are responsible for (i) the contents of any third party sites, any links contained in third party sites, or any changes or updates to third party sites, or if externalising or otherwise non-transmission received from any third party sites. If the SOFTWARE provides links to third party sites, those links are provided to you only as a convenience, and the inclusion of any link does not imply an endorsement of the third party site by SAGEM or its affiliates. End User Licence Agreement (EULA), for the software 53

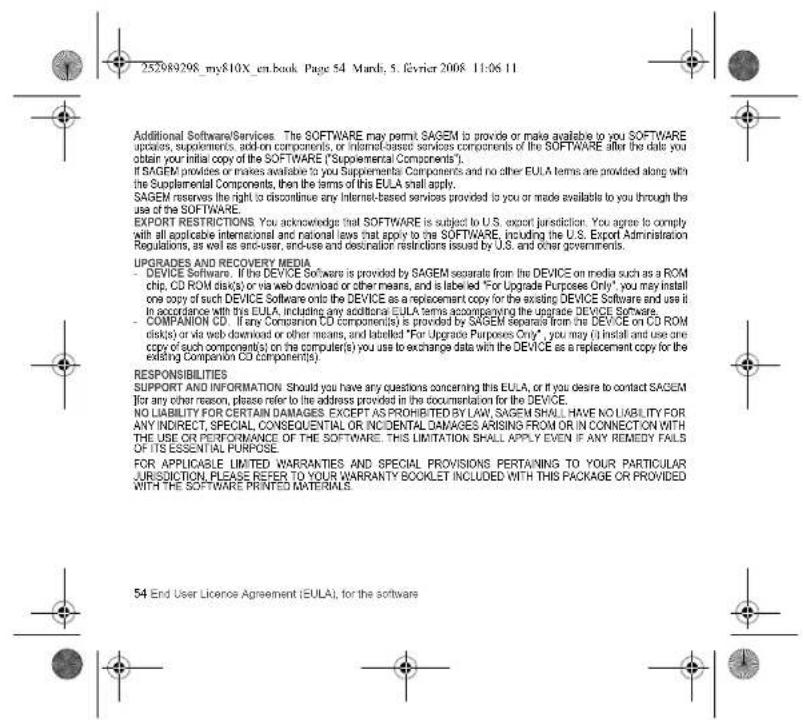

25/08/2008, my$10X_en.book Page 54 March; 5. Evrier 2008 11:06 11 Additional Software/Services. The SOFTWARE may permit SAGEM to provide or make available to you SOFTWARE updates, supplements, add-on components, or internet-based services components of the SOFTWARE after the date you obtain your initial copy of the SOFTWARE ("Supplemental Components"). If SAGEM provides or makes available to you Supplementa Components and no other EULA terms are provided along with the Supplemental Components, then the terms of this EULA shall apply. SAGEM reserves the right to discontinue any Internet-based services provided to you or made available to you through the use of the SOFTWARE. EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is subject to U.S. export jurisdiction. You agree to comply with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration Regulations, as well as arc-user, end-use and destination restrictions issued by U.S. and other governments. UPGRADES AND RECOVERY MEDIA - DEVICE Software. If the DEVICE Software is provided by SAGEM separate from the DEVICE on media such as a ROM chip, CD ROM disk(s) or via web download or other means, and is labeled "For Upgrade Purposes Only", you may install one copy of such DEVICE Software onto the DEVICE as a replacement copy for the existing DEVICE Software and use it in accordance with this EULA, including any additional EULA terms accompanying the upgrade DEVICE Software. - COMPANION CD. If any Companion CD component(s) is provided by SAGEM separates from the DEVICE on CD ROM disk(s) or via web download or other means, and labelled "For Upgrade Purposes Only", you may (i) install and use one copy of such component(s) on the computer(s) you use to exchange data with the DEVICE as a replacement copy for the existing Companion CD component(s). RESPONSIBILITIES SUPPORT AND INFORMATION Should you have any questions concerning this EULA, or if you desire to contact SAGEM [for any other reason, please refer to the address provided in the documentation for the DEVICE. NO LIABILITY FOR CERTAIN DAMAGES. EXCEPT AS PROHIBITED BY LAW, SAGEM SHALL HAVE NO LIABILITY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. FOR APPLICABLE LIMITED WARRANTIES AND SPECIAL PROVISIONS PERTAINING TO YOUR PARTICULAR JURISDICTION PLEASE REFER TO YOUR WARRANTY BOOKLET INCLUDED WITH THIS PACKAGE OR PROVIDED WITH THE SOFTWARE PRINTED MATERIALS. 54 End User Licence Agreement (EULA), for the software

When running a Java™ application, you may be prompted to grant access to protected features. These features are protected because using them could incur you cost, or involve your personal data. In case of doubt, don't hesitate to refuse access by selecting the "No" button!

The security configuration menu is an expert feature! You must know exactly what you are doing before attempting to change security parameters of a MIDlet. Misunderstanding changes may render MIDlet non functional and/or lead to higher risks for your private data or impact your airline consumption. Any changes in the security configuration are cons under your responsibility, In no case shall Sagena Moolies and/or your network provider be liable for any damages deriving from or arising out of such changes in the security configuration.

You must be aware that applications downloaded to your phone could cause the phone to perform actions for which you will be billed, like making calls and sending SMS. Depending on your operator's billing policy, you may also be charged to download the application because of airline consumption.

Security considerations

Java™ MIDP technology is an efficient way to provide powerful applications in mobile phones.

All these MIDP 2.0 features cannot be simply exposed to any MIDlet installed in the handset: a careful access control system is implemented in the device to protect your private data and airline consumption.

Access controls are gathered in 9 security groups:

- Network access

- Auto invocation

Phone call Local comp

- Local traffic/only - Messaging receipt

- Messaging receiving

- Read User data

- Write User data

- Multimedia recording

Each of these security groups has one among 5 possible authorizations levels (listed from the more restrictive to the more permissive):

- Never: The security group completely prevents access to the protected features.

- Per use: Each time MIDlet tries to use protected feature, user is prompted to grant access.

- For session: First time a MIDlet, uses a protected function. User is prompted to grant access like in "Per use" authorization but access is granted until the MIDlet terminates.

Java™ 55

- Single confirmation: The first time in the whole MIDlet life a MIDlet uses a projected feature, user is prompted to grant access, it remains valid until the MIDlet is removed from the handset. - Always: The security group unconditionally grants access to projected features.

A. MIPod has a security status which is either "uncertified", or also "certified".

An "uncertified" status means that the source of the MIDlet could not be verified by the mobile phone at installation time. As far as the phone knows, the MIDlet could have been written by anyone.

A "certified" status means that the MIDlet was digitally signed by a known party, whose name is displayed by the mobile phone.

Security permissions are different for "uncertified" or "certified" MIDlats. Security configuration menu

When a MIDlet is installed in the mobile phone, default security authorizations are applied

This default security configuration may be altered through the "Settings/Security" menu of an installed MIDcel

Once in the Security menu, the security status of the Rocket is displayed.

If you do not want to enter the security menu, simply select "Back" button. You can proceed by selecting "OK" button.

The intent displayed allows you to increase or decrease permissions currently applied to the current MDE for each of the security groups.

When you set a more permissive authorization to a security group than the current value, mobile phone asks you to confirm your increased risk exposure.

The maximum risk exposure increase is limited by the security status.

What is Java™?

Business applications and games are easily downloadable by the end-user on a Java™ featured handset.

Your mobile phone is a MOP 2.0 compliant Java™ platform which implements WMA (SMS support) and MMAPI (Multimedia support) options, providing an existing analytics tool in run highly objective, evaluated and in situ MDR applications.

What is a MIDlet?

A Java™ application or a game designed to run in a mobile phone is named a MIDlet (MIDP applet).

A MIDlet is usually made of 2 fires.

- The JAD file

JAD file stands for Java™ Application Descriptor. It is a small file describing the content of a JAR file

JAR file stands for Java™ Archive. It refers to the application data themselves (program, images, sound). A JAR file may be up to 200 kilo-bytes large.

Note: In rare circumstances, MIDlet vendors may provide no JAD file and the MIDlet is the JAR file alone. In such a case it is your only responsibility to evaluate the risk to download the JAR file without possibility of consulting the JAD file.

56 Java™

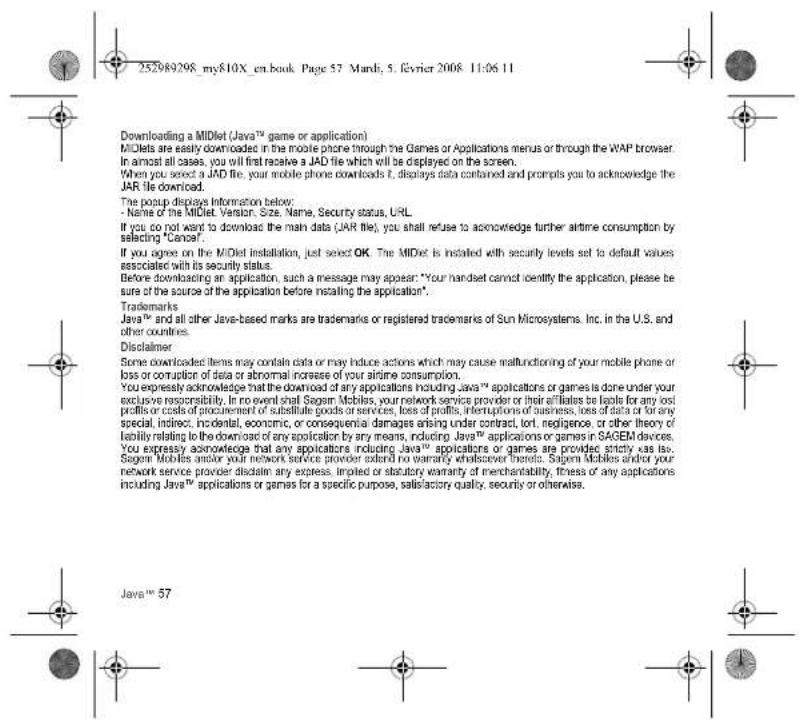

252989298_my&10X_en.book Page 57 March, 5. Février 2008 11:06 11 Downloading a MIDlet (Java™ game or application) MIDlets are easily downloaded in the mobile phone through the Games or Applications menus or through the WAP browser. In almost all cases, you will first receive a JAD file which will be displayed on the screen. When you select a JAD file, your mobile phone downloads it, displays data contained and prompts you to acknowledge the JAR file downloaded. The popup displays information below: - Name of the MIDlet Version, Size, Name, Security status, URL. If you do not want to download the main data (JAR file), you shall refuse to acknowledge further airtime consumption by selecting "Cancel". If you agree on the MIDlet installation, just select OK. The MIDlet is installed with security levels set to default values associated with its security status. Before downloading an application, such a message may appear: "Your handset cannot identify the application, please be sure of the source of the application before installing the application". Trademarks Java™ and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Disclaimer Some downloaded items may contain data or may induce actions which may cause malfunctioning of your mobile phone or loss or corruption of data or abnormal increases of your airtime consumption. You expressly acknowledge that the download of any applications including Java™ applications or games is done under your exclusive responsibility. In no event shall Sagem Mobiles, your network service provider or their affiliates be liable for any lost profits or costs of procurement of substitute goods or services, loss of profits, interruptions of business, loss of data or for any special, indirect, incidental, economic, or consequential damages arising under contract, tort, negligence, or other theory of liability relating to the download of any speculation by any means, including Java™ applications or games in SAGEM devices. You expressly acknowledge that any applications including Java™ applications or games are provided strictly as long. Sagem Mobiles and/or your network service provider extend no warranty whatsoever besides. Sagem Mobiles and/or your network service provider disclaim any express, implied or statutory warranty of merchantability, fitness or any applications including Java™ applications or games for a specific purpose, satisfactory quality, security or otherwise. Java™ 57

The phone won't start and/or won't take a charge

Connect the phone to the charger for between 5 and 30 minutes. The phone will only switch on after it has been charging for a few minutes.

You may use the phone again when the Start option is displayed on the screen. If the phone still won't start after 50 minutes' charging, contact customer service

Check if the SIM card is present and properly positioned I inserted. Check the condition of the SIM card. If damaged, please go back to the operator's shop for advice. Contact your after-sales service if the message persists.

Incorrect PIN code An Incorrect PIN code has been entered. Be careful Three Incorrect PIN codes will block the SIM Card. PIN BLOCKED

If a wrong PIN number is entered three times in succession, your SIM card is blocked. You must then: - Enter the PUK (Personal Unlocking Key) code provided by your operator, and validate.

- Enter your PIN number and validate

After 5 or 10 listed attempts (depending on the type of SIM card), the SIM card is definitely locked. You must then contact your operator to obtain a new card.

SIM LOCKED In certain cases, the handset can only be used with some types of SIM cards. This message means that the SIM card you are using does not fit with the phone. Take the SIM card out, and switch it back on. If the message SIM not present posters on the screen, you will need to check its compatibility next to the place where you bought it. If not, please contact your after-sales service.

58 Troubleshooting

Check that the number you have dialed is correct.

If the letter E is displayed on the top right corner of the screen, without any network name displayed, only emergency

services can be called.

Check the status of your credit.

Check that the SIM Card you are using offers the service you are requesting. check if its validity has not expired.

Check and deactivate the outgoing calls restriction when necessary.

The network could be saturated. Try later.

If the problem persists, please contact your Technical Helpdesk.

No receiving calls

Try to make a call in order to check that the phone and the network are operational.

Check and deactivate the permanent call forwarding (permanent call forwarding icon displayed on the screen)

Check and deactivate the incoming calls restriction when necessary

If the problem persists, please contact your Technical Helpdesk.

Quality reception when calling

Avoid placing your fingers on the top of the phone, where the aerial is integrated: the phone will have to use full strength to

establish a quality transmission

No voicemail

Check that your subscription does offer this service.

Program the call to be forwarded to voicemail using the information provided by the operator.

Try to make a call to check that phone and network are operational.

Check if the voicemail number is properly configured. To do so, go to the Settings/Calls menu, select Voicemail and check

the number. Otherwise, enter your operator's voicemail number

Operator name does not appear on screen

Go into the Settings menu, select Networks, then [Select]. Wait until the operator appears, select it and validate

If the Operator logo is present (depending on model), activate the display (Settings Display Operator logo)

How can I increase the efficiency of my phone?

Activate the eco mode (see Settings/Display/Energy saving).

Deactivate the Bluetooth function when you don't need it

Troubleshooting 59

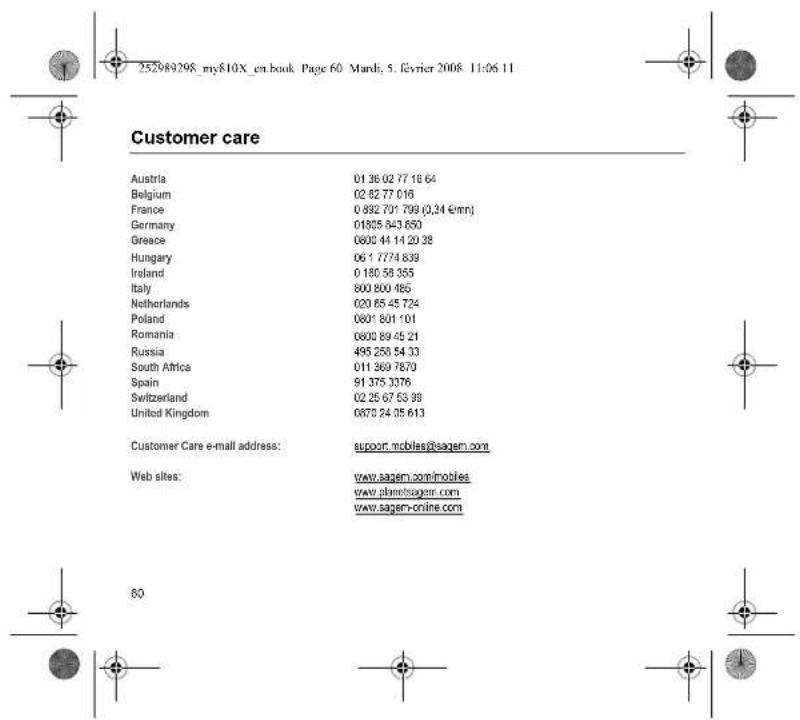

252989298_my&10X_en.book_Page_60_Mardi; 5. Février 2008_11:06_11 Customer care Austria 01 36 02 77 18 64 Belgium 02 62 77 016 France 0 892 701 709 (0,34 €mm) Germany 01805 843 650 Greece 0800 44 14 20 38 Hungary 06 1 7774 839 Ireland 0 180 58 355 Italy 800 800 485 Netherlands 020 65 45 724 Poland 0801 801 101 Romania 0800 89 45 21 Russia 495 250 54 33 South Africa 011 369 7870 Spain 91 375 3376 Switzerland 02 25 67 53 99 United Kingdom 0870 24 05 613 Customer Care e-mail address: [e-mail] Web sites: www.sagem.com/mobiles www.plantsagem.com www.sagem-online.com 60

252989298_my810X_en.book_Page_61_March_5_février_2008_11:06:11 Index A Accessories 46 Activating your phone 5 Alarm 35 B Backlight 38 Battery Charging the battery 14 Installing the battery 10 Bluetoothre 13, 20, 26, 27, 29, 30, 36 Browser 31 Downloading objects 31 Browser settings 39 C Calculator 35 Call log 16 Call settings 16 Calls 16 Any key 16 Auto response 16 Automatic redial 17 Blackbox 17 Call barring 18 Call divert 16 Call waiting 17 Display numbers 17 Camera 26. Clock 35 Stop Watch 35 Timer 35 Confidentiality 40 Contact 19. Contacts 12. Call group 21 Copy 21 Delete 20 Converter 30 Cost 41 Customer care 60 D Date / Time 41 Downloaded objects 28 Drafts 24 F Fixed dialing 41 G Games 33 Getting started 12 GPRS 32 H Hands-free mode 15 I Icon 8 Idle screen 8 Inbox 24 Input modes 23 K Keypad lock 39 Index 61

253989298_my810X_en.book Page 62 March, 5. février 2008 11:06 11 L Languages Local information M Memory Messages Index Receiving messages MMS Modern status Multimedia Multimedia objects Music files N Network Networks settings O Organiser P Phone code Phonebook New contact Using the phonebook Photo 10, 26, 36 Picture PIN code PIN2 number Programmable keys S Safety information Security Shutdown animation 62 Index SIM card SMS Sound Startup animation T T9 Templates T40a Todo Troubleshooting U USB cable USB mode V vCard Video Vidotelephony Voicemail W Wallpaper Warranty Wellphone 9, 52, 56, 38 23, 25, 34, 36, 58, 36, 38, 47, 36

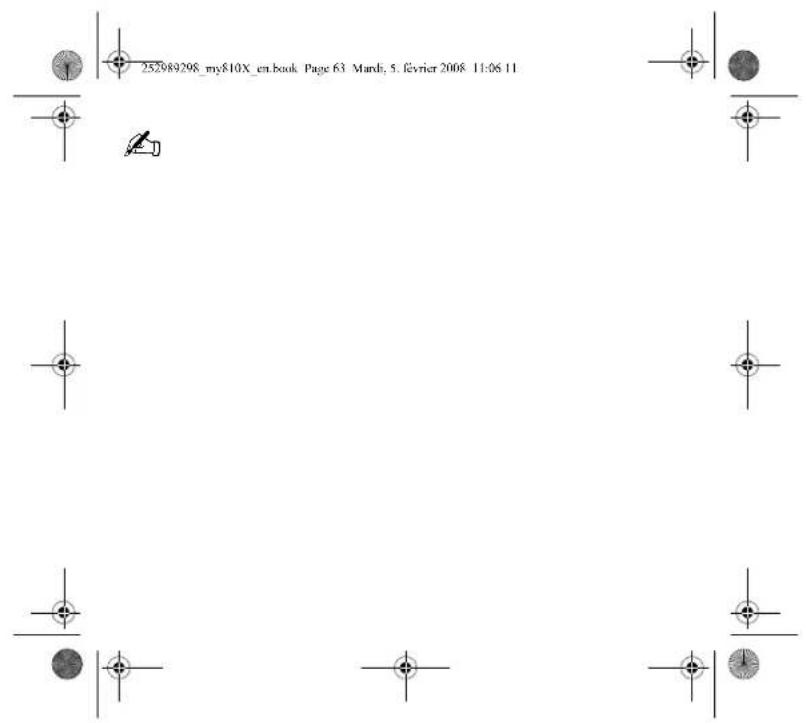

252989208_my810X_en.book.Page 63_March, 5. février 2008_11:06_11

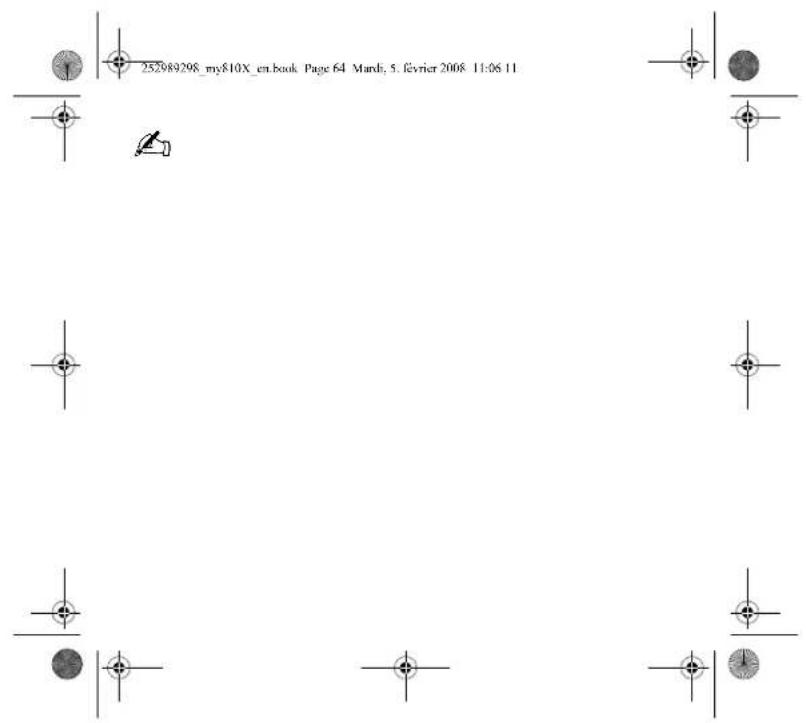

252989208_my810X_en.book.Page 64_March, 5. février 2008_11:06 11

252989208_my810X_en.book.Page 65_March, 5. février 2008_11:06 11

252989208_my810X_en.book.Page 66_March, 5. février 2008_11:06 11

252989208_my810X_en.book.Page 67_March, 5. février 2008_11:06_11

252989208_my810X_en.book.Page 68_March, 5. février 2008_11:06 11

252989208_my810X_en.book.Page 69_March, 5. février 2008_11:06 11

252989298_my$10X_en.book Page 71 March, 5. Février 2008 11:06 11 WELLPHONE®XT PC software, available as an option: To exchange data between your mobile phone and your PC: Pictures, Sounds, Video, SMS, MMS, Contacts, Calendar, ... To connect to Internet easily Using the 3G, EDGE or GPRS networks according to your mobile phone capacives and your subscription Bluetooth (*) IRDA (*) USB (*) For more information or to buy WellPhone*T www.wellphone.com (*) See chapter Connectivity page 36 to know the compatible links with your phone.
