USER MANUAL PHILIPS MAGIC 5 PRIMO SAGEM

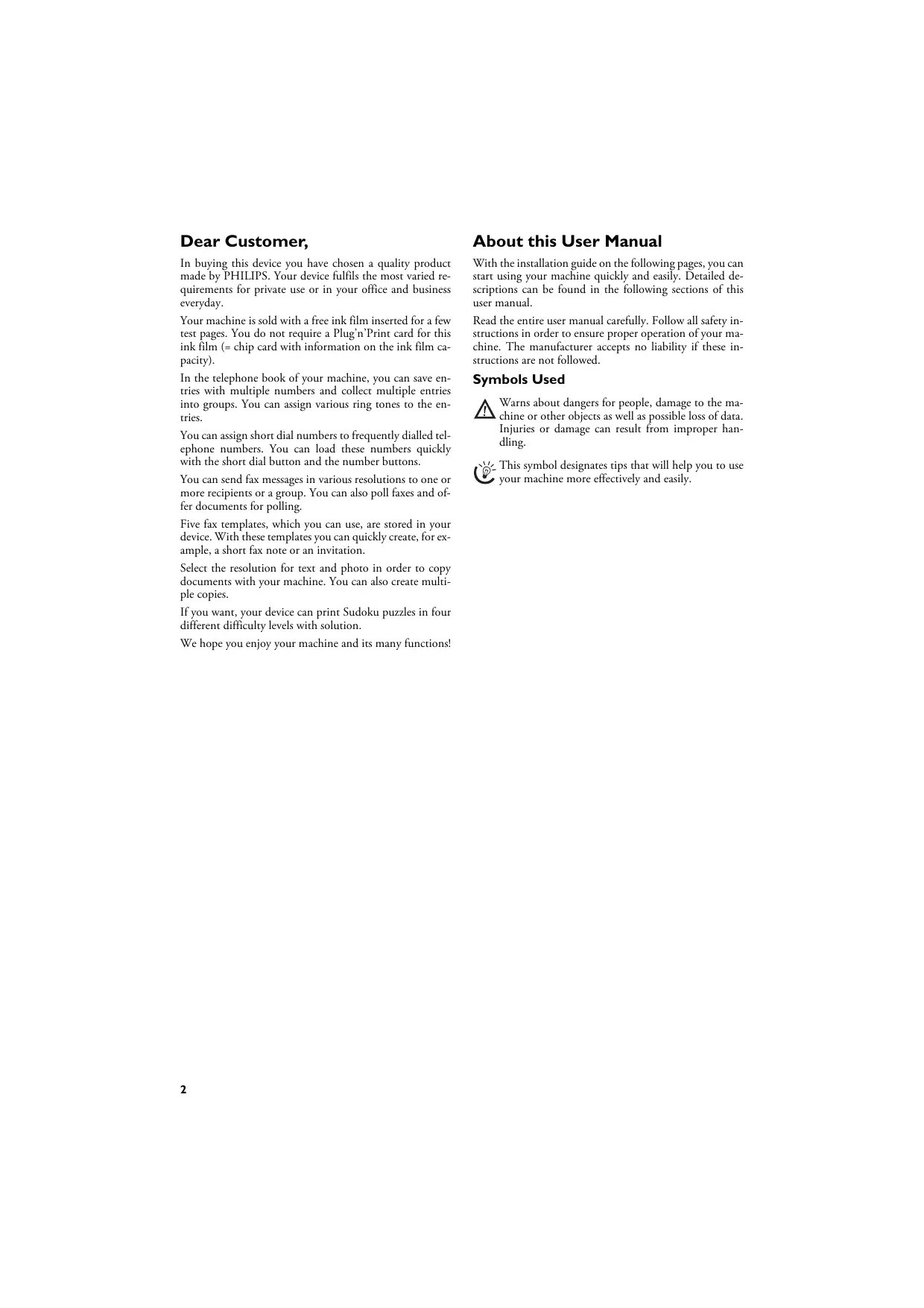

PHILIPS Dear Customer,

In buying this device you have chosen a quality product made by PHILIPS. Your device fulfils the most varied re- quirements for private use or in your office and business everyday.

Your machine is sold with a free ink film inserted for a few test pages. You do not require a Plug'n’Print card for this ink Blm (= chip card with information on the ink pacity).

In che telephone book of your machine, you can save en- tries with multiple numbers and collect multiple entries into groups. You can assign various ring tones to the en- tries.

You can assign short dial numbers to frequendly dialled tel- ephone numbers. You can load these numbers quickly wch che short dial button and the number buttons.

You can send fax messages in various résolutions to one or more recipients or a group. You can also pell faxes and of- fer documents for polling,

Five fax templates, which you can use, are stored in your device. Wih these templates you can quickly create, for ex- ample, a short fax note or an invitatior

Select the resolution for text and photo in order to copy

documents with your machine. You can also create multi- ple copies.

If you want, your device can print Sudoku puzzles in four different difficulry levels with solution.

We hope you enjoy your machine and its many functions!

About this User Manual

Wich che installation guide on the following pages, you can start using your machine quickly and easily. Detailed de- scriptions can be found in the following sections of this user manual,

Read the entire user manual carefully. Follow all safety in- structions in order to ensure proper operation of your ma- chine. The manufacturer accepts no liability if these in- structions are not followed.

Warns about dangers for people, damage to the ma- chine or other objects as well as possible loss of data Injuries or damage can result from improper han- dling.

is symbol designates tips chat will help you to use your machine more effectively and easily.

Installation Guide ΠSeparate the paper sheets by fanning them out, then

align them by tapping edge of the stack lightly

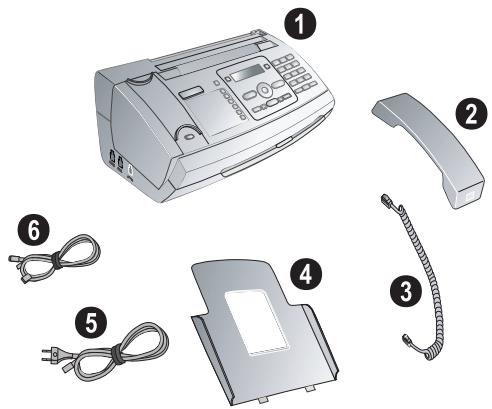

against a flat surface, This will prevent several shects Package Contents of paper from being drawn in all at once.

© Machine @ Telephone handset © Spiral cable for telephone handset

© Paper tray © Power cable with plug (counæry-specific)

© Telephone cable with plug (counery-specific) = ù

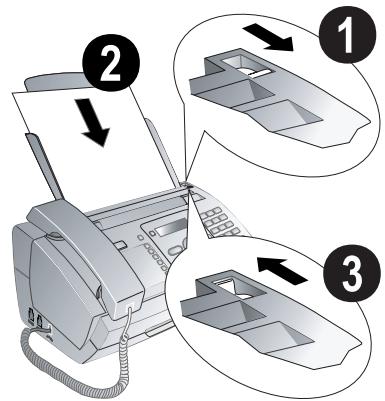

User manual with installation guide (not depicted) 1° Fold open the lever on the right beside the paper feed towards front.

2 Insert paper in the paper feeder. You can insert maxi- mum 50 sheets (A4 - 80 g/m2).

3 Fold open che lever on the right beside the paper feed backward in order to enclose the paper.

va If one of the parts is missing or damaged, please con C2 tac your retailer or our customer service.

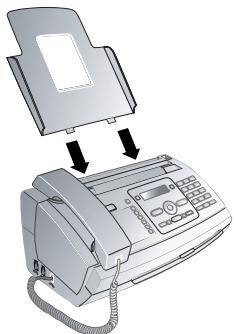

Attaching the Paper Tray

Insert the paper tray into the openings behind the paper feed mechanism.

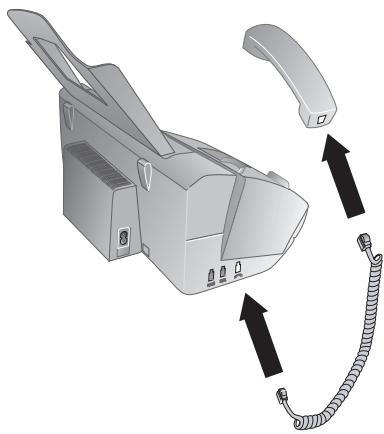

Connecting the Handset

Plug one end of the spiral cable into the socket on the tel- ephone handser, Insert the other end into the socket desig- nated with the æe symbol.

Before you can receive or copy documents, you must insert paper. Please use only suitable paper in the standard format A4 (210 x 297 millimetre . preferably 80 g/m°). Observe che information in the technical data.

Connecting the Telephone Cable

Connect the telephone cord to the device by inserting it in the socket designated with LINE (RJ-11-Connector). In- sert the telephone plug into your telephone connection socket.

2 IF you connect your device as extension 10 à tele- CZ phone system, you muse ser it for working as an ex

tension (also see Chapter "Telephone connections mal devices, page 20).

When connecting to the celephone line socket, use only a two-pin RJ-11-telephone cable (modular plug). The use of a four-pin cable may lead to the machine not function- ing correctly.

Connecting the Power Cable

A Sr etes the pour pe of our machine (in- dicated on the type plate) matches the power cype available at the setup location.

Insert the power cable into the connection located on the rear side of the machine. Connect the power cable ro the lectrical socket.

After you connect your device to the mains, the initial in- Stallation commences. Press [4]. Your device prints a help

page. Selecting the Language

1 Use A/y co select the desired display language. 2 Confirm with OK.

Selecting the Country

À Always set the country in which you are operating

the machine, Otherwise, your machine is not adapt- ed to the telephone network. If your country is not included in the list, you must select a different setting and use the correct telephone cable for the country. Consult your retailer.

1 Use y to select the country in which you are operat- ing the machine.

Afier chi input, the machine prints another help page and checks the telephone line.

Entering Your Number

Your name and number are added together with date, time and page number ar the top edge of each fax transmission header).

1 Enter your number. Using ® or ® you can enter a plus sign.

2 Confirm using OK. Entering Your Name

Enter your name. Letters are entered with the number buttons (see labels). Enter special characters with ©. Press che respective button repeatedly until the desired letter or special character appears on the display.

SH You can move the cursor with A/y. You can delete [Gs individual characters with €.

Afier the input, the machine prints an overview of the

Entering the Time and Date

1 Enter che time, for example O® OO for 2 o'clock pm.

2 Enter the date (wo digits for each field), for example

® ©® OO for June 8h, 2007. 3 Confirm with OK.

You can restart the initial installation process any time. Press [E] and ©.

Overview of the Menu Functions

The following functions are available on your device. There are two ways in which you can call functions Navigating in the menu: Press OK or one of the two arrow keys #/y to open the function menu. Page through A/y menu entries. Use OK to select a function. Press € 10 return to the previous menu level. Press STOP to close the menu and return to the starting mode.

Calling functions directly: You can call a menu func- tion directly using the function number. Press OK and en- ter the appropriate function number using the numeric keypad. Confirm using OK. You will find the function number in the following list.

Press [5] and ® to print a list of all functions and set- ings of your device.

®® Transmission with delay ®® Sending to multiple recipients

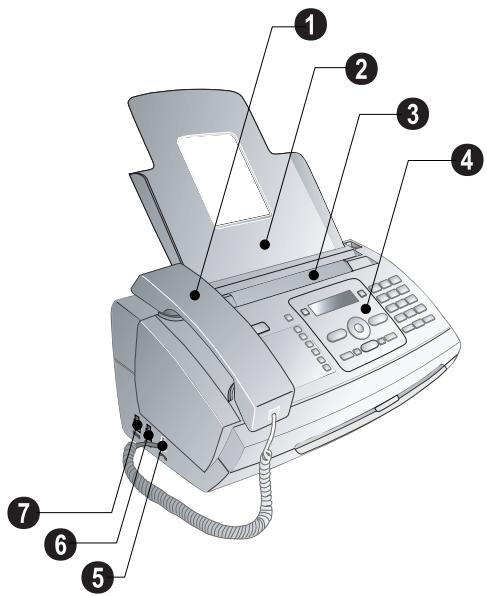

© Document feeder (printed part up) © Panel with display

© Telephone handser socket — connection socket for the telephone handset

© EXT-Socket — connection socket for additional devic- es

© LINE-Socket — connection socket for telephone cord

© Rollers of the automatic document feeder

© Resis of the intake rollers

© Document guide / scanner film

© Cover for scanner and automatic document feeder © Toothed wheel for tightening the ink film

@ Ink film roll in the rear ink film compartment

@ Ink film roll in che front ink film compartment © Slot for the Plug'n’Print card

© Locks for the cover of the scanner and automatic doc- ument feeder

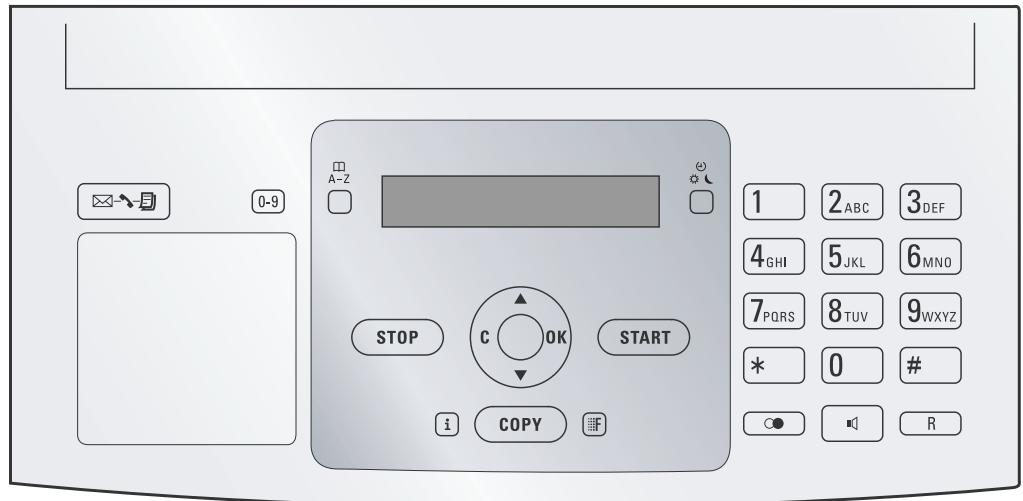

]—Lighes up, if new messages are received / list of the new messages with submenus / blinks in the case of de- error (for example no ink film)

(:3)—Press briefly: Recalling short dial numbers. Select- ing the entries with the 4/y or numeric keys / press and hold: Assigning short dial entry

ŒMAZ—Press briefly: Calling up the telephone book en- tries. Selecting the entries with the 4/7 / press and hold: saving new entries

OIREIC—Serring the timer and the fax reception modes ax switch). Modes set on the display # (day), € (nigho). Activated timer also with ®

STOP—Funcion abort / return to che output mode / documents eject

Œ—Press briefly: Printing help pages and secting lists / press and hold: Starting initial installation process

COPY— Press bricfly: creating a copy / press and hold: creating multiple copies

Œ—Seuing higher resolution for faxes and cop (RESOL. : STANDARD, RESOL. : FINE, RESÜL PHOTO)

Numeric keypad—Inputting digits, characters and special characters / press and hold: Recalling short dial numbers GB Press briefly: Lise of che last ten numbers dialled (=

redialling list) / press and hold: List of last ten callers (caler list)

#—Dialling with the handset replaced

R—Swirching berween calls (- call hold) / inserting ling pause / outside line access code

General Safety Infor- mation

Your machine has been tested in conformity with stand- ards EN 60950-1 and IEC 60950-1 and should only be operated with telephone nenworks and power systems meet these standards. The machine was built exclus for use in the indicated sales region.

Do not make any changes or settings that are not described in this user manual.

Setting Up the Machine

The machine should rest securely on a stabile, flat surface. Ifthe machine should fall, it can be damaged or cause in- jury to people, especially small children. The distance be- tween the machine and other devices or objects must be at least 15 centimetres; this also applies to the use of addition- al cordless telephones, Do not place the machine in the vi inity of radios or elevisions. Position all cables in such a way that no one will stumble on them, thus avoiding pos- sible injuries to persons or damage to the machine itself.

Lock the cover of the machine completely into place when opening the machine. You could be injured if the cover falls while you are working on the machine.

Protect the machine against direct sunlighe, heat, large temperature fluctuations and moisture, Do not place the machine in the vicinity of heaters or air conditioners. Ob- serve the information on temperature and humidity in the technical data.

The machine must have sufficient ventilation and may not be covered. Do not put your machine in closed cabinets or boxes. Do not place the machine on soft surfaces such as tablecloths or carpets and do not cover the ventilation slits. Otherwise, the machine can overheat and catch on fire.

In the event that the machine becomes 100 hot, or if you sce smoke coming from the device, you must immediately pull the power cable out of the power socket. Have your machine examined by trained professionals at a technical service location. To prevent the spread of fire, open flames should be kept away from the machine.

Do not plug in the machine in moist rooms. Never touch

the power plug, power connection or the telephone socket wich wer hands.

Do not allow liquids to enter into the machine. Discon- nect the machine from the power socket if liquids or for- <ign objects have entered the machine and have your ma- chine examined by trained professionals at a technical serv- ice location.

Do not allow children to handle the machine without su- pervision. The packing materials should be kept out of the hands of children.

Caution, metallic objects may be retained if placed near or on che handset receiver.

Check whether the power type of your machine (indicated on the type plate) matches the power type available at che setup location. Use only the power and telephones cables supplied.

Set up your machine so char the power socker is easily ac- cessible. The machine does not have an on/off button. In an emergency, disconnect your machine from the power supply by pulling the power plug,

Never touch the power or telephone cable if the insulation is damaged.

Disconnect your machine from the power and telephone nenvorks during an electrical storm. If his is not possible, do not use the machine during an electrical storm.

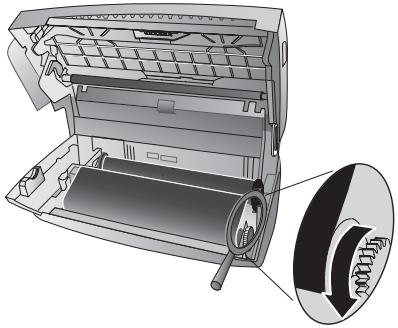

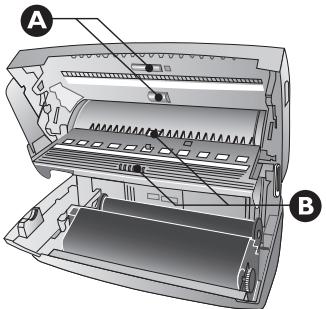

Before cleaning the surface of your machine, disconnect it from the power and telephone nenvorks. Never use liquid, gascous or easily flammable cleansers (sprays, abrasives, polishes, alcohol)

Only clean the display with a dry, soft cloth. IF the display breaks, a mildly corrosive liquid may escape. Avoid all con- tact with your skin and eyes

In che event ofa power failure, your machine will not func- tiony saved data is rerained.

Should disruptions oceur, follow the instructions on the splay and on the error report.

Do not make any repairs co the machine yourself Improp- er maintenance can resule in injuries or damage to the ma- chine. Only have your device repaired by an authorised service centre.

Do not remove the type plate from your machine; this would void the warranty.

Consumable Materials

Use only original consumable materials. These are availa- ble from a specialised retailer or through our order service. Other consumable materials could damage the machine or shorten its service life.

Dispose of old consumable materials according to the waste regulations of your country.

Dear Customer, About this User Manual

Installation Guide .

Package Contents Ateaching the Paper Tray Inserting Paper Connecting the Handser . Connecting the Telephone Cable Connecting the Power Cable Initial Installation …

Overview . Overview of the Menu Funcrions Machine Overview …

General Safety Information...

1 Telephone Functions Making Telephone Calls on the Machine Chain Dialling . Inserting a Dialling Pause - Telephone Book of the Machine GOUPS em.

Short Dial . Caller Line Identification Presentation (CLIP) Missed Calls

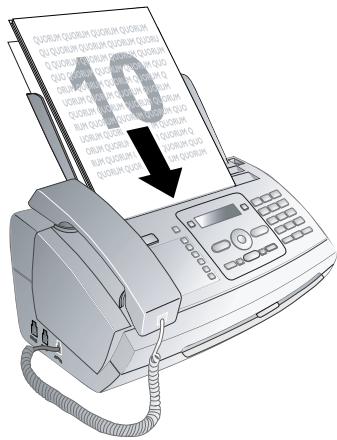

2 Fax. Sending à Fax

5 Settings Entering the Time and Date Selecting the Language …. Selecting the Country … Entering Your Number Entering Your Name Seuting the Contrast Lowering the Transmission Spec Switching Page Adjustment On and Of. Seuting Ring Tones … Configuring the Fax Switch | Printing Lists and Help Pages . Starting the Initial Installation Checking the Firmware Version

6 Telephone Lines and Add Devices …

Configuring Telephone Lines and Services Connecting Additional Devices . Using Additional Telephones (Easylink) .

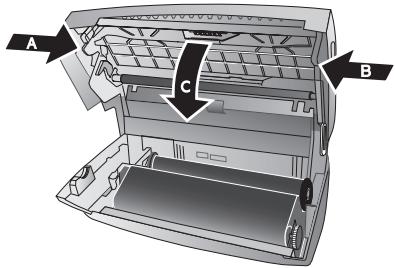

7 Service Changing the ink film . Checking the Ink Film Reserve Fixing a Paper Jam . Fixing a Document Jam Cleaning Using Service Codes - Power Cycling

8 Appendix Technical Data . Guarantee Declaration of Conformity (DoC) Customer Information

| Telephone Func- tions

Press [5] and © to print an overview of the tele-

C£ phone book functions.

How to connect additional telephones and what functions are available to you can be found in the section on tele- phone lines and additional devices, page 20.

Making Telephone Calls on the Machine

Dial the desired telephone number. There are multiple ways 10 do this. Then life up the handser.

ou can also life up the receiver fist, then dial à CE number, The dialling process starts immediately

Manual dialling: Dial the desired telephone number wich the number pad.

je You can also load telephone book enries by LE pressing OK, DD and OK

2 Use 4/y to select an entry. Enter the initial letters with the number butons to navigare more quickly in the vel- ephone book.

4. You can save an entry multiple times with the

me name but in a different category. In the tel- ephone book, the first letter of che category ap- pears afrer the entry.

Short dial: Press [0-9]. Select the desired entry with A/y

or the number button.

You can also load short dial entries by holding the re- spective number button pressed (for at least two sec- onds).

ist: Press QD. Use A/y 10 select an entry from the ialled numbers.

xt: You _can also load the redial list by pressing OK, [CG @O and OK.

Caller list: Hold @ pressed (for at least two seconds). Use the 4/y to select an entry from the list of callers.

«You can also load the caller list by pressing OK, ÿ ) KE @® and OK.

4 For this function to work, the caller line identifica-

CS tion (CLIP) must be activated for your telephone connection (country and network dependent). The number and name will not be shown if the caller sup- presses his number.

You can combine and edit manually entered digits and saved entries, before the dialling process starts. IF you have saved, for example, the telephone number prefix of an in- expensive telephone service provider (call-by-call) as a tel- ephone book entry, select this entry and manually enter the subsequent telephone number or select another saved enuy.

Inserting a Dialling Pause

It can be necessary 10 insert a dialling pause inco the rele- phone number, for instance for the outside line access code, for an extension or sub-address or in a long distance number. Press R. The second part of the number is only dialled once the connection with the main number has been established.

Telephone Book of the Machine

In the telephone book of your machine, you can save en- res with multiple numbers and collec multiple entries into groups. You can assign various ring tones to the en- tries. Observe the information in the technical data.

You can move che cursor using 4/y. Use € 10 delete individual digirs. Press STOP 10 close the menu and to return «0 the starting mode.

Saving Entries Press and hold [AZ (at least two seconds).

fe You can aho Load the function by pressing OK, CE DO and OK

2 Enter the name, You can enter characters using the nu- meric keys (see button labels) Press © to enter special characters. Press the respective key several times until the desired character or special character appears on the display.

8 You can assign a ring tone to the number. Using the numeric keys from oO 10 ®), select a ringer tone. Using A/y you can set the volume.

9 Confirm using OK. The entry is saved.

gan Entry 1 Press OK, D® and OK.

2 Using 4/y select the entry which you would like to edit. 3 Confirm using OK

6 Using 4/y select the number you would like to enter. 7 Confirm using OK

0 You can assign a ring tone to the number. Using the numeric keys © ro @ select a ring tone. Using 4/y, set the volume.

11 Confirm using OK Deleting an Entry 1 Press OK, D® and OK.

2 Use 4/y to select che entry you would like to delete. 3 Confirm with OK.

4 Confirm DELETE: YES with OK.

You can combine several telephone book entries into a group. À message is sent 10 all members of chis group in succession.

Adding Group Entries

Press OK, DO and OK.

2. Use 4/y to select che group you would like to create.

3 Confirm with OK. You can add entries 10 the group, display the members of the group, delete the group or send a fax to the group.

4 Use #/y to select ADD MEMBER?.

Use 4/7 10 select the entry you would like to add ro the

7 Repeat steps 4 10 6 to add additional entries to the group.

8 Press STOP 10 end the input.

CS Displaying Group Entries Press OK, DO and OK.

Use 4/y to select che group you would like to display Confirm with OK.

Use 4/y to select UTEU MEMBERS ?.

Page through the entries of the group with 4/4

Press STOP wwice to return to the starting mode.

Deleting Individual or All Group Entries

Deleting an Individual Entry 1 Press OK, D® and OK.

2 Using 4/y select the group from which you would like to delete entries.

Confirm with OK. Select using #/y DELETE MEMBER?. Confirm with OK.

Using A/y select the entry which you would like to de- lete.

7 Confirm with OK. 8 Select using 4/y DELETE: YES. 9 Confirm with OK. The entry is deleted.

1 Press OK, D® and OK.

2 Use /y co select the group you would like to delete.

4 Use 4/y to select DELETE MEMBER?.

5 Confirm twice with OK.

6 Use 4/y to select DELETE: ALL.

7° Confirm with OK. All entries in the group are deleted.

You can assign short dial numbers to frequently dialled cel- ephone numbers. You can load these numbers quickly wih the short dial button and the number buttons.

Assigning or Changing a Short Dial Entry 1 Hold (0:3] pressed (for at least wo seconds). <14 You can also load the function by pressing OK, [CR @© and OK. 2 Use 4/y or the respective number button to select the short dial number you would like to assign or change. jf ou elec a short dial number chats already as- CL signed, the entry is overwriten 3 Confirm with OK. 4° Use #/y 10 select the telephone book enury you would like 10 assign as a short dial encry 5 Confirm with OK.

Deleting a Short Dial Entry

This function not only deletes the short dial entry, it À ao dec the entire enuy from the telephone book. Overwrite the short dial entry if you would like to change the assignment 1 Press <4 You can also load the function by pressing OK, [Us @© and OK. 2 Use 4/y or the respective number button to select the enuy you would like vo delete. 3 Press C

4 Confirm the deletion with OK.

Caller Line Identification Presen- tation (CLIP)

(country and network dependent) The number of an incoming call appears on the display. For «his function to work, the caller line identification (CLIP — Caller Line Identification Presentation) must be activated for your telephone connection. Enquire with your telephone company. Caller identification may be as- sociated with a fee.

94. If the caller line identification does not work even though the function is activated for your telephone connection, check if you have set the correct country {also see Chapter "Settings", Page 17)

If you received a call while away, the flashes.

1 Press 2 Using4, If you have received additional messages, first se-

lect the missed calls using 4/y and confirm with Ok.

3. To call back, pick up the handset <é Your machine displays the name with which you 87 have saved che number in the telephone book. The number and name will not be shown if the caller sup- presses his number.

; you can page through che list of missed calls.

Ve Press [5] and © to print che instructions for sending CE faxes and for Fax switch settings.

À Do not insert any documents into the machine that

… are wet, have been edited with correction fluid, are soiled or have a coated surface.

-. are written on with a soft pencil, with paint, chalk or charcoal.

… originate from newspapers or magazines (printing in.

are held together with office or notebook staples or with tape or glue.

2 are pasted with note papers.

Lu are creased, crumpled or ton.

Use documents with sizes AS or A4 with 60 to 100 g/m? weight. You can insert up to 10 documents at à time

Press STOP 10 eject the documents without sending them.

1 Insert the documents face up into the document feeder. The cop most document will be Fed in first.

‘Then configure che desired resolution. You can choose between RESOL.: STANDARD (for documents without special features), RESOL. 3 FINE (for texts with small print or drawings) and RESOL. : PHOTO for photos). Press []. The configured resolution ap- on the display. Press [F again to change the reso-

42 You can adjust the default contrast (see also sec- ion Settings, page 17).

Dial che desired telephone number. There are multiple ways «0 do this.

If che subscriber is busy, the device dials the number again after some time. Press STOP, in order to can- cel the transmission process. Afrer the transmission, the machine prints out a transmission report depend- ing on che settings.

Manual dialling: Dial che desired telephone number with the number pad.

1 Press (AZ You can also load telephone book entries by. pressing OK, DO and OK.

2 Use A/y to select an entry. Enter the initial letters with the number buttons to navigare more quickly in the vel- ephone book.

Se You can save an entry multiple times with the same name bu in a different category. In the tel- ephone book, the first letter of the category ap- pears afier the entry.

Short dial: Press Select the desired encry with 4/y or the number button.

You can also load short dial entries by holding the re-

spective number button pressed (for at least nwvo sec- onds).

Redial list: Press OB. Use /y to select an entry from the

list of dialled numbers.

fe You can also load che redial lis by pressing OK, @® and Ok.

Caller list: Hold GB pressed (for at least nwo seconds). Use the 4/y ro select an entry from the list of callers.

Sie You_can also load the caller list by pressing OK, [Ga @ and OK.

&: For chis function to work, the caller line identifica- LE tion (CLIP) must be activated for your telephone connection (country and nenwork dependent). The number and name will not be shown if the caller sup- presses his number

Manually Sending a Fax

Enter the desired telephone number with the number pad or select a saved entry.

You can send one fax to multiple recipients in succession.

Entering Recipients Individually

Insert the document. 2 Press OK, ®® and OK. The document is scanned.

3 Enter che desired telephone number with the number pad or select a saved entry.

Enter the additional telephone numbers.

CS Confirm with OK. You can enter up to 25 recipients.

Press START. The machine sends the fax message 10 all récipients in succession.

Sending a Fax to a Group

2 Press OK, D® and OK.

3 Use 4/y to select che group to which you would like to send a fax.

4 Confirm with OK. 5 Use 4/y to select SEND FAX?. 6 Confirm with OK.

Se IF your machine cannot reach a recipient, the fax

LE message is sent to the other recipients. After the ma- chine has called all recipients, it once again dials the numbers that previously could not be reached

Delayed Fax Transmission

If you would like to make use of the lower telephone tariffs or if the récipient can be reached at some specific time on- 1y, you can send the fax at a later time — within 24 hours.

2 Press OK, O® and OK.

3 Enter the time, at which the document should be trans- mitted, e.g. D® ©O for 2 pm.

4° Confirm using OK.

Enter the desired telephone number with the number pad or select a saved entry.

Selecting a saved entry: Confirm the selected en- uy using OK.

Press START. The device goes into standby mode and transmits che fax at the entered time. You can continue 1 place calls and receive faxes.

If you have not changed the factory settings, received faxes will be printed out immediately. If no paper or no ink film

inserted, the machine saves the incoming faxes. The button blinks. Once paper or a new ink film is in- serted, the saved faxes are printed out.

fe Check whether you have inseted and clamped in he LE paper correctly, The lever on the right next 10 che pa- per feed mechanism must be pushed back.

IFthe message memory is full, no additional messages can be received. À warning appears on the display. Observe the information in the technical data.

Se IF there are problems with printing out saved fax messages, a service code is available (see also section

With the fax polling function, you can retrieve faxes chat lie ready in the dialled fax machine. You can also provide documents on your machine to be polled by others.

Polling Faxes Directly

1 Enter the desired telephone number with the number pad or select a saved entry.

4 1 you would like to poll fax messages from an ex- tension number or a sub-address, add this after the telephone number. After entry, press the number R then enter the extension number or sub-address. The second part of the number is only dialled once the connection with the main number has been established.

2 Hold START pressed (for at least no seconds).

Polling Secure Faxes

Wich chis function, you can poll faxes that are protected with a code.

Enter the desired telephone number with the number pad or select a saved entry.

Sending Faxes via Polling

Protect your document against unauthorised access À via de

À caller who knows the code can poll the fax from your machine. You can continue to make telephone calls and re- ceive faxes.

1 Insert the document

2 Press OK, DO and OK.

3° Enter a code (max. 20 characters) 4 Confirm with OK.

Press STOP 10 eject the document. This interrupts che standby mode.

Five fax templates, which you can use, are stored in your device. With these templates you can quickly create, for ex- ample, a short fax note or an invitation.

Press OK, D® and OK.

2 Using #/y select che template you would like to princ. 3 Confirm using OK. The device prints the template. 4

Fill the remplace and send it ro the desired recipient per fax

ie. Press (E] and ® to print help for copying.

Use documents with sizes A5 or A4 with 60 to 100 g/m? weight. You can insert up to 10 documents at a time. Inserting Documents

1 Insert the documents face up into che document feeder. “The top most document will be fed in first.

2. Then configure the desired resolution. You can choose between RESOL.: STANDARD (for documents without special features), RESOL. : FINE (for texts with small print or drawings) and RESOL. : PHOTO (or photos). Press (M. The configured resolution ap- pears on the display. Press (] again ro change the reso- lution.

You can adjust the default contrast (see also sec- ion Settings, page 17).

Creating a Copy Press COPY bricfly. The copy is created.

Creating Multiple Copies

Hold COPY pressed (for ac least wo seconds).

Enter che number of times you would like to copy the

document (maximum of 15 copies).

4° Use 4/y 10 select whether the document should be mag- nified or reduced in size when copied. You can magnify

up to 200 percent or reduce to as small as 50 percent of the original size.

5 Confirm with OK. The copy is created.

Press STOP 10 eject the documents without copying them.

sie Press Æ] and © to print the instructions for the LE Games and Fun funcrions of your device

Sudoku is a Japanese number puzzle. The game has 3 x 3 squares divided into 3 x 3 fields. Depending on the diffi- culty level, lesser or more digits are already given at the be- ginning of the game. The aim of the game is to fill digits from 1 10 9 in the game field is such a way chat each digit appears only once in a row, a column and each of the nine blocks. There is only one solution

ge The solution of the as printed game is saved. The C£ ‘solutions of earler games are no longer available

inting a Game 1 Press OK, ® and OK.

2 Dial using /y SUDOKU: NEU.

Enter, how many copies of the Sudoku you would like to print (maximum 9 copies).

7 Confirm using OK. 8 Using 4/y select if you would like to print the solution. 9 Confirm using OK.

Printing the Last Game Again Press OK, D® and OK.

Dial using 4/y SUDOKU: LAST. Confirm using OK.

Enter, how many copies of the Sudoku you would like to print (maximum 9 copies).

5 Confirm using OK. 6 Using #/y select if you would like to print the solution. 7 Confirm using OK.

Printing the Solution

1 Press OK, ® and OK.

2 Dial using 4/y SUDOKU: SOLUTION.

3 Confirm using OK Sudoku for Every Day You can have a new Sudoku automatically printed each day.

Press OK, D® and OK.

Dial using 4/ SUDOKU: AUTO.

Enter the time, eg. D® OO for 2 pm.

Using #/y select the difficuley level.

8 Enter, how many copies of the Sudoku you would like 10 print (maximum 9 copies).

9 Confirm using OK. 10 Using A/y select if you would like to print the solution. 11 Confirm using OK.

12 Using #4 indicate whether you would like to turn printing on or off.

13 Confirm using OK.

Se You can move the cursor using /y. Use € to delete CZ individual digts. Press STOP to close the menu and to return to the starting mode.

Entering the Time and Date

Press OK, © D and OK.

2 Enter the time, for example D® OO for 2 o‘clock p.m.

Enter the date (ewo digits for each field), for example ©® ©® OO for June 8th, 2007. 4 Confirm with OK.

You must check the time and date afier a short power CZ failure. Confirm using OK.

Selecting the Language

1 Press OK, OO and OK. 2 Use 4/y to select che desired display language 3 Confirm with OK.

Selecting the Country

AA rss 6 counuy in which you ace opening

the machine, Otherwise, your machine is not adapt- ed to the telephone network. If your country is not included in the list, you must selecr a different setting and use the correct telephone cable for the country. Consult your retailer.

When you select a new country, all settings are reset À & the factory defaults for chat country. Saved data is retained. Check the number entered for the header.

Press OK, ®® and OK.

Use A/y ro select the country in which you are operat- ing the machine

Confirm with OK. Use 4/y to select SURE* YES. Confirm with OK.

Entering Your Number

Your number and name are printed in the top margin of every page (= header) together with the date, time and page number.

1 Press OK, O® and OK.

2. Enter your telephone number. You can enter a plus sign with ® or

Entering Your Name Press OK, O® and OK.

Enter your name. You can enter characters using che numeric keys (see burton labels) Enter special charac- ters using À. Press the respective key several times un- til the desired character or special character appears on the display.

Setting the Contrast

For copying and printing of fax messages, you can select different contrast levels.

1 Press OK, @® and OK.

2 Using #/y, select the desired contrast.

CONTR. : LIGHT — For brighrer copies and fax transmis-

CONTR. : NEUTRAL — For all cypes of originals (for ex-

ample white text on black background or documents with

coloured background)

CONTR. : OPTIMISED (Factory settings) — Optimized

adaptation for text and photo printing

CONTR. : DARK For darker copies and fax transmission

for example documents with faint printing)

Site The changed settings are stored as new default set-

CE tings. IF you selecr à special function for a one-time process, take care to restore the default settings or factory settings after that.

Lowering the Transmission Speed

The machine adapts the transmission speed co the line quality. This may take some time, especially for overseas connections. Set a lower transmission speed if you are sending faxes into nerworks with poor line quality.

1 Press OK, ®® and OK.

2 Use 4/y to set whether you would like to use a lower transmission speed.

Switching Page Adjustment On and Off

In order that no information is lost, received faxes are re- duced in size when printed.

1 Press OK, OO and OK.

2. Use /y vo select whether you would like to switch size reduction on or off.

Selecting the Ring Tone You can select from among ten different ring tones. 1 Press OK, ®® and OK.

You can adjust the volume of the ring tone when the device is ringing or when you set the ring tone. You can save dif ferent volumes for the # (day) and € (night) modes, (also see Chapter Fax Switch).

Using 4/4 you can set adjust the volume when the device is ringing,

Configuring the Fax Switch

The built-in fax switch of your machine distinguishes be- rween fax messages and telephone calls. Faxes are automat- ically received, telephone calls can be received—even on additionally connected devices. While che machine is checking the call, it continues to ring.

You can ser how ofien the machine should ring, before picking up separately for the modes # (day) and € (night). This makes it possible ro receive faxes silencly at night, so as not «0 disturb you.

Press G#1C to switch benveen day and night mode. Wih che activated timer 8, he machine switches berween the modes # (day) and € (night) at the configured times

Configuring Day Mode Press OK, © D and OK.

2 Use 4/y to select the total number of rings. Afier this number of rings, the machine stops playing rings and picks up a call or a silent fax transmission.

Using 4/y select the number of rings for the fax switch. After these many rings, the fax switch switches on and distinguishes between fax transmissions and telephone calls. While the device is checking the call, it continues to ring.

Configuring Night Mode 1 Press OK, OO and OK.

2 Configure the same settings as for the day mode (sce steps 2 to 7).

The timer switches berween the modes # (day) and €

nigho) ac the configured times.

Press OK, ®® and OK.

2 Enter the time at which the machine should switch to # (day) mode, for example O® OO for 6 o'clock

4 Enter the time at which the machine should switch to C{nigho) mode, for example DD DO for 10 o'clock pan.

5 Confirm with OK. Special Settings

Silent Fax Reception

If you would like t0 accept a fax without preceding rings, set the number of rings of the fax switch to 8

Switching Off AI If you don't want to be disturbed, e.g, in the night, by any incoming call, you can set the number of rings to @. The device switches immediately vo silent fax reception.

Manually Receiving Faxes

Select manual reception under number of rings of the fax switch. The device will not receive faxes on its own. You can start fax reception manually, by pressing START. This setting is useful, when you want co receive faxes via à modem connected 10 a computer.

Printing Lists and Help Pages

Printing Numbers and Entries

The list of numbers and entries contains the last ten calls reccived and numbers dialled as well as the saved entries and groups.

Press OK, D® and OK. The list is printed. Printing the Call List

The call list contains che last 50 numbers dialled.

1 Press OK, @O and OK.

2 Use 4/y to select whether you would like ro switch the printing on or off.

4 Switch on printing: Use 4/y 10 select whether che

call list should be printed immediately or afier every 50 calls

Printing the Telephone Book

Press OK, DO and OK. The machine prints a list with the telephone book entries and saved assignments.

Printing the Fax Journal

The fax journal is à list of the last ven faxes sent and re-

1 Press OK, ®® and OK.

2 Use 4/y to select whether you would like to switch the printing on or of.

4 Switch on printing: Use 4/y to select whether the

fax journal should be printed immediately or after every ten transmissions

inting a Transmission Report

Afier every transmission, the machine prints out a trans- mission report. If a transmission error occurs, an error re- port is printed out. You can switch off printing of the transmission report

1 Press OK, O® and OK.

2 Use 4/y to select whether you would like to switch the printing on or off.

Press [5] and © to print an overview of the help pages. Help 3 : Telephone Book

Press [5] and © to print an overview of the telephone book.

Help 4 : Fax Transmission

Press [4] and © to print instructions for sending fax mes- sages and for configuring the fax switch.

Press [5] and ® to print the help for copying.

Help 6 : Function List

Press (] and © to print a list of all functions and settings of your machine

Help 7 : Games and Fun

Press (5] and © to print the instructions for the Games and Fun functions of your device.

Starting the Initial Installation 1 Press (1 and ©.

2. The machine prints out a help page and start the initial installation process.

Checking the Firmware Version 1 Press OK, OO and OK.

2. The model designation and che configured country ap- pear on the display.

4° The information on the firmware version of the ma- chine is displayed.

6 Telephone Lines and Additional Devices

Configuring Telephone Lines and Services

Private Branch Exchanges

Private branch exchanges (PABX) are typical in many of- fices and private households. You must dial an outside line access code in order 10 establish a connection wich the pub- lic telephone nerwork (PSTN) from an extension.

jf An additional telephone connected 10 the machine CE on a telephone socket is not considered an extension. Press OK, © ® and OK.

2. In many countries, you can set either pulse dialling or tone dialling (DTMF tones). Use 4/y to select the de- sired dialling method.

A: Only use pulse dialing if tone dialling is not yet LE activated for your telephone line.

4° Use 4/y to set whether you operate your machine on an extension.

6 Configuring an extension: Enter the outside line access code with which you reach the public telephone network. This is usually ©.

7 When finished, the machine tests the telephone line. Confirm with OK.

8 Your machine checks whether it can establish a connec-

tion with the public telephone network. [it cannot es- tablish the connection, you are once again asked for in- put.

Se In rare cases, the outside line access code may be à

CE ‘äiferent number or a rwo-digit number. For older telephone systems, the outside line access code can be R (= Flash). Press R to enter this outside line access code. Should a connection to the public telephone nerwork not be possible, contact che provider of your telephone system.

In the event that you use a DSL modem: Connect the ma- chine after the modem. For additional information, please consult the operating manual of your DSL system.

Details for ISDN connections can be found in the instruc- tions provided with che terminal adapter or the dial-up router.

V You cannot simultancously use the answering machine fa- cility of your telephone service provider (= voice-mail box) and receive faxes on your devices. Get the mail-box func- tion for your telephone connection deactivated or set the number of rings for the fax switch to lower than 5 on your device (also see Chapter Setting the Fax Switch, Page 18) When the fax switch accepts the call, he mail-box of che service provider does not step in. Enquire with your tele- phone company.

Connecting Additional Devices

You can operate additional devices on a telephone line, such as cordless telephones, answering machines, modems or charge counters.

Connection to the Machine

You can connect additional devices directly to your ma- chine. Plug the telephone cable of the additional device into the EXT socket (RJ-11 connection) of your machine.

We recommend direct connection to the machine LE because this allows che fax switch 10 function opti- mally and to control the additional devices.

Connection to the Telephone Line

In order for the fax switch to function, the machine must Be first in the series if multiple devices are connected vo the same telephone socket. Follow the correct order.

2 If you have multiple telephone sockets for the same telephone line, the machine must be connected 10 che first telephone socket.

Using Additional Telephones (Ea- sylink)

With che Easylink function, you can control your machine with additional telephones. To use this function, addition- al telephones must be ser to tone dialling (DTME tones); see here the user manual of your additional elephone.

Starting Fax Reception

If you pick up on an additional device and hear that you are receiving a fax message (whistle or silence), you can start the fax reception by pressing ® © on the additional telephone or the START button on the machine.

Taking Over the Line

If you pick up on an additional telephone and the machine continues to ring or attempts to receive a fax, you can dis- connect the machine from the line. Press @@ on the ad- ditional telephone.

fA Ori change the codes Fi je absoluely necessary. The codes must begin with ® or ® and must be different.

1 Press OK, ®® and OK. 2 Enter the new code for starting fax reception. 3 Confirm with OK. 4

Enter the new code for taking over the line on an addi- tional device.

Using an External Answering Machine

For the best operation, the answering machine must be connected to the EXT socket of the device. The numbers of rings set for the external answering machine should be Less than the one set under FAX RINGS by at least rwvo.

Example of the setting:

Number of rings of the external answ FAX RINGS . en TOTAL RINGS _ anne (also see Chapter Setting the Fax Switch, Page 18)

The outgoing message should be shorter chan ten seconds. Avoid music in the outgoing message.

If the external answering machine has a “conserving func- tion” (Le. a function chat changes the number of rings as soon as new messages have been recorded), switch it off. If the external answering machine records fax signals, but your device cannot receive faxes, inspect the connection of the external answering machine

ge Should disruptions oceur, Follow the instructions on CS the display and on the error report.

Changing the ink film

A Lo oriral consumable mater, The are

available from a specialised retailer or through our order service, Other consumable materials can cause damage to the machine.

Ag Follow the instructions on the packaging of die con- CE sumable materials.

For receiving or copying documents, an ink film must be

inserted in your device. Your device is delivered with an al-

ready inserted free ink film for a few test pages. For this

film, you do not require any Plug'n'Print card (= chip card

with information regarding ink film capacity). For every

next film that you insert, you must load the capacity mem-

ory with the included Plug n’Print card.

1 Remove the paper from the paper feeder and take che paper tray out of the device.

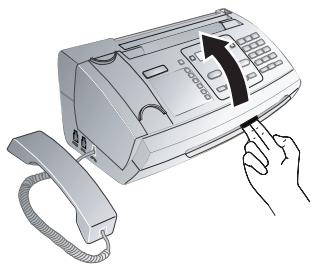

2 Open the device by lifting the panel using grip in the centre and folding it down.

Lock the cover of the machine completely into place when opening the machine. You could be injured iFche cover Halls while you are working on the machine.

3° Grip the rear ink film roll at both the sides and place it next to the front ink film roll.

4 Remove both the rolls from the device. The used ink film cannot be reused.

À The messages and copies you have printed out

can be read from used ink films. Consider data protection issues when disposing of used ink films.

5 Pull the used Plug'n/Print card out of the plug socket on che left hand side next to the ink film tray. The Plug'n Print card cannot be reused.

6 Carefully remove the rubber bands from the new ink film. Make sure that the film is not damaged!

7. Place the larger roll wich the ink film in the rear ink film ray. The blue gear wheel must be on the right hand side.

Place che smaller roll without film in che frontuay. The Fixing a Paper Jam

blue gear wheel must be on the right hand side and the

pin must be inserted in che depression on the left hand 1 Remove the paper from the paper feeder and take the

side. paper tray out of the device.

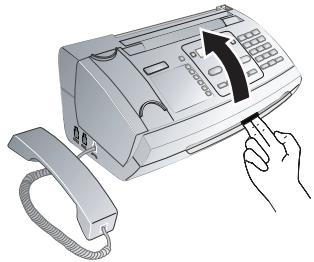

2 Open the device by lfiing the panel using grip in che centre and folding it down.

9 Break the chip card from the Plug'n/Print card. Insert the chip card in the plug socket on the left hand side next to the ink film tray. Lock the cover of the machine completely into

place when opening the machine. You could be

injured if the cover Falls while you are working on the machine.

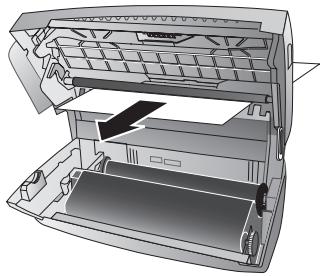

3° Carefully pull che paper out.

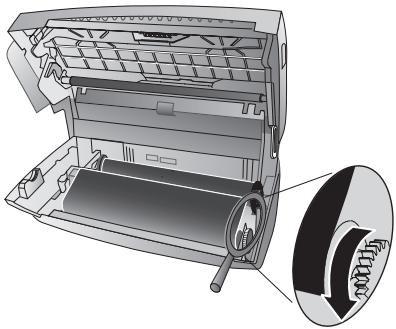

10 Turn the blue gear wheel forward to tension the ink Güme The in Blm must not have any rcases

4 Turn the blue gear wheel forward to tension the ink film. The ink film must not have any creases.

11 Close the device. Insert the paper tray in the opening provided for it behind the paper fecder. Insert paper

Checking the Ink Film Reserve 5 Close the device. Insert the paper tray in the opening 1° Press OK, @® and OK. provided for it behind the paper feeder. Inserc paper 2. The number of pages that can still be printed with che again. ink film is shown on the display.

3 Press STOP 10 return to the starting mode.

IF che ink film used up or if here is no ink film in the ma- chine, a message appears on the display.

Fixing a Document Jam 6 Turn the blue gear wheel forward to tension the ink film. The ink film must not have any creases. 1° Remove the paper from the paper feeder and take che paper tray out of the device.

Open the device by lifting the panel using grip in the centre and folding it down.

7 Close the device. Insert the paper tray in che opening provided for it behind the paper fecder. Insert paper AA LEE de cover of ie machine complet into again. place when opening the machine. You could be injured iFche cover Halls while you are working on the machine.

3 Open the scanner cover and the cover of the automatic Unplug che machine from the power socket before document cover by Arc puching che support (A) and ZA cleaning ir. Use à so, lint-free cloth. Never use lig- then che support (B) inside. The cover (C) folds below. uid or easily flammable cleansers (sprays, abrasives,

polishes, alcohol, etc.). Do notallow any moisture to

reach che interior of the machine.

4e Special fax cleaning sheets are available as accessories

D from our cal centre. Inserr a sheet into the document

fecder, Press STOP: the page is ejected. Repeat this

process at à few times.

1 Remove the paper from the paper feeder and take the paper tray our of he device.

2. Open the device by lifing the panel using grip in the centre and folding it down.

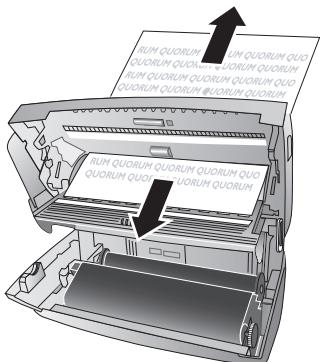

4 Carefully pull the document to the front or to the back our of the device.

Lock the cover of the machine completely into place when opening the machine. You could be injured if the cover falls while you are working on the machine.

5. Close the scanner cover and the cover of the automatic document fceder. Both the supports must securely snap into place.

3° Open the scanner cover and the cover of the automatic document cover by first pushing che support (A) and then che support (B) inside. The cover (C) folds below.

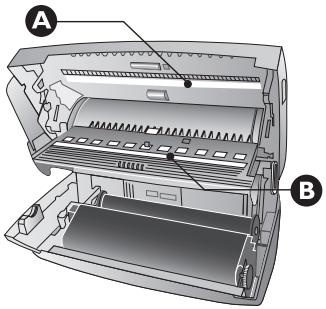

4° Lighdy wipe the upper side of the scanner glass (A) and the lower side of the document feeder/scanner film (= white plastic plate) (B) with a cloth.

5 Clean the feed roller (A) and the underside of the sup- port pad of the feeder roller (B) with a soft, lint-free cloth moistened with cleaning alcohol (96 percent). Rotate the feed roller; You must clean the entire roller.

6 Close the scanner cover and the cover of the automatic document fceder. Both the supports must securely snap into place.

7 Turn the blue gear wheel forward to tension the ink film. The ink film must not have any creases.

8 Close the device. Insert the paper tray in the opening d for it behind the paper fecder. Insert paper

The service codes delete all the changed settings and your

device is reset 10 factory settings. It may be possible that the

device with the changed settings reacts differently than ex-

AA On see senvice code his absolute noces sary. Many service codes also delete saved messages

and telephone book entries.

1 Press OK, @® and OK.

2 Enter a service code:

DODD—Deleres all changed settings and saved data. The device is reset to factory settings and the initial instal- lation process is started.

DO®D—Deleres all changed settings. Saved data and telephone book entries remain intact.

@O@®@D— Deleres saved faxes, when there are prob- lems with printing.

4 Dial using 4 SURE: YES.

AA rot are encre ie incoret code, you an cancel the entry with SURE: HO.

If a problem occurs that cannot be corrected with the in- structions in this user manual (see also the help below), fol- low the steps given here.

Pull out the power plug,

2 Wait at least ten seconds, chen plug the power plug back into the socket.

3 IF the error occurs again, please contact our technical customer service or your retailer. Follow the instruc- tions on the display and on the error report.

The time and date flash on the display.

You must check the rime and date afier a short power fail- ure, Confirm using OK.

Problems when faxing or printing

Faxes sent are of poor quality.

Change the resolution from RESOL. : STANDARD to

RESOL. : FINE or RESOL. : PHOTO. Change the contrast. Clean the scanner and the document feed slot.

Test the device by making a copy of the document. IF the device is in order, the fax machine of the recipient is defec- tive.

The device produces black lines when sending or printing.

Clean the scanner and the document feed slor.

Insert the documents face up into the document feeder.

Printing is interrupred.

Paper or document jam, no paper or ink film. Follow the instructions on the display and in the error report.

There could be a small pause after printing several pages. The device continues printing automatically.

Check if you have inserted clamped paper correctly. The lever on the right hand side next to the paper feeder must be folded backwards.

Documents are not properly Fed.

Clean the scanner and the document feed slor.

Problems with the connection

The device rings once, remains silent for a short while and Starts ringing again.

This is absolutely normal. The fax switch checks the call af ter che first ring, If is a voice call, the device continues to ring.

Check the installation of the device. Connect the telephone cable vo the socket marked LINE. Insert the telephone plug into your telephone connection socket.

Fax transmissions are constantly interrupred.

Ty 10 send the fax manually: Press 1 and dial the number. If che recipienc is using an answering machine, wait until you hear a whistling tone. Press START.

Icis possible thac the recipient's machine is not ready to re- ceive.

You hear a whistling tone or silence in the handser.

The call is a fax: Press START on the device In addition, press @® on the telephone. Hang up.

No fax reception or a short fax audio signal as message on the answering machine

Using funcrion 51, set the number of rings for the fax switch to 4 and the roral number or the number of rings for the answering machine (model dependent) to 5 (see Page 18).

You cannot simultaneously use the answering machine fa- cility of your telephone service provider (= voice-mail box) and receive faxes on your devices(see page 20).

Power Consumption Stand-by mode Transmission

Recommended Ambient Temperature.

Relative humidit 20-80 % (non-condensing)

Horizontal resolution. Vertical resolution

Memory Telephone book. Fax messages

Telephone Type of connection:

. PSTN : PABX Dialling mode. Tone / pulse dial

ng (country dependent)

Technical specifications subject to change with- out notice.

(UK Terms and Conditions)

Ac the beginning of April 2002, SAGEM SA boughe che PHILIPS fax business unit. SAGEM SA is now the Euro- pean Number L in fax and offers a complete range of fax terminals with Internet access and SMS function, multi- functional terminals and servers covering the needs of all its customers—from home-users to multinational organi- sations.

In order to apply the guarantee, you should contact your dealer. Proof of purchase will be required. Should mal- funcrioning arise, the dealer will advise you what to do.

If you bought your equipment from SAGEM directly, the following shall apply:

A SAGEM undertakes 10 remedy by repair, free of charge for labour and replacement parts, any defects in the equip- ment during a period of rwelve (12) months from the date of original delivery of the Equipment, where those defects are a result of faulty workmanship. During this nwelve month guarantee period, the defective equipment will be repaired free of charges the customer must however first contact the SAGEM Afer Sales Department, the phone number of which can be found on the delivery slip or in the user manual. Unless the customer has concluded with SAGEM a maintenance contract in respect of the equip- ment which specifically provides for repairs to be carried ut at the customers premises, the repairs will not be car- ried out on the equipment at the customer s premises. The following sentence applies to purchases of equipment for the customer s trade, business or profession, Except as oth- enwise expressly provided in this Document and to the ex- tent permitted by law, SAGEM makes no representations or warranties, express or implied, statutory or otherwise, and to such extent, all rerms and conditions implied by law are hercby excluded. This guarantee does not affect the Customer s statutory rights.

B Exclusions From Guarantee

SAGEM shall have no ability under che guarantee in re- spect of

+ damage, defects breakdown or malfuncrion due to:

- failure co properly follow the installation process and in- structions for use; or

- an external cause to the equipment (including but not limited 10, lighrening, fire, shock or water damage of any nature); or

- modifications made without the written approval of SAGEM SA or

- a failure or neglect to maintain the equipment or inap- propriate maintenance; or

- unsuitable operating conditions, particularly of tempera- ture and humiditys or

- repair or maintenance of the equipment by persons not aurhorised by SAGEM: or

+ wear and tear from normal daily use of the equipment and

+ damage due to insufficient or bad packaging of equip- ment when returned to SAGEM

+ supply of new versions of sofiwvare

+ work on any equipment or sofiware modified or added without the prior written consent of SAGEM

+ malfunctions not resulting from the Equipment or from software installed in user workstations for the purpose of use of the equipment

+ communication problems related to an unsuitable envi- ronment, including:

- problems related to access and/or connection to the In- rernet such as interruptions by access nenworks or malfunc- tion of che line used by the subscriber or his correspondent - transmission faults (for example poor geographical cover- age by radio transmitters, interference or poor line quality)

che local network fault (wiring, servers, workstations) or the failure of the transmission network

+ the normal servicing (as defined in che user guide sup- plicd with the equipment) as well as malfunctioning due to servicing not being carried out, servicing costs are in any event always borne by the customer.

€ In the cases set forth in $ B as well as afier expiry of the twelve month guarantee period, the customer must ask SAGEM for an estimate, and he/she must accept the esti mate and agree to pay the charges mentioned in it before returning the equipment 10 SAGEM. The repair and de- livery costs will be invoiced to the customer.

The foregoing shall apply unless otherwise agrecd in writ- ing with the customer and only for the UK. If any provi- sion of this guarantee shall be held to be in whole or in part invalid or illegal due to an obligatory rule applicable to consumers pursuant to their national legislation, such in- validity or illegality shall not impair or affect the remaining provisions or parts of this guarantee.

The CE symbol confirms conformity with the EU direc- tives that apply to the device.

Declaration of Conformity (DoC)

Hereby, Sagem Communication Austria GmbH declares that this PPF631, PPF632 is in compliance with the essential requirements and other relevant provi- sions of Directive 1999/5/EC. You can find the complete Declaration of Conformiry on our website www.sagem.com

As an Energy Star Program Participant, Sagem Communi- cation Austria GmbH has determined that chis product meets the Energy Star guidelines for energy efficiency.

Environment: Respect of environment is a key objective of Sagem, Sagem uses environmentally friendly processes to run its operations and has chosen to integrate strong en- vironmental constraints in the full lfecycle of its products including manufacturing, product use and end of life

Packaging: To facilirate packaging recycling, please con- form to your local selective recycling rules.

Batteries: Old batteries have to be deposited in designat- ed collection areas.

Product: The crossed out dustbin logo on your product signifie ir is classified as Electrical and Electronic Equip- ment covered by special disposal regulations.

To enforce recycling, recovery of The Waste Electrical and Electronic Equipment (WEËE) and to protect the envi- ronment and human health, European regulations requires chat you selectively collect waste equipment using one of. the following options:

+ Your retailer will take your equipment back if you are buying a replacement product.

+ Waste equipment can also be deposited in designated col- lection areas.

This user manual was printed on recycled paper bleached without chlorine, This satisfies the highest standards for low environmental impact, The cardboard packaging used and the packaging inserts of paper and cardboard can be disposed ofas waste paper. The plastic foil may be submit- ted for recycling or disposed of with waste not intended for recycling, depending on the requirements in your country.

Trademarks: The references mentioned in this manual are trademarks of the respective companies. The lack of the symbols * and ” does not justifÿ the assumption chat these dedicated terms are free trademarks. Other product names used hercin are for identification purposes only and may be trademarks of their respective owners. Sagem disclaims any and all rights in those marks.

The reproduction of certain documents (e.g, by scanning, printing, copying) is prohibited in many countries. The list of such documents below is not intended to be com- plete, it only offers a general overview. In case of doubt, consult your legal advisor.

- Passports (personal identification)

+ Entrance and exit visa papers (immigration papers)

+ Military service documents

- Bank notes, travel checks, payment orders

- Postage stamps, tax stamps (stamped or unstamped)

- Loan papers, certificats of deposit, bonds

+ Documents protected by copyright

Follow the statutory regulations of your country with re- gard to che legal validity of fax transmissions — particularly in connection with the validity of signatures, mecting de- ivery deadlines or disadvantages resulting from che loss of quality in the transmission, etc.

Take care to maintain the statutory regulations of your country regarding telecommunications secrecy and dara privacy.

This product is intended for use on an analogue public tel- communications network (PSTN) and in the country specified on the packaging, Use in other countries can re- sul in faulty functioning,

For more information, please contact the technical service centre for your country. Should problems arise during use of your machine, please contact your retailer first

Neither Sagem nor its affiliates shall be liable to che pur- chaser of chis product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or failure to strictly comply with Sagem operating and maintenance instructions.

Sagem shall not be liable for any damages or problems aris- ng from the use of any options or any consumable mate- rials other than those designated as original Sagem prod- ucts or Sagem approved products.

Sagem shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Sagem products

All rights reserved. No part of chis publication may be re- produced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopy- ing, recording, or otherwise, without the prior written per- mission of Sagem. The information contained herein is de- signed only for use with this product, Sagem is not respon- sible, if this information is applied to other devices.

This user manual contract.

à document chat does not represent a Errors, printing errors and changes are reserved.

Copyright © 2006 Sagem Communication Austria GmbH

Customer Information

We constantly strive to develop our products according to the highest quality standards and with che greatest possible user-friendliness.

In your user manual you will find all the information required to use your machine. If you nevertheless require assistance in addition to the user manual, our call centre is available. Our employees are trained ex- perts who would be happy to answer your questions.

We can assist your more quickly if you do not call us from the machine, rather an external celephone. Keep a printout of the settings as well as the serial number of the machine handy. The serial number can be found on the rype plate.

United Kingdom Telephone: 08 71 - 075 07 11 (0,15 £/minute) Fax: 08 70 - 124 02 02

Use only PHILIPS accessories. The warranty does not cover damages 10 the machine resulting from the use of other consumable materials.

In United Kingdom, you can order PHILIPS accessories by telephone via our toll-free telephone number.

Internet: www.sagem.com

We hope chat you will enjoy using your new product!

SAGEM COMMUNICATION (SAFRAN Group) Broadband Business Group Printing Terminals

Headquarters : Le Ponant de Paris
