USER MANUAL DHP20-R EvoHeat

EVO HOT H2O TECHNOLOGY www.evoheat.com.au HEAT

Three metallic storage cabinets with digital display screens and a smartphone displaying a 30°C app interface (no readable text or symbols on main devices)

Installation & Operation

Read this manual carefully before installing or operating this unit

Contents

1. Preface 3
2. Specifications 4

2.1 Dimensions for the DHP-R Advanced Units....4

1. Installation and Connection....5

3.1 Installation of System 5
3.2 Location of Installation....6
3.3 3.3 Location & minimum clearances....6
3.4 Plumbing of the Unit 7
3.5 Electrical Wiring of the Unit....8
3.6 Initial Start-up of the Unit....8

1. Usage and Operation....9

4.1 Controller Interface Introduction....9

4.1.1 Main Interface 9
4.1.2 Button Descriptions....9

4.2 Controller Functions....10

4.2.1 Booting and Shutdown....10
4.2.2 Mode Switch and Target Temperature Setting....10
4.2.3 Target Temperature Setting 10
4.2.4 Clock Setting....11
4.2.5 Time Setting 11
4.2.6 Timing Settings 12
4.2.7 Silent Setting and Silent Timing 13
4.2.8 The Silent Button (DHP40-R & 50-R Only)....13
4.2.9 Timing Silent Function (DHP40-R & 50-R Only)....14
4.2.10 Fault History 15
4.2.11 Colour Display Calibration 15

4.3 Parameter List and Breakdown Table....16

4.3.1 Electronic Control Fault Table.... 16
4.3.2 Parameter List .... 18

4.4 Interface Drawing....18

4.4.1 Wire Control Interface Diagram and Definition 18
4.4.2 Controller Interface Diagram and Definition 18

1. Appendix....20

5.1 Caution and Warnings 20
5.2 Cable Specifications.... 23
5.3 EvoHeat Warranty....24
5.3 Warranty Registration Form 25

1. Preface

To provide our customers with quality, reliability and versatility, this product has been made to strict production standards. This manual includes all the necessary information about installation, debugging, discharging and maintenance. Please read this manual carefully before you open or maintain the unit. The manufacturer of this product will not be held responsible if someone is injured or the unit is damaged as a result of improper installation, debugging, or unnecessary maintenance. It is vital that the instructions within this manual are always adhered to. The unit must be installed by qualified personnel.

- The unit can only be repaired by a qualified installer centre, personnel or an authorised dealer.

- Maintenance and operation must be carried out according to the recommended time and frequencies, as stated in this manual.

• Use genuine standard spare parts only.

- Failure to comply with these recommendations will invalidate the warranty.

- The EvoHeat DHP-R Advanced heats the swimming pool water and keeps the temperature constant. For split type unit, the indoor unit can be discretely hidden or semi-hidden to suit a luxury house.

Our heat pump has the following characteristics:

Durable

The heat exchanger is made of PVC & titanium tube which can withstand prolonged exposure to swimming pool water.

Installation flexibility

The unit can be installed outdoors or indoors.

Quiet operation

The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor, which guarantees its quiet operation.

Advanced controlling

The unit includes micro-computer controlling, allowing all operation parameters to be set. Operation status can be displayed on the CP302 wire controller.

2. Specifications

2.1 Dimensions for the DHP-R Advanced Units

A D B W L

Vertical vision

Water Outlet 40 Water Inlet 40

Horizontal vision

DHP\SIZEmm	A	B	C	D	E	F	G
20-R/30-R	640	640	720	378	656	686	40
40-R/50-R	700	700	845	400	720	745	40

DHP603-R

1130 1015

Water outlet 40 Water inlet 40 Φ32 Drainage 120 93

985 480 735

3. Installation and Connection

3.1 Installation of System

Installation Items

The factory only provides the main unit and the water unit; the other items in the illustration are necessary spare parts for the water system that are to be provided by users or the installer.

Attention

Please follow these steps when starting for the first time:

1. Open valve and charge water.
2. Make sure that the pump and the water-in pipe have been filled with water.
3. Close the valve and start the unit

The schematic diagram is for reference only. Please check the water inlet/outlet label on the heat pump while plumbing the unit.

3. INSTALLATION AND CONNECTION

3.2 Swimming Pool Heat Pumps Location

Before installation it is very important to ensure 4 variables are carefully checked to allow the unit to operate correctly:

• Adequate Air Flow
• Correct water flow volume
• Correct electrical connection & supply
• Heater condition

*For indoor pools please consult the supplier. DO NOT place the unit in an enclosed area, where the units discharge air can be re-circulated. In an enclosed area take measures to evacuate the cold waste air out of the room. Conversely make sure there is adequate air entering the room to supply the heat pump.

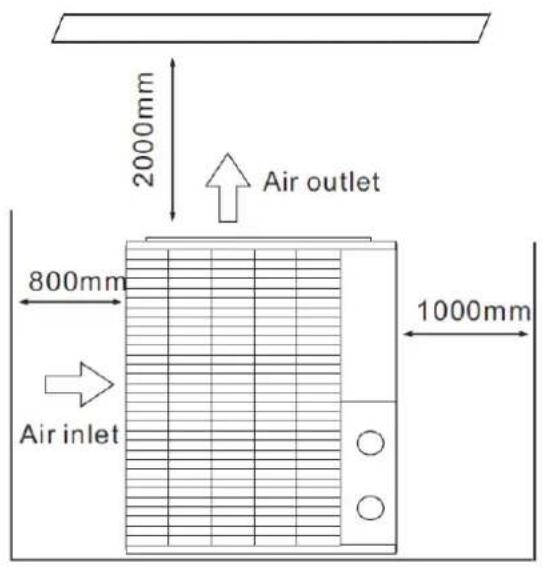

Air inlet 500mm 700mm Air outlet 2500mm 300mm 700mm

2000mm Air outlet 800mm 1000mm Air inlet

3.3 Location & minimum clearances

Evo recommend the heat pump should ONLY be installed in a location with appropriate ventilation. See above for minimum airflow clearances.

The Evo pool heat pump should be installed with a minimum clearance of at least 3.5m to the water's edge. Furthermore, EvoHeat recommend installing the heat pump no greater than 7.5 meters away from the water's edge due to heat loss from the piping. If you do not have a location with these suggested clearances, please contact our EvoHeat Tech Support Specialist on 1300 859 933 to discuss appropriate installation locations.

The heat pump should be installed a maximum of 5m below the water level of the pool/spa.

Make sure the heat pump is not located where large amounts of water may run-off from a roof into the unit. Sharp sloping roofs without gutters will allow excessive amounts of rain water mixed with debris from the roof to be forced through the unit. A water deflector may be needed to protect the heat pump.

If installing the heater on an existing pump/filtration system the heater must be installed AFTER the filter and BEFORE the chlorinator/sanitizer.

The heat pump should be installed on a flat level surface. In the event that a suitable location is unavailable contact Evo Industries for specialist technical advice.

3.4 Plumbing of the Unit

The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing arrangements except bypass (please set the flow rate according to the nameplate).

The water pressure drop is less than 10kPa at max flow rate. Since there is no residual heat or flame temperatures, the unit does not need copper heat sink piping. PVC pipe can be run straight into the unit.

Location: Connect the unit in the pool pump discharge (return) line downstream of all filter and pool pumps, and upstream of any chlorinators, ozonators or chemical pumps.

Standard models have slip glue fittings which accept 40mm NB PVC pipe for connection to the pool or spa filtration piping. By using a 50 NB to 40NB you can plumb 50NB PVC piping straight into the unit.

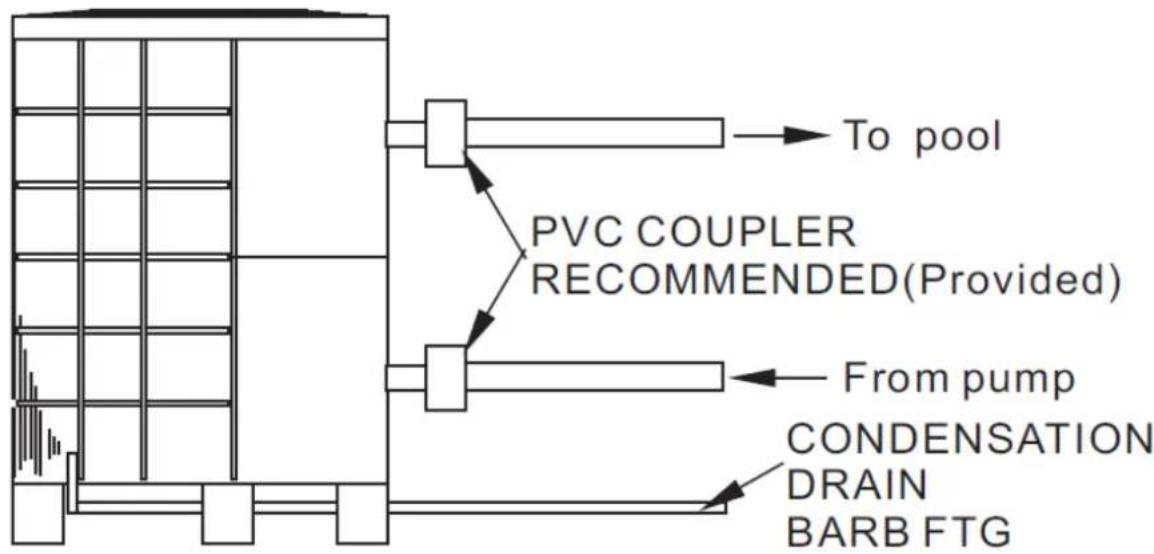

Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow easy draining of unit for winterizing and to provide easier access should servicing be required.

Condensation

Since the Heat pump cools down the air about 4 -5°C, water may condense on the fins of the horseshoe shaped evaporator. If the relative humidity is very high, this could be as much as several litres an hour. The water will run down the fins into the basepan and drain out through the barbed plastic condensation drain fitting on the side of the basepan. This fitting is designed to accept 3/4" clear vinyl tubing which can be pushed on by hand and run to a suitable drain. It is easy to mistake the condensation for a water leak inside the unit.

NB: A quick way to verify that the water is condensation is to shut off the unit and keep the pool pump running. If the water stops running out of the basepan, it is condensation. AN EVEN QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine present, then it's condensation.

3.5 Electrical Wiring of the Unit

NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect you against short circuits inside the unit. Bonding is also required.

The unit has a separate molded-in junction box with a standard electrical conduit nipple already in place. Just remove the screws and the front panel, feed your supply lines in through the conduit nipple and wire-nut the electric supply wires to the three connections already in the junction box (four connections if three phase). To complete an electrical hookup, connect the heat pump by electrical conduit, UF cable or other suitable means as specified (as permitted by local electrical authorities) to a dedicated AC power supply branch circuit equipped with the proper circuit breaker, disconnect or time delay fuse protection.

Disconnect

A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight of and readily accessible from the unit, this is common practice on commercial and residential air conditioners and heat pumps. It prevents remotely-energizing unattended equipment and permits turning off power at the unit while the unit is being serviced.

3.6 Initial Start-up of the Unit

NOTE: For the unit to heat the pool or spa, the filter pump must be running to circulate water through the heat exchanger.

Start-up Procedure - After installation is completed, you should follow these steps:

1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF on the wire controller, it should start in several seconds.
3. After running a few minutes make sure the air leaving the top (side) of the unit is cooler (Between 5-10 °C)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically.
5. Allow the unit and pool pump to run 24 hours per day until desired pool water temperature is reached. When the water-in temperature reaches the desired setting, the unit just shuts off. The unit will now automatically restart (if your pool pump is running) when the pool temperature drops more than 2 degrees below set temperature.

Time Delay

The unit is equipped with a 3-minute built-in solid state restart delay included to protect control circuit components and to eliminate restart cycling and contactor chatter. This time delay will automatically restart the unit approximately 3 minutes after each control circuit interruption. Even a brief power interruption will activate the solid state 3-minute restart delay and prevent the unit from starting until the 5-minute countdown is completed. Power interruptions during the delay period will have no effect on the 3-minute countdown.

4. Usage and Operation

4.1 Controller Interface Introduction

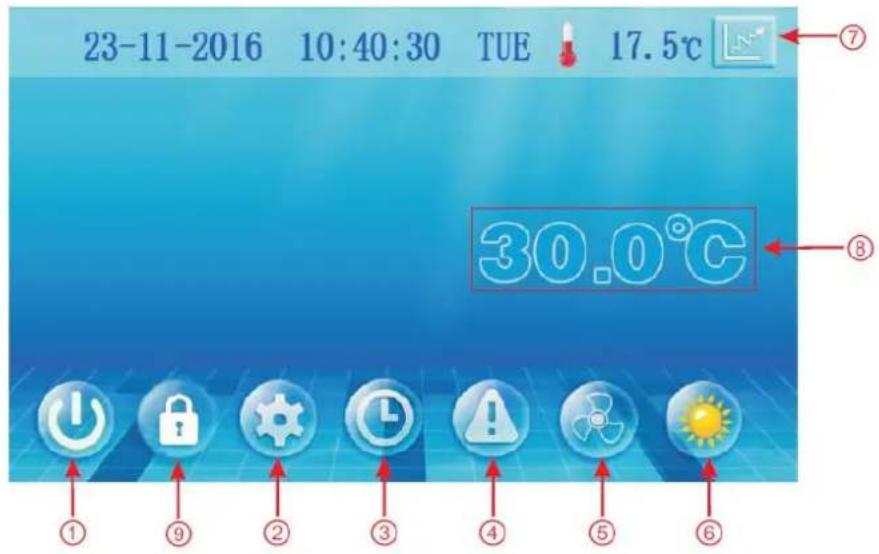

4.1.1 Main Interface

23-11-2016 10:40:30 TUE 17.5°C 30.0°C ① ② ③ ④ ⑤ ⑥

4.1.2 Button Descriptions

NO.	Name	The button function
1	ON/OFF	Press to start /shut off the unit
2	Parameter	Click this button to view the unit state and the parameter
3	CLOCK	Press to set the clock, the timer on or timer off.When the timer was starting,the button is green
4	Fault display	Click to view fault history
5	Silent setting	Click to turn on/off silent function and to set timing Low speed function.
6	MODE	Click to enter mode setting and the target temp.Setting interface
7	Temp. curve	Click to view the temp. and power curve
8	Water Inlet Temp.	Click to enter mode setting and the target temp.Setting interface
9	LOCK	Click to lock the screen , Input "22" to unlock the screen by press the "lock button"

4.2 Controller Functions

4.2.1 Booting and Shutdown

As shown in figure 4.1.1:

In shutdown status, click (1) then the unit will be booted.

In booting status, click (1) and the unit will shut down.

4.2.2 Mode Switch and Target Temperature Setting

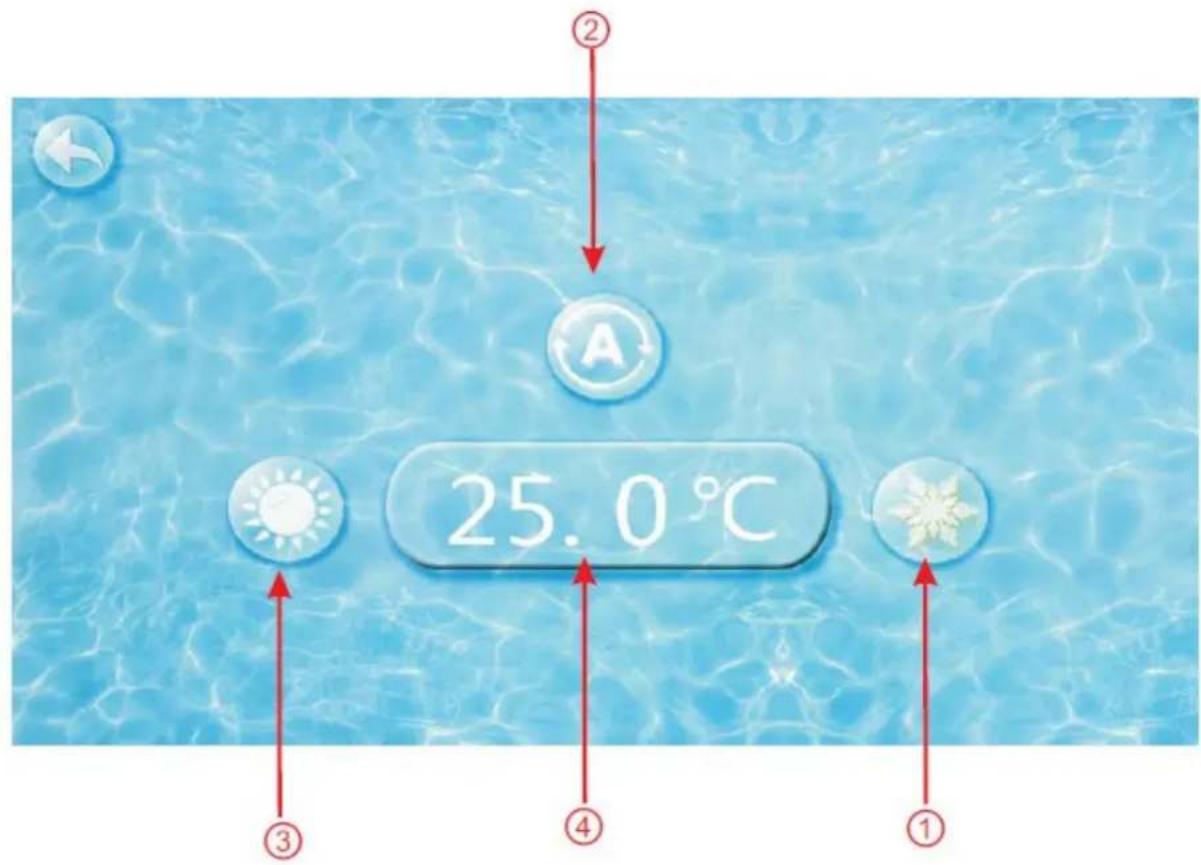

In the main interface, click mode button or inlet water temperature setting button, interface displays as follows:

2 A 25.0°C ① ② ③ ④

Click the refrigeration mode button (1), automatic mode button (2) or heating mode button (3) then you can select the corresponding mode.

Note: When the unit is designed for single automatic mode or single thermal mode, the mode can not be switched.

4.2.3 Target Temperature Setting

Click the temperature set button (4), you can set the target temperature.

4.2.4 Clock Setting

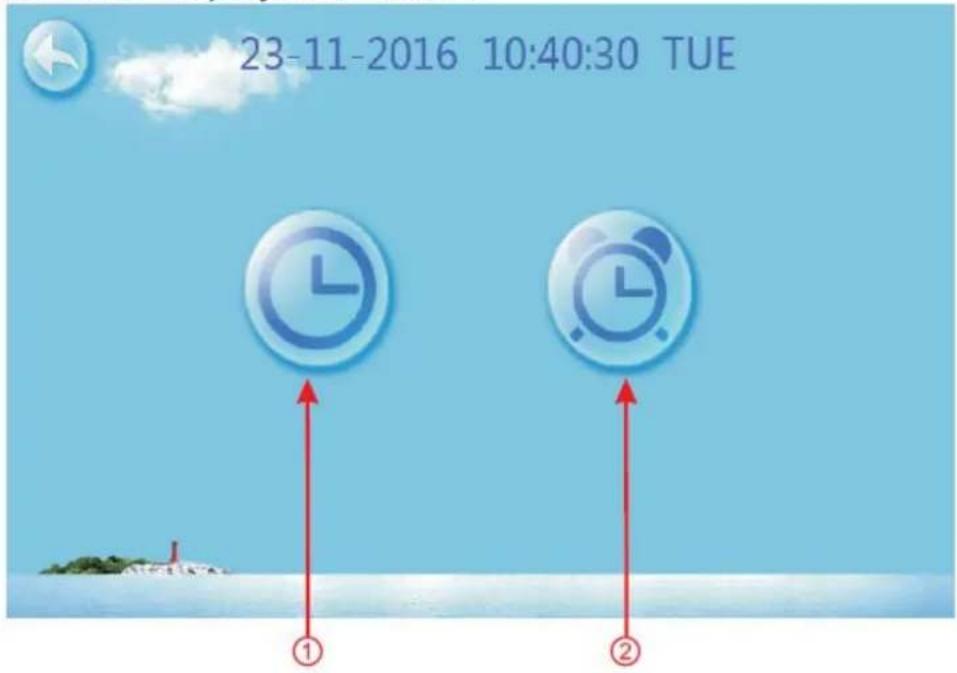

In the main interface, click on the clock Settings button, interface displays as follows:

23-11-2016 10:40:30 TUE ① ②

4.2.5 Time Setting

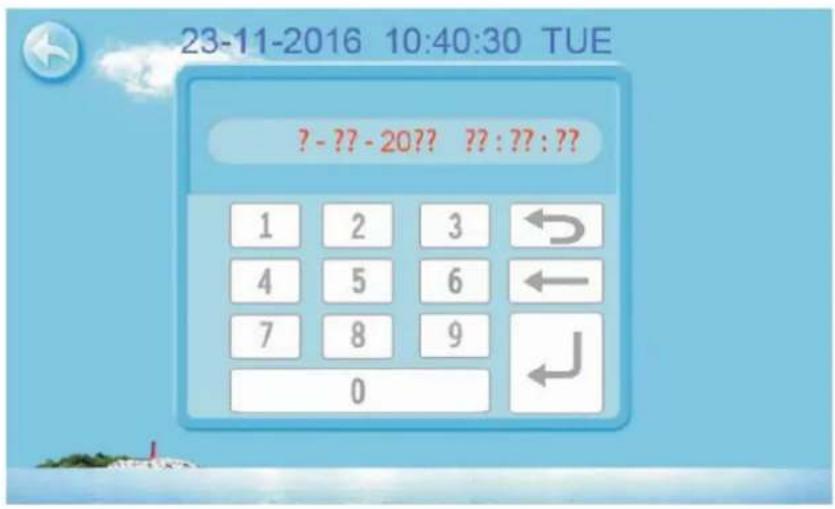

Click on the time Settings button ①, interface displays as follows:

Click the value to set time directly, the click confirm button to save the Settings.

For example: setup time: the 30-11-2016 16:00:00, input 30 11 16 16 00 00, the time change then click confirm button.

Note: if the input format is not correct, the wrong time will be saved by clicking confirm button.

4.2.6 Timing Settings

Click the timing set button ② to enter timing setinterface.

0:00 1:00

NO.	Name	Button color	Button function
1	Timing sta button	Start: greenEnd: gray	Click this button to start or end timing start setting function
2	Timing on setting		Click to set start time of the timing
3	Timing end button	Open: redEnd: gray	Click this button to start or end timing end setting function
4	Timing off setting		Click to set end time of the timing

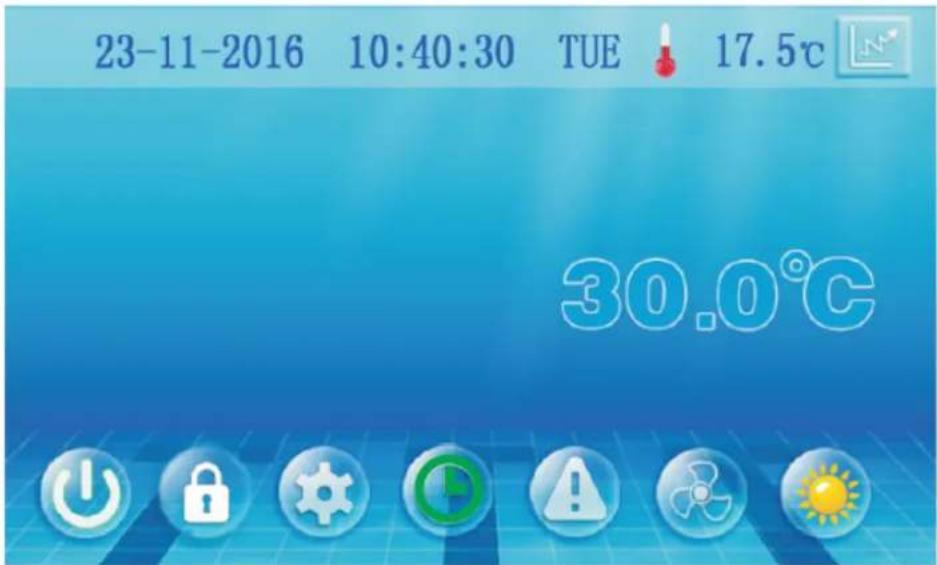

23-11-2016 10:40:30 TUE 17.5c 30.0°C

When the timer was starting, the clock button is green in the main interface

4.2.7 Silent Setting and Silent Timing

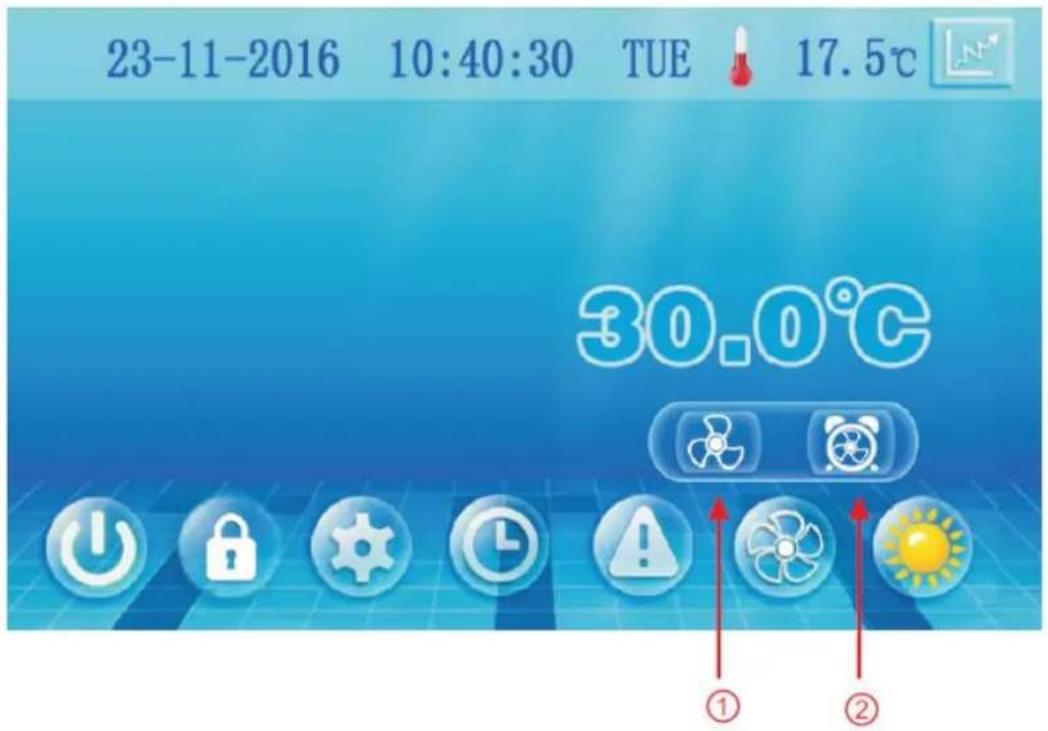

Click the silent setting button, and the interface displays as follows:

23-11-2016 10:40:30 TUE 17.5℃ 30.0℃ ① ②

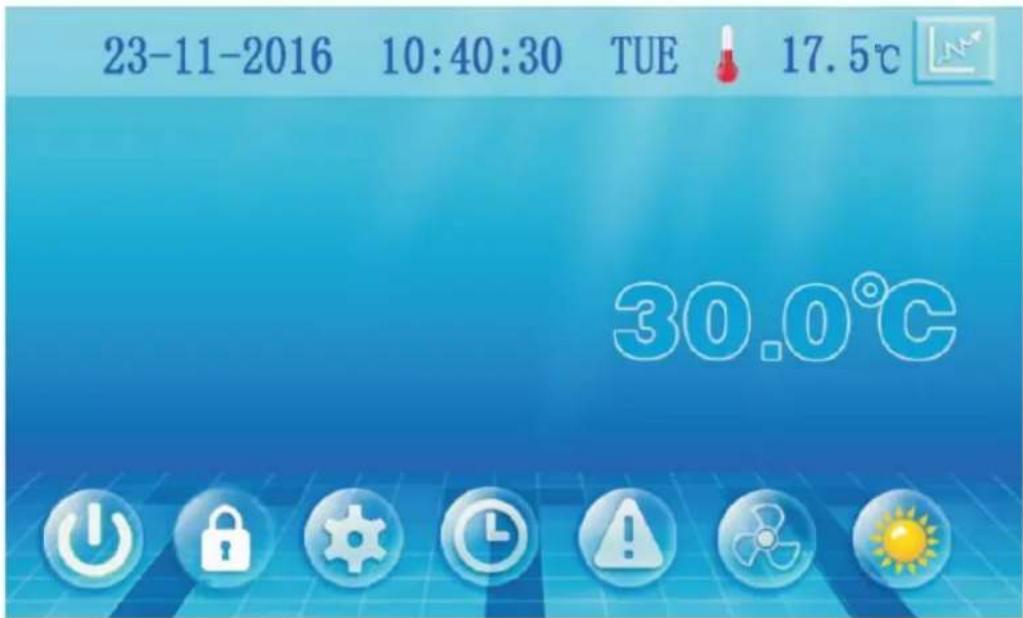

4.2.8 The Silent Button (DHP40-R & 50-R Only)

Click the silent button ①, the unit will enter the silent mode, and interface displays as follows:

23-11-2016 10:40:30 TUE 17.5℃ 30.0℃

Click the silent button ① again, to exit the silent mode.

4.2.9 Timing Silent Function (DHP40-R & 50-R Only)

Click timing silent button and interface displays as follows:

OFF ON 0:00 4:00 ① ② ③ ④

NO.	Name	Colur	Function
1	Timing silent off	Used: redUnused:gray	Click to use or unuse timing off function
2	Timing silent on	Use:greenUnused:gray	Click to use or unuse timing on function
3	Timing silent start time		Click this button to set the timing silent start time
4	Timing silent end time		Click this button to set the timing silent end time

Start time and end time setting value must be among the range of 0:00-23:00, and setting value can be precise to hour digit.

For example above, click "ON" to use timing silent, the unit will start the silent at 0:00 points and end at 4:00; click "OFF" to unuse the timing silent, but if the unit is in timing silent mode, it will exit silent timing immediately.

4.2.10 Fault History

In the main interface click fault display key, interface displays as follows:

Fault code The fault name Fault time day - month - year hour:min Fault records Protection/Fault Time E08 Communication Fault 23-11-16 10:40 Clean

If no failure, main interface displays static " ! "

When fault occurs, the fault icon will flash between the "#!" "!", the failure interface will record time, code, name of the fault.

After troubleshooting, if you do not check the failure record, the main interface will display static " ! "; if you check the failurerecord, the main interface will displays static " ! ";

Failure record is in reverse order, according to the happening time. Press the "Clean" key, you can delete the fault record.

4.2.11 Colour Display Calibration

Keep clicking quickly on the blank area at any interface until you hear a long beep. You will then enter the calibration interface. Click "+" to start calibration. When you hear the beep again, you will finish calibration and exit.

Note: The wire controller can display the temperature unit as “°F” or “°C” according to the model you bought.

4.3 Parameter List and Breakdown Table

4.3.1 Electronic Control Fault Table

Protect/fault	Fault display	Reason	Elimination methods
Standby	Non
Normal boot	Non
Inlet Temp. Sensor Fault	P01	The temp. sensor is broken or short circuit	Check or change the temp. sensor
Outlet Temp. Sensor Fault	P02	The temp. sensor is broken or short circuit	Check or change the temp. sensor
Ambient Temp. Sensor Faulty	P04	The temp. sensor is broken or short circuit	Check or change the temp. sensor
Coil Temp. Sensor Fault	P05	The temp. sensor is broken or short circuit	Check or change the temp. sensor
Suction Temp. Sensor Fault	P07	The temp. sensor is broken or short circuit	Check or change the temp. sensor
Discharge Temp. Sensor Fault	P081	The temp. sensor is broken or short circuit	Check or change the temp. sensor
High Pressure Prot.	E01	The high pressure switch is broken	Check the pressure switch and cold circuit
Low Pressure Prot.	E02	Low pressure1 protection	Check the pressure switch and cold circuit
Flow Switch Prot.	E03	No water/little water in system	Check the pipe water flow and water pump
Anti-freezing Prot.	E07	Water flow is not enough	Check the pipe water flow and whether water system is jammed or not
Primary Anti-freezing Prot.	E19	The ambient temp. is low
Secondary Anti-freezing Prot.	E29	The ambient temp. is low
Inlet and oulet temp. too big	E06	Water flow is not enough and low differential pressure	Check the pipe water flow and whether water system is jammed or not
Low Temperature Protection	Non	The environment temp. is low
Comp. Overcurrent Prot.	E051	The compressor is overloaded	Check whether the system of the compressor running normally
Exhaust air over Temp Prot.	P082	The compressor is overloaded	Check whether the system of the compressor running normally
Communication Fault	E08	Communication failure between wire controller and mainboard	Check the wire connection between remote wire controller and main board
Antifreeze Temp. Sensor Fault	P09	Antifreeze temp sensor is broken or short circuited	Check and replace this temp sensor
Waterway Anti-freezing Prot.	E05	Water temp. or ambient temp. is too low
EC Fan Feedback Fault	F051	There is something wrong with fan motor and fan motor stops running	Check whether fan motor is broken or locked
Pressure Sensor Fault	PP	The pressure sensor is broken	Check or change the pressure sensor or pressure
Fan Motor1 Fault	F031	1. Motor in locked-rotor state2. The wire connection between DC-fan motor module and fan motor is in bad contact	1. Change a new fan motor2. Check the wire connection and make sure they are in good contact
Low AT Protection	TP	Ambient temp is too low
Fan Motor2 Fault	F032	1. Motor in locked-rotor state2. The wire connection between DC-fan motor module and fan motor is in bad contact	1. Change a new fan motor2. Check the wire connection and make sure they are in good contact
Communication fault (Speed control module)	E081	Speed control module and main board communication fail	Check the communication connection

Frequency Conversion Board Fault Table

Protection/fault	Fault Display	Reason	Elimination Methods
Drv1 MOP alarm	F01	MOP drive alarm	Recovery after the 150S
Inverter offline	F02	Frequency conversion board and main board communication failure	Check the communication connection
IPM Protection	F03	IPM modular protection	Recovery after the 150S
Comp. Driver Failure	F04	Lack of phase, step or drive hardware damage	Check the measuring voltage, check frequency conversion board hardware
DC Fan Fault	F05	Motor current feedback open circuit or short circuit	Check whether current return wires connected motor
IPM Overcurrent	F06	IPM input current is large	Check and adjust the current measurement
Inv. DC Overvoltage	F07	DC bus voltage>Dc bus over-voltage protection valve	Check the input voltage measurement
Inv. DC Lessvoltage	F08	DC bus coltagecheck the input voltage measurement	Check the input voltage measurement
Inv. Input Lessvolt.	F09	The input voltage is low, causing the input current to be high	Check the input voltage measurement
Inv. Input Overvolt.	F10	The input voltage is too high, more than outage protection current RMS	Check the input voltage measurement
Inv. Sampling Volt.	F11	The input voltage sampling fault	Check and adjust the current measurement
Comm. Err DSP-PFC	F12	DSP and PFC connect fault	Check the communication connection
Input Over Cur.	F26	The equipment load is too large
PFC Fault	F27	The PFC Circuit protection	Check the PFC switch tube tube short circuit or not
IPM Over heating	F15	The IPM module is overheat	Check and adjust the current measurement
Weak Magnetic Warn	F16	Compressor magnetic force is not enough
Inv. Input Out Phase	F17	The input voltage lost phase	Check and measure the voltage adjustment
IPM Sampling Cur.	F18	IPM sampling electricity is at fault	Check and adjust the current measurement
Inv. Temp. Probe Fail	F19	Sensor is short circuit or open circuit	Inspect and replace the sensor
Inverter Overheating	F20	The transducer is overheating	Check and adjust the current measurement
Inv. Overheating Warn	F22	Transducer temperature is too high	Check and adjust the current measurement
Comp. Overcut. Warn	F23	Compressor electricity is large	The compressor over-current protection
Input Over cur. Warn	F24	Input current is too large	Check and adjust the current measurement
EEPROM Error Warn	F25	MCU error	Check whether the chip is damaged, replace the chip
V15V over/undervoltage fault	F28	The V15V is overloaded or undervoltage	Check the V15V input voltage is range 13.5V~16.5V or not

4.3.2 Parameter List

Meaning	Default	Remarks
Refrigeration target temperature set point	27°C	Adjustable
Heating the target temperature set point	27°C	Adjustable
Automatic target temperature set point	27°C	Adjustable

4.4 Interface Drawing

4.4.1 Wire Control Interface Diagram and Definition

V R T A B G

Sign	Meaning
V	12V (power + )
R	No use
T	No use
A	485A
B	485B
G	GND (power - )

4.4.2 Controller Interface Diagram and Definition

AC-N OUT5 OUT4 OUT3 OUT2 T5AL250V AC-L OUT1 PC1002 FUSE CN9 +12V +5V 0-10V-OUT PWM-OUT PWM-IN 0-5V-IN AI12(50K) AI/D111 AI/D110 AI/D109 AI/D108 AI/D107 AI/D106 AI/D105 AI/D104 AI/D103 AI/D102 AI/D101 GND 485_B1 485_A1 12V GND 485_B2 485_A2 12V GND 485_B3 GND

Main board of the input and output interface instructions below

Number	Sign	Meaning
01	OUT1	Compressor (output 220-230VAC)
02	OUT2	Water pump (output 220-230VAC)
03	OUT3	4-way valve (output 220-230VAC)
04	OUT4	High speed of fan (output 220-230VAC)
05	OUT5	Low speed of fan (output 220-230VAC)
06	AC-L	Live wire (input 220-230VAC)
07	AC-N	Neutral wire (input 220-230VAC)
08	AI/DI01	Emergency switch (input)
09	AI/DI02	Water flow switch (input)
10	AI/DI03	System low pressure (input)
11	AI/DI04	System high pressure (input)
12	AI/DI05	System suction temperature (input)
13	AI/DI06	Water input temperature (input)
14	AI/DI07	Water output temperature (input)
15	AI/DI08	System fan coil temperature (input)
16	AI/DI09	Ambient temperature (input)
17	AI/DI10	Mode switch (input)
18	AI/DI11	Master-slave machine switch/antifreeze temperature (input)
19	AI12(50K)	System Exhaust temperature (input)
20	0_5V_IN	Compressor current detection/pressure sensor (input)
21	PWM_IN	Master-slave machine switch/feedback signal of EC fan (input)
22	PWN_OUT	AC fan control (output)
23	0_10V_OUT	EC fan control (output)
24	+5V	+5V (output)
25	+12V	+12V (output)
26	GND485_B1485_A112V	Frequency Conversion board communications
27
28
29
30	GND485_B2485_A212V	Color line controller communication
31
32
33
34	CN9	Electronic expansion valve
35	GND485_B3485_A312V	The port for centralized control
36
37
38

5. Appendix

5.1 Caution and Warnings

The unit can only be repaired by qualified personnel or an authorised dealer.

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Please make sure that the unit and power connection have good earthing, otherwise there is a risk of electrical shock.

If the supply cord is damaged, it must be replaced by the manufacturer, our service agent or a similarly qualified person in order to avoid a hazard.

Directive 2002/96/EC (WEEE):

The symbol depicting a crossed-out waste bin that is underneath the appliance indicates that this product at the end of its useful life, must be handled separately from domestic waste, and must be taken to a recycling centre for electric and electronic devices or handed back to the dealer when purchasing an equivalent appliance.

Directive 2002/95/EC (RoHs): This product is compliant with directive 2002/95/EC (RoHs) concerning restrictions for the use of harmful substances in electric and electronic devices.

The unit CANNOT be installed near flammable gas. If there is any leakage of the gas a fire can occur.

Make sure that there is circuit breaker for the unit, lack of circuit breaker can lead to electrical shock or fire.

The heat pump located inside the unit is equipped with an over-load protection system. It does not allow for the unit to start for at least 3 minutes from a previous stoppage.

The unit can only be repaired by the qualified personnel of an installer center or an authorized dealer.

Installation must be performed in accordance with the NEC/CEC by authorized person only (for North America market)

USE SUPPLY WIRES SUITABLE FOR 75°C.

Caution: Single wall heat exchanger, not suitable for potable water connection.

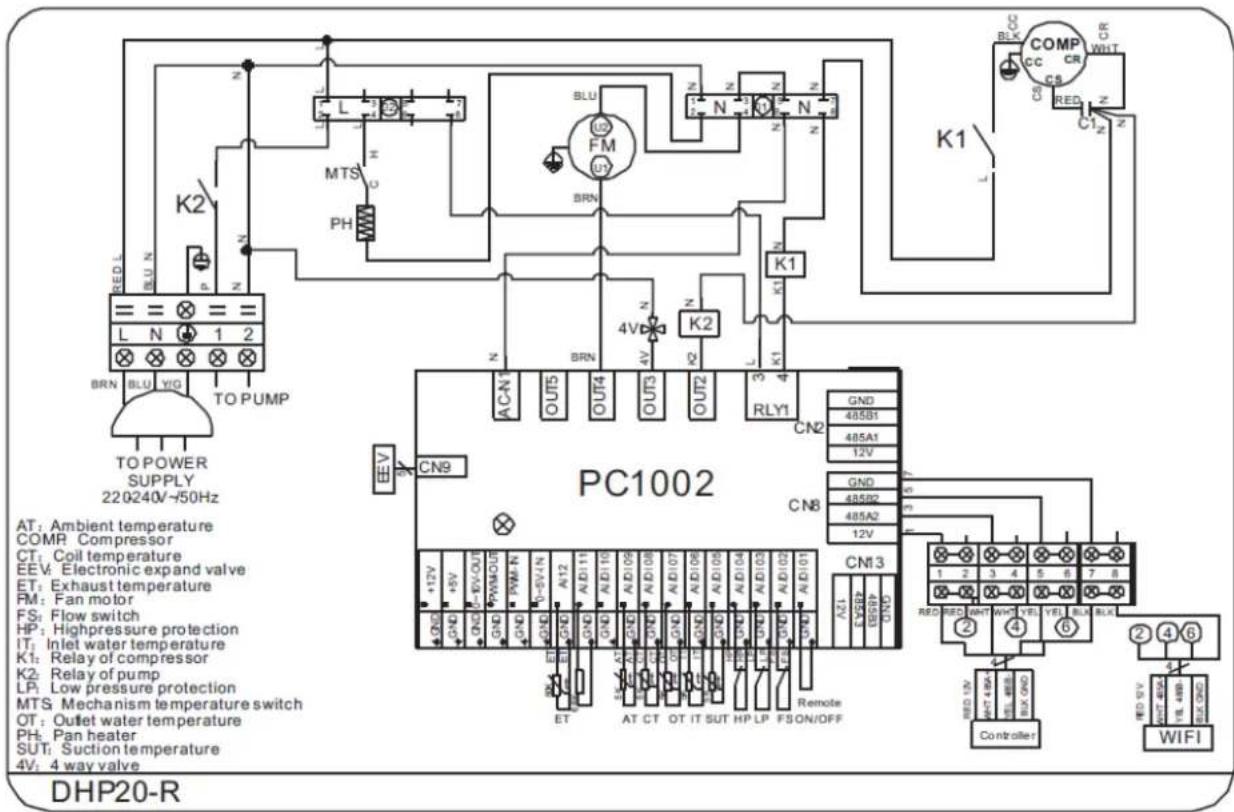

K1 COMP CR WHT BLK CC CS RED C1z Z R L N 1 2 MTS PH K2 BRN BLU YIG TO PUMP TO POWER SUPPLY 22024V~50Hz PC1002 AT: Ambient temperature COMP Compressor CT: Coil temperature EEV: Electronic expand valve ET: Exhaust temperature FM: Fan motor FS: Flow switch HP: Highpressure protection IT: Inlet water temperature K1: Relay of compressor K2: Relay of pump LP: Low pressure protection MTS: Mechanism temperature switch OT: Outlet water temperature PH: Pan heater SUT: Suction temperature 4V: 4 way valve DHP20-R CN9 CN8 CN7 CN6 CN5 CN4 CN3 CN2 CN1 CN0 CN9 AC-N+ OUT5 OUT4 OUT3 OUT2 RLY1 GND 485B1 485A1 12V GND 485B2 485A2 12V +12V +5V +EV-OUT +PMHOUT +PWM-N +0.5V-IN +12 ALD111 ALD110 ALD109 ALD108 ALD107 ALD106 ALD105 ALD104 ALD103 ALD102 ALD101 AT CT OT IT SUT HP LP FSON/OFF Remote INT 485A 485A1 485B2 485A2 485B3 485B4 485B5 485B6 485B7 485B8 485B9 485C0 485C1 485C2 485C3 485C4 485C5 485C6 485C7 485C8 485C9 485C10 485C11 485C12 485C13 485C14 485C15 485C16 485C17 485C18 485C19 485C20 485C21 485C22 485C23 485C24 485C25 485C26 485C27 485C28 485C29 485C30 485C31 485C32 485C33 485C34 485C35 485C36 485C37 485C38 485C39 485C40 485C41 485C42 485C43 485C44 485C45 485C46 485C47 485C48 485C49 485C50 485C51 485C52 485C53 485C54 485C55 485C56 485C57 485C58 485C59 485C60 485C61 485C62 485C63 485C64 485C65 485C66 485C67 485C68 485C69 485C70 485C71 485C72 485C73 485C74 485C75 485C76 485C77 485C78 485C79 485C80 485C81 485C82 485C83 485C84 485C85 485C86 485C87 485C88 485C89 485C90 485C91 485C92 485C93 485C94 485C95 485C96 485C97 485C98 485C99 485D00

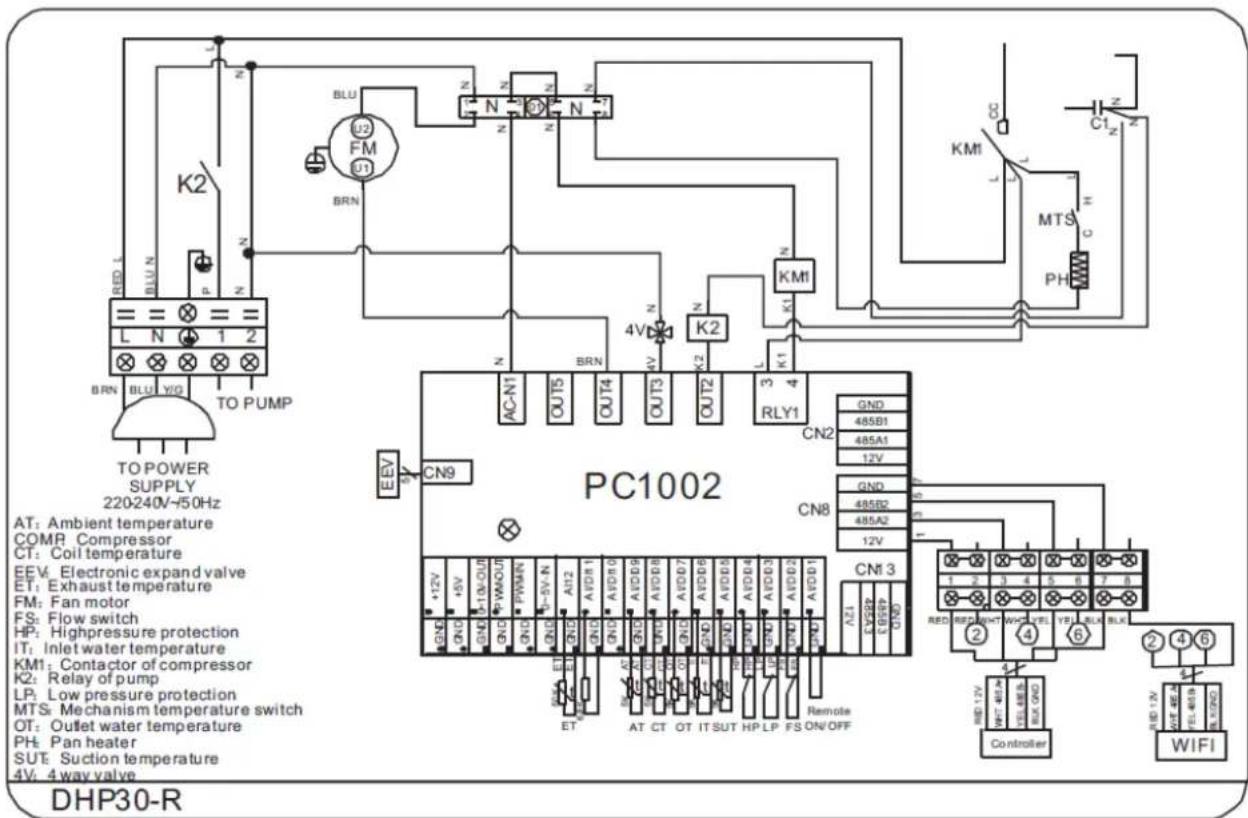

K2 BLU FM J1 BRN RED L L N 1 2 BRN BLU VIG TO PUMP TO POWER SUPPLY 22024V~50Hz AT: Ambient temperature COMP. Compressor CT: Coil temperature EEV. Electronic expand valve ET: Exhaust temperature FM: Fan motor FS: Flow switch HP: High pressure protection IT: Inlet water temperature KM1: Contactor of compressor K2: Relay of pump LP: Low pressure protection MTS: Mechanism temperature switch OT: Outlet water temperature PH: Pan heater SUT: Suction temperature 4V: 4 way valve PC1002 CN9 CN8 CN2 GND 485B1 485A1 12V GND 485B2 485A2 12V CM 3 ALI EVS2P EVS6P UND +12V +8V +10V+OUT P/WAN P/WAN A/VD1 A/VD8 A/VD9 A/VD8 A/VD7 A/VD6 A/VD5 A/VD4 A/VD3 A/VD2 A/VD1 +12V +8V +10V+OUT P/WAN P/WAN A/VD1 A/VD8 A/VD9 A/VD8 A/VD7 A/VD6 A/VD5 A/VD4 A/VD3 A/VD2 A/VD1 AT CT OT ITSUT HP LP FS ON/OFF Remote RED RED LIGHT WD VEL VRS BLK BLK Controller WIFI CC C1z z KMI MTS PH EVEV CN9 CN8

YG BLK COMP CC CR WHT CS RED B C1 C2 KS KS CC S KM1 L N R LED BLU TO POWER SUPPLY 220240V~50Hz TO PUMP EEV CN9 AT: Ambient temperature CH: Compressor heater COMP: Compressor ET: Coil temperature EEV: Electronic expansion valve ET: Exhaust temperature FM: Fan motor FS: Flow switch HP: High pressure protection IT: Inlet water temperature KM1: Contactor of compressor K2: Relay of pump KS: Relay of compressor start LP: Low pressure protection MTS: Mechanism temperature switch OT: Outlet water temperature PH: Pan heater TC: Transformer SUT: Suction temperature 4V, 4 way valve PC1002 CN8 GND 48B1 485A1 12V GND 48B2 485A2 12V CN13 VL-600- TL-600- INT-600- RED-600- HV-600- HIV-600- RED-600- Controller WIFI Remote AT CT OT IT SUT HP LP FS ON/OFF AT: Ambient temperature CH: Compressor heater COMP: Compressor ET: Coil temperature EEV: Electronic expansion valve ET: Exhaust temperature FM: Fan motor FS: Flow switch HP: High pressure protection IT: Inlet water temperature KM1: Contactor of compressor K2: Relay of pump KS: Relay of compressor start LP: Low pressure protection MTS: Mechanism temperature switch OT: Outlet water temperature PN: Pan heater TCL: Transformer SUT: Suction temperature 4V, 4 way valve

5.2 Cable Specifications

Single Phase Unit

Nameplate maximum current	Phase line	Earth line	MCB	Creepage Protector	Signal line
No more than 10A	2 × 1.5mm^2	1.5mm^2	20A	30mA less than 0.1 sec	n x 0.5mm^2
10~16A	2 × 2.5mm^2	2.5mm^2	32A	30mA less than 0.1 sec
16~25A	2 × 4mm^2	4mm^2	40A	30mA less than 0.1 sec
25~32A	2 × 6mm^2	6mm^2	40A	30mA less than 0.1 sec
32~40A	2 × 10mm^2	10mm^2	63A	30mA less than 0.1 sec
40~63A	2 × 16mm^2	16mm^2	80A	30mA less than 0.1 sec
63~75A	2 × 25mm^2	25mm^2	100A	30mA less than 0.1 sec
75~101A	2 × 25mm^2	25mm^2	125A	30mA less than 0.1 sec
101~123A	2 × 35mm^2	35mm^2	160A	30mA less than 0.1 sec
123~148A	2 × 50mm^2	50mm^2	225A	30mA less than 0.1 sec
148~186A	2 × 70mm^2	70mm^2	250A	30mA less than 0.1 sec
186~224A	2 × 95mm^2	95mm^2	280A	30mA less than 0.1 sec

Three Phase Unit

Nameplate maximum current	Phase line	Earth line	MCB	Creepage Protector	Signal line
No more than 10A	2 × 1.5mm^2	1.5mm^2	20A	30mA less than 0.1 sec	n x 0.5mm^2
10~16A	2 × 2.5mm^2	2.5mm^2	32A	30mA less than 0.1 sec
16~25A	2 × 4mm^2	4mm^2	40A	30mA less than 0.1 sec
25~32A	2 × 6mm^2	6mm^2	40A	30mA less than 0.1 sec
32~40A	2 × 10mm^2	10mm^2	63A	30mA less than 0.1 sec
40~63A	2 × 16mm^2	16mm^2	80A	30mA less than 0.1 sec
63~75A	2 × 25mm^2	25mm^2	100A	30mA less than 0.1 sec
75~101A	2 × 25mm^2	25mm^2	125A	30mA less than 0.1 sec
101~123A	2 × 35mm^2	35mm^2	160A	30mA less than 0.1 sec
123~148A	2 × 50mm^2	50mm^2	225A	30mA less than 0.1 sec
148~186A	2 × 70mm^2	70mm^2	250A	30mA less than 0.1 sec
186~224A	2 × 95mm^2	95mm^2	280A	30mA less than 0.1 sec

If the unit is to be installed outdoors, ensure that a UV resistant cable is used.

5.3 EvoHeat Warranty

1. The titanium heat exchanger tubing is guaranteed against corrosion for a period of twenty-five (25) years from the date of purchase when used with chlorine, salt, bromine or sea water. (*25 year warranty on the titanium heat exchanger is valid for Evo heat pumps purchased post 15.05.2018. If purchased prior please refer to your original operating manual for warranty details).

2. The compressor is guaranteed for (3) years from the date of purchase.

3. All other parts are guaranteed for two (2) years from the date of purchase.

4. This warranty covers all labour for twelve (12) months from the date of purchase.

5. This warranty excludes any defect or injury caused by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, vermin infestation, incompetent installation, any fault not attributable to faulty manufacture or parts, any modifications which affect the reliability or performance of the unit.

6. This warranty does not cover the following:

a. Natural Disasters (hail, lightening, flood, fire etc.)
b. Rust or damage to paintwork caused by a corrosive atmosphere
c. When serviced by an unauthorized person without the permission of Evo Industries
d. When a unit is installed by an unqualified person
e. Where a unit is incorrectly installed
f. When failure occurs due to improper or faulty installation
g. Failure due to improper maintenance (refer Operating Instructions)
h. 'No Fault Found' service calls where the perceived problem is explained within the

Operation Instructions

i. Costs associated with delivery, handling, freighting, or damage to the product in transit.

1. If warranty service is required, you should:

a. contact Evo Industries Australia on 1300 85 99 33 or via our Contact page on our web site
b. provide a copy of your receipt as proof of purchase
c. have completed the online warranty registration or provide a completed warranty card.

1. Home service is available within the normal operating area of your Evo Industries authorized Service Centre. Service outside this area will incur a traveling fee. Unless otherwise specified to the purchaser, the benefits conferred by this express warranty and additional to all other conditions, warranties, rights and remedies expressed or implied by the Trade Practices Act 1974 and similar consumer protection provisions contained in legislation of the States and Territories and all other obligations and liabilities on the part of the manufacturer or supplier and nothing contained herein shall restrict or modify such rights, remedies, obligations or liabilities

5.3 Warranty Registration Form

To register your Warranty, please enter the following details or go online at https://evoheat.com.au/warranty-registration/ to register directly at our website.

Fields with a start (*) must be filled in. For information about what Evo Industries Australia will do with your personal details, please refer to our Privacy Disclaimer on our website.

Family Name: *

Given Name: *

Preferred Title: *

Age Group: * 18-24

25-34

35-44

45-54

55-64

64+

Street Address: *.

Suburb: *

Postcode: *

State: *

Email: *

Please tell us about which EvoHeat product you bought, who you bought it from and what you will be using it for:

Product & Model: *

Serial Number: *

Authorised Installer: *

Date Purchased: *

Date Installed: *

Recept Number: *

Company Bought From: *

Did you purchase the item when you purchased your pool?:

If you purchased it after the pool, how many years did you wait?:

What size is your pool or spa?:

Why did you choose an EVOHEAT product?:
