USER MANUAL FURBBDKNGA12VG Kingston Slumber

Mattresses and bedding accessories not included

User Manual

[Revision 6.0 August 2022]

Safety

READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE THIS BED.

• Follow the instruction on the WARNING labels on top bunk and the package. DO NOT REMOVE THE LABELS FROM THE BED.
• Always use the recommended size mattress, mattress support, or both, to prevent the likelihood of entrapment or falls.
  • The top surface of the mattress must be at least 5 inches below the upper edge of the guardrails.
  • MAX. WEIGHT CAPACITY: 65KG TOP AND 150KG BOTTOM.
  • MAXIMUM TOP BUNK MATTRESS HEIGHT: 10CM
  • MAXIMUM BOTTOM BUNK MATTRESS HEIGHT: 20CM
• DO NOT allow horseplay on the bunk bed. Always PROHIBIT jumping on the bed. Children SHOULD BE discouraged from playing on the bunk bed.
• Periodically check and ensure that the guardrail, access device and other components are maintained in the correct position and state of repair and that all connectors are tight.
  • DO NOT use any substitute parts. Contact the manufacturer or dealer for replacement parts.
• STRANGULATION HAZARD - Never attach or hang items to any part of the bunk that are not designed for use with the bed, but not limited to hooks, belts, or jump ropes.
• Keep these instructions in a safe place for future reference.

CHILD CHOKING HAZARD:

WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

- Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts, hard lollies, and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys and coins. But there are also many more.

- Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.

- In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Instruction

Top:920x188cm Down:138x188cm

Tools Required

A	15mm∅6x90mm	38
B		40
C	∅8x30mm	44
E	8mm∅4x30mm	62
F	15mm∅6x70mm	04
G	15mm∅6x70mm	16
H	15mm∅6x30mm	06
V	Φ4 x 30 mm	08
W	70 x 25 x 19 mm	04

15mm∅6x60mm	02
∅12x80mm	04
∅7x60mm	16
M8x20mm
∅6x50mm	02
	02
∅4x16mm	06
	13
	02

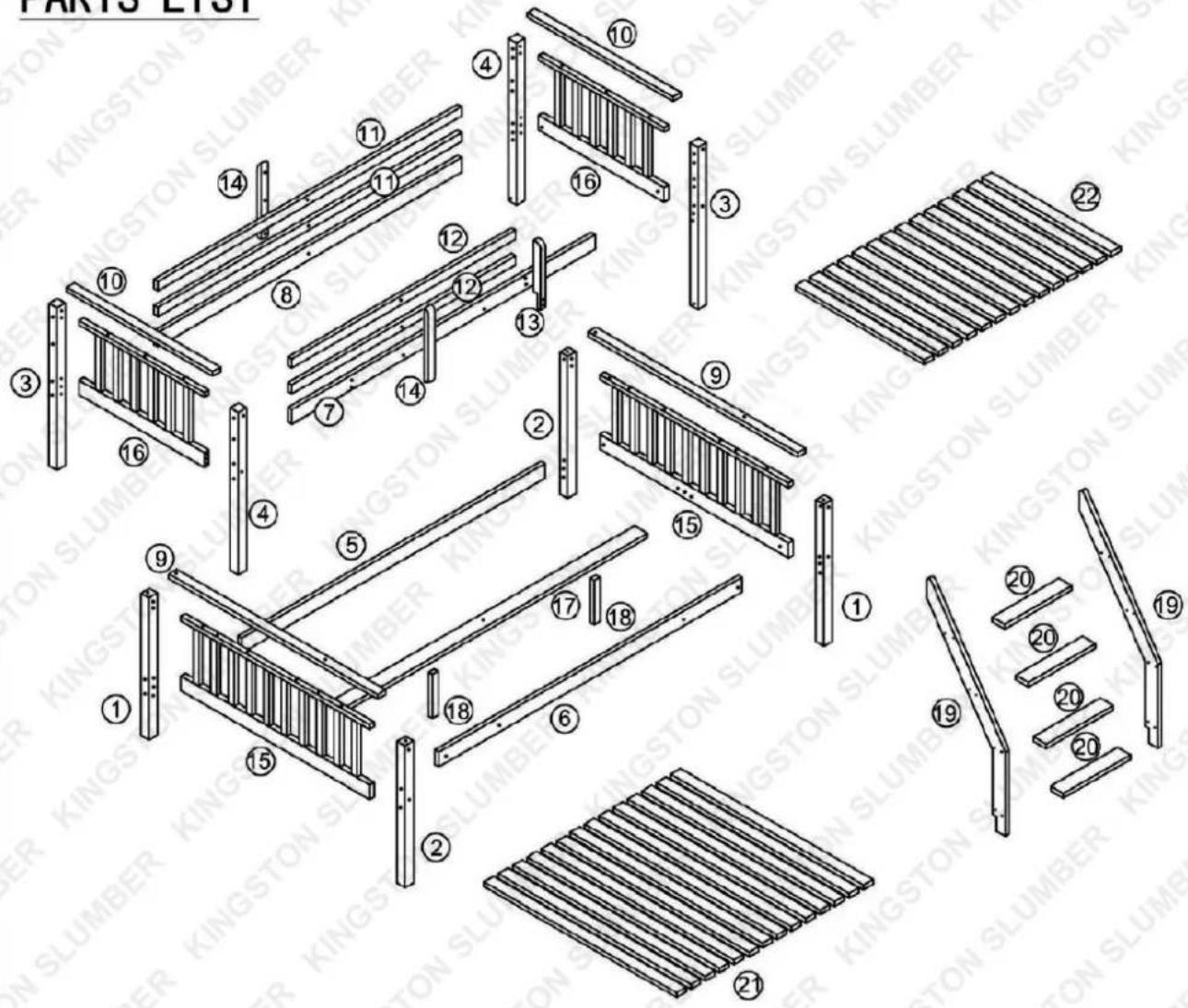

PARTS LIST

PARTS LT01 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1

C ⑫×2 C ⑤⑥⑦⑧ C ⑪×2 C C ⑰ C C ⑰ C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C 17

C ⑮x2 C C C C C C HER KINGSTONE

C ⑯×2 C C C C

C

44

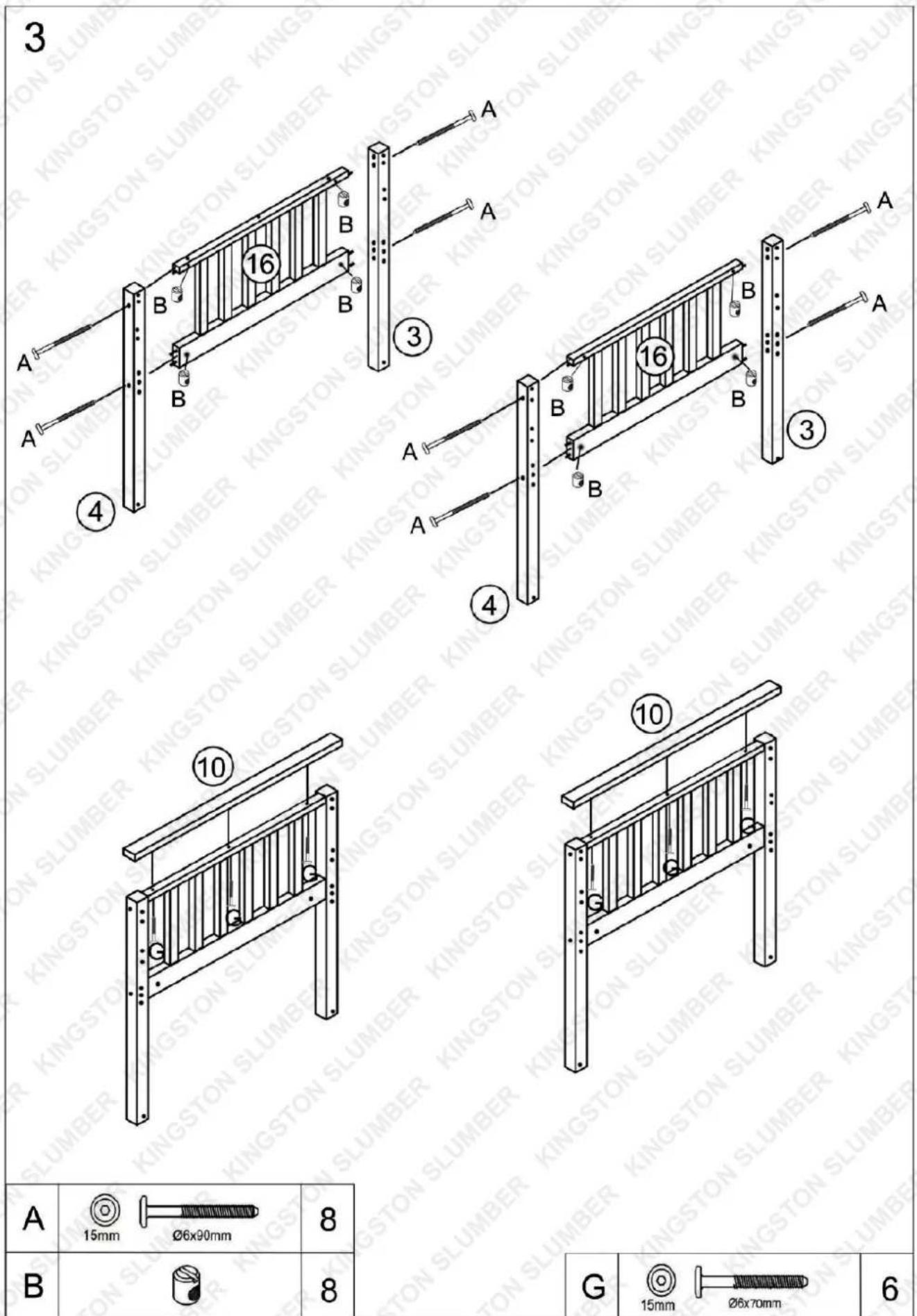

2 A 15 B B B A 1 A B B A 15 B B A ② ② ① ① 9 G G G G G A 15mm Ø6x90mm 8 B 8 G 15mm Ø6x70mm 8

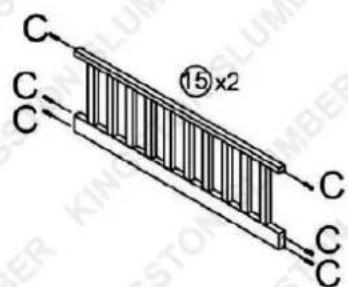

4 Note: Side rail with hole for the ladder side! Could be changed left or right as your need B 8 A 15mm Ø6x90mm 8 F 15mm Ø6x70mm 4 5 Ex28 Note: Side rail with hole for the ladder side! Could be changed left or right as your need E 8mm Ø4x30mm 28

9

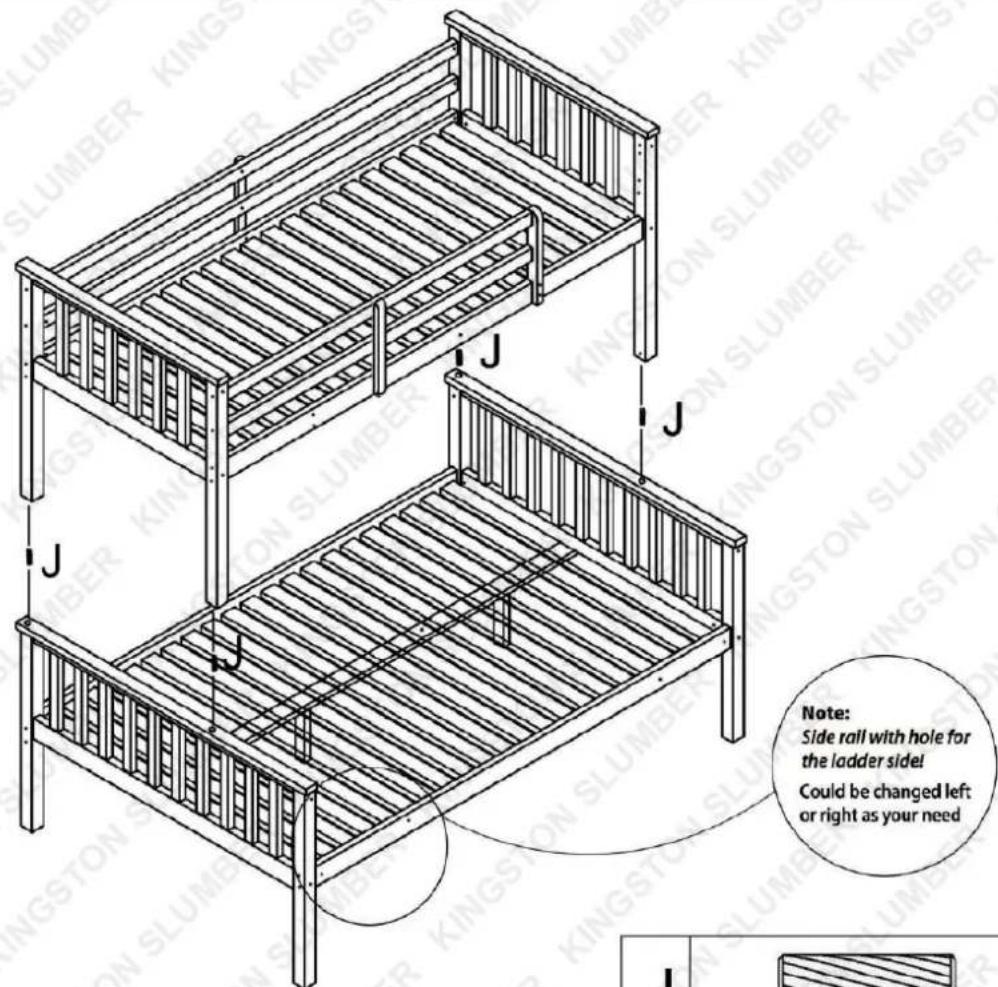

J J J Note: Side rail with hole for the ladder side! Could be changed left or right as your need

J

Ø12x80mm
4

10

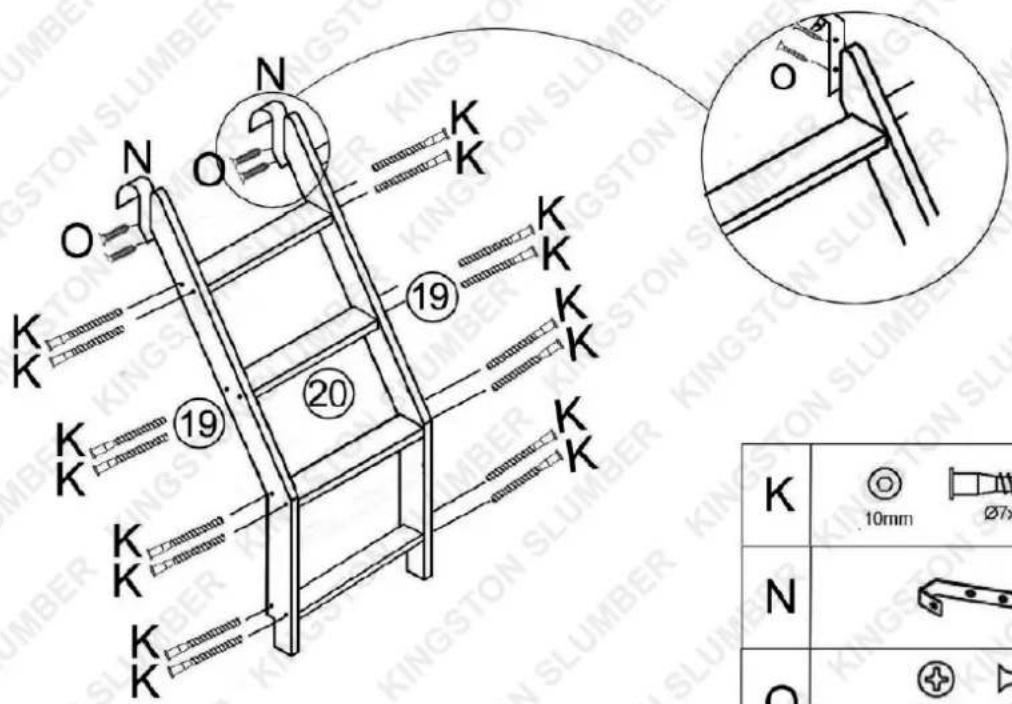

K 10mm Ø75 N K K K K K K K K K K K N O O K K K 19 20 K K K K K K K K K K K K K K K K K K K K K K K K K K K K

∅7x60mm
16

O

8mm

∅4×16mm
4

Specifications

Bed Size	Double+ Single
Type	Bunk Bed
Colour	Grey
Material	Pine
Built-in Ladder	Yes

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

my topia .com.au

©2022 Kingston Slumber. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
