USER MANUAL FURBDFKNGA94SW Kingston Slumber

Mattress and bedding accessories not included

Assembly Guide

[Revision 2.0 July 2022]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY

VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance,

assembly, inclusions, specifications, description, and packaging.

CHILD CHOKING HAZARD:

WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

• Carefully inspect anything a baby or child could gain access to, including this product & packaging.
  • Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.
• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts, hard lollies, and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys and coins. But there are also many more.
• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Parts List ⑧ ⑦ ⑥ ② ⑩ ① ③ ⑤ ④ ⑧ ⑪ ⑨ ⑥ ③ ② ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① ①

A 15mm M6x90mm B C Ø8x30mm D E F 16 16 44 2 4 4

WARNING!
Do not let children eat the glue!

G		4
H		2
I		1
J		1
K	8mmø4x30mm	60
L		1
M		16

1

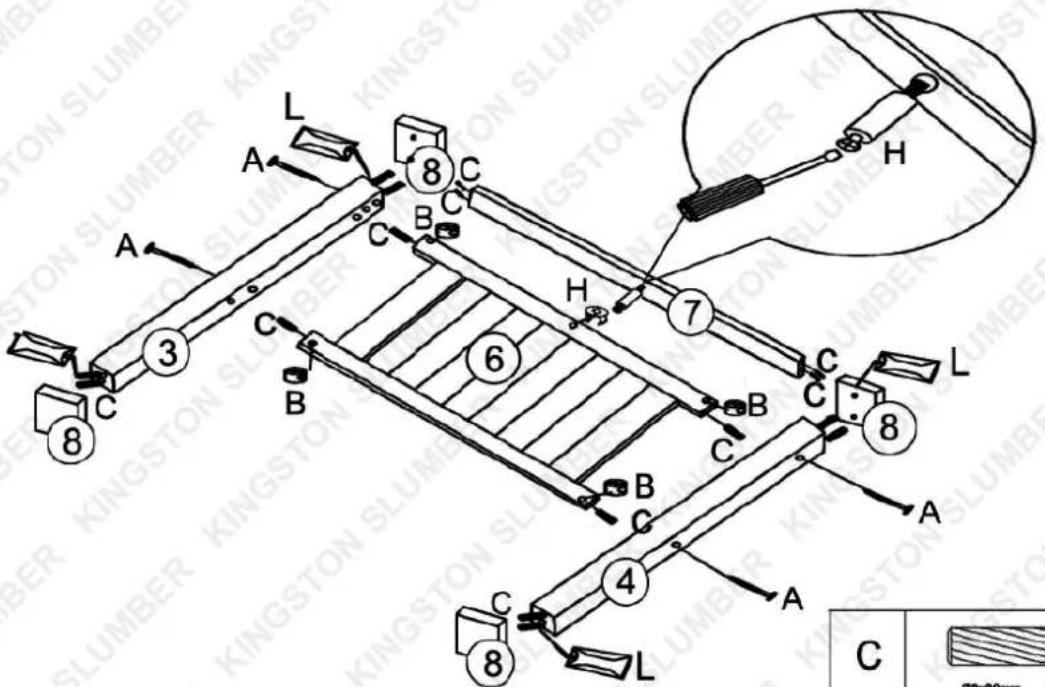

L A C B H H 7 3 6 C B C C L 8 4 C 8 A C L 8 KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SULBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER L C

A		4	H		1
B		4	L		1

2

2 L A C 8 C B C H 7 H 1 C 6 B C B C L 8 C 2 A C 8 L KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON S LUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUM BER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KIN G 8

A	15mm M6x90mm	4	H		1
B		4	L		1

3

Technical diagram of a mechanical assembly with labeled parts and circular annotations for identification.

4

Assembling, the pathway of side must be facing down. er side of the middle leg a level with the bedside

Attention:

• When assembling, the pathway of the bedside must be facing down.
• The inner side of the middle leg should be level with the bedside rail.
• The outer side of the middle leg should be positioned on the outside of the bedside rail.

C	∅6x30mm	12	F		4
D		2	G	[SAC3]	4
E		4	I		1

5 ⑬ K 13

6 A B A B B A A KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STONSLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMDER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBEER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUMBER KINCKSTON SLUML B A B A B A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A 1

A		8
B		8
K		30

7

Technical diagram of a wooden slumber bed with labeled components and an inset showing internal structure details.

K		30
M		16
