USER MANUAL FURBBDKNGA14W Kingston Slumber

KINGSTONSLUMBER Single bunk bed

Mattress and bedding accessories not included

Assembly Guide

[Revision 9.0 August 2022]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

CHILD CHOKING HAZARD

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

- Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts, hard lollies, and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys and coins. But there are also many more.

- Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.

- In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Bunk Bed Safety

• Follow the instruction on the warning labels on top bunk and the package. DO NOT REMOVE THE LABELS FROM THE BED
  • Always use the recommended size mattress, mattress support, or both, to prevent the likelihood of entrapment or falls.
• The top surface of the mattress must be at least 5 inches below the upper edge of the guardrails.
• DO NOT allow horseplay on the bunk bed. Always PROHIBIT jumping on the bed.
• Children SHOULD BE discouraged from playing on the bunk bed.
• Periodically check and ensure that the guardrail, access device and other components are maintained in the correct position and state of repair and that all connectors are tight.
• DO NOT use any substitute parts. Contact the manufacturer or dealer for replacement parts.
• STRANGULATION HAZARD - Never attach or hang items to any part of the bunk that are not designed for use with the bed, but not limited to hooks, belts, or jump ropes.
  • MAX. WEIGHT CAPACITY: 65KG ON TOP AND 65KG AT THE BOTTOM.
  • MAXIMUM TOP BUNK MATTRESS HEIGHT: 10CM
  • MAXIMUM BOTTOM BUNK MATTRESS HEIGHT: 20CM

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhausted FumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Line drawing of a multi-level wooden rack structure with slatted sides and vertical supports (no text or symbols)

HARDWARE

A			30
B			30
C	∅8x30mm		30
D			06
E	[7T05]		12
F	[TZ76]	[8ACC]	08
		M6x90mm
G		∅12X60mm	04

H	8mm 4 × 30 mm	64
I		02
K	8 mm	15
L		40
M	15 mm	06
N		06
P		02

Technical diagram of a slumber structure with numbered components and labeled parts in English and Chinese.

01

9 10 5 6 7 8 C C C KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLOMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KIN ST O L M U B I N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T AN T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N T A N t O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S L U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B E R KIN ST O L S V U M B e r k in a n c i o n 2014.10.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.

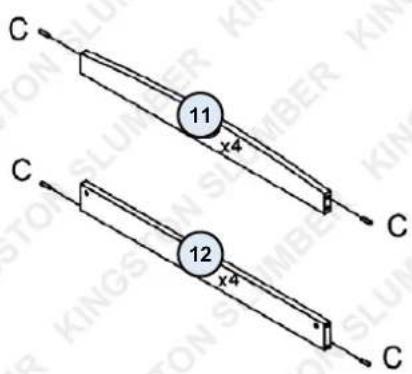

C 11 x4 12 x4 C C

C

30

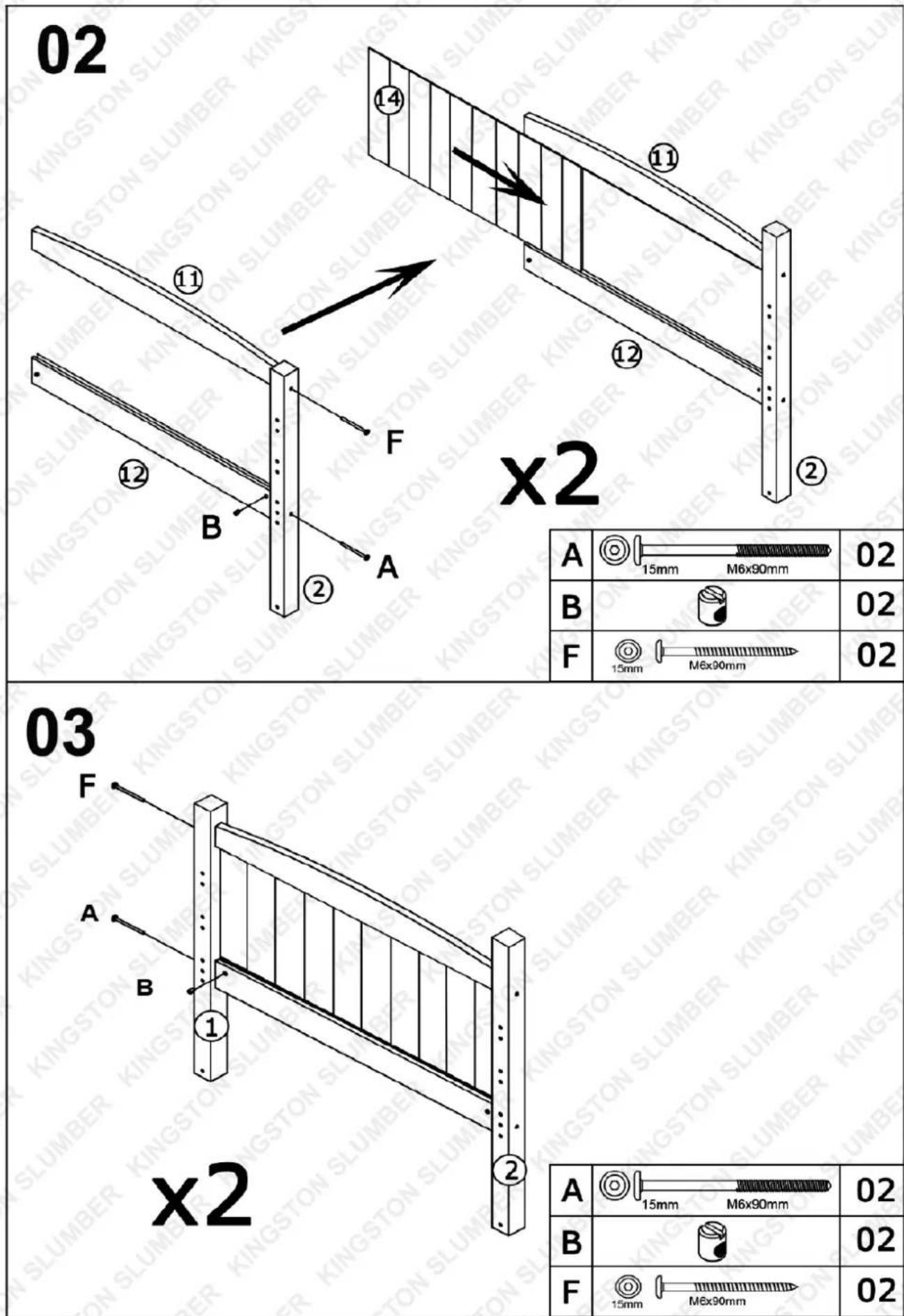

A		02
B		02
F		02

A		02
B		02
F		02

06

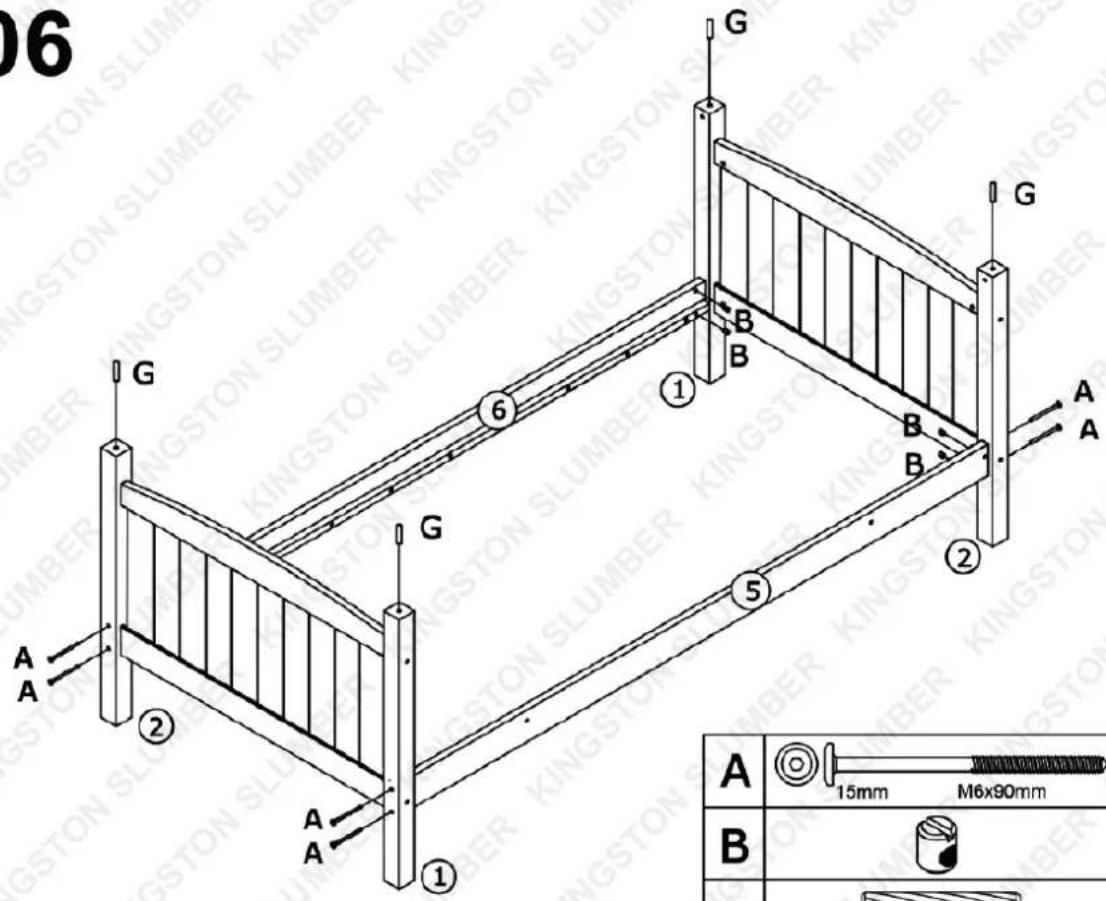

06 G G G G ① B B B ② A A A ② G G KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SULBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER LMS A 15mm M6x90mm B

A		08
B		08
G		04

07

07 A A A A A 15 10 10 M 8 M M M 15 9 9 7 4 A A B B B B B B 15mm M6x90mm A B

A		14
B		14
M		06

08

Isometric line drawing of a two-tiered wooden bench structure (no text or symbols)

09

16 17 18 18 18 E E E E E KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON S LUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUM BER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G STON SLUMBER KIN G ST ON SL U M B E R T A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A N D A IN

E

10mm∅7x60mm

12

10

D D D D KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER KING STIN MULBER LUTTER BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BHAAR BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BAER BA/BAE

D

06

11

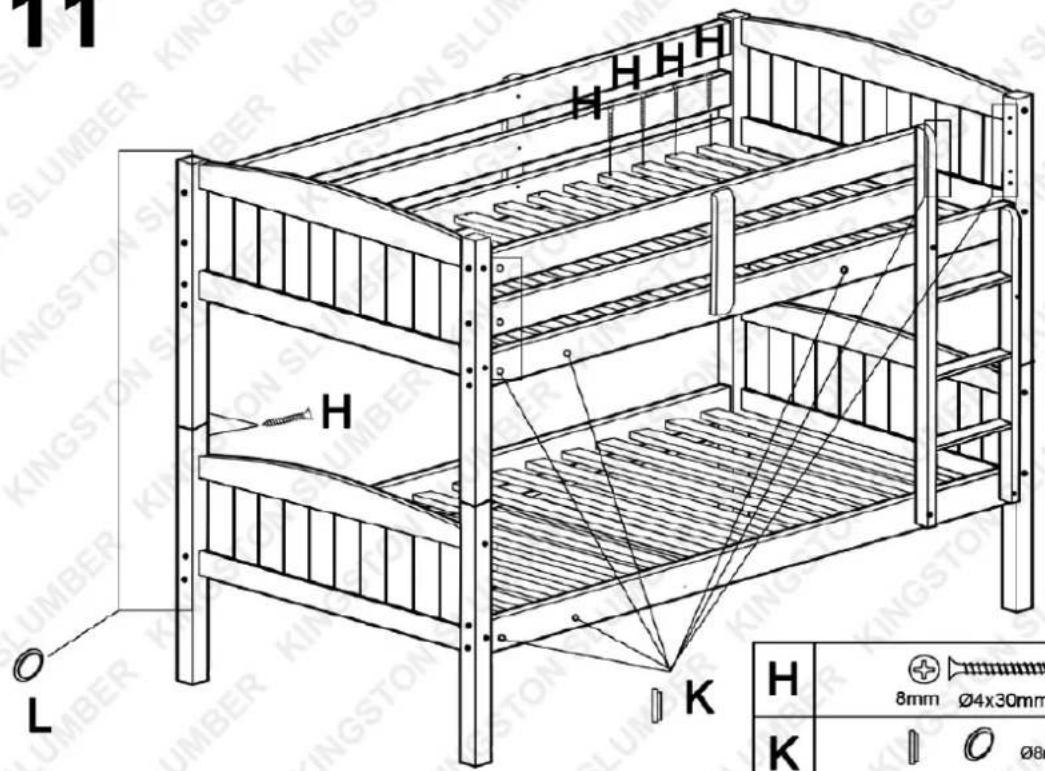

HHHH H K L 8mm Ø4x30mm K 10 Ø8

H	8mm∅4x30mm	64
K	∅8mm	15
L	∅15mm	40

12 RACK PARTS LIST

Diagram showing four labeled 3D rectangular blocks with numbered faces, likely illustrating a structural or mechanical assembly.

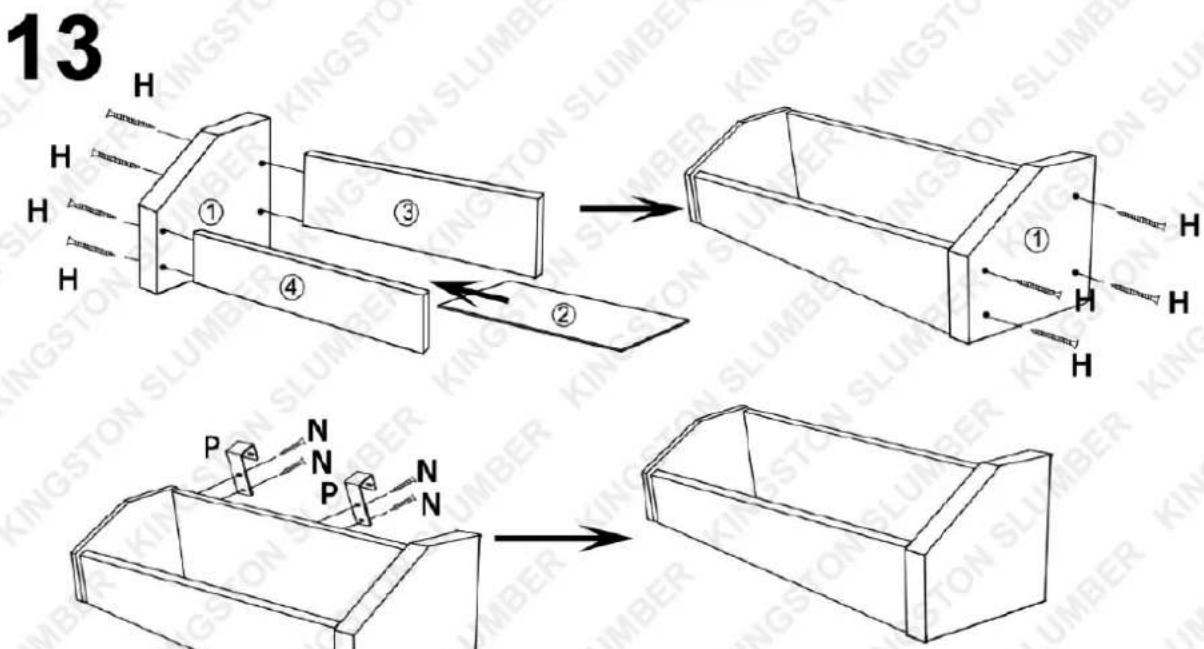

13 H ① ③ ② ④ P N N P N H H H H KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KINGSTON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SULBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER KING STON SLUMBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUNTER MULBER LUN TUR B U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U VUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUTBUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUT BUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBCUHTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBUTBOUTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHT BCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUHTBCUCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCU HTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHTCUUHACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU HACCCCU GAT CC C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C

H		08
N		06
P		02

Specifications

Colour	White
Material	Solid Pine
Compatible Mattress Size	Single (188 x 92cm)
Maximum Mattress Height	20cm
Max. Weight Capacity	65kg on top and 65kg at the bottom
Maximum Top Bunk Mattress Height	10cm
Maximum Bottom Bunk Mattress Height	20cm
