GSR-TY51 - Unspecified VAIS Technology - Free user manual and instructions

Product Type	Interface Adapter for Toyota/Scion head units to control SiriusXM tuner
Compatible Vehicles	Select Toyota and Scion models (refer to application guide)
Required Accessories	SiriusXM Connect Vehicle Tuner (e.g., SXV300) and active subscription (sold separately)
Power Supply	12V DC from vehicle electrical system
Dimensions (approx.)	1.5 x 3.0 x 0.8 inches (38 x 76 x 20 mm)
Weight (approx.)	0.15 lbs (68 g)
Main Functions	Channel tuning (knob & seek), preset management, browse by category, system information display
Display Features	Channel number, preset list, category browsing, signal quality, Radio ID, software version
SiriusXM Features	Over 140 channels, commercial-free music, sports, news, talk, comedy; subscription required
Safety Warnings	Do not disassemble; avoid blocking airbags; disconnect battery before installation; do not splice cables
Installation Requirements	Professional installation recommended; disconnect negative battery terminal, wait 90 seconds
Firmware Update	Check product page for available updates (Gen 2)
Maintenance & Care	Keep dry; clean with soft dry cloth; avoid moisture and dust
Spare Parts / Repairability	Not specified; contact dealer or VAIS Technology for support
Warranty	Downloadable from product page; paper copy available upon request
Regulatory Compliance	Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Frequently Asked Questions - GSR-TY51 VAIS Technology

What vehicles is the GSR-TY51 compatible with?

The GSR-TY51 is compatible with select Toyota and Scion models. Refer to the application guide on the VAIS Technology website for a detailed list.

What is needed to use the GSR-TY51?

You need a SiriusXM Connect Vehicle Tuner (e.g., SXV300) and an active SiriusXM subscription. Both are sold separately.

How do I activate my SiriusXM subscription?

Tune to channel 0 to find the Radio ID. Then visit www.siriusxm.com/activatenow or call 1-866-635-2349 (USA). For Canada, visit www.siriusxm.ca/activatexm or call 1-877-438-9677. Activation may take 10-15 minutes.

What should I do if the display shows 'Check Tuner'?

Check the connection between the GSR-TY51 and the SXV300 tuner. If the message persists, the tuner may be defective. Replace the SXV300 Vehicle Connect Tuner.

How can I improve signal reception?

Ensure the SiriusXM antenna has a clear view of the sky (no obstructions). Check the antenna connection to the tuner. If the message 'Check Antenna' appears, the antenna may be defective.

Can I update the firmware on the GSR-TY51?

Yes, check the product page at https://www.vaistech.com/product/gsr-ty51-w-tuner-kit/ for available Gen 2 firmware updates.

What does 'SUBSCR UPDATE...' mean?

This message indicates that SiriusXM is updating your channel subscription. Wait up to 15-20 seconds for the update to complete. Once done, tune to any channel to dismiss the message.

How do I save a preset on the GSR-TY51?

While on a desired channel, press and hold a preset button or use the 'Save Current Channel as Preset' option in the presets menu. Presets can be managed via the Artists > Presets menu.

Is professional installation recommended?

Yes, due to the complexity and safety considerations (airbags, battery disconnect), professional installation is recommended. Always disconnect the negative battery terminal and wait 90 seconds before starting.

Where can I find the warranty information?

The warranty is available for download at https://www.vaistech.com/download/15244/. You can also request a paper copy by contacting VAIS Technology at 720-733-2348 or [e-mail].

USER MANUAL GSR-TY51 VAIS Technology

(SiriusXM Connect Tuner and Subscription are required. Sold separately.)

TOYOTA

Interface Adapter

GSR-TY51-MAN

Compatible with select Toyota models. Refer to GSR-TY51 application guide for details.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Before You Start	3
Installation	5
SiriusXM Source Selection	7
User Interface - Channels, Presets, Categories	9
Troubleshooting	11
Warranty	11

WARNING

DO NOT DISASSEMBLE OR ALTER

Doing so may result in an accident, fire or electric shock

Do not block the airbag

Do not mount product or any added audio and/or video equipment where it can obstruct the operation of any safety devices such as the airbag.

Distraction Warning

Do not let product or any added audio and/or video equipment distract you while you are driving.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL

Before starting any installation work, you must wait 90 seconds after turning the ignition switch to the LOCK position and disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped with a backup power source. If installation work is started less 90 seconds after disconnection of the negative (-) battery terminal, the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery the clock and audio systems memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings. When installation is complete, reset the clock and audio systems to their previous settings. Power tilt, power telescopic steering column, front power seats, power mirrors, and power shoulder belt anchorage are equipped with a memory function. The rear power seat is not equipped with a memory function. e and they can make a record of the memory contents, rear power seat is not equipped with the memory function. When installation is complete, it is necessary to readjust the features to their previous settings Never use a backup power supply (such as another battery) during installation work to avoid losing these memory settings.

CAUTION

DO NOT SPLICE INTO ELECTRICAL CABLES

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS

Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be extremely hazardous.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST

Moisture or dust may result in product failure.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS

The wiring and installation of this product requires special technical skills and experience.

USE ONLY SPECIFIED ACCESSORY PARTS

Use of other than specified parts may damage product internally.

Follow the operational and installation manuals.

YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING INSTALLED. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE VEHICLE, WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY.

Check your local laws

Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation of a video screen within the sight of the Driver. If you have purchased such a product, you should use the product only in locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to passengers.

TROUBLESHOOTING

Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at [e-mail].

IMPORTANT

This unit is an interface adapter for Toyota/Scion head unit to control the SiriusXM Tuner SXV300 (SOLD SEPARATELY).

About SiriusXM Satellite Radio Operation

The unit may refuse to change the channel if your reception is going ON and OFF.

Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily.

Due to bad reception in some areas, SiriusXM Satellite Radio may not work and/or not able to display text.

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial--free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as by looking on the label found on the SiriusXM Connect tuner and its packaging.

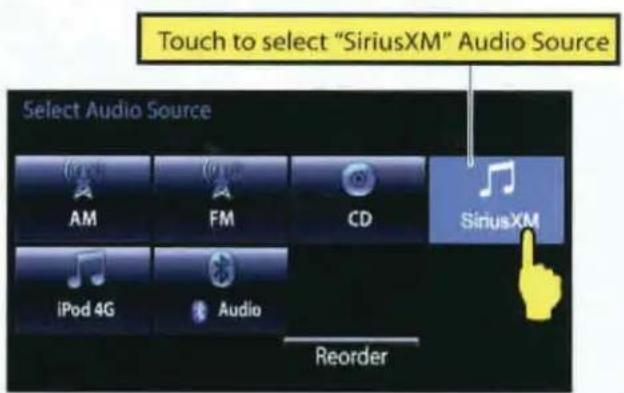

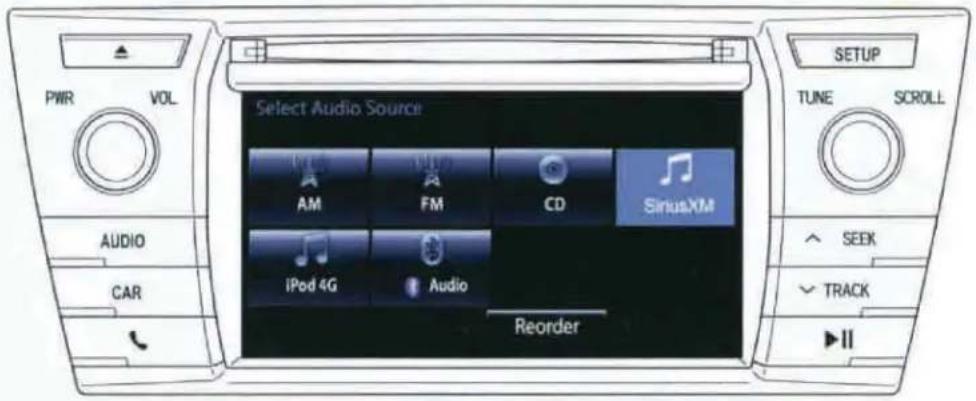

After installing your SiriusXM Connect Vehicle Tuner and antenna, power on your radio and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM Connect tuner is properly installed.

After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner. In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference.

Note: the SiriusXM Radio ID does not include the letters I, O, S or F.

In the USA, you can activate online or by calling SiriusXM Listener care:

• Visit www.siriusxm.com/activatenow
  • Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

• Visit www.siriusxm.ca/activatexm
  • Call XM customer Care at 1-877-438-9677

As part of the activation process, the SiriusXM satellites will send an activation message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display: "SUBSCR UPDATE..." "< please wait >". Once subscribed, you can tune to channels in your subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the activation message.

Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

What's Included

GSR Connectors and Ports

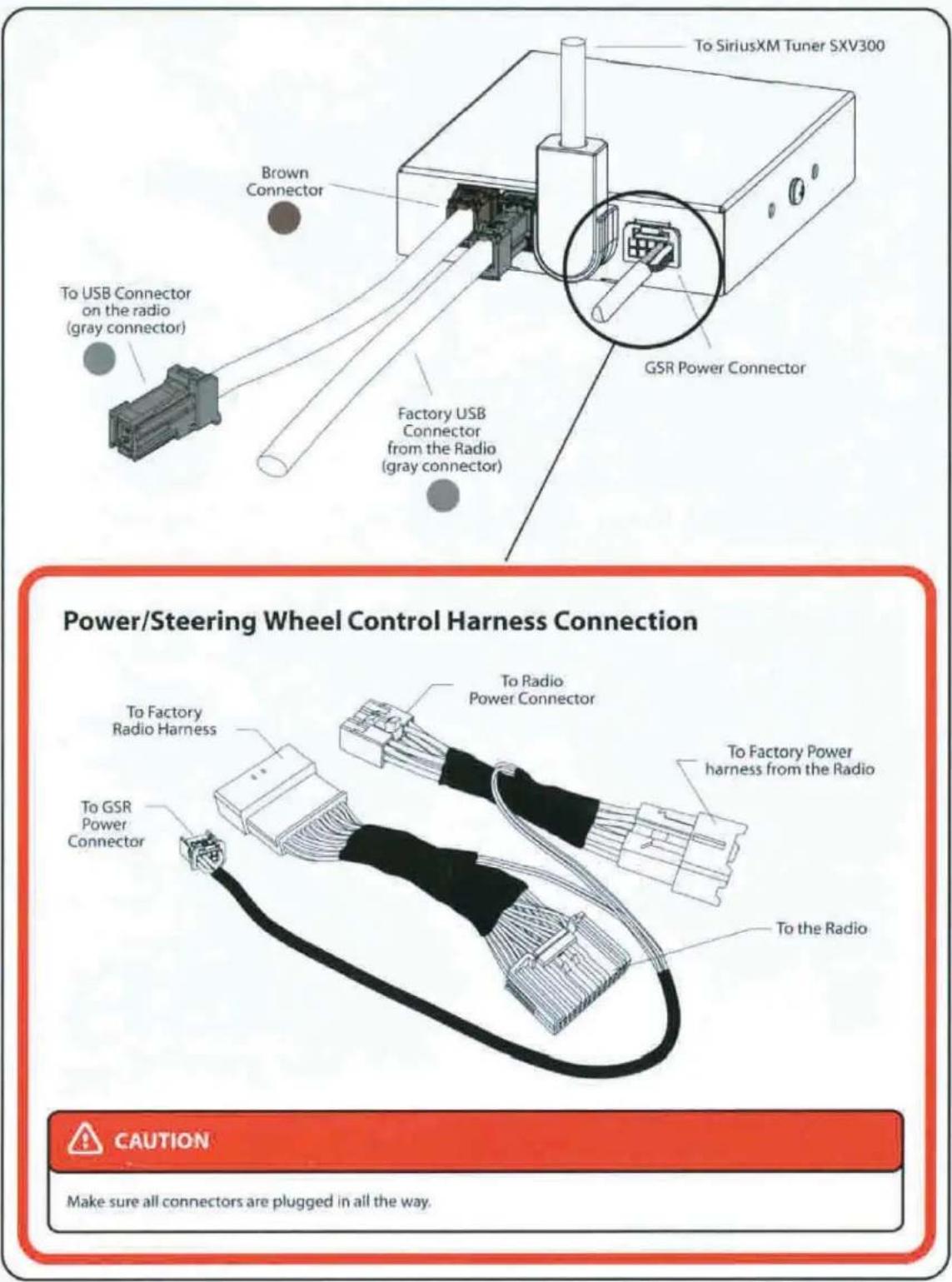

Connecting GSR

About GSR (Gen 2) firmware update

Check GSR-TY51 product page to see if update is available: https://www.vaistech.com/product/gsr-ty51-w-tuner-kit/

A

B

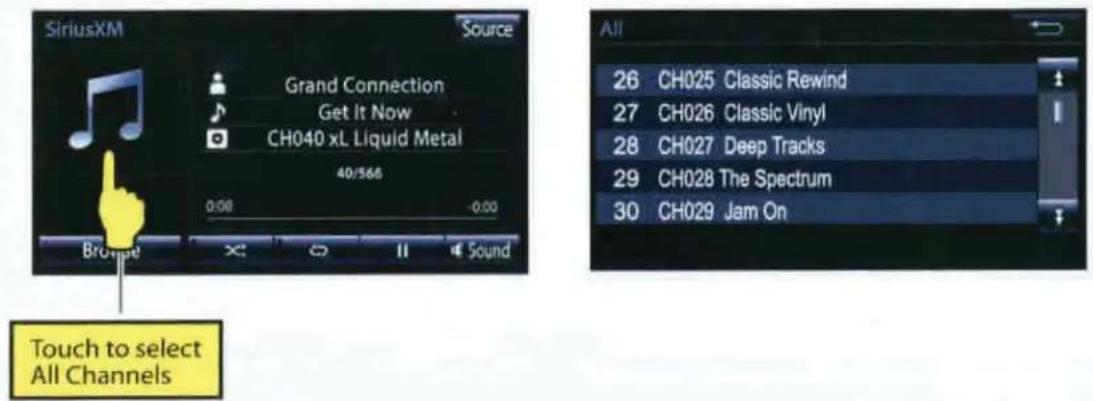

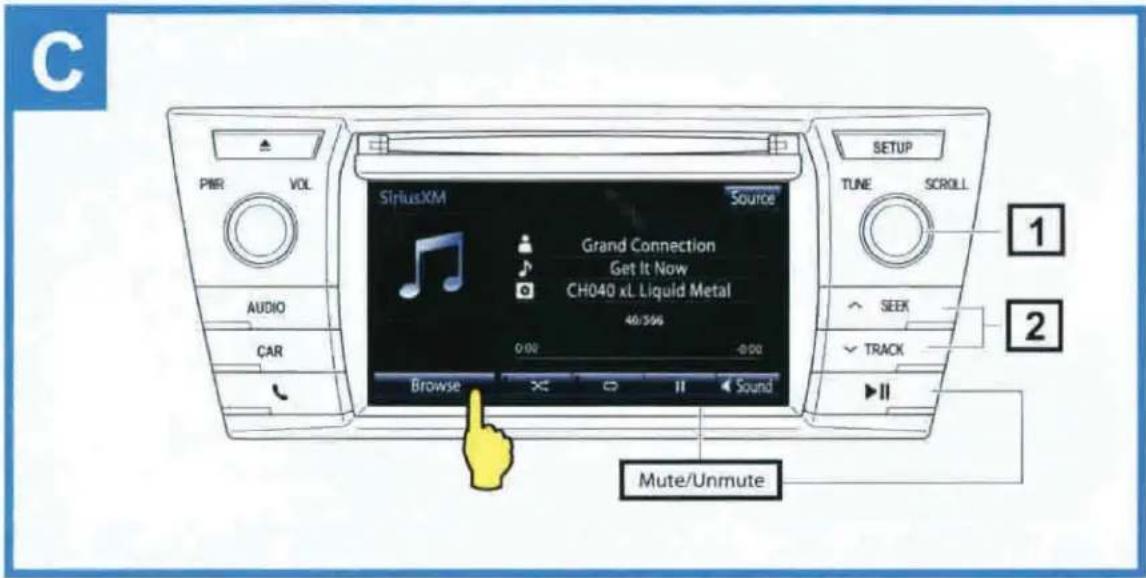

1 Tuning Knob - switch to next available channel, depending on direction of rotation. (Tuning knob may not be available while radio is loading channel list.)
2 "Track Seek+" and "Track Seek-" switch to next available channel. Long Touch on "Track Seek+" and "Track Seek-" switch to next available Preset.


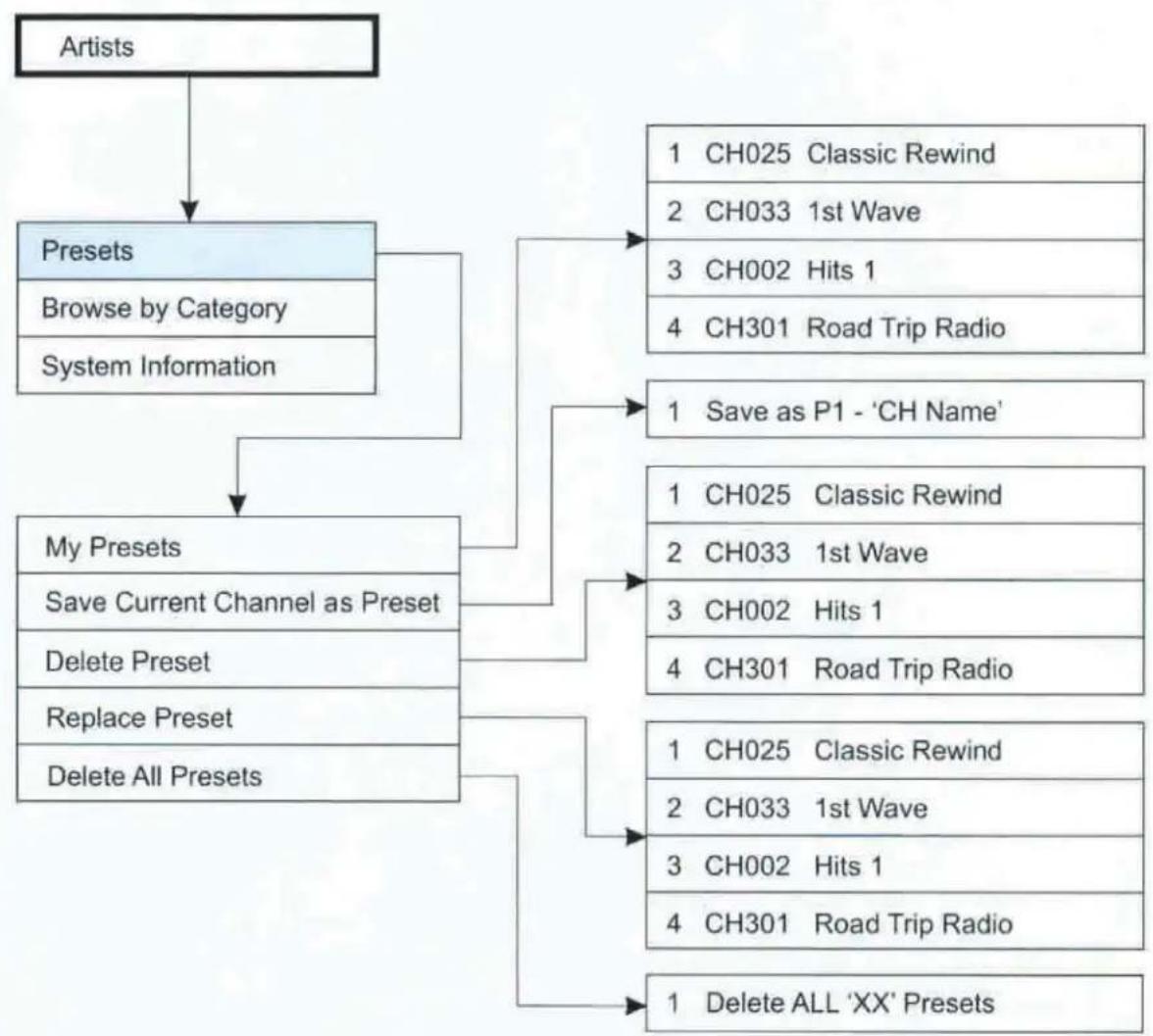

    A["Artists"] --> B["Presets"]
    B --> C["My Presets"]
    C --> D["Save Current Channel as Preset"]
    C --> E["Delete Preset"]
    C --> F["Replace Preset"]
    C --> G["Delete All Presets"]
    B --> H["1 CH025 Classic Rewind"]
    B --> I["2 CH033 1st Wave"]
    B --> J["3 CH002 Hits 1"]
    B --> K["4 CH301 Road Trip Radio"]
    H --> L["1 Save as P1 - 'CH Name'"]
    I --> M["1 CH025 Classic Rewind"]
    I --> N["2 CH033 1st Wave"]
    I --> O["3 CH002 Hits 1"]
    I --> P["4 CH301 Road Trip Radio"]
    L --> Q["1 CH025 Classic Rewind"]
    L --> R["2 CH033 1st Wave"]
    L --> S["3 CH002 Hits 1"]
    L --> T["4 CH301 Road Trip Radio"]
    Q --> U["1 Delete ALL 'XX' Presets"]
    R --> U
    S --> U
    T --> U


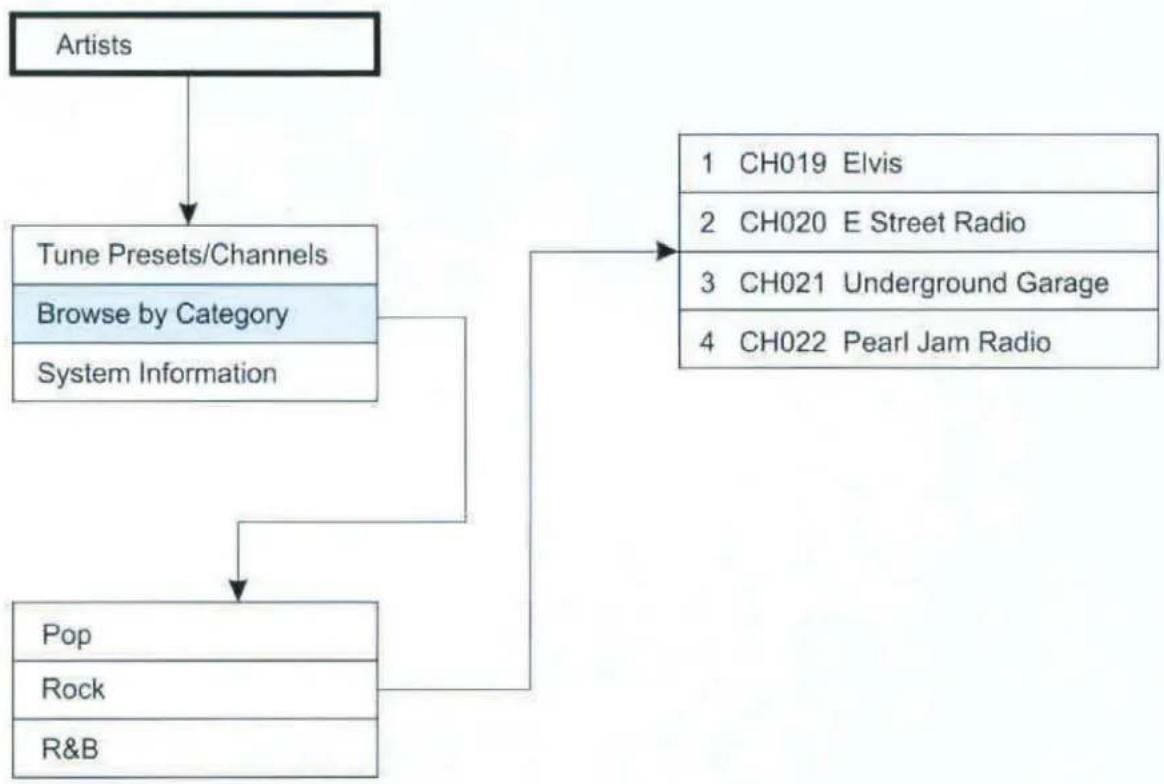

    A["Artists"] --> B["Tune Presets/Channels"]
    B --> C["Browse by Category"]
    C --> D["System Information"]
    D --> E["Pop"]
    D --> F["Rock"]
    D --> G["R&B"]
    B --> H["1 CH019 Elvis"]
    B --> I["2 CH020 E Street Radio"]
    B --> J["3 CH021 Underground Garage"]
    B --> K["4 CH022 Pearl Jam Radio"]
    H --> L["End"]
    I --> L
    J --> L
    K --> L

System Messages

System Message	Solution
"Data is being acquired from iPod. Please wait..."	If the Tuning Knob is turned too fast, you may briefly see this message while the channel list is loading.
"Loading" then after 30 seconds "Check Tuner"	Check the SXV300 Vehicle Connect Tuner connection to the Add On Adapter Module.If the message is displayed when the tuner is connected this indicates a defective tuner. Replace the SXV300 Vehicle Connect Tuner.
"Check Antenna"	Check the antenna connection to the SXV300 Vehicle Connect Tuner.If the message is displayed when the SiriusXM antenna is connected this indicates a defective SiriusXM antenna. Replace the antenna.
"No Signal"	Make sure the SiriusXM antenna has a clear view of sky.Check the antenna connection to the SXV300 Vehicle Connect Tuner.If the message is displayed when the SiriusXM antenna is connected this indicates a defective SiriusXM antenna. Replace the antenna.
"CHXXX UNAVAIL"	The channel you are tuned to has become unavailable. Tune to a different channel.
"UNSUB/UNAVAIL"	The preset channel that you have tuned to has become unavailable.Tune to a different channel.
"SUBSCR UPDATE..." "< please wait >"	SiriusXM is updating the channel subscription. This may take up to 15 to 20 seconds to complete. Once completed the messages, "SUBSCR UPDATED" and "< tune CH to close >" will be displayed. Tune to a channel to dismiss the message.

Warranty

Warranty is available for download: https://www.vaistech.com/download/15244/

To request a paper warranty copy please contact us:

VAIS Technology

Warranty Department

8811 American Way

Unit 125

Englewood, CO 80112

720-733-2348

[e-mail]

Abstract geometric logo with a stylized V shape and downward arrow (no text or symbols)

VAIS

TECHNOLOGY

GSR-TY51-MAN
