GSR-FC06 - Unspecified VAIS Technology - Free user manual and instructions

Product Type	SiriusXM Satellite Radio Interface Module
Compatible Tuner	SiriusXM SXV300 (required, not included)
Power Source	Vehicle OBD II port (12V constant power)
Power Harness	OBD II connector with constant battery and ground wires; optional hardwire
Connections	USB data port, Micro USB (firmware update), SiriusXM tuner interface, power connector
Antenna Requirement	SiriusXM vehicle antenna (included in GSR-Tuner Kit only)
Installation Location	Behind dashboard, secure with panels; antenna on roof exterior
Audio Source Selection	SiriusXM appears as audio source (SXM, iPod, or USB) on factory radio
Channel Browsing	Via Browse/List/Menu: All Channels, Categories, Artists, Presets
Presets	Add, tune, delete individual presets or delete all presets
System Information	Display SiriusXM Radio ID and Firmware version
Troubleshooting	Presets lost (check constant power), no source (check USB/power), antenna error, no signal, check tuner
Safety Warnings	Do not disassemble; avoid blocking airbags; disconnect battery before installation; wait 90 seconds after ignition off
Installation Precautions	Do not splice cables; avoid moisture/dust; use only specified parts; have experts install
Dimensions (approx.)	Compact module (typical size 3 x 2 x 1 inches)
Weight (approx.)	~0.2 lbs (90 g)
Warranty	Available for download; paper copy by request to VAIS Technology
Customer Support	Email: [e-mail]; Phone: [phone]
Firmware Update	Via Micro USB connector
Compliance	Check local laws regarding video screens; use only where legal

Frequently Asked Questions - GSR-FC06 VAIS Technology

Why do my presets disappear after turning off the car?

This likely means the GSR is connected to an accessory power source instead of constant 12V power. The GSR requires constant battery power to retain presets. Verify the power harness connection and ensure the yellow wires are connected to constant battery power, not accessory power.

SiriusXM does not appear as an audio source on my factory radio. What should I do?

First, check the power connection by verifying the LEDs on the GSR module are lit. Then inspect the USB connection between the GSR and the vehicle's USB port. Ensure the USB cable is fully inserted and the factory USB port is data-capable.

What does the 'Check Antenna' message mean?

This indicates that the SiriusXM antenna connection to the tuner is loose or faulty. Verify the antenna cable is securely connected to the SXV300 tuner. Also ensure the antenna is properly mounted with a clear view of the sky.

How do I fix a 'No Signal' message?

Make sure the SiriusXM antenna has an unobstructed view of the southern sky. Remove any obstacles like metal objects, and ensure the antenna is mounted on the highest point of the vehicle roof, outside the vehicle.

What should I do if I see a 'Check Tuner' message?

Verify the tuner connection to the GSR module. Disconnect and reconnect the tuner cable. If the issue persists, the tuner may need replacement. Ensure the SXV300 tuner is compatible and properly seated.

Can I install the GSR myself?

Installation requires special technical skills and experience. It is recommended to have a professional installer perform the wiring and installation. Incorrect installation can damage the product and vehicle, and void warranties.

How do I update the firmware on the GSR-FC06?

Use the Micro USB connector on the GSR module. Connect it to a computer and use VAIS Technology's firmware update tool (available on their website). Ensure the module is powered during the update.

What is the purpose of the OBD II connector?

The OBD II connector provides a convenient constant 12V power source for the GSR. It plugs directly into the vehicle's OBD II port, usually located under the dashboard. This ensures the GSR retains presets and settings even when the car is off.

Why can't I change channels on SiriusXM?

The unit may refuse to change channels if satellite reception is intermittent. Wait for a stable signal before attempting to change channels. Poor reception in tunnels or garages can cause this. Move the vehicle to an open area.

How do I add a SiriusXM channel to my presets?

Select Browse or List or Menu on your factory radio, then select Artists. Choose Tune Presets/Channels, then select Add Current Channel as Preset. Choose the desired channel to save. To tune a preset, long-press Track Seek to skip presets.

USER MANUAL GSR-FC06 VAIS Technology

(SXV300 SiriusXM Tuner required)

GSR-PK01-MAN

UNIVERSAL

What's Included

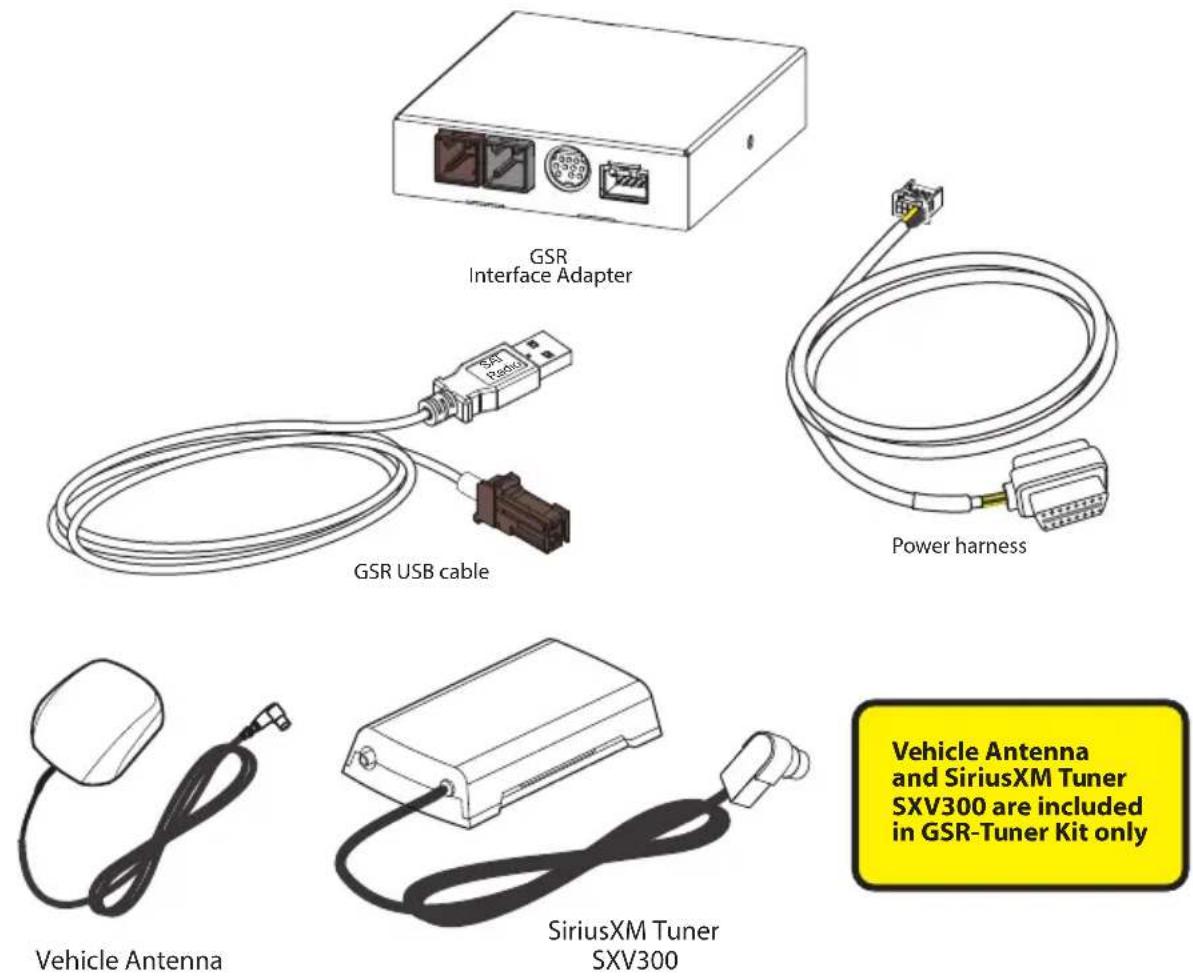

Vehicle Antenna and SiriusXM Tuner SXV300 are included in GSR-Tuner Kit only

GSR Connectors and Ports

Brown USB interface connector
Not Used
Interface connector for SiriusXM SXV300 Tuner
Power connector

(Generation 2)

Micro USB connector (used for firmware update)

Connecting GSR

Connect OBD II Connector

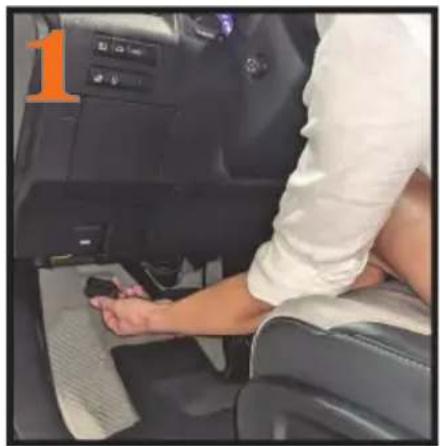

Connect the ODB II connector to the OBD II connection in the vehicle for power

Connect GSR to Factory USB Port

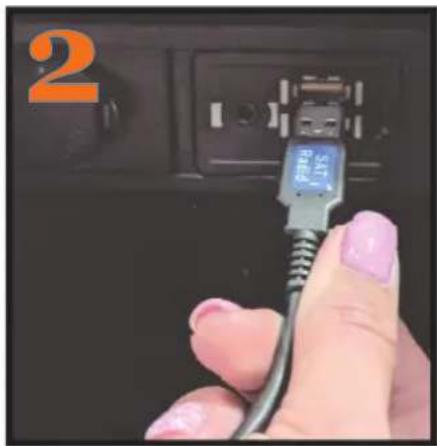

Our adapter plugs into the factory USB data port to feed SiriusXM data into the factory radio

Install Antenna on the Roof

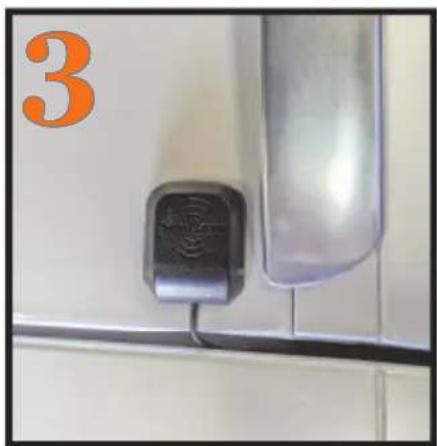

For the best Satellite Radio reception, install antenna on the highest point of the vehicle, and must be mounted outside the vehicle

Mount Everything Behind the Panels

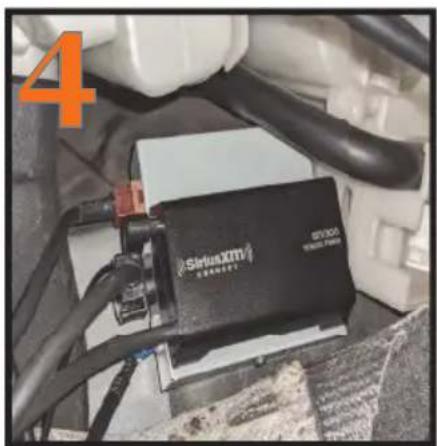

Mount the GSR and the SiriusXM Vehicle Tuner behind the dash and secure in place

Optional: Connecting GSR Power Without OBD II Connector

Always use the OBD II connection for power when possible. If you cannot use the ODB II connection, here is an optional method for connecting the GSR Power Harness.

Cut off the OBD II Connector

ALL WIRES IN THE POWER HARNESS MUST BE CONNECTED

Yellow Wires CONSTANT BATTERY POWER +12V connect BOTH to constant battery power

DO NOT CONNECT TO ACCESSORY POWER

Black Wires

connect BOTH to car chassis ground

General Information

● Illustrations in this Owners Manual are for reference only. Your radio and the screens displayed will vary by car manufacturer and radio.

- Some functions of your radio may not be available while the vehicle is in motion. When present, steering wheel controls are always available.

● ● For questions about your SiriusXM subscription contact SiriusXM at 1-866-635-2349.

Select SiriusXM as the Audio Source

A

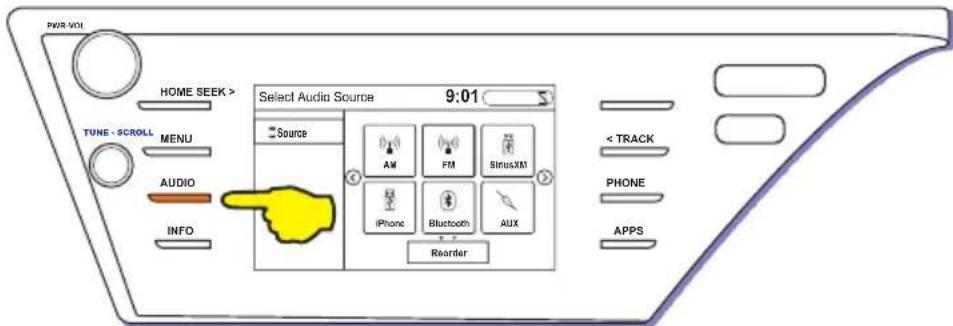

Select Audio or Media or Source:

B

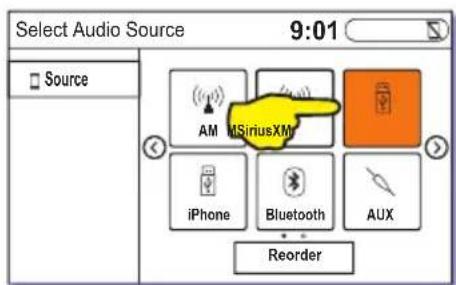

Select SiriusXM or SXM or iPod or USB:

Browse and Select SiriusXM Channels

To browse a list of the SiriusXM channels and select a channel to listen to, follow steps A through D.

(Select Browse or List or Menu and then select Artists)

B Select Artists:

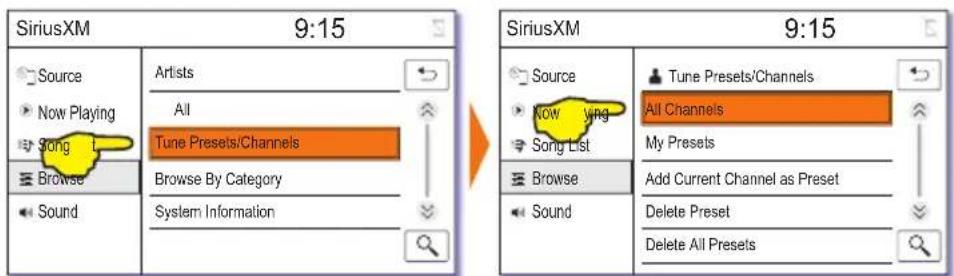

C Select Tune Presets/Channels, select All Channels, and select a channel:

Use Track Seek or Tune to tune previous/next channel:

Presets

Add a Preset

Select Browse or List or Menu:

OROR

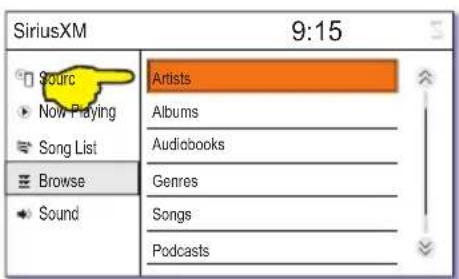

Select Artists:

Select Tune Presets/Channels:

Select Add Current Channel as Preset, and select the channel:

Tune a Preset

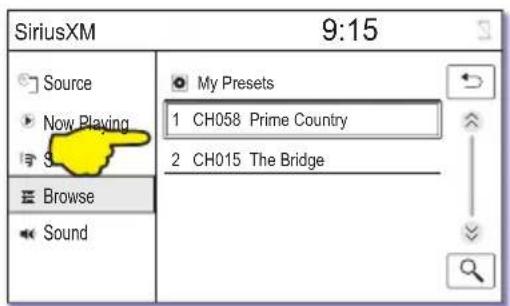

To select a specific Preset:

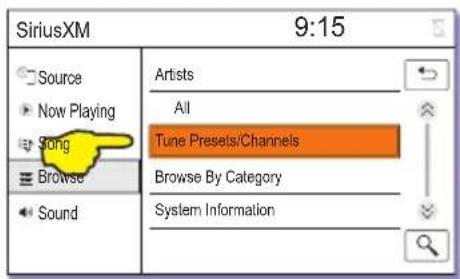

Select Tune Presets/Channels, and select My Presets:

Select a preset:

To quickly tune the previous or next Preset:

Long press Track Seek to tune previous/next preset:

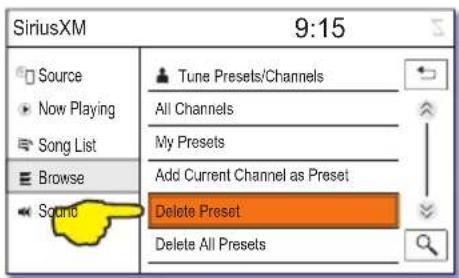

Delete a Preset

Select Delete Preset, and select the preset to be deleted:

Delete All Presets

Select Delete All Presets, and select Delete All [x] Presets:

Browse SiriusXM Categories

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

Select Browse By Category and select a category:

System Information

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

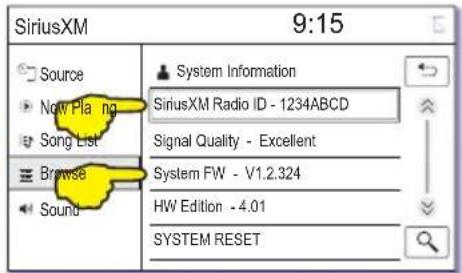

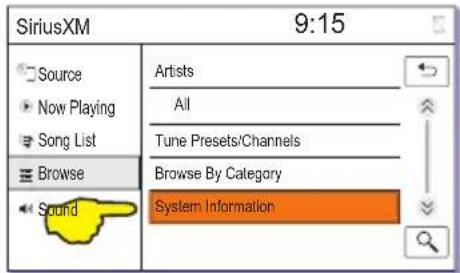

Select System Information to show the SiriusXM Radio ID and the System FW (Firmware):

Troubleshooting

Problem Solution
My presets are gone after I turn the car off	GSR requires constant 12V power connection. If the GSR doesn’t keep presets after the car is turned off, this means GSR was connected to Accessory power source
SiriusXM doesn’t appear as the source	Verify the power connection by checking the power harness connection or by verifying the lights at LEDs on the GSR moduleVerify the USB connection between the GSR and vehicle’s USB port
Check Antenna message	Verify the antenna connection to the tuner
No Signal message Make	sure the SiriusXM antenna has a clear view of the southern sky
Check Tuner message Ver	ify the tuner connection to the GSR module or replace the tuner

WARNING

DO NOT DISASSEMBLE OR ALTER

Doing so may result in an accident, fire or electric shock

Do not block the airbag

Do not mount product or any added audio and/or video equipment where it can obstruct the operation of any safety devices such as the airbag.

Distraction warning

Do not let product or any added audio and/or video equipment distract you while you are driving.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL

Before starting any installation work, you must wait 90 seconds after turning the ignition switch to the LOCK position and disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped with a backup power source. If installation work is started less 90 seconds after disconnection of the negative (-) battery terminal, the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery the clock and audio systems memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings. When installation is complete, reset the clock and audio systems to their previous settings. Check power tilt, power telescopic steering column, front power seats, power mirrors, and power shoulder belt anchorage are equipped with a memory function. When installation is complete, it is necessary to readjust the features to their previous settings Never use a backup power supply (such as another battery) during installation work to avoid losing these memory settings.

CAUTION

DO NOT SPLICE INTO ELECTRICAL CABLES

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS

Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be extremely hazardous.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST

Moisture or dust may result in product failure.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS

The wiring and installation of this product requires special technical skills and experience.

USE ONLY SPECIFIED ACCESSORY PARTS

Use of other than specified parts may damage product internally.

FOLLOW THE OPERATIONAL AND INSTALLATION MANUALS.

YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING INSTALLED. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE VEHICLE, WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY

CHECK YOUR LOCAL LAWS

Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation of a video screen within the sight of the Driver. If you have purchased such a product, you should use the product only in locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to passengers.

TROUBLESHOOTING

Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at [e-mail].

About SiriusXM Satellite Radio Operation

The unit may refuse to change the channel if your reception is going ON and OFF.

Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily. Due to bad reception in some areas, SiriusXM Satellite Radio may not work and/or not able to display text.

Warranty is available for download: https://www.vaistech.com/download/15244/

To request a paper warranty copy please contact us:

VAIS Technology

Warranty Department

8811 American Way

Unit 125

Englewood, CO 80112

720-733-2348

[e-mail]
