Product Type	Vehicle Satellite Radio Interface
Brand	VAIS Technology
Model	GSR-FC05
Compatibility	Works with factory USB data port; requires SiriusXM SXV300 tuner
Power Source	OBD II connector (12V constant battery power)
Primary Function	Integrates SiriusXM satellite radio into factory audio system
Preset Management	Add, tune, delete presets; delete all presets
Channel Browsing	Browse by category, all channels, favorites
Diagnostic Information	Displays SiriusXM Radio ID and system firmware version
Firmware Update	Via micro USB connector
LED Indicators	On GSR module for power and connectivity status (not detailed in manual)
Antenna Requirement	Vehicle antenna (included in GSR-Tuner Kit); must have clear view of southern sky
Installation Location	Mount behind dashboard; secure all components
Safety Precautions	Do not disassemble; avoid blocking airbag; disconnect battery negative terminal before installation; wait 90 seconds after ignition off
Wiring Warning	Do not splice into electrical cables; use only specified parts
Operating Environment	Avoid high moisture and dust
Supported Features	Steering wheel controls always available; some radio functions may be disabled while driving
Warranty	Downloadable from website; paper copy available upon request
Customer Support	Email [e-mail] or phone [phone]

Frequently Asked Questions - GSR-FC05 VAIS Technology

What is the GSR-FC05 used for?

The GSR-FC05 is a universal interface that integrates a SiriusXM SXV300 tuner into your vehicle's factory radio, allowing you to control SiriusXM via the factory audio controls.

What components are included with the GSR-FC05?

The package includes the GSR interface module, an OBD II power harness, and a USB adapter. The SiriusXM SXV300 tuner and vehicle antenna are sold separately or included in the GSR-Tuner Kit.

How do I power the GSR-FC05?

The primary power source is the OBD II connector, which provides constant 12V battery power. If OBD II is unavailable, you can cut off the connector and wire the yellow wires to constant battery power and black wires to chassis ground.

Why are my SiriusXM presets disappearing after turning off the car?

This indicates the GSR is connected to an accessory power source instead of constant battery. Ensure the yellow wires receive constant 12V power (e.g., OBD II connector provides constant power).

SiriusXM does not appear as an audio source in my car. What should I check?

Verify the power connection (check LED lights on the GSR module) and the USB connection between the GSR and your vehicle's USB port. Also ensure the SiriusXM tuner is properly connected.

I see "Check Antenna" or "No Signal" messages. What should I do?

For "Check Antenna", verify the antenna cable is securely connected to the SiriusXM tuner. For "No Signal", ensure the antenna has a clear view of the southern sky and is mounted outside the vehicle.

Can I update the firmware on my GSR-FC05?

Yes, the GSR-FC05 has a micro USB connector used for firmware updates. Refer to the manufacturer's website for update files and instructions.

Is professional installation required?

While the manual provides detailed instructions, it is recommended to have wiring and installation done by experts due to the complexity and safety considerations (e.g., airbag deployment).

What safety precautions should I take during installation?

Disconnect the negative battery terminal and wait 90 seconds after turning the ignition off before starting. Do not block the airbag, avoid splicing cables, and ensure all cables are secured to avoid entanglement.

How do I contact VAIS Technology for support or warranty?

You can email [e-mail] or call 720-733-2348. The warranty is available for download at https://www.vaistech.com/download/15244/, or request a paper copy by mail.

USER MANUAL GSR-FC05 VAIS Technology

(SXV300 SiriusXM Tuner required)

GSR-PK01-MAN

UNIVERSAL

What's Included

Vehicle Antenna and SiriusXM Tuner SXV300 are included in GSR-Tuner Kit only

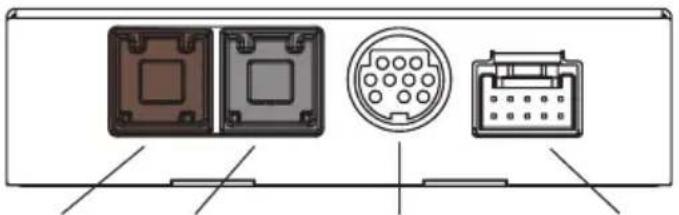

GSR Connectors and Ports

Brown USB interface connector
Not Used
Interface connector for SiriusXM SXV300 Tuner
Power connector

(Generation 2)

Micro USB connector (used for firmware update)

Connecting GSR

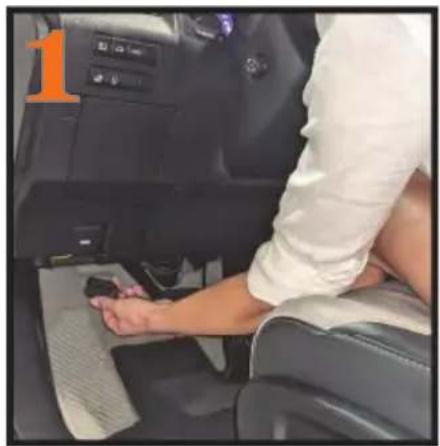

Connect OBD II Connector

Connect the ODB II connector to the OBD II connection in the vehicle for power

Connect GSR to Factory USB Port

Our adapter plugs into the factory USB data port to feed SiriusXM data into the factory radio

Install Antenna on the Roof

For the best Satellite Radio reception, install antenna on the highest point of the vehicle, and must be mounted outside the vehicle

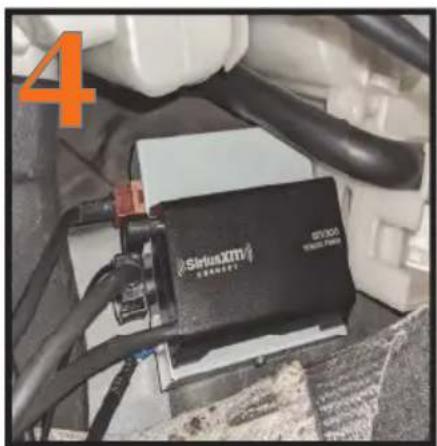

Mount Everything Behind the Panels

Mount the GSR and the SiriusXM Vehicle Tuner behind the dash and secure in place

Optional: Connecting GSR Power Without OBD II Connector

Always use the OBD II connection for power when possible. If you cannot use the ODB II connection, here is an optional method for connecting the GSR Power Harness.

Cut off the OBD II Connector

ALL WIRES IN THE POWER HARNESS MUST BE CONNECTED

Yellow Wires CONSTANT BATTERY POWER +12V connect BOTH to constant battery power

DO NOT CONNECT TO ACCESSORY POWER

Black Wires

connect BOTH to car chassis ground

General Information

● Illustrations in this Owners Manual are for reference only. Your radio and the screens displayed will vary by car manufacturer and radio.

- Some functions of your radio may not be available while the vehicle is in motion. When present, steering wheel controls are always available.

● ● For questions about your SiriusXM subscription contact SiriusXM at 1-866-635-2349.

Select SiriusXM as the Audio Source

A

Select Audio or Media or Source:

B

Select SiriusXM or SXM or iPod or USB:

Browse and Select SiriusXM Channels

To browse a list of the SiriusXM channels and select a channel to listen to, follow steps A through D.

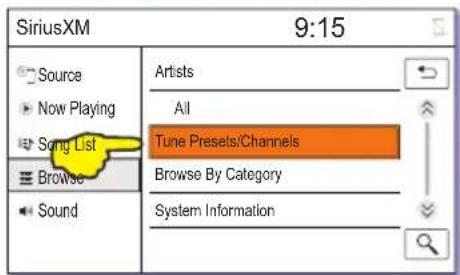

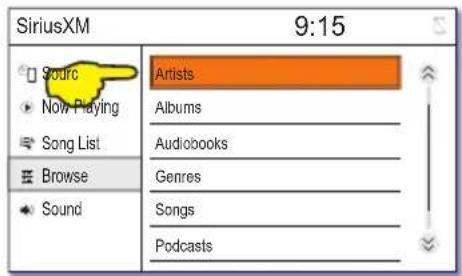

(Select Browse or List or Menu and then select Artists)

B Select Artists:

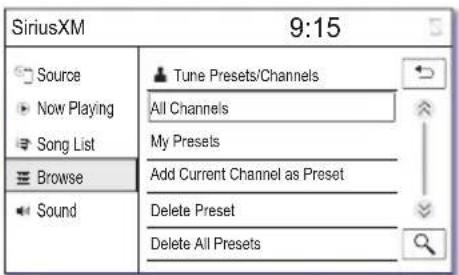

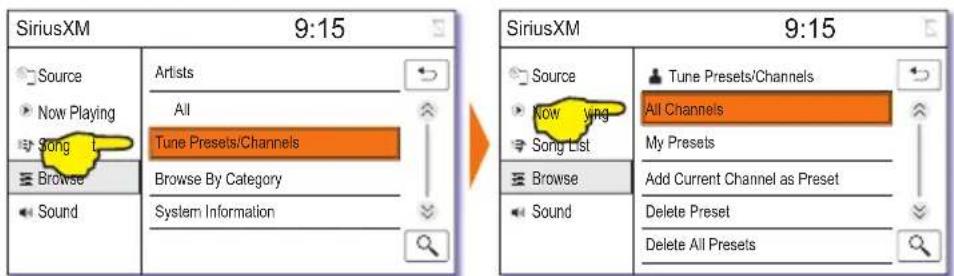

C Select Tune Presets/Channels, select All Channels, and select a channel:

Use Track Seek or Tune to tune previous/next channel:

Presets

Add a Preset

Select Browse or List or Menu:

OROR

Select Artists:

Select Tune Presets/Channels:

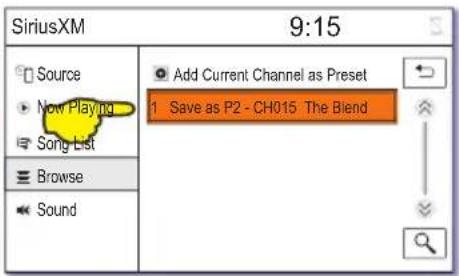

Select Add Current Channel as Preset, and select the channel:

Tune a Preset

To select a specific Preset:

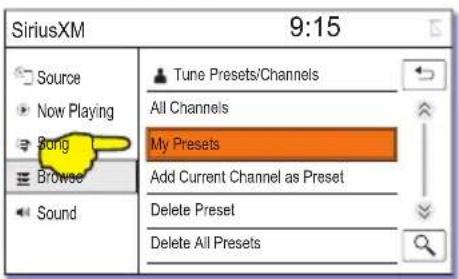

Select Tune Presets/Channels, and select My Presets:

Select a preset:

To quickly tune the previous or next Preset:

Long press Track Seek to tune previous/next preset:

Delete a Preset

Select Delete Preset, and select the preset to be deleted:

Delete All Presets

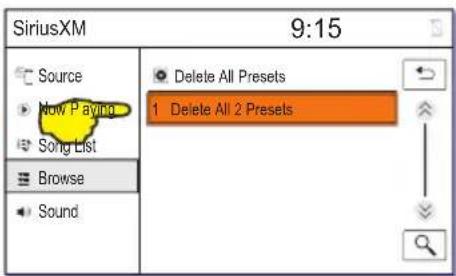

Select Delete All Presets, and select Delete All [x] Presets:

Browse SiriusXM Categories

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

Select Browse By Category and select a category:

System Information

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

Select System Information to show the SiriusXM Radio ID and the System FW (Firmware):

Troubleshooting

Problem Solution
My presets are gone after I turn the car off	GSR requires constant 12V power connection. If the GSR doesn’t keep presets after the car is turned off, this means GSR was connected to Accessory power source
SiriusXM doesn’t appear as the source	Verify the power connection by checking the power harness connection or by verifying the lights at LEDs on the GSR moduleVerify the USB connection between the GSR and vehicle’s USB port
Check Antenna message	Verify the antenna connection to the tuner
No Signal message Make	sure the SiriusXM antenna has a clear view of the southern sky
Check Tuner message Ver	ify the tuner connection to the GSR module or replace the tuner

WARNING

DO NOT DISASSEMBLE OR ALTER

Doing so may result in an accident, fire or electric shock

Do not block the airbag

Do not mount product or any added audio and/or video equipment where it can obstruct the operation of any safety devices such as the airbag.

Distraction warning

Do not let product or any added audio and/or video equipment distract you while you are driving.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL

Before starting any installation work, you must wait 90 seconds after turning the ignition switch to the LOCK position and disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped with a backup power source. If installation work is started less 90 seconds after disconnection of the negative (-) battery terminal, the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery the clock and audio systems memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings. When installation is complete, reset the clock and audio systems to their previous settings. Check power tilt, power telescopic steering column, front power seats, power mirrors, and power shoulder belt anchorage are equipped with a memory function. When installation is complete, it is necessary to readjust the features to their previous settings Never use a backup power supply (such as another battery) during installation work to avoid losing these memory settings.

CAUTION

DO NOT SPLICE INTO ELECTRICAL CABLES

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS

Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be extremely hazardous.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST

Moisture or dust may result in product failure.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS

The wiring and installation of this product requires special technical skills and experience.

USE ONLY SPECIFIED ACCESSORY PARTS

Use of other than specified parts may damage product internally.

FOLLOW THE OPERATIONAL AND INSTALLATION MANUALS.

YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING INSTALLED. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE VEHICLE, WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY

CHECK YOUR LOCAL LAWS

Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation of a video screen within the sight of the Driver. If you have purchased such a product, you should use the product only in locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to passengers.

TROUBLESHOOTING

Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at [e-mail].

About SiriusXM Satellite Radio Operation

The unit may refuse to change the channel if your reception is going ON and OFF. Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily. Due to bad reception in some areas, SiriusXM Satellite Radio may not work and/or not able to display text.

Warranty is available for download: https://www.vaistech.com/download/15244/

To request a paper warranty copy please contact us:

VAIS Technology

Warranty Department

8811 American Way

Unit 125

Englewood, CO 80112

720-733-2348
