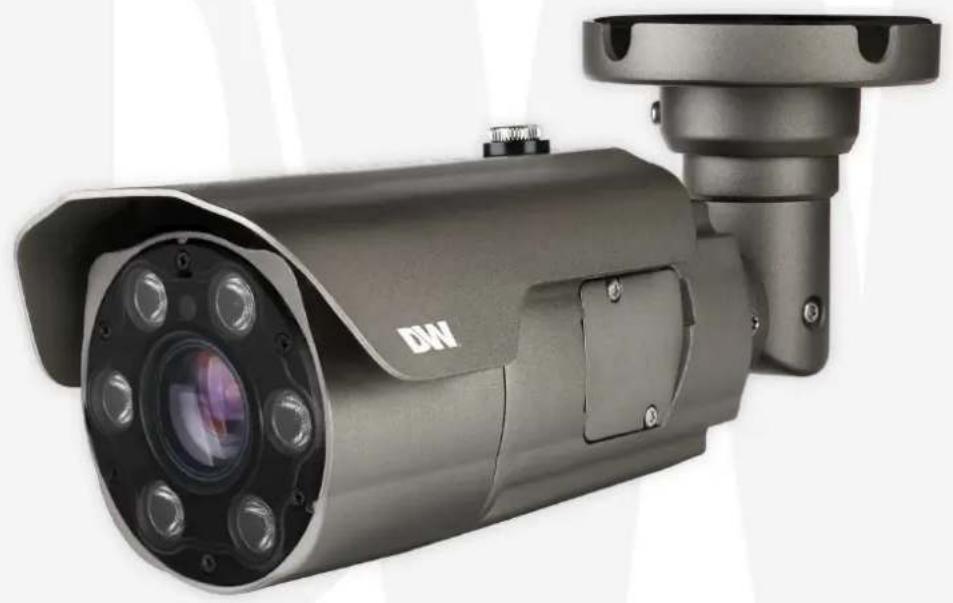

MEGApix® IVA™ 4K Bullet IP Camera

DWC-MB48WiAT - IVA license pre-loaded DWC-MPB48WiAT - IVA+ license pre-loaded

Exterior view of a modern security camera with visible lens and control panel (no text or symbols)

User's Manual Ver. 07/21

Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION :

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning

This symbol indicates that dangerous voltage consisting of a risk of electric shock is present within this unit.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing the battery may cause an explosion, fire, electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause excessive heat generation or fire.
4. Securely plug the power cord into the power receptacle. An insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal items, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way.
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.

Precaution

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Precaution

Operating

• Before using, make sure the power supply and all other parts are properly connected.
• While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and contact your dealer.

Handling

• Do not disassemble or tamper with parts inside the camera.
• Do not drop the camera or subject it to shock or vibration as this can damage the camera.
• Clean the clear dome cover with extra care. Scratches and dust can ruin the quality of the camera image.

Installation and Storage

• Do not install the camera in areas of extreme temperature, exceeding the allowed range.
• Avoid installing in humid or dusty environments.
• Avoid installing in places where radiation is present.
• Avoid installing in places where there are strong magnetic fields and electric signals.
• Avoid installing in places where the camera would be subject to strong vibrations.

• Never expose the camera to rain or water.

• Read these Instructions. - All these safety and operating instructions should be read before the product is installed or operated.

• Keep these Instructions. - The safety, operating and use instructions should be retained for future reference.

• Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

• Follow all instructions. - All operating and use instructions should be followed.

• Do not use this device near water. - For example: near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.

• Clean only with a dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

• Do not block any ventilation openings. Install following the manufacturer's instructions. - Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from overheating. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surfaces. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhered to.

• Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Disposal of Old Appliances

1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream per laws designated by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

FCC

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Table of Contents

Introduction

Product and Accessories....4

Parts Names....5

Installation

Moisture Absorber Installation....6

Factory Reset....6

Installation....7

Cabling....8

Managing the SD Card....10

Network Setup

DW IP Finder....11

Web Viewer

Login to the Camera....12

GUI Overview....13

Camera Settings

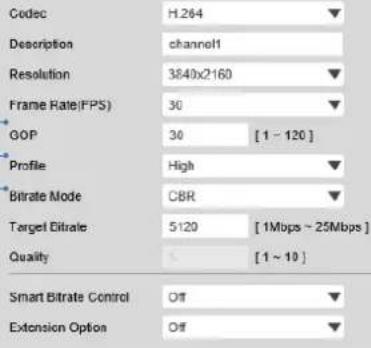

Settings > Video and Audio Setup....14

Settings > Camera Setup > Image Adjustment....21

Settings > Camera Setup > Exposure Settings....22

Settings > Camera Setup > Day and Night Settings....23

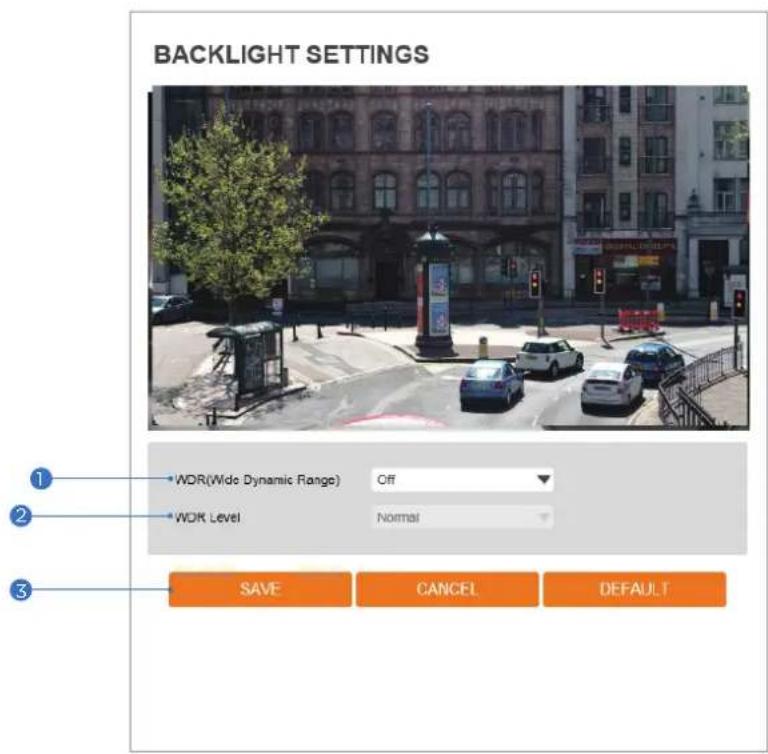

Settings > Camera Setup > Backlight Settings....24

Settings > Camera Setup > White Balance Settings....25

Settings > Camera Setup > Image Enhancement Settings....26

Settings > Camera Setup > Video Enhancement Settings....27

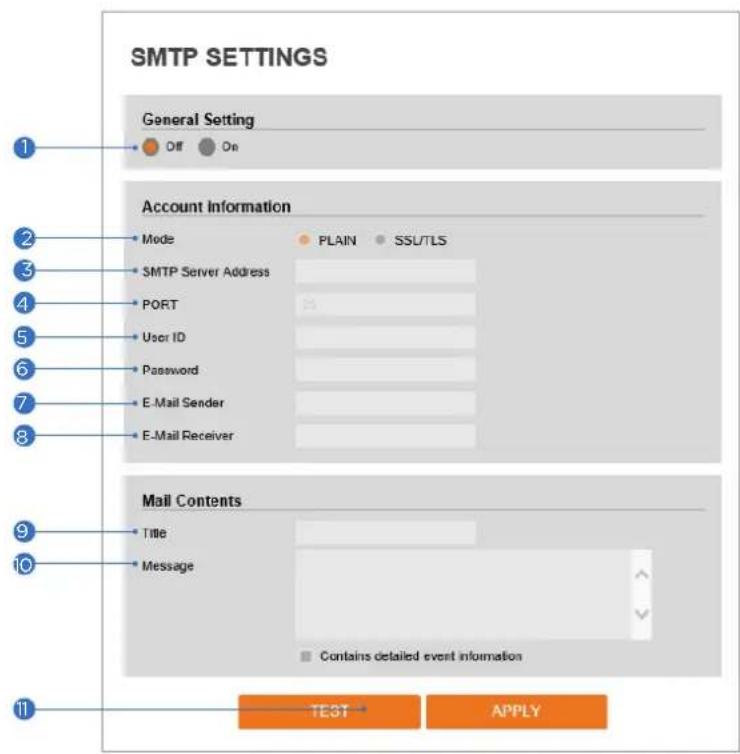

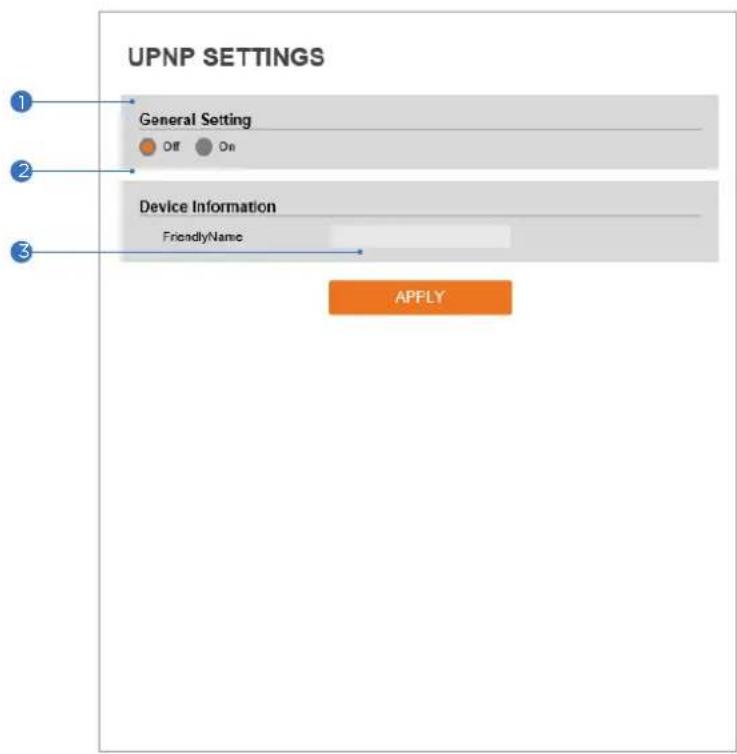

Settings > Network Setup....28

Settings > Trigger Action Setup....38

Settings > Event Setup....42

Settings > Record Setup....47

Settings > Security Setup....53

Settings > System Setup > System Information....60

Settings > System Setup > Firmware....62

Settings > System Setup > Date and Time....63

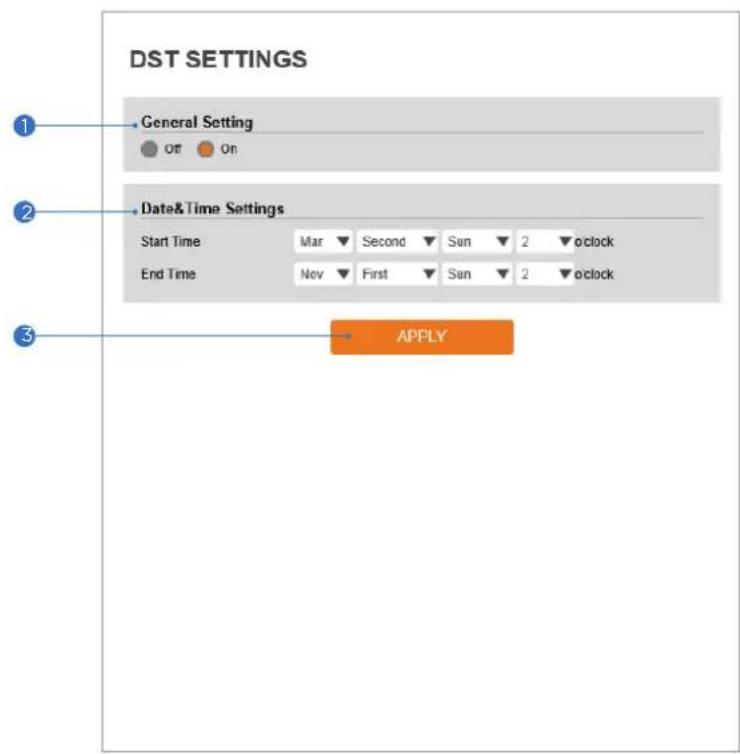

Settings > System Setup > DST....64

Settings > System Setup > Users....65

Settings > System Setup > System Log....66

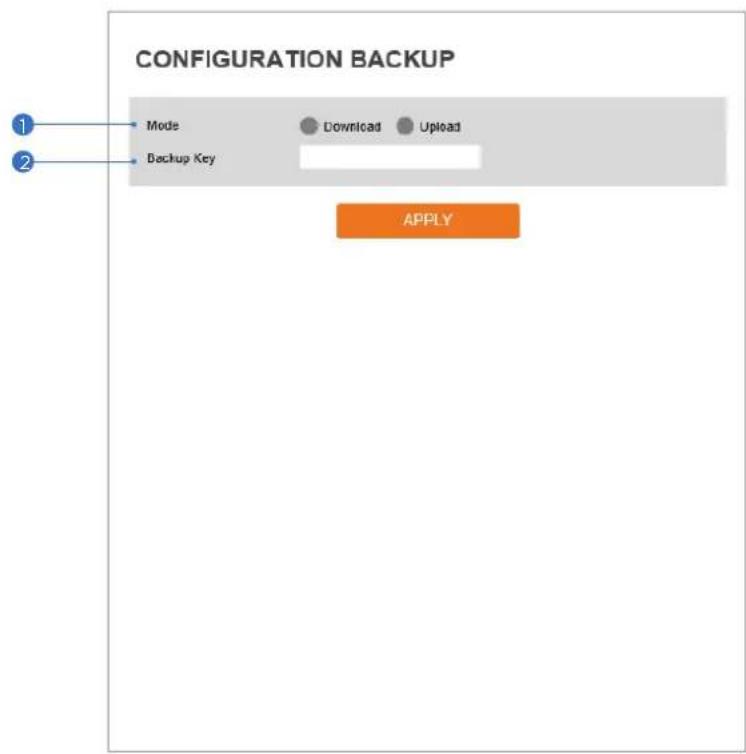

Settings > System Setup > Factory Reset....67

Settings > System Setup > Restart....68

Settings > System Setup > System Open Source License....69

Settings > System Setup > Plug-in....70

Appendix....71

FAQs....78

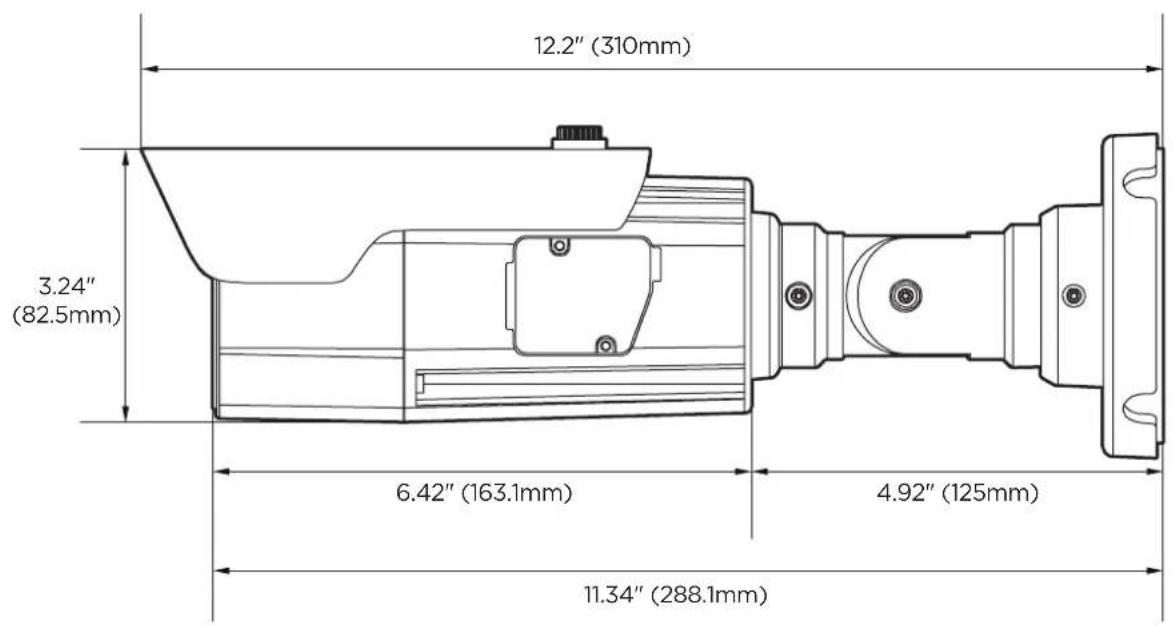

Dimensions....79

Specifications....80

Warranty....81

Limits and Exclusions....82

Introduction - Product & Accessories

Please check that the camera and all accessories are included in the package.

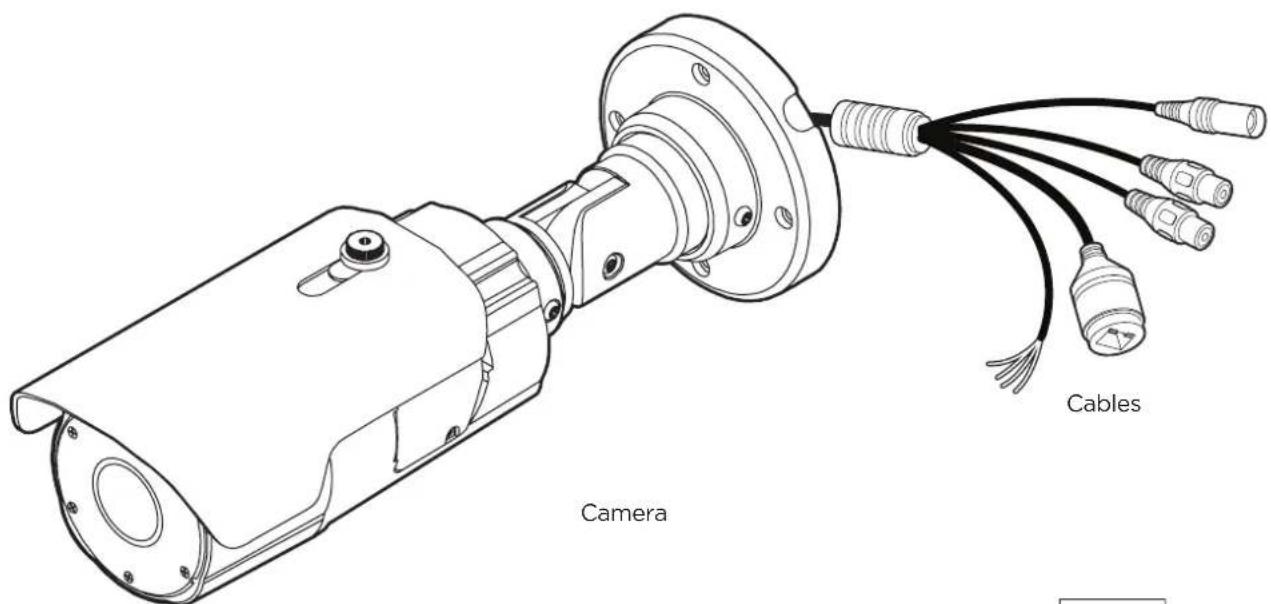

Camera Cables

Desi-Pak 2ea (Moisture Absorber) and Installation Guide

Star Wrench T-10 Star Wrench T-20 PoE injector and

Screws and Plastic Anchor - 4pcs

power cable (optional)

Simple diagram of an oval with a central plus sign and four surrounding circles (no text or labels)

and Gasket

Quick Installation and Download Guides

Test Monitor CableMounting Terr

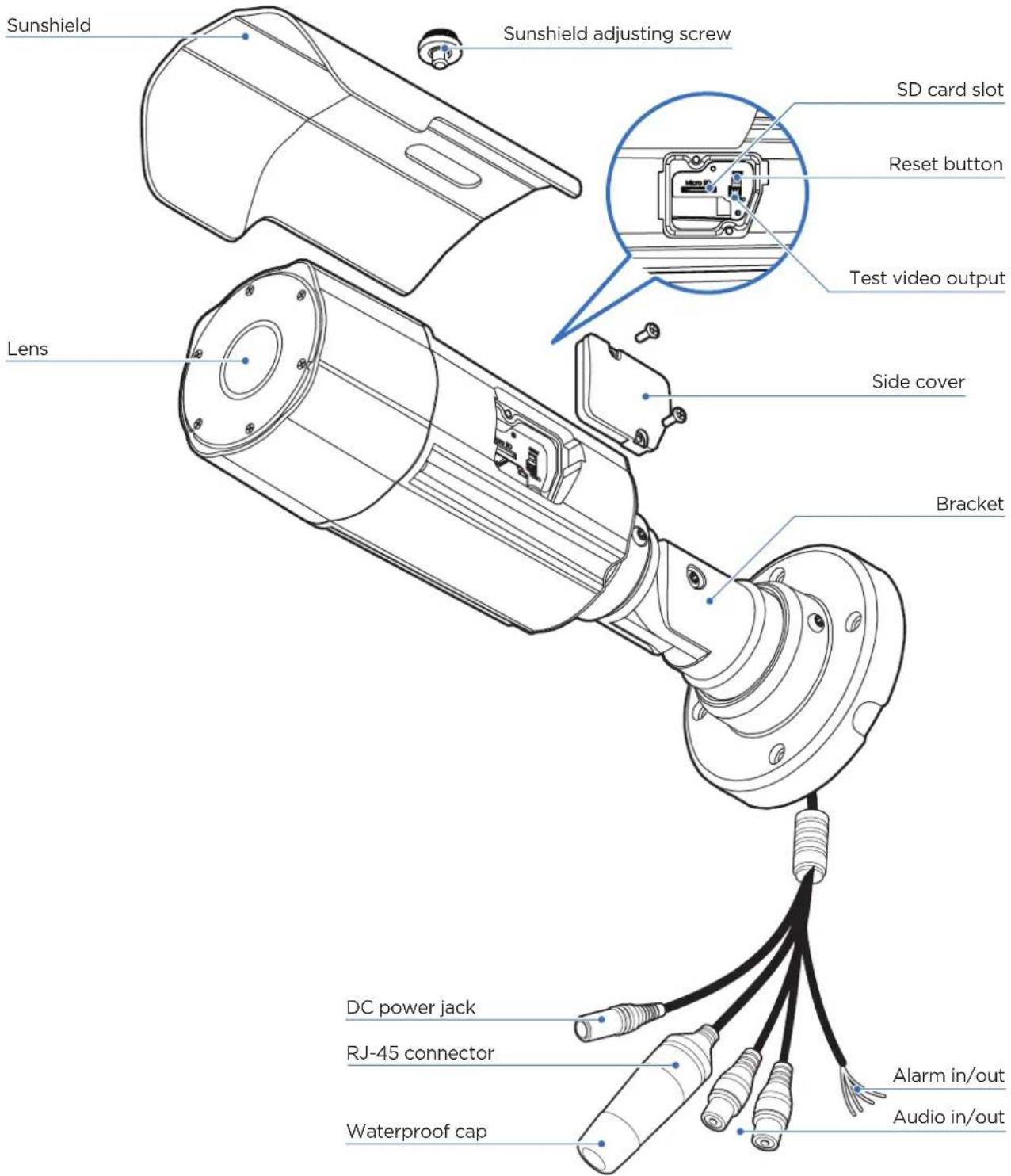

Sunshield Sunshield adjusting screw SD card slot Reset button Test video output Lens Side cover Bracket DC power jack RJ-45 connector Waterproof cap Alarm in/out Audio in/out

Before installing your camera, you have to read the following cautions.

1 The mounting surface must withstand five times the camera weight.

Do not let the cables get caught in improper places or the electric line cover can be damaged. This may cause a short or fire.

3 For the installation process, remove the sun-shield cover as needed.

4 Install the moisture packet in the camera's external control panel. a. Remove the Desi-Pack moisture absorber from the packaging. b. Open the side cover to reach the external camera control pane c. Place the moisture absorber under the camera's SD card slot.

NOTE: The camera will generate enough heat to dry moisture during operation. In most cases it will not need the moisture absorber for more than the first day. In cases where the camera can experience a moisture issue, users must keep the moisture absorber in the camera. The moisture absorber has an approximately 6-month life cycle, varying depending on the environment.

WARNING: It is highly recommended that you install the moisture absorber when mounting the camera. The moisture absorber prevents moisture from being captured inside the camera's housing, which may cause image performance issues and damage the camera.

SD card slot Micro SD Video Reset button Test video output PAK ESI PAK ESI

Reset to the Factory Default

Press the reset button for 5 seconds to return the setup to the factory default.

Warning:

If you press the 'Reset' button, you will lose all setting data. If needed, please, make a note for further installation.

Installation - Installation

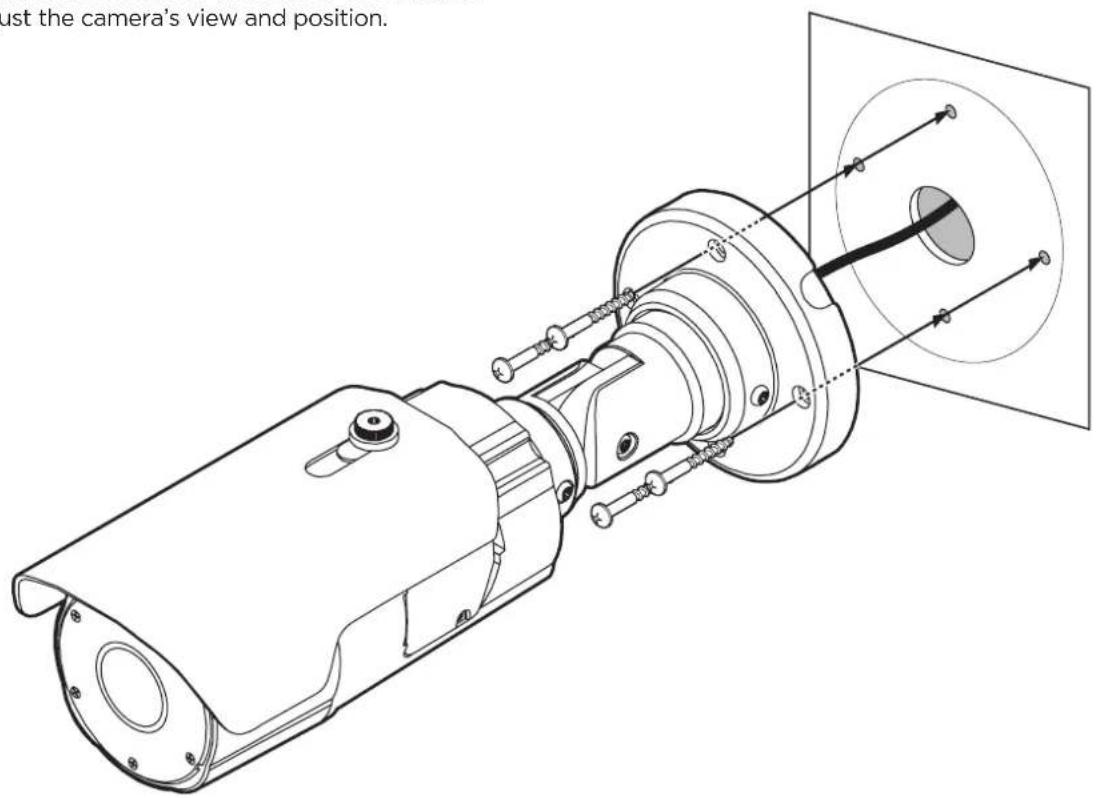

Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the wall or ceiling.
② Once all cables are connected, secure the camera to the mounting surface using the included screws.
3 To use the camera's waterproof wiring:

a. Install the LAN cable into (a).
b. (b) will be assembled to (a) with a 1/4 turn.
c. Thread (c) tightly to (b).

NOTE: To ensure moisture seal, make sure the o-ring is in place between a and b. In extreme environments use of an outdoor rated sealer is recommended.

NOTE: When using the waterproof cap, crimp the RJ45 connector after passing the cable through the waterproof cap.

a b c

4 Loosen the pan and tilt screws at the base of the camera's bracket to adjust the camera's view and position.

Just the camera's view and position.

Two Options

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly.

A non-PoE switch will require an adaptor for power transmission.

1. Using a PoE-Enabled Switch

The Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. PoE eliminates the need for the different cables used to power, record, or control the camera. Follow the illustration below to connect the camera to a PoE-enabled switch using an Ethernet cable.

2. Using a Non-PoE Switch

If a PoE-enabled switch is not used, use a power adaptor for power transmission and non-PoE switch for data transmission.

Follow the illustrations below to connect the camera without a PoE-enabled Switch.

Ethernet Cable Ethernet Cable Power

Installation -

Cabling


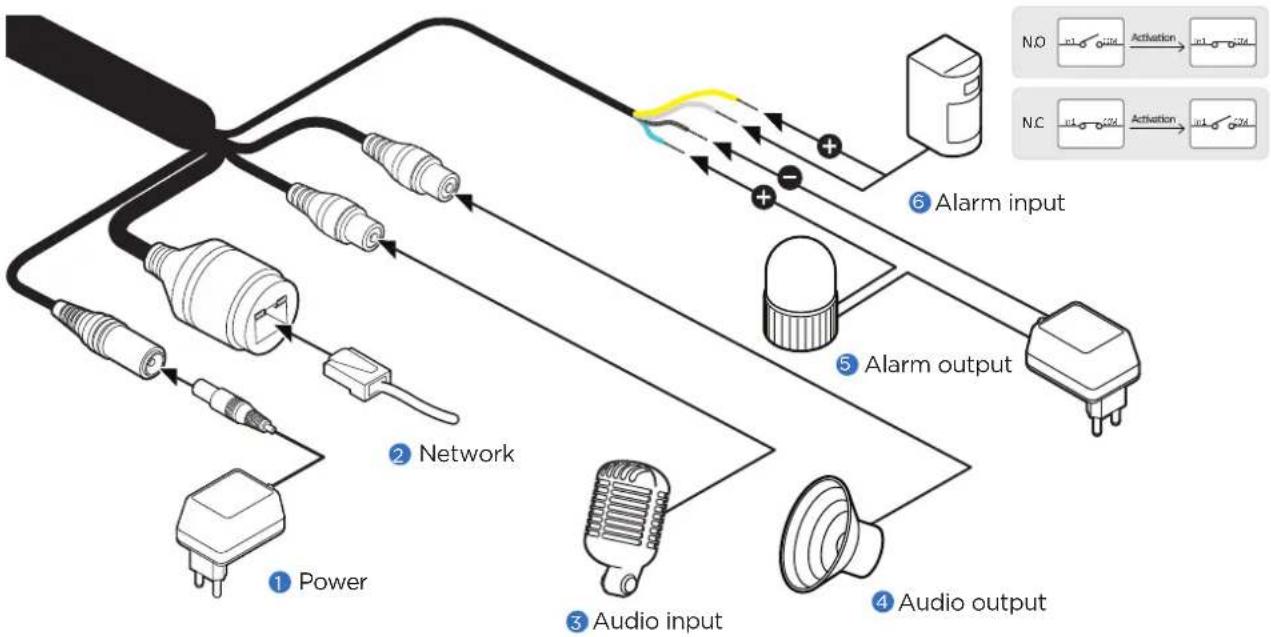

1 Power connection

Please, check the voltage and current capacity of rated power carefully.

Power requirements Power consumption
DC12V, IEEE 802.3at PoE+ class4 (Adapter not included)	DC12V: 10.2WPoE: 16W

2 Network connection

Connect the crossover cable into the RJ-45.

⑤ Alarm/relay output (DO)

Connects to the alarm lights, siren or lamps and the sensor types are normally open and normally close.

3 Audio output

Connect the 'audio out' port of the camera to the 'line in' port of the speaker.

If the speaker without the amplifier is connected to the audio out port, it doesn't work properly. Therefore, the speaker with the amplifier or the separate amplifier is needed.

Audio out is available via the RTSP backchannel.

4 Audio input

Connect the 'audio in' port of the camera to the microphone directly or 'line out' port of the amplifier connected with a microphone.

If the microphone is connected directly, the microphone with the embedded amplifier such as condenser mic. needs to be used.

6 Sensor/alarm input (DI)

The sensor/alarm input device's cable should connect to + and - of the camera's cable.

Installation -

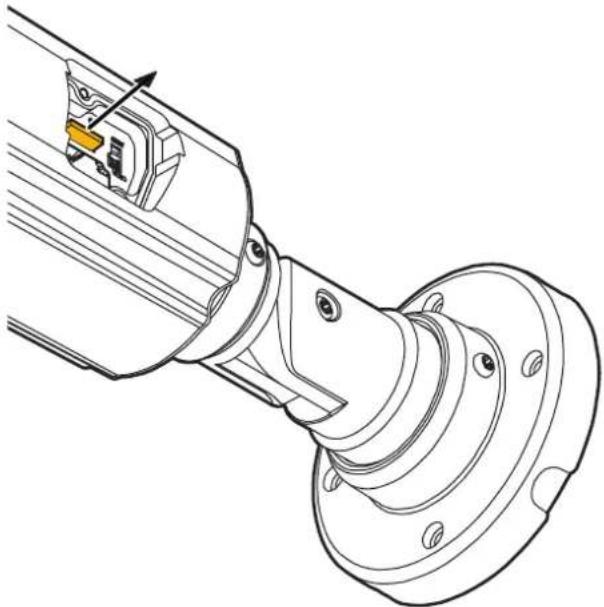

Inserting/Removing an SD Memory Card

Technical line drawing of a mechanical assembly with flanged base and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with flanged ends and a yellow component inserted (no text or symbols)

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Recommended SD card specification (not included)

• Type: Micro SD (SD/SDHC/SDXC)
• Manufacturer: SanDisk, Samsung, Transcend, Micron
• Capacity: 4GB-128GB
• Class: UHS-I U3 Class 10

New micro SD card over 64GB must be formatted on the first use.

1 Inserting an SD Memory Card

Insert the SD card in the arrow direction.

Don't insert the SD memory card while it's upside down by force. Otherwise, it may damage the SD memory card.

② Removing an SD Memory Card

Removing an SD Memory Card Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the slot when released.
If you have saved data in the SD memory card, removing the SD memory card before setting the record to OFF will cause damage to the data stored in the card.

Network Setup - DW IP Finder™

Thumbnail view Select network to scan Filter results Scan network Show/hide thumbnail view Refresh thumbnail view Bulk IP assignment Bulk password assignment Firmware upgrade Selected camera's username and password Thermal Local Area Connection [30.168.5.198] Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta Theta

To install the DW IP Finder, go to: http://www.digital-watchdog.com
② Enter "DW IP Finder" on the search box at the top of the page.
3 Go to the "Software" tab on the DW IP Finder page to download the installation file.
4 Follow the installation to install the DW IP Finder. Open the DW IP Finder and click 'Scan Devices'. It will scan the selected network for all supported devices and list the results in the table. During the scan, the DW® logo will turn gray.
5 When connecting to the camera for the first time, a password must be set. To set up a password for your camera:

a. Check the box next to the camera in the IP Finder's search results. You can select multiple cameras.
b. Click "Bulk Password Assign" on the left.
c. Enter admin/admin for the current username and password. Enter a new username and password to the right.

Passwords must have a minimum of 8 characters with at least 4 combinations of uppercase letters, lowercase letters, numbers and special characters. Passwords cannot contain the user ID.

d. Click "change" to apply all changes.

Select a camera from the list by double-clicking on the camera's image or clicking on the 'Click' button under the IP Conf. column. The pop-up window will show the camera's current network settings, allowing admin users to adjust the settings as needed.
7 To access the camera's web page, click on the 'View Camera Website' from the IP Config window.
To save changes made to the camera's setting, enter the username and password of the camera's admin account and click 'Apply'.

SBA Password Assignment Current Account Ghurna Password New Password Name: Cathets: Hok: Name: MRC Address: F Address: Name C#AC: 54129047 30030112148457 16276810159

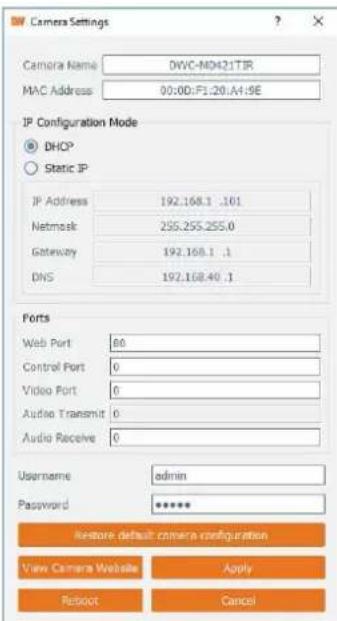

Camera Settings Camera Name: DWV-CMD421TIR MAC Address: 00:00:F1:20:A4:9E IP Configuration Mode DHCP Static IP IP Address: 192.168.1 .101 Network: 255.255.255.0 Gateway: 192.168.1 .1 DNS: 192.168.40 .1 Ports Web Port: 80 Control Port: 0 Video Port: 0 Audio Transmit: 0 Audio Receive: 0 Username: admin Password: ***** Restore default camera configuration View Camera Website: Apply Reset: Cancel

DW DIGITAL WATCHDOG. Copyright Sensitive System TITLE LIVE VIEWER VLC Mega ZOOM IRIS POCUS The password of the admin account has not been changed from the default. Please change the admin's password to access the web management and connect to the VMS/NVR system. CHANGE PASSWORD HOME POSITION Preset New Preset Tour SPEAKER 50 MUTE ALARM INPUT 0 RELAY OUT MOTION Camera Time 12/17/2020 11:08.09pm

Password change is required at the initial connection in a factory reset state. The web client cannot be fully utilized until a new password has been assigned.

You cannot see the image, and the setup button is disabled.
② Change the password with the CHANGE PASSWORD button.

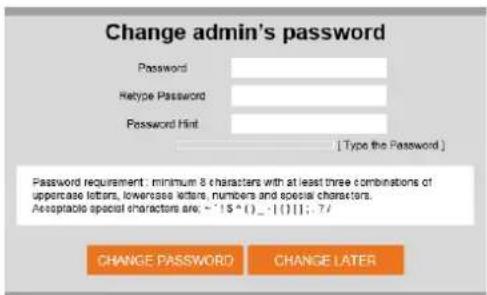

Change admin's password Password Hetype Password Password Hint [Type the Password] Password requirement: minimum 8 characters with at least three combinations of uppercase letters, lowercase letters, numbers and special characters. Acceptable special characters are: ~15^()_-1{}[]; 7/ CHANGE PASSWORD CHANGE LATER

3 After changing the password, login again by pressing the RE-LOGIN button.

• Internet Explorer: After three failed attempts or the cancel button is clicked, you will experience a login fail.
• Other Browsers: After the Cancel button is clicked, you will experience a login fail.

The admin's password has been changed. Please re-login. RELOON

Your session has expired and you have been signed out. Please re-login. RE-LOON

Password Hint Page

- If you need help remembering the password for your user, input the username in the username field and press the hint button. If you added a hint for your password when setting it up, it will appear then.

PASSWORD HINT If you don't remember your password, click on the Password Hint button to see the hint. User Name: HAT RE LOOM

Web Viewer Screen -

Basic Screen

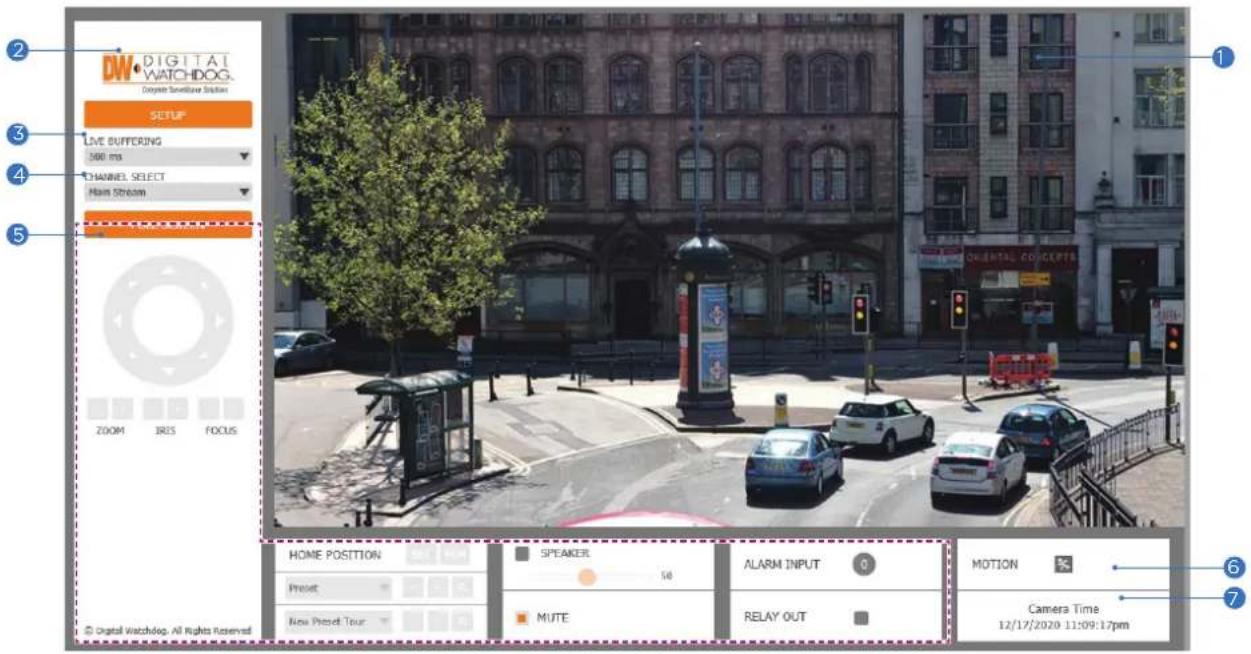

DW DIGITAL WATCHDOG Crypani Snowlighter Station SETUP LIVE BUFFERING 300 ms CHANNEL SELECT Main Stream ZOOM IRES FOCUS HOME POSITION SPEAKER ALARM INPUT MOTION Preset 50 New Preset Tour MUTE RELAY OUT Camera Time 12/17/2020 11:09:17pm

The web viewer is optimized with Internet Explorer 10 (or above) and Mozilla Firefox.

If VLC is not installed or the VLC plugin is not supported (Chrome), 'Live Buffering' and 'Channel Select' (subjects 3 and 4 in the diagram) will display as 'Live Viewer'. If so, select HTML5 (MJPEG) from the Live Viewer menu to view the video.

① Live video display. This is the region for the live video stream from the camera.

② Setup a popup button. Click it to open the Setup page to setup details of the IP camera like Video, Network, Events, System, etc. See the section 'Setup'.

3 When the image is distorted due to a bad network connection, the stored image frames will display live images, depending on the set buffer time.

Users will see the delayed images based on the set delay time.

4 Channel Select button. Select a stream produced from the camera between Stream 1 \~ 3 to display it in the live view screen.

Refer the 'Setup > Video & Audio > Video' to setup the Video Stream.

⑤ Below "Menu" is supported per model.

PTZ Control - This camera model does not support zoom and focus.

Preset - Not supported.

Speaker Control - Enable/disable the audio stream from the camera and adjust the volume accordingly.

Alarm Input - If an alarm is triggered, the corresponding input number will be changed from dark gray to red.

Relay Out - Using this checkbox, read the relay output status and set or reset it manually.

⑥ Motion - Shows the motion event status.

Event Alert Icon ( 📋 appears if 'Motion Detection' is activated.

7 Camera Time - Display the camera time.

Setup - Video and Audio Setup

Video Configuration

1 DV DIGITAL WATCHDOG. Complete Simultive Settings 2 V VIDEO&AUDIO VIDEO OSD ROI AUDIO >CAMERA >NETWORK >TRIGGER ACTION >EVENTS >RECORD >SECURITY >SYSTEM VIDEO CONFIGURATION Stream Codec Description ● 1 H.264 channel1 ● 2 H.264 channel2 ● 3 M-JPEG channel3 Codec Codec H.264 Description channel1 Resolution 3640x2160 Frame Rate(FPS) 30 GOP 30 [1 ~ 120] Profile High Bitrate Mode CBR Target Bitrate 5120 [1Mbps - 25Mbps] Quality 5 [1 ~ 10] Smart Bitrate Control Off Extension Option Off APPLY

1 Detail Page - When you select an item from the menu, you can set the details for the selected item.

② Setup Constitution

Video and Audio

[VIDEO, OSD, ROI, AUDIO]

Camera

[IMAGE ADJUSTMENT, EXPOSURE, DAY AND NIGHT, BACKLIGHT, WHITE BALANCE, IMAGE, VIDEO]

Network

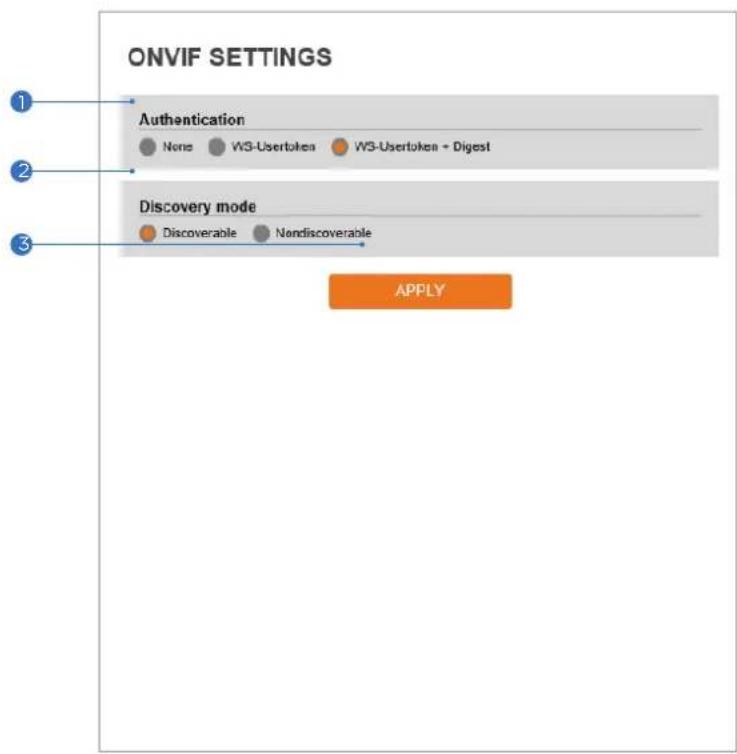

[STATUS, NETWORK SETTING, AUTO IP, ONVIF, UPNP, DDNS, FTP, SMTP, SNMP, HTTP ACTION, RTSP INFORMATION]

Trigger Action

[ACTION RULES, IMAGE TRANSFER, RELAY OUT]

Events

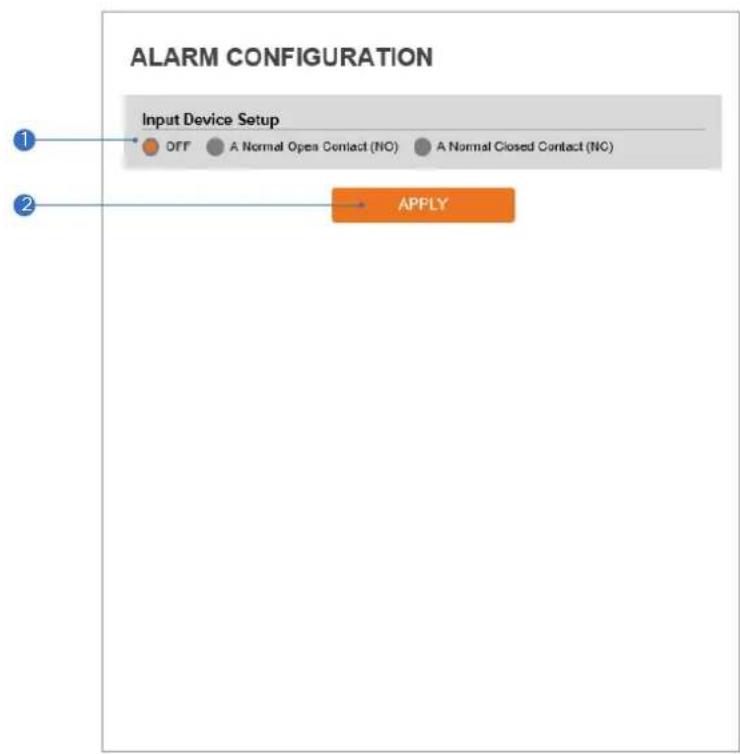

[EVENT RULES, MOTION, TEMPERATURE, ALARM INPUT]

Record

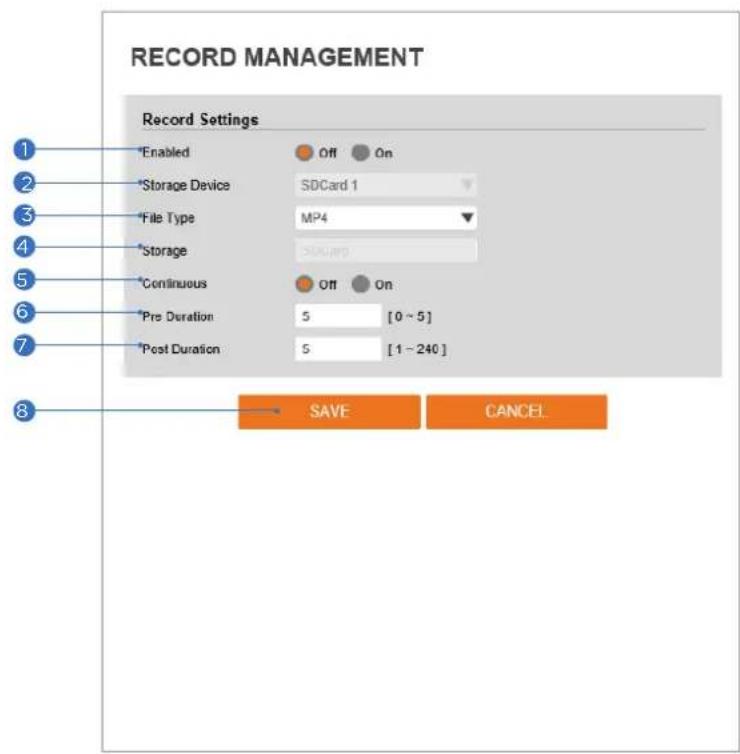

[MANAGEMENT, RECORD LIST, STORAGE]

IVA - See the MEGApix IVA user manual for more information on this section

[ENABLE, RULES, COUNTERS, CALIBRATION, CLASSIFICATION, BURNT-IN ANNOTATION, TCP NOTIFICATION, HTTP NOTIFICATION, TAMPER, ADVANCED, LICENSE]

Security

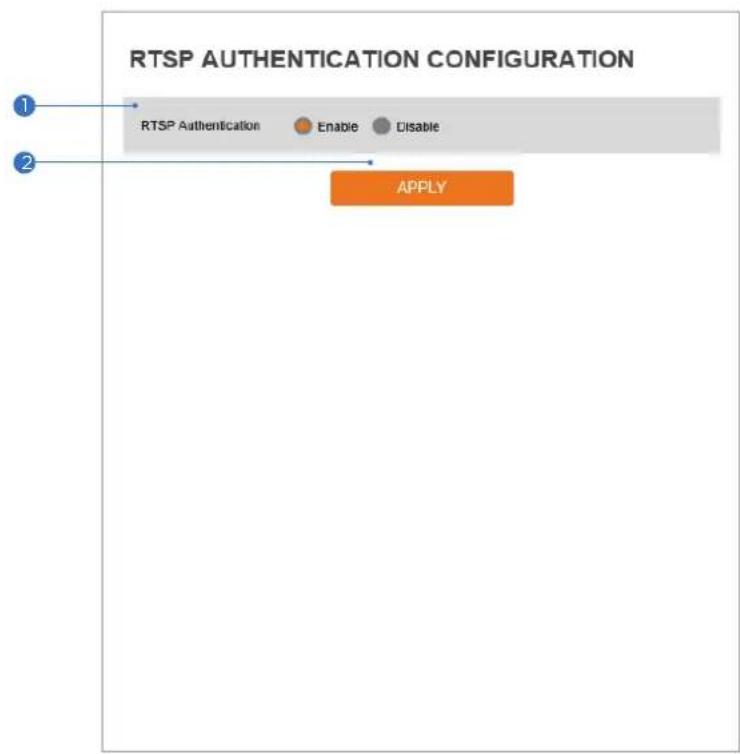

[IP ADDRESS FILTER, RTSP AUTHENTICATION, IEEE 802.1x, HTTPS, CERTIFICATES, AUTO LOCK]

System

[INFORMATION, DIAGNOSTICS, CONFIGURATION BACKUP, FIRMWARE UPDATE, DATE AND TIME, DST, USER MANAGEMENT, LOG, FACTORY RESET, RESTART, OPEN SOURCE, PLUG-IN]

Setup - Video and Audio Setup

Video Configuration

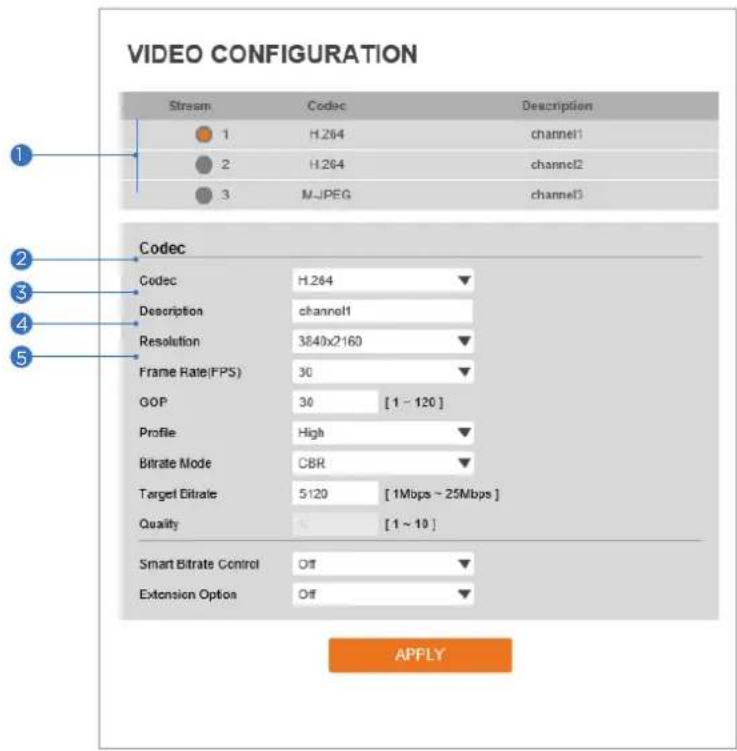

VIDEO CONFIGURATION Stream Codec Description 1 H.264 channel1 2 H.264 channel2 3 M-JPEG channel3 Codec Codec H.264 Description channel1 Resolution 3840x2160 Frame Rate(FPS) 30 OOP 30 [1 - 120] Profile High Bitrate Mode CBR Target Bitrate 5120 [1Mbps ~ 25Mbps] Quality [1 - 10] Smart Bitrate Control Off Extension Option Off APPLY

Live Video Channel Setup - The video can be configured to various settings with a combination of codec and resolution. The camera performance should be considered when setting multiple channels, as the performance of the camera will be affected.

H.265 (HEVC) codec with a higher bitrate may cause unstable live streaming or reload the webpage.

② Codec - Choose the video codec. Depending on the selected codec, the subcategories may be changed accordingly.

3 Description - Input the additional description of the selected channel. Max. 30 alphanumeric characters may be used, including spaces.

4 Resolution - Select video resolution.

Available Frame Rate may differ even if the same codecs are in use.

QFHD	2560x1440(4M)	1080p/i 720p/i SVGA		768x432(0.3M)	4CIF VGA		640x360(0.2M)	CIF
3840x2160	2560x1440	1920x1080 1280x720 800x600 768x432			704x576704x480	640x480 6	40x360	352x288352x240

5 Frame Rate - Select the maximum Frame Rate.

Available Frame Rate can be different although the same codecs were set up.

Setup - Video and Audio Setup

Video Configuration

VIDEO CONFIGURATION

Stream 1 H.264 channel1 2 H.264 channel2 3 M.-JPEG channel3

Codec

Codec H.264 Description channel1 Resolution 3840x2160 Frame Rate(FPS) 30 GOP 30 [1 ~ 120] Profile High Bitrate Mode CBR Target Bitrate 5120 [1Mbps ~ 25Mbps] Quality [1 ~ 10] Smart Bitrate Control Off Extension Option Off

APPLY

6 GOP (Group of Pictures) Size - Set up the number of frames (P-frame) which contain only changed information based on the basic frame (I-frame). Regarding videos with lots of movement, if you set the GOP size bigger, only the number of P-frames is bigger. As a result, the video resolution will be low but 'File size' and 'Bit-rate can be decreased.

GOP (Group of Pictures) Size -

I-frame and P-frame creation for MPEG4, H.264, and H.265 (HEVC) video compression. 'I-frame', also known as 'key-frame', refers to the complete image data for a specific video frame. 'P-frame' refers to the changes in the image in comparison to the previous video frame. As a result, the GOP consists of one I-frame and several P-frames. For improved video quality, use a lower number of P-frames for this setting.

7 Profile - The profile defines the subset of bitstream features in H.264, H.265 (HEVC) stream, including color reproduction and additional video compression. H.264: Main, High / H.265 (HEVC): Main

Main - An intermediate profile with a medium compression ratio. Supports I-frames, P-frames, and B-frames.

High - A complex profile with a high compression ratio. Supports I-frames, P-frames, and B-frames.

Bitrate Mode - Select the bit rate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate).

CBR - To guarantee the designated constant bit rate, the quality of the video is controlled in this mode. Therefore, the quality of the video is likely to be varying when network traffic is changing.

VBR - To guarantee the designated quality, the bit rate of the video stream is changed in this mode. Therefore, the frame rate of the video is likely to be varying when network traffic is changing.

This category will not appear if you select the codec.

Setup - Video and Audio Setup

Video Configuration

VIDEO CONFIGURATION

Stream	Codec	Description
1	H.264	channel1
2	H.264	channel2
3	M.-JPEG	channel3

Codec

Codec H.264 Description channel1 Resolution 3840x2160 Frame Rate(FPS) 30 GOP 30 [1 ~ 120] Profile High Bitrate Mode CBR *Target Bitrate 5120 [1Mbps ~ 25Mbps] Quality [1 ~ 10] *Smart Bitrate Control Off *Extension Option Off

APPLY

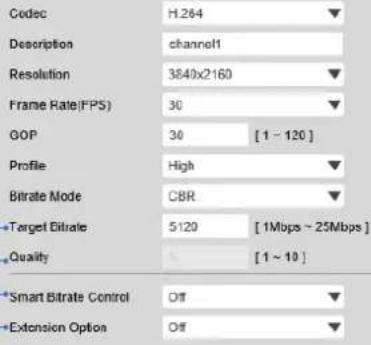

9 Target Bitrate - If Bitrate Control is set to be CBR, you can set the Target Bitrate.
10 Quality - For VBR control mode, The Target Quality of the video can be setup.
Smart Core - Off / Smart.RC
12 Extension Option

Off - You cannot use the Extension Option.

SVC-T On - The H.264, H.265 (HEVC) SVC (Scalable Video Coding) is a video compression algorithm that enables effective and efficient transmission of video files over low bandwidth networks.

13 Click 'Apply' to save all settings.

Setup - Video and Audio Setup

OSD Configuration

ON SCREEN DISPLAY(OSD) CONFIGURATION Date & Time Off On Position X 0 [0 ~ 100] Position Y 0 [0 ~ 100] User Text Off On Position X 0 [0 ~ 100] Position Y 0 [0 ~ 100] Text APPLY

① Date / Time - Display the current time.
② User Text - Output the TEXT entered by the user. Support a maximum of 30 characters.
3 Click 'Apply' to save all settings.

Setup - Video and Audio Setup

Region of Interest Configuration

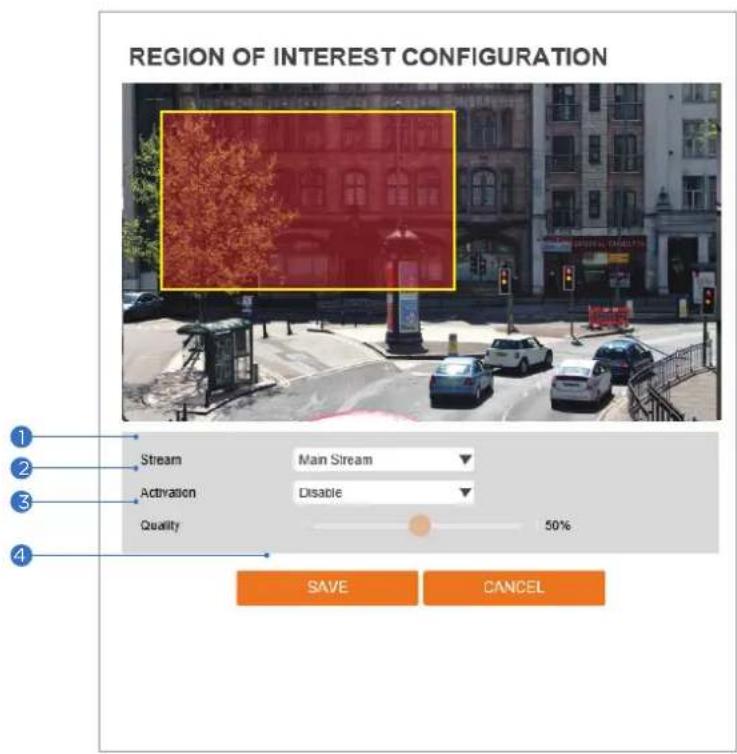

REGION OF INTEREST CONFIGURATION Stream Main Stream Activation Disable Quality 50% SAVE CANCEL

The region of interest function gives a more efficient picture quality for the indicated area to improve the qualities of movement in the scene without compromising the bandwidth.

1 Stream - Select the Stream.

Currently supports only H.264, H.265 (HEVC).
The function is not supported in the MJPEG codec.

The function is not supported in MJPEG codec.

Stream 3rd Stream Activation Disable Quality 50% SAVE CANCEL

② Activation - Enable or disable the region of interest function.
3 Quality - Set the quality of the set area.
4 Click 'Save' to save all settings.

Click 'Cancel' to return to the previous setting.

Setup - Video and Audio Setup

Audio Configuration

AUDIO CONFIGURATION Audio Encode Codec G 711 ulaw Volume 0 Sample Rate 8,000 Hz SAVE

1 Codec - Select the Audio Codec.
Currently, the camera supports codec G.711.
② Volume - Select the Audio Volume from 0 to 10.
3 Sample Rate - Select the Audio Sample Rate.
Currently, the camera supports 8000 Hz.
4 Click 'Save' to save all changes.

Setup - Video & Audio Setup Privacy Mask Configuration

PRIVACY MASK CONFIGURATION Activation On Off Area Area1 CLEAR AREA SAVE CANCEL

Use this function to mask areas that you want to hide on-screen to protect privacy.

① Activation - Enable or disable the privacy mask function.
② Area - Select Area1 \~ Area16, then draw the privacy mask in the video display.
3 Click 'Save' to save all settings.
Click 'Cancel' to return to the previous setting.
Click 'Clear Area' to delete the selected Area1-Area16.
Click 'Cancel' to return to the previous setting. Click 'Clear Area' to delete the selected Area1-Area16.

Setup - Camera Setup

Camera Image Adjustment

IMAGE ADJUSTMENT Sharpness Brightness Contrast Saturation Hue + 55 + 60 + 50 + 25 + 60 SAVE CANCEL DEFAULT

1 Sharpness - The higher the number, the sharper the lines in the image will appear.
② Brightness - The higher the number, the brighter the image will appear.
3 Contrast - The higher the number, the stronger the contrast between colors in the image will appear.
4 Saturation - The higher the number, the more saturated the colors in the image will appear.
⑤ Hue - The higher the number, the stronger the hue in the image will appear.
⑥ Click 'Save' to save all settings.

Click 'Cancel' to return to the previous setting.

Click 'Default' to settings to the factory defaults.

Setup - Camera Setup

Camera Exposure Settings

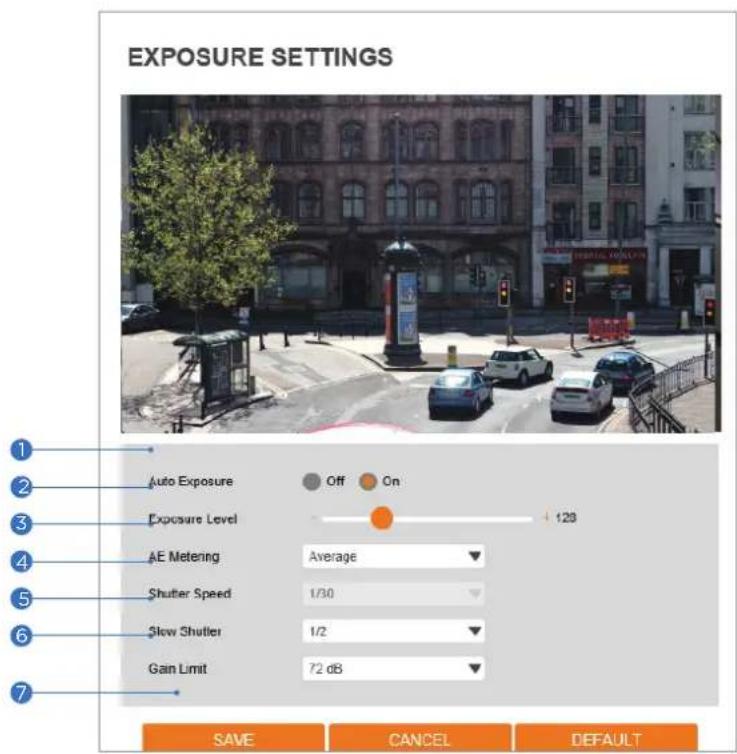

EXPOSURE SETTINGS 1 2 3 4 5 6 7 Auto Exposure Off On Exposure Level 128 AE Metering Average Shutter Speed 1/30 Slow Shutter 1/2 Gain Limit 72 dB SAVE CANCEL DEFAULT

1 Auto Exposure - Automatic exposure (AE) automatically sets the aperture or shutter speed, based on the external lighting conditions for the photo.
② Exposure Level - The higher the number, the brighter the image will appear.
3 AE metering - AE metering mode refers to how a camera determines the exposure.
4 Shutter Speed - If this speed is faster, the moving object can be photographed without the ghost effect. However, the picture can be dark if the lighting is insufficient.
5 Slow Shutter Level - Slow shutter Level lets you adjust the amount of light striking the sensor and essentially determines when the video sensor sends out its batch of data for processing.
⑥ Gain Limit - Adjusts image gain. The lower the value, the darker the image will appear.
7 Click 'Save' to save all settings. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.

Setup - Camera Setup

Camera Day and Night Settings

DAY&NIGHT SETTINGS Day & Night Color Level BMW Level Transition Time Day -> Night Time Night -> Day Time Auto Day Night Schedule Middle 19 : 00 5 : 00 SAVE CANCEL DEFAULT

1 Day and Night

• Auto: In this mode, the IR cut filter is removed automatically depending on the light condition around.
• Day: In this mode, the IR cut filter is applied to the image sensor all the time. Thus, the sensitivity will be reduced in the dark light condition, but better color reproduction performance is obtained.
• Night: In this mode, the IR cut filter on the image sensor is removed all the time. The sensitivity will be enhanced in the dark light condition, but the image is black and white.
• Schedule: In this mode, Day/Night mode is converted accordance with the scheduled time.

2 Color Level - This level determines when the camera will change from Night mode (B/W) to Day mode (color) while set to Auto. The lower that this value is set, the lower the lighting threshold requirement will be for the transition.
3 B/W Level - This level determines when the camera will change from Day mode (color) to Night mode (B/W) while set to Auto. The lower that this value is set, the lower the lighting threshold requirement will be for the transition.
4 Transition Time - If it is set to Auto, to determine the rate at which Day/Night is converted.
5 If it is set to schedule mode, Set the time that Day/Night is converted.
6 IR Mode - turn the built-in IR LEDs on or off manually.
7 Click 'Save' to save all settings. Click 'Cancel' to return to the previous setting. Click 'Default' to settings to the factory defaults.

Setup - Camera Setup

Camera Backlight Settings

BACKLIGHT SETTINGS WDR(Wde Dynamic Range) Off WDR Level Normal SAVE CANCEL DEFAULT

This feature is used when lighting conditions may cause detail loss in the camera's view due to high contrast.

1 WDR (Wide Dynamic Range) - Enable or disable the feature.
② WDR Level - Set the WDR level from the available options. Select from normal, low, or high.
3 Click 'Save' to save all changes.

Click 'Cancel' to return to the previous setting.

Click 'Default' to change the settings back to their factory defaults.

Setup - Camera Setup

Camera Backlight Settings

BACKLIGHT SETTINGS WDR(Wide Dynamic Range) Off SAVE CANCEL DEFAULT

This feature is used when lighting conditions may cause detail loss in the camera's view due to high contrast.

① WDR (Wide Dynamic Range) - Enable or disable the feature.
② Click 'Save' to save all changes.

Click 'Cancel' to return to the previous setting.

Click 'Default' to change the settings back to their factory defaults.

Setup - Camera Setup

Camera White Balance

WHITE BALANCE

Street scene with pedestrians, parked cars, and a historic building in the background (no visible text or signage)

Activation White Balance Mode R Gain G Gain B Gain 1500 1024 1400

1 Activation - Enable or disable the White Balance function
② White Balance Mode - Select White Balance depending on the lighting conditions.
RGB Gain - The R/G/B gain can be set only when the White Balance Mode is set to Manual.
4 Click 'Save' to save all settings.

Click 'Cancel' to return to the previous setting.

Click 'Default' to settings to the factory defaults.

Setup - Camera Setup

Camera Image Enhancement

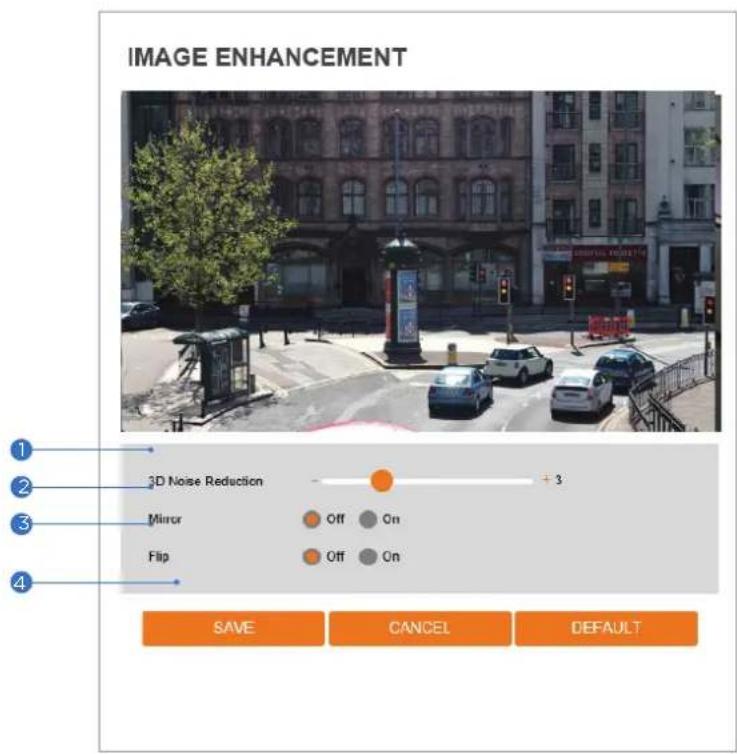

IMAGE ENHANCEMENT 1 2 3 3D Noise Reduction + 3 Mirror Off On Flip Off On SAVE CANCEL DEFAULT

1 3D Noise Reduction - Reduce digital noise in low-light conditions, improving video quality.
2 Mirror - Reverse the video horizontally.
③ Flip - Reverse the video vertically.
4 Click 'Save' to save all settings.

Click 'Cancel' to return to the previous setting.

Click 'Default' to settings to the factory defaults.

Setup - Camera Setup

Video Enhancement

VIDEO ENHANCEMENT Flickerless 50Hz 60Hz SAVE CANCEL DEFAULT

1 Flicker - In environmental situations where the camera's image appears to flicker, change the Hz values to improve the camera's image.
② Click 'Save' to save the current settings.

Click 'Cancel' to return to the previous setting.

Click 'Default' to settings to the factory defaults.

NETWORK STATUS

MAC Address	00.0D:F1:21:06:3B
IP Address	192.168.1.14
Subnet Mask	255.255 0.0
Default Gateway	192.168.1.1
Preferred DNS Server	192.168.1.1
Alternate DNS Server
HTTP Port	60
HTTPS Port	443
RTSP Port	554

This menu displays the camera's current network settings. To make any changes to the settings, you must go to the appropriate network settings tab.

Setup - Network Setup

Network Settings

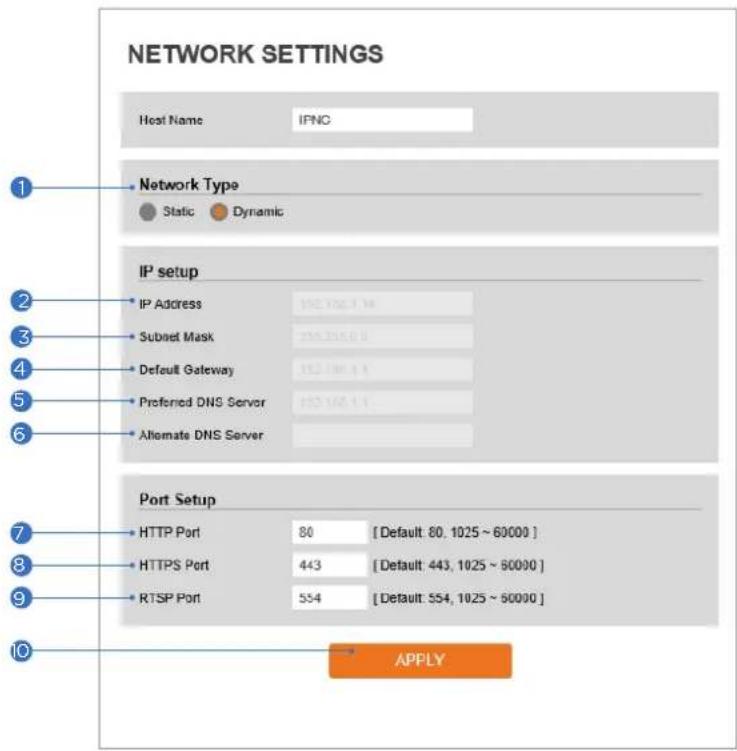

NETWORK SETTINGS Host Name IPNC 1 Network Type Static Dynamic IP setup 2 IP Address 192 106.1 14 3 Subnet Mask 258.216.6 0 4 Default Gateway 152 106.1 1 5 Preferred DNS Server 152 106.1 1 6 Alternate DNS Server 7 Port Setup 8 HTTP Port 80 [ Default: 80, 1025 ~ 60000 ] 9 HTTPS Port 443 [ Default: 443, 1025 ~ 60000 ] 10 RTSP Port 554 [ Default: 554, 1025 ~ 60000 ] APPLY

1 Network Type - Define the network IP address type. Select Static Mode for a fixed IP or Dynamic Mode for a dynamic IP address.

If you select Static Mode, enter the camera's IP Address, Subnet Mask, Gateway, DNS Server, and all ports. If you select Dynamic Mode, the IP address will be assigned automatically by the DHCP network requirements. If you click 'Apply', the system will reboot and you will have to reconnect the camera using the new IP address.

② IP Address - A unique string of numbers, divided into four octets (ranging from 0-255), used to identify the device over a network.

3 Subnet Mask - Determines the range of IP address options within the network.

4 Default Gateway - IP address of the forwarding host within the network; the IP address of the router that is most commonly used.

5 Preferred DNS Server - Address of the decentralized system used to translate alphabetic names into IP addresses.

6 Alternate DNS Server - Secondary address of the decentralized system used to translate alphabetic names into IP addresses.

7 HTTP Port - The HTTP port can be set to the default 80 port or any value between 1025 to 60000.

8 HTTPS Port - The HTTPS port can be set to the default 443 port or any value between 1025 to 60000.

9 RTSP Port - The RTSP port can be set to the default 554 port or any value between 1025 to 60000.

10 Click 'Apply' to save all settings.

If the network type is dynamic, the IP address is changed in the following cases. In these cases, the IP address needs to be searched again, and the camera needs to be reconnected:

• When the camera's power is switched off and on.
  • After firmware update, or when the camera is reset to its default settings and reboot.

Setup - Network Setup

Auto IP Settings

AUTO IP SETTINGS General Setting Off On UNIQUE ID 4b231aca-7c6a-402d-86ae-1195558826d0 AUTO IP ADDRESS 109.254 1.0 APPLY

1 General Setting - Enable or disable the Auto IP Settings.
2 Auto IP Settings Information - Display the camera's Unique ID and Auto IP address.
3 Click 'Apply' to save all settings.

Setup - Network Setup

ONVIF Settings

ONVIF SETTINGS Authentication None W3-Usertoken W3-Usertoken - Digest Discovery mode Discoverable Nondiscoverable APPLY

1 Authentication

None: Allow access to the camera without ONVIF authentication.

WS - Usertoken: Allow access to the camera with WS-User Token of ONVIF authentication.

WS - Usertoken + Digest: Allow access to the camera with WS-User Token and Digest of ONVIF authentication.

② Discovery Mode - Enable or disable discovery mode.
3 Click 'Apply' to save all settings.

Setup - Network Setup

UPNP Settings

UPNP SETTINGS General Setting Off On Device Information FriendlyName APPLY

1 General Setting - Enable or disable the UPNP function.
2 Friendly Name - Define the friendly name. Support a maximum of 30 characters and special characters.

• Do not use: / \~ ! \$ ( ) { } [ ] ; ,
• Acceptable special characters include; @ . _ -

3 Click 'Apply' to save all settings.

Setup - Network Setup

DDNS Settings

DDNS SETTINGS 1 2 Disable Public DDNS Address www.ne-ip.com Host Name User Name Password 3 APPLY

1 DDNS Disable - If it is selected, the DDNS service does not work.
② Public DDNS - To use public DDNS service, select a site address listed on the list. After filling out the Host Name of the site the setup is completed by entering the username and password registered in that DDNS site.

DDNS Provider

DynDNS

No-IP

If you setup DDNS properly, the IP address of your camera will be updated automatically whenever the IP address is changed or the system is rebooted.
If P updating to the DDNS site is failed, the camera will keep retrying in 1min. interval.

3 Click 'Apply' to save all settings.

Setup - Network Setup

FTP Settings

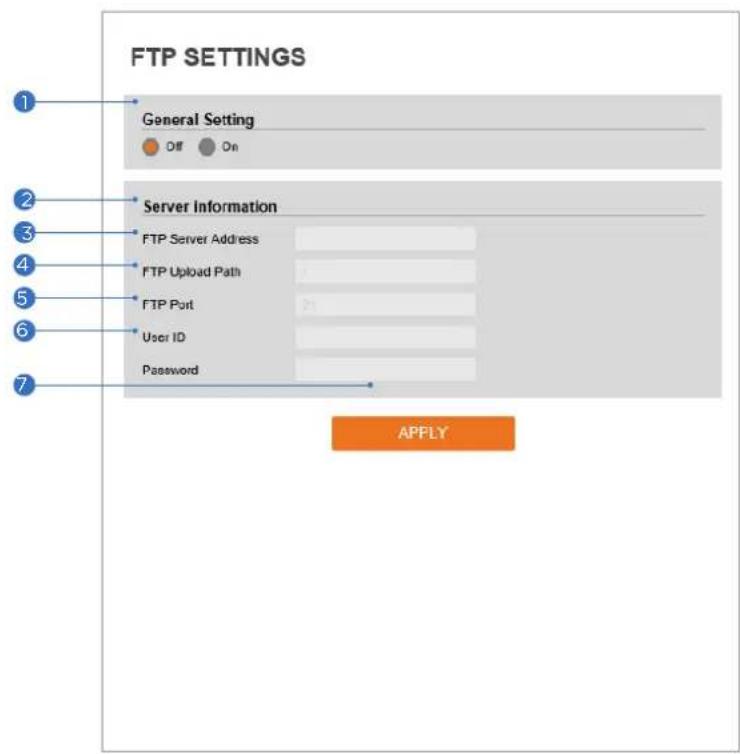

FTP SETTINGS General Setting Off On Server Information FTP Server Address FTP Upload Path FTP Port User ID Password APPLY

To transfer/save the image to the relevant sites through FTP, then FTP needs to be setup.

General Setting - Enable or disable the FTP function.
② FTP Server Address - Define FTP Server IP Address. If the IP Address form is incorrect, a message box will be shown to try again.
FTP Upload Path - Define a path in FTP server to store video. For the path name, English Alphabets, numbers and special characters (/ - !@ \$ ^ () _ - {} [ ]; ) can be used.
4 FTP Port - Define the FTP Server Port. If the port is not appropriate, it is impossible to access to FTP Server.
5 User ID - Define User ID to access the FTP Server. Fill out the correct User ID registered in the FTP Server.
6 Password - Define Password to access the FTP Server. Fill out the correct Password registered in the FTP Server.
7 Click 'Apply' to save all settings. Refer to the above image for example.

SMTP SETTINGS General Setting Off On Account Information Mode PLAIN SSU/TLS SMTP Server Address PORT User ID Password E-Mail Sender E-Mail Receiver Mail Contents Title Message Contains detailed event information TEST APPLY

To send/save the image to the relevant sites by Email, SMTP needs to be setup.

1 General Setting - Enable or disable the SMTP function.

② Mode - Select the security mode of SMTP from Plain or SSL / TLS. After checking the account setup of your SMTP Server, you may select one.

3 SMTP Server Address - Define the SMTP Server Address. If the IP Address form is incorrect, a message box will be shown to try again.

4 Port - Define the Port used in the Plain or SSL / TLS security mode in the above.

5 User ID - Define the User ID to access the SMTP Server. Fill out the correct User ID registered in the SMTP Server.

6 Password - Define the Password to access the SMTP Server. Fill out the correct Password registered in the SMTP Server.

7 E-Mail Sender - Define the e-mail address of the E-Mail Sender. It will be displayed as the sender when the camera sends an E-mail.

⑧ E-Mail Receiver - Define the e-mail address of the E-Mail Receiver. It will be displayed as the Receiver when the camera sends an E-mail.

9 Title - Define the title of the E-Mail when the camera sends an E-mail.

The title of the Email is limited to 40 characters including the spaces.

Message - Define the contents of E-Mail when the camera sends an E-mail. The message of the E-mail is limited to 40 characters including the spaces.

11 Click 'TEST' to send a test message 'APPLY' to save all settings.

SNMP SETTINGS SNMP v1/v2c SNMPv1 Off On SNMPv2c Off On Read Community Write Community SnmpTrap Off On TrapAddress TrapCommunity SNMP v3 * Mode Read Activation Off On Read Name Security Level no auth, no priv Authentication Algorithm MOS Authentication Password APPLY

1 SNMPv1/SNMPv2 - Select the SNMPv1/SNMPv2 option and type the names of Read and Write communities.

SNMP trap can be used to check periodically for operational thresholds or failures that are defined in the MIB.

② SNMP Trap - Enable or disable the SNMP trap.

SNMPv3 contains cryptographic security, a higher security level, which allows you to set the Authentication password and the Encryption password.

3 Mode - Select either Read or Read/Write mode.
4 Activation - Select mode to enable or disable.
⑤ Read/Write name - Define Read name and Write name.
6 Security Level - Select one of no auth, no priv/auth, priv.
⑦ Authentication Algorithm - Select MD5 or SHA as the authentication method.
⑧ Authentication Password - The Authentication Password is encryption for authentication and is between 8 to 30 digits long.
9 Click 'Apply' to save all settings.

RTSP INFORMATION 1 RTSP Global Setting Target Stream Main Stream ▼ 2 Session Timeout Time Out 0 [ Default: Off, 30~120 ] 3 QoS Setting DSCP 0 [ 0~255 ] 4 Rtp Multicast MULTICAST Stop Start IP 0.0.0.0 PORT 0 [1024-60800] TTL 0 [1~255] 5 APPLY No Remote IP Port Type 1 127.0.0.1 44570 UDP 2 127.0.0.1 44554 UDP

1 Target Stream - Select the stream you want to set.
② Time out - Set the RTSP time out.

The session is disconnected after the specified time-out.

3 QoS Setting - Set the quality of service to ensure data transfer performance.
4 RTP Multicast - Check RTP Multicast Start/Stop. To activate RTP Multicast.

1. Click the "On" button.
2. Enter accessible RTP Multicast IP, the port for video stream control, RTP packet TTL.
3. Click the "Apply" button.

It is possible to set each RTP Multicast for CH1\~3.

⑤ Click 'Apply' to save all settings.
Click this button when completed setup each channel.
⑥ It shows RTSP Connection information.

Setup - Trigger Action Setup Action Rules Configuration

ACTION RULES CONFIGURATION

Action Rules Name Reserve Action Action SMTP 1/5 SMTP FTP 1/5 FTP RECORD 1/5 RECORD ADD MODIFY DELETE

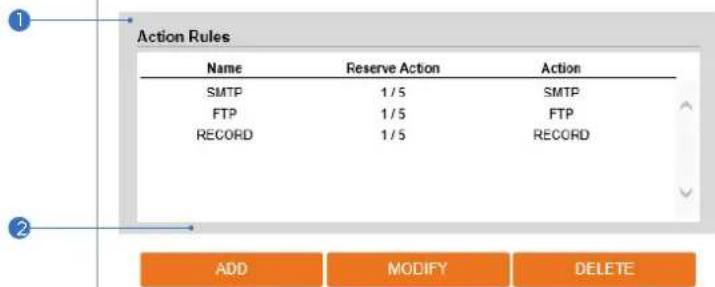

1 Action rules List - It indicates the custom action rule information added to the Action rules list.
② Click 'Add' to add custom action rules.

Click 'Modify' to modify selected items from the action rules list.

Click 'Delete' to delete selected items from the action rules list.

Setup - Trigger Action Setup Action Rules Add/Modify

ACTION RULES CONFIGURATION General Setting Name NewAction Action1 NONE Action2 NONE Action3 NONE Action4 NONE Action5 NONE SAVE CANCEL

1 Name - Define the name of the action rules.

Input text cannot exceed the limit (3\~15 characters).

2 Action1 - Action5 - Select the action to take If the event occurs.

3 Click 'Save' to save all settings.

Click 'Cancel' to return to the previous menu.

Setup - Trigger Action Setup Image Transfer Configuration

IMAGE TRANSFER CONFIGURATION

1. Add the FTP/SMTP action in the event rules menu.
2. When an event occurs, the images will be sent to ftp/smtp address.
3. Determine the image transfer speed and the duration of image transfer after/before on event.

Pre/Post Alarm Image

Number Of Image 2 Image Per Seconds(s) [1 ~ 5] Pre-Alarm Duration 3 Second(s) [1 ~ 5] Post-Alarm Duration 3 Second(s) [1 ~ 30] Max. Number Of Image □ [ Default Off, 5 ~ 1000 ] (SMTP Only)

APPLY

1 Pre/Post Alarm Image - Image Transfer due to event is configured by setting the image transfer rate and Pre/Post alarm duration.

	Descriptions
Number of Images	Define the number of images transferred per second.
Pre-alarm Duration	Define the duration of the image transfer before an event.
Post-alarm Duration	Define the duration of the image transfer after an event.

2 Click 'Apply' to save all settings.

Setup - Trigger Action Setup Relay Out Configuration

RELAYOUT CONFIGURATION Relay Output 01 Mode Monostable Bistable Idle State Closed Open Duration Second(s) [ 1 ~ 30 ] APPLY

1 Relay Output - Select the Relay output.
The number of relay outputs available depends on the camera model.
② Mode - Select the monostable/bistable for relay mode.
3 Idle State - Select whether the contact is normally opened or is closed.
4 Duration - Relay out is operated during the setting time.
In monostable mode, this function must be set up.
⑤ Click 'Apply' to save all changes.

Setup - Event Setup

Event Rules Configuration

EVENT RULES CONFIGURATION 1 Event Rules Name Reserve Event Schedule Action ADD MODIFY DELETE

① Event Rules List - It indicates the custom Event Rule information added to the Event Rules list.
② Click 'Add' to add custom event rules.

Click 'Modify' to modify selected items from the event rules list.

Click 'Delete' to delete selected items from the event rules list.

Setup - Event Setup

Event Rules Configuration

V VIDEO&AUDIO VIDEO CBD ROI AUDIO PRIVACY MASK > CAMERA > NETWORK > TRIGGER ACTION > EVENTS > RECORD > SECURITY > SYSTEM VIDEO CONFIGURATION Stream Code: Channel Description 1 H.264 channel1 2 H.264 channel2 3 M.JRPG channel3 Codec Code: H.264 Description: channel1 Resolution: 3048x2160 Frame Rate(FPS) 20 GOP 30 [1 ~ 128] Profile High Strike Mode: CSR Target Bitrate: 5129 [1Mbps ~ 25Mbps] Quality [1 ~ 10] Smart Bitrate Control OK Extension Option OK APPLY © Digital Watching. All Rights Reserved

1 Name - Define the Event rule name.
② Event - Select the event among motion detection, network disconnection, illegal login detected, temperature critical, schedule, sensor detection.

Click 'Cancel' to return to the previous setting.
You need at least one event.

3 Rules - Select the action rule defined in the Trigger Action-Action rule menu.

4 Click 'Save' to save the current settings.

Click 'Cancel' to return to the previous setting.

Setup - Event Setup

Motion Detection Configuration

BACKLIGHT SETTINGS

Street scene with parked cars and a prominent stone monument in front of a historic building (no visible text or signage)

WDR(Wide Dynamic Range) Off WDR Level Normal SAVE CANCEL DEFAULT

1 Motion Detection - It shows the Motion event status.
Event Alert Icon( ) appears if 'Motion Detection' is activated.
② Area - Set the motion detected area. Click in the display window to draw the motion area.
You can set up to four areas.
3 Activation - Enable or Disable motion detection function.
4 Sensitivity - Define the sensitivity of motion detection.

If a high value is selected, it will detect very small motion while it becomes relatively insensitive when a low value is selected.

5 Click 'Save' to save all settings.

Click 'Cancel' to return to the previous setting.

Setup - Event Setup

Temperature

TEMPERATURE General Setting *Mode Fahrenheit Threshold 150 [122 ~ 212] *Temperature 115 °F APPLY

1 Mode - Select Fahrenheit or Celsius.
2 Threshold - Define the temperature at which the event trigger occurs.
3 Temperature - It indicates the current temperature of the IP camera.
4 Click 'Apply' to save all settings.

Setup - Event Setup

Alarm Configuration

ALARM CONFIGURATION Input Device Setup OFF A Normal Open Contact (NO) A Normal Closed Contact (NC) APPLY

① Input Device Setup - Select input device type from OFF / N.O. / N.C.

	Operation
OFF	Ignore this input sensor.
NO	The contact is normally open and closed when activated.
NC	The contact is normally closed and open when activated.

② Click 'Apply' to save all changes.

Setup - Record Setup

Record Management

RECORD MANAGEMENT Record Global Setting Target Stream NONE SAVE RECORDING LIST Name Enabled File Type Storage Continuous RECORD0 X MP4 STORAGE1 Off RECORD1 X MP4 STORAGE1 Off MODIFY

1 Target Stream - Select the channel you want to record video.
② Click 'Save' to save the current settings.
3 Recording List - Display the information about the recording settings.
④ Click 'Modify' to modify the selected item in the recording list.

Setup - Record Setup

Record Configuration

RECORD MANAGEMENT Record Settings Enabled Off On Storage Device SDCard 1 File Type MP4 Storage SDCard Continuous Off On Pre Duration 5 [0 ~ 5] Post Duration 5 [1 ~ 240] SAVE CANCEL

1 Enabled - Enable or disable this function.
② Storage Device - This option shows the SD card currently mounted on the camera.
3 File Type - Select the recording file type.

Currently, the camera supports MP4 file type.

4 Storage - Select the storage type. SD Card (Disabled) selection is not allowed.
5 Continuous - If continuous mode is enabled, the camera will start recording automatically.
6 Pre Duration - Define the duration of recording before an event.
7 Post Duration - Define the duration of image transfer after an event.
8 Click 'Save' to save the current settings.

- Click 'Cancel' to return to the previous setting.

Setup - Record Setup

Recording List

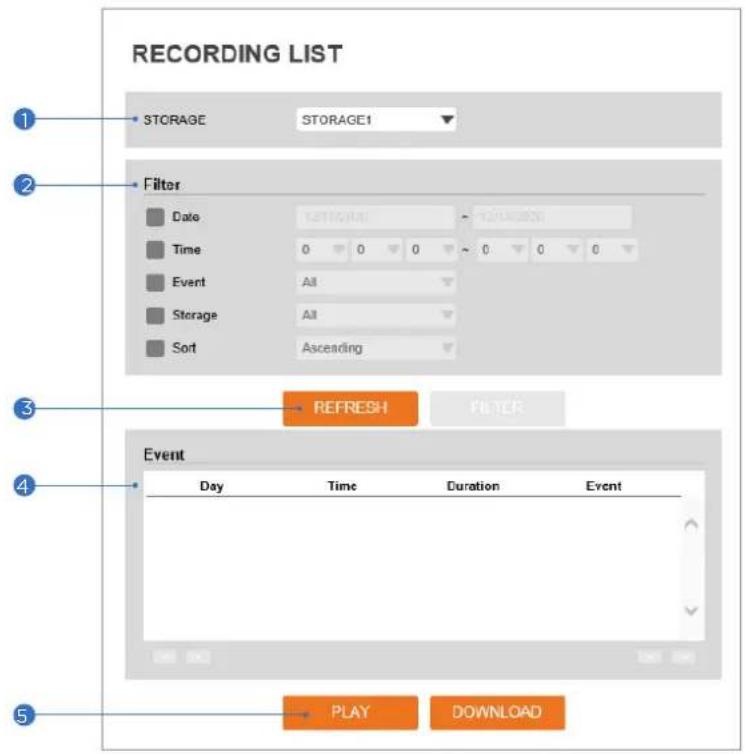

RECORDING LIST 1 STORAGE STORAGE1 2 Filter Date 0 0 0 0 0 0 Time All Event All Storage All Sort Ascending 3 REFRESH FILTER 4 Event Day Time Duration Event 5 PLAY DOWNLOAD

1 Storage - Select the Storage from the available options.

2 Filter - Select the date/time, event, sort, or storage format to filter the recorded video results.

3 Click the 'Refresh' button to refresh the search results as needed. Click 'Filter' to view the filtered recorded video.

4 Recording List - Display the information of the recorded video.

5 Click 'Play' to view the selected item in the list of the recorded video results. Click 'Download' to download the selected item.

• When you click 'Download', the following window appears.

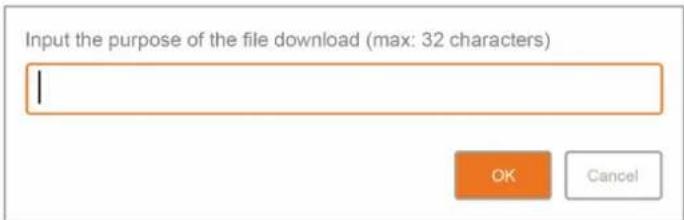

• When downloading, please fill up the purpose of the file download. The field is limited to 30 characters. (This information will be shown on the Log page with the download time).

Input the purpose of the file download (max: 32 characters) OK Cancel

When playing back recorded MP4 files with H.265 (HEVC) codec, the video may not play due to a performance issue of the VLC plug-in.

RECORDING LIST

Street scene with parked cars and a large brick building in the background, no visible text or signage

Recording Video

Token

00019644600507fa

Status

Completed

Start Time

12/18/2020 04 19:06pm

End Time

12/18/2020 04:19:23pm

Recording Time

00:17

REPLAY

BACK

Recording Video Viewer - Play the recorded video.
2 Recording Video Information - Display information about the recorded video.
3 Click 'Replay' to view the recorded video again.

Click 'Back' to return to the previous menu.

Setup - Record Setup

Storage Configuration

1. If SD Card does not automatically mount, you must format for mounting SD card.

Storage List

Name	Mounted	Size	Used(%)	Available
SDCard1	0	59.6GB	0%	59.6GB

Display the SD card information mounted on the device.

* Select an item from the Storage List to configure its related functions.

Setup - Record Setup

Storage Configuration

STORAGE CONFIGURATION Notice 1. If SD Card does not automatically mount, you must format for mounting SD card. Storage Size 15MB / 59.8GB Auto Delete NONE Overwrite Off On Unmount UNMOUNT Format FORMAT APPLY CANCEL

① Storage Size - Total capacity of SD card and the remainder of it are displayed.
2 Auto Delete - Select the period for auto delete. The data stored before the set period will be deleted automatically.

Delete all stored images older than the selected time.

3 Overwrite - If ON is selected, once the SD card has less than 8MB storage available, new data will start to overwrite the oldest data. If OFF is selected, once the SD card has less than 8MB available, the camera will stop recording to the SD card.
4 Unmount - Remove the SD card from the device.
5 Format - Delete all contents stored on the SD card.
⑥ Click 'Apply' to save all settings.

Click 'Cancel' to return to the previous setting.

Setup - Security Setup

IP Address Filter Configuration

IP ADDRESS FILTER CONFIGURATION General Setting IP Address Filter On Off IP Filter Type Allow APPLY Filtered IP Address IP Address IP Address [ invalid ] ADD REMOVE

① IP Address Filter - Enable or disable this function.
② IP Filter Type - Select the recording IP filter type.
3 Click 'Apply' to save all settings.
4 Filter IP Address - Display the filtered IP address.
⑤ IP Address - Define the IP address you want to apply the IP filter.
⑥ Click 'Add' to add the IP address to the list.

Click 'Remove' to remove the IP address selected in the list.

Setup - Security Setup

RTSP Authentication Configuration

RTSP AUTHENTICATION CONFIGURATION 1 RTSP Authentication Enable Disable 2 APPLY

1 RTSP Authentication - Enable or disable the RTSP authentication.
② Click 'Apply' to save all settings.

IEEE 802.1X CONFIGURATION

General Setting IEEE 802.1x On Off Protocol MD5 EAPOL Version 1 ID Password Retype Password CA Certificate NONE Certificate NONE APPLY

The feature is needed when connecting the camera to the network protected by the IEEE 802.1X.

IEEE 802.1x - Enable or disable the IEEE 802.1x feature.
2 Protocol

• MD5: It provides one-way password-based network authentication of the client.
• PEAP: It is similar to TTLS in that it does not require a certificate on the client side.
• TTLS/MD5: It does not require a certificate on the client side.
• TLS: It relies on client-side and server-side certificates to perform authentication.

3 EAPOL Version - Select the EAPOL Version.

4 ID - Type the ID to identify the client in the IEEE 802.1X authentication server.
5 Password - Type the Password to identify the client in the IEEE 802.1X authentication server.
⑥ Verify - Verify Password.
7 CA Certificate - Select the CA certificate required for TLS, TTLS, and PEAP authentication.
8 Certificate - Select the client certificate required for TLS authentication
9 Click 'Apply' to save all settings.

Setup - Security Setup HTTPS Configuration

HTTPS CONFIGURATION

1. If no certificates are available go to certificates to manage.

Certificates

Certificate

NONE

HTTPS connection Policy

WEB

HTTP and HTTPS

ONVIF

HTTP

RTSP OVER HTTP

HTTP

APPLY

HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications.

1 Certificate - Select an installed certificate.

If you cannot select a certificate, please install the certificate from the Security->Certificates menu.

2 HTTPS connection Policy - Select one of "HTTP", "HTTPS", "HTTP and HTTPS" depending on the connected web, ONVIF, RTSP over HTTP.

• WEB: "HTTP" "HTTPS" "HTTP and HTTPS"
• ONVIF, RTSP OVER HTTP: "HTTP" "HTTPS" "HTTP and HTTPS"

3 Click 'Apply' to save all settings.

When HTTPS mode is chosen, input https:// to connect to the camera.

Setup - Security Setup

Certificates Configuration

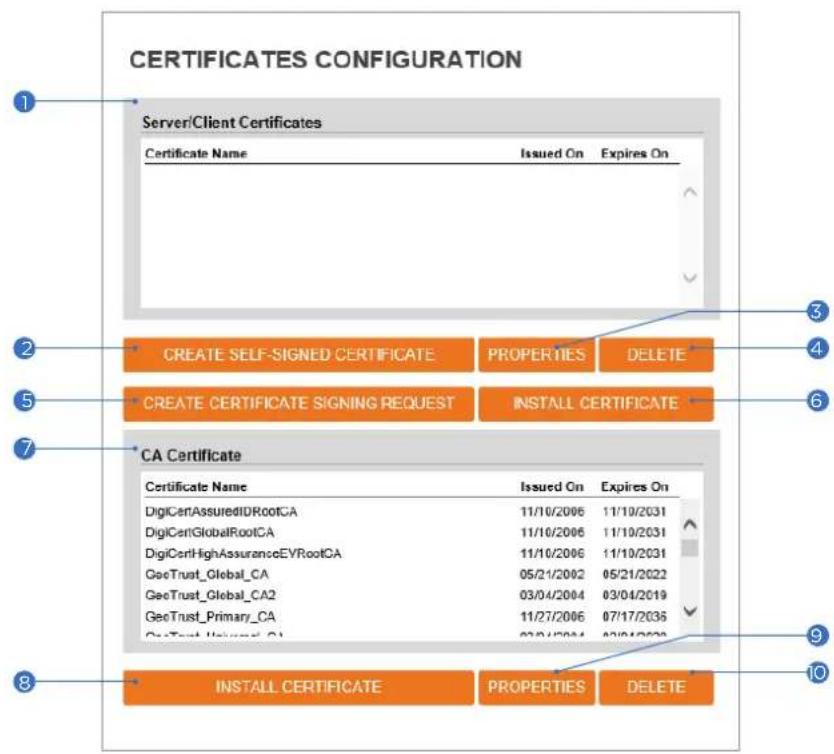

CERTIFICATES CONFIGURATION Server/Client Certificates Certificate Name Issued On Expires On CREATE SELF-SIGNED CERTIFICATE PROPERTIES DELETE CREATE CERTIFICATE SIGNING REQUEST INSTALL CERTIFICATE CA Certificate Certificate Name Issued On Expires On DigiCertAssuredIDRootCA 11/10/2006 11/10/2031 DigiCertGlobalRootCA 11/10/2006 11/10/2031 DigiCertHighAssuranceEYRootCA 11/10/2006 11/10/2031 GeoTrust_Global_CA 05/21/2002 05/21/2022 GeoTrust_Global_CA2 03/04/2004 03/04/2019 GeoTrust_Primary_CA 11/27/2006 07/17/2036 GeoTrust_Universal_C1 02/04/2014 02/04/2028 INSTALL CERTIFICATE PROPERTIES DELETE

1 Server/Client Certificates - Shows the installed certificates.
② Create Self-Signed Certificate - A self-signed SSL certificate is an identity certificate signed by its creator. But they are considered to be less trustworthy.
3 Properties - Shows information about the selected certificate.
④ Delete - Delete the selected certificate.
⑤ Create a Certificate signing request - This is the encoded data that contains the necessary information for issuing the certificate.

They must be filled in when creating the CSR (Certificate Signing Request).

⑥ Install Certificate - Install Certification
7 CA Certificate - Shows the installed CA certificates.
8 Install CA Certificate - Install Certification, see the detail page.
9 Properties - Shows information about the selected certificate.
10 Delete - Delete the selected CA certificate.

Setup - Security Setup

Certificates Configuration

CERTIFICATES CONFIGURATION Create Self-Signed Certificate Certificate Name Expires On: mswldfyyyy -01/18/2036 Country: US State Or Province Locality Organization Organization Unit Common Name: 192.1GB 1.14 RSA: 4056 SHA: 256 Alternative Hostname1 Alternative Hostname2 Alternative IP OK CANCEL Install Certificate Certificate From Signing Request Certificate And Private Key Certificate Name Select File OK CANCEL Install CA Certificate Certificate Name Select File OK CANCEL

Detail for Install Certification.

1 Certificate From Signing Request - Select to install a signed certificate returned from the CA.
2 Certificate And Private Key - Select to install Certificate And Private Key to install a certificate and private key.
3 Certificate Name - Enter a unique name to identify a certificate.
4 Select File - Choose the certification file.
⑤ OK - Request installing a certificate.
⑥ Cancel - Cancel install certificate and then back to certificates configuration.

Detail for Install CA Certification.

7 Certificate Name - Enter a unique name to identify CA certificate.
8 Select File - Choose a CA certification file
⑨ OK - Request installing a CA certificate.
10 Cancel - Cancel installing a CA certificate and then back to certificates configuration.

Setup - Security Setup

Auto Lock

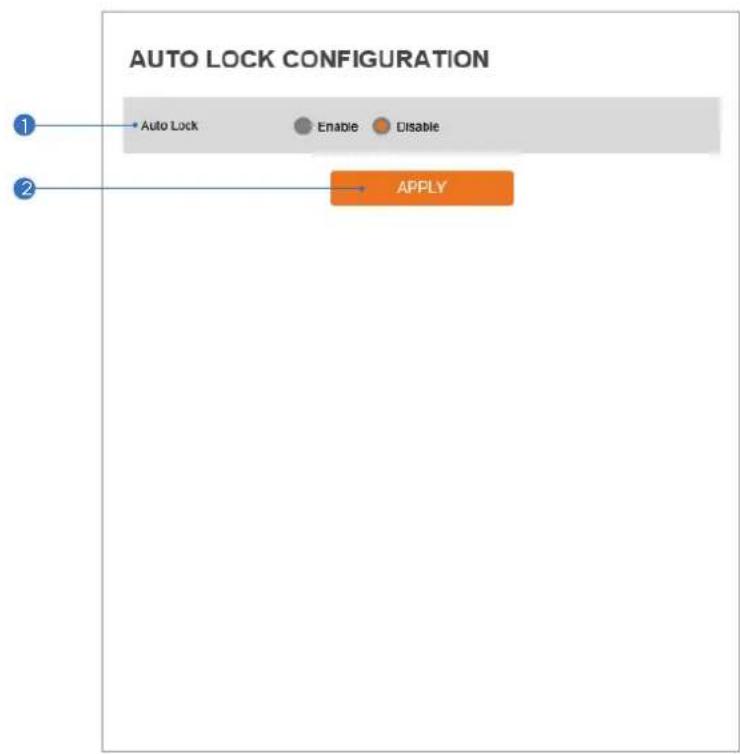

AUTO LOCK CONFIGURATION 1 Auto Lock Enable Disable 2 APPLY

1 Auto Lock - Enable or disable the Auto Lock function. When enabled, the system will lock itself for five (5) minutes after three (3) failed login attempts.
② Click 'Apply' to save all settings.

Setup - System Setup System Information

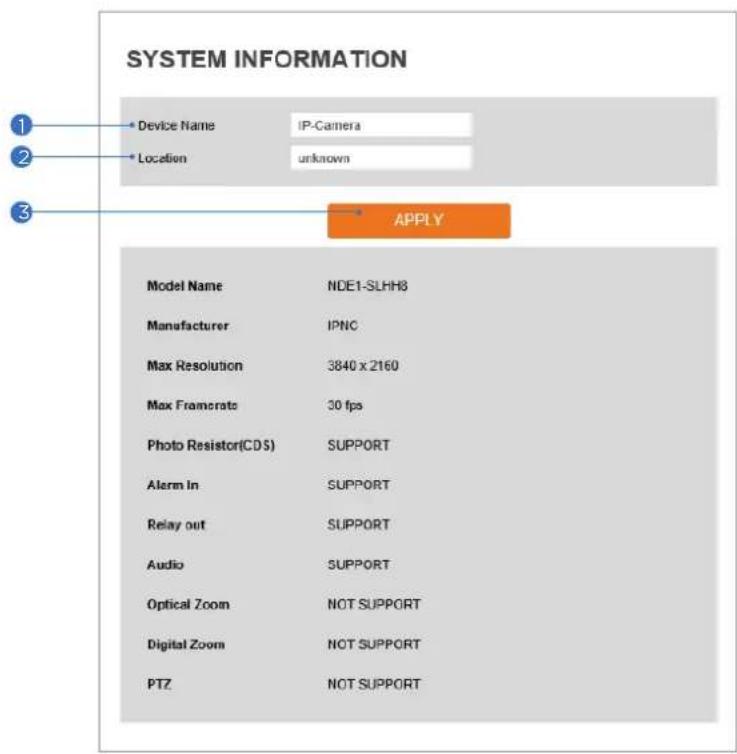

SYSTEM INFORMATION Device Name IP-Camera Location unknown APPLY Model Name NDE1-SLHH3 Manufacturer IPNC Max Resolution 3840 x 2160 Max Framerate 30 fps Photo Resistor(CDS) SUPPORT Alarm In SUPPORT Relay out SUPPORT Audio SUPPORT Optical Zoom NOT SUPPORT Digital Zoom NOT SUPPORT PTZ NOT SUPPORT

System Capability information.

1 Device Name - You can define the device name.
② Location - You can define the device's location.
3 Click 'Apply' to save all settings.

Setup - System Setup System Diagnostics

SYSTEM DIAGNOSTICS

Uptime

0day 0hrs 2mins

SD Card

SD-card is not mounted

NAND

NAND write speed: 148.1MB/s

NAND read speed: 373.8MB/s

EEPROM

EEPROM read OK

Audio

Audio ACK OK

System Files

File system OK

NTP Status

NTP: On

Connect Success

Last NTP Connected DateTime: 2020-12-17 23:18:27

Shows basic hardware functions after inspection.

① Shows Uptime, SD card, NAND, EEPROM, Audio chip, Important file system, and NTP Status.

Warning:

If the camera is abnormally terminated, a download button will appear on the diagnostics page to download a file that allows you to check the error information you can.

If you want to download the core dump file, press the Download button

DOWNLOAD

Setup - System Setup Configuration Backup

CONFIGURATION BACKUP 1 2 Mode Download Upload Backup Key APPLY

Use this page to import or export the camera settings.

i Select to download or upload camera settings.

The following settings are NOT included in the backup files: Network (except RTSP information), System >user management, PTZ settings (on PTZ models).
Download: save the camera's current settings. Check the box next to 'Download', enter a backup key and click APPLY. The backup key can be of any value. Remember the backup key, it will be required when uploading the file.
Upload: upload configuration settings from another camera. Check the box next to 'Upload'. Enter the backup key for the configuration backup. Click 'Select File' to locate the configuration

backup file and select it on your computer. The file name and upload status will appear. Click 'Apply' to start the upload. A popup window will appear when the configuration upload is complete.

Mode Download Upload Backup Key *** Select File Select File pconf_enc.tar Ready to upload. APPLY

NOTE:

The configuration backup download is available when accessing the camera directly from the web browser. If accessing the camera from the DW Spectrum IPVMS client, this feature is disabled.

Warning:

If the camera connection is terminated abnormally terminated, a download button will appear on the diagnostics page to download and check the error information.

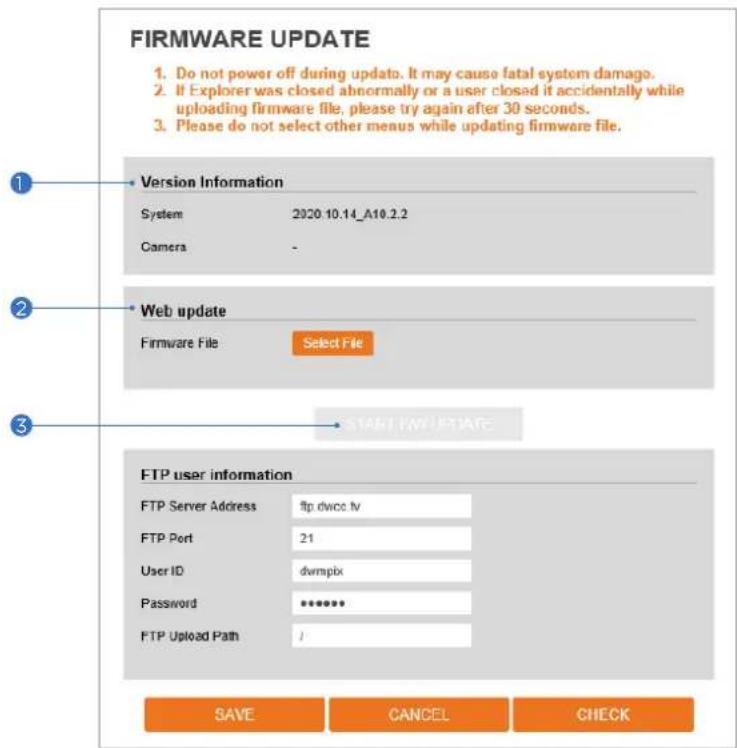

FIRMWARE UPDATE 1. Do not power off during update. It may cause fatal system damage. 2. If Explorer was closed abnormally or a user closed if accidentally while uploading firmware file, please try again after 30 seconds. 3. Please do not select other menus while updating firmware file. Version Information System 2020.10.14_A10.2.2 Camera - Web update Firmware File Select File START IN UPDATE FTP user information FTP Server Address ftp.dwcc.lv FTP Port 21 User ID dwmpix Password ********** FTP Upload Path / SAVE CANCEL CHECK

① Version Information - It shows the current Firmware Version in the system.

② Web Update - Select the Firmware file on your computer by clicking the [Select file] button.

3 Start F/W Update - Click this button to start the update. Progress of uploading will be displayed using Progress Bar. If you assign the wrong file name, an error message will be shown.

Warning:

1. Do not turn off the power to the camera during the firmware update. Interrupting the update may cause the system to become unstable. Once the update is completed, the system will reboot automatically.

2. Make sure to check the 'Notice' shown on the screen. If the firmware update is completed successfully, the camera will reboot and show the login window.

Setup - System Setup

Date and Time Settings

DATE&TIME SETTINGS 1 Time Zone Setup Time Zone (GMT-08) Pacific Time (US & Canada), Baja California ▼ APPLY 2 Time Format Time Format mm/dd/yy ▼ Hour Clock Format 12H ▼ APPLY 3 Current Date & Time Date & Time 12/17/2020 11:21:01pm New Camera Date & Time 4 Synchronize with my computer Date & Time 12/16/2020 04:21:01pm 5 Setup manually Date 2005 ▼ 01 ▼ 01 ▼ Time 00 ▼ 00 ▼ 00 ▼ 6 Synchronize with time server (NTP) NTP Server pool.ntp.org ▼ 7 APPLY

1 TimeZone Setup - Choose the time zone for the camera. It will be activated after clicking the 'Apply' button. Before setting below 'New Camera Date and Time', set the correct time zone first.
2 Time Format - Select the time format yy-mm-dd or mm/dd/yy.
3 Current Date and Time - Current date and time setting in the Camera.
4 Synchronize with my computer - Set the date/time using those of the PC currently connected.
5 Setup manually - Set the date/time by typing manually.
⑥ Synchronize with time sever Time Zone (NTP) - Choose the time server available to connect to the current camera. Date and Time will be updated automatically every hour when connected.
7 Click 'Apply' to save all settings.

DST SETTINGS General Setting Off On Date&Time Settings Start Time Mar Second Sun 2 o'clock End Time Nov First Sun 2 o'clock APPLY

Daylight Saving Time (DST) is the practice of setting the clocks forward one hour from standard time during the summer months, and back again in the fall, to make better use of natural daylight.

1 General Setting - Enable or disable the DST function.
② Date and Time Settings - Set the start time and end time that the DST applies.
3 Click 'Apply' to save all settings.

Setup - System Setup

Users Management

USER MANAGEMENT

ID admin Authority Administrator A2 M3 FY DE4 TE

1 Users - List all the user accounts for authentication.
② Add - Register a new user.

ID	Enter a new user ID. Admin already exists.
Password	Enter the user password. (Check the password)
Retype Password	Enter the user password again for verification.
Password Hint	Enter the password hint.
User Authority	Select Operator or Viewer.Viewer: Only monitoring is allowed.Operator: Most of the functions are allowed except 'Setup'.

ID Password Rutype Password Password Hint UserAuthority Operator Password requirement: minimum 0 characters with at least four combinations of uppercase letters, lowercase letters, numbers and special characters. Acceptable special characters are: -15.4(-)-1[1].7/ Passwords cannot contain ID) APPLY CANCEL

The ID and Password are limited to 8 characters with at least two combinations of uppercase letters, lowercase letters, numbers and special characters.

Acceptable special characters are: \~'! \$ ^ () _ - {} [ ]; ? /

Click 'Save' to save all settings.

Click 'Cancel' to return to the previous menu.

3 Modify - Modify the information of the user accounts registered. For the admin account, only the password can be modified.
4 Delete - Delete the selected user account. The admin account cannot be deleted.

Setup - System Setup

System Log

SYSTEM LOG
1
Filter

Date Time Type Sort Ascending 12/02/20 0 0 0 - 0 0 0 All Ascending

2
REFRESH
电话:[phone]
BACKUP

3

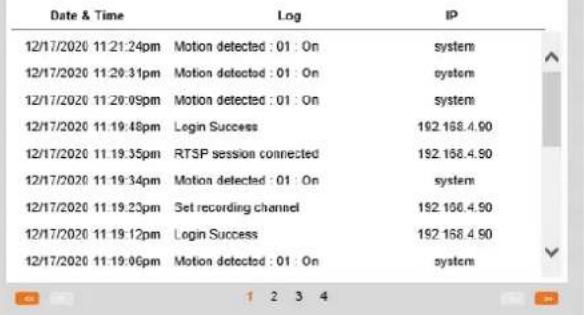

List

Date & Time 12/17/2020 11:21:24pm Motion detected : 01 : On system 12/17/2020 11:20:31pm Motion detected : 01 : On system 12/17/2020 11:20:09pm Motion detected : 01 : On system 12/17/2020 11:19:48pm Login Success 192.168.4.90 12/17/2020 11:19:35pm RTSP session connected 192.168.4.90 12/17/2020 11:19:34pm Motion detected : 01 : On system 12/17/2020 11:19:25pm Set recording channel 192.168.4.90 12/17/2020 11:19:12pm Login Success 192.168.4.90 12/17/2020 11:19:06pm Motion detected : 01 : On system

1 Filter - Select a date, time, sort, or type of log to filter the log.
② Click the 'Refresh' button to refresh the log list.

Click 'Filter' to view the filtered log.

Click 'Backup' to back up the filtered log.

3 System Log List - The filtered log is displayed.

Setup - System Setup

Factory Reset

FACTORY RESET 1 All Exclude network settings and user settings 2 APPLY

① Reset to the factory defaults - Return the setup to the factory default.

All - Reset all Settings to the factory defaults.

Except Network Settings and User Settings - Reset all camera settings to factory default except for the network settings.

② Click 'Apply' to save all settings.

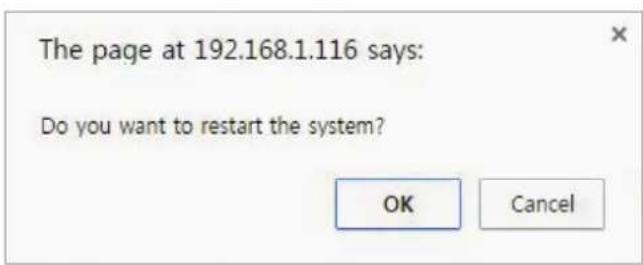

The page at 192.168.1.116 says: Do you want to restart the system? OK Cancel

If you click the 'RESTART' menu, a message box will be shown to confirm. Click the 'OK' button to restart.

SYSTEM OPEN SOURCE LICENSE

Open Source Name	Version	License
busybox	1.32.0	GPLv2
alsa-lib	1.1.6	GPLv2.1
libgib2	2.52.3	LGPLv2
libgnulls	3.6.2	LGPLv2.1
libjson-c	0.13.1-20180305	JSON License
libcurl	7.66.0	MIT/X derivate License
libffi	3.1	MIT License
libgcrypt	1.6.1	LGPLv2.1
libni	3.4.0	LGPLv2.1
libogg	1.3.2	BSD.style License
libsampterate	0.1.8	GPLv2
libselinux	2.7	Public domain
libsaddle	1.0.27	LGPLv2.1
libssh2	1.9.0	BSD
libtesa1	4.13	GPLv3

This menu shows a list of all the System Open Source License information in the camera, including Open Source Name, Version, License, etc.

Setup - System Setup

Plug-In

PLUG-IN Plug-in List Name Version Status INFORMATION SARTSTOP_UNINSTALL LOGS *Information Description Minimum Required Firmware Plug-in *Plug-in Update Current Storage Usage 56% Select Plug-In File Select File UPLOAD PLUG-IN

1 Plug-in List - View all plug-ins currently installed on the camera.
2 Configuration - Show the settings for the selected plug-in from the list.

Start/Stop - Start/stop the selected plug-in from the list.

Uninstall - Remove the selected plug-in from the list.

Logs - Download the log file for the selected plug-in from the list.

3 Information - View additional information for the plug-in selected from the list.
4 Plug-in Update - Once a plug-in is selected from the list, press the 'select file' button to upload a new plug-in file located on your drive.

Note the available local storage on the camera before updating a plug-in. You may need to remove some plug-ins to have enough storage for a new plug-in.

5 Upload Plug-In - Once a new plug-in file is selected, click the 'UPLOAD PLUG-IN' button to start the update. The Progress Bar will indicate the uploading progress.

See the MEGApix® IVA™ user manual for more information on the analytics plug-ins, settings and activation.

Follow the steps below to complete the initial network setup.

Do not power on the IP camera until instructed.
i Temporarily disable any proxy servers configured in Internet Explorer.
If connecting the IP camera directly to a modem, power down and reset the modem. Leave the modem powered down until the camera's configuration is complete and the IP Camera has been connected to the modem.

1 Connect the IP camera to the configured network.

2 Open the DW IP Finder on a PC on the same network as the camera and search for the camera.

If you have a DHCP server, it will automatically set the camera's IP address and network settings.
i If you do not have a DHCP server, the camera's IP address is set by default to 192.168.1.80 after one minute In this case, the PC's IP address must be changed to match the camera's IP address settings to be able to access the camera.

3 If multiple cameras are added at the same time, each camera can be identified by its mac address.

4 Click on the camera's IP address and connect to the web page.
⑤ Default ID/password are both: admin.
⑥ Familiarize yourself with the viewer interface.
⑦ Install VLC to display live video.
8 The camera's IP address settings can be set to 'STATIC' from the DW IP Finder or the camera's web viewer by going to Setup -> Network -> Network Settings.
9 If the IP camera is connected to a network with a router, you must have port forwarding configured on your router to access the camera from outside the network.
After configuring port forwarding on your router (if necessary), access your IP camera by opening Internet Explorer and typing the IP address and web port assigned to the IP camera.

Example: http://192.168.0.200:8888

If your web port is 80, you do not need to specify the port in the address bar to access to your IP camera.

Access your IP Camera via the Internet (from a different network from the one your camera is):

If you use a static IP address assigned by your ISP:

1. Open Internet Explorer.
2. Type the address of the IP camera.
3. If you use a router, enter the routers' static IP and the web port number of the IP camera.

If you have a dynamic address provided by your ISP

1. Open Internet Explorer and go to your DDNS website.
2. Register the IP camera.
3. Reboot the IP camera.
4. Give the DDNS server 10 minutes to locate your IP camera's IP information.
5. Click the refresh button in Internet Explorer.
6. After your camera is connected, select your camera.

If you have a DYNAMIC IP service from your Internet Service Provider (ISP), you cannot tell the current IP address of the IP Camera.

To solve this problem, you must register with our DDNS service.

First, you must check if you are using dynamic addressing. If so, register your IP Video Server on our DDNS website before you configure, setup, or install the IP Camera.

Even though your IP is not dynamic, you will benefit by registering your device with a DDNS service. In this case, just remember 'hostname.dyndns.com/gate1' instead of a complicated series of numbers like http://201.23.4.76:8078.

For more details, contact our Support Center.

To use a public DDNS called 'DynDNS' or 'no-IP', refer to the detailed information on how to use the service. (Visit: http://www.dyndns.com or http://www.no-ip.com)

Network Setup -

Guide to the Network Environment

Please configure the IP Camera at the installation site. You must determine your network scenario to configure the IP Camera with the proper TCP/IP settings.

This tutorial will guide you through the process. Before actually configuring the IP Camera, determine settings to be applied. Record those settings to be used to configure your IP Camera for reference.

When configuring your IP Camera, treat the IP Camera as another PC on your network. You will assign it to several addresses and other TCP/IP properties to match your current network.

This step-by-step tutorial will teach what IP addresses and network configurations should be assigned based on the network scenario.

Before you begin, locate any information and settings received from your Internet Service Provider (ISP). You may need to refer to these IP addresses at a later time during the configuration.

Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
Secondary DNS Server (Option)

Static □ Dynamic □

If you were not given any IP addresses or the ISP was responsible for the setup and installation of your Internet connection, go to step 2.

If you are not using a router on your network, your 'Current TCP/IP Settings' (from the previous section) and 'Assigned IP Addresses from My ISP' will be exactly the same.

② You must determine whether the IP address is STATIC or DYNAMIC. Contact your ISP to get a STATIC IP address for the camera.

3 Configure your IP Camera's TCP/IP settings for network connectivity by selecting Setup from the main interface and selecting TCP/IP located on the left of the setup screen.

4 If prompted for ID and password, use 'admin' for both entries. The default web port number is 80. If port 80 is blocked by the ISP, use a value between 1025 \~ 60000. If TCP port 80 is blocked, contact your ISP.

⑤ The following descriptions are several basic network scenarios. Determine which scenario describes your network. If your network does not match one of the scenarios below and you are unsure how to setup your IP camera, contact your network administrator.

You cannot control the rectangular gray areas and only the ISP has access to the devices.

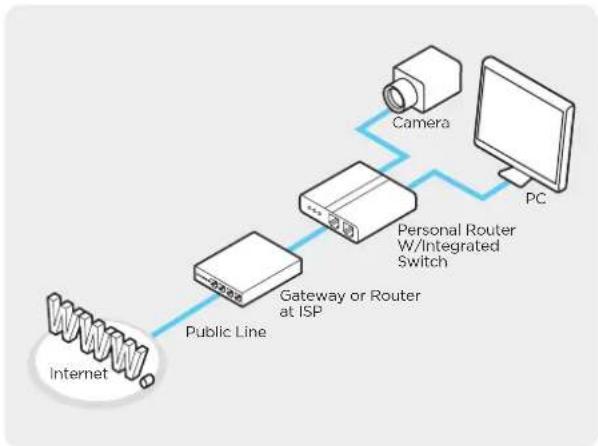

Case A: Dynamic IP + Personal Router [Most SOHO]

Case B: Static(Fixed) IP + Personal Router [Efficient]

Configure your IP Camera's TCP/IP properties:

1 Network Type: STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP camera).
② Internet Address: A private IP address such as 192.168.0.200 (example)

You need to assign an IP address to the IP Camera just as you do with PC.
The IP address you assign must be unique to your network and match your network as well.

For information on how to choose a unique IP and match your network, read the FAQ.

The IP address you assign must be a private IP. For information on how to choose a private IP please, read the FAQ.

3 Subnet Mask: 255.255.255.0 (example)

i You must use the same subnet mask as the one you noted under 'Current TCP/IP Settings'.

4 Default Gateway: 192.168.0.1 (example)

This IP address must be the IP address of your router. (private or LAN side)
Use the same Default Gateway you noted under 'Current TCP/IP Settings'.

5 Preferred DNS Server: Use the 1st DNS Server from 'Assigned IP Address from My ISP'.

If you did not receive any IP addresses from your ISP, contact the ISP and acquire the IP address of their DNS server.

6 DDNS Server: Use the DDNS server.

This is the same site you will register later to accommodate dynamic IP from your ISP.

7 Web Port: 8888

Do not use the default port 80 as this number must be changed.
1 Select a number between 1025 - 60000.

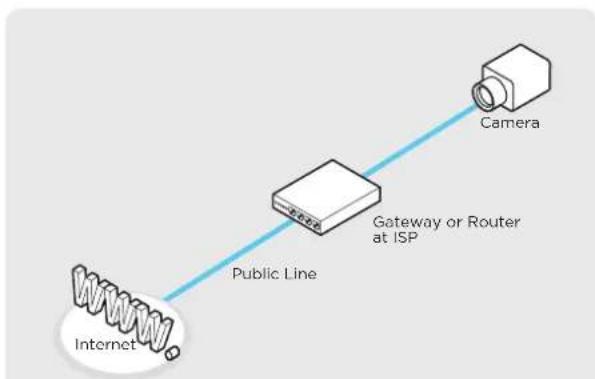

Case C:

Static(Fixed) IP

[Dedicated line directly to the IP Camera]

Configure your IP Camera's TCP/IP properties:

1 Network Type: STATIC
② Internet Address: A static IP address received from your ISP such as 24.107.88.125 (example)

You need to assign an IP address to the IP Camera just as you do with PC.

3 Subnet Mask: Subnet mask assigned from your ISP such as 255.255.255.240 (example)
4 Default Gateway: 24.107.88.113 (example)

i Use the assigned default gateway from your ISP.

⑤ Preferred DNS Server: Use the 1st DNS Server from 'Assigned IP Address from My ISP'
If you have not received any IP addresses from your ISP, contact them to acquire the IP address of their DNS server.
6 DDNS Server: Use the DDNS server
This is the same site you will register later to utilize our DDNS service.
7 Web Port: 80
i Select a number between 1025 - 60000.

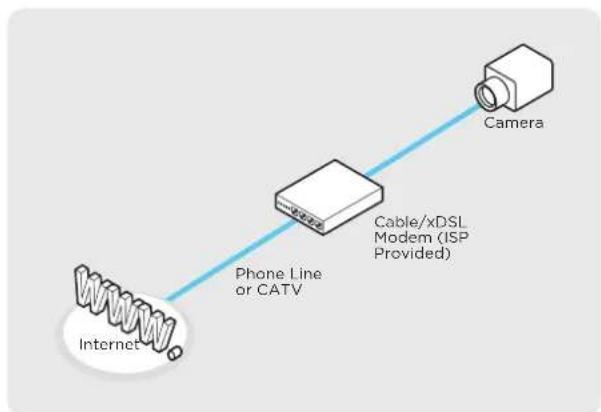

Case D:

Dynamic IP + DSL/Cable Modem [Connected directly to the IP Camera]

To connect the IP Camera directly to a modem, power down and reset the modem. Leave the modem powered down until the IP camera's setup is completed and the IP camera has been connected to the modem. Then power on the modem, followed by the IP camera.

Configure your IP Camera's TCP/IP properties:

1 Network Type: DYNAMIC
2 DDNS Server: Use the DDNS server

This is the same site you will register later to accommodate dynamic IP from your ISP.

3 Web Port: 80

i Select a number between 1025 - 60000.

Network Setup - Port Forwarding

After entering the correct TCP/IP settings, you are ready for 'Port Forwarding' (Cases A, B).

1 Use the table below to note your camera's TCP/IP settings for future reference. You may need this information to access your IP Camera and to configure 'port forwarding'.

IP camera TCP/IP settings
IP address
Subnet mask
Default gateway
Preferred DNS server
DDNS server
Web port

2 After clicking 'Apply', the system will prompt for a reboot. Please allow the system 50 seconds to reboot and accept the changes. After 50 seconds, close the configuration screen. The view will display 'Trying to Reconnect'. If the ACTIVE light on the IP Camera has gone off and is now back on again flashing, the IP Camera has rebooted. After the system reboots completely, remove the power supply from the unit and close Internet Explorer.

3 Return your PC/Laptop TCP/IP properties to their original settings.

4 Before installing the IP camera, you must perform port forwarding on your router (Cases A, B). You will need to forward 1 port:

• Web Port: All the ports will be forwarded to the IP address you assigned to the IP Camera. In the example above, you would forward:
  · 8888 > 192.168.0.200

After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location.

1 Locate the serial number located on the label attached to the bottom of the IP camera, you will need this for DDNS registration.
2 Connect the IP Camera to your router or cable/DSL modem (per your network scenario) via a Cat5/5e UTP Ethernet network cable.
3 Supply power to the IP camera.
4 After 1 minute, verify the IP camera indicators: · LINK: Flickering/Solid
5 After configuring port forwarding on your computer (if necessary), access your IP camera on your local network by opening Internet Explorer and specifying the IP address and web port assigned to the IP camera.

Examples: http://192.168.0.200:8888 or http://24.106.88.123
If you left your web port as 80, you do not need to specify the port in the address bar to access the IP camera.

6 Access your IP camera via the Internet :

If you use cases B, C:

1. Open Internet Explorer.
2. Type the address of the IP camera.
3. If you use a router, enter the routers' static IP and the web port number of the IP camera.

If you use cases A, D:

1. Open Internet Explorer and go to your DDNS website.
2. Register the IP camera.
3. Reboot the IP camera.
4. Give the DDNS server 10 minutes to locate your IP camera's IP information.
5. Click the refresh button in Internet Explorer.
6. After your camera is connected, select your camera.

The difference between B and C is that B needs to set the port forwarding.
Since the type of DDNS differs from the service type, refer to the related service site.

1. My POWER light is not on?

Power is not being supplied to the unit. Please use the power supply shipped with the unit and verify that a power source is active from the attached power outlet used to connect the adapter. You can test this by plugging in any other electrical device and verify its operation. After using the power supply shipped with the product, check the power source, and reinserting the power connector into the IP Camera, please call our Support Center. The power supply may be defective.

2. My ACTIVE light is not flashing?

Verify the power supply to the unit. Power off the unit and back on again, wait 1 minute, if the ACTIVE light still does not begin to flash, you will have to set the unit to its factory default (THIS WILL DELETE ANY CONFIGURATION AND SET THE UNIT TO THE FACTORY DEFAULTS). Power on the unit and insert the end of a paper clip into the small recessed opening on the back of the unit. Use the clip to press the button located within that opening.

3. My LINK light is not flashing or solid?

Verify the cable connection. 99% of the time the cable's connection to the unit is causing this problem. Try using a different network cable or crossover cable (for PC connection only). Try reinserting the cable, if this still doesn't solve the problem call our Support Center.

4. I can access the video server on my LAN, but not from the Internet.

Verify that your router (if applicable) has port forwarding properly configured. If accessing from our DDNS service, verify the correct serial number. Firewall issues may prevent user access.

5. How do I open an MS-DOS or Command Prompt?

Start > (All) Programs > Accessories > Command Prompt

6. How do I find out my IP address information if my settings were automatically detected?

1) Open a Command Prompt
2) At the prompt type - "ipconfig / all" (without the quotes)
3) Near the end of the information supplied, should be your current IP address, subnet mask, default gateway and DNS servers

7. I can't connect!!

In the case of a connection failure.

Modem Reboot > Modem Reboot Finished > Router

Reboot > Router Reboot Finished > IP Camera Reboot

IP Camera Reboot Finish > Verify DDNS and IP Camera connection, if applicable.

8. How do I "PING" an IP address?

1) Open an MS-DOS (or Command) prompt
2) At the prompt type - "ping xxx.xxx.xxx.xxx" (without the quotes and replace the "x" s with an IP address)
3) Press Enter

9. I'm accessing my video server remotely over the Internet and the video stream is choppy, is this normal?

Yes. The frames per second received remotely are determined by your bandwidth capabilities both at your site where the IP Camera is installed and your remote location. The lower of the two sites will determine how fast your video stream is received. It is recommended to have at least a 256Kb/sec upstream connection from the site where the IP Camera is installed. Lower speeds will operate properly but provide poor remote performance. The Faster the Internet connection at both ends, the faster the video stream.

10. How do I enable or check VLC on my browser

Internet Explorer

Open Internet Explorer > Tools on the menu bar > Internet Options > Security Tab > Custom Level > Scroll down and verify that you are prompted or have enabled plug-ins to be downloaded and executed. > click OK > restart browser.

Chrome

Open Chrome > Chrome menu settings > Advanced settings > Individual information - content settings > Run automatically

11. How do I reset the unit to factory defaults?

Refer to the previous functions page and find the reset button. Power ON the unit and use a paper clip to push the reset button within that opening. You should then see the ACTIVE light turn off and after a few seconds, the ACTIVE light will begin to flash, signifying a successful reboot. If the ACTIVE light does not turn off after depressing the reset button, please try holding the button in for a few seconds and releasing it. YOU WILL LOSE ALL DATA THAT HAD BEEN ENTERED PREVIOUSLY AND THE IP CAMERA WILL BE SET TO ITS FACTORY RESET.

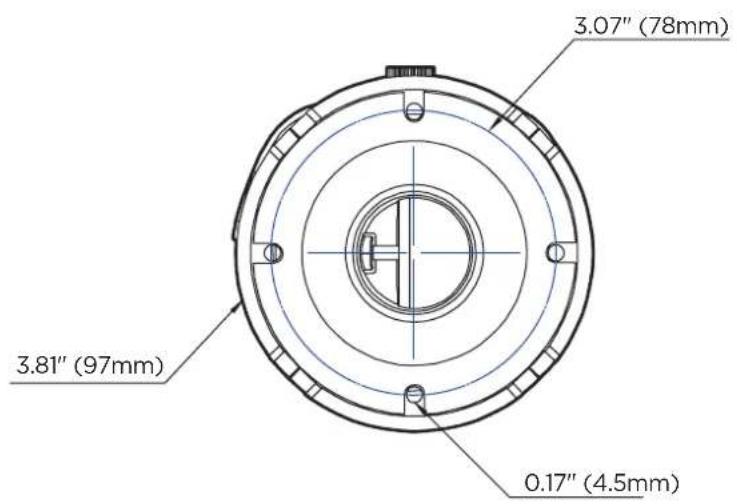

Unit: inches (mm)

3.07" (78mm) 3.81" (97mm) 0.17" (4.5mm)

12.2" (310mm) 3.24" (82.5mm) 6.42" (163.1mm) 4.92" (125mm) 11.34" (288.1mm)

Specification - Spec.

CAMERA
Image sensor 1/2.8"	4K CMOS
Total pixels 3952 (H) x 2320 (V)
Focal length 2.7 - 13.5mm, F1.4 / MFZ, P-Iris
Horizontal angle	D: 38.2° - 105°H: 33.1° - 90.3°V: 18.9° - 49°
Shutter speed	Auto, manual (1/15 - 1/32000), anti-flicker, slow shutter (off, 2X, 3X, 5X, 6X, 7.5X, 10X)
MIN. illumination 0.09 lux, O lux with IR (F1.4)
IR H6IR, 140ft
Day and night TDN (True Day and Night)
WDR WDR (DOL)
Optical zoom X5 Optical
DNR 3D-DNR
Privacy zone 16 programmable zones
AGC Auto
Other image processing	Configurable exposure, white balance, sharpness

ENCODER (VIDEO AND AUDIO)
Video compression	H.264, H.265, MJPEG
H.264 profile	BP / MP / HP
H.265 profile	MP
Multiple profile streaming performance	H.265: QFHD/1080p/720p/VGA/D1/CIFH.264 QFHD/1080p/720p/VGA/D1/CIFMJPEG: 1080p/720p/800x600/VGA/768x432/D1/CIF
Video bitrate	100kbps - 10Mbps, multi-rate for Preview and Recording
Bitrate control	Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Edge storage Micro	SD

I/O AND EVENT
Audio in/out	1 (1.0Vrms, 3kΩ) / 1
Alarm in/out	1/1
Video output(2nd video out)	1 CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Event notification	FTP, email, alarm out, SD card

SECURITY AND NETWORK
Network protocol	IPv4: TCP/IP / UDP / AutolP / RTP(UDP/TCP) / RTSP / NTP / HTTP / HTTPS / SSL / DNS / DDNS / DHCP / FTP / SMTP / ICMP / SNMPv1/v2/v3(MIB-2) / ONVIF
Security	HTTPS (TLS), IP filtering, 802.1x, Digest Authentication (ID/PW)
Plug in	CGI API, ONVIF

GENERAL
Power	DC12V: max 10.2WPOE IEEE 802.3at: max 16W(Adaptor is not Included)
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Material	Aluminum die-casting
Dimensions	12.2" x 3.81" (310 x 97mm)
Weight	2.64 lbs (1.2 kg)
Certification	FCC, CE, ROHS, IP67-rated

Go to https://digital-watchdog.com/page/rma-landing-page/ to learn more about Digital Watchdog's warranty and RMA.

To obtain warranty or out of warranty service, please contact a technical support representative at: 1+ [phone], Monday through Friday from 9:00 AM to 8:00 PM EST.

A purchase receipt or other proof of the date of the original purchase is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damages that occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, setup adjustments, improper antenna, inadequate signal pickup, maladjustments of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation, damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for a particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights from vary from state to state.

If the problem is not handled to your satisfaction, then write to the following address:

Digital Watchdog, Inc.

ATTN: RMA Department

16220 Bloomfield Ave

Cerritos, CA 90703

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Cost of such service calls are the responsibility of the purchaser.

DW

DIGITAL WATCHDOG®

Complete Surveillance Solutions

DW® East Coast office and warehouse: 5436 W Crenshaw St, Tampa, FL USA 33634 DW® West Coast office and warehouse: 16220 Bloomfield Ave, Cerritos, CA USA 90703

PH: 866-446-3595 | FAX: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support PH:

USA & Canada 1+ 866-446-3595

International 1+813-888-9555

French Canadian: + 1-904-999-1309

Technical Support Hours: Monday-Friday 9 a.m. to 8 p.m. Eastern Time
