USER MANUAL RT25XBDS SAMSUNG

Before operating the unit, please read this manual thoroughly, and retain for future reference.

Line drawing of a refrigerator with front door and side door (no text or symbols)

Type-1 Mechanical Control

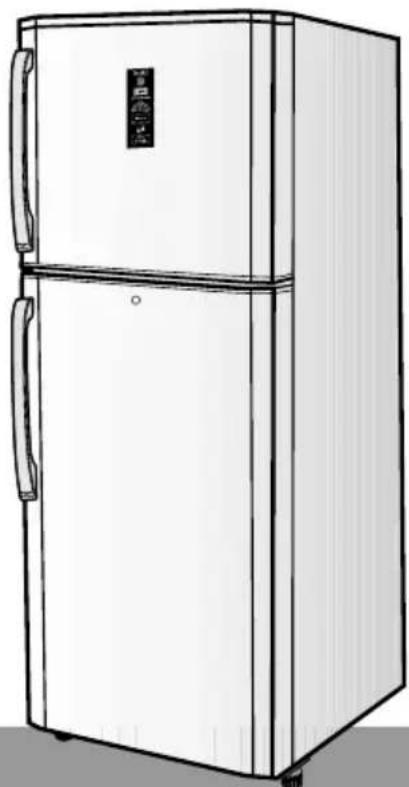

Line drawing of a modern refrigerator with two doors and a front panel (no text or symbols)

Type-2 Electronic Control

Contents

MAIN FEATURES 1

BASIC PREPARATION 1

- Getting Started 2

INSTALLATION 2

CAUTIONS WHILE USING 3-4

PARTS 5-6

REPLACING THE LAMP 7

HOW TO USE 8

- Temperature control 8

- Temperature control ( Electronic Model) ...... 9

- Ice cube maker 10

- Chiller Compartment 11

REMOVING ACCESSORIES 12-13

STORING FOOD 14

LEVELING THE APPLIANCE 15

BEFORE CALLING SERVICE 16-17

MAIN FEATURES

Large Freezer Storage Area

- Stores large quantities of food in the freezer.

Jumbo Storage Guard

- Holds large bottles securely.

Adjustable Storage Guards

- Position them for your convenience and according to the height of your food containers.

Bio-Fresh Zone (Select model)

- Keeps vegetables fresh for longer periods.

Mr. Cool Pack (Select model)

- Keep the stored items cool for more time after power cut off.

Sliding Drawer (Select model)

- Extra storage space for vegetables and fruits.

ICooling

- Advanced air circulation for faster surround cooling.

Super Freeze Zone (Select model)

- Freezes stored items quickly.

Twist Ice-Tray (Select model)

- Spring mechanism for automatic release of ice cubes.

Fresh Tech (Select model)

- Increases Vitamins in vegetables & fruits.

BASIC PREPARATION

Read Instructions.

Please read all safety and operating instructions before operating this appliance.

Retain Instructions.

Please keep this Owner's Manual for future reference.

Heed Warnings.

All warnigns, Cautions and Notes on this refrigerator are important; please pay attention to them.

Follow Instructions.

For best results, follow all instructions given in this manual.

Model and Serial Numbers.

Include both the model number and the serial number when corresponding with your Dealer concerning this product.

Date of Purchase :

Model No.:

Serial No.:

Getting Started

Before plugging in for the first time, allow the refrigerator to stabilize for at least one hour. Allow the freezer compartment to cool for 2 to 3 hours before storing food.

Cartoon illustration of a smiling refrigerator with a hand inserting a plug (no text or symbols)

INSTALLATION

Cartoon illustration of a smiling refrigerator with arms and legs, showing a surprised expression (no text or symbols)

1 Avoid locations affected by draughts or dampness.

Cartoon illustration showing a distressed refrigerator with a distressed face and a distressed bottle, symbolizing food safety or waste.

2 For optimum operation, normal room temperature is recommended. Avoid locations in direct sunlight, near heaters, radiators, stoves or ovens.

Illustration of a refrigerator with a fire impact and a steamer (no text or symbols)

3 Allow a 100mm space between the refrigerator and the wall. If your refrigerator is going into a recessed area, allow at least 300mm clearance above the refrigerator.

above 300mm above 100mm above 100mm

4 For personal safety, properly ground this appliance. Do not ground this refrigerator with a telephone line, gas pipe, etc.

Cartoon illustration of a smiling refrigerator character standing on a surface (no text or symbols)

CAUTIONS WHILE USING

Cartoon illustration of a smiling refrigerator with arms and legs, showing facial expression (no text or symbols)

1 - Do not allow water to splash onto the refrigerator. - Water impairs the insulation of electric parts and may cause an electrical shock or a fire hazard.

Cartoon illustration of a distressed refrigerator with hands and surprised expression (no text or symbols)

2 - Do not use flammable sprays such as lacquer and paint near the refrigerator. - Heat from the refrigeration unit may ignite flammable aerosols.

八戒 警戒

3 -Do not allow unattended children to play in or around refrigerators and other large appliances. The child may get hurt or they could damage the appliance. -Do not allow children to hand on to the refrigerator door.

Cartoon illustration of a person inside a refrigerator with a surprised expression (no text or symbols)

4 -Clean the refrigerator with a mild detergent and cloth. Dry it with a clean cloth.

Cartoon illustration of a child cleaning a large soap bottle with a smiling face (no text or symbols)

-For optimum operation, do not leave the door open for any longer than necessary.

- Leaving the door open allows warmer air to enter the refrigerator and causes the refrigeration unit to use more energy to maintain the temperature.

Cartoon illustration of a distressed refrigerator with arms and legs, showing cracks or stress (no text or symbols)

- Do not store volatile chemicals such as ether and benzene in the refrigerator.

- The fumes, besides damaging food, can build up and cause an explosion.

Cartoon illustration showing a refrigerator with a warning sign and a thought bubble containing boxes, implying a caution or confusion.

- Do not use the refrigerator if it is not operating correctly or has been damaged. Disconnect it from the power supply and call your local service center.

-If the power cord is damaged, avoid a hazard by replacing it through the manufacturer or its service agent or a similarly qualified person

Cartoon illustration of a refrigerator with a smiling face and a phone connected to a charging plug, no text or symbols present.

-Always be careful of not banging your head on the bracket lock while storing or taking out food.

Illustration of a person in uniform and hat using a device to interact (no text or symbols visible)

-Frequent opening of door can cause excessive frost in the unit that will reduce the cooling momentarily, this is a general phenomenon especially in coastal or high humidity area. It is not a malfunction. Opening of door should be avoided while defrosting.

-Avoid keeping freezer door open for long time to prevent frost accumulation.

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face and lightning bolts (no text or symbols)

-Dew (moisture) formation on case Ice Pack. It is a natural phenomena and not a refrigerator problem.

Isometric illustration of a rectangular electronic component with six slots and a small protrusion (no text or symbols)

RT 24/27/32/35

Technical diagram of an refrigerator interior with labeled compartments and internal components

Twist Ice Cube Tray (Select model)

Ice Storage Bin (Select model)

Freezer Compartment Temperature Control

Super-Freeze Zone (Select model)

Freezer shelf

Chiller Compartment (Select model)

Refrigerator Compartment

Temperature Control

i-Cooling / Spin-Cool (Optional)

Case Ice Pack Ref (Select Model)

Refrigerator Shelf ( )3 No. Select Model

Lamp

Shelf-Plus (RT 32 - Select Model)

Adjustable Storage Guard

Dairy Guard (Select model)

Fresh Tech (Select model)

Bottle Guide (Select model)

Jumbo Guard

Bottle Storage Guard

Bio-Fresh Zone (Select model)

Sliding Drawer (Select model)

It is recommended to store fruits & vegetables in Bio-fresh Zone/Case vegetable.

RT 26/29

Twist Ice Cube Tray (Select model) Ice Storage Bin (Select model) Freezer Compartment Temperature Control Guard FRE upp (Selected model) Mr. Cool Pack (Selected model) Super-Freeze Zone (Selected model) Chiller Compartment (Selected model) Refrigerator Compartment Temperature Control i-Cooling / Spin-Cool (Optional) Tray Egg (3-Line) Refrigerator Shell (Plastic or Steel or Glass) Lamp Foldable Storage Guard Pocket Storage Guard Fresh Tech (Selected model) Jumbo Guard (2 Bottle Storage Guard) Bottle Storage Guard Twin-Vegetable Box

It is recommended to store fruits & vegetables in Vegetable Box.

REPLACING THE LAMP

Illustration of a person wearing a cap and holding a phone to their ear, with open hands gesturing (no text or symbols)

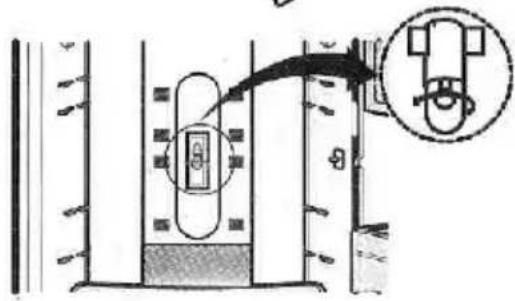

1 Press upper tab of the lamp cover with some tool such as ⊙ driver and pull it out.

Diagram showing a hand holding a tool interacting with a vertical panel, with numbered annotations indicating positions or steps.

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a component.

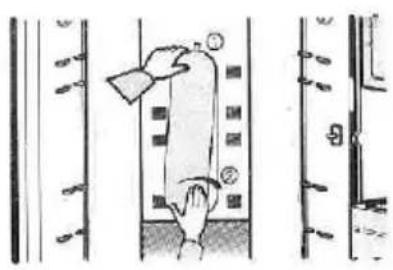

2 - Turn the existing lamp bulb and replace it with a new one.
- Replace the lamp cover by aligning the cover at the top (①) and carefully pressing it into place (②)

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a device.

Illustration of a hand cleaning a wall with numbered components (no text or symbols)

HOW TO USE

Temperature control

COLDEST

Turn the Temperature Control to "COLDEST" if you;

• have a lot of food to store (refrigerator or freezer)
• want to make ice (freezer)
• require fast freezing (freezer)

Freezer (Select Model)

Refrigerator

NORMAL

Turn the Temperature Control to the midway point between "COLDEST" and "COLD" for normal refrigerating or freezing mode.

Freezer (Select Model)

Refrigerator Temperature control

Refrigerator

COLD

Turn the Temperature Control to "COLD" if you want to store only a small amount of food in the refrigerator or freezer.

Freezer (Select Model)

Refrigerator

NOTE

• When the air surrounding the refrigerator is below 5°C, turn the Temperature Control to "COLD" to avoid freezing.
• Apart from above mentioned Knob setting settings if you desire to increase or reduce the cooling, turn the Knob clockwise or anticlockwise beyond the marked positions respectively.

Freezer Temperature control

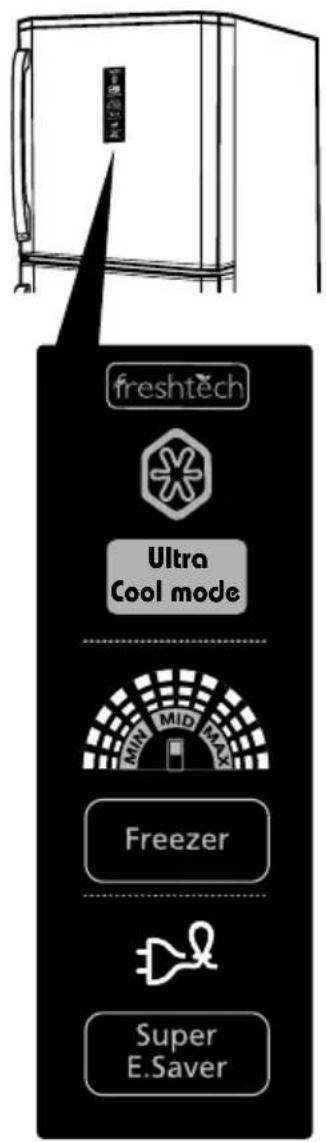

HOW TO USE (Display Panel)

Temperature control

freshtech Ultra Cool mode MIX MID MAX Freezer Super E.Saver

Ultra Cool mode

Ultra Cool mode (Button)

- When we need maximum cooling we should operate our refrigerator in Ultra Cool Mode. When we press Ultra Cool mode button compressor is operating for two and a half hours.

- It returns to the previous state after two and a half hours

- Do not dismantle the refrigerator with the operation ON. - It may cause electric shocks or other damages.

Freezer (Button) Default MID

On Pressing Freezer Button Cooling Sequence is MID MAX ALL LIGHT ON (MIN+MID+MAX) MIN MID.

The lighting sequence is

"MID" Position □ Medium Cooling

"Max" Position □ High Cooling

"ALL LIGHT ON" (MID+MAX+MIN) □ Maximum Cooling "MIN" □ Low Colling

Refrigerator : Refer to page no. 8

Super E.Saver (Button)

- When you press the super E. Saver button, the Super E. Saver will be turned on, and according to Algorithm, reduce energy consumption.

• When the air surrounding the refrigerator is below 5°C, turn the Temperature Control to "MIN" to avoid freezing.
• Ultra Cool Mode does not have an alarm function to indicate that the door is open or closed.
• If the Ultra Cool Mode, Super E.Saver mode is already selected and you press one of the other button, the current mode is cancelled and the mode corresponding to the button pressed is selected

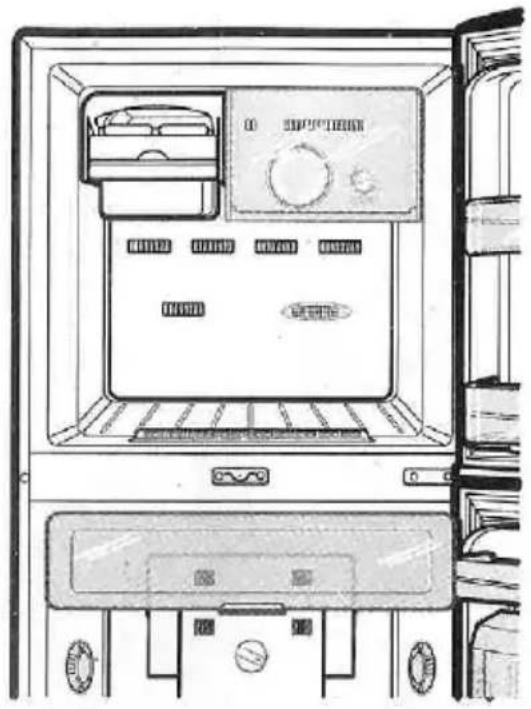

Ice Cube Maker (Premium Type)

Technical line drawing of a refrigerator interior with control panel and door (no text or symbols)

1 Fill the ice cube tray with water taking care not to overfill.

Water level

2 Slide the tray onto the ice cube shelf.

Illustration of hands holding a device with a circular button, no text or symbols present

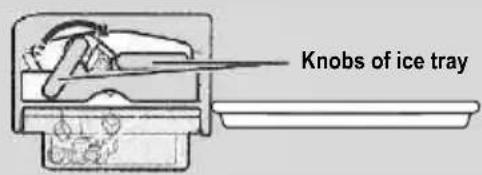

Knobs of ice tray

3 When ice is formed, remove the ice cubes from the ice cube tray by twisting the ice tray knobs. Make sure the ice storage bin is beneath the ice cube tray (see diagram below).

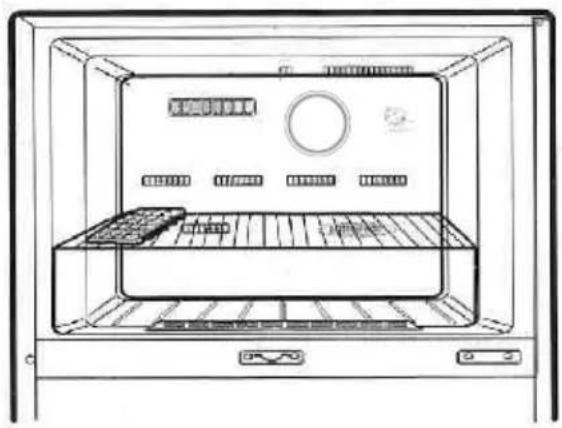

Ice Cube Maker (Economy Type)

Line drawing of a front view of a microwave oven with control panel and tray (no text or symbols)

Illustration of hands sorting and pouring small objects into a rectangular container (no text or symbols)

Ice trays are recommended to make Ice faster.

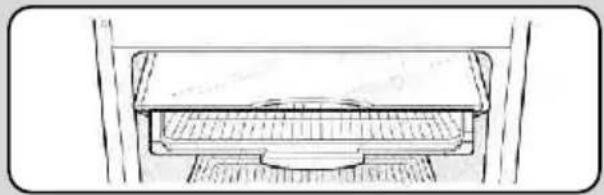

Chiller Compartment (Premium only)

Illustration of a person holding a fish, no text or symbols present

This compartment helps preserve the taste of food and prolongs its freshness by freezing the surface of the food only. Use the chiller for storing cheese, meat, snacks, fish or any food to be used soon.

Technical line drawing of a mechanical component or housing (no text or symbols)

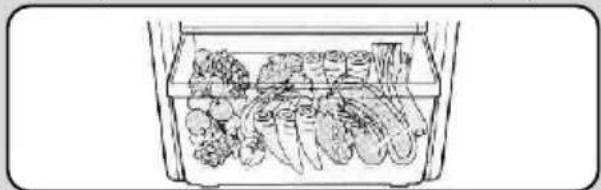

Bio-Fresh Zone (Select Model)

Line drawing of a person in a relaxed pose, hand on chin, appearing thoughtful (no text or symbols)

This compartment maintains the moisture and freshness of vegetables. It maintains necessary humidity and protects the vegetables from direct draughts of cold air which prevents drying.

Simple line drawing of a container filled with various vegetables (no text or labels)

To increase humidity, set the humidity control to high. To decrease humidity, set it to low.

Open Low PUBERTY CONTROL MINDITY CONTROL

Officer Cooper

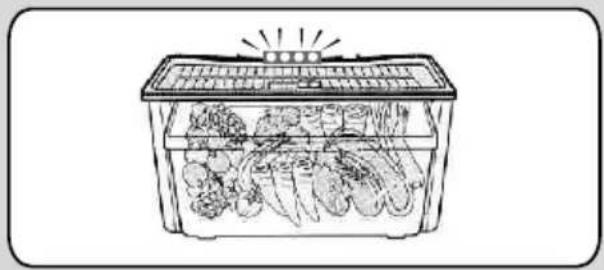

Fresh Tech (Premium only)

Line drawing of a person with hand on chin, covering mouth (no text or symbols)

This technology increases Polyphenol, Chlorophyll & Vitamin content in all stuff kept in and above vegetable box.

Line drawing of a container filled with various items, no text or symbols present

CAUTION

The vegetable bin is not suitable for storing tropical fruits such as bananas, pineapples, etc.

REMOVING ACCESSORIES

Freezer Shelf (Premium model)

- Pull the shelf forward and slide it out.

Illustration of a hand inserting a card into an ATM machine (no text or symbols visible)

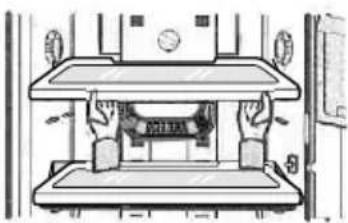

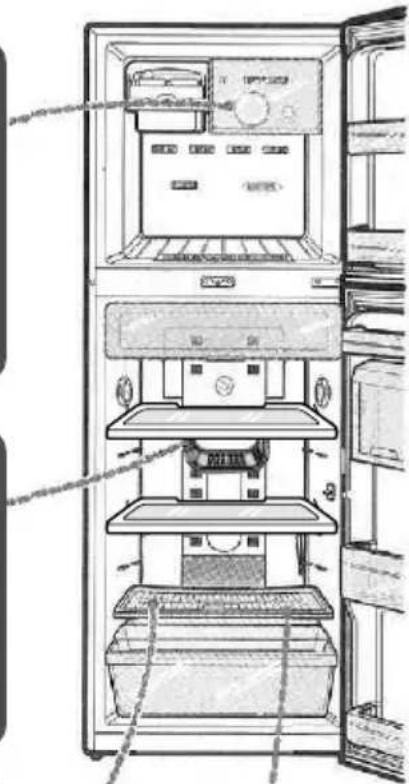

Refrigerator Shelf

• Pull the shelf forward until it meets the stopper.
• Tilt the front of the shelf up and pull it out.

Illustration of two hands operating a machine with a central component (no text or symbols visible)

Line drawing of an open refrigerator interior showing front, back, and side views (no text or symbols)

Shelf-Plus (RT-32 Premium only)

• Move Shelf Plus forward as shown in the picture.
• The Shelf Plus is flexible and will come out of the rear.

Technical line drawing of a mechanical device with no visible text or symbols

Rail Front

Rail Rear

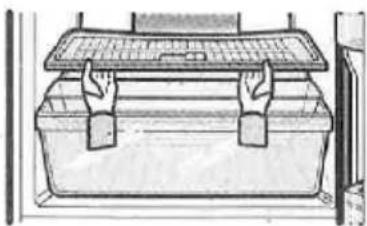

Vegetable Box and Cover (Premium only)

• Pull the vegetable bin forward and take it out of the refrigerator.
• Lift the cover up and pull it out of the refrigerator.

Illustration of a toolbox with handles and a grid-patterned lid (no text or symbols)

Diagram of a two-part container with handles inside, showing liquid level and top structure (no text or symbols)

Technical line drawing of a refrigerator with doors, shelves, and internal components (no text or symbols)

Chiller Compartment

• Pull the chiller compartment towards you until it meets the stopper.
• Tilt the front upward and pull the compartment out.

Simple line drawing of a mechanical device with two hands operating it (no text or symbols)

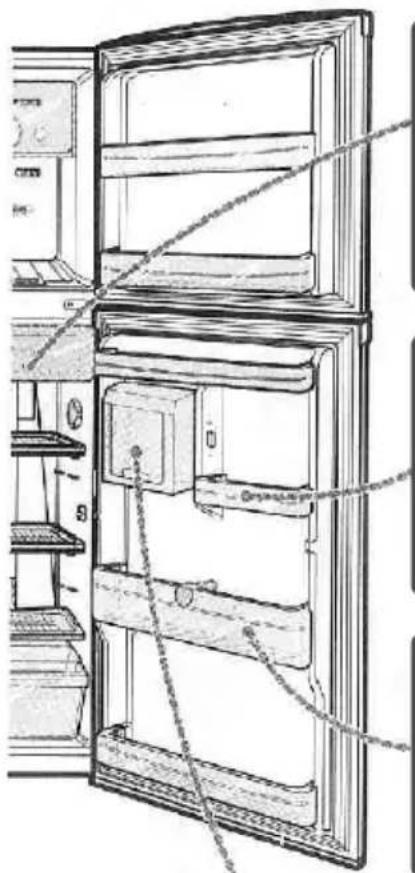

Adjustable Storage Guard

Lift the guard up and slide it out (These storage guards are adjustable and may be positioned to best fit your needs.)

Illustration of two hand positions inside a window frame, showing movement directions (no text or symbols)

Bottle Storage Guards

Lift the guard up and slide it out (This bottle storage guard is not adjustable; it fits in only one position.)

Illustration of hands holding a wooden beam with arrows indicating force or movement (no text or symbols)

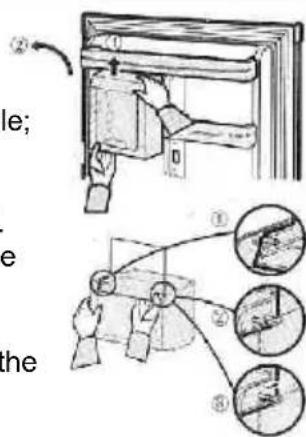

Dairy Guard (Premium only)

Lift the guard up and slide it out. (This bottle storage guard is not adjustable; it fits in only one position.)

When the cover is away from the guard.

1. Stick the left boss of the cover into the hole as shown.
2. Lift the cover up at the end.
3. Push the right boss of the cover into the hole.

Diagram illustrating a door lock mechanism with labeled parts and magnified views of the process.

STORING FOOD

Store food in small portions (Optional)

Seal food in containers with lids, in plastic wrap or in plastic bags to prevent drying and the mingling of odors.

Allow hot food and drinks to cool to room temperature before placing them in the refrigerator or freezer.

Allow sufficient space between stuff to help the circulation of cool air.

Place liquid at the front of the refrigerator to avoid freezing.

Wash dry fruits and vegetables before placing them in the refrigerator.

Technical diagram of an appliance refrigerator with labeled compartments and control panel

LEVELING THE APPLIANCE

Cartoon illustration of a smiling refrigerator holding a pointer (no text or symbols)

To compensate for any floor unevenness, adjust the height of the appliance by turning the adjustable feet clockwise or counterclockwise. The adjustable feet are at the front along the lower edge of the refrigerator chassis.

When the refrigerator leans to the left, turn the left front foot counterclockwise.

Simple line drawing of a refrigerator and a small cylindrical object (no text or symbols)

When the refrigerator leans to the right, turn the right front foot counterclockwise.

Simple line drawing of a refrigerator and a small cylindrical object (no text or symbols)

CLEANING THE REFRIGRATOR

1. Unplug the refrigerator at or from the power during this procedure.
2. Remove he food and store safely to avoid warming and deterioration.

3. Clean surfaces with a dampened cloth and a mild detergent.

4. Dry all cleaned surfaces with a clean cloth.

5. Plug in the refrigerator and allow 1\~2 hours for adequate cooling before restoring food items.

BEFORE CALLING SERVICE

Problem Probable cause Solution
1. Refrigerator not working	Power plug not connected properlyConnect the power plug properlyInput electricity supply voltageLow/HighStabilizer not workingUse stabilizer for rated voltage Connect the power plug directly to wall socket.If refrigerator works, call an electrician to fix the stabilizer problem
2. Excess Cooling	Temperature control knob set towards COLDEST cooling positionRotate the Temperature control knob towards COLD cooling positionPress the freezer button to MIN (Minimum) cooli mode(Display Panel Model).
	Freezer button set to MAX (Maximum) Cooling mode (Display Panel Model).
3. Low Cooling	Temperature control knob set towards COLD cooling positionRotate the Temperature control knob towards COLDEST cooling PositionKeep refrigerator away from wall for better perfo
	No clearance from sidesMaintain gap between stuff & air holes
	Hot food stored insideDon't Store hot food till it comes to room temperature
	Frequent open/close of door and door open for long timeAvoid door opening for long time
	Freezer Button set to MIN (Minimum) Cooling Mode (Display panel Model).Press the Freezer Button to ALL LIGHT ON (MIN+MID+MAX) cooling mode (Display Panel Model).

Problem Probable cause Solution
4. Noise Legss of Refrigerator not leveled properly- Refrigerator installed too close to wall- Objects behind or under the refrigerator- Noise like water flowing	- Install refrigerator in a flat/ stable surface & adjust front legs- Maintain proper gap from the walls- Remove the objects from behind or under the refrigerator- This sound is generated by the flow of the refrigerant & not a malfunction
5. Smell Food spoiled inside the refrigerator- Improper covering of food	- Clean the spoiled food & properly dry the spoiled area- Store the food in sealed containers or wrap properly
6. Frost inside Door not closed properly Check the door- Hot stuff kept inside	- to be closed fully, There should be no gap- Leave food & liquid to cool before placing them in the refrigerator
7. Beep Sound Heard	- Refrigerator door is open for more than 2 minutes (Display Panel Model).	- Close the door properly .(Display Panel Model)
8. Slow ice formation	- Incorrect setting of Temperature control knob- Pots / Bowl used for Ice making- Incorrect setting of Freezer Button (Display Panel Model).	- Rotate the freezer Temp control knob towards COLDEST cooling position- Use Ice tray for Ice making- Press the Freezer Button to ALL LIGHT ON (MIN+MID+MAX) Cooling Mode (Display Panel Model).

SAMSUNG

ELECTRONICS

Contact SAMSUNG WORLD WIDE

If You have any comments or questions regarding a Samsung product, contact SAMSUNG customer care center.

Address :6th floor, IFCI Tower, Nehru Place, New Delhi - 110019.

Tel. : [phone]

Website : www.samsung.com/in

© Samsung Electronics Co., Ltd. All rights reserved.

Printed in India
