Stealthbox®

INSTALLATION GUIDE

for the

SB-POL-SLINGSUBP/10W3v3-4

SB-POL-SLINGSUBP/10W3v3-2

SKU# 94639 (4 Ω) & 94640 (2 Ω)

2015-Up Polaris Slingshot

Enclosure Type: Sealed

Driver Type: 10W3V3

Nominal Impedance: 4 or 2 ohms

Continuous Power Handling: 500 watts (RMS method)

SB-POL-SLINGSUBP/10W3v3 INSTR_SKU# 011483

! IMPORTANT

If you choose to perform the installation yourself, it is absolutely vital that the Stealthbox® be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

INSTALLATION DIFFICULTY:

ESTIMATED TIME: 1 HOUR

JL AUDIO - Quality & Design - SBX STEALTHBOX®

Thank you for choosing a JL Audio Stealthbox* for your automotive sound system. With proper installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation, please read this installation guide completely before beginning the process.

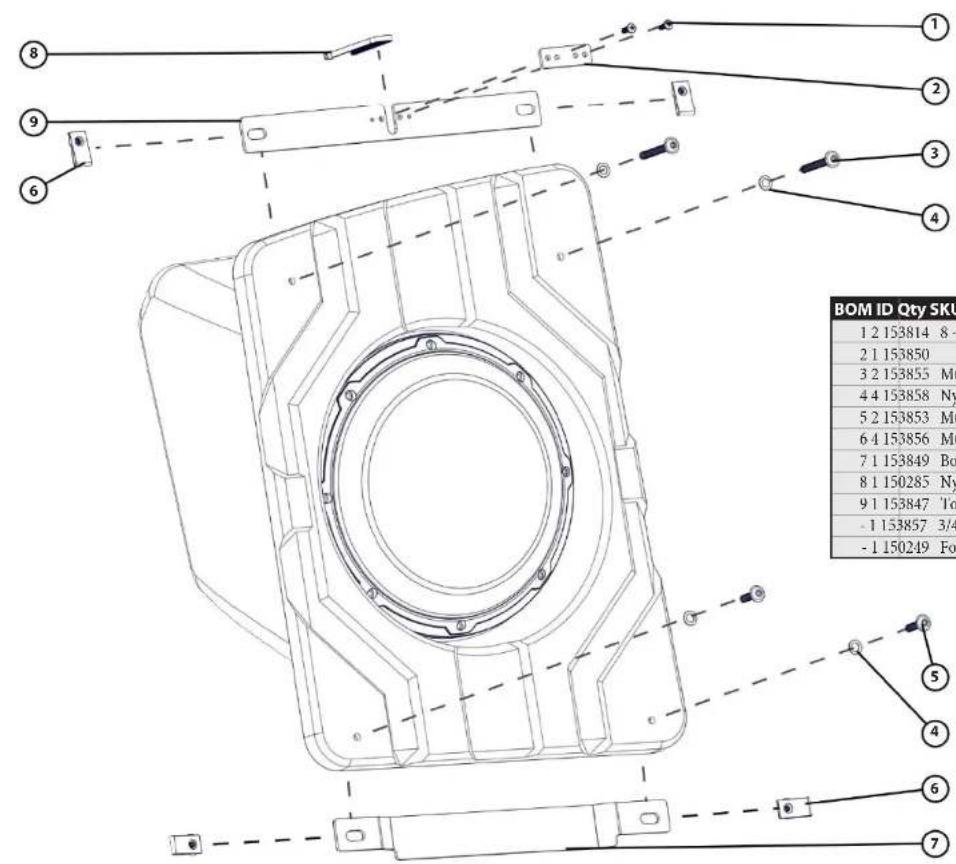

INCLUDED HARDWARE

BOM ID Qty SKU 1 2 153814 8 - 2 1 153850 3 2 153855 M6 4 4 153858 Ny 5 2 153853 M6 6 4 153856 M6 7 1 153849 Bo 8 1 150285 Ny 9 1 153847 To - 1 153857 3/4 - 1 150249 Fo

BOM ID Qty SKU Description

1 2 153814 8 - 32 x 1/2" Pan Head Phillips Machine Screw
2 1 153850		ABS Plate
3 2 153855 M6 1 x 50mm Hex Drive Flanged Button Head Screw
4 4 153858 Nylon Plastic Washer
5 2 153853 M6 - 1 x 25mm Ilex Drive Flanged Button Ilead Screw
6 4 153856 M6 - 1 U-Nut
7 1 153849 Bottom Bracket
8 1 150285 Nylon Cable Tie
9 1 153847 Top Bracket
- 1 153857 3/4" x 3/4" EPDM Foam (not shown)
- 1 150249 Foam Tape (not shown)

Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

POWER RECOMMENDATION

JL Audio recommends high quality amplifiers such as the JL Audio MX500/1. The diagram below shows the recommended crossover settings for the MX500/1. For a detailed description of the amplifier settings, consult the owner's manual for the amplifier. If another amplifier is being used, please reference this illustration and use similar settings on that amplifier.

Output Polarity 0/180 deg LP Filter OFF / 2.5r Input Voltage Low/High Bass Boost (dB) LP Filter Freq.(Hz) 80 130 [phone]° 40 Infrasonic Filter(Hz)

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox ^® . JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox ^® amplifier. Other kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplifier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.

Interior view of a car seatbelt with visible door and side brackets (no text or symbols)

STEP 1
Slide the seat forward.

Interior view of a vehicle showing a dark rectangular opening with no visible text or symbols

STEP 2
Open the storage compartment, and remove the compartment door.

Close-up of a metallic mechanical component with mounting holes and internal structure (no visible text or symbols)

STEP 3
Route speaker cable into the storage compartment.

Metal mechanical component with two downward arrows indicating measurement or alignment (no text or symbols)

STEP 4
Slide an M6 - 1 U-Nut over each of the holes in the Bottom Bracket, as shown. Be sure the U-Nuts are oriented outward.

Page 4 • JL Audio, Inc., 2017 Continued on Next Page

SB-POL-SLINGSUBP/10W3v3 INSTR_SKU# 011483

Close-up of a dark electronic device with a white cable and control buttons (no visible text or symbols)

STEP 5
Position the Bottom Bracket assembly behind the hinge, under the storage compartment, as shown. The center, flat section of the Bottom Bracket should be placed against the rear plastic panel. Center the Bottom Bracket below the storage compartment opening.

Metal mechanical part with two side holes and two downward arrows indicating direction (no text or symbols)

STEP 6
Slide an M6 - 1 U-Nut over each of the outer holes in the Top Bracket, as shown. Be sure the U-Nuts are oriented downward.

Close-up of a hand using a screwdriver to adjust or install a component on a dark surface (no visible text or symbols)

STEP 7
Position the Top Bracket assembly behind the rear plastic panel, with its center cutout around the compartment latch, as shown. Position the ABS Plate between the Top Bracket and the compartment latch, aligning the holes in both parts.
Secure with a pair of 8 - 32 x 1/2" Pan Head Phillips Machine Screws, as shown.

Close-up of a metallic bracket with two small white connectors attached (no text or symbols visible)

STEP 8
From inside the storage compartment, pass the Nylon Cable Tie through one of the inner holes in the Top Bracket and ABS Plate, around the front of the compartment latch, and back through the opposite inner hole in the ABS Plate and Top Bracket, into the storage compartment, as shown.

Close-up of a metallic mechanical component with mounting holes and a central bracket (no visible text or symbols)

STEP 9

With the Top Bracket in the horizontal position, fully tighten the Nylon Cable Tie so that each of the M6-1 U-Nuts on the Top Bracket is aligned with the factory holes in the rear plastic panel.

Remove the adhesive backing from the 3/4" x 3/4" EPDM Foam, and attach the foam to the rear panel, above the storage compartment opening, as shown.

Close-up of a black vehicle's rear panel showing a white cable inserted into a red socket (no text or symbols visible)

STEP 10

Connect the speaker cable to the terminal cup on the back of the enclosure, and slide the Stealthbox ^® into the storage compartment.

Close-up of a mechanical component with two arrows pointing to features (no visible text or symbols)

STEP 11

Slide a 1/4" Nylon Plastic Washer over each of the two M6 - 1 x 50mm Hex Drive Flanged Button Head Screws. Pass an assembly through each of the holes in the top of the enclosure, and thread it into the M6 - 1 U-Nut.

Do not fully tighten at this time.

Close-up of a mechanical component with two black arrows pointing to features, no visible text or symbols.

STEP 12

Slide a 1/4" Nylon Plastic Washer over each of the two M6 - 1 x 25mm Hex Drive Flanged Button Head Screws. Pass an assembly through each of the holes in the bottom of the enclosure, and thread it into the M6 - 1 U-Nut.

Do not fully tighten at this time.

Page 5 • JL Audio, Inc., 2017 Continued on Next Page

SB-POL-SLINGSUBP/10W3v3 INSTR_SKU# 011483

Close-up of a hand pressing down on a black car seat (no visible text or symbols)

STEP 13

Lift up on the enclosure, and fully tighten both M6 - 1 x 50mm Hex Drive Flanged Button Head Screws and both M6 - 1 x 25mm Hex Drive Flanged Button Head Screws.

Close-up of a mechanical component with a circular recessed part and a yellow-orange highlight (no visible text or symbols)

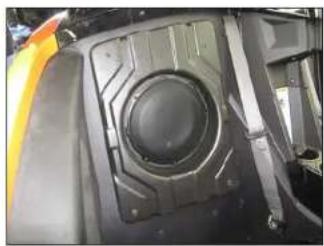

STEP 14

Pictured is the Stealthbox fully installed.

Slide the seat back.

Note: For optimum performance, we recommend applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

CONGRATULATIONS!

You have completed the installation for this model! Enjoy your new Stealthbox ^® !

Interior view of a modern sports motorcycle cab with black leather seats and orange racing suit (no visible text or symbols)

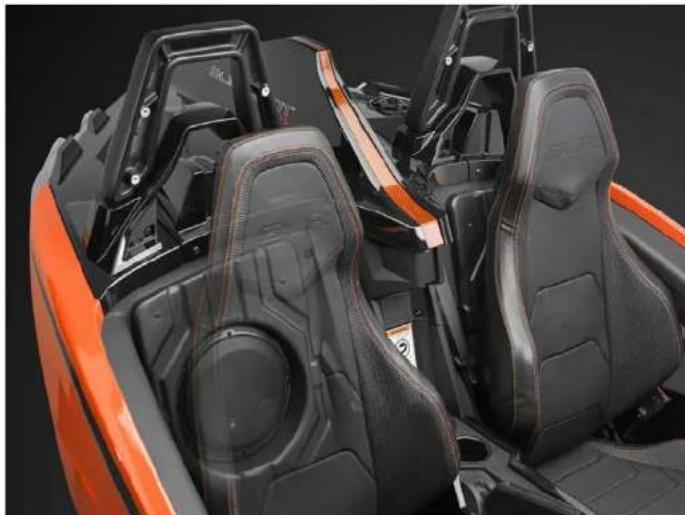

MID/HIGH FREQUENCY DRIVER FITMENT

SB-POL-SLINGSPKRS/M770 speaker pods are also available for your vehicle. Each weatherproof pod is designed for a perfect fit and houses a premium JL Audio component system.

SB-POL-SLINGSPKR/M770

SKU# 94636
