USER MANUAL Stealthbox SB-POL-ACE/10TW1 JL Audio

Ameas # of the Carve

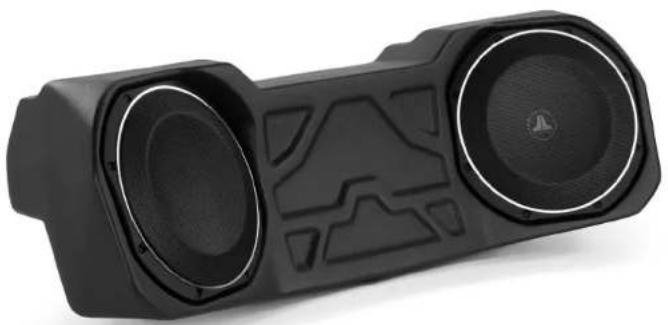

Black automotive electronic device with two speakers and a logo, shown without any visible text or symbols.

Stealthbox®

INSTALLATION GUIDE

for the

SB-POL-ACE/10TW1

SKU# 94628

2015 & Up Polaris Ace, Ace 570, & Ace 570 SP

Enclosure Type: Sealed

Driver Type: 101W1-4

Nominal Impedance: 2 ohms

Continuous Power Handling: 600 watts (RMS method)

SB-POL-ACE/10TW1 INSTR_SKU#011454

! IMPORTANT

If you choose to perform the installation yourself, it is absolutely vital that the Stealthbox ^* be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

INSTALLATION DIFFICULTY:

ESTIMATED TIME: 1 HOUR

JL AUDIO - Quality & Design - SBX STEALTHBOX®

Thank you for choosing a JL Audio Stealthbox* for your automotive sound system. With proper installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation, please read this installation guide completely before beginning the process.

INCLUDED HARDWARE

SKU Description 1/4 - 20 x 1" Stainless Steel Button Lead Screw 1/4" Stainless Steel Split Lock Washer Stainless Steel Cushion Clamp

BOM ID Qty SKU Description

1 2 153714 1/4 - 20 x 1" Stainless Steel Button Head Screw
2 2 153716	1/4" Stainless Steel Split Lock Washer
3 2 153713 Stainless Steel Cushion Clamp
4 2 153717 M8 - 1.25 Nylon Lock Nut
5 2 153718 M8 - 1.25 x 40mm Flange Head Cap Screw
6" 2 153709 Rubber Bumper
7" 2 153715 #8 x 3/4" Phillips Pan Head Stainless Steel Screw
- 1 150249 Foam Strips (not shown)

* Pre-installed on enclosure

Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

POWER RECOMMENDATION

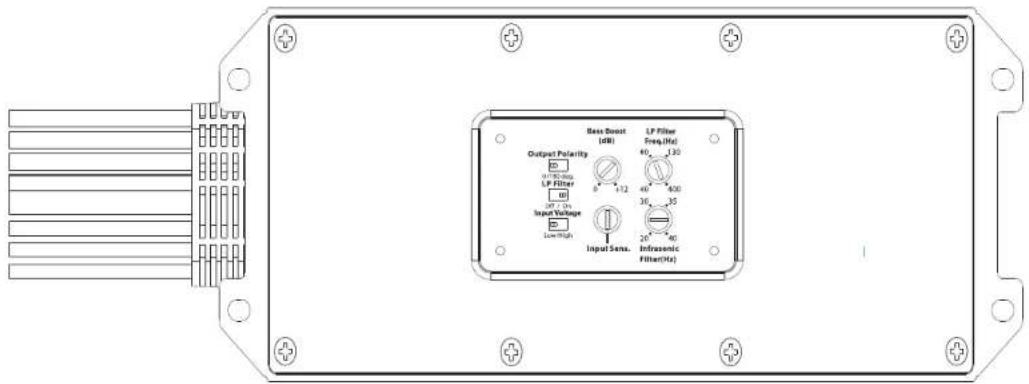

JL Audio recommends high quality amplifiers such as the JL Audio MX500/1. The diagram below shows the recommended crossover settings for the MX500/1. For a detailed description of the amplifier settings, consult the owner's manual for the amplifier. If another amplifier is being used, please reference this illustration and use similar settings on that amplifier.

Output Polarity LP Filter Input Voltage Low/High Input Sens.: Infraerobic Filter(Hz) Base Boost (dB) LP Filter Freq.(Hz) 60 130 40 600 30 35 25 40 20 45 15 60 8 112 12 Output Polarity LP Filter Input Voltage Low/High

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier. Other kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplifier. JL Audio recommends using 12AWG speaker wire for subwoofers such as the XC-BCS12-25.

Close-up of a vehicle chassis frame with orange and black components, no visible text or symbols

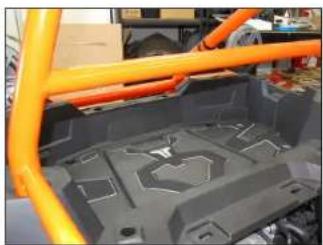

STEP 1

Empty the cargo area of the vehicle.

Close-up of a red-orange electronic component inserted into a black circuit board (no visible text or symbols)

STEP 2

Remove the factory bolt and nut from the horizontal section of the roll bar on both sides of the vehicle. These will not be reinstalled.

Close-up of an orange cylindrical component inserted into a black mechanical housing (no visible text or symbols)

STEP 3

Replace the factory bolts and nuts with the included, shorter M8 - 1.25 x 40 mm Flange Head Cap Screws and M8 - 1.25 Nylon Lock Nuts as shown, and firmly tighten.

Close-up of orange cylindrical electronic components with metal rings, mounted on a black circuit board (no visible text or symbols)

STEP 4

Attach the two Stainless Steel Cushion Clamps to the center, horizontal roll bar as shown. The holes in the clamps should be facing the rear of the vehicle. Slide both clamps to the center of the roll bar to allow clearance for the Stealthbox® installation in Steps 6-7.

Page 4 • JL Audio, Inc., 2016 Continued on Next Page

SB-POL-ACE/10TW1 INSTR_SKU#011454

Close-up of a black plastic mechanical component with a knob and handle (no visible text or symbols)

STEP 5

Pictured is one of the pre-installed Rubber Bumpers on the bottom of the Stealthbox ^® . These will sit into factory holes in the vehicle in Step 7 to hold the base of the enclosure in place.

Close-up of a black electronic component with a glowing orange-yellow filament, placed on a circuit board (no visible text or symbols)

STEP 6

It is recommended to use two people for Steps 6-7.

Slide the seat forward. Connect speaker cable to the barrier strip on the bottom of the enclosure, and slide the enclosure into position, top first, as shown.

Close-up of hands adjusting a black object on an orange bench (no visible text or symbols)

STEP 7

Push the bottom of the enclosure toward the rear of the vehicle until the Rubber Bumpers drop into the factory holes in the vehicle.

Close-up of a mechanical component with orange cylindrical rod and metal bracket (no visible text or symbols)

STEP 8

Slide a Stainless Steel Cushion Clamp to each of the outer edges of the roll bar, aligning the holes in the clamps to the threaded inserts in the top of the enclosure.

Close-up of a hand using a tool to adjust or install an orange mechanical component (no visible text or symbols)

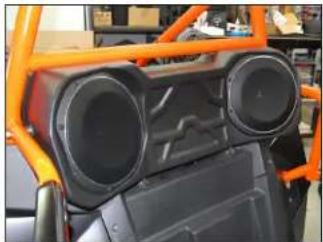

STEP 9

Secure each of the Stainless Steel Cushion Clamps to the enclosure using a 1/4 - 20 x 1" Stainless Steel Button Head Screw and 1/4" Stainless Steel Split Lock Washer, and fully tighten.

Close-up of a black automotive air vent system mounted on a vehicle chassis, with orange safety railings overhead (no visible text or symbols)

STEP 10

Route the speaker cable as necessary.

Note: For optimum performance, we recommend applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

SB-POL-ACE/10TW1 INSTR_SKU#011454

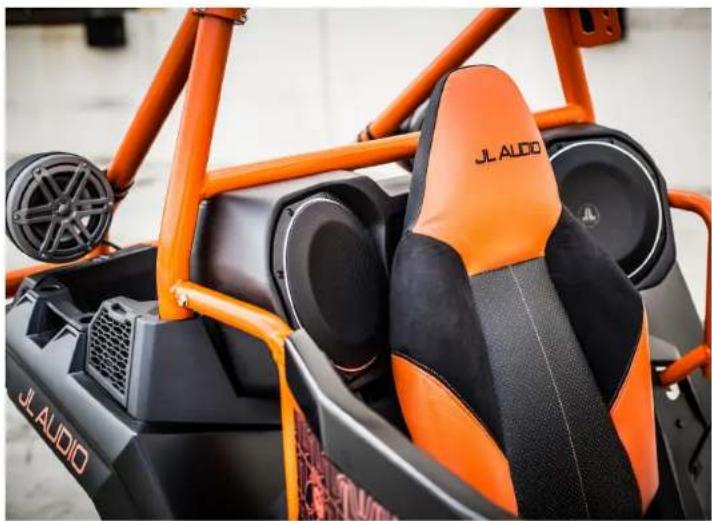

CONGRATULATIONS!

You have completed the installation for this model! Enjoy your new Stealthbox ^® !

Close-up of a JLAudio VR motorcycle seat with orange and black racing panels, no visible text or symbols on the body.

MID/HIGH FREQUENCY DRIVER FITMENT

VeX™ Enclosed Speaker Systems are ideal for powersports and off-road vehicle applications. Each weatherproof pod can be mounted to a roll cage precisely aimed for optimum sound. Mounting fixtures are available to fit a variety of roll cage diameters.

JLAUDIO. How we play:

[phone]

www.jlaudio.com

All open indicators are subject to change without notice. "L Audio" and "L J Audio logo, and "StarBlood" and the StarBlood logo are required understand or of L Audio Inc. "Head of the DNA", in response to logo, and "Mouse play" on renderance of L Audio Inc. Format in JSX = 92713. L Audio Inc. = Formed based information-based data on using a network resource.

JLA-SKU# 011454 • ver. 09.16.2016 • 10359 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
