USER MANUAL GR-P267FBB LG

Important Safety Instruction 3

Identification of Parts 4

Installation

Where to Install 5

Door Removal 6

Mount the freezer and refrigerator compartment doors 7

Feed Water Pipe Installation 7

Height Adjustment 8

Operation

Starting 9

Adjusting the Temperatures and Functions 9

(Dispenser / Automatic ice maker)

Home bar 14

Shelf 15

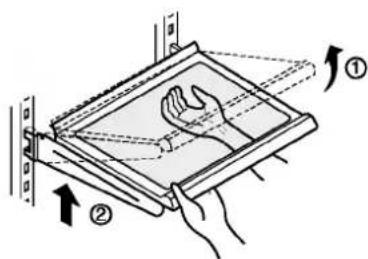

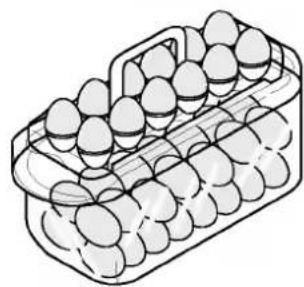

Egg Box 16

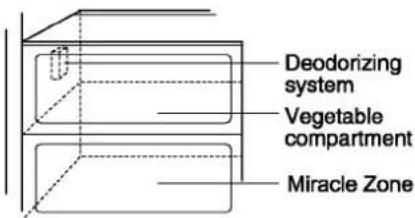

Deodorizer (Applicable to some models only) 16

Miracle Zone Temperature Transition Corner 17

Temperature Change at Miracle Zone 17

Miracle Zone 17

Suggestion on food storage

Location of Foods 18

Staring Foods 19

Care and maintenance

How to Dismantle Parts 20

General Information 22

Cleaning 22

Trouble Shooting 23

Entry

The model and serial numbers are found on the inner case of the refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of Purchase	:
Dealer Purchased From	:
Dealer Address	:
Dealer Phone No.	:
Model No.	:
Serial No.	:

Important Safety Instruction

Before it is used, this refrigerator must be properly installed and located in accordance with the installation instructions in this document.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.

When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way.

After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces.

Unplug the power cord from the power outlet for cleaning or other requirements. Never touch it with wet hands because you can get an electric shock or be hurt.

Never damage, process, severely bend, pull out, or twist the power cord because damage the power cord may cause a fire or electric shock. You have doubts on whether the appliance is properly grounded.

Never place glass products in the freezer because they may be broken due to expansion when their contents are frozen.

Never allow your hands within the ice storage bin of the automatic ice maker. You could be hurt by the operation of the automatic ice maker.

Never allow anyone to climb, sit, stand or hang on the Home Bar door. These actions may damage the refrigerator and even tip it over, causing severe personal injury.

Don't use an extension cord

Power cord replacement

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

If the supply cord is damaged, it must be replaced by a special cord or assembly from the manufacturer or its service agent.

Child entrapment warning

Don't store

Grounding (Earthing)

DANGER: Risk of child entrapment.

Before you throw away your old refrigerator or freezer:

Take off the doors but leave the shelves in place so that children may not easily climb inside.

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Don't store or use gasoline or other flammable vapor and liquids in the vicinity of this or any other appliance.

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded. Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

Identification of Parts

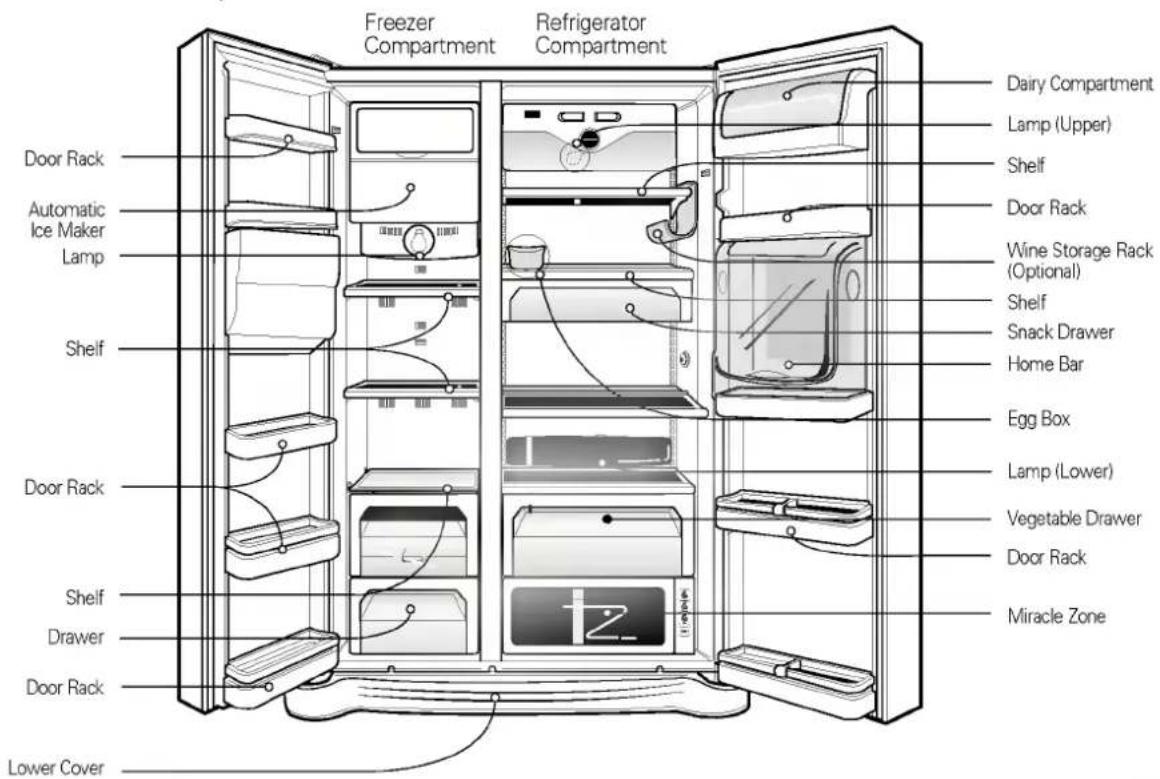

Freezer Compartment Refrigerator Compartment Door Rack Automatic Ice Maker Lamp Shelf Door Rack Shelf Drawer Door Rack Lower Cover Dairy Compartment Lamp (Upper) Shelf Door Rack Wine Storage Rack (Optional) Shelf Snack Drawer Home Bar Egg Box Lamp (Lower) Vegetable Drawer Door Rack Miracle Zone

NOTE

- If you found some parts missing from your unit, they may be parts only used in other models. (i.c. the "Home Bar" is not included in all models)

Strong and even floor

Where to Install

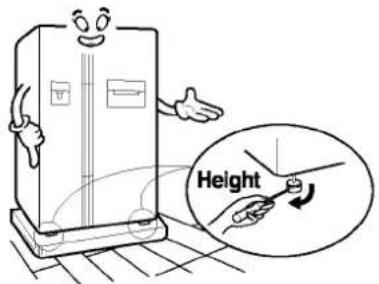

Unstable installation may cause vibration and noise. If the floor to install the refrigerator on is not even, make the refrigerator level by rotating the height adjusting screw. Carpet or floorcloth on which a refrigerator is installed may be discolored by heat from the bottom of the refrigerator. So, it is necessary to place a thick pad below the refrigerator.

Height

A proper distance from adjacent items

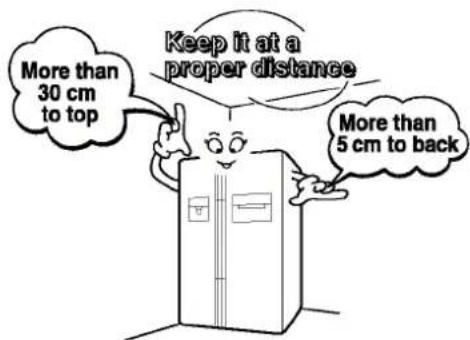

Please keep the refrigerator at a proper distance from other things. Too small a distance from adjacent items may result in lowered freezing capability and increased electricity charges consumption.

More than 30 cm to top Keep it at a proper distance More than 5 cm to back

Where feed water pipe can be easily connected in a dry place

Select a place where a feed water pipe can be easily connected between the automatic ice maker and dispenser.

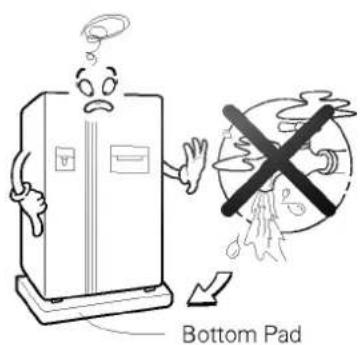

A wet or near-water place, refrigerator may be rusted or electricity may be leaking

Bottom Pad

Where is free from heat or coal gas

Places where ambient temperature are high, freezing capability is deteriorated and electric charge is increased.

Coal gas and smoke may discolor the appearance of refrigerator.

Illustration of a refrigerator with steam rising, smoke, and sun (no text or symbols)

NOTE

- Install the refrigerator at a place where the ambient temperature is 5°C\~43°C. Too high or low ambient temperature may cause functional troubles. Also, the tube between the dispenser and automatic ice maker may be frozen.

Remove lower cover and then feed water pipe

Remove the freezer compartment door

Remove the refrigerator door

Door Removal

If your access door is too narrow for the refrigerator to pass the through, remove

the refrigerator door and pass the refrigerator laterally.

Lower Cover Feed Water Tube

Remove the lower cover by lifting upward, and then pull up the feed water tube while pressing area shown in the figure to the right.

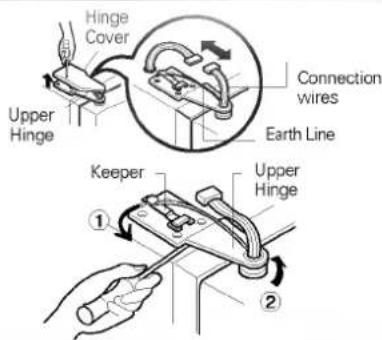

1) Separate all connection wires except for the earth line after removing the hinge cover by loosening the screws.
2) Remove the keeper by rotating it to counted clockwise ( ) and then lifting the upper hinge up ( ).

Hinge Cover Upper Hinge Connection wires Earth Line Keeper Upper Hinge ① ②

NOTE

• In removing the upper hinge, be careful so that the door does not to fall over frontward.

3) Remove the freezer compartment door by lifting it upward. This time, the door should be lifted enough for the feed water pipe tube to be completely pulled out.

Enough for feed water pipe tube to be completely pulled out Lower Hinge

NOTE

- Move the refrigerator compartment door passing through the access door and laying it down but be careful not to damage the feed water pipe tube.

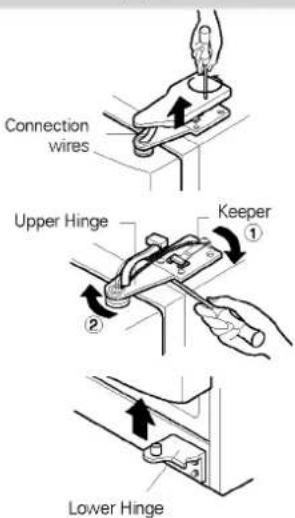

1) Loosen the hinge cover screws and remove the cover. Remove all connection wires, if any, except for the earth line
2) Remove keeper by rotating it clockwise ( ) and then remove the upper hinge by lifting it up ( ).
3) Remove the refrigerator compartment door by lifting it up.

Connection wires Upper Hinge Keeper ① ② Lower Hinge

Pass the refrigerator

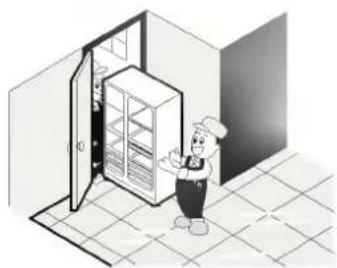

Pass the refrigerator laterally through the access door as shown in the right figure.

Illustration of a chef standing beside an open refrigerator in a kitchen setting (no text or symbols visible)

Mount the freezer and refrigerator compartment doors

Mount them in the reverse sequence of removal after they pass through the access door.

Before installation

Feed water pipe Installation

Automatic ice maker operation needs water pressure of 147\~834 kPa (1.5\~8.5 kgf/cm²) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.).
- If water pressure does not reach the rating 147 kPa (1.5 kgf/cm²) or below, it is necessary to purchase a separate pressure pump for normal automatic icing and cool water feed.
- Keep the total length of the feed water pipe tube within 12 m and be careful for the tube not be bent straightly. If the tube is 12 m or longer it may cause trouble in water feed owing to the drain water pressure.
- Install the feed water pipe tube at a place free from heat.

Warning

- Connect to potable water supply only.

If the freezer compartment door is lower than the refrigerator compartment door

If the freezer compartment door is higher than the refrigerator compartment door

After leveling the door height

Height Adjustment

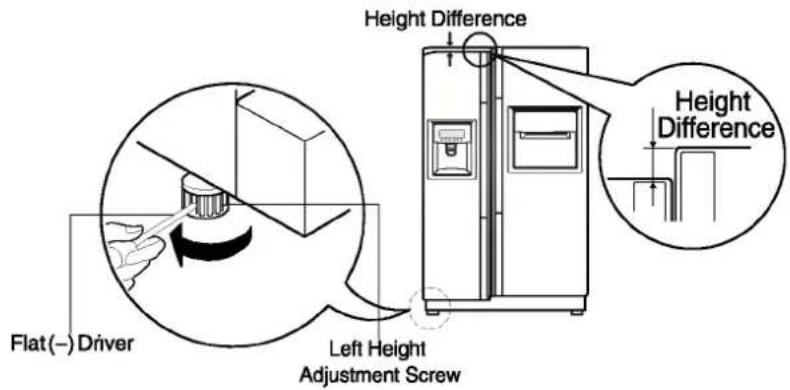

Make them level by inserting flat (- type) driver into the groove of the left height adjusting screw and rotating it clockwise ().

Flat(-) Driver Left Height Adjustment Screw Height Difference Height Difference

Make them level by inserting flat (- type) driver into the groove of the right height adjusting screw and rotating it clockwise ().

Height Difference Height Difference Right Height Adjustment Screw Flat (−)Driver

Refrigerator door will close smoothly by heightening the front side by adjusting the height adjusting screw. If the door does not close well because of bad Open/Close, performance may be affected.

Starting

When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting.

Adjusting the temperatures and functions

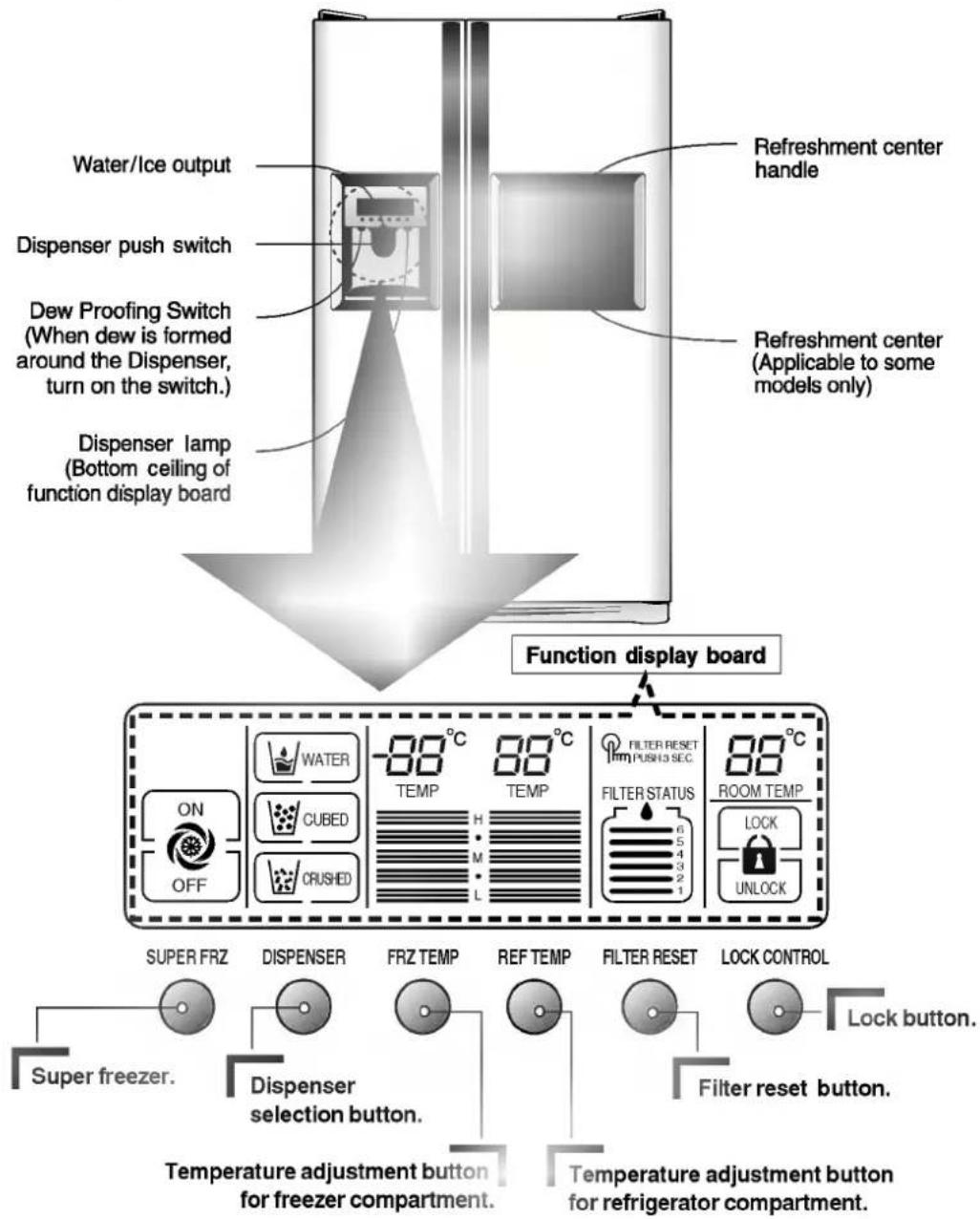

Water/ice output Dispenser push switch Dew Proofing Switch (When dew is formed around the Dispenser, turn on the switch.) Dispenser lamp (Bottom ceiling of function display board) Refreshment center handle Refreshment center (Applicable to some models only) Function display board ON OFF WATER CUBED CRUSHED -80°C TEMP 80°C FILTER RESET PUSH3 SEC FILTER STATUS ROOM TEMP LOCK UNLOCK SUPER FRZ DISPENSER FRZ TEMP REF TEMP FILTER RESET LOCK CONTROL Super freezer. Dispenser selection button. Temperature adjustment button for freezer compartment. Filter reset button. Temperature adjustment button for refrigerator compartment.

How to adjust the temperature in the freezer compartment

How to adjust the temperature in the refrigerator compartment

Dispenser use selection

You can adjust temperature of and freezer room and refrigerator room.

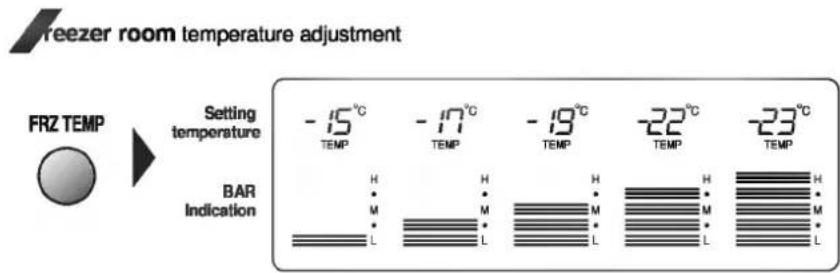

freezer room temperature adjustment FRZ TEMP Setting temperature BAR Indication -15°C TEMP -17°C TEMP -19°C TEMP -22°C TEMP -23°C TEMP H M L H M L H M L H M L H M L H M L

Refrigerator room temperature adjustment

REF TEMP Setting temperature BAR Indication 6°C TEMP 4°C TEMP 3°C TEMP 2°C TEMP 0°C H M L H M L H M L H M L H M L

* Whenever pressing button, setting is repeated in the order of (Middle) → (Middle Strong) → (Strong) → (Weak) → (Middle Weak).

• The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.
• Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2\~3 days.

You can select water or ice.

* Please select water, slice ice and square ice by pressing 🔗 button as you desire.
* Please press the push button lightly by catching and pushing in cup.

- The border line is indicated for the selected function, - "Tak!" sounds if 5 seconds pass after ice comes out. It is sound that the outlet of ice is closed.

- Reference: Please wait for 2-3 seconds in order to take final ice slices or drops of water when taking out cup from the pressing switches after taking ice or water.

Automatic ice maker

When ice maker does not operate smoothly

Super freezer

Lock

The icemaker can automatically make 8 pieces of ice cubes at anyone time, approximately 80 pieces per day. However these quantities may vary according to certain conditions. E.g. the duration and amount of times the refrigerator door is opened.
The ice making proceeds ceases automatically when the ice storage bin is full.
If you choose not to use the automatic ice making function, repositioned the icemaker selection switch to the off position or the on position for reselection. Note: The manual selection function is only applicable to some models only.

NOTE

- It is normal that a noise is produced when ice made is dropped into the ice storage bin.

Ice is lumped together

• When ice is lumped together, take the ice lumps out of the ice storage bin, break them into small pieces, and then place them into the ice storage bin again.
• When the ice maker produces too small or lumped together ice, the amount of water supplied to the ice maker need to adjusted. Contact the service center.
  * If ice is not used frequently, it may lump together.

Power failure

Ice may drop into the freezer compartment. Take the ice storage bin out and discard all the ice then dry it and place it back. After the machine is powered again, crushed ice will be automatically selected.

The unit is newly installed

It takes about 12 hours for a newly installed refrigerator to make ice in the freezer compartment.

Please select this function for prompt freezer.

• "On" or "Off" is repeated whenever pressing button.
  The arrow mark graphic remains at the On status after flickering 4 times when selecting Special Refrigeration "On".
• Super freezer function automatically turns off if a fixed time passes.

SUPER FRZ

Ex) In selecting "On" Ex) In selecting "Off"

This button stops operation of different button.

• Locking or Release is repeated whenever pressing the LOCK CONTROL.
• Pressing the other button when selecting 'LOCK', the button does not operate.

LOCK CONTROL

Ex) In selecting "LOCK"
Ex) In selecting "UNLOCK"

How ice/cold water is supplied

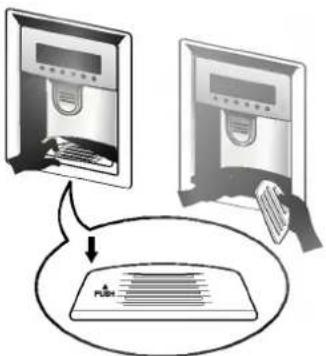

How to use dispenser

The other functions

Ambient temperature display window.

n Temperature is displayed only by -9°C \~ 49°C.
- Temperature less than -10°C is indicated with 'LO' and temperature more than 50°C is indicated with 'HI'.

- Temperature may differ from the actual ambient temperature as it is monitors on the upper part of refrigerator (top of door).

Door open warning

3 times of warning sounds at the interval of 30 seconds if a minute passes with the door of refrigerator and the hombar door opened or completely closed.
Please contact with the local service center if warning continue to sound even after closing the door.

Diagnosis (failure detection) function

Diagnosis function automatically detects failure when failure is found in product during the use of refrigerator.
If failure occurs at product, it does not operate though pressing any button and normal indication is not done. In this case, do not turn power off but immediately contact with the local service center. A lot of time are need for service engineer to detect the failed part if turning it off.

Water is cooled while stored in the water tank in the refrigerator compartment, and then sent to the dispenser. Ice is made in the automatic ice maker and sent to the dispenser divided into crushed or cubed form ice.

NOTE

- It is normal that the water is not very cold at first. If you want colder water, add ice into the glass.

- Select one among crushed ice, water, and cubed ice and slightly press the push switch with a glass or other container.

Water

Light the water indicating lamp by pressing the selection button.

• Water will be dispensed by pressing the push switch with a glass.

Cubed ice

Light the cubed ice indicating lamp by pressing the selection button.

- Cubed ice will be dispensed by pressing the push switch with a glass.

Crushed ice

Light the crushed ice indicating lamp by pressing the selection button.

- Crushed ice will be dispensed by pressing the push switch with a glass.

DISPENSER

DISPENSER

DISPENSER

6 Filter condition (filter replacement cycle) display function

Cautions

As demonstrated below, it displays the months left in units of 30 days until the filter replacement is required, starting from when the refrigerator power usage is authorized.
After 6 months, the following sentence and will appear on the filter condition part of the LCD. "Press for 3 seconds after replacing filter"
After 6 months have passed, and if the filter has been replaced or you want to reset the filter condition display, press the filter replacement button for more than 3 seconds and it will reset to the initial Power On state.

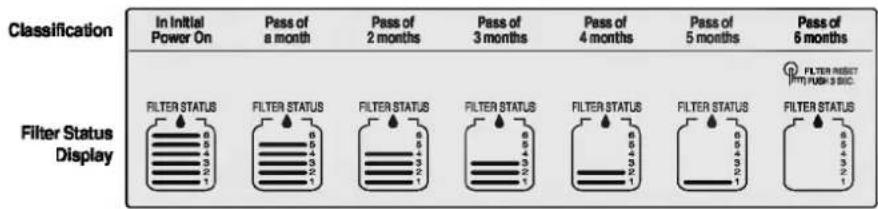

Classification In Initial Power On Pass of a month Pass of 2 months Pass of 3 months Pass of 4 months Pass of 5 months Pass of 6 months Filter Status Display FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS FILTER STATUS

Throw away the ice (about 20 pieces) and water (about 7 glasses) first made after refrigerator installation.

The first ice and water may include particles or odor from the feed water pipe or feed water box. This is necessary in case that the refrigerator has not been used for a long time.

Keep children away from the dispenser.

Children may push switch incorrectly bad or damage lamps.

Be careful that food is not block the ice passage.

If foods are placed at the entrance of ice passage, ice may not be dispensed. The ice

passage may also be covered with ice powder if splinter ice is used only. This time, remove the ice powder accumulated.

Freezer door

Never store beverage cans or other foods in ice storage bin for the purpose of rapid cooling.

Such actions may damage the automatic ice maker.

Never use thin crystal glass or crockery to collect ice.

Such glasses or containers may be broken.

Put ice first into a glass before filling water or other beverages.

Water may be splashed if ice is added to existing liquid in a glass.

Never touch a hand or other tools on ice outlet.

Touch may cause a part breakage or hand injury.

Never remove the ice maker cover.

Sometimes level the surface so that the ice storage bin is fully filled with ice. Ice is piled up just near the ice maker. So, such status may be considered, by the ice maker, that the ice storage bin is fully filled and ice making operation may stop.

If discolored ice is dispensed, immediately contact service center, stopping use.

Never use too narrow or deep glass.

Ice may be jammed in ice passage and, thus, the refrigerator may be failed.

Keep the glass at a proper distance from ice outlet.

A glass too close to the outlet may hinder ice from coming out.

Please don't stain the area near to door switch with any sweet food so that ants can't interrupt the normal operation of door switch.

How to use

Use the home bar door as a stand

Never take out the inner home bar cover

Never place heavy matters on the home bar door or allow children to hang on it.

Home Bar (In select Models Only)

Gently pull the handle of the home bar to open it.

• You can access the home bar without opening the refrigerator door, thus saving electricity.
  The Inner lamp is lit in the refrigerator compartment when the home bar door opens. So it is easy to see item in the compartment.

• You can use the home bar door as a stand to pour beverages and such but never use the home bar door as a chopping board and take care not to damage it with sharp objects.

• Never rest your arms or press down on it.

- The Home bar will not function properly without the cover.

Not only the home bar door may be damaged, but also children may get hurt.

Hand holding a pen inside a rectangular frame (no text or symbols visible)

Line drawing of a mechanical device with two bottles on a tray, no text or symbols present

Illustration of a hand pressing a box with a black X symbol (no text or labels)

Illustration of a person sitting on the floor using a tool to clean or inspecting a mechanical device (no text or symbols present)

Slide type tempered glass shelf (In select models only)

Attachable wine corner (In select models only)

Shelf height adjustment

Shelf

Slide type shelf allows you to place or take food out or put it in more conveniently.

Bottles can be stored laterally with this wine corner. This can be attached to any shelf.

Pure mechanical diagram showing a tilted rectangular frame with an arrow indicating direction (no text or symbols)

Diagram of a mechanical assembly with two stacked plates and a rotating arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Wine holder adjustment :

Wine holder can be separated by pulling it straight out and installed by placing it at the end of the shelf you want and pushing it inward.

The Refrigerator compartment shelf is movable so that you can place it at a proper height according to the space you need for different food items..

How to separate a shelf :

At delivery, shelves are fixed with keepers so that they cannot be moved during distribution. So, remove keepers first, lift the shelf up ( ), and then separate it pushing it down ( ).

How to install a shelf :

Position the shelf at the desired height and hang its links on the grooves. This time, lower the front side of the shelf and hang it on the grooves.

NOTE

• Make the shelf horizontal. Otherwise it may fall off.

Diagram illustrating hand positioning and movement of a device with labeled parts ① and ②

Technical diagram showing two labeled components with directional arrows, likely illustrating a mechanical or structural assembly.

Egg Box

You can move the egg box to a place you want and select another form of box according to the amount of eggs.

Line drawing of a rectangular container filled with eggs (no text or symbols)

[Normal]

Illustration of a container filled with round objects, no text or symbols present

[For Many Eggs]

NOTE

• Never use the egg box as an ice storage bin. It can break.
• Never store the egg box in the freezer compartment or fresh compartment.

Deodorizer (In select Models Only)

This system efficiently absorbs strong odors by using the optical catalyst. This system does hot have any affect on stored food.

Deodorizing system Vegetable compartment Miracle Zone

How to use the deodorizing system

• Since it is installed already installed onto the cool air intake duct from the from the refrigerator compartment, you need no separate installation.
• Please use closed containers to store food with pungent odors.
• Otherwise, this oder can be absorbed by other food in the compartment.

Method to Use

Miracle Zone Temperature Transition Corner

By pressing the button, store vegetables, fruits or other types of food such as meat to be defrosted, raw fish, etc.

Temperature Change at Miracle Zone

You can select optimum temperature range depending on types of foods stored.

Illustration of a desktop computer setup with monitor, tower, and keyboard (no text or symbols visible)

- 3-step of temperature selection including 1°C, 2°C and 4°C is available. Vegetables/fruits and cold

storage foods requiring humidity maintenance and meats/fishes can be more freshly stored depending on type of foods stored.

• When using the Miracle Zone as storage room of meats, storing vegetables or fruits may be frozen
  When using the Miracle Zone as storage room of meats, keeping meats or fishes may be spoiled and thus meats or fishes must be kept at the F-room.
  If opening a door of the R-room, lamp turns on in the selected status and lamp turns off if closing it.
• (Vegetable/Fruit) → (Cold storage while maintaining humidity) → (Meat) is sequentially repeated whenever pressing the "Selection" button.

When removing Miracle Zone

Miracle Zone

• First, remove the vegetable bin.
  After lifting the Miracle Zone case slightly , reach inside and pull it outward .

When installing Miracle Zone

• Fit the Miracle Zone case on to the ledge and gently slide it in
• When forced, the connecting parts can be damaged.

Automatic ice maker

Wine rack

Snack Drawer

Freezer compartment shelf

Freezer compartment door rack

Freezer compartment drawer

Dairy compartment

Egg box

Home bar

Refrigerator compartment shelf

Refrigerator compartment door rack

Vegetable compartment

Vegetable compartment/fresh compartment conversion corner

Location of Foods

(Refer to 4pages, Identification of Parts)

Automatically made ice is stored.

Store wine.

Store small foods such as bread, snacks, etc.

Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc.

• Store small packaged frozen food.
• Temperature is likely to increase as door opens.
  So, do not store long-term food such as ice cream.

- Store meat, fish, chicken, etc. after wrapping them with aluminum.

Store dairy products such as butter, cheese, etc.

Place this egg box in the proper location.

Store frequently accessed foods such as beverage, etc..

Store side dishes or other foods at a proper distance from each other for effective cooling.

Store small packaged food or beverages such as milk, juice, beer, etc..

Store vegetables or fruits.

Store vegetable, fruits, meat to thaw, fish, etc. setting the conversion switch as necessary. Be sure to check the conversion switch setting before storing foods.

Illustration of various food and food items arranged vertically, including bread, fish, snacks, and vegetables (no text or labels)

Freezer compartment

Refrigerator compartment

Storing Foods

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
  Do not store food which goes bad easily at low temperatures, such as bananas, and melons.
• Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher energy consumption.
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Please keep a distance at least 15 mm from the air vents to food.
  Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
  Never keep too much food in door rack because they may push against by inner racks so that the door cannot be fully closed.

Do not store bottles in the freezer compartment - they may break when frozen.
Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
- When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.

• Avoid placing moist food in top refrigerator shelves, it could freeze from direct contact with chilled air.
  Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
  When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in an upright position, which keeps them fresh longer.

NOTE

- If you keep the refrigerator in a hot and humid place, and frequently open the door or put a lot of vegetables in it, moisture may form in it which has no effect on its performance. Just wipe the moisture with a cloth free.

How to Dismantle Parts

NOTE

- Dismantling is done in the reverse sequence of assembly. Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged.

Freezer compartment lamp

Separate the lamp by pulling it out ( ) while slightly lifting the lamp cover ( ). Turn the bulb counterclockwise. Max. 60 W bulb for refrigerator is used and can be purchased at a service center.

Dispenser lamp

Remove the cover by inserting a flat (- type) driver into the front groove and pulling it out, and then remove the ramp. Max. 15 W bulb for refrigerator is used and can be purchased at a service center.

Freezer compartment shelf

Lift the front side ( ) and pull it out ( ).

Door rack and support

Lift the door rack holding both sides ( ) and pull it out to ( ) direction.

Ice storage bin

Hold the ice storage bin as shown in the right figure and pull it out ( ) while slightly lifting it ( ).

It is recommended not to dismantle the ice storage bin unless it is necessary.
Be sure to use both hands when removing the ice storage bin, not to drop it on the floor.
- If the ice storage bin does not fit well, slightly rotate the rotating device.

After dispenser is used

Water collector has no self-drainage function. So it should be cleaned regularly. Remove the cover by pressing the left side of water collector cover and dry it with a cloth. Press the point marked as shown in the figure to the right to remove the water collector cover.

Diagram showing two devices exchanging a file with an arrow pointing to a file labeled 'PUSH'

Upper lamp in refrigerator compartment

To remove the lamp cover, pull the lamp cover forwards while pressing the bottom side of the lamp cover upwards. Turn the bulb counterclockwise.

Max. 60 W bulb for refrigerator is used and can be purchased at a service center.

Diagram showing two hands holding a tray with a droplet and a light bulb, illustrating a process or experiment.

Lower lamp in refrigerator compartment

Separate the lamp cover by holding both lower sides of it and pulling it it forwards. Turn the bulb counterclockwise. Max. 30 W bulb for refrigerator is used and can be purchased at a service center.

Illustration of hands holding a rectangular object with a downward arrow and a small droplet below (no text or symbols)

Home bar

Separate the upper rack of the home bar and then pull out the home bar cover ( ).
The Home bar corner can be removed by pulling it upwards.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Vegetable compartment cover

NOTE

- Be sure to remove parts on the refrigerator door to remove the vegetable compartment, snack drawer and home bar cover.

Pull out the vegetable compartment cover ( ) with its backside lifted up ( ), and the cover can be removed.
To install the cover, push it fully until it touches the back wall.

Diagram of a mechanical device with labeled parts ① and ②, showing directional arrows indicating movement or assembly.

	General Information
Vacation time	During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer storage.When you plan not to operate, keep it running remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.
Power failure	Most power failures are corrected in an hour or two will not affect your refrigerator temperatures.However, you should minimize the number of door openings while the power is off.During power failures of longer duration, place a block of dry ice on top of your frozen packages.
If you move	Remove or securely fasten down all loose items inside the refrigerator.To avoid damaging the height adjusting screws, turn them all the way into the base.
Anti condensation pipe	The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot air refrigerator to prevent "sweating" on the outer cabinet wall.CleaningIt is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if left uncleaned.
Exterior	Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator.Wipe with a clean damp cloth and then dry.
Interior	Regular cleaning is recommended. Wash all compartments with a baking soda solution or a mild detergent and warm water. Rinse and dry.
After cleaning	Please verify that the power cord is not damaged, power outlet is not overheated, or power plug is inserted well into the power outlet.
Warning	Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.).Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock.Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface.Do not touch frozen surfaces with wet or damp hands, because damp object will stick or adhere to extremely cold surfaces.

Trouble Shooting

Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Normal Operations Refrigerator
Refrigerator compressor does not run.	Refrigerator control is off.	Set refrigerator control.
	Refrigerator is in defrost cycle.	This is normal for a fully automatic defrosting refrigerator. The defrost cycle occurs periodically.
	Plug at wall outlet is disconnected.	Make sure plug is tightly pushed into outlet.
	Power outage. Check house lights.	Call local electric company.
Refrigerator runs too much or too long	Refrigerator is larger than the previous one you owned.	This is normal. Larger, more efficient units run longer.
	Room or outside weather is hot.	It is normal for the refrigerator to work longer under these conditions.
	Refrigerator has recently been disconnected for a period of time.	It takes a few hours for the refrigerator refrigerator to come down to room temperature completely.
	Automatic ice maker is operating.	Operation of the ice maker causes the refrigerator to run slightly longer.
	Large amounts of warm or hot food may have been stored recently.	Warm food will cause the refrigerator to run longer until the desired temperature is reached.
	Doors are opened too frequently or too long.	Warm air entering the refrigerator causes it to run more. Open the door less often.
	Refrigerator or freezer door may be slightly open.	Make sure the refrigerator is level. Keep food and containers from blocking the door. See problem section. OPENING/CLOSING of Doors.
	Refrigerator control is set too cold.	Set the refrigerator control to a warmer setting until the refrigerator temperature is satisfactory.
	Refrigerator or freezer gasket is dirty, worn, cracked, or poorly fitted.	Clean or change gasket. Leaks in the door seal will cause the refrigerator to run longer in order to maintain desired temperatures.
Refrigerator compressor does not run.	Thermostat is keeping the refrigerator at a constant temperature.	This is normal. The Refrigerator goes on and off to keep the temperature constant.
Temperatures are too cold
Temperature in the freezer is too cold but the Refrigerator Temperature is Satisfactory.	Freezer control is set too cold	Set the freezer control to a warmer setting until the freezer temperature is satisfactory.
Temperature in the refrigerator is too cold and the freezer temperature is satisfactory.	Refrigerator control is set too cold.	Set the refrigerator control to a warmer setting
Food stored in drawers freezes.	Refrigerator control is set too cold.	See above solution.
Meat stored in fresh meat drawer freezes.	Meat should be stored at a temperature just below the freezing point of water (32°F, 0°C) for maximum fresh storage time.	It is normal for ice crystals to form due to the moisture content of meat.
Temperatures are too warm
Temperatures in the refrigerator or freezer are too warm.	Freezer control is set too warm.	Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory.
	Refrigerator control is set too warm. Refrigerator control has some effect on freezer temperature.	Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory.
	Doors are opened too frequently or too long.	Warm air enters the refrigerator/ freezer whenever the door is opened. Open the door less often.
	Door is slightly open.	Close the door completely.
	Large amounts of warm or hot food may have been stored recently.	Wait until the refrigerator or freezer has had a chance to reach its selected temperature.
	Refrigerator has recently been disconnected for a period of time.	A refrigerator requires some hours to cool down completely.
Temperature in the refrigerator is too warm but the freezer temperature is satisfactory.	Refrigerator control is set too warm.	Set the refrigerator control to a colder setting.
Sound and Noise
Louder sound levels when Refrigerator is on.	Today's refrigerators have increased storage capacity and maintain more even temperatures.	It is normal for sound levels to be higher.
Louder sound levels when compressor comes on.	Refrigerator operates at higher pressures during the start of the ON cycle.	This is normal. The sound will level off as the refrigerator continues to run.
Vibrating or rattling noise.	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and solid and can adequately support refrigerator.
	Items placed on the top of the refrigerator are vibrating.	Remove items.
	Dishes are vibrating on the shelves in the refrigerator.	It is normal for dishes to vibrate slightly. Move dishes slightly. Make sure refrigerator is level and firmly set on floor.
	Refrigerator is touching wall or cabinets.	Move refrigerator so that it does not touch the wall or refrigerator.
Water/Moisture /Ice Inside Refrigerator
Moisture collects on the inside walls of the refrigerator.	The weather is hot and humid which increases the rate of frost buildup and internal sweating.	This is normal.
	Door is slightly open.	See problem section Opening/Closing of doors.
	Door is opened too often or too long.	Open the door less often.
Water/Moisture/Ice Outside Refrigerator
Moisture forms on the outside of the refrigerator or between doors.	Weather is humid.	This is normal in humid weather. When humidity is lower, the moisture should disappear.
	Door is slightly open, causing cold air from the inside the refrigerator to meet warm air from the outside.	This time, close the door completely.
Odors in Refrigerator
	Interior needs to be cleaned.	Clean interior with sponge, warm water and baking soda.
	Food with strong odor is in the refrigerator.	Cover food completely.
	Some containers and wrapping materials produce odors.	Use a different container or brand of wrapping materials.
Opening/Closing of Doors/Drawers
Door(s) will not close.	Food package is keeping door open.	Move packages that keep door from closing.
	Door was closed too hard, causing other door to open slightly.	Close both doors gently.
	Refrigerator is not level. It rocks on the floor when it is moved slightly.	Adjust the height adjusting screw.
	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and can adequately support refrigerator.Contact carpenter to correct sagging or sloping floor.
	Refrigerator is touching wall or cabinets.	Move refrigerator..
Drawers are difficult to move.	Food is touching shelf on top of the drawer	Keep less food in drawer.
	Track that drawer slides on is dirty.	Clean drawer and track.
Dispenser
Dispenser will not dispense ice	Ice storage bin is empty.	When the first supply of ice is dropped into the bin, the dispenser should operate.
	Freezer temperature is set too warm.	Turn the freezer control to a higher setting so that ice cubes will be made.When the first supply of ice is made, the dispenser should operate.
	Household water line valve is not open.	Open household water line valve and allow sufficient time for ice to be made.When ice is made, dispenser should operate.
	Refrigerator or freezer door is not closed.	Be sure both doors are closed.
Dispenser will not dispense ice.	Ice has melted and frozen around auger due to infrequent use, temperature fluctuations and/or power outrages.	Remove ice storage bin, and thaw and the contents. Clean bin, wipe dry and replace in proper position. When new ice is made, dispenser should operate.
Ice dispenser is jammed.	Ice cubes are jammed between the ice maker arm and back of the bin.	Remove the ice cubes that are jamming the dispenser.
	Ice cubes are frozen together.	Use the dispenser often so that cubes do not freeze together.
	Ice cubes that have been purchased or made in some other way have been used in the dispenser.	Only the ice cubes made by the ice maker should be used with the dispenser.
Dispenser will not dispense water.	Household water line valve is not open. See problem "Ice maker is not making any ice."	Open household water line valve.
	Refrigerator or freezer door is not closed.	Be sure both doors are closed.
Water has an odd taste and/or odor.	Water has been in the tank for too long.	Draw and discard 7 glasses of water to freshen the supply. Draw and discard an additional 7 glasses to completely rinse out tank.
	Unit not properly connected to cold water line.	Connect unit to cold water line which supplies water to kitchen faucet.
Sound of ice dropping	This sound is normally made when automatically made ice is dropped into ice storage bin. Volume may vary according to refrigerator's location.
Sound of water supply	This sound is normally made when ice maker is supplied with water after dropping the automatically made ice.
Other	Please thoroughly read 'Automatic ice maker and Dispenser' in this manual.
