USER MANUAL GR-B444XL LG

Please read carefully the manual instruction and safety caution before operating your refrigerator and retain it for future reference

GR-M6781S

GR-M6481S

GR-M6781B

GR-M6781W

GR-M6481W

GR-B444XL

CONTENTS

IMPORTANT SAFETY INFORMATION...... 3

INSTALLATION 11

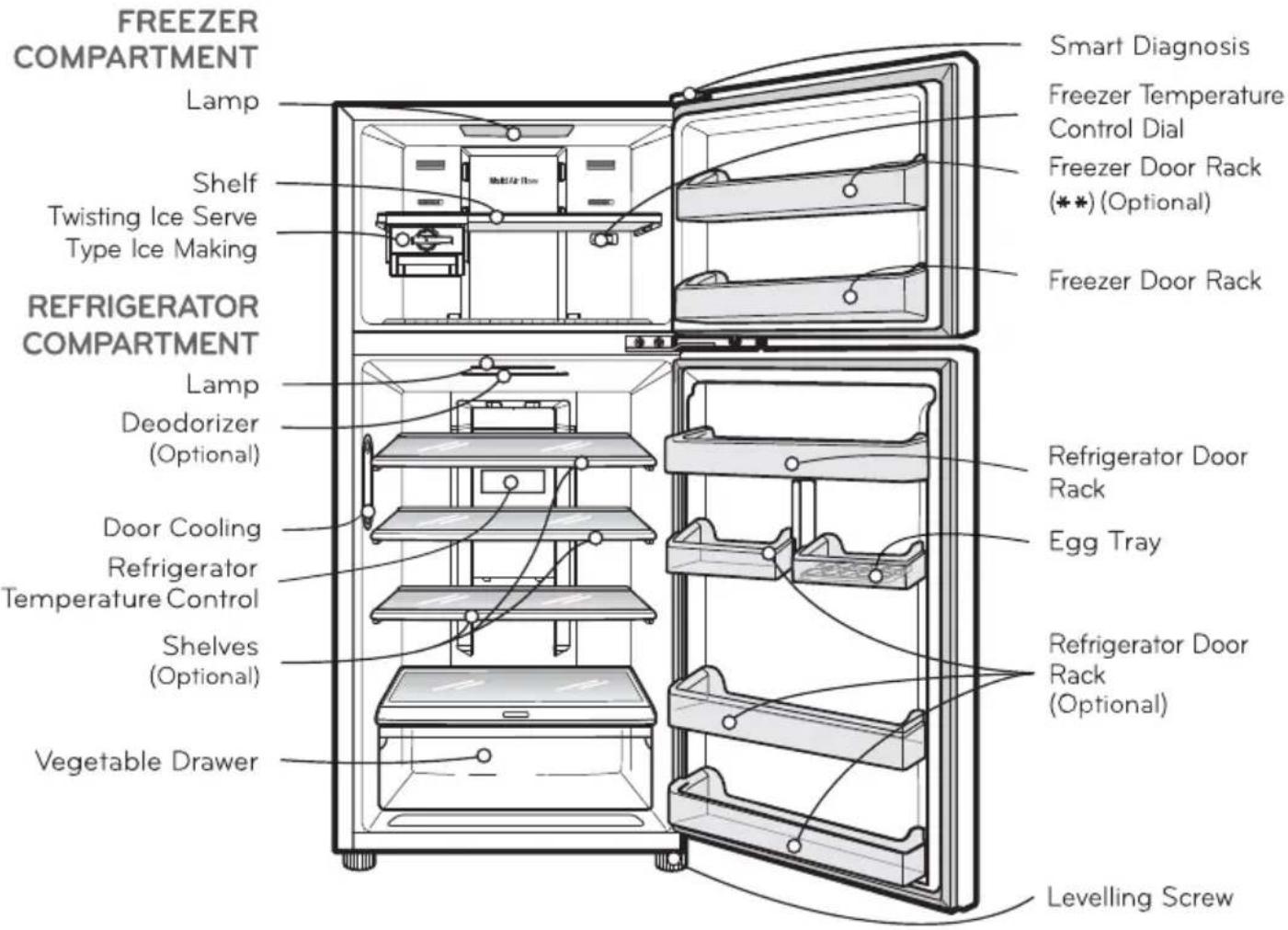

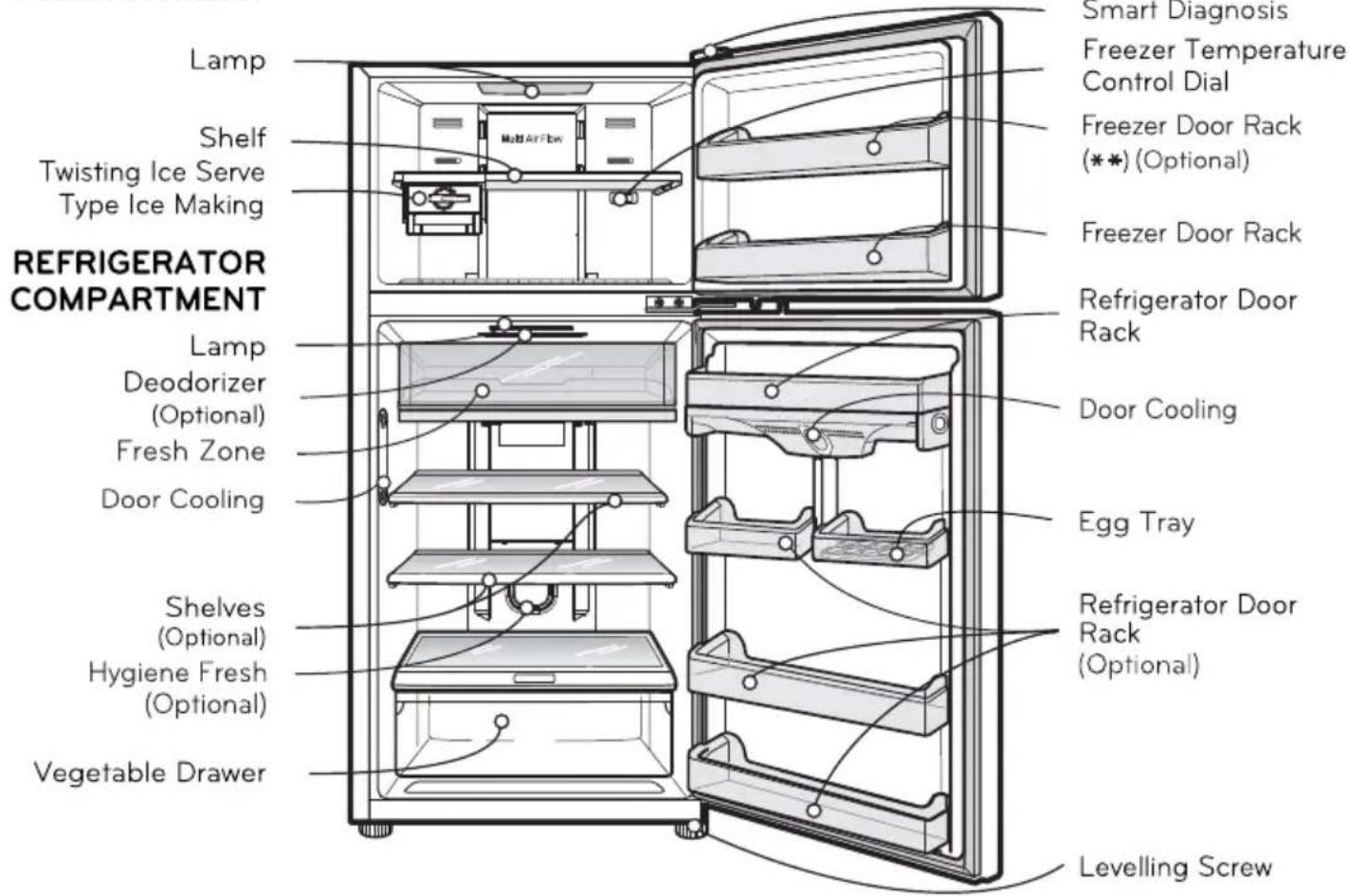

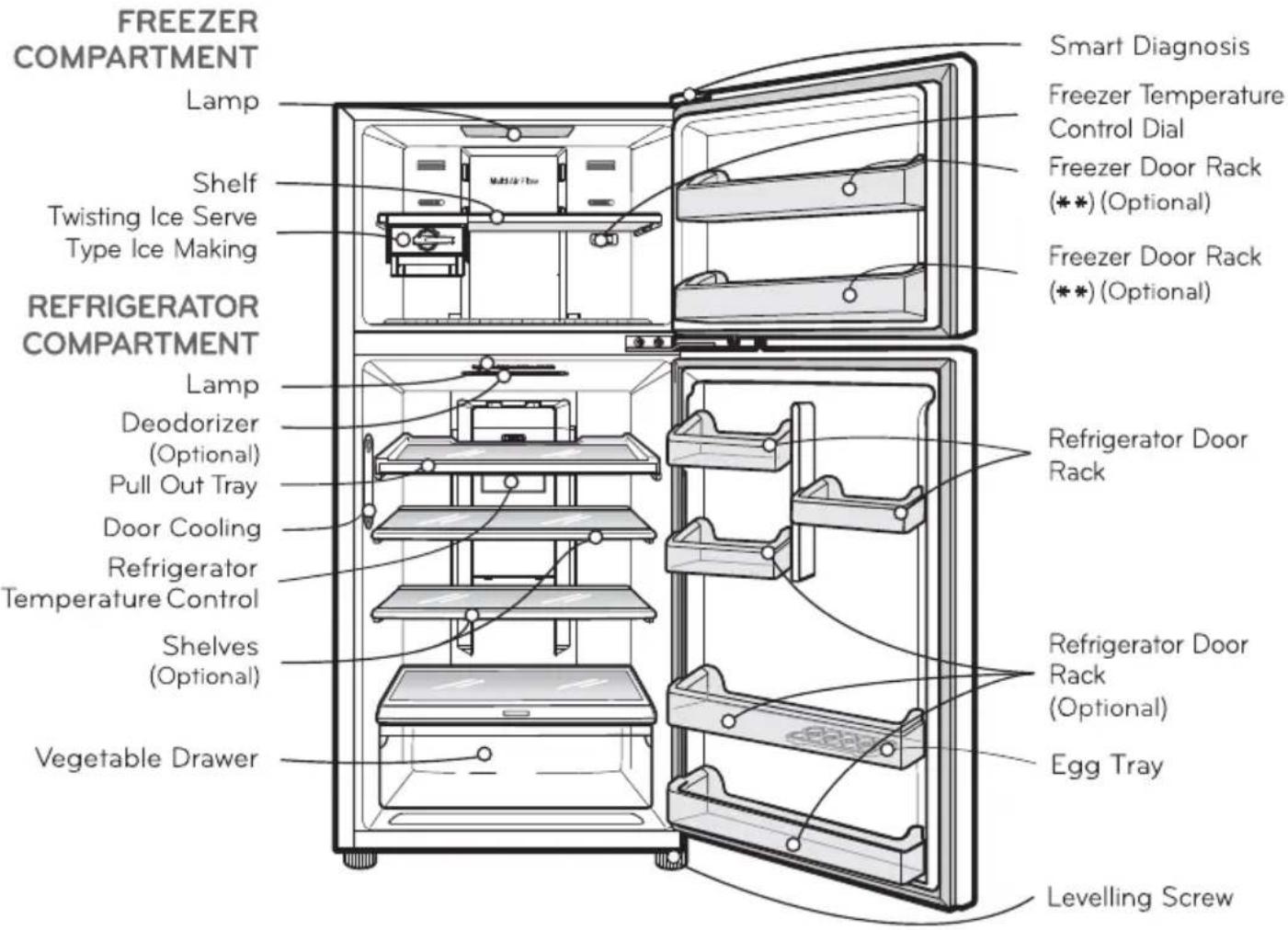

INNER PARTS 12

OPERATIONS 20

Starting

Before Setting The Temperature

Door Alarm (Optional)

Self Test

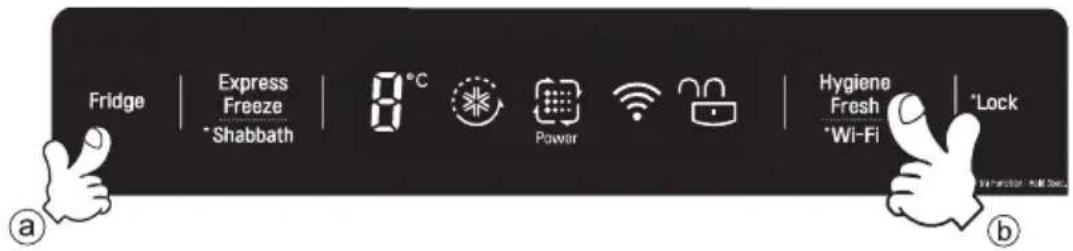

Controls For Refrigerator Compartment

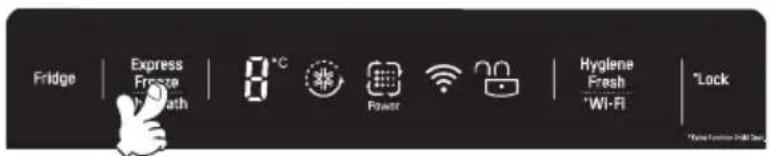

Express Freeze

Lock (Optional)

Wi-Fi (Optional)

Shabbath (Optional)

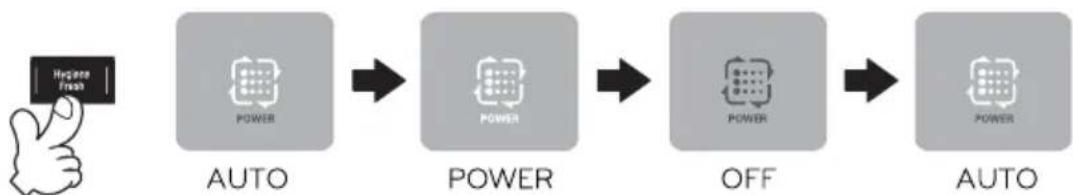

Hygiene Fresh (Optional)

Vegetable Drawer

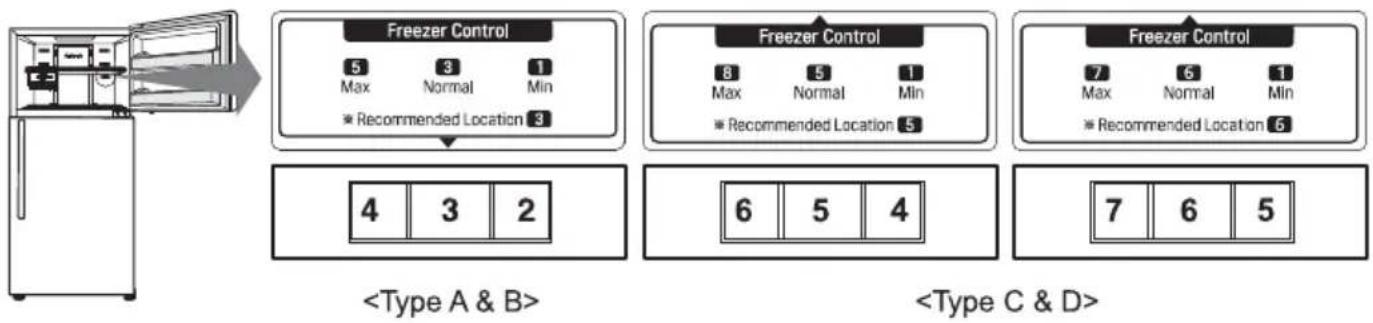

Controls For Freezer Compartment

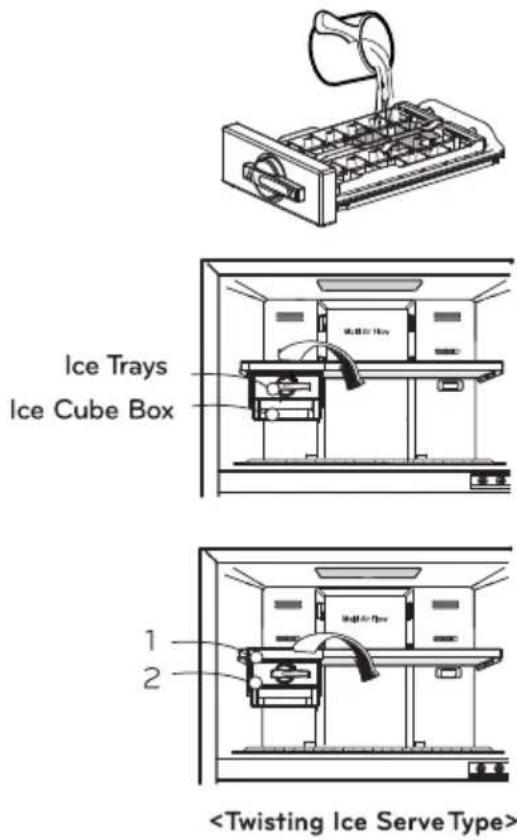

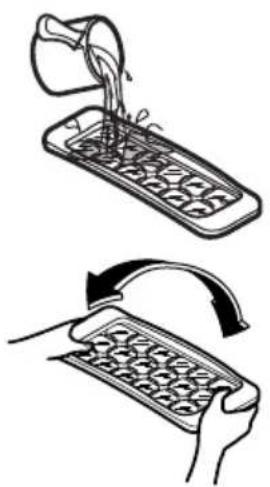

Ice Making

Door Cooling (Optional)

Deodorizer (Optional)

Defrosting

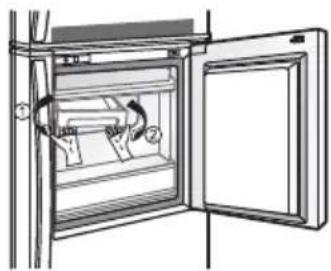

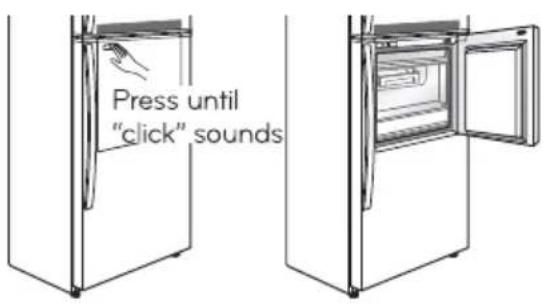

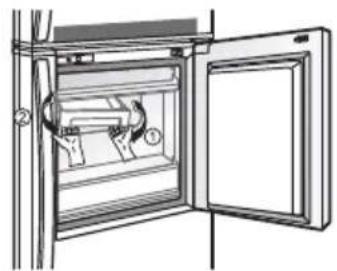

Home Bar (Optional)

SUGGESTIONS ON FOOD STORAGE 26

CLEANING 27

GENERAL INFORMATION 28

LAMP REPLACEMENT 28

IMPORTANT WARNINGS 29

BEFORE CALLING FOR SERVICE ....30

EARTH (GROUNDING) CONSTRUCTION (OPTIONAL) 31

SMART FUNCTION 32

SMART DIAGNOSIS....34

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazard can hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING or CAUTION.

These words mean:

WARNING

You will be hurt or seriously injured if you don't follow instructions.

CAUTION

indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

⚠️ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartment of the appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with services agent or a similarly qualified person.

Risk of Fire and Flammable Materials

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or caution.

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

• This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
• If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1m^2 in size for every 8g of R600a refrigerant inside the appliance.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

IMPORTANT SAFETY INFORMATION

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
• This product uses an LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments.

• Farm houses and by clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.
• Catering and similar non-retail applications.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

Do not use many power outlets.

• Using several devices at one outlet may cause fire.
• The electric leakage breaker may damage food and the dispenser may be leaked.

Pure electrical circuit lines without any symbols

Prevent the power cord from being squeezed or imprinted if the refrigerator is pushed in after the power plug is extracted during the installation.

It becomes the cause of fire or electric shock.

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a refrigerator with cartoon eyes and a broken handle, connected to a crossed-out electrical plug (no text or symbols)

Do not allow the power cord bent or pressed

by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with surprised expression and waving hand gestures (no text or symbols)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Do not extend or modify the length of the power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a person holding a phone (no text or symbols on the refrigerator itself)

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two children interacting with a plane, one holding a star-shaped object (no text or symbols present)

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 inches

Be sure to use grounded exclusive proper voltage consent for the power plug. Be sure to use grounded extension consents when extension consents are used. may cause breakdown It becomes the cause of fire.

Unplug the power plug when cleaning or handling the refrigerator.

• It may cause electric shock or injury.

Illustration of a child opening a refrigerator with a door, no text or symbols present

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Illustration of a hand using a tool to clean or dispose of a cloth (no text or symbols)

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

NO After 5minutes

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Cartoon illustration of a child holding a gift box while standing beside a large book (no text or symbols present)

Do not cling to the door or the shelves of the door or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

Cartoon illustration of a person hanging from an open refrigerator with a 'NO' sign, indicating no change or absence of any text or symbols.

Prevent children from entering the product.

It may endanger the life of a child if the child enters the refrigerator.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and surprised expression (no text or symbols on the refrigerator itself)

Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

Cartoon illustration of a milk carton character with arms and legs, holding a 'NO' sign (no text or symbols on the cart itself)

Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration of a smiling book character and a crossed-out bottle (no text or symbols)

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a small bottle nearby (no text or symbols on the main image)

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Cartoon illustration of a refrigerator with a sad face and 'NO' sign, accompanied by a briefcase and crossed-out box (no text or symbols on main elements)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not use drier to dry the inside, nor light a candle to remove odor.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a windmill inside, waving hand (no text or symbols)

Do not use the combustible spray near the refrigerator.

It may cause fire.

NO

In case of thunder and lightning, or not in use for a long

period of time, detach the power plug.

There is a danger of electric shock or fire.

Cartoon illustration of a smiling refrigerator with an open electrical outlet (no text or symbols)

When gas is leaked, do not touch the refrigerator or the air outlet and ventilate the room immediately.

• The explosion by spark may cause fire or burn.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane,R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.

Cartoon illustration of a smiling refrigerator and a girl running away from a window (no text or symbols)

Install in places away from the fire such as

the place where flammable gas is leaked.

It may cause fire.

Cartoon illustration of a refrigerator with a distressed face and a steaming cup on top (no text or symbols)

Do not use the refrigerator if it has been

submerged in water without having it checked by a qualified electrician.

It may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator with a person standing beside it (no text or symbols)

Do not spray water at the outside or the inside of the refrigerator or do not clean it

with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator and a girl holding a book (no text or symbols)

Tempered glass is applied at the front door (optional). It can be damaged by general impact. Do not touch the broken part.

It may cause injury.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a child running with a stethoscope and a smiling refrigerator, no text or symbols present

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center. It may cause fire.

Down-block office Service center

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Cartoon illustration of a child opening a refrigerator with a smiling face (no text or symbols)

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling book character with arms and legs crossed out, no text or symbols present.

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling refrigerator character with arms and legs crossed (no text or symbols)

What to do with your old refrigerator, Your refrigerator contain liquid (refrigerant,

(lubricant) made of recyclable materials. All these materials must be sent to a recycling waste disposal site as they can be reused after a specific recycling process. Contact local authorities.

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside. It may

cause electric shock or injury.

Cartoon illustration showing two anthropomorphic devices with a person reacting to their stress, one with 'NO' signs and the other with a sad face.

Completely empty inside before taking out the container from the door.

Illustration of hands holding a bag with bottles and arrows indicating movement (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not remove the cover on the back.

Cartoon illustration of a smiling refrigerator with a sad face and a 'NO' sign, waving hand (no text or symbols on the refrigerator itself)

Do not use an Adapter on the back.

Illustration of a hand holding a tool inside a cross-shaped frame (no text or symbols)

Place all the components in the right places before connecting the power.

Cartoon illustration of a smiling refrigerator with an open door, emitting electrical power lines (no text or symbols)

Never leave lit candles or incense on the

fridge, at risk of causing fire or product damage.

Cartoon illustration of a smiling refrigerator with a windmill above its door (no text or symbols)

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the

freezer with wet hands.

It may cause frostbite

Cartoon illustration of a girl opening a refrigerator with a 'No' hand gesture (no text or symbols on the image itself)

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Warning symbol showing a bottle crossed out with a broken glass and explosion effect, indicating chemical hazard or toxicity.

Do not place the food in disorder inside the refrigerator.

The food may fall during opening and closing the door of the refrigerator and hurt people.

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a distressed refrigerator with a sad face and a person lying on the floor (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the

rear.

Otherwise, your hands may be slipped to cause (injury.

Because the product is heavy, carrying it alone may hurt people or accidents may occur.

Illustration of three workers in hard hats pulling a large banner (no text or symbols present)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

No

IMPORTANT SAFETY INFORMATION

Do not put any living animal in the refrigerator.

It may cause the animal died.

NO

Do not use products such as grinding sponge, brush, iron, or even special products to clean stainless steel, soap products such as alcohol, kerosene, gasoline, wax, or solvent, or strong chemicals such as chlorine, detergent, or vinegar, for the purpose of gloss. These products may damage the protective

lacquer, and they may cause risk or stain on the surface of the refrigerator.

Cartoon illustration of a refrigerator with a distressed face and a child holding a bag, next to another figure (no text or symbols)

Avoid the contact of oil or fat on the plastic parts. They may cause damage.

When the power cord is damaged, let a technician to replace

it to remove the danger of an accident.

ce Technician

Do not apply oil in the door connection part in any circumstances. It may cause damage to the plastic

parts.

NO

Do not lean on the doors, Hinges may deregulate

Themselves, harming seal cooler and compromising performance.

Cartoon illustration of a child running away from a refrigerator with a 'NO' sign, no text or symbols present.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

Do not store excessive water bottle or side dish container, etc. in the door basket.

It will make you put excessive force to take out the water bottle or side dish container from the basket, and it may damage the basket or it may cause injury of your hand hitting the surrounding structure.

WARNING

Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY. IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

INSTALLATION

1. Select a good location.
   Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. Air must circulate properly around your refrigerator to ensure efficient operation. If your refrigerator is placed in a recessed area in the wall, allow at least 10 inches (25 cm) or greater clearance above the refrigerator and 2 inches (5 cm) or more from the wall. The refrigerator should be elevated 1 inch (2.5 cm) from the floor, especially if the floor is carpeted.
4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly.
   Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
5. Don't install this appliance below 5°C. It may cause the debasement of the refrigerator.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to storing food, leave your refrigerator on for 2 or 3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

□ INTERNAL CONTROLLER MODEL TYPE A

FREEZER COMPARTMENT Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Door Cooling Refrigerator Temperature Control Shelves (Optional) Vegetable Drawer Smart Diagnosis Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack Refrigerator Door Rack Egg Tray Refrigerator Door Rack (Optional) Levelling Screw

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

□ INTERNAL CONTROLLER MODEL TYPE B

FREEZER COMPARTMENT

Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Fresh Zone Door Cooling Refrigerator Temperature Control Shelves (Optional) Hygiene Fresh (Optional) Vegetable Drawer Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack Refrigerator Door Rack Door Cooling Egg Tray Refrigerator Door Rack (Optional) Levelling Screw

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

□ INTERNAL CONTROLLER MODEL TYPE C

FREEZER COMPARTMENT Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Pull Out Tray Door Cooling Refrigerator Temperature Control Shelves (Optional) Vegetable Drawer Smart Diagnosis Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack (**) (Optional) Refrigerator Door Rack Refrigerator Door Rack (Optional) Egg Tray Levelling Screw

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

□ INTERNAL CONTROLLER MODEL TYPE D

FREEZER COMPARTMENT Shelf Twisting Ice Serve (Optional) or General Type Ice Tray REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Pull Out Tray Door Cooling (Optional) Refrigerator Temperature Control Shelves (Optional) Hygiene Fresh (Optional) Vegetable Drawer Smart Diagnosis Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack (**) (Optional) Refrigerator Door Rack Refrigerator Door Rack (Optional) Egg Tray (Optional) Levelling Screw

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

□ EXTERNAL CONTROLLER MODEL TYPE A

FREEZER COMPARTMENT

Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Fresh Zone Door Cooling Shelves (Optional) Hygiene Fresh (Optional) Vegetable Drawer Smart Diagnosis Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack Refrigerator Door Rack Door Cooling Egg Tray Refrigerator Door Rack (Optional) Levelling Screw

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

□ EXTERNAL CONTROLLER MODEL TYPE C

FREEZER COMPARTMENT

Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Fresh Zone Door Cooling Shelves (Optional) Hygiene Fresh (Optional) Vegetable Drawer Smart Diagnosis Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack (**) (Optional) Refrigerator Door Rack Refrigerator Door Rack (Optional) Egg Tray Levelling Screw

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

☐ DOOR IN DOOR MODEL TYPE A

FREEZER COMPARTMENT Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Fresh Zone Door Cooling Shelves (Optional) Hygiene Fresh Vegetable Drawer Smart Diagnosis Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack Home Bar Refrigerator Door Rack (Optional) Leveling Screw

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

☐ DOOR IN DOOR MODEL TYPE C

FREEZER COMPARTMENT Lamp Shelf Twisting Ice Serve Type Ice Making REFRIGERATOR COMPARTMENT Lamp Deodorizer (Optional) Fresh Zone Door Cooling Shelves (Optional) Hygiene Fresh Vegetable Drawer Smart Diagnosis Freezer Temperature Control Dial Freezer Door Rack (**) (Optional) Freezer Door Rack (**) (Optional) Home Bar Refrigerator Door Rack (Optional) Leveling Screw

NOTE

• This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

SUGGESTION FOR ENERGY SAVING

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

OPERATIONS

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

BEFORE SETTING THE TEMPERATURE

• The temperature of the refrigerator is kept constant regardless of changes in room temperature. It is recommended that, once set, the temperature settings (the controls for the refrigerator and freezer compartments) not be changed unless necessary.
• This refrigerator has one temperature control button for the refrigerator compartment and one temperature control dial for the freezer compartment.
• The default setting of the temperature control button for the refrigerator compartment is '3°C'. (for external controller model),
• The default setting of the temperature control dial for the freezer compartment is '3' for model type A & B and '5' or '6' for model type C & D.
• This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the compressor automatically as needed.

DOOR ALARM (OPTIONAL)

When the door of the refrigerator or the freezer is open for 1 minute, an alarm will sound three times. If the door remains open, the alarm will repeat every 30 seconds.

SELF TEST

• Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will display an error code to assist the repair technician. While an error code is displayed, other control and display functions will not operate.
• If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.

CONTROLS FOR REFRIGERATOR COMPARTMENT

☐ FOR INTERNAL CONTROLLER MODEL

Temperature Control Cold Coldest Fridge

Ref. Temp Control Button

The default setting of the temperature control button for the refrigerator compartment is NORMAL

To control the refrigerator temperature, press the REF. TEMP CONTROL button.

Whenever pressing the button, LED emitting the light. The temperature is set in 7 steps, from Cold to Coldest cooling.

OPERATIONS

☐ FOR EXTERNAL CONTROLLER MODEL

Display graphic can be different, depend on the type of your refrigerator.

Fridge | Express Freeze *Shabbath | 8°C Power | Hygiene Fresh *Wi-Fi | *Lock a b

• Touch 'Fridge' button to control refrigerator temperature.
• Whenever touching the button, the LED emits light.
• Touch 'Hygiene Fresh' button to operate hygiene motor (optional).
• The number showing up on the LED luminesce indicate the temperature of refrigerator compartment.
• You can select the desired setting point seven steps, from '0°C' to '6°C'.

- Touch ⓐ button, Fridge temperature will be down each 1°C.

- Touch ⓑ button, Hygiene Fresh motor will be on, power mode, off (optional).

EXPRESS FREEZE

- The Express Freeze feature operates when the refrigerator first turn on. The compressor and circulating fan operate at maximum cooling capacity to quickly lower the refrigerator temperature. It shuts off automatically.

Fridge | Express Freeze Heat | 8 °C | Power | Hygiene Fresh "Wi-Fi" | *Lock *Home Function Install Data

- If warm food is placed into the refrigerator, Express Freeze can be started with the button on the control panel. Express Freeze will shut off when the temperature reaches the proper level or it can be shut off manually by touching the Express Freeze button.

LOCK (OPTIONAL)

- LOCK

Touch and hold the Lock button for 3 seconds to lock the Lock. When it is locked, the Lock LED will be on and the other button will not operate. To unlock, touch and hold the Lock button for 3 seconds again.

Fridge | Express Freeze | 8°C | Power | Hygiene Fresh | *Lock *Shabbath *Wi-Fi *Lock

Wi-Fi (OPTIONAL)

This sets the refrigerator to connect to your home's Wi-Fi network.

Fridge | Express Freeze * Shabbath | 8°C Power | Hygiene Fresh *Wi-Fi | *Lock

OPERATIONS

SHABBATH (OPTIONAL)

Shabbath mode is the function designated for use of the refrigerator during Shabbath.

• To set the Shabbath mode on, touch the Shabbath button for 3 Seconds. Then, initially 8 shows in the display as well as lamp and alarm turn off.
• Shabbath mode will automatically turned off after 96 hours.
  • To set the Shabbath mode off manually, touch the shabbath button for 3 Seconds.
• Shabbath mode maintains even when the electricity recovered from black-out.
• Lamp and Alarm will automatically turned off when activated.
  • Temperature is set to 3°C (refrigerator). (Unable to change temp while Shabbath Mode on)
  • Even outage happens when Shabbath function is on, Shabbath function will still stay on when power comes back

HYGIENE FRESH (OPTIONAL)

CAUTION

Before installing or using the product, make sure to read the owner's manual carefully to use the product accurately as intended. This HYGIENE FRESH filter has the antibacterial function of removing the virus or bacteria inside the refrigerator and the deodorizer function to remove the scent.

- Switch over to use mode

Switch over to use mode.

• To use the HYGIENE FRESH filter, touch the 📄️ button on the display panel on the front side of the door and switch over to the AUTO or POWER mode.

(Whenever you press the button, the HYGIENE FRESH filter will be switched to AUTO → POWER → OFF → AUTO.)

CAUTION

When the user switches to AUTO or POWER mode, the LED around the filter is also turned on. Open the door to check whether the LED around the filter is also turned on. Do not put in your finger or alien particles inside the fan. It can be caused of an injury or malfunction.

CAUTION

• Do not wash the HYGIENE FRESH filter by using water because it can be caused of malfunction.
  • This filter may not be effective for all types of bacteria and virus.
  • This is effective to remove the bacteria which is not on the food in the refrigerator.

VEGETABLE DRAWER

How to use

• Vegetable drawer can be used through the control of knob.
- Check the position of knob prior to store the food.
- Do not locate the knob on the middle point.

Line drawing of a printer or printer with no visible text, numbers, or symbols

OPERATIONS

CONTROLS FOR FREEZER COMPARTMENT

※ Depend on your product

Freezer Control 5 3 1 Max Normal Min * Recommended Location 3 4 3 2 Freezer Control 8 5 1 Max Normal Min * Recommended Location 5 6 5 4 Freezer Control 7 6 1 Max Normal Min * Recommended Location 6 7 6 5

• To lower the temperature in the freezer, turn the knob right and set to a higher number. To raise the temperature in the freezer, turn the knob left and set to a smaller number.
• When the freezer compartment is not cold enough in winter, adjust the control for the freezer to High (6 \~ 8).
• Refrigerator temperature would be warmer when the Freezer temperature set to be colder.
• For type A & B:

Knob 7 is for quick freezing in the freezer compartment. The refrigerator can be operated continuously or the refrigerator compartment can be warmer. When the quick freezing is finished, please return to set the Knob at Normal.

ICE MAKING

※ Determine which type ice-making system you have.

□ Twisting Ice Serve Type

• To make ice cubes, fill the ice tray with water and insert in its position.
- To remove ice cubes, hold the lever of the tray and pull turn gently. Then, ice cubes drop in to the ice cube box.

You can disassemble the Ice Maker to secure space in the freezer.

• Twisting Ice Serve Type: Remove 1 and 2.

1. Ice Tray
2. Ice Cube Box.

WARNING

• Do not use anything other than water.
• Fill the water up to the marked line..

Ice Trays Ice Cube Box 1 2

OPERATIONS

General Type

• To make ice cubes, fill the ice tray with water and insert in its position.
• To remove ice cubes, hold the tray at its ends and twist gently.

Illustration showing two steps of a food item being processed, with one pouring liquid from a container and the other holding a tray (no text or symbols)

DOOR COOLING (OPTIONAL)

• The anion coating in the duct cover purifies the air and helps stored foods remain fresh longer.
• If water of foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered owing to the escape of cool air.

Diagram of a refrigerator interior showing front and side views (no text or labels)

DEODORIZER (OPTIONAL)

- Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

Cartoon character giving a thumbs-up gesture, no text or symbols present

Cartoon illustration of a distressed character holding a tool, with no visible text or symbols

How to use

• As Deodorizer is located in cooling air inlet for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because odor may be passed on to other foods.

Re-Using of Deodorizer

• Used some length and the odor is strong, Deodorizer can be revived and re-used.
- Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.

Diagram illustrating the process of cleaning a sun, showing hand washing, spray, and sunlight emission.

DEFROSTING

• Defrosting takes place automatically.
- The defrosted water flows down to the evaporating tray which located in the lower back side of the refrigerator and is evaporated automatically.

OPERATIONS

HOME BAR (OPTIONAL)

How to use Home Bar

• Press the button at the top left side of Home Bar until "click" sounds.
• You can use various storage spaces inside Home Bar to systematically store food.
• Do not use the button to close Home Bar.
• Store food that is frequently taken out and used.
• You don't have to open the door and it saves electricity.
• LED lamp is turned on for easy taking out of the contents when Home Bar is open.
• Do not hang on Home Bar for safety reasons.

Press until "click" sounds

How to disassemble Home Bar basket

Diagram of an open refrigerator with a close-up view of its door and internal compartments (no text or symbols)

1. If you lightly lift and take out the basket, the basket is hooked into the grooves at the left and right side of the drawer.

Diagram of an open refrigerator with a door and internal compartments (no text or symbols)

1. At this time, hold the both ends of the basket, lift with force to separate one side, and separate the other side.

How to assemble Home Bar basket

Diagram of a refrigerator with an open door and a magnified inset showing the interior portion (no text or symbols)

1. Place the basket on the guide and push in to be hooked into the wide groove.

Diagram of a refrigerator with an open door and internal compartments, showing hand positioning (no text or symbols)

1. At this time, hold both ends of the basket, insert one side with force, and assemble the other side.

Caution Please follow the guidelines. Otherwise, it may be damaged.

How to disassemble Home Bar cover

- Lift Home Bar cover upward and pull to separate and take out.

Illustration of a door with arrows indicating force or movement, showing hand positioning and opening (no text or symbols)

Caution Before the disassembly, take out all food to empty inside the refrigerator.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.

- Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

Technical line drawing of a mechanical testing setup with no visible text or symbols

Newly Introduced Food

• Freezer Door Basket, marked ( ^** ) is -12^ section, that is suitable for short term storage of frozen food (optional).
• Two star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes (optional).
• Two star compartments are not suitable for the freezing of fresh food (optional).

REFRIGERATOR COMPARTMENT

• Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
• It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the

Refrigerator Shelf Vegetable Drawer

refrigerator to avoid being frozen by the cool circulating in the refrigerator.

- Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.

- When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.

SUGGESTIONS ON FOOD STORAGE

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wipe up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners or strong alkaline solutions on any surface.

Before you clean, however, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild Detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a Soft cloth. Do not use appliance wax, bleach, or other products containing chlorine on stainless steel.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. Use a lukewarm solution of mild soap or dish washable solution to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays and magnetic door seals etc. Use a lukewarm solution of mild soap or dish washable solution to clean the inner lining of your refrigerator. Wipe with a clean damp cloth and then dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts(lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing electric shock. Do not use flammable or toxic cleaning liquids.

• Do not use: Surface active agents, Car wax, Anticorrosive, or any kind of oil, Gasoline, Acids, Wax.
• Only use dish washable solution, and soapy water when cleaning.
  • Using harsh cleaning chemicals will cause the external finishes to change colour.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

IF YOU MOVE

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the leveling screw(s), turn them all the way into the base.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments.
• Farm houses and by clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.
• Catering and similar non-retail applications.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may

sometimes get warm, especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent "sweating" on the outer cabinet wall.

Anti-Condensation Pipe

LAMP REPLACEMENT

- This product applies LED Lamp which can not be replaced by the user. Please contact authorized service centre for the lamp replacement.

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH.

It will cause electric shock or fire.

H. No A

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives or chemicals in the refrigerator.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

DISPOSAL OF THE OLD APPLIANCE

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE CAUSES
THERE IS NO REFRIGERATION OR FREEZING	Has the power cord plug been removed or loosened from the electrical wall outlet?A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.- Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.- Reset the circuit breaker on the GFCI. If the problem persists, contact an electrician
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed in the back side of the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

EARTH (GROUNDING) CONSTRUCTION (OPTIONAL)

It is recommended to install the earth wire to prevent electric shock in case of electricity leakage.

Diagram showing electrical connection with battery, switch, and cartoon character holding a button

How to connect the earth wire:

- Connect the earth wire's metal ring end to the earth screw on the back of the refrigerator.

- Peel off the cable sheath/insulation at the other end of the earth wire. Attach the peeled wire to a metal screw/nail and then drive it through the wall or ground.

Do not connect the earth wire to the following locations.

- Gas pipe

It could produce sparks which lead to fire and explosion.

• Telephone earth wire and lightning rod

It is dangerous during lightning.

• Water pipe and water tap

The earth wire connection will not work when the middle of the water pipe is made of plastic. If it is connected to a metal water pipe, it could cause someone to be electrocuted.

When installing the product in a humid or wet location, you must install the earth wire.

Ex) • Unfloored or dirt floored room (Room with dirt and no floor), concrete floor

• Location where it can get wet such as near the sink
• Location where water can leak or is humid such as basement
  • Other wet or humid location

Especially, for locations where it always get wet such as near the restaurant sink, you are obligated by the law to install a circuit breaker in addition to the earth wire.

After consulting with your retailer or electric construction company, you must do the earth wire construction (Type 3 earth construction). Please note that earth construction could incur extra fees.

SMART FUNCTION (Only for applied models)

LG ThinQ Application

This feature is only available on models with Wi-Fi.

The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Smart Diagnosis

- If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Settings

- Allows you to set various options on the appliance and in the application.

NOTE

• If you change your wireless router, internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
• The application is subject to change for appliance improvement purposes without notice to users.
  • Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

- If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

Diagram showing hand press icon pointing to a circle with double-headed arrows, next to a circular arrow indicating upward direction.

3 Connect your smartphone to the wireless router.

Diagram showing a hand interacting with wireless signals to form a Wi-Fi icon, illustrating signal mapping or interaction.

NOTE

• To verify the Wi-Fi connection, check that the 📞 icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.

- LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.

- If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.

- The Wi-Fi connection may not connect or may be interrupted because of the home network environment.

- The network connection may not work properly depending on the Internet service provider.

- The surrounding wireless environment can make the wireless network service run slowly.

- The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again.

- If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.

- The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)

- Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.

- If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

SMART FUNCTION (Only for applied models)

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

- Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the LG ThinQ application, allows the appliance to connect to a home Wi-Fi network. The 📋 icon shows the status of the appliance's network connection. The icon illuminates when the appliance is connected to the Wi-Fi network.

Initial Appliance Registration

- Run the LG ThinQ application and follow the instructions in the application to register the appliance.

Re-registering the Appliance or Registering Another User

- Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to register the appliance.

NOTE

- To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. 📋 icon will be turned off.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Symptoms Reason	Solution
Your home appliance and smartphone is not connected to the Wi-Fi network.	The password for the Wi-Fi that you are trying to connect to is incorrect.	· Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ.
	Mobile data for your smartphone is turned on.	· Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly.	· The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz.	· Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far.	· If the distance between the appliance and the router is too far, the signal may be weak and the connection may not be configured correctly. Move the location of the router so that it is closer to the appliance.

SMART DIAGNOSIS (Only for applied models)

This feature is only available on models with the ⚙ or ⚙ logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smart phone.

- Follow instructions to download and install the application.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

• Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Open the fridge door.
2 Press and hold the Fridge button for 3 seconds or longer.

3 If the buzzer sounds 4 times, open the freezer door and hold the phone near the speaker hole.

Diagram showing a smartphone with an arrow pointing to its screen, connected by a dotted line to a circular detail (no text or symbols present)

4 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

1 Close the freezer and fridge doors, then press and hold the Lock button to activate the lock function.

- If the display has been locked for over 5 minutes, you must deactivate the lock and then reactivate it.

2 Press and hold the Fridge button for 3 seconds or longer.

- The control panel will be turned off, and then '3' will be displayed on the fridge temperature display part.

3 Open the freezer and fridge door, and then hold the phone on the upper right speaker hole.

Diagram showing a smartphone interacting with a surface, with an inset magnified view highlighting the device (no text or symbols present)

4 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

MEMO

LG

Life's Good
