USER MANUAL GCX-287TNSI LG

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

ENGLISH

TABLE OF CONTENTS

This manual may contain images or content that may be different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE....4

WARNING....4

CAUTION 9

INSTALLATION

Before Installation 12

Removing the Fridge and Freezer Door....13

Connecting the Water Line ....15

Levelling and Door Alignment....16

Turning on the Power....18

Moving the Appliance for Relocation 18

OPERATION

Before Use 19

Product Features....21

Control Panel 25

Ice and Water Dispenser....28

Automatic Icemaker 30

InstaView....32

Door in Door....33

Drawer....33

Shelf 34

Door Basket ....35

SMART FUNCTIONS

LG ThinQ Application....36

Smart Diagnosis ....37

MAINTENANCE

Cleaning 39

Water Filter 40

Deodorizer 41

TROUBLESHOOTING

Before Calling for Service....43

APPENDIX

Information....50

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into 'WARNING' and 'CAUTION' as described below.

Safety Messages

This symbol is displayed to indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

WARNING

WARNING

To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following:

Technical Safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

This symbol alerts you to flammable materials that can ignite and cause a fire if you do not take care.

• This appliance contains a small amount of isobutane refrigerant (R600a), but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
• The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. Consult with service agent or a similarly qualified person before disposing of them.
• Do not damage the refrigerant circuit.
• If the power cord is damaged or the hole of the outlet socket is loose, do not use the power cord and contact an authorized service centre.
• Do not locate multiple portable outlet sockets or portable power supplies at the rear of the appliance.
• Securely plug the power plug in the outlet socket after completely removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the outlet socket.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not tilt the appliance to pull or push it when transporting.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not use mechanical devices or other means to accelerate the defrosting process.

- Do not use a hair drier to dry the inside of the appliance or place a candle inside to remove the odours.

- Do not use electrical appliances inside the refrigerator.

- Make sure not to get a body part such as a hand or foot stuck while moving the appliance.

- Disconnect the power cord before cleaning the appliance interior or exterior.

- Do not spray water or inflammable substances (toothpaste, alcohol, thinner, benzene, flammable liquid, abrasive, etc.) over the interior or exterior of the appliance to clean it.

- Do not clean the appliance with brushes, cloths or sponges with rough surfaces or which are made of metallic material.

- Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.

Risk of Fire and Flammable Materials

- If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance is used should correspond to the amount of refrigerant used. The room must be 1 ~m^2 in size for every 8 g of R600a refrigerant inside the appliance.

- Refrigerant leaking out of the pipes could ignite or cause an explosion.

- The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

Installation

- This appliance should only be transported by two or more people holding the appliance securely.

• Install the appliance on a firm and level floor.

- Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, rain, or temperatures below freezing.

- Do not place the appliance in direct sunlight or expose it to the heat from heating appliances such as stoves or heaters.

- Be careful not to expose the rear of the appliance when installing.

• Install the appliance in a place where it is easy to unplug the power plug of the appliance.

- Be careful not to let the appliance door fall during assembly or disassembly.

- Be careful not to pinch, crush, or damage the power cable during assembly or disassembly of the appliance door.

- Be careful not to point the power plug up or let the appliance lean against the power plug.

- Do not connect a plug adapter or other accessories to the power plug.

- Do not modify or extend the power cable.

- Ensure that the outlet socket is properly grounded, and that the earth pin on the power cord is not damaged or removed from the power plug. For more details on grounding, inquire at an LG Electronics customer information centre.

- This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and grounded in accordance with all local codes and ordinances.

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.
• Do not plug the appliance into a multi socket adapter which does not have a power cable (mounted).
• The appliance should be connected to a dedicated power line which is separately fused.
• Do not use a multi socket outlet which is not properly grounded (portable). In case of using a properly-grounded multi socket outlet (portable), use the multi socket outlet with the current capacity of the power cord rating or higher and use the multi socket outlet only for the appliance.

Operation

• Do not use the appliance for any purpose (storage of medical or experimental materials or shipping) other than any domestic household food storage use.
• If water penetrates electrical parts of the appliance, disconnect power plug and contact an LG Electronics customer information centre.
• Unplug the power plug during a severe thunderstorm or lightening or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet hands.
• Do not bend the power cable excessively or place a heavy object on it.
• Immediately unplug the power plug and contact an LG Electronics customer information centre if you detect a strange sound, odour, or smoke coming from the appliance.
• Do not place hands or metallic objects inside the area emitting the cold air, cover or heat releasing grille on the back.

• Do not apply excessive force or impact to the back cover of the appliance.

• Be careful of nearby children when you open or close the appliance door. The door may bump the child and cause injury.

• Avoid the danger of children getting trapped inside the appliance. A child trapped inside the appliance can cause suffocation.
• Do not put animals, such as pets into the appliance.
• Do not place heavy or fragile objects, containers filled with liquid, combustible substances, flammable objects (such as candles, lamps, etc.), or heating devices (such as stoves, heaters, etc.) on the appliance.
• Do not place any electronic appliance (such as heater and mobile phone) inside the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the appliance or power plug and ventilate the area immediately. This appliance uses a refrigerant gas (isobutane, R600a). Although it uses a small amount of the gas, it is still combustible gas. Gas leakage during appliance transport, installation or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether, benzene, alcohol, chemical, LPG, combustible spray, insecticide, air freshener, cosmetics, etc.) near the appliance.

Disposal

- When discarding the appliance, remove the door gasket while leaving the shelves and baskets in place and keep children away from the appliance.

CAUTION

CAUTION

To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following:

Installation

• After unpacking, check the appliance for any damage that may have occurred during transit.
- Wait for at least 3 to 4 hours in order to ensure the refrigerant circuit is fully efficient.

Operation

• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those containing carbonated drinks) in the freezer compartment, shelves or ice bin that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the shelves can be damaged by an impact. If it is broken, do not touch it with hands.
• Do not hang from the appliance doors, storage room, shelf or climb up into it.
• Do not store an excessive amount of water bottles or containers for side dishes on the door baskets.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates improperly, stop using the appliance and contact an authorized service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out in the freezer compartment.
• Make sure not to get a hand or foot stuck upon opening or closing the appliance door or door in door.

Maintenance

- This appliance is equipped with maintenance-free LED interior light. Do not remove cover or LED lamp in any attempt to repair or change it. Contact an LG Electronics customer information centre.

• Do not clean glass shelves or covers with warm water when they are cold. They may shatter if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics customer information centre.
• Dispose of the ice inside the ice bin in the freezer compartment during an extended power outage.

INSTALLATION

Before Installation

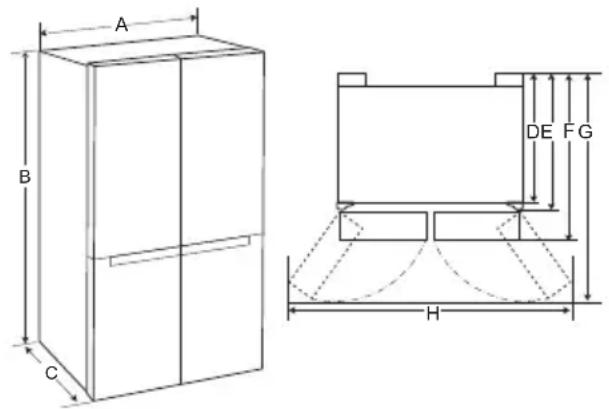

Dimensions and Clearances

Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 50 mm of clearance between the back of the appliance and the wall when installing the appliance.

A B C H DE FG

- Size (mm)
A	913
B	1
C	735
D	620
E	691
F	735
G	1
H	1

NOTE

- You can determine what type of appliance it is by looking at the label inside the appliance.

Ambient Temperature

• The appliance is designed to operate within a limited range of ambient temperatures, depending on the climate zone.
• The internal temperatures could be affected by the location of the appliance, the ambient temperature, the frequency of door opening and so on.
• The climate class can be found on the rating label.

Climate Class Ambient Temperature Range °C
SN (Extended Temperate)	+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38 / +18 - +38**
T (Tropical) +10 - +43* / +16 - +43 / +18 - +43**

* Australia, India, Kenya
7* Argentina 9 0

NOTE

- The appliances rated from SN to T are intended to be used at an ambient temperature between 10 °C and 43 °C.

1	8	0
6	3	5

Accessories

*1 This feature is only available on some models.

① Spanner A*1
② Spanner B*1
③ Water Filter*1
④ Water Tube*1
⑤ Tube Connector and Clip ^*1
⑥ Tube Connector and Valve*1

Removing the Fridge and Freezer Door

If your entrance door is too narrow for the appliance to pass through, remove the appliance doors and pass the appliance laterally.

WARNING

- Disconnect the power cord, house fuse or circuit breaker before installing, removing the doors, or cleaning the appliance. Failure to follow these instructions may result in death, fire or electric shock.

Removing the Freezer Door

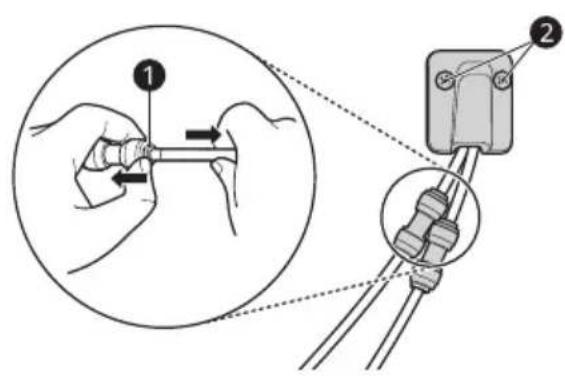

1 The water supply line is connected to the top right part in the back of the appliance. Hold the water supply connection and gently push the

collet ① to detach the water supply line. Unscrew the cover ②.

Diagram illustrating a cable or wire connection technique with labeled components and directional arrows

2 Remove the screw from the hinge cover at the top of the appliance. Lift the hook, located at the bottom of the front side of the cover, with a flat-head screwdriver.

Technical line drawing of a mechanical assembly with a tool and base (no text or symbols)

3 Pull out the tube ③. Unscrew the ground wire ④. Disconnect all wire harnesses ⑤.

Diagram of a cable or connector assembly with numbered parts and directional arrows indicating motion or movement.

NOTE

- The number of wire harnesses may vary depending on the model.

4 Rotate the hinge lever ⑥ counterclockwise. Lift the top hinge ⑦ free of the hinge lever latch ⑧

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

CAUTION

- When lifting the hinge free of the latch, be careful that the door does not fall forward. It is recommended that two or more people carry out the door removal and refitting.

5

Lift the freezer door until it is free of the bottom hinge assembly.

Mechanical component diagram showing a bracket with mounting holes and a directional arrow (no text or symbols)

CAUTION

- Place the door on a non-scratching surface with the inner side facing up.

Removing the Fridge Door

1

Disconnect all wire harnesses ①.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating movement or force.

NOTE

- The number of wire harnesses may vary depending on the model.

2

Rotate the hinge lever ② clockwise. Lift the top hinge ③ free of the hinge lever latch ④.

Technical diagram showing a mechanical component with numbered parts and directional arrows indicating motion or assembly.

CAUTION

- When lifting the hinge free of the hinge lever latch, be careful that the door does not fall forward. It is recommended that two or more people carry out the door removal and refitting.

3

Lift the fridge door until it is free of the bottom hinge assembly.

Mechanical assembly diagram showing a bracket with mounting holes and a rotating arrow (no text or symbols)

CAUTION

- Place the door on a non-scratching surface with the inner side facing up.

Refitting the Fridge and Freezer Door

Refit the doors in the reverse sequence of their removal once the appliance has been passed through all access doors.

CAUTION

• Install the fridge door first.

NOTE

- Disassembling/Assembling the water lines

Technical diagram of a mechanical assembly with numbered components labeled 1 to 4

① Collet ② Tube ③ Insert line ④ Clip

- Gently insert the tube until only one of the tube's lines is visible. Pull on the tube to make sure that it is tightly fastened.

Correct
Incorrect

- If the water tube end is damaged, it should be trimmed to ensure it does not leak when refitted.

5 6 7

⑤ Not straight ⑥ Damaged ⑦ Stretched

Connecting the Water Line

This feature is only available on some models.

Water Supply Requirements

A cold water supply with water pressure between 138 kPa and 827 kPa (1.4-8.4 kgf/cm ^2 ) is required to operate the water dispenser. If the refrigerator is installed in an area with low water pressure (below 138 kPa), you can install a booster pump to compensate for the low pressure.

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 138 kPa to 827 kPa (1.4-8.4 kgf/cm ^2 )

WARNING

• Unplug the appliance before carrying out any work on connecting the water line. Failure to do so may cause electric shock.
• Only connect the water line to a cold water supply. Failure to do so may cause the water filter to malfunction. Water hammer (water banging in the pipes) in house plumbing can cause damage to appliance parts and can lead to water leakage or flooding.
• Connect to potable water supply only.
• Connecting the water line must only be installed by a qualified plumber and in accordance with local legislation and regulations governing water quality.

NOTE

- This water line installation is not covered by the appliance warranty.

Connecting Water to the Appliance

1 Unscrew the metal threaded collar nut at the back of the appliance and place it over one end of the water tube.
2 Firmly push the water tube onto the water inlet valve and tighten up the collar nut.

Diagram showing a mechanical device being adjusted to its base, with no text or symbols present.

Connecting to the Water Tap

This feature is only available on some models.

1 Push the water tube into the hole of the tap connector supplied in the accessories. The pipe should be held firmly whilst the connector is pushed onto the pipe.

Diagram of a mechanical component with a shaft and flange, showing motion direction (no text or symbols)

2 Ensure that the rubber washer is fitted to the inside of the tap connector before screwing it onto the tap.

- A separate connector or adaptor may need to be purchased if your tap fitting does not match the thread size of the connector provided.

Simple line drawing of a speaker grille with concentric rings and a central dot (no text or symbols)

Checking the Water Connection

1 Turn on the water supply and switch on the appliance. Carefully check all fittings for possible leaks due to poorly fitted hoses.
2 Press and hold the Water Filter button for three seconds. The new water filter has been activated.
3 Place a cup under the water dispenser to verify that water is flowing through the appliance.
4 Check the connecting tube and joints for leaks once again.

Levelling and Door Alignment

Before Beginning

When the appliance doors appear to be uneven, follow the instructions below to align the doors.

NOTE

- The spanner may differ depending on the model. You will be provided with either spanner type A or B.

- Spanner Type A

- Spanner Type B

1 2 3

Levelling the Appliance

The appliance has two front levelling legs. Adjust the legs to alter the tilt from front to back or side to side. If the appliance seems unsteady, or the doors do not close easily, adjust the appliance's tilt using the instructions below.

Use the spanner ① to adjust the height by turning the levelling leg to the left to raise it or to the right to lower it.

Technical diagram showing a mechanical assembly with labeled components and an inset close-up of the component detail.

NOTE

• Leveling the doors may not be possible when the floor is not leveled, or is of weak or poor construction.
• The refrigerator is heavy and should be installed on a rigid and solid surface.
• Some timber flooring may cause levelling difficulties if it flexes excessively.

Door Alignment for Freezer and Fridge Door

If the door of the appliance is not level, adjust the difference in the height of appliance door.

Technical diagram showing a mechanical assembly with a magnified inset of a component being inserted into a housing (no text or symbols present)

1 Open the door and use the spanner ① to loosen the keeper nut by turning it to the left.

Mechanical component diagram showing a clamp and lever assembly (no text or symbols)

2 Use the spanner ② to adjust the height by turning the adjustment hinge pin to the left or to the right.

Mechanical component diagram showing a lever and shaft assembly (no text or symbols)

CAUTION

- Do not adjust the height of the appliance door more than 3 mm.

3 Use the spanner ① to fasten the keeper nut by turning it to the right.

Mechanical component diagram showing a wrench and lever assembly (no text or symbols)

NOTE

• Leveling the doors may not be possible when the floor is not leveled, or is of weak or poor construction.
• The refrigerator is heavy and should be installed on a rigid and solid surface.
• Some timber flooring may cause levelling difficulties if it flexes excessively.

Turning on the Power

Connecting the Appliance

After installing the appliance, connect the power plug into the outlet socket. Do not double up with other appliances on the same outlet.

NOTE

• After connecting the power supply cord (or plug) to the outlet, wait 3 or 4 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.
• To turn off the appliance, disconnect the power plug from the socket outlet.

Moving the Appliance for Relocation

Preparing for Relocation

1 Remove all food from inside the appliance.
2 Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3 Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.

4 Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5 After installing the appliance, connect the power plug into a mains outlet socket and switch it on.

OPERATION

Before Use

Notes for Operation

• Users should keep in mind that frost can form if the door is not closed completely or if the humidity is high during the summer.
• Ensure there is sufficient space between food stored on the shelf or door basket to allow the door to close completely.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Door Open Alarm

The alarm sounds 3 times in 30 second intervals if the door is left open or not completely closed for 1 minute.

NOTE

- Contact the LG Electronics customer information centre if the alarm sound continues even after closing all doors.

Failure Detection

The appliance can automatically detect problems during the operation.

NOTE

• If a problem is detected, the appliance may not operate and an error code is displayed even when any button is pressed.
• If an error code is indicated on the display, do not turn off the power. Immediately contact the LG Electronics customer information centre and report the error code. If you turn off the power,

the repair technician from the our information centre may have difficulty finding the problem.

Suggestion for Energy Saving

• For the most efficient use of energy, make sure that door bins, drawers and shelves are assembled properly.
• Ensure there is sufficient space between stored foods. This allows cold air to be circulated evenly and lowers electricity bills.
• Store hot food only after it has cooled in order to prevent dew or frost.
• When storing food in the freezer compartment, set the freezer temperature lower than the temperature indicated on the food.
• Do not set the temperature of the appliance lower than needed.
• Do not put food near the temperature sensor of the fridge compartment. Keep a distance of at least 3 cm from the sensor.
• Note that a temperature rise after defrosting has a permissible range in the appliance specifications. If you wish to minimise the impact on the food storage due to a temperature rise, seal or wrap the stored food in several layers.
• The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions.

Storing Foods Effectively

• Food may freeze or spoil if stored at the wrong temperature. Set the refrigerator to the correct temperature for the food being stored.
• Store frozen food or refrigerated food inside sealed containers.
• Check the expiration date and label (storage instructions) before storing food in the appliance.

- Do not store food for a long period of time if it spoils easily at a low temperature.

- Do not place unfrozen food in direct contact with food that is already frozen. It could be necessary to reduce the quantity to be frozen if freezing every day is anticipated.

- Place the refrigerated food or frozen food in each fridge or freezer compartment immediately after purchasing.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Refrigerated foods and other food items can be stored on top of the vegetable drawer.

- Avoid refreezing any food which has been completely thawed. Freezing any food which has been completely thawed again will lower its taste and nutrition.

- Do not overfill the appliance. Cold air can not circulate properly if the appliance is overfilled.

- Cool hot food before storing. If too much hot food is placed inside, the internal temperature of the appliance can increase and negatively affect other foods stored in the appliance.

- If you set an excessively low temperature for food, it may become frozen. Do not set a temperature lower than the required temperature for the food to be stored correctly.

- If there are chill compartments in the appliance, do not store vegetables and fruits with higher moisture content in the chill compartments as they may freeze due to the lower temperature.

- In the event of a blackout, call the electricity company and ask how long it is going to last.

- You should avoid door openings while the power is off.

- When the power supply gets back to normal, check the condition of the food.

Maximum Freezing Capacity

- Express Freeze must be switched on for 7 hours before fresh products are placed in the freezer compartment.

- To get better air circulation, insert all inner parts like baskets and shelves.

NOTE

• The max freezing capacity of your appliance is stated on the rating label inside the fridge compartment.
• To have the maximum freezing capacity, we recommend that you set the freezer temperature to the coldest temperature setting.

Freezing the Maximum Amount of Food

If large quantities of food are to be stored, all the freezer drawers should be taken out of the appliance and the food should be stacked directly on the freezer shelves in the freezer compartment.

CAUTION

- To remove the drawers, first remove the food from drawers and then pull out the drawers carefully. Not doing so could cause injury or damage to the drawers.

NOTE

- The shape of each drawer may be different, insert in the right position.

Two Star Compartment

• Two star ( ^** ) basket or drawer can be used to store ice and food from -12 °C to -18 °C for short periods.
• Two star frozen food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
• Two star compartments are not suitable for the freezing of fresh food.

Product Features

The appearance or components of the appliance may differ from model to model.

Exterior

*1 This feature is only available on some models.

Technical diagram of a door frame with labeled components and directional arrows

Technical diagram of a refrigerator with labeled parts and structural lines

① Door in Door ^*1

This is a convenient storage area for frequently-used items that require easy access.

② Door in Door Lever ^*1

Opens Door-in-Door.

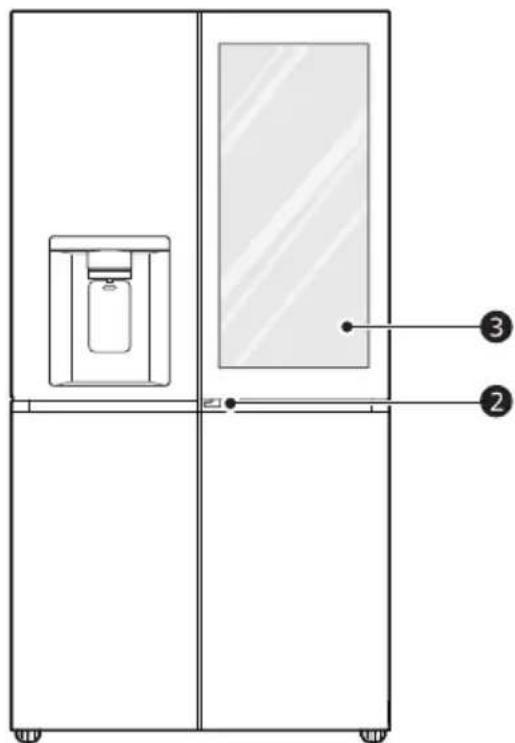

③ InstaView Door in Door ^*1

The InstaView Door-in-Door compartment allows for easy access to commonly used food items.

Interior (Two star \*\*)

*1 This feature is only available on some models.

Door in Door Model:

Technical diagram of a refrigerator with numbered parts for identification

InstaView Door in Door Model:

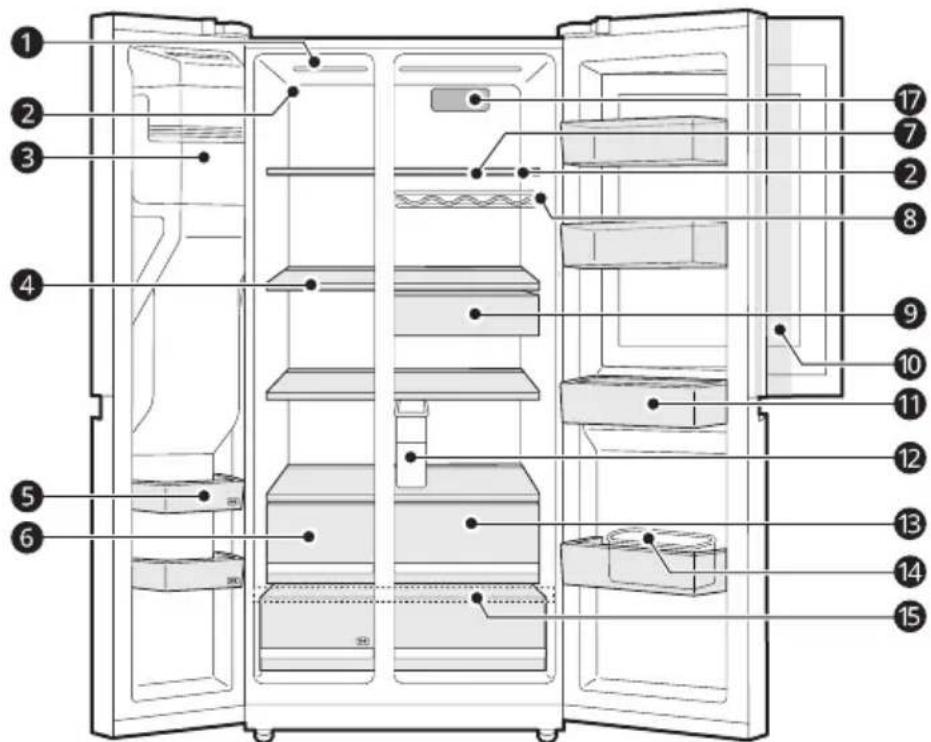

Labeled diagram of a refrigerator interior with numbered compartments and storage areas

① LED Lamp

The LED lamps inside the appliance light up when you open the door.

② Temperature Sensor ^*1

This sensor senses the temperature of the fridge compartment.

- Maintain the distance between the sensor and food to accurately sense the temperature.

③ Automatic Icemaker ^*1

This is where ice is automatically produced and stored.

4 Freezer Shelf

Stores frozen food such as meat, fish, and ice cream.

- To freeze food items quickly, store the food on the left side of the top shelf. If you need to store more food, store it on the shelves in order starting from the top shelf. Food items will freeze most quickly in the zone.

⑤ Freezer Door Basket

Stores small packages of frozen food. Do not store ice cream or food which will be stored for a long period of time.

NOTE

- The number of freezer door baskets with two star section may vary depending on model purchased.

6 Freezer Drawer

Stores frozen food for longer storage.

NOTE

- The number of freezer drawers with two star section may vary depending on model purchased.

⑦ Fridge Shelf

Stores refrigerated foods and fresh foods.

- Stores the foods with higher moisture content at the front of the shelf.

- The actual number of shelves will differ from model to model.

⑧ Bottle Rack ^*1

Stores containers and tall bottles using the bottle rack.

CAUTION

- Do not store short bottles or containers. The items may fall and cause an injury or appliance damage.

⑨ Snack Drawer ^*1

Stores small packages of refrigerated foods.

10 Door in Door Compartment\*1

Stores commonly used food items such as beverages and snacks.

⑪ Fridge Door Basket

Stores small packages of refrigerated foods, drinks and sauce containers.

⑫ Water Tank\*1

Stores water to supply the dispenser. It requires manual filling.

⑬ Fridge Drawer

Stores fruits and vegetables to keep fresh for as long as possible.

14 Egg Box\*1

Stores eggs.

- Do not use it as the ice bin or place it on the shelf on top of the fridge or the vegetable drawer.

15 Bottom Drawer Cover

This is the bottom drawer cover.

CAUTION

- Do not store any items at the front of the bottom shelf. The items may fall and cause an injury or appliance damage.

16 Craft Icemaker\*1

This is where craft ice is automatically produced and stored.

⑰ Air Filter ^*1

Reduces odours inside the fridge compartment.

Control Panel

The actual control panel may differ from model to model.

Control Panel and Functions

*1 This feature is only available on some models.

Control Panel

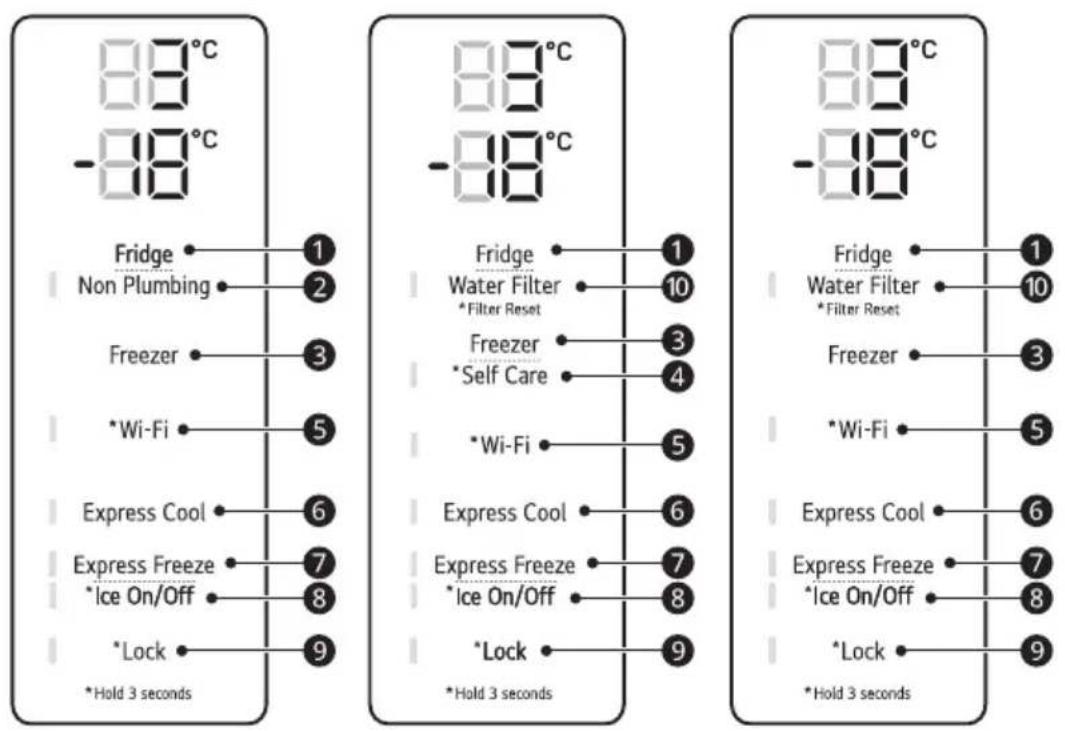

88°C -88°C Fridge ① Non Plumbing ② Freezer ③ *Self Care ④ *Wi-Fi ⑤ Express Cool ⑥ Express Freeze ⑦ *Ice On/Off ⑧ *Lock ⑨ *Hold 3 seconds 88°C -88°C Fridge ① Water Filter ⑩ *Filter Reset Freezer ③ *Self Care ④ Craft Ice ⑪ *Wi-Fi ⑤ Express Cool ⑥ Express Freeze ⑦ *Ice On/Off ⑧ *Lock ⑨ *Hold 3 seconds

88°C -88°C Fridge ① Non Plumbing ② Freezer ③ *Wi-Fi ⑤ Express Cool ⑥ Express Freeze ⑦ *Ice On/Off ⑧ *Lock ⑨ *Hold 3 seconds 88°C -88°C Fridge ① Water Filter ⑩ *Filter Reset Freezer ③ *Self Care ④ *Wi-Fi ⑤ Express Cool ⑥ Express Freeze ⑦ *Ice On/Off ⑧ *Lock ⑨ *Hold 3 seconds 88°C -88°C Fridge ① Water Filter ⑩ *Filter Reset Freezer ③ *Wi-Fi ⑤ Express Cool ⑥ Express Freeze ⑦ *Ice On/Off ⑧ *Lock ⑨ *Hold 3 seconds

Dispenser Control Panel

Diagram showing three containers with different liquid levels and bubbles, labeled with numbers 12 below

① Fridge

Press this button repeatedly to select a desired temperature between 1 °C and 7 °C.

• The default fridge temperature is 3^ C.

NOTE

- The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within the appliance.

② Non Plumbing\*1

The Non Plumbing icon is illuminated when the water dispenser tank is installed correctly.

③ Freezer

Press this button repeatedly to select a desired temperature between -23 °C and -15 °C.

• The default freezer temperature is -18 °C.

④ Self Care\*1

UV light is used to keep the water outlet clean. UV clean function runs automatically for 10 minutes every hour or can be manually activated at anytime.

Press this button to activate it manually.

NOTE

• This function will momentarily stop each time the Water button is pressed if it is in operation and will resume the function after 1 hour.
• This function runs automatically for 10 minutes every hour without pressing the Self Care button.
• When UV clean function is activated the LED on the dispenser control panel lights up.
• UVnano is a compound word derived from the words UV and its unit, nanometer.

⑤ Wi-Fi

This button allows the appliance to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the LG ThinQ application.

⑥ Express Cool

This function can quickly cool a large amount of foods such as vegetable, fruit and so on.

• This function is enabled and disabled in turn each time you press the button.
  • This function automatically terminates after a specific period has passed.

⑦ Express Freeze

This function can quickly freeze a large amount of ice or frozen foods.

• Press the Express Freeze button to activate the function for 20 hours. The function automatically shuts off after 20 hours.
• This function is enabled and disabled in turn each time you press the button.
• This function automatically terminates after a specific period has passed.

⑧ Ice On/Off

Press and hold the Ice On/Off button for three seconds to turn the automatic icemaker On/Off.

⑨ Lock

The lock function disables every other button on the display.

• To lock the control panel buttons, press and hold the Lock button for 3 seconds until indicator light turns on and the function is activated.
• To disable the function, press and hold the Lock button for 3 seconds until the indicator light turns off and the function is deactivated.

⑩ Water Filter\*1

Replace the water filter when the indicator light turns on.

⑪ Craft Ice ^*1

Press the Craft Ice button to set to 6 ICE, 3 ICE or OFF.

NOTE

• For more ice, select the 6 ICE mode. For clearer ice, select the 3 ICE mode.
  • To change the Craft Ice mode:

1) Press the Craft Ice button and the current mode appears.
2) Press the Craft Ice button repeatedly to select a desired Craft Ice mode.
3) After 5 seconds of idle time, the last mode set will be saved, and the display will return to normal.

⑫ Water & Ice Type ^*1

Select the desired dispenser mode from the buttons on the dispenser control panel. Press the dispenser switch with a glass or other container to dispense cubed ice, water or crushed ice.

NOTE

• The displayed temperature is the target temperature, and not the actual temperature inside the appliance.
• The actual temperature inside the appliance depends on the following factors: room temperature, the amount of food and how often the doors are opened, where the appliance is. Set the temperatures by considering these factors.
• If there is any finger or skin contacts to the control panel while cleaning it, the button function may operate.
• This appliance incorporates an earth connection for functional purposes only.

Ice and Water Dispenser

Before Using the Ice and Water Dispenser

CAUTION

• Keep children away from the dispenser to prevent children playing with or damaging the controls.
• Throw away the first few batches of ice (about 20 cubes and 7 cups of water). This is also necessary if the appliance has not been used for a long time.
• Clean the water dispensing system if they have not been used for 48 hours. Flush the water system connected to a water supply if water has not been drawn for 5 days.
  • To clean the water dispensing system, flush the water through the dispenser about 5 minutes and throw away the first few batches of ice.
• Do not use a thin crystal cup or chinaware when dispensing water or ice.

NOTE

• If you open the freezer door while water is being dispensed, the water dispensing will stop.
• If you open the fridge door while water, cubed ice or crushed ice is being dispensed, dispensing will be paused. When you close the door, the selected item will continue to be dispensed.
• If the cup rim is small, water may splash out of the glass or miss it completely.
• Use a cup with a rim of over 68 mm in diameter when dispensing water, cubed ice or crushed ice.
• When the ice maker produces smaller ice cubes, or the cubes become lumped together, the amount of water supplied to the ice maker may be low due to insufficient water in the water tank. If ice is not used frequently or the freezer set temperature is too warm, it may also lump together.
• It is normal for milky / cloudy water to be dispensed after replacing the water filter. This air in the water will eventually clear and is safe to drink during this transition.

Using the Ice and Water Dispenser

1

Press the dispenser selection button ①, and then the LED above the icon that you want illuminates.

Diagram showing a water dispenser with control panel and water level indicators, including a numbered step labeled 1.

2

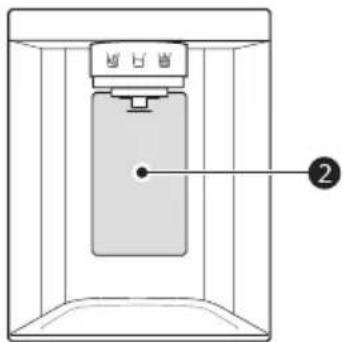

Press the dispenser paddle ② with a glass or other container to dispense cubed ice, water or crushed ice.

2

Cleaning the Dispenser

Cleaning the Ice and Water Outlet

Wipe the water outlet ① or ice outlet ② frequently with a clean cloth as it may get dirty easily.

Technical diagram of a device with labeled components and an inset view showing internal structure

NOTE

- Lint from a cloth may adhere to the outlets.

Cleaning the Dispenser Tray

Wipe the entire area with a damp cloth. The dispenser tray may become wet easily due to spilled ice or water.

Simple line drawing of a 3D printer with a paper airplane inside, no text or symbols present

Filling the Water Tank with Water

This feature is only available on some models. The water tank holds the water to be dispensed or used by the automatic icemaker to make ice.

1 Remove the water dispenser tank by pulling it out while holding the handle.

Diagram of a hand pressing down on a mechanical component with a directional arrow (no text or symbols)

2 Open the cover or cap of the water dispenser tank.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

3 Fill with bottle filtered or clean filtered water up to the reference line indicated inside the water dispenser tank. (Total capacity: 4 ℓ)

Simple line drawing of a tool injecting into a container with an open lid (no text or symbols)

4 After filling with water, close the cover or cap of the water dispenser tank.

Diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

5 Refit the water dispenser tank on the fridge shelf.

Simple line drawing of a mechanical assembly with a hand pressing a component (no text or symbols)

WARNING

• Fill with potable water only into icemaker or dispenser water tank.
• Do not fill the water tank with drinks other than water or fill with hot water.

CAUTION

• Do not apply excessive force or impact when removing or assembling the water dispenser tank. Doing so can cause appliance damage or injury.
  • Children should not be allowed near the dispenser tank.

NOTE

• Before using the water dispenser tank after installing the appliance, it should be washed before filling it with water.
• Check if the water dispenser tank has been placed on the appliance correctly. If it is not assembled correctly, water may leak from the tank into the appliance.
• If there is an insufficient amount of water in the water dispenser tank, ice cube size and quantity may be affected and may result in no ice being made.
• If there is no water in the water dispenser tank, the cold water and ice dispensing function of the dispenser cannot be used. Check if there is water in the water dispenser tank and then fill it with water if there is not.
• Wait at least 15 seconds before removing the water tank after having dispensed water or ice from the dispenser.
• Sound from the water tank will be normal when supplying water to the dispenser and the Automatic Ice Maker. It is not a sign of malfunction.

Automatic Icemaker

This feature is only available on some models. This feature may vary depending on model purchased.

Before Using the In-Door Icemaker

• The icemaker produces ice normally when approximately 48 hours have passed after the appliance is initially installed.
• If the ice bin is completely filled with ice, ice production will stop.
  • Sound of ice dropping into the ice bin is normal.
• If ice cubes are stored in the ice bin for a long period of time, they may clump together and may not be separated easily. In such a case, empty the ice bin and allow fresh ice to be made.

CAUTION

• It is normal for milky or cloudy water to be dispensed after replacing the water filter. This air in the water will clear eventually and is safe to drink.
• The first ice and water dispensed may include particles or odour from the water supply line or the water tank.
• If discolored ice is dispensed, check the water tank and the water supply for a possible source. If the problem continues, contact the LG Electronics customer information centre. Do not use the ice or water until the problem is corrected.
• Do not touch the ice outlet or the automatic icemaker with your hand or a tool.
• Dispense ice into a glass before filling it with water or other beverages. Splashing will occur if ice is dispensed into a glass that already contains liquid.
• Never use a glass that is exceptionally narrow or deep. Ice may jam in the ice passage, affecting the performance of the appliance.
• Keep the glass at a proper distance from the ice outlet. A glass held too close to the outlet may prevent ice from dispensing.
• Dispose of the ice inside the ice bin if you go on vacation or if an extended power outage occurs. Water from melting ice may drop from the dispenser onto the floor.

In-Door Icemaker

The automatic icemaker can automatically make 70 - 182 cubes within a 24-hour period if conditions are favourable. This amount may vary according to the environment (ambient temperature around the appliance, frequency of the door being opened, amount of food stored in the appliance, etc.).

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols present.

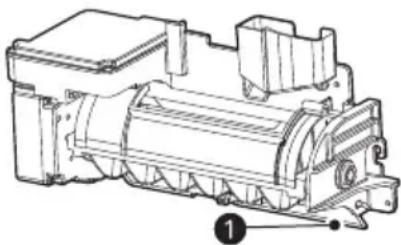

① Auto Shutoff (feeler arm)

Before Using the Freezer Icemaker

NOTE

• The icemaker begins producing ice approximately 48 hours after the appliance is initially installed.
• Throw away the first few batches of ice after installation.
• The sound of ice dropping into the ice bin is normal.
• If the ice bin is completely filled with ice, ice production will stop.
• The amount and shape of ice may vary according to the environment (ambient temperature around the appliance, frequency of the door being opened, amount of food stored in the appliance, water pressure, etc.).
• In the event of a power outage, throw away the ice stored in the ice bin.

Freezer Icemaker (Craft Ice)

This feature is only available on some models.

Technical line drawing of a mechanical assembly with three spherical components, no text or symbols present

① Feeler Arm

CAUTION

- Do not insert round ice into the in-door ice bin, as it can damage the ice and water dispenser.

NOTE

• The icemaker begins producing ice approximately 48 hours after the appliance is initially installed. The first batches of ice may not be round and clear.
• Following installation or water filter replacement, the first few batches of ice may be semicircular or contain air bubbles.
• If the water pressure is less than 20 psi (138 kPa) or a reverse osmosis system is used, the shape of the ice may vary.
• The ice may look cloudy depending on the water quality in the installation location and the operating conditions.
• Throw away any shards of ice you may find in the ice bin, as they may stick to the ice stored in the ice bin.
• After a short term power outage, it will take longer to make the first batch of ice, and the ice may not be round. If the power will be out for a longer period, throw away the ice stored in the ice bin.
• The Craft Ice icemaker produces 1 batch of round ice (3 pieces) at a time.
• In 3 ICE mode, the Craft Ice icemaker produces 1 batch of round ice (3 pieces) about every 24 hours. In 6 ICE mode, the Craft Ice icemaker produces 2 batches of round ice (6 pieces total) in the same period.
• For more ice, select the 6 ICE mode. For clearer ice, select the 3 ICE mode.
• The time needed to make ice may vary according to operating conditions.
• The ice bin stores 20 - 30 pieces of round ice.

Removing/Refitting the Ice Storage Bin

The ice dispensing chute may become blocked with frost if only crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula. Dispensing cubed ice periodically can also help prevent frost buildup.

1 Turn off the automatic icemaker. Press and hold the Ice On/Off button on the control panel for 3 seconds.

2 Hold and remove the cover of the automatic icemaker by lifting it upward.

Illustration of hands inserting a component into a machine (no text or symbols)

3 Hold the ice bin with both hands and pull it out while lifting it upward. The additional ice bin may not be provided depending on model purchased.

Diagram showing a refrigerator interior with arrows indicating movement, alongside a 3D model of the refrigerator (no text or symbols present)

4 Refit the in-door ice bin in the reverse sequence of their removal.

CAUTION

• Do not touch the automatic icemaker's mechanical parts with your hand or a tool. Otherwise, appliance damage or injury may occur.
• Do not disassemble, repair or alter the automatic icemaker. These tasks should only be done by a service technician.
• Caution should be taken, as the automatic icemaker operates continuously after the freezer door is opened when the automatic icemaker switch is set to the on position.
• Keep children away from the dispenser.
• When refitting the ice bin, ensure that it is placed correctly. If it is tilted or unlevel, it may not continue to make ice due to sensor disruption.

Turning the Icemaker On/Off

To turn the automatic icemaker On/Off, press and hold the Ice On/Off button on the control panel for three seconds.

Normal Sounds You May Hear

• Keeping the power turned on to the icemaker before the water line is connected can damage the icemaker.
• The icemaker water valve buzzes as the icemaker fills with water. If the Ice On/Off button is set to On, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, press the Ice On/Off button to Off position.
• You will hear the sound of ice dropping into the bin and water running in the pipes as the icemaker refills.

Preparing for Vacation

Set the Ice On/Off button to Off and shut off the water supply to the appliance.

NOTE

- The ice bin should be emptied any time the Ice On/Off button is turned Off.

If the ambient temperature will drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

InstaView

This feature is only available on some models.

Using the InstaView Door in Door

The InstaView Door in Door lets you see if you're running low on frequently used items like

beverages and snacks, without opening the fridge door.

Simple line drawing of a hand holding a small object inside a rectangular frame (no text or symbols)

1 Knock twice on the glass to turn the LED light inside the Door in Door on or off.

2 The LED light turns off automatically after ten seconds.

CAUTION

- Do not open the door of the appliance with the door in door open, or do not open the door in door while the door of the appliance is open. The door in door may be struck by the edge of the appliance and damaged.

NOTE

• The InstaView Door in Door function is disabled for 2 seconds after closing the left or right freezer door, and momentarily disabled whilst the ice dispenser is in use.
• Knock near the center of the glass. Knocking near the edges of the glass may not activate the InstaView Door in Door function.
• Knock hard enough so that the knocking sound is audible.
• The InstaView Door in Door function may activate if a loud noise occurs near the refrigerator.
• Clean the glass door with a dry cloth. To remove stubborn stains, slightly moisten a clean cloth with lukewarm water or a glass cleaner. Do not spray glass cleaner directly at the glass door.

Door in Door

This feature is only available on some models.

Using the Door in Door

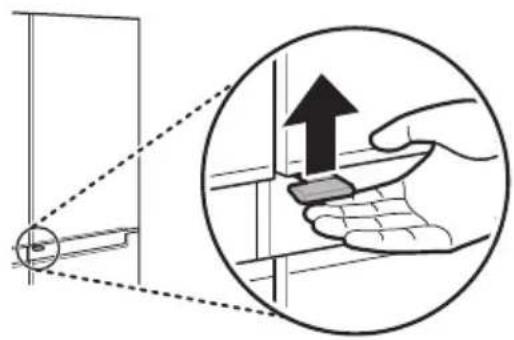

Pull the lever at the bottom of the door upwards until the door in door opens.

There is plenty of storage space inside the door in door and its surrounding baskets, allowing you to store food in an organized manner.

Diagram illustrating a hand holding a small object with an upward arrow, alongside a magnified view of the object's tip.

CAUTION

- Do not open the door of the appliance with the door in door open, or do not open the door in door while the door of the appliance is open. The door in door may be struck by the edge of the appliance and damaged.

Drawer

CAUTION

• Always empty the drawers before removing them, and use both hands when removing and refitting them.
• Make sure that the fridge doors are fully open before removing and refitting the drawers.

Using the Vegetable Drawer

This feature is only available on some models. The humidity in the vegetable crisper drawer can be controlled by sliding the lever in either direction.

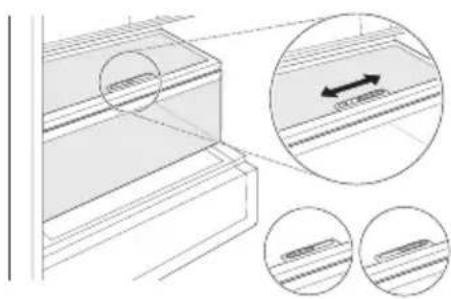

- If moved to the left side, the air guide will be open and allow air to circulate through the drawer for reduced humidity.

- If moved to the right side, the air guide will be closed and will maintain any humidity that is currently in the crisper drawer.

Technical diagram showing a structural component with cross-sectional views and dimension arrows (no text or symbols)

Removing/Refitting Drawers

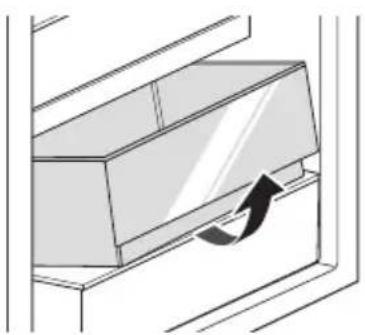

1 Remove the contents of the drawer. Hold the handle of the vegetable drawers and gently pull them out.
2 Lift the vegetable drawer up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

3 Refit the drawer in the reverse order of the removal process.

CAUTION

• Always empty the drawers before removing them, and use both hands when removing and refitting them.
• Make sure that the fridge doors are fully open before removing and assembling the drawers.

Shelf

CAUTION

• Glass shelves are heavy. Use special care when removing them.
- Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.

Removing/Refitting the Shelf

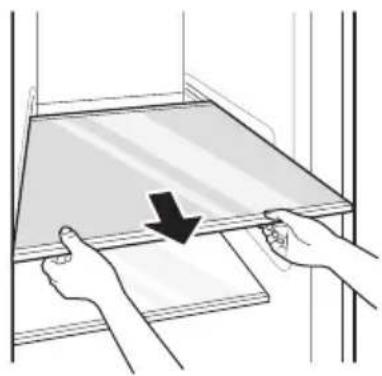

1 Tilt up the front of the shelf and then lift the shelf straight up.
2 Pull the shelf out.

Illustration of two hands holding a rectangular object with a downward arrow, no text or symbols present

3 Mount them in the reverse order of the removal process.

CAUTION

• Glass shelves are heavy. Use special care when removing them.
- Do not clean glass shelves with warm water while they are cold. Shelves may break if exposed to sudden temperature changes or impact.
• Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or food spilling.

Door Basket

Removing/Refitting the Door Basket

1 Hold both edges of the basket and remove it by lifting it upward.

Illustration of hands holding a rectangular object with two upward arrows indicating motion or force (no text or symbols)

2 Refit the door baskets in the reverse order of the removal process.

SMART FUNCTIONS

LG ThinQ Application

This feature is only available on models with Wi-Fi. The LG ThinQ application allows you to communicate with the appliance using a smartphone.

LG ThinQ Application Features

Communicate with the appliance from a smartphone using the convenient smart features.

Smart Diagnosis

- If you experience a problem while using the appliance, this smart diagnosis feature will help you diagnose the problem.

Settings

- Allows you to set various options on the appliance and in the application.

NOTE

• If you change your wireless router, internet service provider, or password, delete the registered appliance from the LG ThinQ application and register it again.
• The application is subject to change for appliance improvement purposes without notice to users.
  • Functions may vary by model.

Before Using LG ThinQ Application

1 Check the distance between the appliance and the wireless router (Wi-Fi network).

- If the distance between the appliance and the wireless router is too far, the signal strength becomes weak. It may take a long time to register or installation may fail.

2 Turn off the Mobile data or Cellular Data on your smartphone.

Diagram showing hand press icon pointing to two directional arrows with up/down bidirectional arrows

3 Connect your smartphone to the wireless router.

Diagram showing a hand interacting with a Wi-Fi icon and another Wi-Fi icon, illustrating wireless signal transformation.

NOTE

• To verify the Wi-Fi connection, check that the Wi-Fi indicator on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency, contact your Internet service provider or refer to your wireless router manual.
• LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• The network connection may not work properly depending on the Internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.

• The appliance cannot be registered due to problems with the wireless signal transmission. Unplug the appliance and wait about a minute before trying again.

• If the firewall on your wireless router is enabled, disable the firewall or add an exception to it.

• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP, you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

Connecting to Wi-Fi

The Wi-Fi button, when used with the LG ThinQ application, allows the appliance to connect to a home Wi-Fi network. The Wi-Fi indicator shows the status of the appliance's network connection. The Wi-Fi indicator illuminates when the appliance is connected to the Wi-Fi network.

- Initial Appliance Registration

Run the LG ThinQ application and follow the instructions in the application to register the appliance.

- Re-registering the Appliance or Registering Another User

Press and hold the Wi-Fi button for 3 seconds to temporarily turn it off. Run the LG ThinQ application and follow the instructions in the application to register the appliance.

NOTE

- To disable the Wi-Fi function, press and hold the Wi-Fi button for 3 seconds. The Wi-Fi indicator will be turned off.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses that have the obligations to disclose source code, that is contained in this product, and to access all referred license terms, copyright notices and other relevant documents please visit https://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Smart Diagnosis

This feature is only available on models with the 🎨 or 🎨 logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

• For reasons not attributable to LGE's negligence, the service may not operate due to external factors such as, but not limited to, Wi-Fi unavailability, Wi-Fi disconnection, local app store policy, or app unavailability.
• The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using LG ThinQ to Diagnose Issues

If you experience a problem with your Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press the Lockbutton to activate the lock function.

- If the display has been locked for over 5 minutes, you must deactivate the lock and then reactivate it.

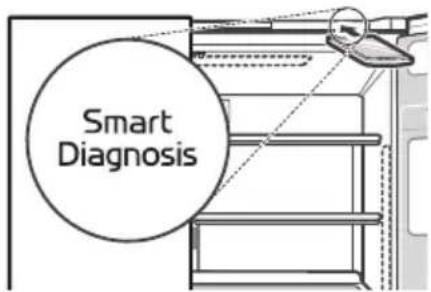

2 Open the fridge door and then hold the phone on the upper right speaker hole.

Smart Diagnosis

3 Press and hold the Freezer button for three seconds or longer while holding your phone to the speaker until the data transfer is complete.

4 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the phone while the tones are being transmitted.

MAINTENANCE

Cleaning

General Cleaning Tips

• Performing manual defrosting, maintenance or cleaning of the appliance while food is stored in the freezer can raise the temperature of the food and reduce its storage life.
• Regularly clean any surfaces that can come in contact with food.
• When cleaning the inside or outside of the appliance, do not wipe it with a rough brush, toothpaste, or flammable materials. Do not use cleaning agents containing flammable substances. This may cause discolouration or damage to the appliance.

- Flammable substances: alcohol (ethanol, methanol, isopropyl alcohol, isobutyl alcohol, etc.), thinner, bleach, benzene, flammable liquid, abrasive, etc.

- After cleaning, check if the power cable is damaged.

Cleaning the Exterior

- When cleaning the outside air vents of the appliance by means of vacuuming, then the power cord should be unplugged from the outlet to avoid any static discharge that can damage the electronics or cause an electric shock. Regular cleaning of the rear and side ventilation covers is recommended to maintain reliable and economical operation of the unit.

- Keep the air vents on the exterior of the appliance clean. Blocked air vents can cause fire or appliance damage.

- For the appliance exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth. Do not use contaminated cloths when cleaning the stainless steel doors. Always use a dedicated cloth and wipe in the same direction as the grain. This helps reduce surface staining and tarnishing.

Cleaning the Interior

• When removing a shelf or drawer from inside the appliance, remove all stored foods from the shelf or drawer to prevent injury or damage to the appliance. Otherwise, injury may occur due to the weight of stored foods.
• Detach the shelves and drawers and clean them with water, and then dry them sufficiently, before replacing them.
• Regularly wipe the door gaskets with a wet soft towel.
• Door basket spills and stains should be cleaned as they can compromise storage ability of the basket and could even be damaged.
• Never clean the shelves or containers in the dishwasher. The parts may become deformed due to the heat.
• The automatic defrosting system in the appliance ensures that the compartment remains free of ice buildup under normal operating conditions. Users do not need to defrost it manually.

Cleaning the Condenser Cover

Use a vacuum cleaner with a brush to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

We recommend that this be done every 12 months to maintain operating efficiency.

Hand inserting a USB into a computer drive (no text or symbols visible)

Water Filter

Before Replacing the Water Filter

WARNING

• Do not allow children to have access to small parts during the installation of this product.
• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

CAUTION

• Do not install if water pressure exceeds 827 kPa. If your water pressure exceeds 827 kPa, you must install a pressure limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer conditions exist, you must install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum operating water temperature of this filter system is 37.8 °C.
• Protect filter from freezing. Drain filter when temperatures drop below 4.4 °C.
• The disposable filter cartridge MUST be replaced every 6 months, at the rated capacity or if a noticeable reduction in flow rate occurs.
• Where a backflow prevention device is installed on a water system, a device for controlling pressure due to thermal expansion must be installed.
• Ensure all tubing and fittings are secure and free of leaks.

NOTE

- While the testing was performed under standard laboratory conditions, actual performance may vary.

- It is essential that the manufacturer's recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised.

Replacing the Water Filter (Plumbed Model)

*1 This feature is only available on some models.

The filter must be changed every 6 months or when the indicator lights turns on or the water dispenser output decreases.

• To purchase a replacement water filter:
- Use replacement cartridge: ADQ736939**
- Visit your local dealer or distributor or contact the LG Electronics Customer Information Centre. For further assistance, visit our website at lg.com

Thread Nut Type ^*1

1 Loose the screw cap.

Pure diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

2 Pull the pipe out from the water filter cap until the colored line ① is visible.

Diagram showing a mechanical assembly with labeled component 1 and directional arrow indicating motion

3 Push the pipe into the water fitler cap, making sure the end is fully sealed.

Diagram showing a mechanical assembly with labeled component 1 and directional arrow

4 Tighten the screw cap until the colored line in the water filter is no longer visible.

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

5 Press and hold the Water Filter button for three seconds. That resets the Replacement Filter icon. The new water filter has been activated.
6 Dispense water for approximately 5 minutes to remove trapped air and contaminants from the system.

Push fit connector type ^*1

1 Remove the screw cap.

Mechanical diagram showing a rotating shaft and housing with an arrow indicating rotation (no text or symbols)

2 Pull the pipe out from the water fitler.

Diagram of a mechanical component with a shaft and housing, showing motion direction (no text or symbols)

3 Push the pipe into the water fitler, making sure the end is fully sealed.

Diagram of a mechanical component with a curved arrow indicating direction (no text or symbols)

4 Insert the screw cap until the colored line in the water filter is no longer visible.

Mechanical diagram showing a rotating component with a shaft and housing (no text or symbols)

5 Press and hold the Water Filter button for three seconds. That resets the Replacement Filter icon. The new water filter has been activated.
6 Dispense water for approximately 5 minutes to remove trapped air and contaminants from the system.

CAUTION

- Failure to replace filters when required or using non LG authorised water filters can cause the filter cartridge to leak and result in property damage.

Application Guidelines/Water Supply Parameters

• Service Flow: 1.9 lpm
• Water Supply: Community or Private Well - Potable Water
• Water Pressure: 138 - 827 kPa
• Water Temperature: 0.6 - 37.8 °C
• Capacity: 1892 litres

Deodorizer

Reusing the Deodorizer

You can re-use the deodorizer by removing odors from the deodorizer.

1 Pull out the upper fridge drawer.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

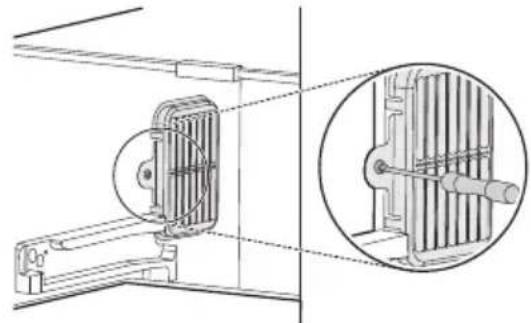

2 Unscrew the screw at the deodorizer.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

3 Press on the hooks at the deodorizer and then take it out.

Diagram of a car radiator with heat exchangers and airflow arrows (no text or labels)

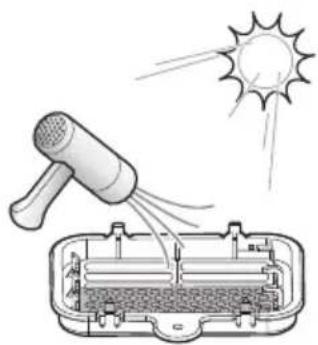

4 Dry the deodorizer by using a hair dryer or by leaving it in the sunlight.

- A natural palm wood powder is used for the deodorizer to increase deodorizing performance. Even if it falls off, it is not harmful. Wipe it off with a towel or cloth.

Illustration of a sun-dyeing machine emitting exhaust from a battery pack (no text or symbols)

CAUTION

- Do not wash the deodorizer with water.

TROUBLESHOOTING

Before Calling for Service

Ice & Water

Symptoms Possible Cause & Solution
The automatic icemaker does not produce ice or produces a small amount of ice.	Did you install the appliance recently?The ice maker produces ice normally when approximately 48 hours have passed after the appliance is installed.If the fridge compartment temperature is too cold, the water filter can freeze and block the water flow to the ice maker.
	Did you connect the water supply pipe to the appliance and open the supply valve?Connect the water supply pipe to the appliance and open the supply valve completely.
	Is the water supply hose bent?If the water supply hose is bent, the water flow could be compromised.
	Have you dispensed a large amount of ice recently?It takes approximately 24 hours to produce more ice in the automatic icemaker. Please wait.
	Did you set the ice maker switch or the automatic icemaker button on the control panel to ON?Press I on the automatic icemaker switch or set ON for the automatic icemaker button on the control panel. (For more details on how to use, visit LG Electronics website or use your smart device.)
	Is the temperature of the freezer compartment set too high?If the set temperature is too warm, ice will be produced slowly or not at all. Set the Freezer temperature to -18 °C for normal operation of the automatic icemaker.
	Have you been opening the appliance door frequently?If you open the appliance door frequently, cold air will escape, lowering the speed of ice production. Do not open and close the appliance door frequently.
	Is the appliance door completely closed?If the appliance door is not completely closed, the temperature of the freezer compartment will increase, slowing down the ice production speed. Close the appliance door completely.
Ice is not dispensed. Unable to hear the sound of ice coming out?In the control panel, select the modes for cubed ice and crushed ice alternately to dispense the ice.
Water does not come out.	The supply valve may be turned off. (For Plumbed models Only)Open the water supply valve.Check if the fridge compartment temperature is too cold, as the water filter can freeze and block the water flow to the dispenser.
	The water dispenser tank may be empty. (Non plumbed models only)Fill the water dispenser tank.
	Is the water supply valve closed? (For Plumbed models Only)Open the water supply valve.
	Are you using unfiltered water?Unfiltered water can contain a large amount of various heavy metals or foreign substances, so the filter may be clogged in the early stage regardless of the life of the filter.
Water tastes strange.	Is the taste of water different when comparing it with the taste of water from the previous water purifier?Has the purified water or cold water not been used for an extended period of time?
	Has it been a long time since you installed and replaced the filter?If an expired filter is used, the purification performance may decline. It is recommended to replace the filter according to the filter replacement period.
	Have you flushed out the filter properly in the initial stage after installing it?When you install or replace the filter for the first time, you need to remove air and activated carbon residue from inside the filter. Use the appliance after dispensing and discharging approximately 5 litres of purified water from the dispenser by pressing the water dispensing lever. (Activated carbon is harmless to humans.)
	Has the purified water or cold water not been used for an extended period of time?The taste of old water may change due to bacterial growth. Use the product after dispensing and discharging approximately 5 litres (approximately three minutes) from the water dispenser.

Cooling

Symptoms Possible Cause & Solution
There is no refrigeration or freezing.	Is there a power interruption?Check the power of other appliances.
	Check the power of other appliances.Plug the power plug in the outlet properly.
	A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit breaker has tripped.Check the main electrical box and replace the fuse or reset the circuit breaker. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.Reset the circuit breaker on the GFCI. If the problem persists, contact an electrician.
There is poor refrigeration or freezing.	Is the fridge or freezer temperature set to its warmest setting?Set the fridge or freezer temperature to a colder setting.
	Is the appliance in direct sunlight, or is it near a heat generating object such as cooking oven or heater?Check the installation area and reinstall it away from heat generating objects.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Did you put in too much food?Maintain an appropriate space between food.
	Are the appliance doors completely closed?Completely close the door and make sure that stored food is not obstructing in the door.
	Is there enough space around the appliance?Adjust the installation position to make enough space around the appliance.
The appliance contains a bad smell.	Is the fridge or freezer temperature set to 'Warm'?Set the fridge or freezer temperature to a colder setting.
	Did you put in food with a strong smell?Store foods with strong smells in sealed containers.
	Vegetables or fruit may have spoiled in the drawer municipal vegetables and clean the vegetable drawer. Do not store vegetables too long in the vegetable drawer.

Condensation & Frost

Symptoms Possible Cause & Solution
There is condensation inside the appliance or on the bottom of the vegetable drawer cover.	Did you store hot food without cooling it first?Cool the hot food first before putting it inside the fridge or freezer.
	Did you leave the appliance door open?Although the condensation will disappear soon after you close the appliance door, you can wipe it with a dry cloth.
	Do you open and close the appliance door too frequently?Condensation can form due to the temperature difference from the outside. Wipe out the dampness with a dry cloth.
	Did you put warm or moist food inside without sealing it in a container?Store food in a covered or sealed container.
Frost has formed in the freezer compartment.	Doors may not be closed properly.Check if the food item inside the appliance is blocking the door and make sure that the door is tightly closed.
	Did you store hot food without cooling it first?Cool the hot food first before putting it in the fridge or freezer compartment.
	Is the air entry or exit of the freezer compartment blocked?Make sure that air entry or exit is not blocked so that the air can circulate inside.
	Is the freezer compartment overfilled?Maintain an appropriate space between items.
Frost or condensation has formed inside or outside the appliance.	Did you open and close the appliance door frequently or is the appliance door improperly closed?Frosts or condensation can form if the outside air penetrates inside the appliance.
	Is the installation environment humid?Condensation can appear on the exterior of the appliance if the installation area is too humid or on a humid day such as a rainy day. Wipe off any moisture with a dry cloth.
The side or front of the appliance is warm.	There are anti condensation pipes fitted to these areas of the appliance to reduce condensation forming from around the door area.The heat releasing pipe to prevent condensation is installed on the front and side of the appliance. You may feel it particularly hot right after the appliance is installed or during the summer. You can be assured that this is not a problem and is quite normal.
There is water inside or outside of the appliance.	Is there water leakage around the appliance?Check if the water has leaked from a sink or another place.
	Is there water on the bottom of the appliance?Check if the water is from the thawed frozen food or a broken or dropped container.

Parts & Features

Symptoms Possible Cause & Solution
The appliance door is not closed tightly.	Is the appliance leaning forward?• Adjust the front feet to raise the front side slightly.
	Were the shelves properly assembled?• Refit the shelves if needed.
	Did you close the door with excessive force?• If you apply too much force or speed when closing the door, it may remain briefly open before closing. Make sure that you do not slam the door closed. Close the door gently.
It is difficult to open the appliance door.	Did you open the door right after you closed it?• If you try to open the appliance door within one minute after you closed it, you may have difficulties because of the pressure inside the appliance. Try to open the appliance door again in a few minutes so that the internal pressure stabilizes.
The inside lamp in the appliance does not turn on.	Lamp failure• Close the door and re-open. If the lamp does not turn on, please contact the LG Electronics customer information centre. Do not attempt removal of the lamp.

Noises

Symptoms Possible Cause & Solution
The appliance is noisy and generates abnormal sounds.	Is the appliance installed on a weak floor or improperly levelled?• Install the appliance on a solid and flat area.
	Does the rear of the appliance touch the wall?• Adjust the installation position to allow enough clearance around the appliance.
	Are objects scattered behind the appliance?• Remove the scattered objects from behind the appliance.
	Is there an object on top of the appliance?• Remove the object on top of the appliance.
Clicking noises The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or appliance control on some models) will also click when cycling on and off.• Normal Operation
Rattling noises Rattling noises may come from the flow of appliance, the water line on the back of the unit (for plumbed models only), or items stored on top of or around the appliance.• Normal Operation
Whooshing noises Evaporator fan motor is circulating air through the fridge and freezer compartments.• Normal Operation
Gurgling noises Appliance flowing through the cooling system.• Normal Operation
Popping noises Contraction and expansion of the inside walls due to changes in temperature.• Normal Operation
Symptoms Possible	Cause & Solution
Vibrating If the side or back	ack of the appliance is touching a cabinet or wall, some of the normal vibrations may make an audible sound.To eliminate the noise, make sure that the sides and back do not make any contact with any wall or cabinet.

Wi-Fi

Symptoms Possible Cause & Solution
Your home appliance and smartphone are not connected to the Wi-Fi network.	The password for the Wi-Fi that you are trying to connect to is incorrect.· Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ.
	Mobile data for your smartphone is turned on.· Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
	The wireless network name (SSID) is set incorrectly.· The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
	The router frequency is not 2.4 GHz.· Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
	The distance between the appliance and the router is too far.· If the distance between the appliance and the router is too far, the signal may be weak and the connection may not be configured correctly. Move the location of the router so that it is closer to the appliance.

APPENDIX

Information

Product Fiche

Trade Mark LG Electronics
Model GCJ-287TNL / GCX-287TNS
Category 7 (Refrigerator-Freezer)
Energy efficiency class A+
Annual energy consumption "XYZ" [kWh per year], based on standard test results for 24 hours		488
		Actual energy consumption will depend on how the appliance is used and where it is located.
Fresh Food Storage Volume [L] 406
Frozen Food Storage Volume [L]		175
		30
Design temperature of other compartments (>14°C) -
Frost-Free Compartments Fresh Food, Frozen Food
Temperature Rise time [h] 3
Freezing Capacity [kg/24h] 12
Climate class T
		This appliance is intended to be used at ambient temperature between 16 °C and 43 °C.
Airborne acoustical noise emissions [dB(A)] 36
Free standing / Built-in Free standing

Memo

LG

Life's Good
