USER MANUAL GR-C258UGL LG

Please read this guide thoroughly before operating and keep it handy for reference at all times.

TABLE OF CONTENTS

English Version 2

Safety Instructions 3-4

Parts and Features 5

Refrigerator Installation 6–11

Unpacking Your Refrigerator 6

Installation 6

Base Cover 6

Removing and Replacing Your Refrigerator Doors 7-10

Leveling and Door Alignment 11

Using Your Refrigerator 12-21

Ensuring Proper Air Circulation 12

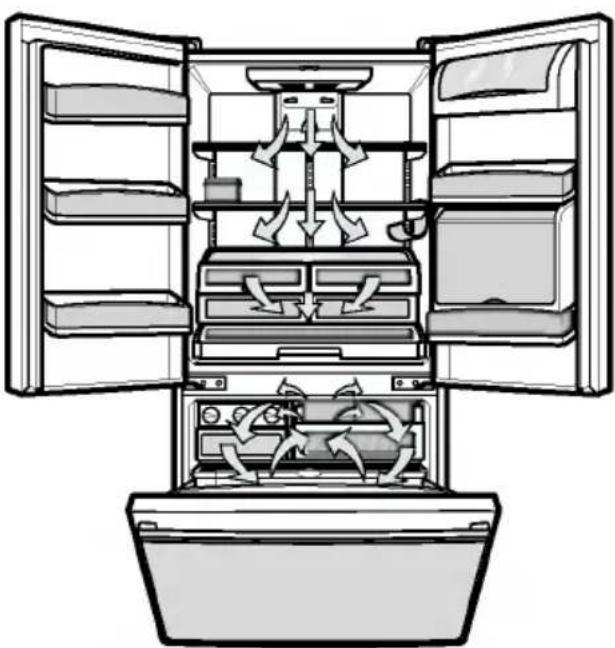

Multi-Flow 12

Setting the Controls 12

Adjusting Control Settings 13

Food Storage Guide 13

Storing Frozen Food 14

▶ Refrigerator section

Refrigerator Shelves 15

Wine Holder (Optional) 15

Optibin Crisper 16

Crisper Humidity Control 16

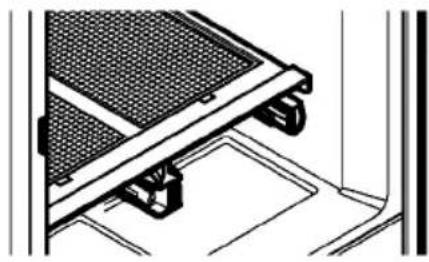

Removing Crisper 16

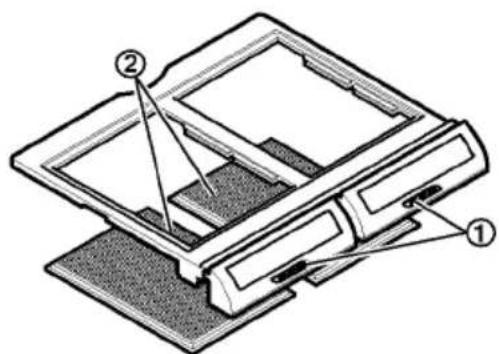

Crisper Cover with Lattice on inner Surface 17

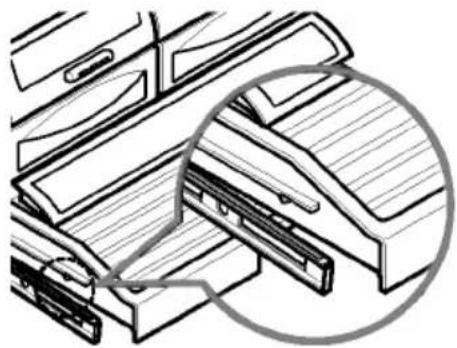

Glide N Serve 18

Design-A-Door 18

Dairy Bin (Optional) 19

Egg Box (Optional) 19

▶ Freezer section

Tilting Door 19

Ice Bin 19

Durabase 20

Durabase Divider 20

Pull out Drawer 20

Refreshment Center 21

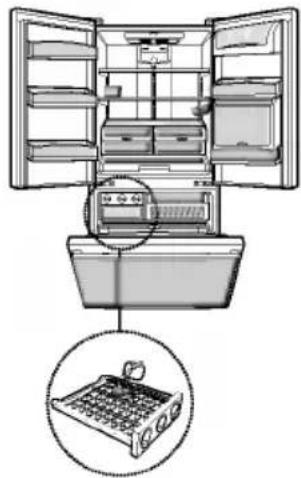

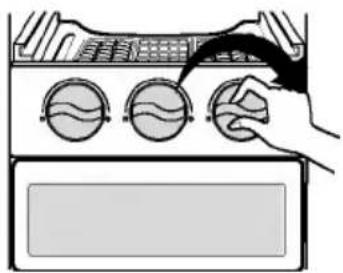

Triple Ice Tray 21

Care and Cleaning 22-23

General Cleaning Tips 22

Outside 22

Inside Walls 22

Door Liner and Gaskets 22

Plastic Parts 22

Condenser Coils 22

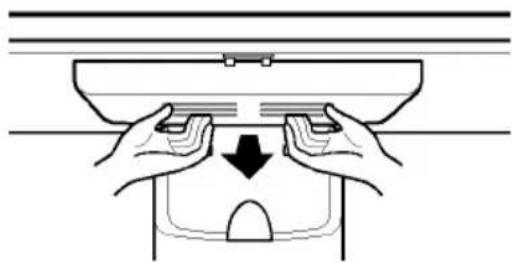

Light Bulb Replacement 22-23

Power Interruptions 23

When you go on vacation 23

When you move 23

Troubleshooting Guide 24-27

IMPORTANT SAFETY INSTRUCTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following:

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.
• Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• DO NOT allow children to climb, stand or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
• Keep fingers out of pinch point areas; clearances between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
• Unplug your refrigerator before cleaning or making any repairs.
  NOTE: We strongly recommend that any servicing be performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live wire filament. (A burned-out light bulb may break when being replaced.)
  NOTE: Setting either or both controls to the OFF position does not remove power to the light circuit.

• This refrigerator must be properly installed in accordance with the Attention Installer Instructions that were taped to the front of the refrigerator.
  • After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:
  ...You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold—below 4°C.
  ...Thawed ground meats, poultry or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, get rid of it. The food may be dangerous to eat.
  Even partial thawing and refreezing reduces the eating quality of foods, particularly fruits, vegetables and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible to save as much of their quality as you can.

- Do not modify or extend the Power Cord length. It will cause electric shock or fire.

Illustration showing a snake climbing a rope with a prohibition symbol and a refrigerator with a hand gesture.

SAVE THESE INSTRUCTIONS

DANGER: RISK OF CHILD ENTRAPMENT

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous...even if they will sit for just a few days. If you are getting rid of your old refrigerator, please follow the instructions at right to help prevent accidents.

Line drawing of a cabinet with multiple drawers (no text or symbols)

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

CFC DISPOSAL

Your old refrigerator may have a cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone.

If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified servicer. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation.

A B C D E F G L M N B O H I J K

Use this page to become more familiar with the parts and features. Page references are included for your convenience.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model.

A Refrigerator Light
B Design-A-Door
© Shelves
Optibin Crisper (Keeps fruits and vegetable fresh and crisper)
E Glide N Serve
F Triple Ice Tray Customcube Icemaker (Optional)
G Ice Bin

H Pull out Drawer
Durabase
J Divider
K Freezer Door Rack (25Cu.ft)
Dairy Bin (Optional)
M Egg Box (Optional)
N Wine Holder (Optional)
Refreshment Center

REFRIGERATOR INSTALLATION

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning-type labels, the model and serial number label, or the TechSheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see the Important Safety Instructions section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage needs.

WARNING

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

INSTALLATION

1. To avoid vibration, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise (→) to raise the unit, counterclockwise (→) to lower it.
2. Install this appliance in an area where the temperature is between 13°C and 43°C. If the temperature around the appliance is too low or high, cooling ability may be adversely affected.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
   ⚠️ CAUTION: Avoid placing the unit near heat sources, direct sunlight or moisture.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube bin, drawers, shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

WARNING

• Be careful when you work with hinge, base grille, stopper etc. You may be injured.
• Do not put hands or foot or metal sticks into air vents, base grille or bottom of refrigerator. You may be injured or receive an electrical shock.

BASE COVER

To remove the base cover

1. Open the Freezer Drawer. (Drawer not shown for clarity.)
2. Once drawer is open there is sufficient clearance to remove screws on top of cover.

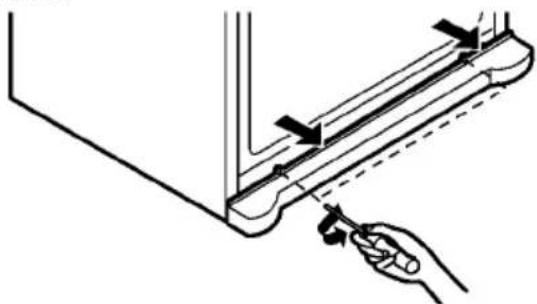

To replace base cover:

- Place cover into position and insert and tighten screws.

Technical line drawing of a mechanical assembly with a hand holding a tool, no text or symbols present

REFRIGERATOR INSTALLATION

REMOVING AND REPLACING REFRIGERATOR DOORS

1. Removing Refrigerator Door

NOTE: Handle appearance may vary.

IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins from doors.

▶ Left Door

• Loosen the cover screw (1).
• Disconnect door switch wire (3).
• Disconnect 3 wire harness (4).
• Remove the ground screw (5).

- Rotate the lever hinge (6) counter clockwise and lift off the top hinge (7).

- Raising it up enough to clear the middle hinge pins.

- Place the door on a non-scratching surface with the inside up.

CAUTION: When removing top hinge, be careful that the door does not fall forward.

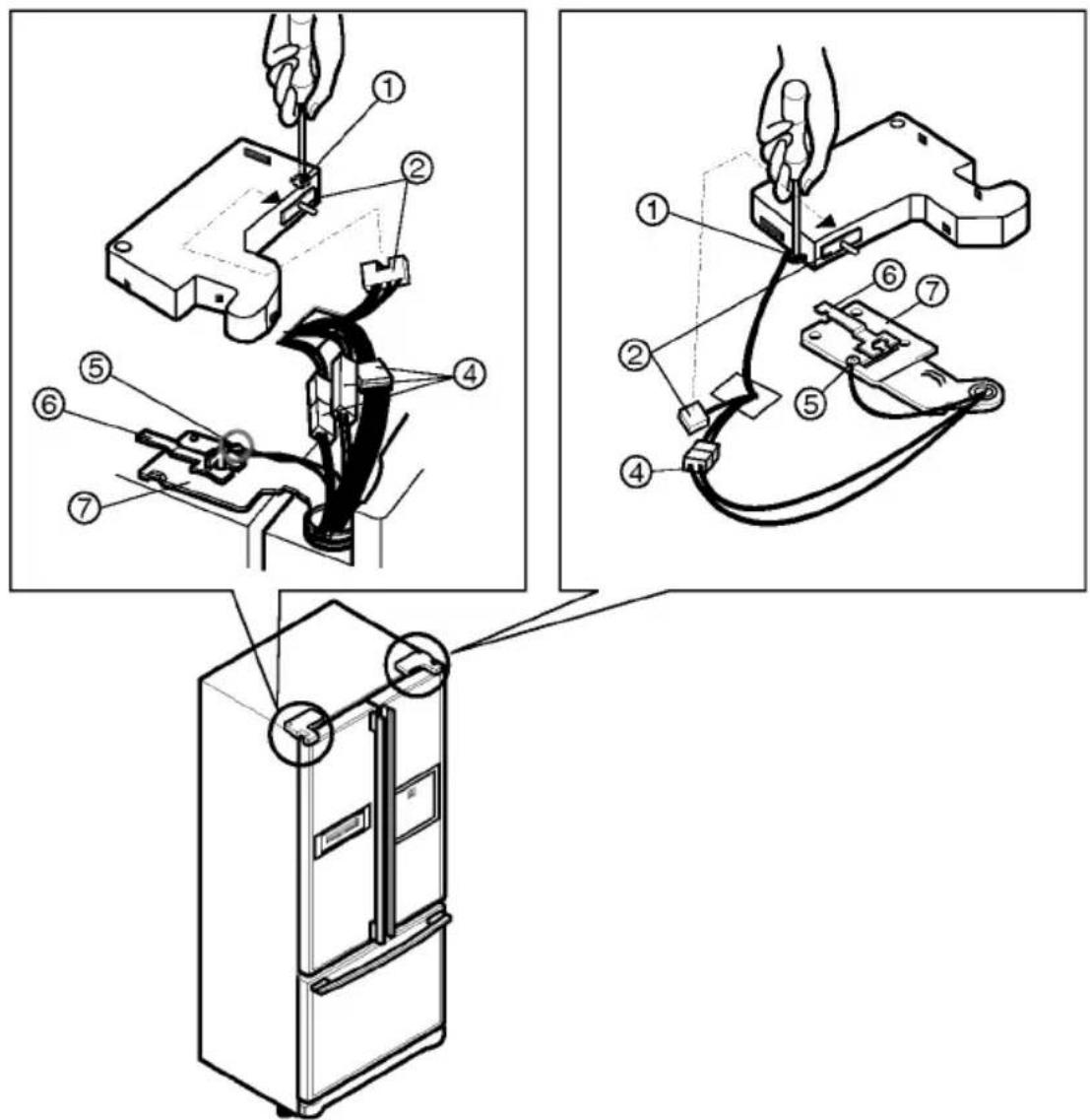

▶ Right Door

• Loosen the cover screw (1).
• Disconnect door switch wire (2).
• Disconnect wire harness (4).
• Remove the ground screw (5).
• Rotate the lever hinge (6) clockwise and lift off the top hinge (7).
• Raising it up enough to clear the middle hinge pins.
• Place the door on a non-scratching surface with the inside up.

Technical diagram showing three-step installation of a refrigerator with labeled parts and wiring connections.

REFRIGERATOR INSTALLATION

2. Replacing Refrigerator Door

▶ Right Door

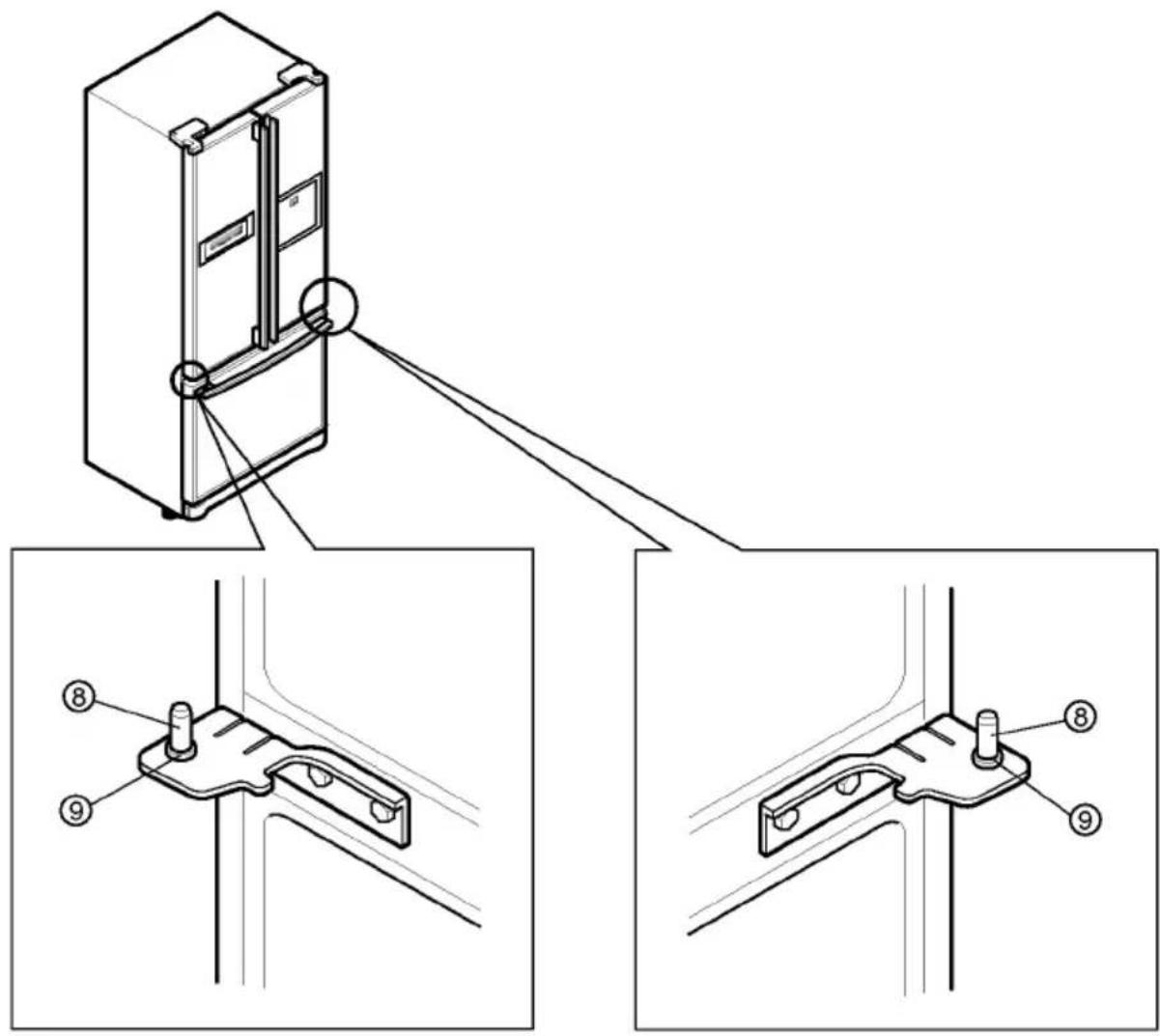

• Lower the door onto the middle hinge pin (8). Make sure the door is aligned with the cabinet.
• Replace the top hinge by rotating the hinge lever (6) counter clockwise to secure hinge.
  Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while securing hinge. Make sure the door is straight and the gap between the doors is even.
  • Install the ground screw (5) and connect the wire harness (4).
• Connect the door switch wire (2).
  • Tighten the cover screw (1).

▶ Left Door

• Lower the door onto the middle hinge pin(8). Make sure the door is aligned with the cabinet.
• Replace the top hinge by rotating the hinge lever (6) clockwise to secure hinge.
  Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while tightening. And make sure the door is straight and the gap between the doors is even.

• Install the ground screw (5) and connect the 3 wire harness (4).

- Connect the door switch wire (2).

• Tighten the cover screw (1).

CAUTION: Be careful of missing the washer[part (9)].

Because it can be easily taken off.

Technical diagram showing mechanical assembly with numbered parts and detail views

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE PULLOUT DRAWER

IMPORTANT: To avoid possible injury or product or property damage, you will need two people to perform the following instructions.

1. Removing Pullout Drawer

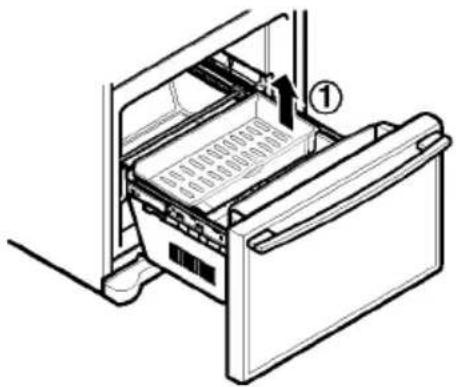

- Pull the drawer open to full extension. Remove the lower basket (1) by lifting basket from rail system. (If you tilt the door, it will be easier.)

Technical diagram of a refrigerator with labeled component and page number

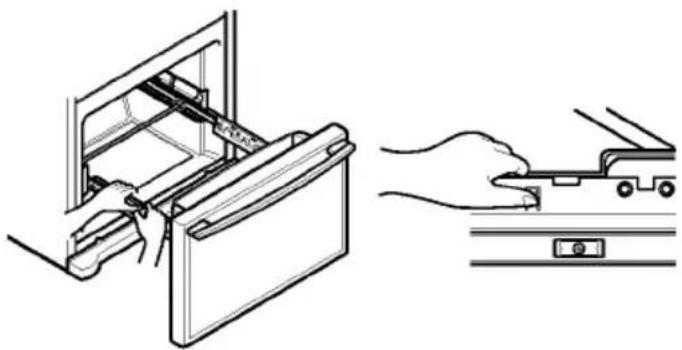

• Press both hangers with your thumbs to lift it up.
• Separate the left and right rail cover

Line drawing showing a hand inserting a component into a refrigerator while another hand holds a small car (no text or symbols present)

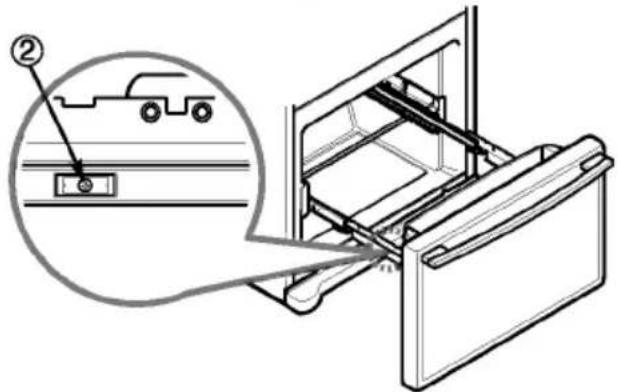

- Remove the screws(2) of the rail on both sides.

Technical diagram showing a door lock mechanism with an inset image of a car and a magnified view of the component.

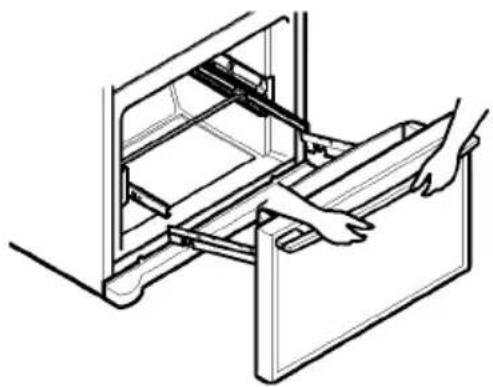

- With both hands, hold both sides of the door and pull it up to separate it from the rails.

Line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Line drawing of a hand inserting a drawer into a cabinet (no text or symbols)

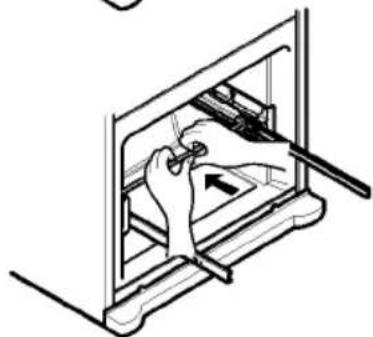

- With both hands, hold the center bar and push it in to let both rails fitted simultaneously.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands operating a mechanical device with a tool (no text or symbols)

⚠ CAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause personal injury.
⚠️ CAUTION: When laying the drawer down, be careful not to damage the floor or hurt your feet by the sharp edges on hinge side.

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE PULLOUT DRAWER

IMPORTANT: To avoid possible injury or product or property damage, you will need two people to perform the following instructions.

2. Installing Pullout Drawer

- With both hands, hold the center bar and push it out to let both rails out to full extension simultaneously.

Two technical line drawings showing hands operating a mechanical device, no text or symbols present

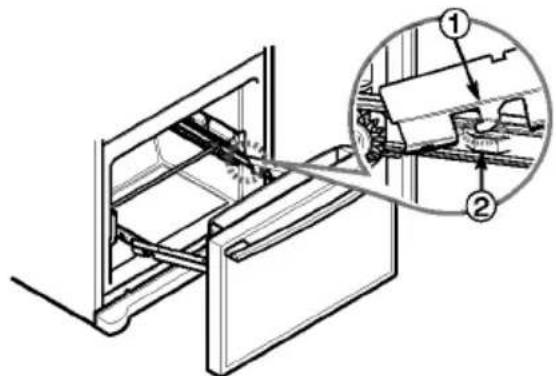

- Hook door supports (1) into rail tabs (2).

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a component detail.

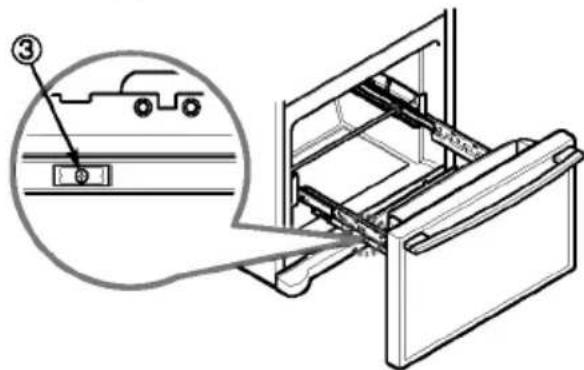

- Lower door into final position and tighten the screws (3).

Technical diagram showing a door handle assembly with a close-up of a vehicle component and a numbered annotation pointing to the component.

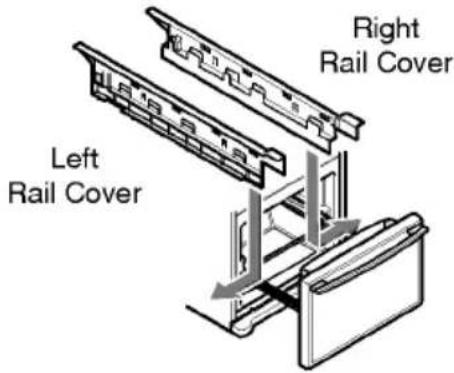

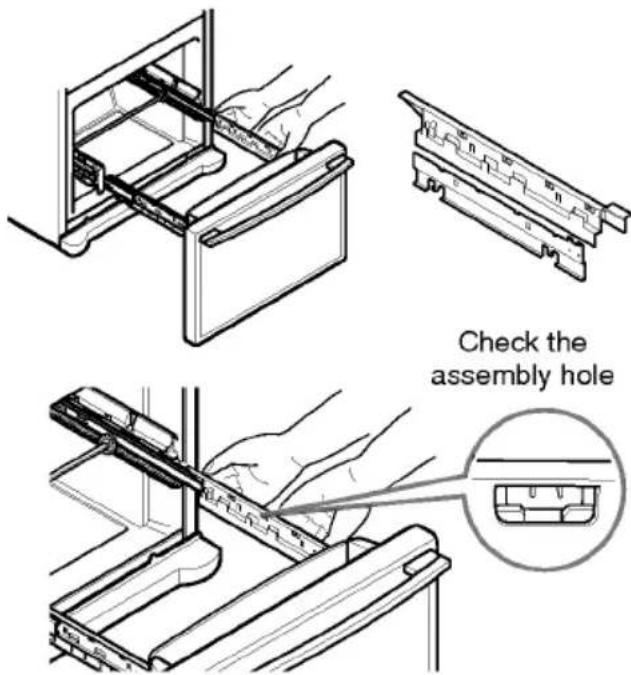

• Make sure you have a right rail cover for each side.

Right Rail Cover Left Rail Cover

- Align the top holes of the rail cover with the top holes of the door supports to assemble the rail covers.

Check the assembly hole

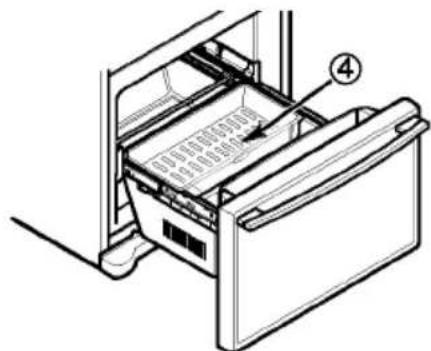

- With the drawer pulled out to full extension, insert the lower basket (4) in the rail assembly.

Technical line drawing of a refrigerator interior with labeled component (no text or symbols present)

⚠ WARNING: To prevent accidental child and pet entrapment or suffocation risk. DO NOT allow them to play inside of drawer.

⚠ WARNING: DO NOT step or sit down on freezer door.

REFRIGERATOR INSTALLATION

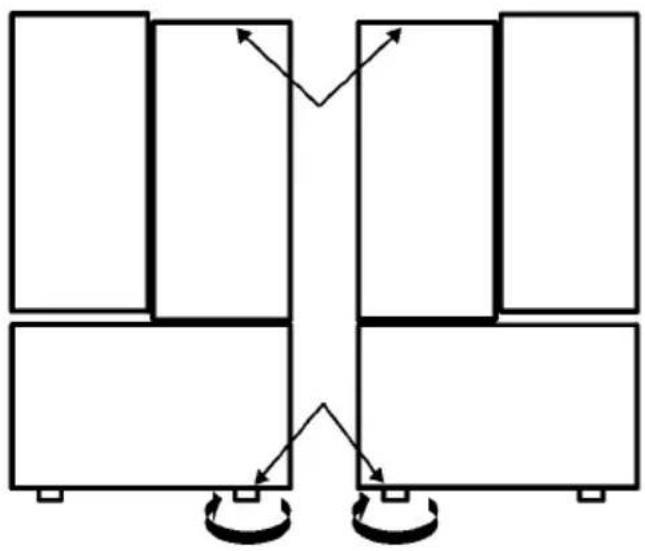

LEVELING AND DOOR ALIGNMENT Leveling

Your refrigerator has two front leveling screws—one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the instructions below:

1. Plug the refrigerator's power cord grounded outlet. Move the refrigerator into its final position.
2. Turn the leveling screw clockwise to raise that side of the refrigerator or counterclockwise to lower it. It may take several turns of the leveling screw to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws. This makes it easier to adjust the screws.

1. Open both doors again and check to make sure that they close easily. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both leveling screws the same amount.
2. Re-adjust if necessary.
3. Replace the base cover.

NOTE: Your new refrigerator is uniquely designed with two fresh food doors. Either door can be opened or closed independently of one another. You may have to exert slight pressure on doors to get them to close completely.

Door Alignment

If the space between your doors is uneven, follow the instructions below to align the doors:

1. With one hand, lift up the door you want to raise at middle hinge.
2. With other hand, use pliers to insert snap ring as shown.
3. Insert additional snap rings until the doors are aligned. (Three snap rings are provided with unit.)

Line drawing of a refrigerator with a close-up inset showing a hand holding a clip and a circular detail (no text or symbols)

USING YOUR REFRIGERATOR

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow between the refrigerator and freezer sections. As shown in the illustration below, air enters at top of freezer and circulates down. From bottom of freezer, air is forced up to top of refrigerator. Air enters refrigerator through top vent, then circulates and exists at bottom, where it returns to freezer.

MULTI-FLOW

• Multi-Flow means powerful and effective cooling operation. This is especially noticeable when new food is placed in the refrigerator compartment.
• If water or foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered because of escaping cool air.

Line drawing of an open refrigerator with internal air purification system (no text or symbols)

Do not block any of cool air vents with food packages. If the vents are blocked, airflow will be interrupted and temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To prevent odor transfer and drying out of food, wrap or cover foods tightly. (See the Food Storage Guide section for details.)

SETTING THE CONTROLS

• Your refrigerator has a control pad on the dispenser that lets you regulate the temperature in the freezer and refrigerator compartments.
• Initially set the REFRIGERATOR CONTROL at 3^ and the FREEZER CONTROL at -18^ . Leave it at this setting for 24 hours (one day) to stabilize. Then adjust the compartment temperature as desired.

ON FRZ. TEMP. -88° DIGITAL CONTROL REF. TEMP. 88° LOCK 50000

• Refrigerator Temp Control: 0°C to 8°C The lower the number setting, the colder the refrigerator compartment will become.
• Freezer Temp Control: -21°C to -13°C When the setting is at a lower number, the freezer compartment becomes colder. But the refrigerator compartment becomes warmer because less cold air flows into the refrigerator.
• Express Freezing: Press the EXPRESS FRZ button and the LED will turn on. This function will remain activated for 24 hours and increase the cooling speed of the freezer and the amount of ice produced.
• Lock: Press and hold the LOCK button for 3 seconds to lock the display. When it is locked, the LED will be off and the buttons will not operate. To unlock, press and hold the LOCK button for 3 seconds.

USING YOUR REFRIGERATOR

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before making final adjustments. It is best to wait 24 hours before doing this. The mid-settings indicated in the previous section should be correct for normal household refrigerator usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

The refrigerator control functions as the thermostat for the entire appliance (refrigerator and freezer sections). The higher the number setting, the longer the compressor will run to keep the temperature colder. The freezer control adjusts the cold air flow from the freezer to the refrigerator. Setting the freezer control to a lower temperature keeps more cold air in the Freezer compartment to make it colder.

If you need to adjust temperatures in the refrigerator or freezer, start by adjusting the refrigerator. Then wait 24 hours before checking the freezer temperature. If it is too warm or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide. Always remember to wait at least 24 hours between adjustments.

CONDITION/REASON:	RECOMMENDED ADJUSTMENT:
■ REFRIGERATOR section too warm– Door opened often– Large amount of food added– Room temperature very warm	Set REFRIGERATOR control to next lower number, wait 24 hours, then re-check
■ FREEZER section too warm/ice not made fast enough– Door opened often– Large amount of food added– Very cold room temperature (can't cycle often enough)– Heavy ice usage– Air vents blocked by items	Set FREEZER control to next lower number, wait 24 hours, then re-checkMove items out of airstream
■ REFRIGERATOR section too cold– Controls not set correctly for your conditions	Set REFRIGERATOR control to next higher number, wait 24 hours, then re-check
■ FREEZER section too cold– Controls not set correctly for your conditions	Set FREEZER control to next higher number, wait 24 hours, then re-check

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Items	How to
Butter or margarine	▶ Keep opened butter in a covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.
Cheese	▶ Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.
Milk	▶ Wipe milk cartons. For best storage, place milk on interior shelf, not on door shelf.
Eggs	▶ Store in original carton or Egg Box on interior shelf, not on door shelf.
Fruit	▶ Wash, let dry, and store in refrigerator in plastic bags or in the crisper. Do not wash or hull berries until you are ready to use them. Sort and keep berries in their original container in a crisper, or store in a sloosely closed paper bag on a refrigerator shelf.
Leafy vegetables	▶ Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.
Vegetables with skins (carrots, peppers)	▶ Place in plastic bags or plastic container and store in crisper.
Fish	▶ Use fresh fish and shellfish the same day purchased.
Leftovers	▶ Cover leftovers with plastic wrap or aluminum foil. Plastic containers with tight lids can also be used.

USING YOUR REFRIGERATOR

STORING FROZEN FOOD

NOTE: For further information about preparing food for freezing or food storage times, check a freezer guide or a reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If it does, you could have food odor and taste transfer throughout the refrigerator and also dry out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids
- Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
- Plastic-coated paper
• Non-permeable plastic wraps
- Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper freezing methods.

Do not use:

• Bread wrappers
  • Non-polyethylene plastic containers
• Containers without tight lids
  • Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap

⚠️ CAUTION: Do not keep beverage cans or plastic food containers in the freezer compartment. They may be break if it freezes.

Freezing

Your freezer will not quick-freeze any large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours. Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy.

REFRIGERATOR SECTION

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. Your model may have glass or wire shelves.

Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier; it will also reduce the amount of time the refrigerator door is open, saving energy.

IMPORTANT: Do not clean glass shelves with warm water when they are cold. Shelves may break if exposed to sudden temperature changes or impact, such as bumping. For your protection, glass shelves are made with tempered glass, which will shatter into small pebble-sized pieces.

NOTE: Glass shelves are heavy. Use special care when removing them to avoid dropping them.

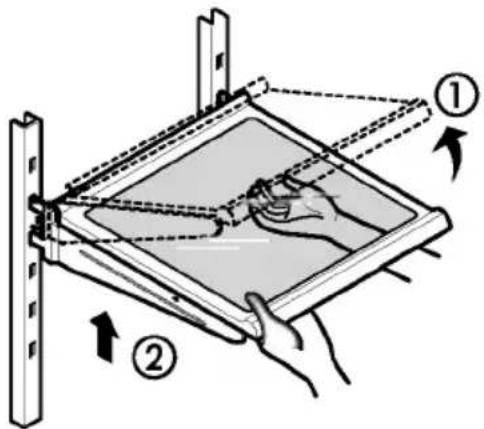

Adjusting Shelves

Remove shelves from the shipping position and replace shelves in the position you want.

• To remove a shelf—Tilt up the front of the shelf in the direction of (1) and lift it in the direction of (2). Pull the shelf out.

Diagram illustrating a mechanical or optical setup with labeled components and directional arrows, likely illustrating a system or measurement.

- To replace a shelf—Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height. Then lower the front of the shelf so that the hooks drop into the slots.

Diagram of a mechanical lever mechanism with directional arrows indicating movement (no text or symbols)

CAUTION: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilling food.

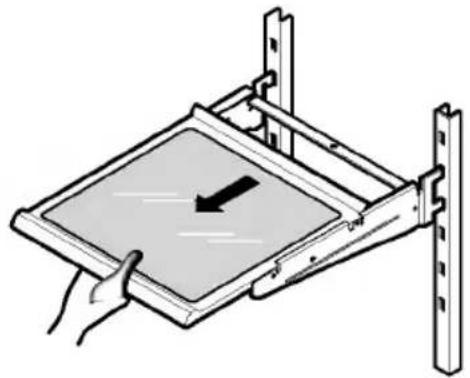

Sliding Out Shelves

You can slide glass shelves in and out of your refrigerator as follows.

• To slide the shelf out, carefully pull front of shelf toward you.
• To slide shelf in, push shelf in until it stops.

Diagram of a hand holding a rectangular frame with an arrow indicating direction, mounted on a metal frame (no text or symbols present)

WINE HOLDER (Optional)

Bottles can be stored laterally with this wine holder. It can be attached to any shelf.

Diagram of a mechanical assembly with two stacked plates and a rolling pin, showing rotational motion (no text or symbols)

Wine holder can be removed by pulling it straight out and installed by placing it at the end of the shelf you want and pushing it inward.

Pure mechanical diagram showing a square plate with internal dashed lines and an arrow indicating direction (no text or symbols)

USING YOUR REFRIGERATOR

OPTIBIN CRISPERS

Technical diagram of a mechanical device with labeled parts ① and ②, showing internal components and assembly.

The Optibin Crispers provide fresher-tasting fruit and vegetables by letting you easily control humidity inside the crisper. The Optibin Crispers include: 1) a humidity control knob at the front of the crisper cover and 2) a large lattice on the inner surface of the cover to hold or release moisture.

You can control the amount of humidity in the moisture-sealed crispers. Store vegetables or fruits requiring more or less humidity in separate crispers. Adjust the control to any setting between and .

• lets moist air out of the crisper for best storage of fruits.
- keeps moist air in the crisper for best storage of fresh, leafy vegetables.

Optibin Crisper Humidity Control

⚠️ CAUTION: The glass shelf over the crisper is not firmly secured. Be careful when tilting.

REMOVING CRISPER

▶ Crispers without rails

1. To remove, pull drawer out to full extension.
2. Lift the front of the crisper, then pull straight out.
3. To install, slightly tilt up the front and insert drawer into frame and push back into place.

Diagram of a vehicle interior with a magnified inset showing a window detail (no text or symbols)

▶ Crispers with rails

To remove crisper:

1. Pull drawer out to full extension.
2. Lift the front of basket up and pull straight out.

Line drawing of a hand inserting a drawer into a cabinet (no text or symbols)

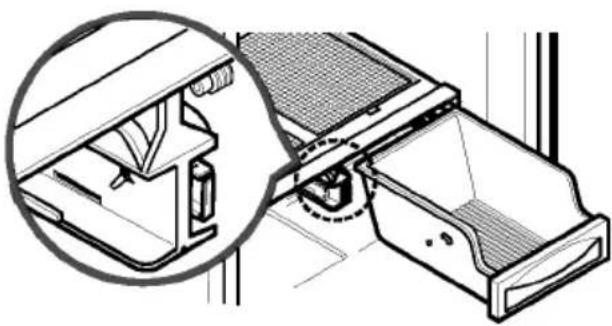

To replace crisper:

1. Push rails to the back of the compartment.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Insert the back corner of the basket into frame.

Technical illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

1. Slightly tilt up the front and push back until it snaps into place.

Technical line drawing of a mechanical component with no visible text or symbols

USING YOUR REFRIGERATOR

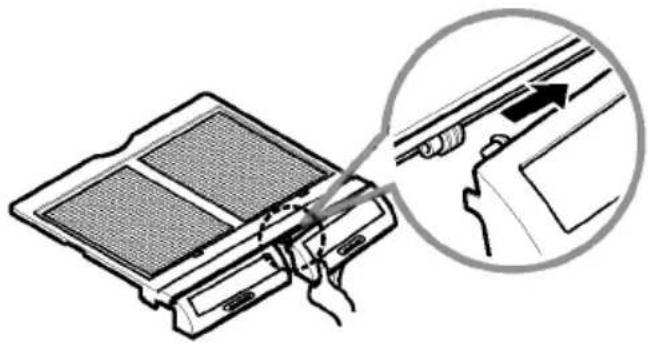

To remove crisper door flap:

1. Raise the door flap as high as it will open.
2. Press the plastic hinge toward the center of the door flap with your finger.
3. Lift the door out of its place.
4. To replace, reverse above procedure.

Diagram showing a device being inserted into a panel, with an inset close-up highlighting the component (no text or symbols present)

To remove the glass:

1. Lift up the glass after inserting a finger into a hole under the crisper cover.
2. Pull the glass up and out.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

CRISPER COVER WITH LATTICE ON INNER SURFACE

To remove the lattice on inner surface:

Line drawing of a mechanical component with meshed surfaces and mounting brackets (no text or symbols)

1. Remove crisper cover (as illustrated above).
2. Hold the glass cover and turn the crisper cover over.
3. For each lattice hold lattice and pull sides of the cover outward to remove lattice.

Diagram showing two labeled components (1 and 2) with directional arrows indicating movement or flow between them.

To replace lattice on inner surface:

1. For each lattice insert middle tab in 1 (closed to glass cover) and pull sides of the cover to insert lattice.

Technical diagram of a device with numbered components and an inset magnified view showing structural details.

USING YOUR REFRIGERATOR

GLIDE N SERVE

The Glide N Serve provides storage space with a variable temperature control that keeps the compartment colder than refrigerator temperature. The drawer also features a self-opening lid that opens whenever the drawer is pulled open.

This drawer can be used for large party trays, deli items, or beverages.

Cold ••• Temp Control ••• Colder

Controls

The control regulates the air temperature in the drawer. Set control level to cold to provide normal refrigerator temperature. Use the colder setting for meats or other deli items.

NOTE: Cold air directed to the Glide N Serve can decrease refrigerator temperature. Refrigerator control may need to be adjusted.

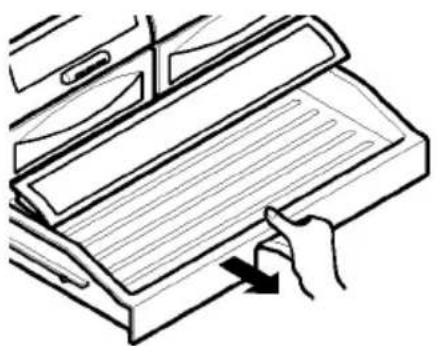

To remove Glide N Serve:

Tilt up the front on it's closed position and pull straight out.

Line drawing of a hand opening a wooden drawer with an arrow indicating direction (no text or symbols)

To replace Glide N Serve:

1. Push metal rails to the back of the refrigerator.
2. Place drawer onto rails and slide drawer back until it falls into place.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

NOTE: DO NOT store lettuce or other leafy produce in this drawer.

COLD

• cauliflower
• cucumbers
• zucchini
• apples
  • corn
• oranges
  • grapes

COLDER

• steaks
• hard cheeses
• cold cuts
• bacon
• hot dogs

⚠ WARNING: Fruits and vegetables may be damaged at the coldest setting.
⚠️ CAUTION: DO NOT store bottles. If they are frozen, they can be broken and cause personal injury.

DESIGN-A-DOOR

The door bins are removable for easy cleaning and adjusting.

1. To remove the bin, simply lift the bin up and pull straight out.
2. To replace the bin, slide it in above the desired support button and push down until it stops.

Illustration of hands holding a rectangular object inside a vertical frame (no text or symbols)

⚠ WARNING: Somebody can be hurt if door bins are not firmly assembled.
NOTE: DO NOT adjust a bin that is loaded with food.
⚠️ CAUTION: DO NOT allow children to play with baskets. Sharp corners on baskets could cause injury.

USING YOUR REFRIGERATOR

DAIRY BIN (Optional)

1. To remove the dairy bin, simply lift it and pull straight out.
2. To replace the dairy bin, slide it in above the desired location and push down until it stops.

Technical line drawing of a mechanical component with a central vertical arrow indicating direction (no text or symbols)

EGG BOX (Optional)

Store Egg Box on interior shelf, not on door shelf.

⚠️ CAUTION: Do not use the egg box as an ice storage bin in the freezer compartment. The egg box can easily break if it freezes.

Line drawing of a rectangular container filled with eggs (no text or symbols)

FREEZER SECTION

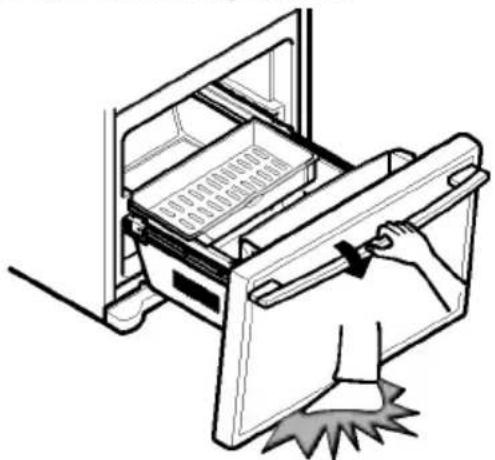

TILTING DOOR

The tilting door provides easy access for stored foods.

How to use:

Tilt the door down and pull it out.

Line drawing of a refrigerator with a hand cleaning the interior (no text or symbols)

⚠ WARNING: Be careful when you open tilting door so that you do not injure your foot!

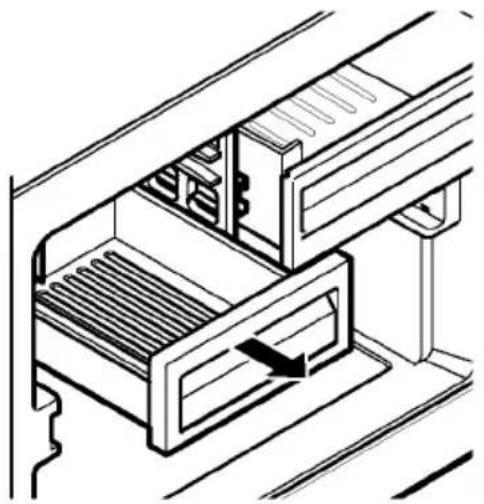

ICE BIN

1. To remove ice bin, pull it out as far as it comes. Tilt up the front of the ice bin and pull straight out.
2. To install, insert ice bin into frame rails and push back into place.

Technical line drawing of a mechanical assembly with no visible text or symbols

USING YOUR REFRIGERATOR

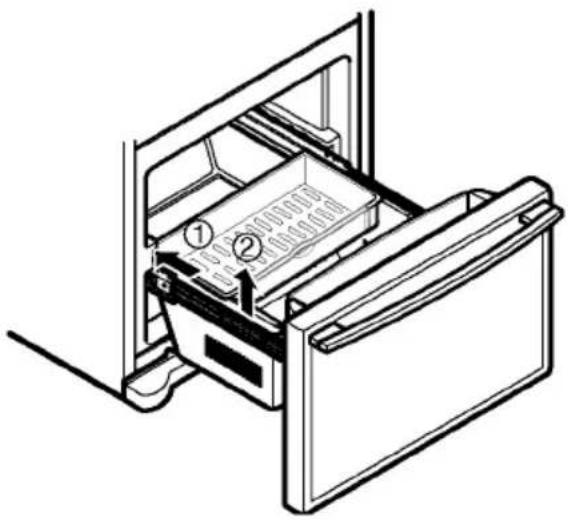

DURABASE

1. To remove the Durabase, push it back to the end as much as possible. Tilt up the front of the Durabase and pull straight out.
2. To install, insert the Durabase in rail assembly.

Line drawing of an open refrigerator with internal compartments and a door, showing no text or symbols.

DURABASE DIVIDER

The Durabase divider allows you to organize the Durabase area into sections.

1. To remove, pull divider straight up.
2. To install, hook top corners of divider over top edge of durabase.

⚠ WARNING: When the guide of the freezer drawer is removed, children may crawl inside.

Isometric line drawing of a rectangular container with internal compartments and ventilation slots (no text or symbols)

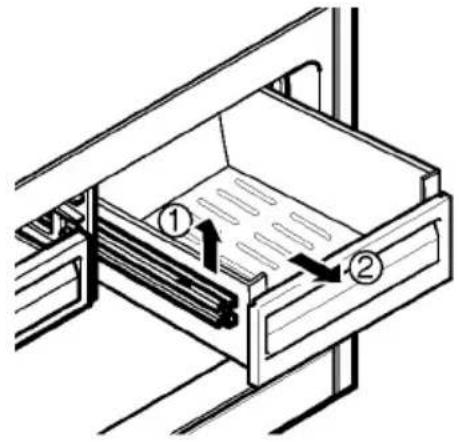

PULL OUT DRAWER

1. To remove, lift basket up and pull straight out.

Technical diagram of a mechanical device with numbered components and directional arrows indicating flow or movement.

1. To Install, pull both rails out to full extension. Hook the basket supports into the rail tabs and push to the back of compartment.

Technical illustration of a mechanical assembly with a magnified detail showing internal components (no text or symbols)

REFRESHMENT CENTER (applicable to some models only)

Store frequently used foods, such as beverages.

1. How to use

1) Open the door to push its center of upper softly.

• This would help you saving your money in electricity bill as you don't need to open door of refrigerator.
• Inner lamp is lit in refrigerator compartment when you open door of home bar. Thus you can easily identify the contents to take out.

Line drawing of a cabinet or rack unit with a handle and lid, no text or symbols present

2) Use the home bar door as a stand.

- Conveniently put some beverages or any contents on the home bar door.

Simple line drawing of a window with a tray holding a bottle and two cups, no text or symbols present.

2. Important Notice

1) Do not take out the inner home bar cover.

Illustration of hands holding a box with an X mark, no text or symbols present

- It doesn't work without the cover.

Illustration of a person operating a refrigerator with steam rising (no text or symbols)

2) Never press on it and take care not to get damaged.

• Resting your arms or leaning could lead to any damage.
• Do not use its door as a chopping board and take care not to scratch with sharp tools.

3. Lock/Unlock

1) This button stops operation of different button.

• Locking or Release is repeated whenever pressing the button more than 3 seconds.
• The other button does not start their operation when selecting "Lock".

TRIPLE ICE TRAY

1. Ice-making corner

As a manual-type ice-making corner, it is easy to take out ice cubes when rotating its dial.

2. How to make ice

1) Take out the ice-making box to fill with water and then back into the ice-making corner.
- If water is fully filled in the ice-making box, ice cubes will not be separated well and water can be dropped in the ice storage bin to make them lumped.

Diagram of an open refrigerator with a close-up view showing internal components (no text or symbols)

2) Ice cubes will be dropped into the ice storage bin by rotating ice separation handle of ice making corner.

• If ice cubes are not separated well, rotate its handle completely by 180^ .
• Rotating the ice separation handle before ice is fully frozen may cause the remaining water drop into the ice storage bin to lump the ice together.

3) Use ice cubes of the ice storage bin.

- Do not fill water in the ice storage bin to make ice, which can be broken.

Illustration of a hand placing a button into three circular components on a device (no text or symbols)

WARNING

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves, crispers, etc. Refer to sections in Using Your Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust protection. Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

INSIDE WALLS (allow freezer to warm up so cloth won't stick)

To help remove odors, you can wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so does it not scratch the surfaces of the refrigerator.

⚠️ CAUTION: While cleaning the inside, do not spray water.

Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

CONDENSER COILS

Remove base cover. (See the base cover section on page 6.)

Use a vacuum cleaner with an extended attachment to clean condenser coils.

Vacuum coils when dusty or dirty. Coils may need to be cleaned as often as every other month.

Replace grille base.

LIGHT BULB REPLACEMENT

WARNING

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to the OFF position does not remove power to the light circuit.

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage.

To change the refrigerator light:

1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. Pull the shield down with pushing it backward to remove it.
4. Turn the bulb counterclockwise.
5. Assembly is the reverse order of disassembly.

Illustration of hands performing a task on a sink with a downward arrow indicating pressure or movement (no text or symbols)

CARE AND CLEANING

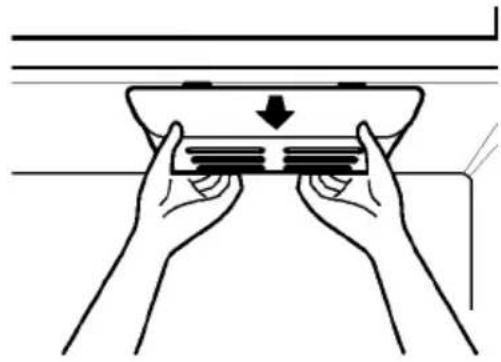

To change the freezer light:

1. Unplug refrigerator or disconnect power.
2. Reach behind light shield to remove bulb.
3. Replace bulb with a 40-watt appliance bulb.
4. Plug in refrigerator or reconnect power.

Illustration of two hands holding a device with a downward arrow, no text or symbols present

⚠️ CAUTION: DO NOT place fingers inside of cover. Lamp may be hot.

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask how long it will be off.

1. If the power will be out for 24 hours or less, keep both refrigerator doors closed to help foods stay cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen food locker.

OR

b) Place 2 lbs of dry ice in the freezer for every cubic foot of freezer space. This will keep the food frozen for two to four days. While handling dry ice, wear gloves to protect your hands from frostbite.

OR

c) If neither a food locker nor dry ice is available, consume or can perishable food at once.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are away, follow these steps to prepare your refrigerator before you leave.

1. Use up any perishables and freeze other items.
2. Empty the ice bin.

If you choose to turn the refrigerator off before you leave, follow these steps.

1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control (refrigerator control) to OFF. See the Setting the Controls section.
3. Clean refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.

2. Depending on your model, turn the thermostat control (refrigerator control) to OFF. See the Setting the Controls section.

3. Unplug the refrigerator.

4. Clean, wipe and dry thoroughly.

5. Take out all removable parts, wrap them well and tape them together so they don't shift and rattle during the move. Refer to sections in Using your Refrigerator for removable instructions.

6. Depending on the model, raise the front of the refrigerator so it rolls more easily OR screw in the leveling legs all the way so they don't scrape the floor. See the Door Closing section.

7. Tape the doors shut and tape the power cord to the refrigerator cabinet.

When you get to your new home, put everything back and refer to the Installing Your Refrigerator section for preparation instructions.

⚠ WARNING: DO NOT get alive animals into a refrigerator.

TROUBLESHOOTING GUIDE

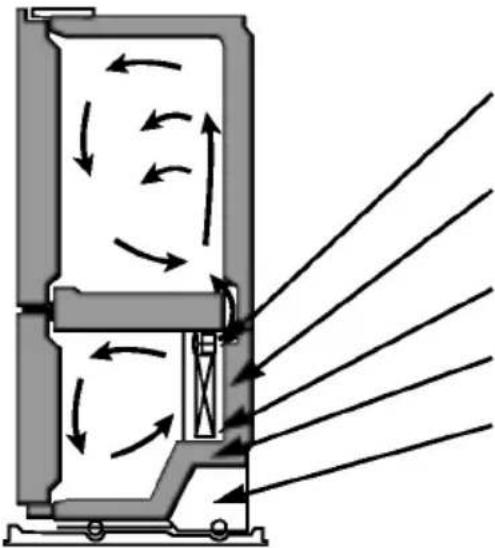

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one didn't make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds and what may be making them.

Cross-sectional diagram of a mechanical or electrical component with directional arrows indicating flow or movement (no text or symbols)

• The defrost timer will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control, depending on the model) will also click when cycling on and off.
• Rattling noises may come from the flow of refrigerant, the water line, or items stored on top of the refrigerator.
• Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature.

The high efficiency compressor may cause your new refrigerator to run longer than your old one, and you may hear a pulsating or high-pitched sound.

• You may hear the evaporator fan motor circulating the air through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may cause a popping noise.
  • Water dripping on the defrost heater during a defrost cycle may cause a sizzling sound.
• You may hear air being forced over the condenser by the condenser fan.
• You may hear water running into the drain pan during the defrost cycle.

	Check if...	Then...
REFRIGERATOR DOES NOT OPERATE	The power supply cord is unplugged.A household fuse has blown or circuit breaker tripped.The refrigerator control is set to the OFF position.Refrigerator is in the defrost cycle.	► Firmly plug the cord into a live outlet with proper voltage.► Replace the fuse or reset the circuit breaker.► Refer to the Setting the Controls section on page 12.► Wait about 30 minutes for defrost cycle to end.
VIBRATION OR RATTLING NOISE	The refrigerator is not resting solidly on the floor.	► Floor is weak or uneven or leveling legs need adjusting.See Installation section on page 6.
LIGHTS DO NOT WORK	The power supply cord is unplugged.Light bulb is loose in the socket.Light bulb has burned out.	► Firmly plug the cord into a live outlet with proper voltage.► Turn the refrigerator control to the OFF position and unplug the refrigerator. Gently remove the bulb and reinsert. Then plug in refrigerator and reset the refrigerator control.► Replace with an appliance bulb of the same wattage, size and shape available at your local hardware store.(See the Changing the Light Bulb(s) section on pages 22-23.) Turn the temperature control to the OFF position and unplug the refrigerator prior to replacement.

TROUBLESHOOTING GUIDE

	Check if...	Then...
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH	The refrigerator that was replaced was an older model.The room temperature is hotter than normal.The door is opened often or a large amount of food has just been added.The refrigerator was recently plugged in and the refrigerator control was set correctly.The refrigerator control is not set correctly for the surrounding conditions.The doors are not closed completely.The condenser coils are dirty.	Modern refrigerators with more storage space require more operating time.The motor will run longer under warm conditions. At normal room temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often.Adding food and opening the door warms the refrigerator.It is normal for the refrigerator to run longer in order to cool the refrigerator back down. Adding a large amount of food warms the refrigerator. See the Food Storage Guide section on page 13. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find and close the door as soon as the food is removed.The refrigerator will take up to 24 hours to cool completely.See the Adjusting Control Settings section on page 13.Push the doors firmly shut. If they will not shut all the way, see Doors will not close completely below.This prevents air transfer and makes the motor work harder.Clean the condenser coils. Refer to the Care and Cleaning section on pages 22-23.
DOORS WILL NOT CLOSE COMPLETELY	The refrigerator is not level.Food packages are blocking the door open.The ice bin, crisper cover, pans, shelves, door bins or baskets are out of position.The gaskets are sticking.The refrigerator wobbles or seems unstable.The doors were removed during product installation and not properly replaced.	See Leveling and Door Alignment on page 11.Rearrange food containers to clear door and door shelves.Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Using Your Refrigerator section on pages 12-21.Clean gaskets and the surface that they touch. Rub a thin coat of paraffin wax on the gaskets after cleaning.Level the refrigerator. Refer to the Leveling and Door Alignment section on page 11.Remove and replace the doors according to the Removing and Replacing Refrigerator handles and doors section on pages 7-10, or call a qualified service technician.
FROST OR ICE CRYSTALS ON FROZEN FOOD	The door is not closing properly.The door is opened often.	See Doors will not close completely above.When the door is opened, warm, humid air is allowed in the freezer, resulting in frost.

TROUBLESHOOTING GUIDE

	Check if...	Then...
ICE HAS OFF-TASTE OR ODOR	The icemaker (optional) was recently installed.The ice has been stored for too long.The food has not been wrapped tightly in either compartment.The interior of refrigerator needs cleaning.Ice storage bin needs cleaning.	▸ Discard first few batches of ice to avoid discolored or off-flavored ice.▸ Throw away old ice and make new supply.▸ Rewrap foods since odors may migrate to the ice if food is not wrapped properly.▸ See Care and Cleaning section on pages 22-23.▸ Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN	The refrigerator is defrosting.It is more humid than normal.	▸ The water will evaporate. It is normal for water to drip into the defrost pan.▸ Expect that the water in the defrost pan will take longer to evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE	The sounds may be normal for your refrigerator.	▸ Refer to the Understanding Sounds You May Hear section on page 24.
THE ICEMAKER (OPTIONAL) IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY	The freezer temperature is cold enough to produce ice.Door left open.	▸ Wait 24 hours after hook-up for ice production. See the Setting the Controls section on page 12.▸ Check to see if something is holding the door open.
CUBES PRODUCED BY ICEMAKER (OPTIONAL) ARE TOO SMALL	Smaller cube size level is selected.Water shutoff valve connecting refrigerator to water line may be clogged.	▸ Select larger cube size using cube size selector.▸ Call a plumber to clear the valve.
THE DOORS ARE DIFFICULT TO OPEN	The gaskets are dirty or sticky.The door is reopened within a short time after having been opened.	▸ Clean gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.▸ When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait 5 minutes to allow the air pressure to equalize, then see if it opens more easily.

TROUBLESHOOTING GUIDE

	Check if...	Then...
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP	The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections.The doors are opened often.	▸ Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow.Refer toMulti-Flowon page 12 for the location of air vents.▸ When the door is opened, warm humid air is allowed into the refrigerator. The more the door is opened, the faster the humidity builds up, and the more warm air the refrigerator must cool. In order to keep the refrigerator cool, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find and close the door as soon as the food is removed.
	The control is not set correctly for the surrounding conditions.	▸ Refer to theSetting the Controlssection on page 12.Wait 24 hours for temperatures to stabilize or even out. If the temperature is too cold or too warm, move the dial one number at a time.
	A large amount of food has just been added to the refrigerator or freezer.	▸ Adding food warms the refrigerator. It can take a few hours for the refrigerator to return to normal temperature.
	The food is not packaged correctly.	▸ Wrap food tightly and wipe off damp containers prior to storing in the refrigerator to avoid moisture accumulation. If necessary, repackage food according to the guidelines in theFood Storage Guidesection on page 13.
	The doors are not closing completely.	▸ SeeDoors will not close completely on page 25.
	The weather is humid.	▸ In humid weather, air carries moisture into refrigerator when doors are opened.
	A self-defrost cycle was completed.	▸ It is normal for droplets to form on the back wall after the refrigerator self-defrosts.

• You can find a product label and a circuit diagram at back of your appliance. Manufacturing year and month is first three digit of 'Serial No.' on the product label.

Example : Serial No. : 0 01 KR KR 00001 Manufactured Jan. 2000.

year month korea special serial

code
