TABLE OF CONTENTS

English Version 2

Safety Instructions 3-4

Parts and Features 5

Refrigerator Installation 6–13

Unpacking Your Refrigerator 6

Installation 6

Base Cover 6

Removing and Replacing

Your Refrigerator Handles

and Doors 7–12

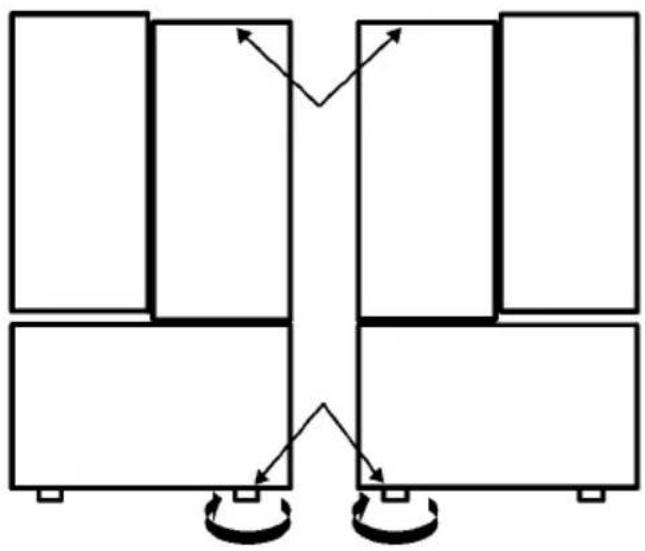

Leveling and Door Alignment 13

Using Your Refrigerator 14-23

Ensuring Proper Air Circulation 14

Multi-Flow 14

Setting the Controls 14

Adjusting Control Settings 15

Food Storage Guide 15

Storing Frozen Food 16

▶ Refrigerator section

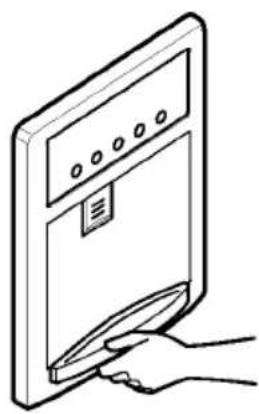

Water Dispenser 16

Refrigerator Shelves 17

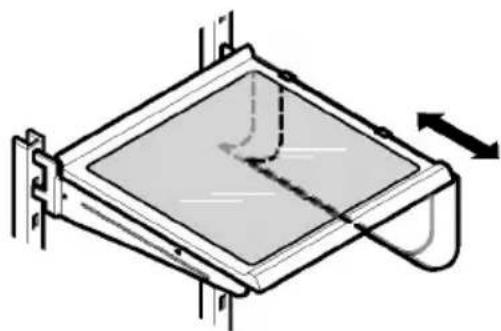

Bottle Holder (Optional) 17

Optibin Crisper 18

Crisper Humidity Control 18

Removing Crisper 18

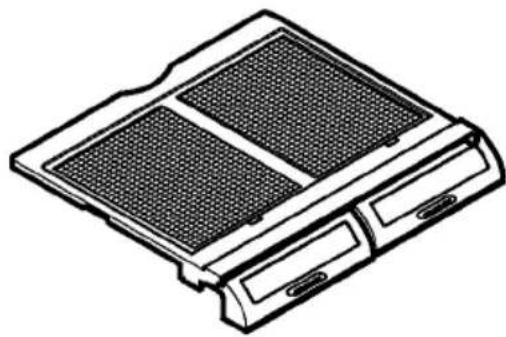

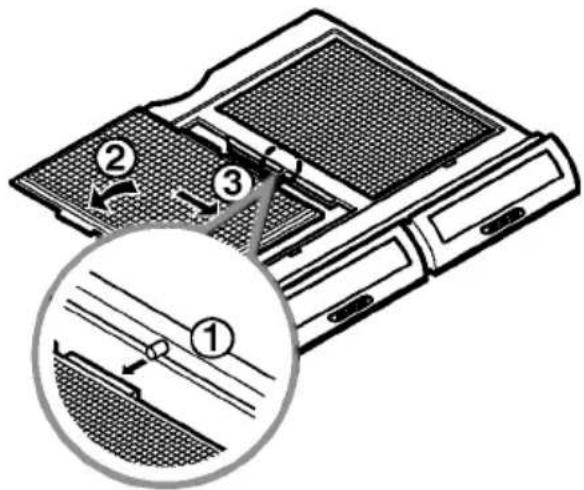

Crisper Cover with Lattice on inner Surface 19

Glide N Serve 20

Modular Door Bin 20

Dairy Bin (Optional) 21

Egg Box (Optional) 21

▶ Freezer section

Tilting Door 21

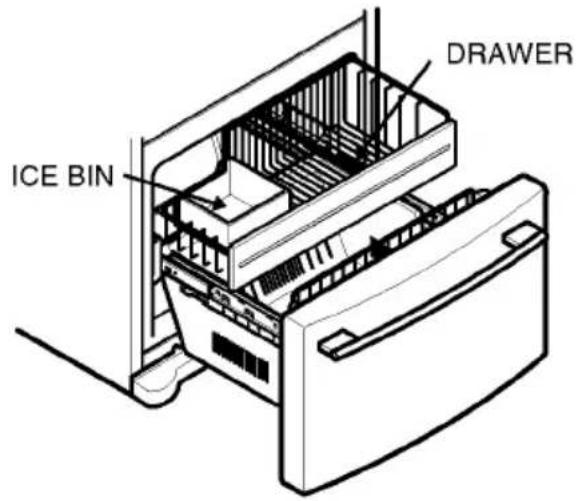

Ice Bin 21

Tilt-Out Door Basket (Optional) 22

Durabase 22

Durabase Divider 22

Pull out Drawer 22

Filter 23

Care and Cleaning 24–25

General Cleaning Tips 24

Outside 24

Inside Walls 24

Door Liner and Gaskets 24

Plastic Parts 24

Condenser Coils 24

Light Bulb Replacement 24–25

Power Interruptions 25

When you go on vacation 25

When you move 25

About the Automatic Icemaker 26

Connecting the Water Line 27-29

Troubleshooting Guide 30-33

IMPORTANT SAFETY INSTRUCTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following:

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the outlet.
• Repair or replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• DO NOT allow children to climb, stand or hang on the refrigerator doors or shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
• Keep fingers out of pinch point areas; clearances between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
• Unplug your refrigerator before cleaning or making any repairs.
  NOTE: We strongly recommend that any servicing be performed by a qualified individual.

• Before replacing a burned-out light bulb, unplug the refrigerator or turn off power at the circuit breaker or fuse box in order to avoid contact with a live wire filament. (A burned-out light bulb may break when being replaced.)
  NOTE: Setting either or both controls to the OFF position does not remove power to the light circuit.

• This refrigerator must be properly installed in accordance with the Attention Installer Instructions that were taped to the front of the refrigerator.
  • After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment when hands are damp or wet. Skin may adhere to the extremely cold surfaces.

• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed completely. The United States Department of Agriculture in Home and Garden Bulletin No. 69 says:
  ...You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold—below 4°C.
  ...Thawed ground meats, poultry or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, get rid of it. The food may be dangerous to eat.
  Even partial thawing and refreezing reduces the eating quality of foods, particularly fruits, vegetables and prepared foods. The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible to save as much of their quality as you can.

- Do not modify or extend the Power Cord length. It will cause electric shock or fire.

can.

SAVE THESE INSTRUCTIONS

DANGER: RISK OF CHILD ENTRAPMENT

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous...even if they will sit for just a few days. If you are getting rid of your old refrigerator, please follow the instructions at right to help prevent accidents.

Line drawing of a cabinet with multiple compartments (no text or symbols)

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

CFC DISPOSAL

Your old refrigerator may have a cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone.

If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified servicer. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation.

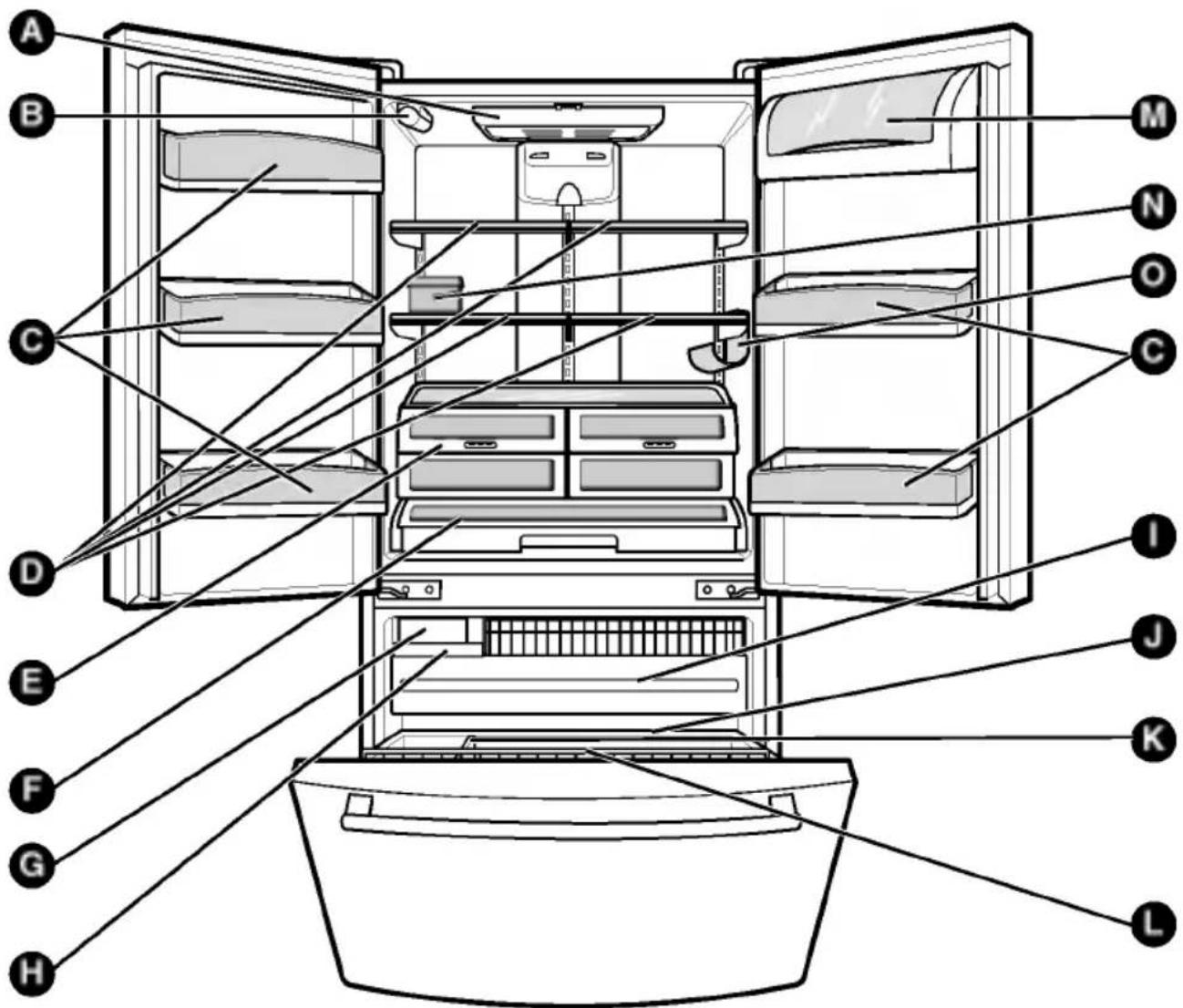

A B C D E F G H M N O C I J K L

Use this page to become more familiar with the parts and features. Page references are included for your convenience.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model.

A Refrigerator Light

B Filter (Inside)

© Modular Door Bin

D Shelves

E Optibin Crisper

(Keeps fruits and vegetable fresh and crisper)

F Glide N Serve

Customcube Icemaker

H Ice Bin

Pull out Drawer

Durabase

K Divider

L Tilt-Out Door Basket (Optional)

M Dairy Bin (Optional)

N Egg Box (Optional)

Bottle Holder (Optional)

REFRIGERATOR INSTALLATION

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your refrigerator before using. Do not remove any warning-type labels, the model and serial number label, or the TechSheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see the Important Safety Instructions section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual storage needs.

WARNING

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to protect the floor. Always pull the refrigerator straight out when moving it. Do not wiggle or walk the refrigerator when trying to move it, as floor damage could occur.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion or fire.

INSTALLATION

1. To avoid vibration, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly. Turn the leveling screws clockwise (→) to raise the unit, counterclockwise (→) to lower it.
2. Install this appliance in an area where the temperature is between 13°C and 43°C. If the temperature around the appliance is too low or high, cooling ability may be adversely affected.
3. Allow the clearance of at least 2 inch from the ceiling and 1 inch from the side walls for better cooling efficiency, ease of installation, proper air circulation and electrical connections.
   ⚠️ CAUTION: Avoid placing the unit near heat sources, direct sunlight or moisture.

NEXT

1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
2. Install accessories such as ice cube bin, drawers, shelves, etc., in their proper places. They are packed together to prevent possible damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

WARNING

• Be careful when you work with hinge, base grille, stopper etc. You may be injured.
• Do not put hands or foot or metal sticks into air vents, base grille or bottom of refrigerator. You may be injured or receive an electrical shock.

BASE COVER

To remove the base cover

1. Open the Freezer Drawer. (Drawer not shown for clarity.)
2. Once drawer is open there is sufficient clearance to remove screws on top of cover.

To replace base cover:

- Place cover into position and insert and tighten screws.

Technical line drawing of a mechanical assembly with a hand holding a tool, no text or symbols present

REFRIGERATOR INSTALLATION

HOW TO REMOVE DOOR HANDLES

To move refrigerator through a house door, it may be necessary to remove refrigerator and freezer door handles.

NOTE: Handle appearance may vary from illustrations on this page.

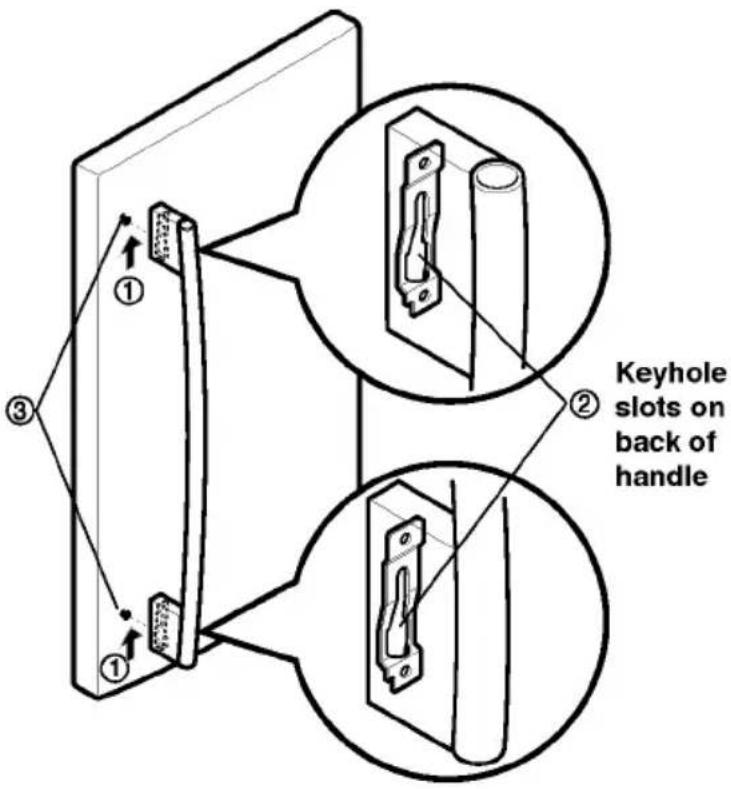

1. Removing Refrigerator Handle

• Grasp the handle tightly with both hands and slide the handle up (1)(this may require some force).
• The keyhole slots (2) on the back of the handle allow the handle to separate from the mounting screws (3).

▲ CAUTION: The handle could be damaged if you hit it with a hammer while removing or attaching.

CAUTION: When you assemble or disassemble handle, you must push or pull with reasonable force.

Screws mounted on door

① ② Keyhole slots on back of handle ③

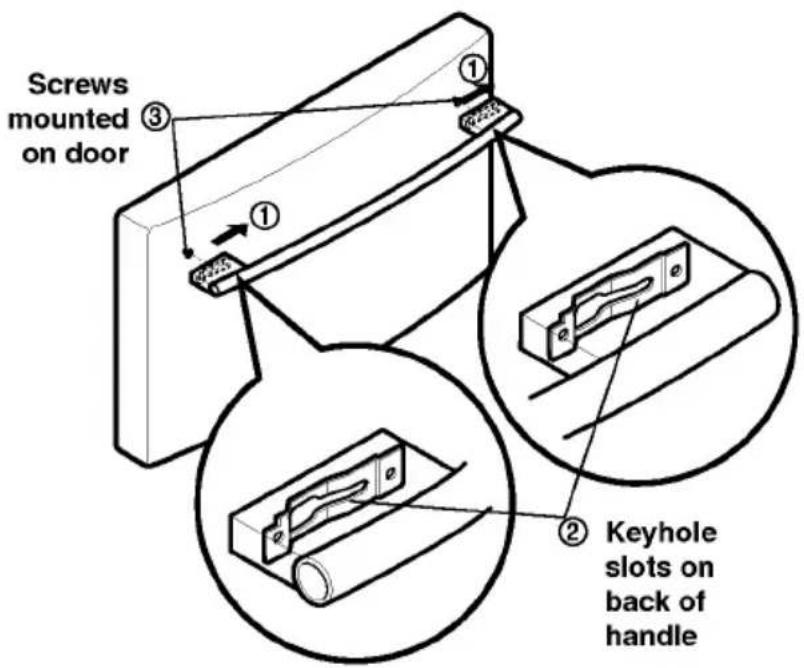

2. Removing Freezer Drawer Handle

• Press the handle against door first.
• Grasp the handle tightly with both hands and slide the handle to right (1)(this may require some force).
• The keyhole slots (2) on the back of the handle allow the handle to separate from the mounting screws (3).

Screws mounted on door ① ② Keyhole slots on back of handle

REFRIGERATOR INSTALLATION

HOW TO REPLACE DOOR HANDLES

NOTE: Handle appearance may vary from illustrations on this page.

1. Replacing Refrigerator Door Handle

• Align keyhole slots (1) on the top and bottom of the back of the handle with the screws (2) mounted on the front of the door.
• Press the handle against the door front, making sure that the screws (2) go into the keyhole slots (1).
• Holding the handle with both hands, press it firmly against the front of the door and slide the handle down (3).

Screws mounted on door ② ③ ① ①

2. Replacing Freezer Drawer Handle

• Align keyhole slots (4) on the right and left sides of the back of the handle with the screws (5) mounted on the front of the drawer.
• Press the handle against the drawer front, making sure that the screws (5) go into the keyhole slots (4).
• Holding the handle with both hands, press it firmly against the front of the drawer and slide the handle to the left (6).

Screws mounted on door ⑤ ⑥ ④ Keyhole slots on back of handle

REFRIGERATOR INSTALLATION

REMOVING AND REPLACING REFRIGERATOR DOORS

1. Removing Refrigerator Door

NOTE: Handle appearance may vary.

IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins from doors.

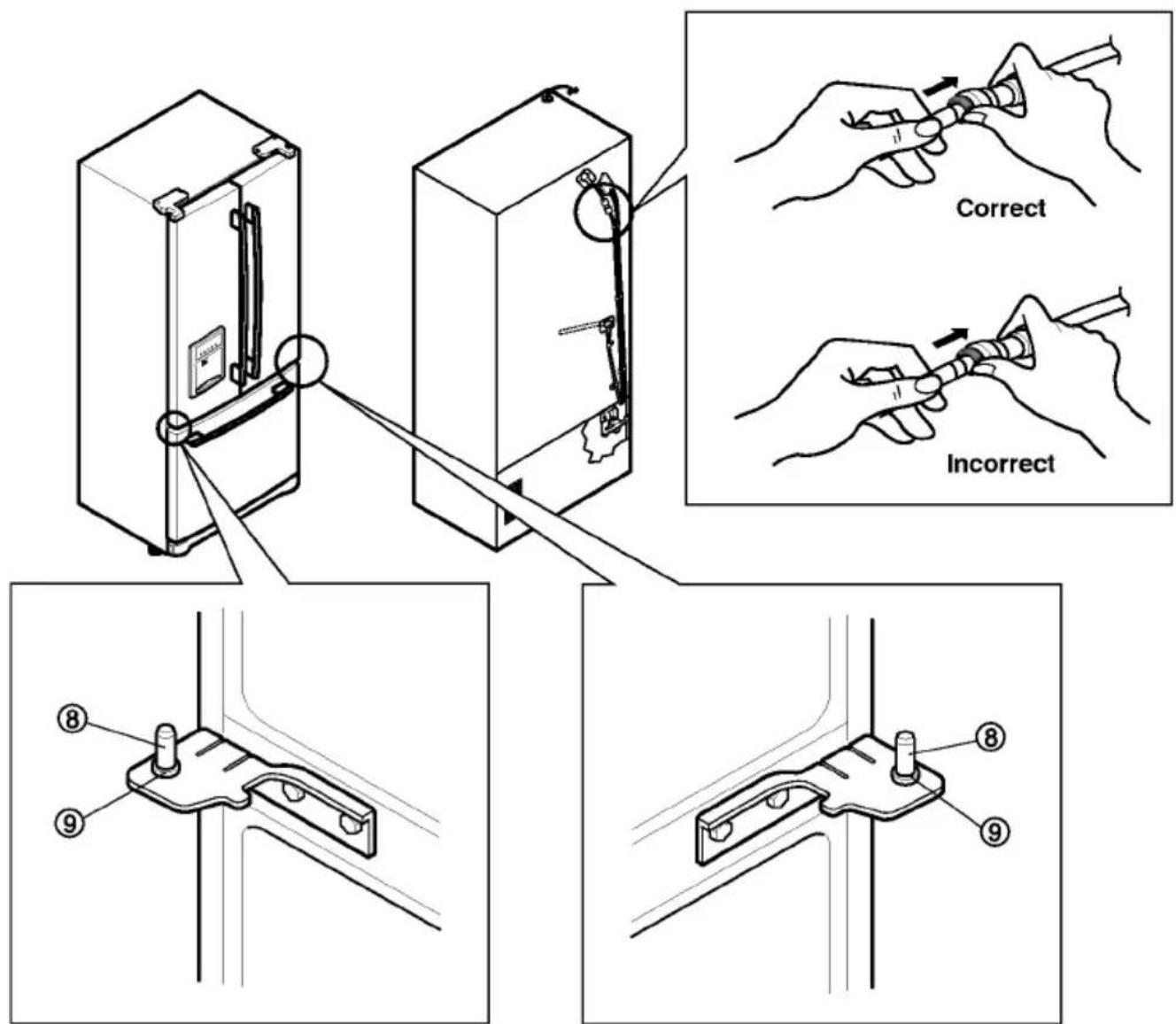

▶ Left Door

• Disconnect water supply tube by pushing back on the disconnect ring (1).
• Loosen the cover screw (2).
• Disconnect door switch wire (3).
• Attach the tube on the door with door.
• Pull out the tube.

⚠️ CAUTION: If a tube end is deformed or worn out, cut the damaged portion away.

- Disconnect 3 wire harness (4).

- Remove the ground screw (5).

- Rotate the lever hinge (6) counter clockwise and lift off the top hinge (7).

- Raising it up enough to clear the middle hinge pins.

- Place the door on a non-scratching surface with the inside up.

⚠️ CAUTION: When removing top hinge, be careful that the door does not fall forward.

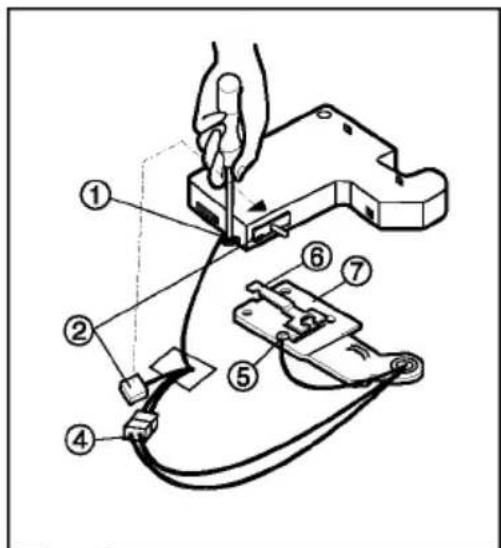

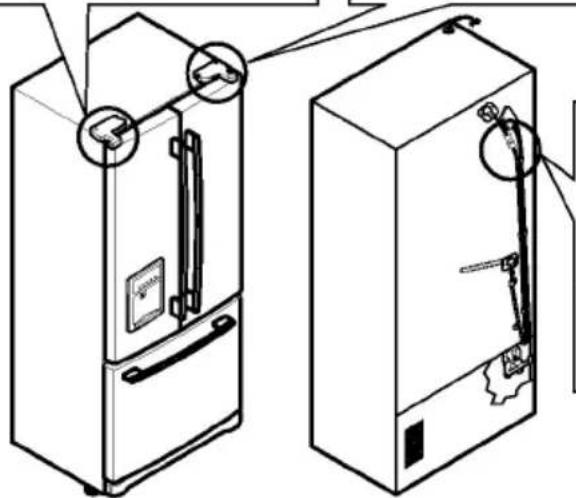

▶ Right Door

• Loosen the cover screw (1).
• Disconnect door switch wire (2).
• Disconnect wire harness (4).
• Remove the ground screw (5).
• Rotate the lever hinge (6) clockwise and lift off the top hinge (7).
• Raising it up enough to clear the middle hinge pins.
• Place the door on a non-scratching surface with the inside up.

Technical diagram of a mechanical assembly with numbered components for identification

Diagram of a mechanical clamp or connector assembly with numbered parts labeled 1 through 7

Technical line drawing of two refrigerators with doors and control knobs, showing internal components (no text or symbols)

Diagram showing a hand holding a pen with a numbered step and directional arrow, likely illustrating a procedure or technique.

REFRIGERATOR INSTALLATION

2. Replacing Refrigerator Door

▶ Right Door

• Lower the door onto the middle hinge pin (8). Make sure the door is aligned with the cabinet.
• Replace the top hinge by rotating the hinge lever (6) counter clockwise to secure hinge. Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while securing hinge. Make sure the door is straight and the gap between the doors is even.

• Install the ground screw (5) and connect the wire harness (4).

- Connect the door switch wire (2).

• Tighten the cover screw (1).

▶ Left Door

• Lower the door onto the middle hinge pin(8). Make sure the door is aligned with the cabinet.
• Replace the top hinge by rotating the hinge lever (6) clockwise to secure hinge.
  Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while tightening. And make sure the door is straight and the gap between the doors is even.
• Insert the water supply tube (3) into the connector tube until you see only one scale mark. (Fully insert the tube over 5/8"(15mm)).
  • Install the ground screw (5) and connect the 3 wire harness (4).
• Connect the door switch wire (2).
  • Tighten the cover screw (1).

▲ CAUTION: Be careful of missing the washer[part (9)].

Because it can be easily taken off.

Correct Incorrect

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE PULLOUT DRAWER

IMPORTANT: To avoid possible injury or product or property damage, you will need two people to perform the following instructions.

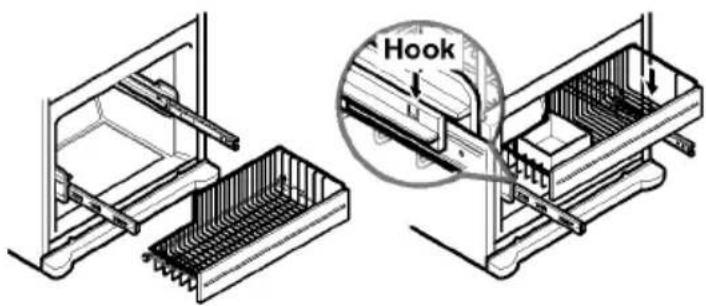

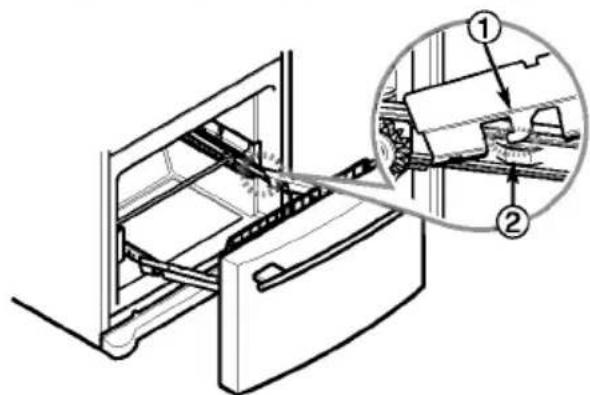

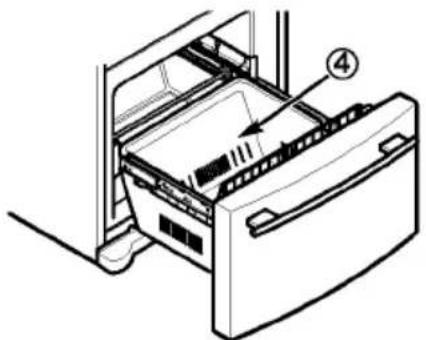

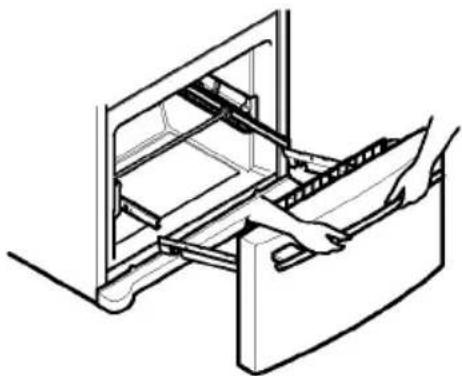

1. Removing Pullout Drawer

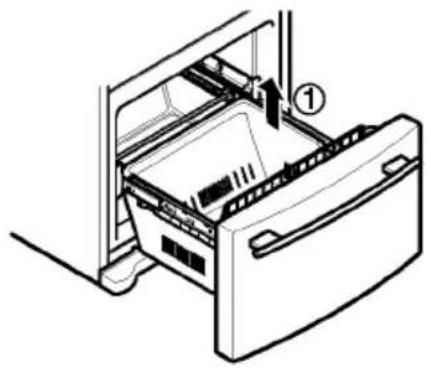

- Pull the drawer open to full extension. Remove the lower basket (1) by lifting basket from rail system. (If you tilt the door, it will be easier.)

Diagram of a refrigerator interior showing internal compartments and a labeled component (no text or symbols present)

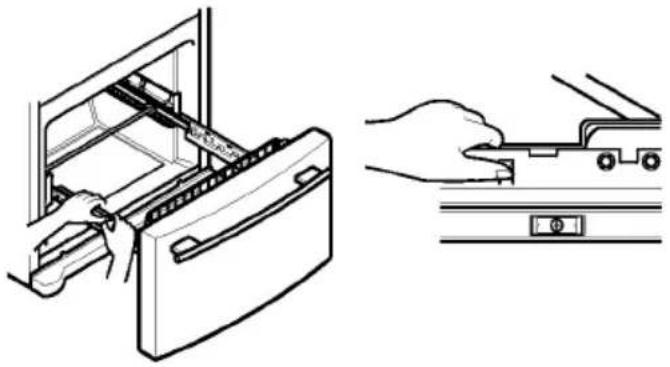

• Press both hangers with your thumbs to lift it up.
• Separate the left and right rail cover

Technical line drawing showing a hand inserting a component into a device with an inset view of the handle (no text or symbols present)

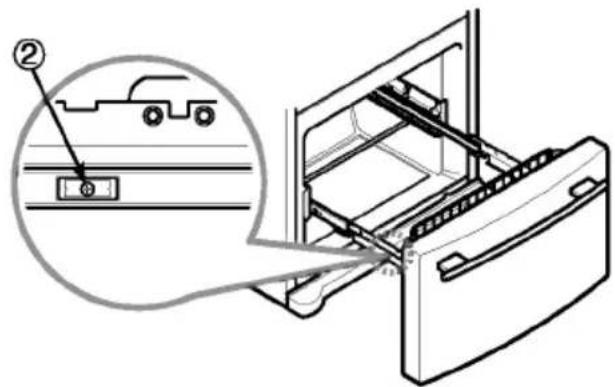

- Remove the screws(2) of the rail on both sides.

Technical diagram showing a vehicle door panel with an inset close-up of the component, labeled with number ②.

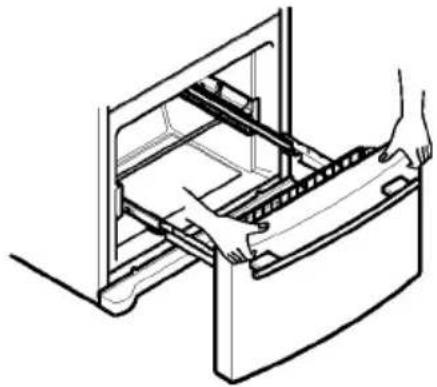

- With both hands, hold both sides of the door and pull it up to separate it from the rails.

Line drawing of a refrigerator with hands inserting or removing the drawer (no text or symbols)

Line drawing of a refrigerator interior with hand inserting a drawer (no text or symbols)

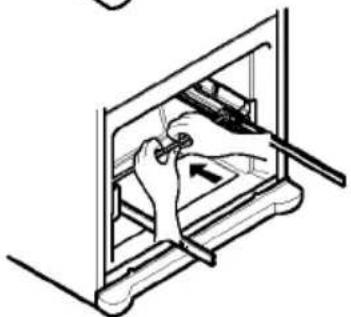

- With both hands, hold the center bar and push it in to let both rails fitted simultaneously.

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

Line drawing of hands operating a mechanical device with a tool (no text or symbols)

CAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause personal injury.
CAUTION: When laying the drawer down, be careful not to damage the floor or hurt your feet by the sharp edges on hinge side.

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE PULLOUT DRAWER

IMPORTANT: To avoid possible injury or product or property damage, you will need two people to perform the following instructions.

2. Installing Pullout Drawer

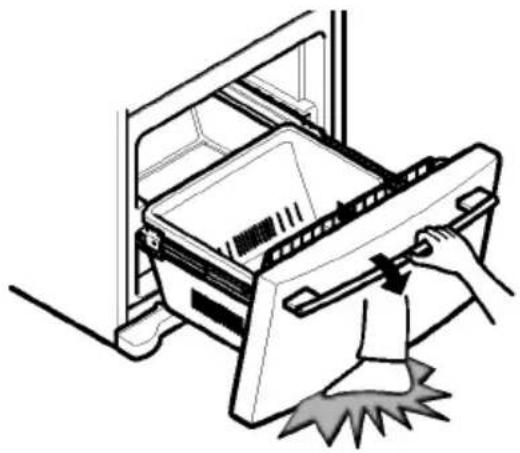

- With both hands, hold the center bar and push it out to let both rails out to full extension simultaneously.

Two technical line drawings showing a hand operating a mechanical component inside a frame, with no visible text or symbols.

- Hook door supports (1) into rail tabs (2).

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a device.

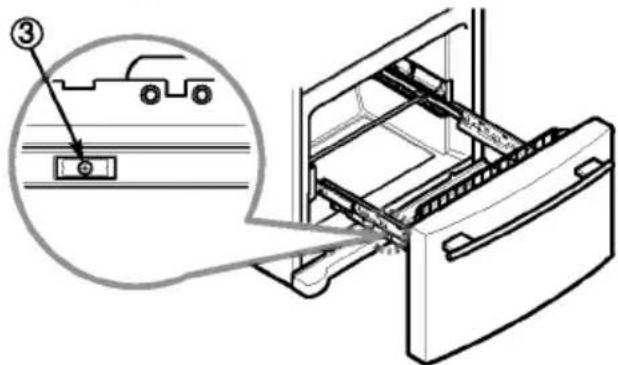

- Lower door into final position and tighten the screws (3).

Diagram showing a vehicle's door panel with an inset close-up highlighting the component, labeled with number ③.

- Make sure you have a right rail cover for each side.

Left Rail Cover Right Rail Cover

- Align the top holes of the rail cover with the top holes of the door supports to assemble the rail covers.

Technical line drawing showing a device being inserted into a rack, with an inset view of the rack structure (no text or symbols)

Assembly Hole

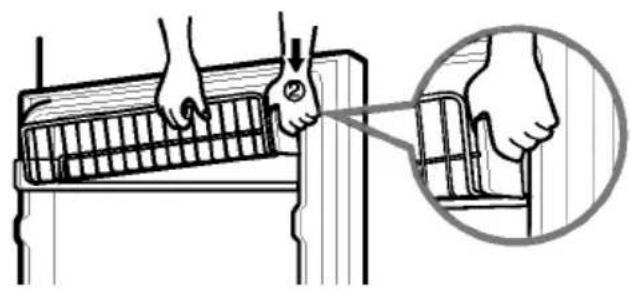

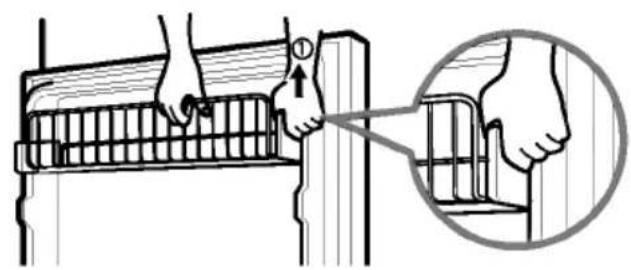

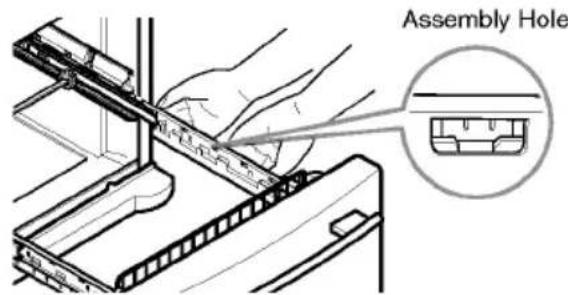

- With the drawer pulled out to full extension, insert the lower basket (4) in the rail assembly.

Technical line drawing of a printer drawer with internal components (no text or symbols)

⚠ WARNING: To prevent accidental child and pet entrapment or suffocation risk. DO NOT allow them to play inside of drawer.

⚠ WARNING: DO NOT step or sit down on freezer door.

REFRIGERATOR INSTALLATION

LEVELING AND DOOR ALIGNMENT Leveling

Your refrigerator has two front leveling screws—one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the instructions below:

1. Plug the refrigerator's power cord grounded outlet. Move the refrigerator into its final position.
2. Turn the leveling screw clockwise to raise that side of the refrigerator or counterclockwise to lower it. It may take several turns of the leveling screw to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws. This makes it easier to adjust the screws.

1. Open both doors again and check to make sure that they close easily. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both leveling screws the same amount.
2. Re-adjust if necessary.
3. Replace the base cover.

NOTE: Your new refrigerator is uniquely designed with two fresh food doors. Either door can be opened or closed independently of one another. You may have to exert slight pressure on doors to get them to close completely.

Door Alignment

If the space between your doors is uneven, follow the instructions below to align the doors:

1. With one hand, lift up the door you want to raise at middle hinge.
2. With other hand, use pliers to insert snap ring as shown.
3. Insert additional snap rings until the doors are aligned. (Three snap rings are provided with unit.)

Technical line drawing of a refrigerator with a magnified inset showing a hand holding a clip (no text or symbols)

USING YOUR REFRIGERATOR

ENSURING PROPER AIR CIRCULATION

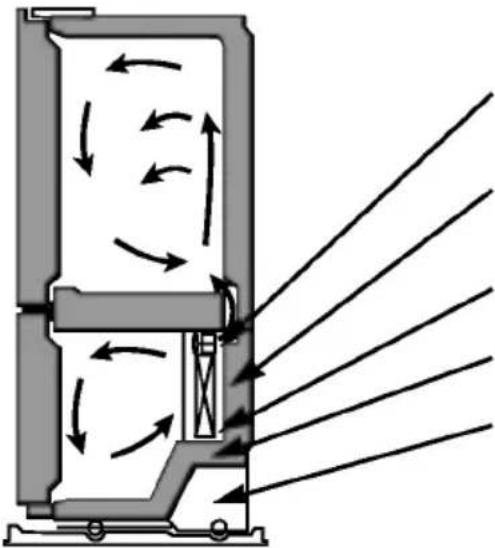

In order to ensure proper temperatures, air must flow between the refrigerator and freezer sections. As shown in the illustration below, air enters at top of freezer and circulates down. From bottom of freezer, air is forced up to top of refrigerator. Air enters refrigerator through top vent, then circulates and exists at bottom, where it returns to freezer.

MULTI-FLOW

• Multi-Flow means powerful and effective cooling operation. This is especially noticeable when new food is placed in the refrigerator compartment.
• If water or foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered because of escaping cool air.

Line drawing of an open refrigerator with airflow arrows indicating circulation or cooling system (no text or symbols)

Do not block any of cool air vents with food packages. If the vents are blocked, airflow will be interrupted and temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To prevent odor transfer and drying out of food, wrap or cover foods tightly. (See the Food Storage Guide section for details.)

SETTING THE CONTROLS

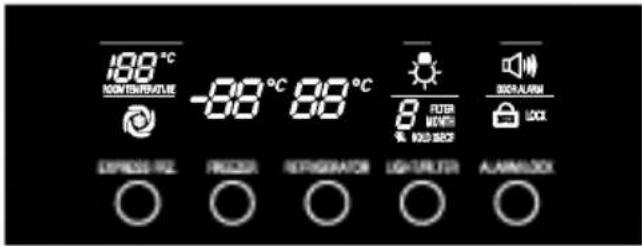

• Your refrigerator has a control pad on the dispenser that lets you regulate the temperature in the freezer and refrigerator compartments.
• Initially set the REFRIGERATOR CONTROL at 3^ and the FREEZER CONTROL at -18^ . Leave it at this setting for 24 hours (one day) to stabilize. Then adjust the compartment temperature as desired.

188 °C NOMETERATIVE -88 °C 88 °C 80% POWER METH % RED BEEF AIR/LABOUR LOCK EXPRESS FILTER FILTER REFRIGATOR LIGHT FILTER ALARM/LOCK

- Refrigerator Temp Control: 0°C to 8°C The lower the number setting, the colder the refrigerator compartment will become.

- Freezer Temp Control: -21°C to -13°C When the setting is at a lower number, the freezer compartment becomes colder. But the refrigerator compartment becomes warmer because less cold air flows into the refrigerator.

NOTE: If you want to off display, press and hold EXPRESS FRZ key and FREEZER key over 5 seconds at the same time.

NOTE: Touch display once to activate, then touch again to change the settings or activate a function. If 10 seconds has passed since the display has been touched, it will be necessary to touch "once" again to reactivate.

This is to prevent accidental display setting changes.

- Express Freezing: Press the EXPRESS FRZ button and the LED will turn on. This function will remain activated for 24 hours and increase the cooling speed of the freezer and the amount of ice produced.

- Dispenser Lock: Press and hold the LOCK button for 3 seconds to lock the dispenser. When it is locked, the LED will be off and the dispenser will not operate. To unlock, press and hold the LOCK button for 3 seconds.

- Filter Reset: When the FILTER RESET LED turns on, you have to change the water filter. Press the FILTER RESET button for 3 seconds to turn LED off. You need to change the water filter approximately every 6 months.

⚠ WARNING: If a door is open, the dispenser does not work.

USING YOUR REFRIGERATOR

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before making final adjustments. It is best to wait 24 hours before doing this. The mid-settings indicated in the previous section should be correct for normal household refrigerator usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

The refrigerator control functions as the thermostat for the entire appliance (refrigerator and freezer sections). The higher the number setting, the longer the compressor will run to keep the temperature colder. The freezer control adjusts the cold air flow from the freezer to the refrigerator. Setting the freezer control to a lower temperature keeps more cold air in the Freezer compartment to make it colder.

If you need to adjust temperatures in the refrigerator or freezer, start by adjusting the refrigerator. Then wait 24 hours before checking the freezer temperature. If it is too warm or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide. Always remember to wait at least 24 hours between adjustments.

CONDITION/ REASON:	RECOMMENDED ADJUSTMENT:
■REFRIGERATOR section too warm- Door opened often- Large amount of food added- Room temperature very warm	SetREFRIGERATOR control to next lower number, wait 24 hours, then re-check
■FREEZER section too warm/ice not made fast enough- Door opened often- Large amount of food added- Very cold room temperature (can't cycle often enough)- Heavy ice usage- Air vents blocked by items	Set FREEZER control to next lower number, wait 24 hours, then re-checkMove items out of airstream
■REFRIGERATOR section too cold- Controls not set correctly for your conditions	SetREFRIGERATOR control to next higher number, wait 24 hours, then re-check
■FREEZER section too cold- Controls not set correctly for your conditions	Set FREEZER control to next higher number, wait 24 hours, then re-check

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Items	How to
Butter or margarine	▶ Keep opened butter in a covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.
Cheese	▶ Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.
Milk	▶ Wipe milk cartons. For best storage, place milk on interior shelf, not on door shelf.
Eggs	▶ Store in original carton or Egg Box on interior shelf, not on door shelf.
Fruit	▶ Wash, let dry, and store in refrigerator in plastic bags or in the crisper. Do not wash or hull berries until you are ready to use them. Sort and keep berries in their original container in a crisper, or store in a sloosely closed paper bag on a refrigerator shelf.
Leafy vegetables	▶ Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.
Vegetables with skins (carrots, peppers)	▶ Place in plastic bags or plastic container and store in crisper.
Fish	▶ Use fresh fish and shellfish the same day purchased.
Leftovers	▶ Cover leftovers with plastic wrap or aluminum foil. Plastic containers with tight lids can also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for freezing or food storage times, check a freezer guide or a reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When you close and seal the package, it must not allow air or moisture in or out. If it does, you could have food odor and taste transfer throughout the refrigerator and also dry out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids
- Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
- Plastic-coated paper
• Non-permeable plastic wraps
- Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper freezing methods.

Do not use:

• Bread wrappers
  • Non-polyethylene plastic containers
• Containers without tight lids
  • Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap

⚠️ CAUTION: Do not keep beverage cans or plastic food containers in the freezer compartment. They may be break if it freezes.

Freezing

Your freezer will not quick-freeze any large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours. Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy.

REFRIGERATOR SECTION

WATER DISPENSER

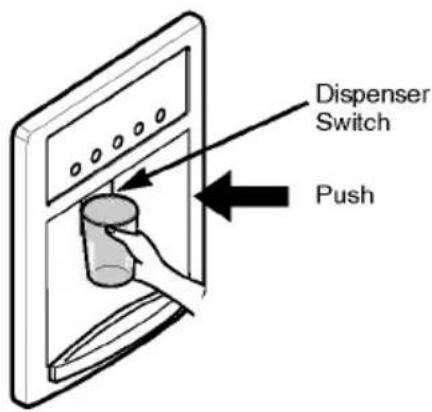

Push up the dispenser switch with a glass until you hear click to get cold water.

Dispenser Switch Push

Tray can be easily removed by pressing and pulling it.

Line drawing of a hand holding a device with a screen and buttons (no text or symbols)

Tilt up the front of tray slightly and snap the ribs into the holes to replace the tray.

Holes Ribs

USING YOUR REFRIGERATOR

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet your individual storage needs. Your model may have glass or wire shelves.

Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier; it will also reduce the amount of time the refrigerator door is open, saving energy.

IMPORTANT: Do not clean glass shelves with warm water when they are cold. Shelves may break if exposed to sudden temperature changes or impact, such as bumping. For your protection, glass shelves are made with tempered glass, which will shatter into small pebble-sized pieces.

NOTE: Glass shelves are heavy. Use special care when removing them to avoid dropping them.

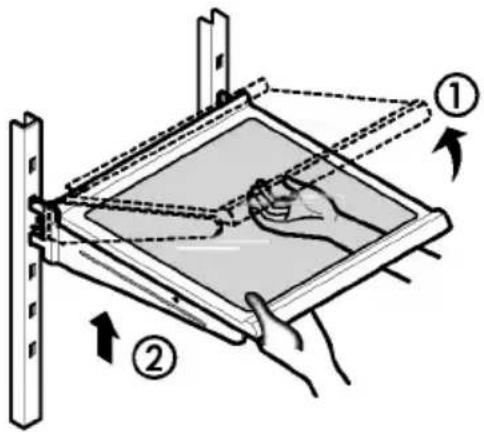

Adjusting Shelves

Remove shelves from the shipping position and replace shelves in the position you want.

- To remove a shelf—Tilt up the front of the shelf in the direction of (1) and lift it in the direction of (2). Pull the shelf out.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows indicating motion or force.

- To replace a shelf—Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired height. Then lower the front of the shelf so that the hooks drop into the slots.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating movement or force.

CAUTION: Make sure that shelves are level from one side to the other. Failure to do so may result in the shelf falling or spilling food.

Sliding Out Shelves

You can slide glass shelves in and out of your refrigerator as follows.

• To slide the shelf out, carefully pull front of shelf toward you.
• To slide shelf in, push shelf in until it stops.

Diagram of a mechanical assembly with a hand holding a tray and a black arrow indicating direction (no text or symbols)

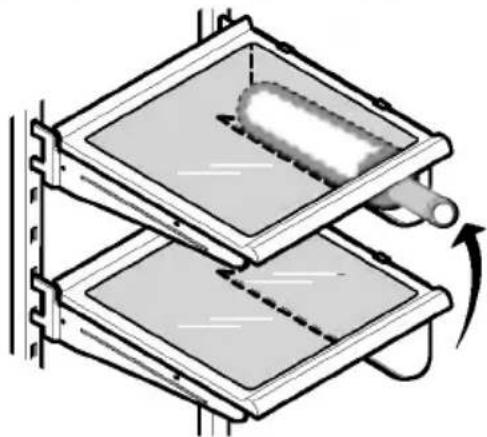

BOTTLE HOLDER (Optional)

Bottles can be stored laterally with this wine holder. It can be attached to any shelf.

Diagram of a mechanical assembly with layered plates and a rolling pin, showing motion direction (no text or symbols)

Wine holder can be removed by pulling it straight out and installed by placing it at the end of the shelf you want and pushing it inward.

Pure mechanical diagram showing a tilted rectangular frame with internal dashed lines and an arrow indicating direction (no text or symbols)

USING YOUR REFRIGERATOR

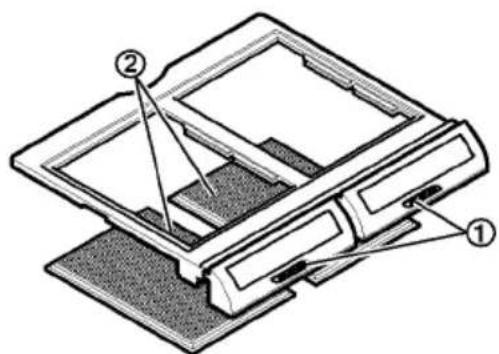

OPTIBIN CRISPERS

Technical diagram of a mechanical device with labeled parts ① and ②, showing internal components and assembly.

The Optibin Crispers provide fresher-tasting fruit and vegetables by letting you easily control humidity inside the crisper. The Optibin Crispers include: 1) a humidity control knob at the front of the crisper cover and 2) a large lattice on the inner surface of the cover to hold or release moisture.

You can control the amount of humidity in the moisture-sealed crispers. Store vegetables or fruits requiring more or less humidity in separate crispers. Adjust the control to any setting between ⏻ and ⚙.

• ⑤ lets moist air out of the crisper for best storage of fruits.
- keeps moist air in the crisper for best storage of fresh, leafy vegetables.

Optibin Crisper Humidity Control

⚠️ CAUTION: The glass shelf over the crisper is not firmly secured. Be careful when tilting.

REMOVING CRISPER

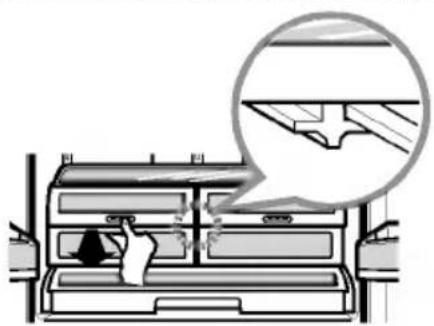

▶ Crispers without rails

1. To remove, pull drawer out to full extension.
2. Lift the front of the crisper, then pull straight out.
3. To install, slightly tilt up the front and insert drawer into frame and push back into place.

Diagram of a vehicle interior with a magnified inset showing a window detail (no text or symbols)

▶ Crispers with rails

To remove crisper:

1. Pull drawer out to full extension.
2. Lift the front of basket up and pull straight out.

Line drawing of a refrigerator drawer with drawers and drawers open, showing hand placement (no text or symbols)

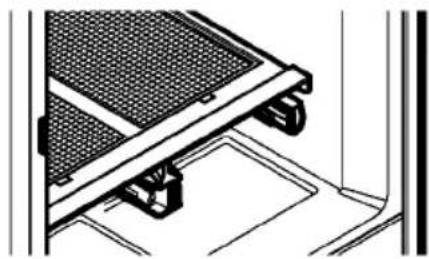

To replace crisper:

1. Push rails to the back of the compartment.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Insert the back corner of the basket into frame.

Technical illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

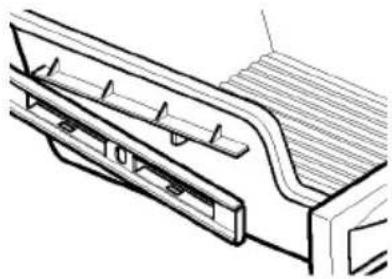

1. Slightly tilt up the front and push back until it snaps into place.

Technical line drawing of a mechanical component with no visible text or symbols

USING YOUR REFRIGERATOR

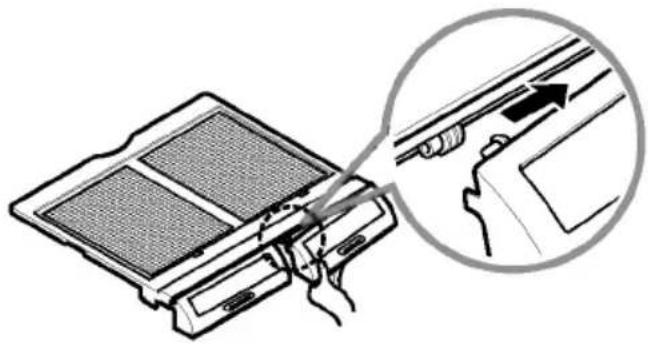

To remove crisper door flap:

1. Raise the door flap as high as it will open.
2. Press the plastic hinge toward the center of the door flap with your finger.
3. Lift the door out of its place.
4. To replace, reverse above procedure.

Diagram showing a device being inserted into a panel, with an inset close-up highlighting the component (no text or symbols present)

To remove the glass:

1. Lift up the glass after inserting a finger into a hole under the crisper cover.
2. Pull the glass up and out.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

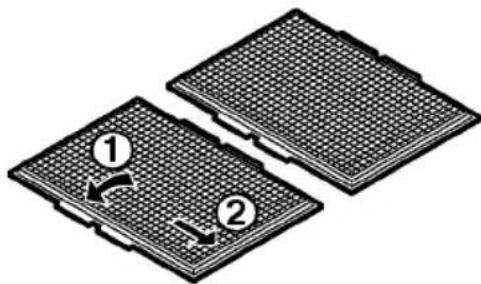

CRISPER COVER WITH LATTICE ON INNER SURFACE

To remove the lattice on inner surface:

Technical line drawing of a dual-chamber electronic device with mesh top and drive slots (no text or symbols)

1. Remove crisper cover (as illustrated above).
2. Hold the glass cover and turn the crisper cover over.
3. For each lattice hold lattice and pull sides of the cover outward to remove lattice.

Diagram showing two labeled components with directional arrows, likely illustrating a mechanical or electrical assembly.

To replace lattice on inner surface:

1. For each lattice insert middle tab in 1 (closed to glass cover) and pull sides of the cover to insert lattice.

Diagram of a device with labeled parts and magnified detail view showing structural details

USING YOUR REFRIGERATOR

GLIDE N SERVE

The Glide N Serve provides storage space with a variable temperature control that keeps the compartment colder than refrigerator temperature. The drawer also features a self-opening lid that opens whenever the drawer is pulled open.

This drawer can be used for large party trays, deli items, or beverages.

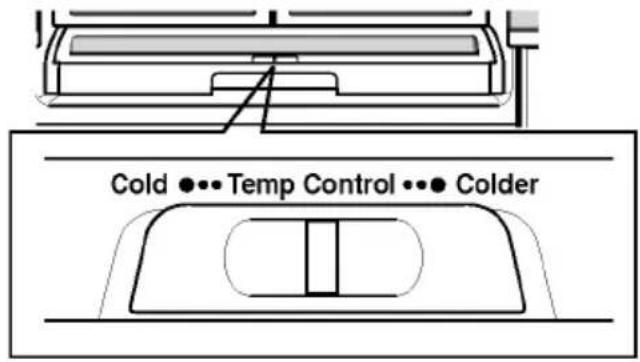

Cold ••• Temp Control ••• Colder

Controls

The control regulates the air temperature in the drawer. Set control level to cold to provide normal refrigerator temperature. Use the colder setting for meats or other deli items.

NOTE: Cold air directed to the Glide N Serve can decrease refrigerator temperature. Refrigerator control may need to be adjusted.

To remove Glide N Serve:

Tilt up the front on it's closed position and pull straight out.

Line drawing of a hand inserting a card into a box (no text or symbols)

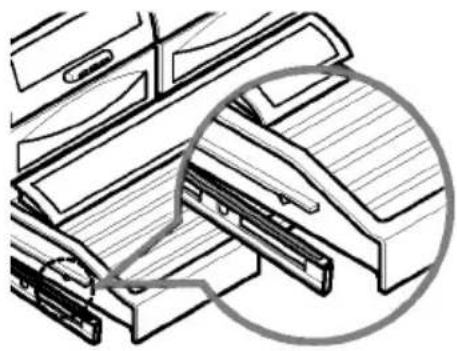

To replace Glide N Serve:

1. Push metal rails to the back of the refrigerator.
2. Place drawer onto rails and slide drawer back until it falls into place.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

NOTE: DO NOT store lettuce or other leafy produce in this drawer.

COLD

• cauliflower
• cucumbers
• zucchini
• apples
  • corn
• oranges
  • grapes

COLDER

• steaks
• hard cheeses
• cold cuts
• bacon
• hot dogs

⚠ WARNING: Fruits and vegetables may be damaged at the coldest setting.
⚠️ CAUTION: DO NOT store bottles. If they are frozen, they can be broken and cause personal injury.

MODULAR DOOR BIN

The door bins are removable for easy cleaning and adjusting.

1. To remove the bin, simply lift the bin up and pull straight out.
2. To replace the bin, slide it in above the desired support button and push down until it stops.

Illustration of two hands holding a rectangular object against a vertical wall (no text or symbols)

⚠ WARNING: Somebody can be hurt if door bins are not firmly assembled.
NOTE: DO NOT adjust a bin that is loaded with food.
⚠️ CAUTION: DO NOT allow children to play with baskets. Sharp corners on baskets could cause injury.

USING YOUR REFRIGERATOR

DAIRY BIN (Optional)

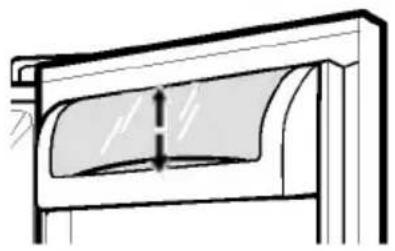

1. To remove the dairy bin, simply lift it and pull straight out.
2. To replace the dairy bin, slide it in above the desired location and push down until it stops.

Technical line drawing of a mechanical component with a highlighted section and dimension arrow (no text or symbols)

EGG BOX (Optional)

Store Egg Box on interior shelf, not on door shelf.

CAUTION: Do not use the egg box as an ice storage bin in the freezer compartment. The egg box can easily break if it freezes.

Line drawing of a rectangular container filled with eggs (no text or symbols)

FREEZER SECTION

TILTING DOOR

The tilting door provides easy access for stored foods.

How to use:

Tilt the door down and pull it out.

Line drawing of a hand cleaning a refrigerator with a cloth (no text or symbols)

⚠ WARNING: Be careful when you open tilting door so that you do not injure your foot!

ICE BIN

1. To separate the ice bin, pull out the drawer as much as possible.
2. Gently lift and pull out the ice bin.
3. To install, pull out the drawer as much as possible and set the ice bin in its correct position, then push in the drawer.

DRAWER ICE BIN

Technical line drawing of an internal appliance or drawer assembly (no text or symbols)

USING YOUR REFRIGERATOR

TILT-OUT DOOR BASKET (Optional)

To remove basket

1. Pull one of the brackets upward.
2. Remove basket from both brackets.

To replace basket

1. Insert bracket into one side. Hook end of basket into bracket.
2. Hook other basket end into other bracket. Push bracket down into place.
3. Be sure back of basket goes behind retention tab on each bracket.

Technical diagram showing hand positioning of a wooden fence with an inset magnified detail highlighting the structural detail.

Illustration of hands using a tool to adjust or install a component, with a magnified inset showing the detail (no text or symbols present)

DURABASE

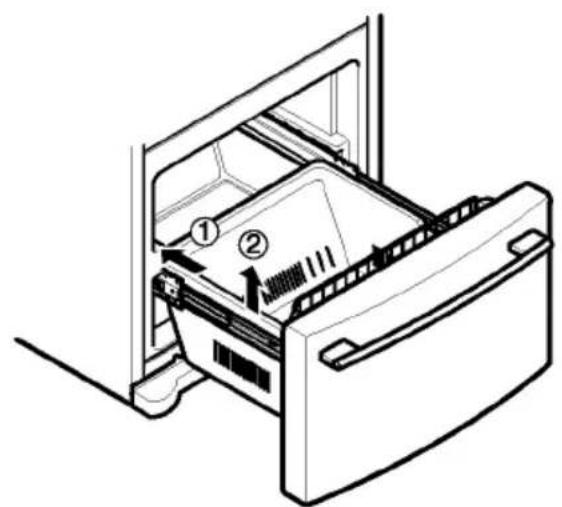

1. To remove the Durabase, push it back to the end as much as possible. Tilt up the front of the Durabase and pull straight out.
2. To install, insert the Durabase in rail assembly.

Line drawing of a refrigerator interior showing internal components and a door handle (no text or symbols)

DURABASE DIVIDER

The Durabase divider allows you to organize the Durabase area into sections.

Line drawing of a rectangular container with internal compartments and slots (no text or symbols)

1. To remove, pull divider straight up.
2. To install, hook top corners of divider over top edge of durabase.

⚠ WARNING: When the guide of the freezer drawer is removed, children may crawl inside.

PULL OUT DRAWER

To separate the drawer, push the front left and right hooks in ① direction to pull up and remove. Then gently lift the gear part of rear left and right side of the drawer and pull it out in ③ direction.

Technical diagram showing a hand inserting a component into a rack with numbered parts, likely illustrating a mechanical or electrical assembly.

To install, reposition the gear part of rear left and right side of the drawer after pulling out both rails as much as possible, and gently push down both left and right side while checking the hook on the front part.

Hook

USING YOUR REFRIGERATOR

FILTER

It displays in months the number of months left to exchange the filter from the moment power is connected to the refrigerator.

188°C -90°C 88°C 8.325 460/600 200A/100 USS DURATION/REF FRESH RETHRESHOUT SHORTLYOUT ALAWBLOOD

Pure technical line drawing of a mechanical component with no text or symbols

If you have changed the filter after 6 months of use, press and hold the FILTER button 3 seconds or more and the filter display will be initialized with a buzzing sound.

NOTE: The average life of the filter is 6 months.

1. Remove the old cartridge.

Place a container under the hole of filter holder.

Simple line drawing of a hand pouring liquid into a container (no text or symbols)

NOTE: When filter is being removed, the water drains through the hole.

Rotate the knob of the cartridge counter clockwise.

Simple line drawing of a hand pressing down on a device (no text or symbols)

Pull out the filter cartridge.

Simple line drawing of a mechanical component with two circular features and a curved base (no text or symbols)

2. Replace with a new cartridge.

Take the new cartridge out of its packaging and remove protective cover from the o-rings.

With cartridge knob in the vertical position, push the new filter cartridge into the cover until it stops.

Simple line drawing of a hand holding a device with a circular button (no text or symbols)

If you can't turn the filter from side to side, it isn't fully inserted. Push it in firmly and twist it into place. You will hear the snap when it clicks into place.

Using its handle, twist the cartridge clockwise about 1/4 turn. You will hear the snap when it clicks into place.

Simple line drawing of a hand holding a paper with a scroll, no text or symbols present

Pure technical line drawing of a mechanical component with no text or symbols

1. Flushing the Water System After Replacing Filter Dispense water through the water dispenser for 3 minutes to purge the system.

CARE AND CLEANING

WARNING

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves, crispers, etc. Refer to sections in Using Your Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust protection. Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

INSIDE WALLS (allow freezer to warm up so cloth won't stick)

To help remove odors, you can wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons baking soda to 1 quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so does it not scratch the surfaces of the refrigerator.

⚠️ CAUTION: While cleaning the inside, do not spray water.

Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

CONDENSER COILS

Remove base cover. (See the base cover section on page 6.)

Use a vacuum cleaner with an extended attachment to clean condenser coils.

Vacuum coils when dusty or dirty. Coils may need to be cleaned as often as every other month.

Replace grille base.

LIGHT BULB REPLACEMENT

WARNING

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to the OFF position does not remove power to the light circuit.

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage.

To change Refrigerator Light Bulbs

1. Unplug Refrigerator, or disconnect power at the circuit breaker.
2. If necessary, remove top shelf or shelves.
3. Using a flat instrument, gently pry the lamp cover loose in the front as shown. Rotate downward to remove rear tabs.
4. Make sure the bulbs are cool to the touch. Turn bulbs counterclockwise to remove. Insert new bulb(s).
5. Assemble in reverse order by snapping the Lamp Cover in, engaging the rear tabs followed by the front tabs.

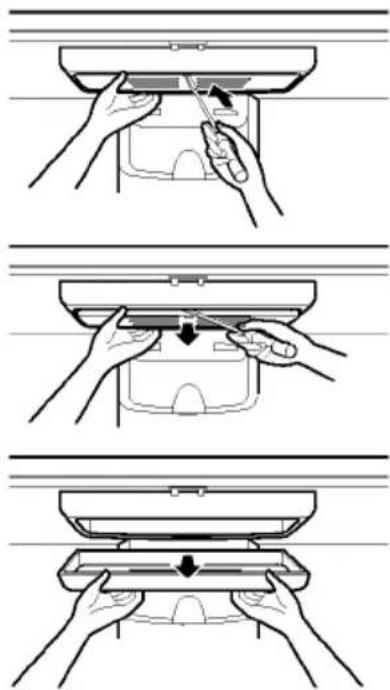

Three-step diagram showing hands using a tool to adjust or install a device in different views (no text or symbols present)

CARE AND CLEANING

To change freezer light

1. Unplug refrigerator power cord from outlet.

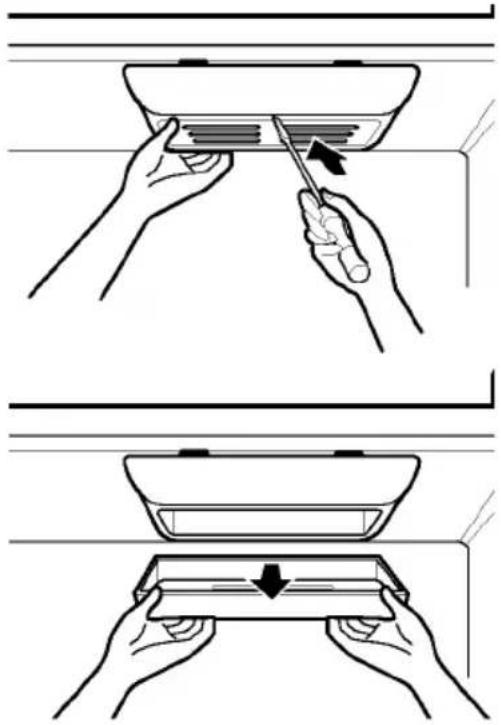

2. Using a flat instrument, gently pry the lamp cover loose in the front as shown. Rotate downward to remove the rear tabs.
3. Make sure the bulb is cool to the touch. Turn the bulb counterclockwise to remove.
4. Replace with a new 40-watt appliance bulb.
5. Insert tabs on back of cover into slots in freezer ceiling. Push cover up to snap front into place.

Three-step diagram showing hands holding a device with a screwdriver, illustrating the process (no text or symbols)

⚠️ CAUTION: DO NOT place fingers inside of cover. Lamp may be hot.

POWER INTERRUPTIONS

If the electricity goes off, call the power company and ask how long it will be off.

1. If the power will be out for 24 hours or less, keep both refrigerator doors closed to help foods stay cold and frozen.
2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen food locker.

OR

b) Place 2 lbs of dry ice in the freezer for every cubic foot of freezer space. This will keep the food frozen for two to four days. While handling dry ice, wear gloves to protect your hands from frostbite.

OR

c) If neither a food locker nor dry ice is available, consume or can perishable food at once.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you are away, follow these steps to prepare your refrigerator before you leave.

1. Use up any perishables and freeze other items.
2. Empty the ice bin.

If you choose to turn the refrigerator off before you leave, follow these steps.

1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control (refrigerator control) to OFF. See the Setting the Controls section.
3. Clean refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.
2. Depending on your model, turn the thermostat control (refrigerator control) to OFF. See the Setting the Controls section.
3. Unplug the refrigerator.
4. Clean, wipe and dry thoroughly.
5. Take out all removable parts, wrap them well and tape them together so they don't shift and rattle during the move. Refer to sections in Using your Refrigerator for removable instructions.
6. Depending on the model, raise the front of the refrigerator so it rolls more easily OR screw in the leveling legs all the way so they don't scrape the floor. See the Door Closing section.
7. Tape the doors shut and tape the power cord to the refrigerator cabinet.

When you get to your new home, put everything back and refer to the Installing Your Refrigerator section for preparation instructions.

⚠ WARNING: DO NOT get alive animals into a refrigerator.

ABOUT THE AUTOMATIC ICEMAKER

WARNING

Personal Injury Hazard

Avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. DO NOT place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take 12 to 24 hours to begin making ice.

Icemaker Automatic Shut off Arm Power Switch Cube Size Select Button Cube Size Indicator Light

The icemaker will produce eight cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.

If the refrigerator is used before the water connection is made to the icemaker, set the power switch to O (off).

When the refrigerator has been connected to the water supply, set the power switch to I (on).

The icemaker will fill with water when it cools to freezing. A newly-installed refrigerator may take 12 to 24 hours to begin making ice cubes.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become cloudy, taste stale, and shrink.

NOTE: If the cube size is smaller or larger than you expected, you can regulate the size with the cube size button.

Every time you press the cube size button, the indicator moves up on light. The higher the light position, the larger the cubes will be. Pressing at highest position returns indicator to lowest position.

WHEN YOU SHOULD SET THE ICEMAKER POWER SWITCH TO O (OFF)

• When the water supply will be shut off for several hours.
• When the ice storage bin is removed for more than a minute or two.
• When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

- The icemaker water valve will buzz as the icemaker fills with water. If the power switch is in the I (on) position, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I (on) position before the water line is connected can damage the icemaker.

- You will hear the sound of cubes dropping into the bin and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to O (off) and shut off the water supply to the refrigerator.

If the ambient temperature will drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding from ruptured water lines or connections.

CONNECTING THE WATER LINE

BEFORE YOU BEGIN

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

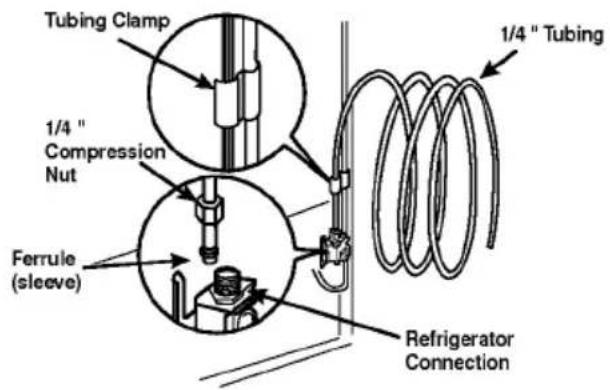

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

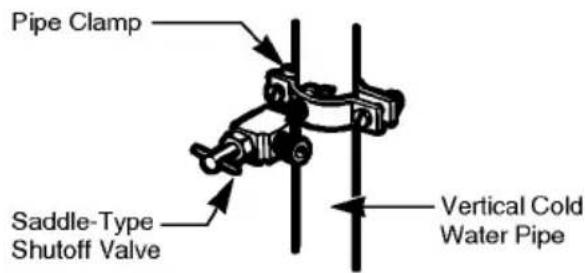

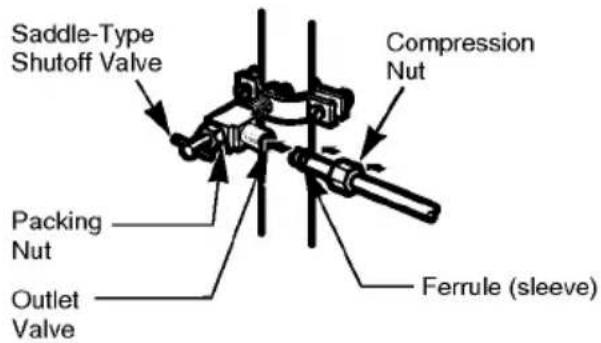

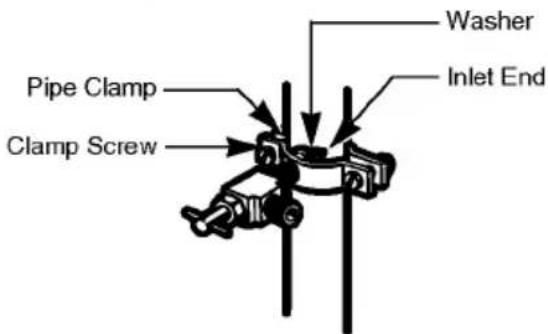

When using any electrical device (such as a power drill) during installation, be sure the device is double-insulated or grounded in a manner to prevent the hazard of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing code requirements.

NOTE: Wear eye protection.

WHAT YOU WILL NEED

• Copper Tubing, 1/4" outer diameter to connect the refrigerator to the water supply. Be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Then add 8 feet (2.4 m). Be sure there is sufficient extra tubing (about 8 feet [2.4 m] coiled into 3 turns of about 10" [25 cm] diameter) to allow the refrigerator to move out from the wall after installation.

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. on models without a water filter and between 40 and 120 p.s.i. on models with a water filter.
• Power drill.
• 1/2" or adjustable wrench.
  • Straight- and Phillips-blade screwdriver.

Line drawing of a mechanical power tool with threaded shaft and housing (no text or symbols)

- Two 1/4" outer diameter compression nuts and 2 ferrules

Line drawing of three cylindrical mechanical components with flanges (no text or symbols)

(sleeves) to connect the copper tubing to the shutoff valve and the refrigerator water valve.

- If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores)

to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting.

- Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a

Simple line drawing of a mechanical component with threaded ends and a central shaft (no text or symbols)

minimum inside diameter of 5/32" at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water pipe (even if using a self-piercing valve) using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. Failure to drill a 1/4" hole may result in reduced ice production or smaller cubes.

Simple line drawing of a tool or probe inserted into a cylindrical component (no text or symbols)

CONNECTING THE WATER LINE

INSTALLATION INSTRUCTIONS (CONTINUED)

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Pipe Clamp Saddle-Type Shutoff Valve Vertical Cold Water Pipe

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

Pipe Clamp Clamp Screw Washer Inlet End

6. ROUTE THE TUBING

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about 8 feet coiled into 3 turns of about 10" diameter) to allow the refrigerator to move out from the wall after installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

Saddle-Type Shutoff Valve Compression Nut Packing Nut Outlet Valve Ferrule (sleeve)

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear.

Shut the water off at the water valve after about one quart of water has been flushed through the tubing.

Abstract black-and-white line drawing of a flower-like shape with curved lines and a central circle (no text or symbols)

CONNECTING THE WATER LINE

9. CONNECT THE TUBING TO THE REFRIGERATOR

Removing and Replacing Valve Cover

NOTE:

- Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

1. Remove the plastic flexible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown.

3. Insert the end of the copper tubing into the connection as far as possible. While holding the tubing, tighten the fitting.

⚠️ CAUTION: Check to see if leaks occurs at water line connections.

Tubing Clamp 1/4 " Compression Nut Ferrule (sleeve) 1/4 " Tubing Refrigerator Connection

10. TURN THE WATER ON AT THE SHUTOFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

Mechanical clamp mechanism diagram showing rotational motion with no text or symbols

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the ON position. The icemaker will not begin to operate until it reaches its operating temperature of -9^ or below. It will then begin operation automatically if the icemaker power switch is in the I (on) position.

TROUBLESHOOTING GUIDE

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one didn't make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds and what may be making them.

Cross-sectional diagram of a mechanical or electrical component with directional arrows indicating flow or movement (no text or symbols)

• The defrost timer will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control, depending on the model) will also click when cycling on and off.
• Rattling noises may come from the flow of refrigerant, the water line, or items stored on top of the refrigerator.
• Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature.

The high efficiency compressor may cause your new refrigerator to run longer than your old one, and you may hear a pulsating or high-pitched sound.

• You may hear the evaporator fan motor circulating the air through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may cause a popping noise.
  • Water dripping on the defrost heater during a defrost cycle may cause a sizzling sound.
• You may hear air being forced over the condenser by the condenser fan.
• You may hear water running into the drain pan during the defrost cycle.

	Check if...	Then...
REFRIGERATOR DOES NOT OPERATE	The power supply cord is unplugged.A household fuse has blown or circuit breaker tripped.The refrigerator control is set to the OFF position.Refrigerator is in the defrost cycle.	► Firmly plug the cord into a live outlet with proper voltage.► Replace the fuse or reset the circuit breaker.► Refer to the Setting the Controls section on page 14.► Wait about 30 minutes for defrost cycle to end.
VIBRATION OR RATTLING NOISE	The refrigerator is not resting solidly on the floor.	► Floor is weak or uneven or leveling legs need adjusting.See Installation section on page 6.
LIGHTS DO NOT WORK	The power supply cord is unplugged.Light bulb is loose in the socket.Light bulb has burned out.	► Firmly plug the cord into a live outlet with proper voltage.► Turn the refrigerator control to the OFF position and unplug the refrigerator. Gently remove the bulb and reinsert. Then plug in refrigerator and reset the refrigerator control.► Replace with an appliance bulb of the same wattage, sizeand shape available at your local hardware store.(See the Changing the Light Bulb(s) section on pages 24–25.) Turn the temperature control to the OFF position and unplug the refrigerator prior to replacement.

TROUBLESHOOTING GUIDE

	Check if...	Then...
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH	The refrigerator that was replaced was an older model.The room temperature is hotter than normal.The door is opened often or a large amount of food has just been added.The refrigerator was recently plugged in and the refrigerator control was set correctly.The refrigerator control is not set correctly for the surrounding conditions.The doors are not closed completely.The condenser coils are dirty.	Modern refrigerators with more storage space require more operating time.The motor will run longer under warm conditions. At normal room temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often.Adding food and opening the door warms the refrigerator.It is normal for the refrigerator to run longer in order to cool the refrigerator back down. Adding a large amount of food warms the refrigerator. See the Food Storage Guide section on page 15. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find and close the door as soon as the food is removed.The refrigerator will take up to 24 hours to cool completely.See the Adjusting Control Settings section on page 15.Push the doors firmly shut. If they will not shut all the way, see Doors will not close completely below.This prevents air transfer and makes the motor work harder.Clean the condenser coils. Refer to the Care and Cleaning section on pages 24-25.
DOORS WILL NOT CLOSE COMPLETELY	The refrigerator is not level.Food packages are blocking the door open.The ice bin, crisper cover, pans, shelves, door bins or baskets are out of position.The gaskets are sticking.The refrigerator wobbles or seems unstable.The doors were removed during product installation and not properly replaced.	See Leveling and Door Alignment on page 13.Rearrange food containers to clear door and door shelves.Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Using Your Refrigerator section on pages 14-23.Clean gaskets and the surface that they touch. Rub a thin coat of paraffin wax on the gaskets after cleaning.Level the refrigerator. Refer to the Leveling and Door Alignment section on page 13.Remove and replace the doors according to the Removing and Replacing Refrigerator handles and doors section on pages 7-12, or call a qualified service technician.
FROST OR ICE CRYSTALS ON FROZEN FOOD	The door is not closing properly.The door is opened often.	See Doors will not close completely above.When the door is opened, warm, humid air is allowed in the freezer, resulting in frost.

TROUBLESHOOTING GUIDE

	Check if...	Then...
ICE HAS OFF-TASTE OR ODOR	The icemaker was recently installed.The ice has been stored for too long.The food has not been wrapped tightly in either compartment.The water supply contains minerals such as sulfur.The interior of refrigerator needs cleaning.Ice storage bin needs cleaning.	▸ Discard first few batches of ice to avoid discolored or off-flavored ice.▸ Throw away old ice and make new supply.▸ Rewrap foods since odors may migrate to the ice if food is not wrapped properly.▸ A filter may need to be installed (or replaced) to eliminate taste and odor problems.▸ See Care and Cleaning section on pages 24-25.▸ Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN	The refrigerator is defrosting.It is more humid than normal.	▸ The water will evaporate. It is normal for water to drip into the defrost pan.▸ Expect that the water in the defrost pan will take longer to evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE	The sounds may be normal for your refrigerator.	▸ Refer to the Understanding Sounds You May Hear section on page 30.
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY	The freezer temperature is cold enough to produce ice.Door left open.	▸ Wait 24 hours after hook-up for ice production. See the Setting the Controls section on page 14.▸ Check to see if something is holding the door open.
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL	Smaller cube size level is selected.Water shutoff valve connecting refrigerator to water line may be clogged.	▸ Select larger cube size using cube size selector.▸ Call a plumber to clear the valve.
THE DOORS ARE DIFFICULT TO OPEN	The gaskets are dirty or sticky.The door is reopened within a short time after having been opened.	▸ Clean gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.▸ When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait 5 minutes to allow the air pressure to equalize, then see if it opens more easily.

TROUBLESHOOTING GUIDE

	Check if...	Then...
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP	The air vents are blocked. Cold air circulates from the freezer to the fresh food section and back again through air vents in the wall dividing the two sections.The doors are opened often.	▸ Locate air vents by using your hand to sense airflow and move all packages that block vents and restrict airflow.Refer toMulti-Flowon page 14 for the location of air vents.▸ When the door is opened, warm humid air is allowed into the refrigerator. The more the door is opened, the faster the humidity builds up, and the more warm air the refrigerator must cool. In order to keep the refrigerator cool, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find and close the door as soon as the food is removed.
	The control is not set correctly for the surrounding conditions.	▸ Refer to theSetting the Controlssection on page 14.Wait 24 hours for temperatures to stabilize or even out. If the temperature is too cold or too warm, move the dial one number at a time.
	A large amount of food has just been added to the refrigerator or freezer.	▸ Adding food warms the refrigerator. It can take a few hours for the refrigerator to return to normal temperature.
	The food is not packaged correctly.	▸ Wrap food tightly and wipe off damp containers prior to storing in the refrigerator to avoid moisture accumulation. If necessary, repackage food according to the guidelines in theFood Storage Guidesection on page 15.
	The doors are not closing completely.	▸ SeeDoors will not close completely on page 31.
	The weather is humid.	▸ In humid weather, air carries moisture into refrigerator when doors are opened.
	A self-defrost cycle was completed.	▸ It is normal for droplets to form on the back wall after the refrigerator self-defrosts.
