USER MANUAL GR-V262SLCB LG

Please read this manual carefully before operating your set and retain it for future reference

CONTENTS

IMPORTANT SAFETY INFORMATION..... 3

INSTALLATION 9

INNER PARTS 10

OPERATION 11

Starting

Temperature Control

Ice Making

Fresh Zone

Defrosting

Deodorizer (Optional)

Vitamin Kit(Optional)

SUGGESTIONS ON FOOD STORAGE...... 14

REVERSIBLE DOOR 15

Precaution

How to reverse the door

CLEANING 17

GENERAL INFORMATION 17

LAMP REPLACEMENT 18

IMPORTANT WARNINGS.... 19

BEFORE CALLING FOR SERVICE ...... 20

LG GR-V262SLCB - BEFORE CALLING FOR SERVICE ...... 20 - 1

natural_image Cartoon illustration of a smiling rectangular box character with arms and legs, waving (no text or symbols)

IMPORTANT SAFETY INFORMATION

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

LG GR-V262SLCB - BASIC SAFETY PRECAUTIONS - 1

This is the safety alert symbol. It alerts you to safety messages that inform you of hazard can kill or hurt you or others or cause damage to the product. All safety messages will beeded by the safety alert symbol and the hazard signal word DANGER, WARNING, or TION. These words mean:

LG GR-V262SLCB - BASIC SAFETY PRECAUTIONS - 2

DANGER

You will be killed or seriously injured if you don't follow instructions.

LG GR-V262SLCB - DANGER - 1

WARNING

You will be killed or seriously injured if you don't follow instructions.

LG GR-V262SLCB - WARNING - 1

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

LG GR-V262SLCB - CAUTION - 1

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.

• The electric leakage breaker may damage food and the dispenser may be leaked.

LG GR-V262SLCB - When connecting the power - 1

natural_image Pure electrical circuit lines without any symbols

Do not allow the power plug to face upward

or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

LG GR-V262SLCB - When connecting the power - 2

natural_image Illustration of a cartoon refrigerator with a sad face and two crossed arms, connected by directional arrows (no text or symbols)

Do not allow the power cord bent or pressed

by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

LG GR-V262SLCB - When connecting the power - 3

natural_image Cartoon illustration of a refrigerator with a 'NO' sign and a seatbelt, no text or symbols present

Do not extend or modify the length of the

power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

LG GR-V262SLCB - When connecting the power - 4

natural_image Cartoon illustration of a smiling refrigerator with a 'NO' sign and a person holding a phone (no text or symbols on the refrigerator itself)

IMPORTANT SAFETY INFORMATION

1. When connecting the power

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

- It may cause electric shock or injury.

- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

LG GR-V262SLCB - When connecting the power - 1

natural_image Illustration of a smiling refrigerator with a child holding a phone (no text or symbols present)

Do not pull out the cord or touch the power plug with wet hands.

- It may cause electric shock or injury.

LG GR-V262SLCB - When connecting the power - 2

natural_image Illustration of two children cutting through a striped airplane (no text or symbols)

Remove water or dust from the power plug and insert it with the ends of the pins

securely connected.

Dust, water or unstable connection may fire or electric shock.

LG GR-V262SLCB - When connecting the power - 3

natural_image Illustration of a hand using a tool to clean or brush the cloth (no text or symbols)

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

LG GR-V262SLCB - When connecting the power - 4

text_image Ground Wire Copper Flat More than 30 inches

When the power cord or the power plug is

damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

LG GR-V262SLCB - When connecting the power - 5

2. When using the refrigerator

Do not place the heavy object or the dangerous object

(container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

LG GR-V262SLCB - When using the refrigerator - 1

natural_image Cartoon illustration of a child holding a large refrigerator with a cross-shaped object on top (no text or symbols)

Do not cling to the door or the shelves of the door or the home bar of the freezer or the

cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

LG GR-V262SLCB - When using the refrigerator - 2

text_image NO

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

LG GR-V262SLCB - When using the refrigerator - 1

natural_image Cartoon illustration of a distressed refrigerator with a 'NO' sign and a small bag, no text or symbols present.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

LG GR-V262SLCB - When using the refrigerator - 2

text_image Ethanol Thinner

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

LG GR-V262SLCB - When using the refrigerator - 3

natural_image Cartoon illustration of a smiling refrigerator with a 'NO' sign and open door (no text or symbols on the refrigerator itself)

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

LG GR-V262SLCB - When using the refrigerator - 4

Do not use the combustible spray near the refrigerator.

It may cause fire.

LG GR-V262SLCB - When using the refrigerator - 5

text_image NO

Avoid the heating devices.

It may cause fire.

LG GR-V262SLCB - When using the refrigerator - 6

natural_image Cartoon illustration of a refrigerator and a gift box, no text or symbols present

Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

LG GR-V262SLCB - When using the refrigerator - 7

natural_image Cartoon illustration of a gift box character with arms and a 'NO' sign (no text or symbols on the character itself)

Use the submerged refrigerator after checking it.

It may cause electric shock or fire.

LG GR-V262SLCB - When using the refrigerator - 8

natural_image Cartoon illustration of a smiling refrigerator with a person walking nearby (no text or symbols)

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

LG GR-V262SLCB - When using the refrigerator - 1

natural_image Cartoon illustration of a smiling refrigerator and a girl holding a book (no text or symbols)

When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center.

It may cause fire.

LG GR-V262SLCB - When using the refrigerator - 2

text_image Service center

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

LG GR-V262SLCB - When using the refrigerator - 3

natural_image Cartoon illustration of a girl running away from a book while holding a 'NO' sign, with no visible text or symbols on the book or background.

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

LG GR-V262SLCB - When using the refrigerator - 4

natural_image Cartoon illustration of a smiling rectangular character with arms and legs, standing on a cross symbol (no text or symbols present)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

LG GR-V262SLCB - When using the refrigerator - 5

natural_image Cartoon illustration of a child holding a broom while standing beside an open refrigerator (no text or symbols)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

LG GR-V262SLCB - When using the refrigerator - 6

natural_image Cartoon illustration of a smiling refrigerator character with arms and legs crossed out, no text or symbols present.

IMPORTANT SAFETY INFORMATION

2. When using the refrigerator

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.

It may cause electric shock or injury.

LG GR-V262SLCB - When using the refrigerator - 1

natural_image Illustration of a cartoon refrigerator with a child standing on the door, no text or symbols present

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

LG GR-V262SLCB - When using the refrigerator - 2

text_image Down-block office!

LG GR-V262SLCB - When using the refrigerator - 3

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the freezer with wet

hands.

It may cause frostbite

LG GR-V262SLCB - CAUTION - 1

text_image NO

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

LG GR-V262SLCB - CAUTION - 2

text_image NO After Sminutes

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

LG GR-V262SLCB - CAUTION - 3

text_image Warning symbol showing a bottle crossed out with a broken glass, indicating chemical hazard or toxicity.

Pull out the power plug not by grasping the cord but the plug of its

end.

It may cause electric shock or short circuit to fire.

LG GR-V262SLCB - CAUTION - 4

IMPORTANT SAFETY INFORMATION

LG GR-V262SLCB - IMPORTANT SAFETY INFORMATION - 1

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain

splashes.

Deterioration of insulation of electric parts may cause electric leakage.

LG GR-V262SLCB - CAUTION - 1

natural_image Cartoon illustration of a book character with a sad expression and a 'NO' sign, surrounded by a crossed ribbon (no text or symbols on the main image)

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

LG GR-V262SLCB - CAUTION - 2

natural_image Cartoon illustration of a sad book character with a distressed expression, next to a person lying on the ground (no text or symbols)

Carry the refrigerator with the handle bar at the bottom of the front and the top of the

rear.

Otherwise, your hands may be slipped to cause injury.

LG GR-V262SLCB - CAUTION - 3

natural_image Illustration of four workers in hard hats pulling a large object together (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

LG GR-V262SLCB - CAUTION - 4

text_image NO

Do not put any living animal in the refrigerator.

LG GR-V262SLCB - CAUTION - 5

text_image NO

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE, AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH IT'S PERFORMANCE AND RELIABILITY.

BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY. IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOOME USEFUL HINTS.

INSTALLATION

  1. Select a good location.
    Place your refrigerator where it is easy to use.
  2. Avoid placing the unit near heat sources, direct sunlight or moisture.
  3. To ensure proper air circulation around the fridge - freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
  4. To avoid vibrations, the unit must be level. If required, adjust the leveling screws to compensate for unevenness of the floor. The front should be slightly higher than the rear to aid in door closing. Leveling screws can be turned easily by tipping the cabinet slightly.
    Turn the leveling screws clockwise( ) to raise the unit, counterclockwise( ) to lower it.
  5. Don't install this appliance below 5^ C. It may cause the debasement of the refrigerator.

NEXT

  1. Clean your refrigerator thoroughly and wipe off all dust accumulated during shipping.
  2. Install accessories such as ice cube box, etc., in their proper places. They are packed together to prevent possible damage during shipment.
  3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
  4. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
    Check the flow of cold air in the freezer compartment to ensure proper cooling. Your refrigerator is now ready for use.

LG GR-V262SLCB - NEXT - 1

text_image FREEZER COMPARTMENT Twisting Ice Service (Optional) or General Type Ice Tray Shelf Freezer Temperature Control Knob Refrigerator COMPARTMENT Fresh Zone Refrigerator Temperature Control Micom Shelves Lamp Deodorizer (Optional) Vitamin Kit (Optional) Vegetable Drawer Used to keep fruits and vegetables, etc. fresh and crisp. Freezer Door Rack Egg Storage Rack Movable Rack Refrigerator Door Rack Leveling Screws

LG GR-V262SLCB - NEXT - 2

- This guide covers several different models. The refrigerator you have purchased may have some or all of the features shown above.

OPERATION

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

TEMPERATURE CONTROL

□ REFRIGERATOR
LG GR-V262SLCB - TEMPERATURE CONTROL - 1

text_image REF. TEMP. CONTROL MIN MAX

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

You can set the refrigerator temperature using the Refrigerator Temperature Control.

Whenever pressing the button, LED emitting the light.

The temperature of the compartment is getting colder as the LED luminence from MIN to MAX.

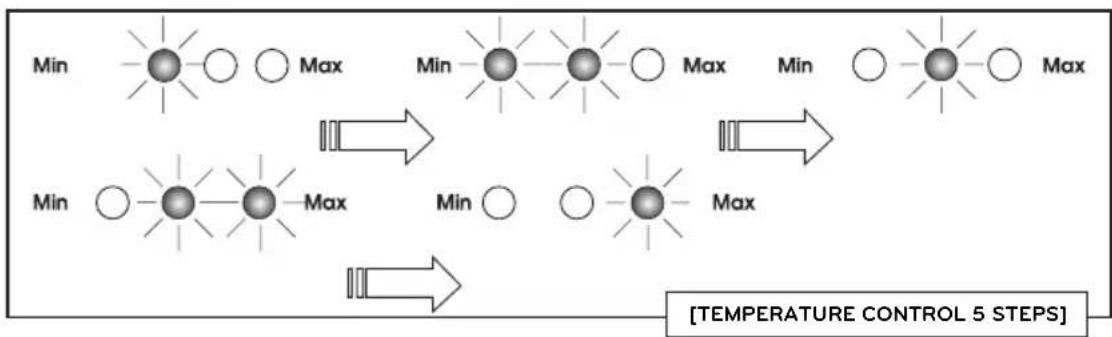

You can select the desired set point in five (5) steps between minimum and maximum.

For the economic electricity, set the LED to the MIN position.

LG GR-V262SLCB - TEMPERATURE CONTROL - 2

FREEZER

LG GR-V262SLCB - TEMPERATURE CONTROL - 3

text_image TEMP.CONTROL MIN MID MAX

The default setting of the temperature control knob for the freezer compartment is the MID point.

For colder temperatures, adjust the control knob to MAX, and for warmer temperatures, adjust the control knob to MIN position.

OPERATION

ICE MAKING

Determine which type ice-making system you have.

General Type

  • To make ice cubes, fill the ice tray with water and place it on the ice cube box. Then insert the ice cube box in the freezer compartment.
  • To remove ice cubes, hold the tray at its ends and twist gently.

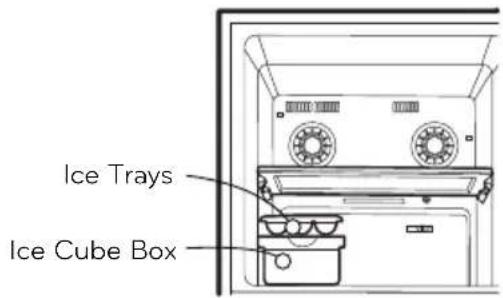

Twisting Ice Serve Type

  • To make ice cubes, fill the ice tray with water and insert in its position.
  • To remove ice cubes, hold the knob of the tray and turn gently. Then, ice cubes drop in the ice cube box.
  • You can remove the Twisting Ice Serve to make the freezer compartment larger.
  • You should remove the ice Trays and Ice Cube Box first, then pull the frame out toward the right side.

LG GR-V262SLCB - Twisting Ice Serve Type - 1

text_image Ice Trays Ice Cube Box

LG GR-V262SLCB - Twisting Ice Serve Type - 2

natural_image Illustration of hands holding a grid-patterned device with an arrow indicating rotation (no text or symbols)

LG GR-V262SLCB - Twisting Ice Serve Type - 3

natural_image Illustration of a mechanical device with a lever and base plate (no text or symbols)

LG GR-V262SLCB - Twisting Ice Serve Type - 4

text_image Ice Trays Ice Cube Box

LG GR-V262SLCB - Twisting Ice Serve Type - 5

text_image Frame

OPERATION

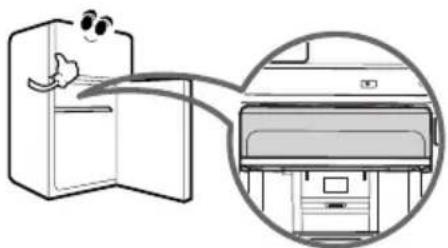

FRESH ZONE

When the door is opened, the warmer air doesn't influence the fresh meat. You can keep food fresher in it.

LG GR-V262SLCB - FRESH ZONE - 1

natural_image Illustration of a refrigerator with a cartoon character pointing at it, alongside an inset showing its exterior view (no text or symbols present)

DEFROSTING

  • Defrosting takes place automatically.
  • The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.

DEODORIZER (OPTIONAL)

  • By using a catalyst, deodorizing performance is guaranteed.
  • Unpleasant odor of food in the fresh food compartment is deodorized with no harm to you and the food.

How to use

  • As the catalyst is located in cooling air outlet for circulating air in fresh food compartment, there is no need to touch it.
  • Do not puncture the cooling air outlet with a sharp tip because the deodorizing catalyst may be damaged.
  • When storing food with a strong odor, wrap it or store it in a container with a lid because the odor may be absorbed by other foods.

LG GR-V262SLCB - How to use - 1

text_image Catalyst

LG GR-V262SLCB - How to use - 2

natural_image Cartoon illustration of a refrigerator with steam rising and falling, showing flames inside (no text or symbols)

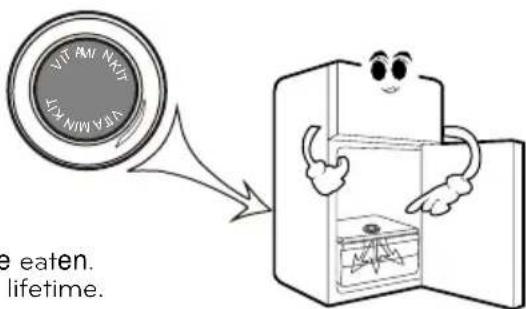

VITAMIN KIT (OPTIONAL)

It contains anti-oxydant that is able to avoid oxidation process in order to make the fruits and vegetables fresh for longer time.

LG GR-V262SLCB - VITAMIN KIT (OPTIONAL) - 1

text_image VIT AM NIVT VIT MIN KIN e eaten. lifetime.

This parts contains anti-oxydant substance that should not be eaten. Opening and closing the door too much often can reduce its lifetime.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

  • Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
  • Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
  • Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food, and lead to higher electric bills!
  • When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
  • Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
  • Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.

FREEZER COMPARTMENT

  • Do not store bottles in the freezer compartment - they may break when frozen.
  • Do not refreeze food that has been thawed. This causes loss of taste and nutrition.
  • When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
  • It is recommended to load food at least 15mm against freezer wall, it will keep good air circulation in the freezer compartment.

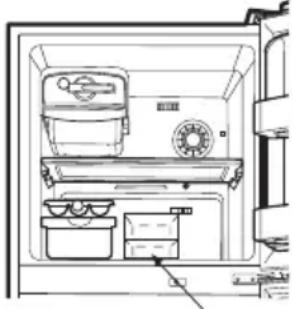

  • Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing:

LG GR-V262SLCB - FREEZER COMPARTMENT - 1

natural_image Line drawing of a refrigerator interior showing front, side, and top views (no text or symbols)

Newly Introduced Food

- Freezer Door Basket, marked ( ^** ) is -12^ compartment, that is suitable for short term storage of frozen food (optional).

REFRIGERATOR COMPARTMENT

  • Avoid placing moist food on deep interior refrigerator shelves, it could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.
  • Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean, to prevent adjacent food from spoiling.
  • When storing eggs in their storage rack, ensure that they are fresh, and always store them in a up-right position, which keeps them fresh longer.

REVERSIBLE DOOR

- Converting Door is Optional

PRECAUTION

  1. The door can be reversed if required by location or user preference.
  2. Before reversing the door, remove all foods and accessories (shelves, trays, bins, etc.) Which are not attached to the refrigerator.
  3. Use a phillips driver, bolt driver, torque wrench, or spanner to remove or attach the bolt.
  4. Be careful not to drop the refrigerator when assembling or disassembleing the lower hinge and the adjustable screw assembly.
  5. Be careful not to drop the doors when removing or replacing them.

  6. Don't lay the refrigerator down while working on it, as this will cause a malfunction and damage.

LG GR-V262SLCB - PRECAUTION - 1

natural_image Cartoon illustration of a person cleaning a refrigerator with a magnifying glass (no text or symbols)

HOW TO REVERSE THE DOOR

(when converting from the left-opening type to right opening type)

1 Remove the cap ① and upper hinge ②
LG GR-V262SLCB - HOW TO REVERSE THE DOOR - 1

text_image Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating movement or assembly.

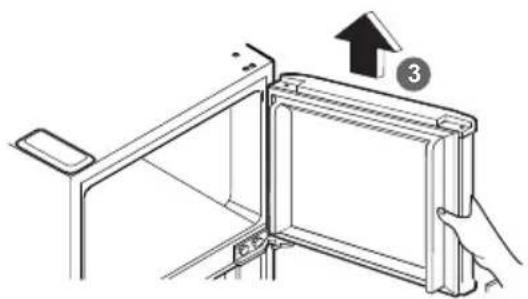

2 Remove the Freezer Door ③

LG GR-V262SLCB - HOW TO REVERSE THE DOOR - 2

text_image Technical diagram showing a mechanical assembly with labeled component 3 and an upward arrow indicating direction.

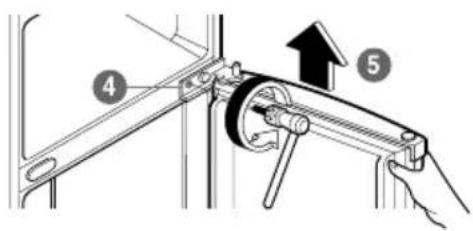

3 Remove the center hinge ④ and the Refrigerator Door ⑤
LG GR-V262SLCB - HOW TO REVERSE THE DOOR - 3

text_image Technical diagram showing a mechanical assembly with numbered components and an upward arrow indicating motion or force.

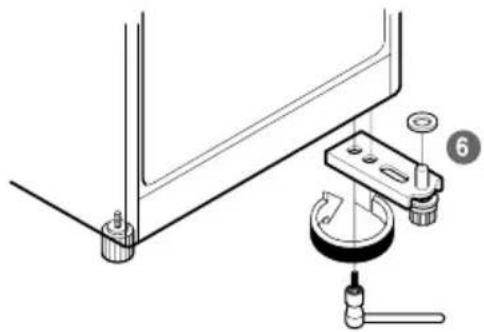

4 Remove the lower hinge ⑥
LG GR-V262SLCB - HOW TO REVERSE THE DOOR - 4

natural_image Technical diagram of a mechanical assembly with labeled parts (no text or symbols present)

REVERSIBLE DOOR

5 Reverse the position of the adjustable screw assembly ⑦

LG GR-V262SLCB - REVERSIBLE DOOR - 1

natural_image Mechanical assembly diagram showing a lever and two circular components with dashed arrows indicating motion (no text or symbols)

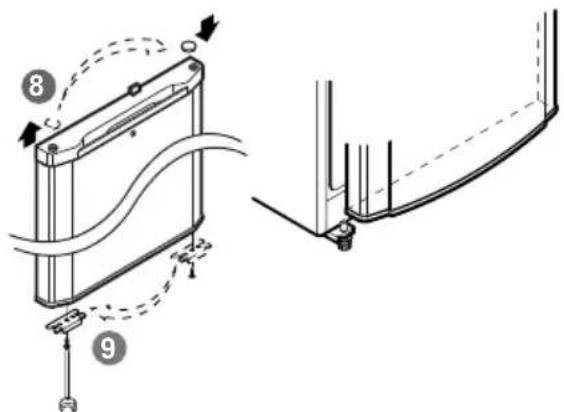

7 Move the cap and bracket to the opposite side of the refrigerator door

LG GR-V262SLCB - REVERSIBLE DOOR - 2

text_image Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or force

9 Assemble the door stopper for the correct side

LG GR-V262SLCB - REVERSIBLE DOOR - 3

text_image act side ③ ⑪

11 Reverse the pin position of the upper hinge

LG GR-V262SLCB - REVERSIBLE DOOR - 4

text_image 13

6 Assemble the lower hinge ⑥

LG GR-V262SLCB - REVERSIBLE DOOR - 5

natural_image Technical diagram of a mechanical assembly with labeled parts (no text or symbols present)

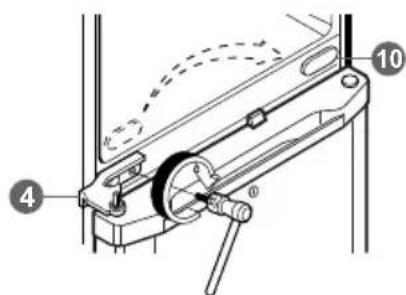

8 Move the cap to the opposite side and assemble the center hinge.

LG GR-V262SLCB - REVERSIBLE DOOR - 6

text_image Technical diagram of a mechanical clamp or bracket assembly with numbered parts and dashed lines indicating motion or movement.

10 Move the cap to the opposite side of the freezer door

LG GR-V262SLCB - REVERSIBLE DOOR - 7

text_image freezer door 12 3 5

12 Assemble the upper hinge and replace the cap

LG GR-V262SLCB - REVERSIBLE DOOR - 8

text_image Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or assembly steps.

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners, or strong alkaline solutions on any surface.

Before you clean, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. If you have the No Frost model which defrosts automatically, leave both doors open during the entire cleaning process.

Disconnect the power supply, and remove food and all compartment shelves, storage trays etc.

Wash all compartments with a baking soda solution. Rinse and dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays, and magnetic door seals etc. with the baking soda solution or a mild detergent and warm water. Rinse and dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing a electric shock. Do not use flammable or toxic cleaning liquids.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

DRY ICE WARNING

When using dry ice, provide adequate ventilation. Dry ice is frozen carbon dioxide (CO ^2 ).

When it vaporizes, it can displace oxygen, causing dizziness, light-headedness, unconsciousness, and death by suffocation.

Open a window and do not breathe the vapors.

IF YOU MOVE

If you move, empty the refrigerator (freezer) completely and wash a mild solution of baking soda and water. (2 TBS soda to 1 quart water) Be sure the soda is completely dissolved to avoid scratching the inside of the refrigerator (freezer). Secure any loose items, such as racks, bins, ice trays, etc. Do not try to move a loaded refrigerator.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent sweating on the outer cabinet wall.

Anti-CondensationPipe
LG GR-V262SLCB - ANTI-CONDENSATION PIPE - 1

LAMP REPLACEMENT

  1. Unplug the power cord from the outlet.
  2. Remove refrigerator shelves.
  3. To remove the lamp cover, insert a slotted driver at the one of under hole of the lamp cover and pull it out forwards.
  4. Turn the lamp counterclockwise.
  5. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.

LG GR-V262SLCB - LAMP REPLACEMENT - 1

natural_image Illustration of hands using a screwdriver to press a computer monitor with a downward arrow (no text or symbols)

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

Use this appliance on a dedicated circuit; that is, an outlet that is the only outlet on the circuit.

Overloading a circuit causes low voltage, malfunction, possible damage to the equipment, and poor cooling capacity.

Check your local electric code or consult a qualified electrician if you have questions.

ACCESSIBILITY SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection if an accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or replacement or a similarly qualified person in order to avoid a hazard.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

ABOUT GROUNDING (EARTHING)

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH

It will cause electric shock or fire.

LG GR-V262SLCB - DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH - 1

text_image Safety warning illustration showing a hand holding a 'no' symbol above a refrigerator with a plug and plug plug emerging from the door.

This appliance must be grounded (earthed).

DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives, or chemicals in the refrigerator.

WARNING

This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

DISPOSAL OF THE OLD APPLIANCE

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEMPOSSIBLECAUSES
REFRIGERATOR DOES NOT OPERATEHas a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARMTemperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed behind the refrigerator.
REFRIGERATOR HAS ODORFoods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACENot unusual during periods of high humidity.Door may have been left ajar.

LG GR-V262SLCB - SERVICE CALLS CAN OFTEN BE AVOIDED! - 1

LG

Life's Good

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : LG

Model : GR-V262SLCB

Category : Fridge
