CV-BB86 - Freezer Infiniton - Free user manual and instructions

Product Type	Chest Freezer
Brand	Infiniton
Model	CV-BB86
Gross Capacity	100 L
Freezing Capacity	10 kg/24h
Energy Class	F
Annual Energy Consumption	180 kWh
Climate Class	N-ST
Noise Level	42 dB
Temperature Range	-24°C to -18°C
Defrost Type	Manual
Control Type	Mechanical Thermostat
Refrigerant	R600a
Dimensions (H x W x D)	850 x 550 x 600 mm
Weight	30 kg
Power Supply	220-240 V, 50 Hz
Door Reversible	Yes
Interior Light	No
Lock	No
Wheels	No
Maintenance	Clean condenser coil yearly with vacuum
Spare Parts Available	Door gasket, thermostat, temperature control knob
User Manual	Downloadable PDF in multiple languages

Frequently Asked Questions - CV-BB86 Infiniton

How do I set the temperature on my Infiniton CV-BB86 freezer?

Rotate the mechanical thermostat dial inside the freezer. Typically, a higher number means colder. Start at a medium setting (e.g., 3-4) and adjust as needed.

How do I defrost the freezer?

Unplug the freezer, remove all food, and leave the door open to let ice melt naturally. Do not use sharp objects to scrape ice. Place towels to absorb water. Once defrosted, dry the interior and restart.

What does energy class F mean?

Energy class F indicates low energy efficiency on the EU scale (A to G). It consumes more electricity than higher-rated models. Annual consumption is about 180 kWh.

Can I install the freezer in a garage?

Yes, as long as the ambient temperature stays within the climate class N-ST range (+16°C to +38°C). Avoid extreme cold as it may affect performance.

What types of food can I store?

You can store frozen food, meat, fish, vegetables, and ice cream. The freezer is not designed for quick freezing of large amounts; freeze fresh food in smaller batches.

How do I clean the freezer?

Unplug the freezer, remove all food, and wipe the interior with a mild detergent solution. Rinse with clean water and dry thoroughly. Avoid abrasive cleaners.

Why isn't my freezer freezing properly?

Check if the thermostat is set correctly, the door is sealing properly, and the condenser coil is clean. Also ensure the freezer is not overloaded and has proper ventilation.

How do I reverse the door?

The door is reversible. Refer to the manual: unscrew the hinge brackets, swap the door handle to the opposite side, and reattach the hinges. The manual includes step-by-step instructions.

Where can I download the user manual?

Visit notice-facile.com and search for 'Infiniton CV-BB86'. You can download the PDF manual in English, Spanish, Portuguese, and other languages.

What refrigerant is used and is it environmentally friendly?

The freezer uses R600a (isobutane), a natural refrigerant with low global warming potential. It is flammable, so handle with care during maintenance and disposal.

USER MANUAL CV-BB86 Infiniton

Abstract spiral pattern with concentric circles and a curved extension (no text or symbols)

Technical line drawing of a two-cabinet refrigerator with an 90-degree angle indicator (no text or symbols present)

Technical diagram showing installation of screw fasteners on a structural frame with red arrows indicating assembly or inspection points.

Diagram showing two identical stand models above a horizontal beam, with red arrows indicating direction of motion or force.

46mm A 20mm

Technical line drawing of a mechanical or electrical component with two circular holes and directional arrows indicating movement (no text or symbols)

20mm 46mm A

Line drawing of a cabinet with open door and side compartments (no text or symbols)

Diagram showing a structural change before and after assembly, with arrows indicating direction of movement (no text or symbols present)

QR code image containing encoded data, no visible human-readable text

Thank you for choosing this Infiniton appliance.

Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future reference.

Safety Instructions 3-4
Electrical Safety 4
Transportation & Handling 5
Installing & Switching on your Appliance 5
Before Switching On 6
Product Overview 7
Unit & Spare Parts 7
Usage 8-9
Temperature Selection 8-9
Installation 10-17
Door Reversal 18-20
Energy Saving Advice 21
Defrosting The Freezer 21
Maintenance & Cleaning 22
Internal Cleaning 22
External Cleaning 22
When the appliance is not in Use 22
Trouble Shooting 23-24
Connection to the Mains Supply 25
Technical Specification 26
Guarantee 27

Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

• This model uses natural refrigerant gas as part of its cooling system. This gas is known as R600a (Isobutene) and is environmentally friendly but can be combustible. Care should therefore be taken when handling or transporting the product to ensure that none of the refrigeration circuit components are damaged,
• Do not obstruct ventilation openings in the appliance
• The appliance must not be placed or rested on its power cord.
• Do not use mechanical devices or other artificial means to accelerate the defrosting process, such as a heater or a hair dryer.
• Do not use electrical appliances in the refrigerator compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock, the lock must be removed as a safety measure before storing it or disposing of it. This is to protect children from locking themselves inside the appliance.
• Old refrigerators and freezers contain insulation gases and refrigerant, they must be disposed of properly. Contact your local authority or your dealer if you have any questions. Please ensure that you do not damage the scrap unit prior to being picked-up by the relevant waste disposal service.
• Do not use adaptors or extension leads when connecting the appliance to the electrical power supply
• Do not plug in damaged plugs
• Do not pull, twist or damage the power cable.

• Do not plug-in or un-plug the appliance with wet hands to prevent electrical shock.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance.

• This appliance is designed to be used by adults, do not allow children to play with the appliance or let them hang over the door.
• Do not place explosive or flammable material in your appliance for your own safety.
• Bottles containing a high percentage of alcohol must be sealed well and placed vertically in the refrigerator.
• Do not cover the body or the top of the appliance
• Fix down the accessories in the appliance during transportation to prevent damage to them.

Electrical Safety

THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET

• Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 220 – 240V AC; 50Hz. Connection to any other power source may damage the unit.
• This product may be fitted with a non re-wireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.

- If the plug has to be changed because it is not suitable for your socket, or becomes damaged in any way, it should be cut off and an appropriate plug fitted following the wiring instructions. This should be carried out by a qualified electrician. The plug removed must be disposed of safely, as insertion into a 13 Amp socket is likely to cause an electrical hazard.

Transportation and Handling

For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly backwards and push backwards.

This unit is heavy and could cause injury – ensure there are adequate people present to move the appliance.

Installing and Switching on Your Appliance

• Operating voltage for your appliance is 220-240V at 50Hz.
• Before plugging in the power supply, ensure that the voltage on the rating label corresponds to the working voltage of your electrical system in your home.
• Insert the plug into an efficient Ground (Earth) connection. If the socket has no Ground (Earth) contact or the plug does not match, we suggest you call an authorised electrician for assistance.
• Place your appliance in an area that is not exposed to direct sunlight.
• Your appliance should be placed at least 10cm away from stoves, ovens and other heating cores.
  • This appliance should never be used outdoors or left in the rain.
• When your appliance is placed next to a chest freezer or freezer, there should be at least 10cms between them to prevent humidity on the outersurface.
• The appliance must be used in the vertical position and on a flat surface.
  • To level the appliance, use the adjustable feet at the front of the appliance.
• Do not place your appliance on a carpeted surface as this will prevent adequate ventilation.
• Keep ventilation openings in the appliance enclosure or in the built in structure clear of obstruction
  • This appliance should only be placed on a flat, firm surface.
• It is recommended the appliance is installed by a qualified kitchen fitter or joiner.
• Choose a dry and well-ventilated space.
• The appliance should be positioned so that the plug is easily accessible.

Before Switching On

• Before using your appliance, add a teaspoon of bicarbonate of soda to warm water and with a damp cloth wipe down all parts of the new appliance, then repeat the process with a clean damp cloth and dry. (ensure the appliance is not connected to the power when performing this task).
• Remove all transport tapes and foam protection pieces. Clean the interior with a cloth dampened in lukewarm soap and water. Wipe with clean water and wipe dry.
• There may be an odour when you first switch on the appliance, it will disappear when the appliance starts to cool.
• When the appliance has been positioned, adjust the feet to ensure the unit is stable. This is essential to ensure quiet running and proper door opening /closing.
• Connect to the electrical socket but do not switch the power to the refrigerator on for at least 3 hours. The coolant within the product needs time to settle after it has been transported and put in to position, failure to do this will affect the cooling performance of your appliance.
• Once the appliance has settled locate the thermostat dial on the product and set to "5" and switch on the power. The compressor will begin to work. Close the door.
  • We recommend that the door is not opened for a minimum of 4 hours to allow the appliance to reach the standard operating temperature.
• You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the cooling system and through the coils or tubing at the rear of the appliance. When the compressor is in operation you may hear a slight whirring sound or pulsating noise. The thermostat controls the operation of the compressor, and you may hear a slight click as it cycles in and out (this is normal).
• To save energy, you should minimize the frequency and duration of door opening.

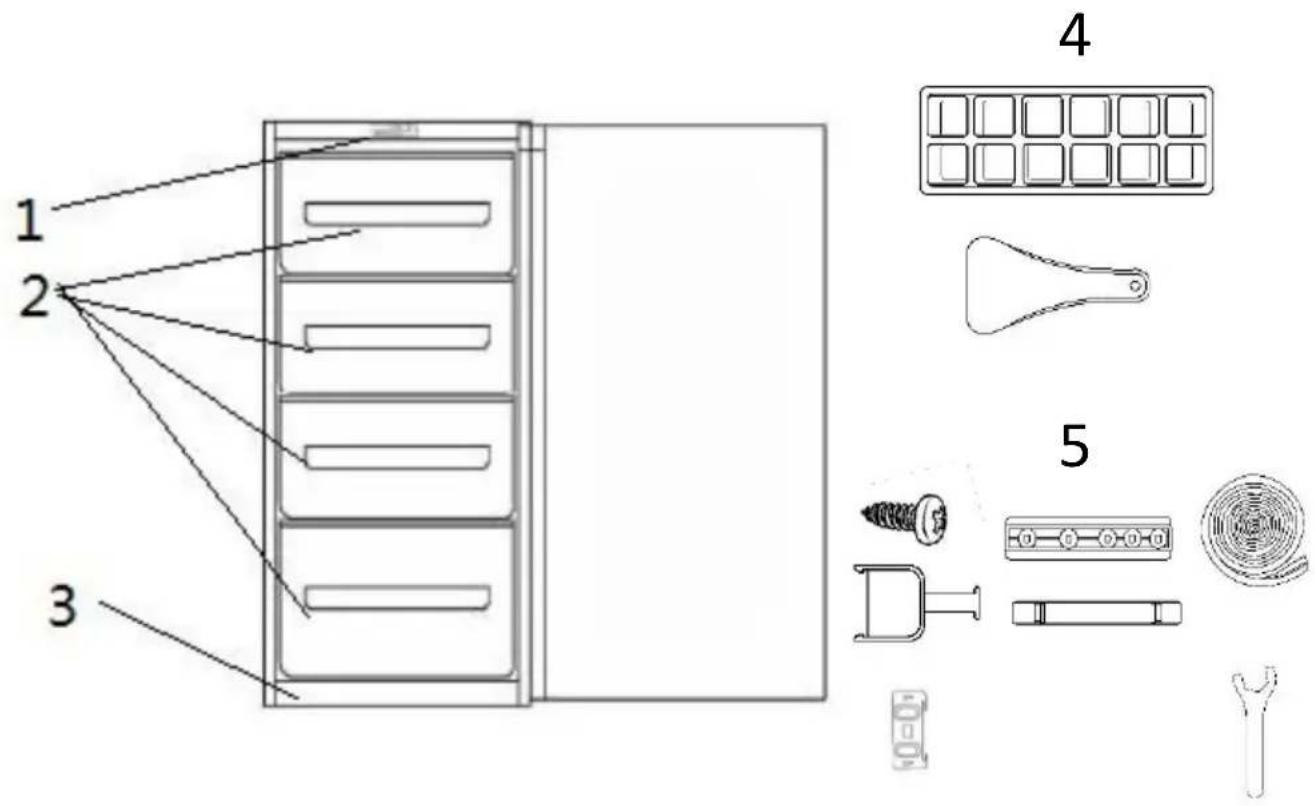

Product Overview

1 2 3 4 5

1. Thermostat
2. Drawers
3. Feet (adjustable feet at the front)
4. 1 x ice cube tray, 1 x ice scraper
5. Installation accessories

Unit Parts & Spare Parts

Before installation, check that all parts detailed in the product overview are present.

Usage

We advise that you allow your freezer to stand for a minimum of 3 hours before plugging it into the mains.

The temperature in the appliance is controlled by the temperature control dial or thermostat located inside the freezer. Rotate the control dial left or right to regulate the temperature inside the freezer.

On the temperature control, 1 is the warmest setting and 7 is the coldest setting.

2 1 3 0FF 4 5 6 7

Depending on the ambient temperature of the room the appliance is situated in, you may need to adjust the temperature control dial; in a room with a high ambient temperature the temperature control dial may need to be adjusted to a colder setting (moved towards setting 6) or in a room with a low ambient temperature the temperature control dial may need to be adjusted to a warmer setting (moved towards settings 5 or 4).

Setting 6 should be used as a rapid cool/freeze setting and should only be set 2 hours before a large amount of food is placed in the freezer. The temperature control should be put back to setting 5 after the food has been placed in the freezer, if this is not done the temperature in the freezer compartment could fall below -18°C as the compressor will run continuously.

Once the temperature control has been set, close the door and plug in the appliance. We recommend that the door is not opened for a minimum of 4 hours to allow the appliance to reach the standard operating temperature.

Usage

Allow to stand for a minimum of 3 hours before plugging it into themains.

Note: The standard operating temperature for the freezer compartment should be between -18^ and -25^ .

Note: The temperature of the frozen stored food and how often the door is opened affects the temperature in the freezer compartment. If required, change the temperature setting.

- This appliance can be installed as a built in unit only. The clearances shown in the below drawing must be followed.

- Avoid damaging the product during installation, positioning of the appliance requires two people in order to avoid injuries or damage to the appliance.

- Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes of temperature (e.g. next to a radiator or boiler). If this is not feasible, then you should install an insulation plate between the appliance and the adjacent heat source.

- You should check whether there is an electrical socket available, which will be accessible after your appliance is installed.

- Place the appliance flatly and firmly on a solid base.

- Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or personal injury

- The aperture size has to be a minimum of (H)877 x (W)560 x (D)550mm. The cabinet in which the appliance is housed in must have a ventilation recess of (W)540 x (D)50mm.

- The wooden cabinet the appliance is to be housed in must not be enclosed. The back wooden panel of the cabinet must either be removed completely or cut out in accordance with the diagram on page 12. This is to allow sufficient air circulation to cool down the condenser unit for energy efficiency.

- The accessories that are required for installation are detailed below:

12 x Torx screws

2 x Foot blanking covers

Pure mechanical part outline without any text, numbers, or symbols

2 x Door guide

2 x Door guide cover

2 x Door guide holder (pre-assembled on the door)

1 x Joint cover

Abstract spiral pattern with concentric circular lines, no text or symbols present

The aperture size has to be a minimum of (H)877 x (W)560 x (D)550mm. The cabinet in which the appliance is housed in must have a ventilation recess of (W)540 x (D)50mm.

550 min. 200cm² 560 min. 50 540 540 875 877-884 max. 2100 min. 200cm²

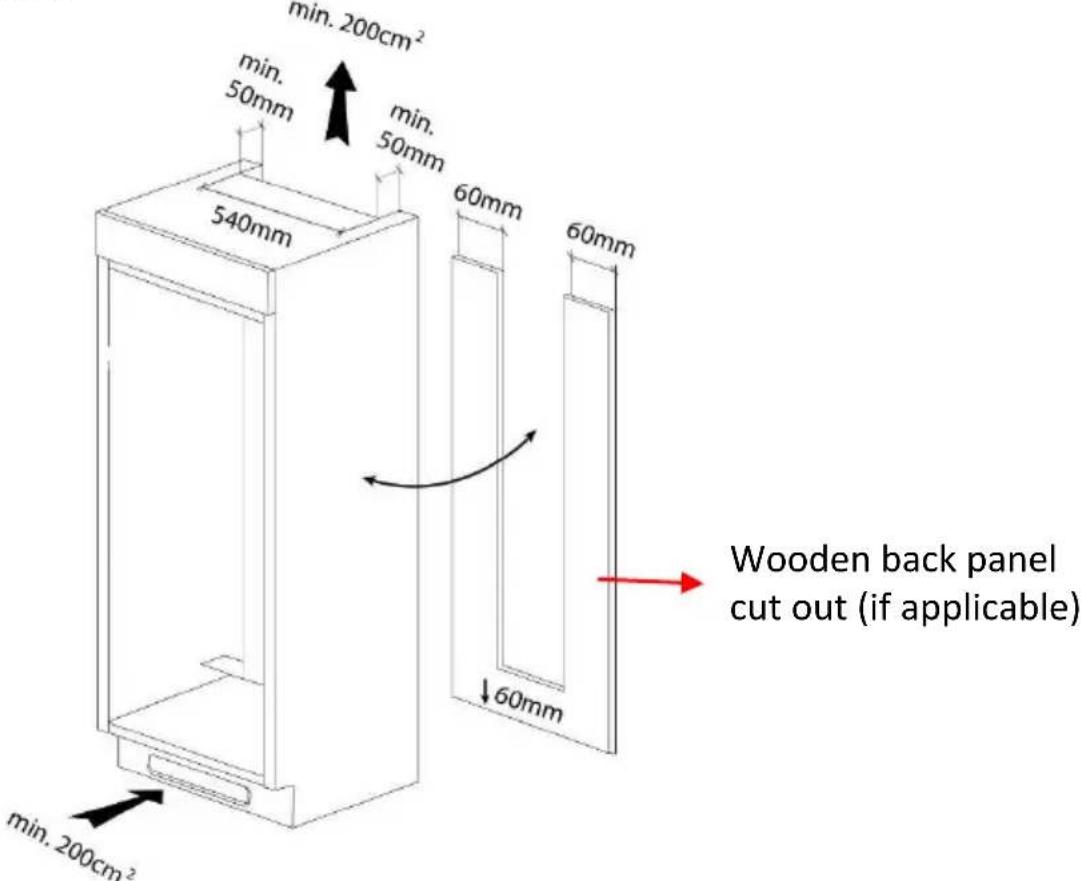

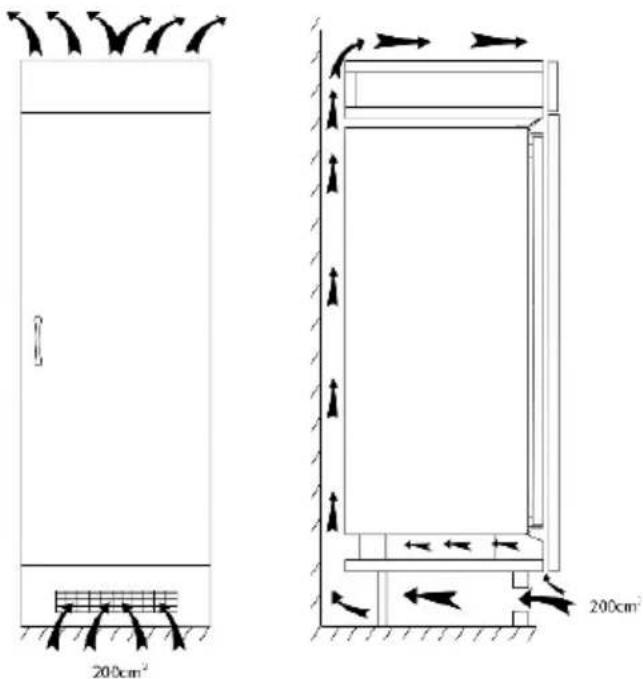

The cabinet in which the appliance is housed in must have a ventilation recess of (W)540 x (D)50mm.

min. 200cm² min. 50mm 540mm min. 50mm 60mm 60mm 60mm Wooden back panel cut out (if applicable) min. 200cm²

Carefully push the appliance into the housing, ensuring that the cabinet doors are able to fully close.

200cm² 200cm²

Rollout the joint cover and on the side of the appliance without the hinges press it between the appliance and the inside of the cabinet wall (start from the bottom and work upwards).

Technical line drawing of a two-tiered cabinet with an 90-degree angle indicator and internal structure (no text or symbols)

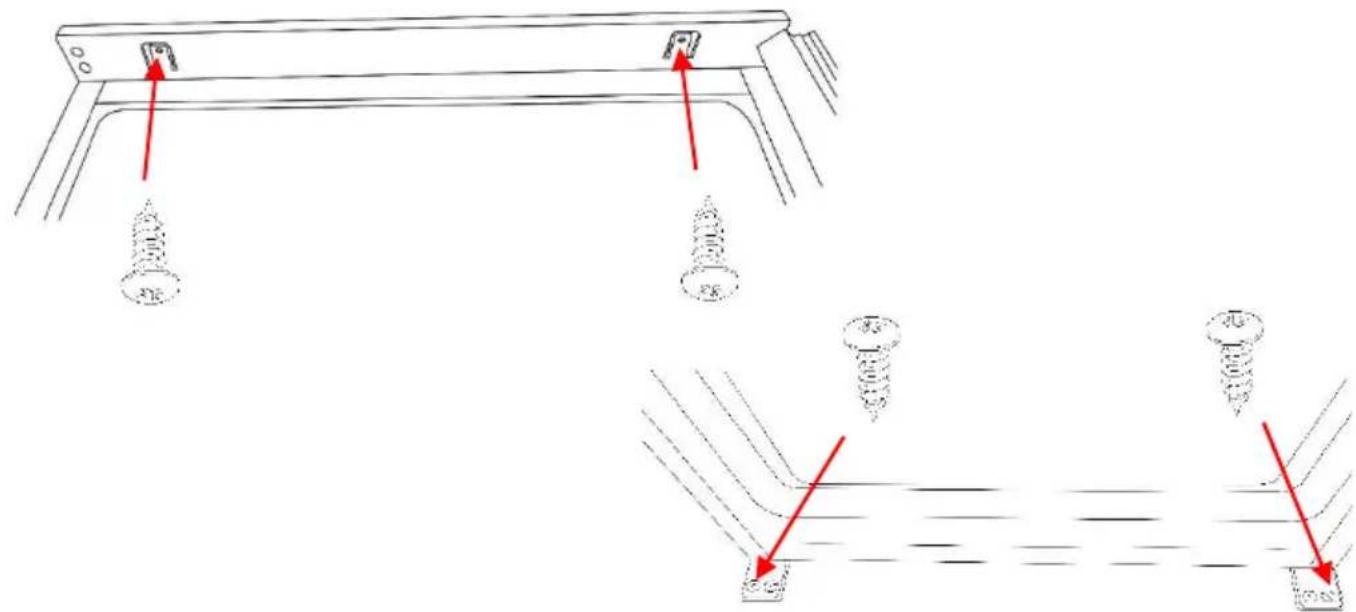

Open the door and push the side of the appliance without the hinges against the side of cabinet wall. Fix the appliance in two places, 2 torx headed screws in the top plinth at the top of the appliance and 2 torx screws in the feet (1 in each foot) at the bottom of the appliance.

Technical diagram showing screw installation steps with red arrows indicating direction of movement

Apply a foot blanking covers by clipping them in to place on the feet at the bottom of the appliance. The plastic stem on the foot caps are there as a guide of what the distance between the product and the edge of the cabinet should be (approximately 42mm). Snap of the plastic stem after installation.

Diagram showing two identical stand models above a horizontal beam, with red arrows pointing to the beam and two circled points below indicating positions.

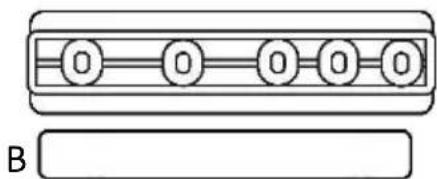

1. Locate parts A and B (see the below) in the bag with the installation accessories:

A. Door guide

B. Door guide cover

A

Simple diagram of a rectangular object with five circular elements and two horizontal lines, labeled B (no text or symbols on the object itself)

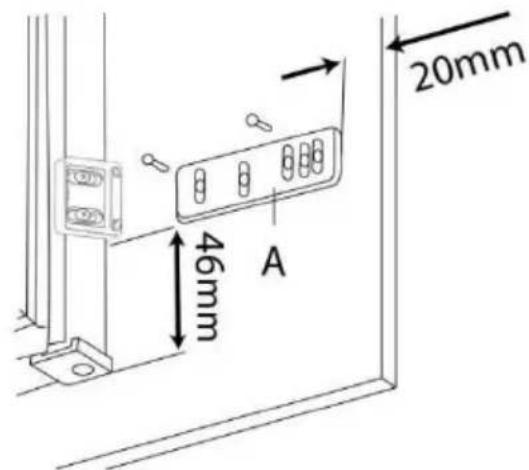

1. Open the cabinet door and the freezer door, mark on the back of the cabinet door where the top of the freezer door reaches. Place the door guide (pat A) on the back of the cabinet door, in the location shown below and mark the position of first hole and the last hole on the door guide. Fix the door guide into place with 2 torx headed screws.

46mm A 20mm

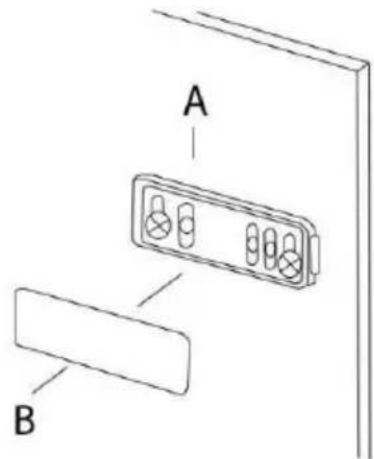

1. Clip the door guide cover (part B) on the door guide (part A) hiding the screws.

A B

1. Open the appliance door and the cabinet door to 90^ , remove the 2 screws from the door guide holder that is already prefixed to the door and place it on to the door guide (part A). Push the appliance door and the cabinet door together, align the holes on the door guide holder and the holes on the edge of the door and fix into place with the 2 screws that were removed previously.

Door guide holder 46mm A 20mm

1. If any adjustment that is needed then use the clearance space in the screw slots of the door guide holder on to the door guide (part A).

Technical line drawing of a mechanical or electrical component with two circular elements and directional arrows indicating movement (no text or symbols)

1. Check that the cabinet door closes correctly.

2. You will then have to repeat these steps at the bottom of the freezer door, please ensure you follow the below diagram when locating the door guide (part A) on the bottom of the freezer door.

20mm 46mm A

1. Once this is done the installation should look like the below image.

Line drawing of a cabinet with open door and side panel, no text or symbols present

1. There are 2 other hinge covers supplied and these are for the lower and upper hinges. These can be clipped on if required.

To reverse the door you will need to tilt the appliance backward to access the lower hinge which holds screws. Do not tilt the appliance more than 45 degrees and do not lay the appliance flat on its side.

For your own safety, a minimum of 2 people should lift or tilt this product.

Tools Required: Torx headed screwdriver, flat headed screwdriver and hexagonal spanner or a socket driver.

1. Unscrew the 2 screws from the upper hinge and remove the fridge door by carefully lifting it up and away from the appliance.

2. Unscrew the 2 screws from the lower hinge and remove the hinge. Unscrew the pin from the lower hinge and refit it from the opposite side.

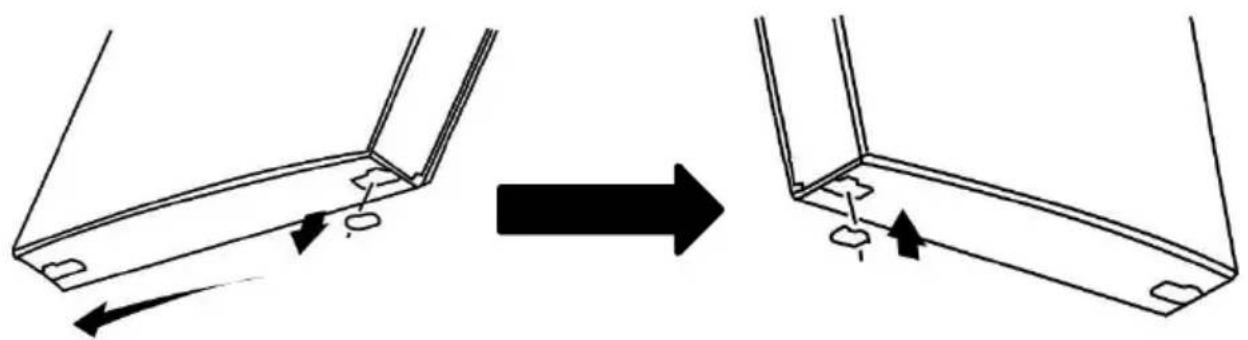

Fix the lower hinge to the opposite side of the appliance with the pin facing upward direction.

1. Remove all of the screw cap covers on the opposite side of the appliance from where the hinges have just been removed. Remove the hinge plugs on the top and bottom of the door and fix them to the opposite side.

Diagram showing a structural change from a metal bracket to a flange, with arrows indicating direction of movement (no text or symbols present)

1. Place the door back on to the lower hinge.
2. Use the top hinge and put the pin of the hinge into the top of the door and fix it in to place. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge pin.

Remove the 2 door guide holders from side of the doors and fix them on to the opposite side.

• Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator.
• Locate the appliance in a cool well-ventilated room and make sure that the air vents are clear.
• Try to avoid keeping the doors open for a long time, as warm air will enter the cabinet and may cause an excessive build-up of ice as well as affecting the energy consumption. Ensure there are no obstructions preventing the doors from closing properly.
• Ensure that the door seals are clean and there are no tears or splits.
• Do not overload the appliance: the cooling air that circulates and keeps the appliance cold gets blocked, and pockets of warm air form.
• Do not put hot food into the freezer – let it cool down first.

Defrosting The Freezer

• Do not use heaters or defrosting sprays in this appliance.
• Never use any metallic or sharp objects such as knives or forks to remove the ice as this could damage the lining.
• The freezer compartment should be defrosted regularly to ensure the most efficient running of thefreezer.
• Once the ice is more than 5mm thick, the freezer should be defrosted.
• 24 hours before defrosting the freezer, switch the temperature control to setting 7 to ensure food is fully frozen
• Before switching the freezer off, wrap the frozen food in sheets of paper and store it in a cool dry place
• Switch the appliance off at the temperature control panel and the mains and remove the freezer drawers
• To speed up the defrosting process, place a bowl of warm water in the base of the freezer compartment
• The freezer should be cleaned using a solution of bicarbonate of soda and lukewarm water. Do not use abrasive products or detergents. After washing, rinse and dry thoroughly
• Clean the drawers separately by hand with a mild solution of washing up liquid and water. Do not put them in the dishwasher
• Once cleaning is complete, reconnect the power

Maintenance & Cleaning

Disconnect the appliance from the power supply before cleaning.

Internal Cleaning

• Do not pour water over the appliance.
• The cavity should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water (5ml to 0.5 litre of water)
• Clean the accessories separately with soap and water. Do not put them in the dishwasher.
• Do not use abrasive products, detergents or soaps.
  • After washing, rinse with clean water and dry carefully.
• When you have finished cleaning reconnect the plug with dry hands.

External Cleaning

• Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
• There are sharp edges on the underside of the product so care should be taken when cleaning.
• Once or twice a year dust the rear of the appliance and the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause increased energy consumption.

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all of the food and clean the inside. Leave the door open to prevent the build-up of odours.

TROUBLESHOOTING

Problem Solution
The freezer doesn't work	Check that the appliance is switched on.
	Check that there has not been a power cut.
	Check that the plug is not faulty.
	Check that the fuse has not blown.
	Check that the voltage is correct for the appliance.
	Are there any faults with the socket? For this purpose, try the plug of your appliance by connecting it to a socket which you are sure is working.
The temperature inside the appliance is not cold enough	Check that there is not too much food in the appliance.
	Check that the thermostat is set to a suitable temperature.
	Check that the appliance is not placed in direct sunlight, or too near to a heating source.
	Check that the ambient temperature is within the operation limits of the appliance.
	Are the doors of the appliance opened frequently? Once the door is opened, the humidity found in the air in the room enters the appliance, especially if the humidity levels in the room are very high. The more frequently the door is opened in humid conditions the more chance of the build up of moisture.
The temperature within the appliance is too cold.	Increase the working temperature by adjusting the thermostat to a lower setting. The highest setting should only be used as a rapid freeze setting and should only be set 2 hours before a large amount of food is placed in the freezer. If this is not done the temperature in the freezer compartment could fall below -18°C as the compressor will run continuously.
The inner surfaces of the appliance are wet	Caused by condensation - dry the inside of the appliance.
The outer surfaces of the appliance are wet	Caused by condensation - dry the outer of the appliance carefully.
Problem	Solution
Smell/odour	Check all the food and drink that is in the freezer is in date and correctly packaged. If it isn't then it should be removed immediately or repackaged.Check for spillages on each shelf, rack and drawer. You may need to remove the drawers to check that no spillages have settled underneath them. As spillages that have not been cleaned and have been left can cause smells and unwanted odours.
The doors do not close properly	Ensure there are no obstructions preventing door closure.
	Check the door compartments and shelves are correctly in place.
	Check the door seal is not warped or torn.
	Check the appliance is level.
Unusual noises	Check that the appliance is on a flat, level surface and is stable.
	Check the spacing's around the appliance and ensure it is not touching other items.
	Bubbling and gurgling sound: • This noise is emitted as the coolant fluid flows through the pipes within the system. This is normal.
	Water flowing sound: • This is the normal sound of water flowing into the drain trough during the defrosting process.
	If the appliance is operating noisily (compressor noise): This is normal. This noise indicates that the compressor is operating normally. As the compressor is being energized, it might run a bit more noisily for a short period of time.

Technical Specification

Manufacturer/Model number	INFINITON - CV-BB86
Rated Voltage	220v - 240v ~ 50Hz
Capacity	77L
Energy efficiency Class	E
Annual Energy consumption	170 kWh
Max noise level	39dB
Climate Class	ST (18°C - 38°C)
External Dimensions(HxWxD)	875mm x 540mm x 540mm
Weight Net/Gross Kg	29/32

PROCEDURE IN CASE OF FAILURE OF AN INFINITON PRODUCT

Dear customers, to request technical assistance or repair of your Infiniton product, you have our website, operating 24 hours a day and 7 days a week:

QR code image containing encoded data, no visible human-readable text

Alternatively, if they wish, they can request technical assistance via email:

[e-mail]

[e-mail]

To streamline all procedures, the following information should always be indicated:

• Name and surname
• Telephone 1
• Telephone 2
• Full address
• Postal Code
• Population
• Brand
• Product model
• Serial number
• Failure presented by the product

If they wish, they can request technical assistance through the number 958 087 169, available only for white range products (except for free-standing microwaves).

INFINITON

2 x Tampa guia da porta

1 x

Conjunt o capa

Circular diagram with concentric rings and a thin filament extending outward (no text or symbols)

Technical line drawing of a two-tiered cabinet with an 90-degree angle indicator and internal structure (no text or symbols)

Technical diagram showing screw installation steps with red arrows indicating direction of movement

Diagram showing two identical stand models above a horizontal beam, with red arrows indicating direction of motion or force.

Simple diagram of a rectangular object with five circular elements and two horizontal lines, labeled 'B' at the bottom (no text or symbols on the object itself)

46mm A 20mm

Technical line drawing of a mechanical assembly with two circular components and directional arrows indicating movement (no text or symbols)

20mm 46mm A

Line drawing of a cabinet with open door and side panel, no text or symbols present

Diagram showing a structural change before and after assembly, with arrows indicating direction of movement (no text or symbols present)

Manufacturer/Model number	INFINITON - CV-BB86
Rated Voltage	220v - 240v ~ 50Hz
Capacity	77L
Energy efficiency Class	E
Annual Energy consumption	170 kWh
Max noise level	39dB
Climate Class	ST (18°C - 38°C)
External Dimensions(HxWxD)	875mm x 540mm x 540mm
Weight Net/Gross Kg	29/32

PROCEDIMENTO EM CASO DE FALHA DE UM PRODUTO INFINITON

QR code image containing encoded data, no visible human-readable text
