USER MANUAL 82-8140 Metra
Applications
TOYOTA
Tacoma
1995-96
TOOLS REQUIRED FOR INSTALLATION:
Phillips screwdriver
Flat-blade screwdriver
Removal tool


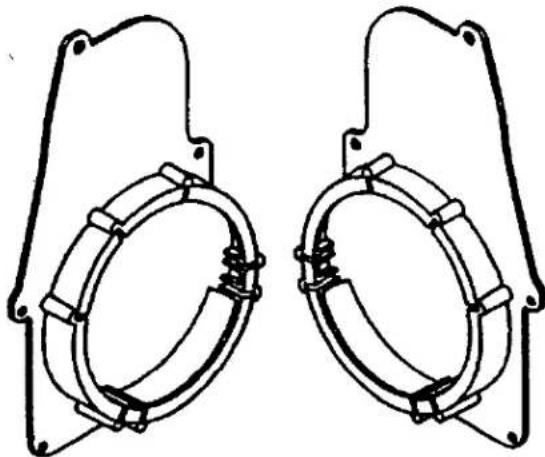

Technical line drawing of two mechanical flange components with mounting brackets (no text or symbols)(2) Speaker Adaptor Plates
(8) Phillips screws

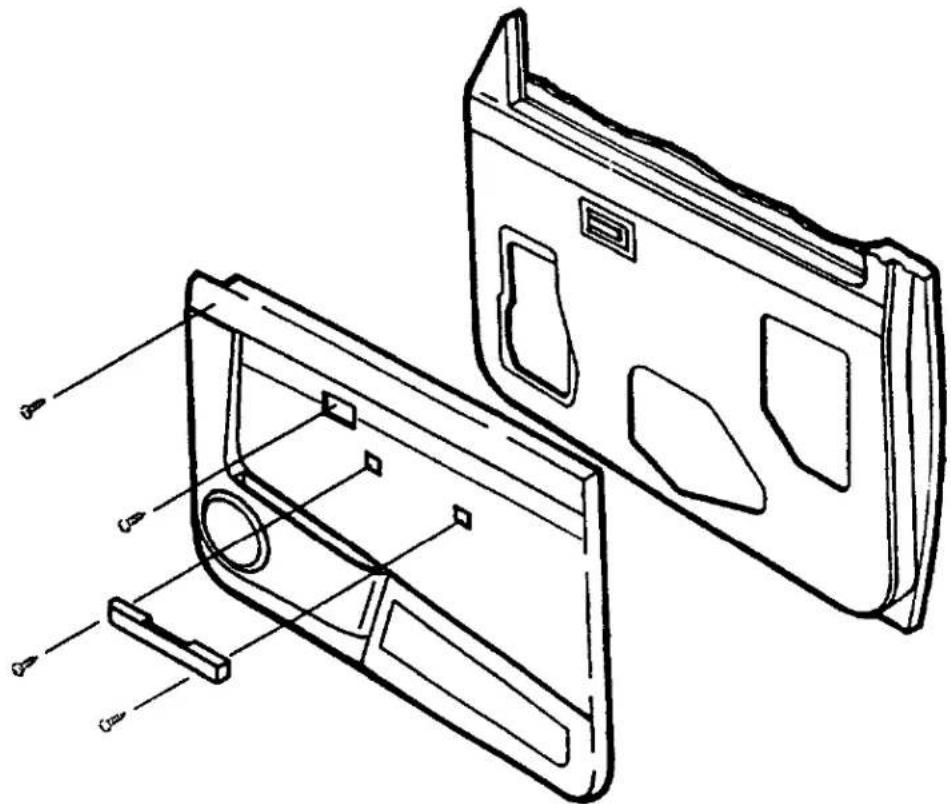

(1) DOOR PANEL DISASSEMBLY
Disconnect the negative battery terminal to prevent an accidental short circuit.
- Remove (1) Phillips screw from the door release.
- Remove (2) Phillips screws from the armrest and remove.
- Remove (1) pop clip from the upper-inside corner of the door panel.
- Using a removal tool, release the spring clip on the window crank and remove.
- Gently unclip the perimeter of the door panel.
- Push the panel toward the front of the vehicle, twist the door release handle through the panel opening and lift the panel off.
1 Mount the aftermarket speaker to the Speaker Adaptor Plate with the necessary screws as shown.
Locate the factory wiring harness in the cavity. Metra recommends using the proper mating adaptor and making connections as shown.

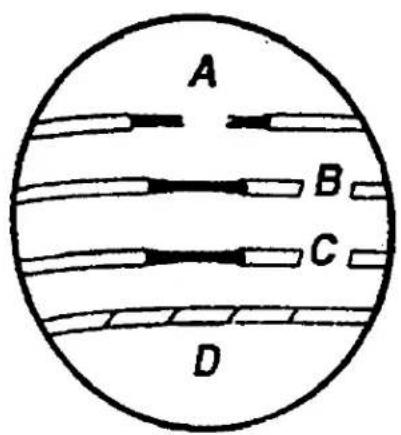

A. Strip wire ends back 12 "
B. Twist together
C. Solder
D. Tape
Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.
1 Re-connect the battery terminal and test the speaker for proper operation.

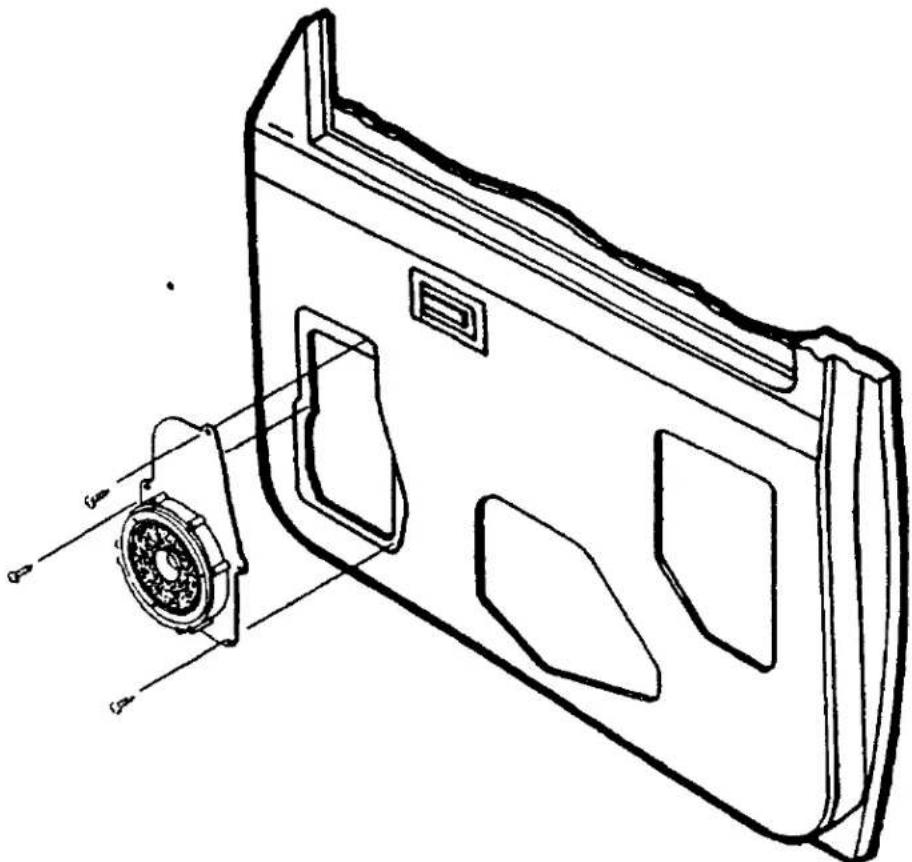

2. Locate the mounting positions in the door frame as shown below.

