USER MANUAL 95-7369B Metra
INSTALLATION INSTRUCTIONS FOR PART 95-7369B
Hyundai Tucson 2016-up 95-7369B
KIT FEATURES
• ISO DDIN radio provision
- Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets
WIRING & ANTENNA CONNECTIONS (sold separately)
Wire harness: • 70-7304, HYBL-03 (nav models), HYBL-04
Antenna adapter: • Not required
Table of Contents
Dash Disassembly 2
Kit Assembly 3
TOOLS REQUIRED
- Panel removal tool • Phillips screwdriver
- Socket wrench
CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.
METRA. The World's best kits. ^TM
metraonline.com
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
95-73698
Dash Disassembly
- Unsnap and remove the trim panel above the radio and instrument cluster. (Figure A)

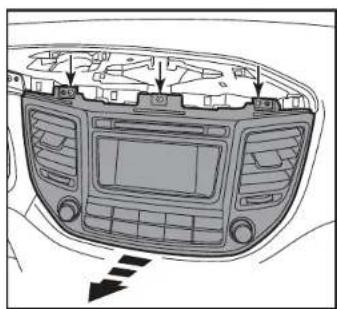

- Remove (3) Phillips screws and unsnap the radio trim panel including the vents. (Figure B)

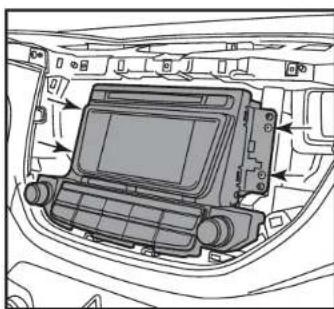

- Remove (4) Phillips screws to remove the factory radio. (Figure C)
Continue to kit assembly
Kit Assembly
- Remove (2) screws from each vent, attach them into the radio trim panel, and then secure using the same screws.
- Remove (4) panel clips and then attach them onto the radio trim panel
-

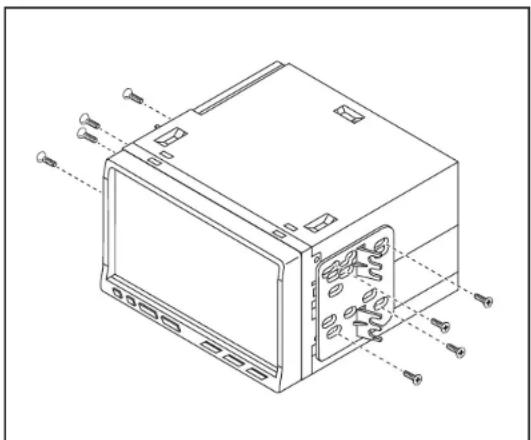

Attach the radio brackets to the radio using screws supplied with the radio. (Figure A)
-
Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
- Secure the completed assembly into the dash using the factory screws.
- Snap the radio trim panel over the completed assembly and then reassemble the dash in reverse order of disassembly.
INSTALLATION INSTRUCTIONS FOR PART 95-73698
IMPORTANT
If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerInstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
Metra recommends MECP certified technicians
