USER MANUAL 95-7357HG Metra
Installation instructions for part 95-7357HG
Hyundai Elantra GT (without NAV) 2013-up 95-7357HG
KIT FEATURES
- ISO DDIN radio provision
- Painted high gloss black
• A) Radio housing trim panel • B) Brackets
A
Wiring Harness: • 70-7304
Antenna Adapter: • Not required
Table of Contents
Dash Disassembly 2
Kit Assembly
- ISO DDIN radio provision .... 3
TOOLS REQUIRED
- Panel removal tool - Phillips screwdriver
CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.
95-7357HG
Dash Disassembly

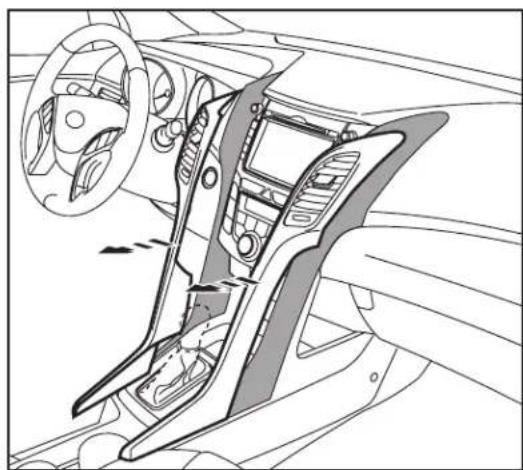

- Unsnap and remove the vent panels from either side of the radio down to the shifter base. (Figure A)

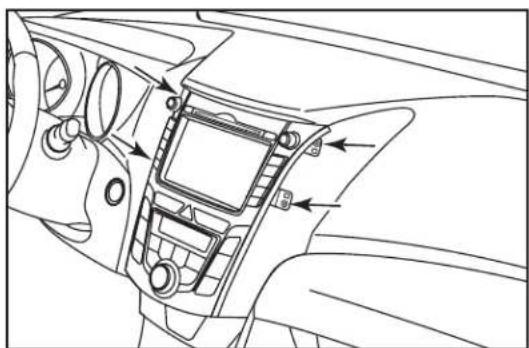

- Remove the (4) screws and remove the radio. (Figure B)
Continue to kit assembly
95-7357HG
Kit Assembly
ISO DDIN radio provision

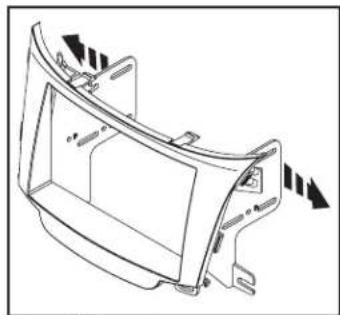

- Attach the brackets to the radio housing trim panel. (Figure A)

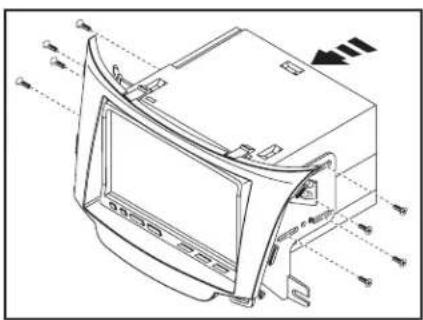

- Slide the radio into the bracket/radio housing assembly and secure with the screws supplied with the radio. (Figure B)
- Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the unit for proper operation.
- Reassemble the dash in reverse order of disassembly.
Installation instructions for part 95-7357HG
IMPORTANT
If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by paralling in the most recognized and supported
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
650-354-6182 for more information and take steps toward a better tomorrow.
