USER MANUAL 95-7361S Metra

Installation Instructions for 95-73615

Hyundai Santa Fe (with factory NAV) 2010-2012 95-73615

KIT FEATURES

• ISO DDIN radio provision
- Painted silver

KIT COMPONENTS

• A) Radio housing trim panel • B) Brackets • C) (4) #8 x 3/8" Phillips screws

Interior view of a car dashboard with air filters and a digital display (no visible text or symbols)

A

B

C

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7303

Antenna Adapter: • 40-KI11

Table of Contents

Dash Disassembly

– Hyundai Santa Fe (w/factory NAV) 2010-2012.....2

Kit Assembly

- ISO DDIN radio provision .... 3

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

95-73619

Dash Disassembly

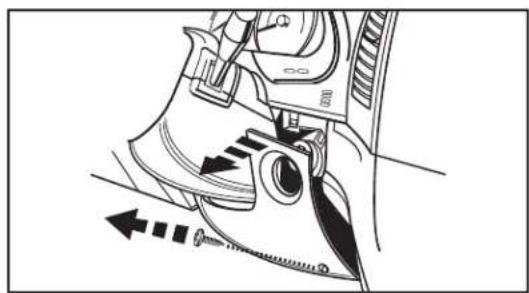

1. Remove (1) Phillips screw from the right side of the panel below the steering column then unclip and let right side of panel hang. (Figure A)
2. Unclip and remove the cover above the clock on top of panel surrounding the radio. (Figure B)

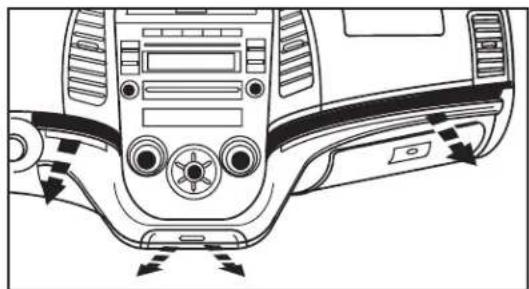

3. Unclip and remove the panel extending across the dash below the a/c control and above the glove box including the ash tray. (Figure C)

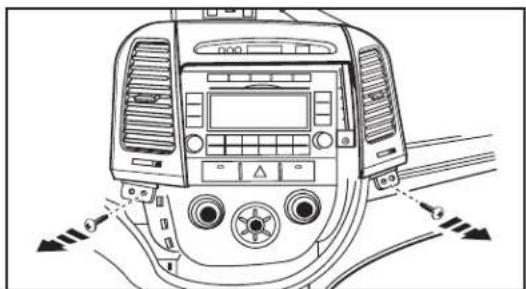

4. Remove (2) Phillips screws then unclip and remove the panel surrounding the radio including the A/C vents. (Figure D)
5. Remove (4) Phillips screws securing the radio. Unplug and remove radio.
6. Remove the (3) switches from the factory radio and snap them into the Metra radio housing.

Continue to kit assembly

Technical diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols present)

(Figure A) (Figure B)

Line drawing of a car interior showing airflow direction and component placement (no text or symbols)

Line drawing of a car air conditioning control panel with buttons and dials (no text or symbols)

Diagram of a car dashboard and air intake system with directional arrows indicating movement (no text or labels)

(Figure C) (Figure D)

95-73619

Kit Assembly

ISO DDIN radio provision

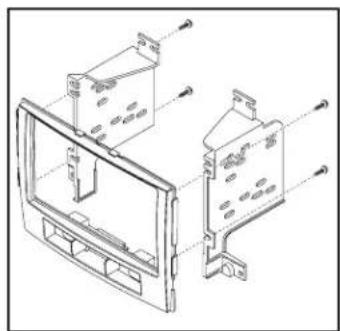

1. Connect the radio brackets to the radio housing with (4) #8 x 3/8" Phillips screws supplied. (Figure A)

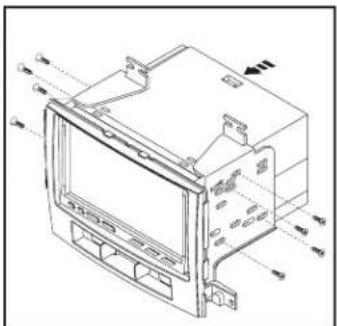

2. Slide the radio into the assembly and secure with screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
4. Mount the new radio assembly into the dash and reassemble dash in reverse order of disassembly.

Technical line drawing of a car front panel assembly (no text or symbols)

(Figure A)

Technical diagram of a device rear panel with labeled ports and directional arrows indicating orientation

(Figure B)
