USER MANUAL 95-3527 Metra
Installation instructions for part 95-3527
Pontiac Grand Prix 2004-2008 95-3527

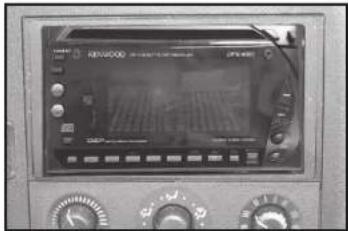

KIT FEATURES
• ISO DDIN radio provision
• A) Radio housing • B) ISO DDIN brackets • C) ISO DDIN trim plate
A
B
C
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • GMOS-01 • GMOS-04
Antenna Adapter: • 40-GM10
TOOLS REQUIRED
- Phillips screwdriver • Panel removal tool • 9/32" socket wrench
Table of Contents
Dash Disassembly 2
Kit Assembly
- ISO DDIN radio provision .... 3
CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.
METRA. The World's best kits.™
metraonline.com
© COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
95-3527
Dash Disassembly

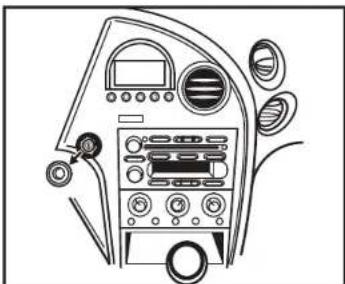

- Remove the trim ring around the key cylinder. (Figure A)

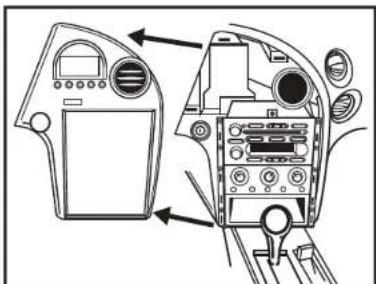

- Unclip and remove the entire panel surrounding the radio, including the message center and the vents. (Figure B)

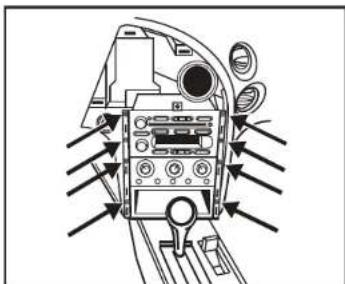

- To remove the radio, start at bottom of the stack and remove (8) 9/32" screws from the pocket, climate control, and the radio. (Figure C)
Continue to kit assembly
95-3527
Kit Assembly
ISO DDIN radio provision

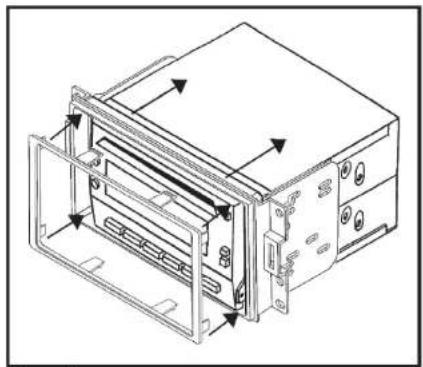

- Snap the ISO DDIN brackets to the inside edge of the radio housing. (Figure A)
- Slide the radio into the bracket/radio housing assembly and secure using the screws supplied with the radio. (Figure B)
- Snap the ISO DDIN trim plate onto the front of the housing/radio assembly. (Figure B)
- Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio and climate controls. Metra recommends using the proper mating adapter from Metra or AXXESS. Test the radio for proper operation.
- Reassemble the dash in reverse order of disassembly.
Installation instructions for part 95-3527
IMPORTANT
If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by enrolling in the most recognized and respected
enrolling in the most recognized and respected mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
