95-8909 - Car Installation Kit Metra - Free user manual and instructions

Product Type	Dash Installation Kit
Brand	Metra
Model	95-8909
Compatible Vehicles	Subaru Legacy/Outback (all except 2.5i) 2018-up
Radio Size Provision	ISO DDIN (Double DIN)
Color	Black with Silver Trim
Material	Painted ABS Plastic
Components Included	Radio trim panel, radio brackets, 4 panel clips
Required Tools	Panel removal tool, Phillips screwdriver
Wiring Harness (sold separately)	Metra 70-1761 for non-amplified models
Antenna Adapter (sold separately)	Metra 40-LX11
Steering Wheel Control Interface	Visit axxessinterfaces.com for compatible interface
Installation Difficulty	Moderate
Special Notes	Starlink module may need relocation; see manual
Tech Support	1-800-253-TECH

Frequently Asked Questions - 95-8909 Metra

Which vehicles are compatible with the Metra 95-8909 kit?

The kit is designed for Subaru Legacy/Outback models from 2018 and newer, excluding the 2.5i trim. Always check MetraOnline.com for the latest vehicle fitment updates.

What size radio does the kit accept?

The 95-8909 is designed for ISO DDIN (Double DIN) radios, which are approximately 7 inches wide and 4 inches tall.

Do I need any additional parts for installation?

Yes, you may need a wiring harness (Metra 70-1761 for non-amplified models) and an antenna adapter (Metra 40-LX11). For steering wheel controls, visit axxessinterfaces.com.

How do I handle the Starlink module during installation?

On vehicles equipped with Starlink, you must remove the module (located below the radio) and relocate it lower in the dash cavity using the factory screws to retain front speaker functionality. See manual for details.

What tools are required for installation?

You will need a panel removal tool and a Phillips screwdriver. No specialized tools are required.

Is the kit painted or does it require painting?

The kit comes pre-painted in black with a silver trim. No additional painting is needed.

Can I retain the factory steering wheel controls?

Yes, with the appropriate interface from Axxess (visit axxessinterfaces.com). The kit itself does not include this interface.

What should I do if I encounter difficulties during installation?

Refer to the manual and double-check all steps. If problems persist, call Metra Tech Support at 1-800-253-TECH with the vehicle apart for troubleshooting.

Does the kit include all necessary hardware?

The kit includes the trim panel, brackets, and panel clips. The screws for securing the radio to the brackets are supplied with the radio, not included in the kit.

What is the warranty on this dash kit?

Metra typically offers a 1-year limited warranty. For specific terms, contact Metra or check the product documentation.

USER MANUAL 95-8909 Metra

Interior view of a car dashboard with air vent and digital display (no visible text or symbols)

Subaru Legacy/Outback (all except 2.5i) 2018-up\*

*Visit MetraOnline.com for up-to-date vehicle specific applications.

KIT FEATURES

• ISO DDIN radio provision
• Painted black with silver trim

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) (4) Panel clips

A

Technical line drawing of a rectangular frame with a recessed recess (no text or symbols)

[Non-Text]

Technical line drawing of two metal bracket components with holes and mounting holes (no text or symbols)

[Non-Text]

TABLE OF CONTENTS

Dash Disassembly 2

Kit Preparation ....3

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS(sold separately)

Wiring Harness: 70-1761 (non-amplified models)

Antenna Adapter: 40-LX11

Steering wheel control interface: Please visit

axxessinterfaces.com for more information

TOOLS REQUIRED

- Panel removal tool • Phillips screwdriver

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

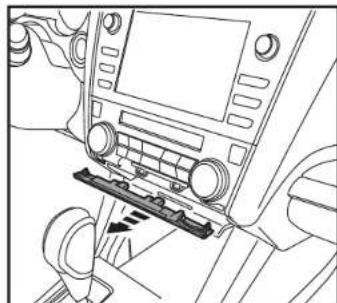

1. Unclip and remove the trim below the climate control panel. (Figure A)

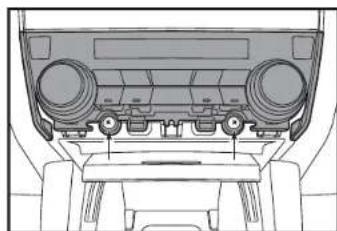

2. Remove (2) Phillips screw securing the climate control panel, then unclip, unplug, and remove the panel. (Figure B)

Line drawing of a car dashboard with control panel and directional arrows indicating movement (no text or symbols)

(Figure A)

1. Unclip and remove the a/c vent panel. (Figure C)
   Tip! Start from the bottom of the panel and release the bottom (2) clips first.

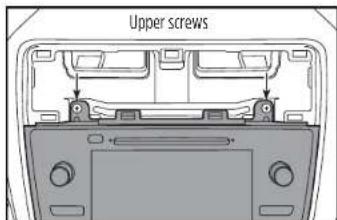

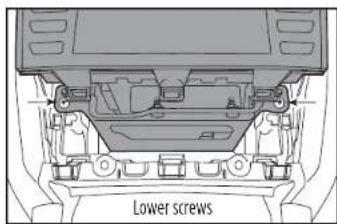

2. Remove (4) Phillips screws securing the radio, then unclip, unplug and remove the radio. (Figure D, E)

Continue to Kit Preparation

Top-down technical line drawing of a vehicle's rear dashboard and rear seats (no text or symbols)

(Figure B)

Diagram of a car dashboard with a mounted air vent and cable, showing no text or symbols

(Figure C)

(Figure D)

(Figure E)

KIT PREPARATION

1. Slightly loosen (4) screws securing the radio. (Figure A)
2. If the vehicle is equipped with Starlink, remove (4) screws securing the Starlink module (shaded part in figure A) located directly below the radio. The module must be relocated lower in the dash cavity to retain functionality with the front speakers. (Figure A)
3. Remove (4) screws securing the lower module, then remove the module. (Figure A)

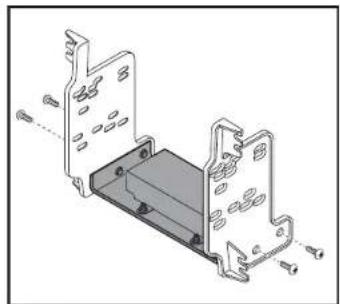

4. Secure the module to the radio brackets using the factory screws. (Figure B)

Continue to Kit Assembly

Technical line drawing of an internal mechanical or electrical component (no text or symbols visible)

(Figure A)

Technical illustration of a mechanical bracket assembly with mounting holes and bolts (no text or symbols)

(Figure B)

KIT ASSEMBLY

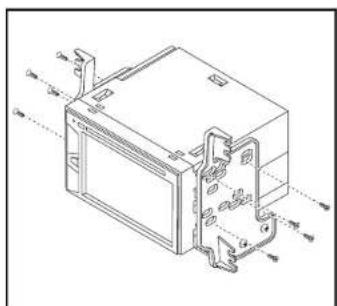

1. Secure the radio brackets to the radio using the screws supplied with the radio. (Figure A)
2. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation.
3. Secure the radio assembly to the dash using the factory screws.
4. Attach th(4) panel clips provided onto the radio trim panel, then snap the panel over the radio assembly.
5. Reassemble the dash in reverse order of disassembly to complete the installation.

(Figure A)

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.

Log onto www.installenstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
