USER MANUAL 99-3011S Metra

Interior view of a car dashboard with air vent grilles and control panel (no visible text or symbols)

Chevy

Cruze (with single color, monochrome screen) 2011-2015

Cruze Limited (with single color, monochrome screen) 2016

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DIN radio provision with pocket
• DDIN radio provision
• Painted silver to match factory finish

KIT COMPONENTS

- A) Radio trim panel • B) Radio brackets • C) Pocket • D) #8 x 3/8" Phillips screws (4)

AB

Technical line drawing of a mechanical component with mounting holes and internal ribs (no text or symbols)

[Non-Text]

•

[Non-Text]

TABLE OF CONTENTS

Dash Disassembly 2
Kit Assembly
-ISO DIN radio provision with pocket ....3
-DDIN radio provision ....3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: Visit metraonline.com for audio/video and steering wheel control interface options. Antenna Adapter: 40-EU55

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Socket wrench

Attention! With the key out of the ignition, disconnect the negative battery terminal before installing this product. Ensure that all installation connections are secure before cycling the ignition to test this product.

DASH DISASSEMBLY

1. Using a panel removal tool, gently pry the upper trim/vent housing panel from the dash. Remove the factory clip from back of trim/vent housing panel and install in same location on radio trim panel of 99-3011S. (Figure A)

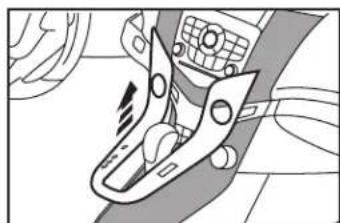

2. Using a panel removal tool, gently pry the shifter surround panel. On manual transmission vehicles, unclip and reposition the shifter boot. Disconnect indicator plug. (Figure B)

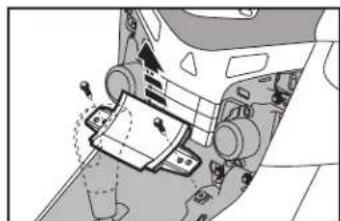

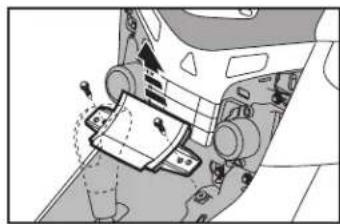

3. Remove (2) 9/32" screws from the storage pocket. Remove storage pocket. (Figure C)

Diagram of a car interior showing steering wheel and dashboard (no text or labels)

(Figure A) (Figure D)

Illustration of a stylized helmet with decorative patterns (no text or symbols)

(Figure B) (Figure E)

Mechanical assembly diagram showing a motor with gears and adjustment knobs (no text or labels)

(Figure C) (Figure F)

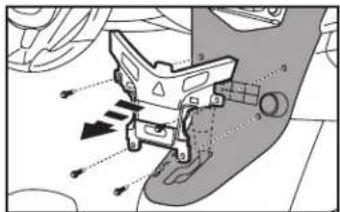

1. Remove (4) 9/32" screws from the accessory control panel. Gently pry the edges of the panel to release the clips. Disconnect the accessory control panel plugs. (Figure D)
2. Remove (2) 9/32" screws from the radio control panel. Disconnect the radio control panel. (Figure E)
3. Remove (4) 9/32" screws from the radio chassis. Disconnect the radio chassis. (Figure F)

Continue to kit assembly

Technical diagram showing foot-mounted device with labeled parts and directional arrows indicating motion or force vectors

Diagram of a vehicle's seatbelt mechanism with no visible text or symbols

Interior view of a car showing a car seatbelt with arrows indicating fastening or adjustment (no text or symbols visible)

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Remove the metal "DIN" sleeve and plastic trim ring from the aftermarket radio.
2. Secure the pocket to the radio brackets using the supplied (4) screws. (Figure A)
3. Secure the radio to the radio brackets with screws supplied with the radio. (Figure A)
4. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

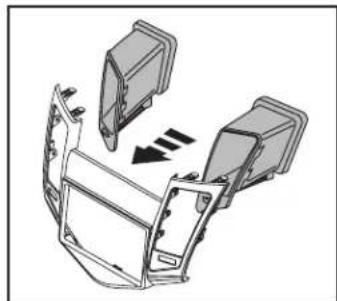

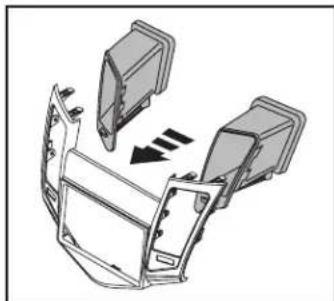

5. Remove the factory vents and then snap them onto the radio trim panel. (Figure B)
6. Reassemble the dash in reverse order of disassembly.

Technical line drawing of an electronic device with multiple pins and mounting brackets (no text or symbols)

(Figure A) (Figure A)

Diagram of a car interior frame with three compartments and directional arrows indicating movement (no text or symbols)

(Figure B) (Figure B)

Double DIN radio provision

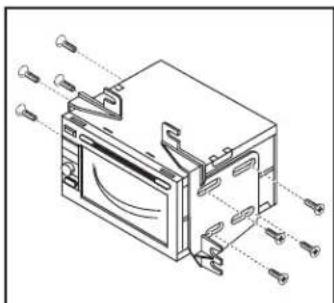

1. Mount the radio to the radio brackets with screws supplied with the radio. (Figure A)
2. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
3. Remove the factory vents and then snap them onto the radio trim panel. (Figure B)
4. Reassemble the dash in reverse order of disassembly.

Technical line drawing of a device with mounting brackets and wiring (no text or symbols)

Technical illustration of a vehicle chassis frame with three compartments and directional arrows indicating motion (no text or symbols)

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM
