99-7333 - Car Installation Kit Metra - Free user manual and instructions

Product Type	Dash Installation Kit
Brand	Metra
Model	99-7333
Application	Hyundai Sonata 2009-2010
Radio Provision	DIN with Pocket, ISO with Pocket
Color	Painted to Match Factory Bronze Dash
Included Components	Radio Housing, Pocket, Trim Plate, ISO Brackets, DIN Cage
Required (Sold Separately)	Wiring Harness (70-7303), Antenna Adapter (40-KI11)
Tools Required	Small Flat Blade Screwdriver, Panel Removal Tool, Phillips Screwdriver
Installation Type	Aftermarket Radio Installation
Wiring Connection	Strip, Splice, Solder, Tape; EIA Color Code Provided
Safety	Disconnect Negative Battery Terminal Before Installation
Additional Features	Includes Dash Disassembly Instructions for Sonata
Warranty	Refer to Manufacturer
Package Dimensions	Approx. 12 x 8 x 3 inches
Package Weight	Approx. 1.5 lbs

Frequently Asked Questions - 99-7333 Metra

Does the Metra 99-7333 kit include the wiring harness and antenna adapter?

No, the wiring harness (Metra 70-7303) and antenna adapter (Metra 40-KI11) are sold separately. They are required for a complete installation.

Which vehicles are compatible with the Metra 99-7333 installation kit?

This kit is specifically designed for the Hyundai Sonata model years 2009-2010.

What radio sizes fit in this kit?

The kit supports both DIN and ISO radio provisions with a pocket for a clean factory-like look.

What tools are needed to install the Metra 99-7333?

You will need a small flat blade screwdriver, a panel removal tool, and a Phillips screwdriver.

Is the trim color matched to the factory dash?

Yes, the kit is painted to match the factory bronze dash color of the Hyundai Sonata.

Do I need to solder the wiring connections?

Metra recommends stripping, splicing, soldering, and taping all connections for a secure and reliable installation. An EIA color code chart is provided.

Can I install this kit without removing the factory radio first?

No, you must first disconnect the battery and remove the factory radio following the dash disassembly instructions provided in the manual.

Does the kit include a pocket for storage?

Yes, the kit includes a pocket that can be used with either DIN or ISO radio installation to fill the extra space.

What is the warranty on the Metra 99-7333?

Warranty details are provided by the manufacturer. Typically, Metra offers a limited lifetime warranty against defects. Check the product packaging or contact Metra for specifics.

Are there any special precautions I should take during installation?

Always disconnect the negative battery terminal to prevent short circuits. Isolate and tape off any unused wires to avoid electrical hazards.

USER MANUAL 99-7333 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-7333

APPLICATIONS

HYUNDAI

Sonata 2009-10

99-7333

KIT FEATURES

• DIN Radio Provision With Pocket
• ISO Radio Provision With Pocket
- Painted To Match Factory Bronze Dash

Interior view of a car dashboard with air filters and control buttons (no visible text or symbols)

KIT COMPONENTS

Wiring & Antenna Connections (sold separately)

• 70-7303 - Hyundai / Kia Harness 2009
• 40-KI11 - Kia Antenna Adapter 2007-up

TOOLS REQUIRED:

Small Flat Blade Screwdriver • Panel Removal Tool

• Phillips Screwdriver

Three line drawings of pen tips, no text or symbols present

1-800-221-0932

www.metraonline.com

© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION

TABLE OF CONTENTS

Dash Disassembly

- Hyundai Sonata 2009 -10....1,2

Kit Assembly

• DIN Radio Provision With Pocket 3
• ISO Radio Provision With Pocket .... 4

Final Assembly 5

*Note:

Refer also to the instructions included with the aftermarket radio.

Abstract pixelated circular pattern with no discernible text or symbols

KNOWLEDGE IS POWER

Influence your implantation and induration side by appealing in the more recognized and manufactured mobile implantation system in our industry. Log costs www.mohodetophole.com or call 400-909-672. For more implantation and other steps toward a better formulation.

HYUNDAI SONATA 2009-10

1 Disconnect the negative battery terminal to prevent an accidental short circuit.
2 Remove shifter knob from stem. (Figure A)

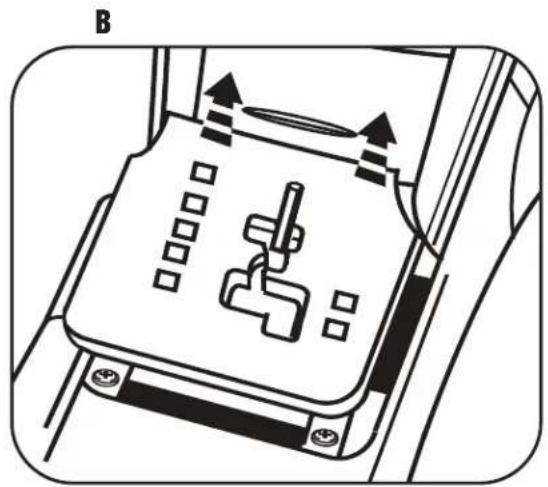

3 Unclip and remove the shifter trim panel. (Figure B)
4 Unclip and remove the (2) side trim panels from the center console area. (Figure C)

Continued on page 2.

Diagram of a vehicle interior showing intake manifold, exhaust valve, and directional arrows (no text or labels)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Interior view of a car dashboard with directional arrows indicating movement or control buttons (no text or symbols present)

HYUNDAI SONATA 2009-10

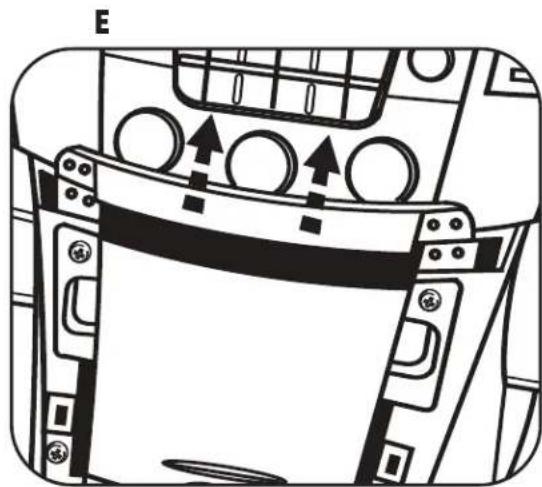

5 Remove (2) Phillips screws then unclip and remove the small trim panel below the factory climate controls and above the pocket. (Figure D,E)

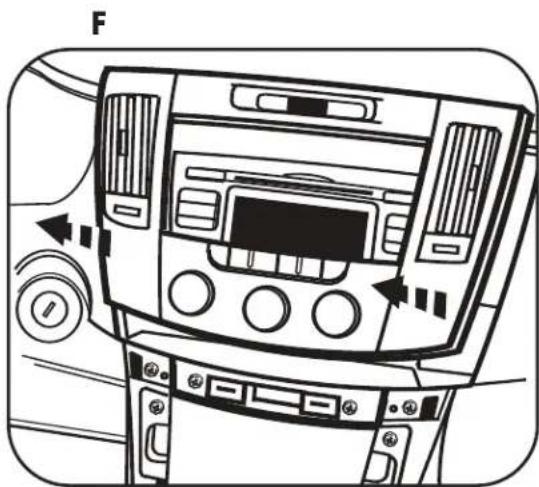

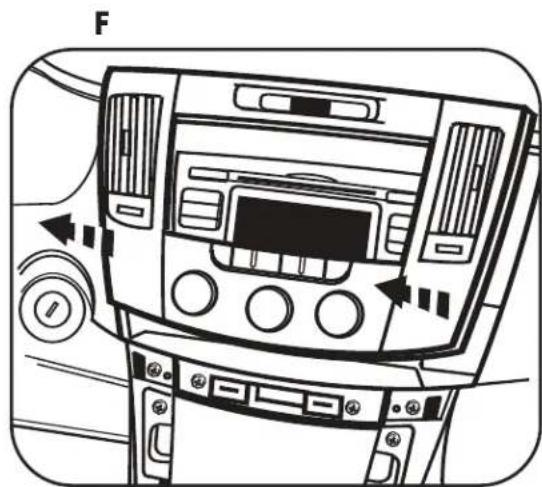

6 Unclip and remove the trim panel surrounding the radio and including the climate controls and vents. (Figure F)

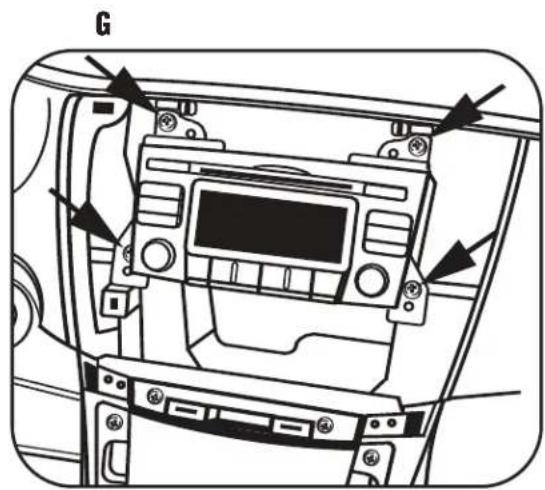

7 Remove (4) Phillips screws securing the radio. Unplug and remove the radio. (Figure G)

Continue to kit assembly.

Line drawing of a car air conditioner unit with control panel and buttons (no text or symbols)

Technical diagram of a device interior with labeled components and directional arrows (no readable text or symbols)

2

Interior view of a car dashboard with air vent, control buttons, and directional arrows (no text or symbols)

Line drawing of a car air conditioning console with control panel and buttons (no text or symbols)

DIN RADIO PROVISION WITH POCKET

*Note: Refer also to the instructions included with the aftermarket radio.

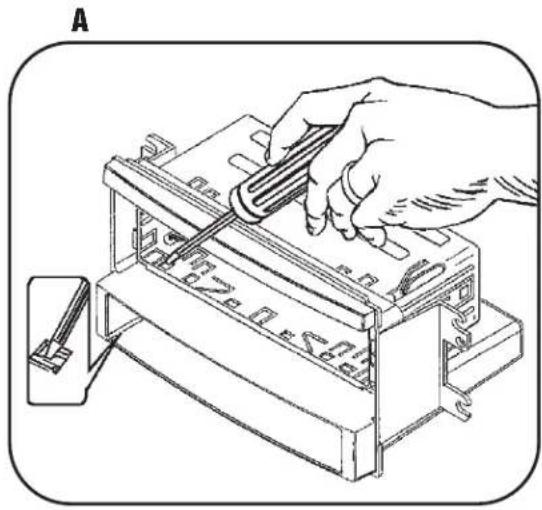

1 Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A)
2 Slide the aftermarket radio into the cage and secure. (Figure B)

Continue to final assembly.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with labeled ports and mounting brackets (no text or symbols)

ISO RADIO PROVISION WITH POCKET

*Note: Refer also to the instructions included with the aftermarket radio.

1 Mount the ISO Brackets to the aftermarket radio using the screws supplied with the radio. (Figure A)
2 Slide the radio into the radio opening until the side clips snap into place. (Figure B)
3 Snap the trim plate into the Radio Housing.(Figure B)

Continue to final assembly.

Line drawing of a hand using a screwdriver to adjust or install a device into a rectangular box (no text or symbols visible)

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape

1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2 Re-connect the negative battery terminal and test the unit for proper operation.
3 Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. .... . Red

12V Batt / Memory.....Yellow

Ground....Black*

Power Antenna. . . . . . . . Blue

Amp Turn-On .... Blue / White

Amp Ground..... Black / White

Illumination ..... Orange

Dimmer ..... Orange / White

Right Front (+) ..... Gray

Right Front (-)..... Gray/ Black

Left Front (+) ..... White

Left Front (-)..... White / Black

Right Rear (+)....Violet

Right Rear (-)....Violet / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer's specifications.

99-7333 INSTRUCTIONS
