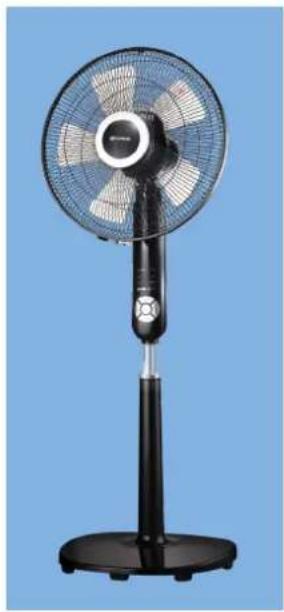

Black outdoor fan with visible blades and a black stand against a blue background (no text or symbols)

White digital kitchen scale with a digital display showing 650, set against a solid pink background (no text or symbols on the scale itself)

Blue and white steam iron with a mesh handle, shown against a solid green background (no text or symbols visible)

White kitchen grater with black handle and side slots, set against solid purple background (no text or symbols visible)

DESCUBRE TODO LO QUE PODEMOS HACER POR TI EN

www.grunkel.com

GRACIAS POR ESCOGER ESTE PRODUCTO GRUNKEL

This instruction manual is an accurate reproduction of the specifications, operation and look of the product you have just bought, except for typographical, print or translation errors. The specifications, operation and features of this product are subject to change without further notice.

• Please, read carefully the entire instruction manual before using it.
• Pay special attention to the safety indications.
• Keep this instruction manual. If you hand over this appliance to another person, these instructions must be also be transferred.
• Keep also the guarantee card, purchase ticket or invoice. If possible, keep the original box with all the accessories included for future inquiries.

General safety instructions

Before using the appliance ensure that the main voltage corresponds to the voltage displayed on the rating label. Always plug the appliance into a suitable electrical outlet.

In order to avoid electrical shock risk, please do not inmerse the power cord nor the appliance into water or any other kind of liquid. Check the cleaning instructions.

Do not use unauthorized accessories. This will result in cancellation of the guarantee and could cause accidents.

Do not keep the power cording hanging from the table or the shelf. Keep it away from hot sources. Do not allow sharp or blunt objects to touch it. Do not operate the appliance if the power cord or the plug are damaged, or if you notice unusual operation of the appliance.

Do not leave the appliance operating without supervision. Always switch off the appliance and unplug it. Pull the plug, not the power cord.

If any repair is needed, or if the power cord must be replaced, please ask a aqualified professional or contact the Official Technical Support.

CAUTION: to ensure children's safety, keep away packaging material such as plastic bags, carton boxes, etc.

Always watch the appliance when using it near children Never leave the appliance without supervision.

grunkel

Only use the appliance for domestic purposes and in the way indicated in these instructions.

This appliance is not supposed to be operated by any external timer or remote control system.

Do not use the appliance over or near heat sources, such as gas heaters, electric heaters or hot ovens.

Never use forks or sharp objects to clean the appliance. This could cause several damage and may cause an accident.

Do not immerse the appliance in water. Do not handle the appliance with wet hands.

Before cleaning the appliance, check that it is unplugged.

If you require a copy of the instruction manual, please contact the Official Technical Support.

Do not use the appliance in an improper way. It could cause severe injuries. In the event that the appliance has been misused by the costumer, the guarantee will be cancelled.

Do not use the appliance outdoors.

To avoid overheating, do not use the appliance longer than 3 minutes in a row. Wait for 1 minute at least to use it again.

Keep your fingers, hair, clothes, kitchen tools and other accessories away from the mobile parts of the appliance.

Do not touch or clean the rods or hooks with your fingers or any kitchen tool while the appliance is operating.

Do not use the appliance to mix hard food such as butter or frozen doughs.

CAUTION: The appliance may still be hot after use.

WARNING: In case of improper use, injuries and loss of guarantee may occur.

Children must be supervised so they do not play with the appliance.

WARNING: This appliance is intended for domestic purposes exclusively. Do not use for commercial applications.

CAUTION!

CHILDREN UNDER 8 YEARS OLD SHOULD NOT USE NOR CLEAN THIS APPLIANCE WITHOUT THE SUPERVISION OF AN ADULT. NEITHER CAN BE USED NOR CLEAN BY PEOPLE WITH REDUCED PHYSICAL, MENTAL OR SENSORIAL CAPABILITIES, WITHOUT EXPERIENCE OR KNOWLEDGE CONCERNING THE USE OF THE APPLIANCE, OR WITHOUT HAVING RECEIVED PROPER TRAINING UNDER DIRECT SUPERVISION FROM AN EXPERIENCED PERSON RESPONSIBLE FOR THEIR SAFETY.

Part identification

1 2 3 4 5 6 TURBO

Num.	Description
1	Accessory ejection button
2	ON / OFF / Speed switch
3 Body
4 Rods
5 Hooks
6 TURBO button

To install the accessories properly, ensure the appliance is unplugged from the electrical outlet and the speed switch is set on the OFF position (0). Insert the accessories in the appliance. Check they are secured in their correct place.

NOTE: For safety reasons, the appliance works only when the accessories are properly installed.

To remove the accessories from the appliance, ensure the speed switch is set to (0) and the appliance is unplugged. Raise the mixer upwards and hold the shaft while pressing the ejection button.

Operation

Operate the mixer by moving the "5" speed control switch to the appropriate mixing speed. As you push the switch button backward, the speeds are indicated by markings adjacent to the body.

emember as you increase the speed you automatically increase the power. As the mixture become heavier, increase the power by turning to a higher speed. If the machine starts to labor on a low speed turn to a higher speed.

CAUTION: Do not use your fingers or any kitchen tool to touch or move the mixture while the appliance is operating.

If you wish to mix large quantities and heavier mixes it is recommended that the mixer be removed from the stand and used hand held in a suitably sized container.

After each use, set the speed switch to the OFF position and unplug the appliance from the electrical outlet.

CAUTION: The appliance should not be used continuously for longer than 3 minutes. Allow it to cool down completely for at least 10 minutes to avoid overheating.

SPEED CONTROL

The appliance has 5 speed levels. Always start with the lowest speed, then increase the speed progressively as the recipe requires.

• 1 (SLOW): flour and dry ingredients, liquids for shakes and dough for cookies, nuts, oatmeal and chocolate.
• 2 (SLOW-MEDIUM): soft dough for muffins, waffles, pancakes or bread, sauces and desserts.
  • 3 (MEDIUM): butter with suggar, eggs, dough for pastries and ice cream.
  • 4 (MEDIUM-HIGH): boiled eggs or frozen desserts.
• 5 (HIGH): creams, egg-white, mashed potatoes and other vegetables.
  TURBO: short boost of speed. Do not use for longer than 3 minutes.

MAXIMUM AND MINIMUM QUANTITIES

These quantities are given as a guide only and may have to be adjusted when carrying out your own particular recipes.

Egg-white 6

Flour 24oz/680g

Fruit 40oz/1133g

Mixes 1lb /450g

Cleaning and maintenance

Before handling the appliance, make sure it is unplugged from the electrical outlet. Allow the appliance to cool down completely before cleaning it.

Clean the accessories with some soapy water. It is recommended to rinse the accessories immediately after mixing salty ingredients.

Clean the appliance's body with a slightly moistened cloth, then use a dry cloth to wipe the surface properly.

Do not use aggressive cleaners. Do not use water to clean the appliance. NEVER immer-se the appliance in water.

Clean the appliance periodically. Avoid food scraps to get accumulated in the appliance.

CAUTION: NEVER attempt to put the appliance in the dishwasher.

WARNING

This appliance is intended for domestic use. Do not use it for commercial purposes. If so, guarantee would be cancelled.

230V \~50Hz / 350W

Product disposal

Regulation regarding waste from electronic appliances according to RAEE 2002/96/EC. This symbol means the appliance can not be treated as regular domestic waste; it must be returned to the distributor, handed over the corresponding electronic product collection point or delivered to the collection point empowered for such purpose, so its components are recycled and not mixed within domestic waste.

You can also contact your local waste collection service, so it can be collected and treated accordingly following the environment protection instructions, or to receive proper information about the steps to follow for the correct disposal of the appliance.

The correct disposal of an appliance implies avoiding negative consequences for both environment and health. A proper disposal allows to save a significant amount of energy and resources. As a reminder of the necessity of disposing the appliances separately, the product displays the symbol of a crossed out garbage bin.
