USER MANUAL CE-H22211-S2 Siig

1x8 HDMI Splitter with 4Kx2K & EDID Management Installation Guide

Introduction

The 1x8 HDMI Splitter with 4Kx2K & EDID Management splits one HDMI signal to eight HDMI displays at up to 4Kx2K resolution.

Key Features and Benefits

• Broadcast HDMI video/audio signals from one HDMI source to eight displays without losing quality
  • Supports HDMI Deep Color & 3D
  • Supports 1080p and up to 4Kx2K PC resolution
  • Supports Dolby Digital, DTS-HD and Dolby True-HD audio
  • Video bandwidth: 340MHz (10.2Gbps)
• Embedded default EDID and EDID learning ability

Package Contents

• 1x8 HDMI Splitter with 4Kx2K & EDID Management
• Power adapter (Output: 5V/4A)
- Power cord
- Mounting screws (2)
- Installation guide

Layout

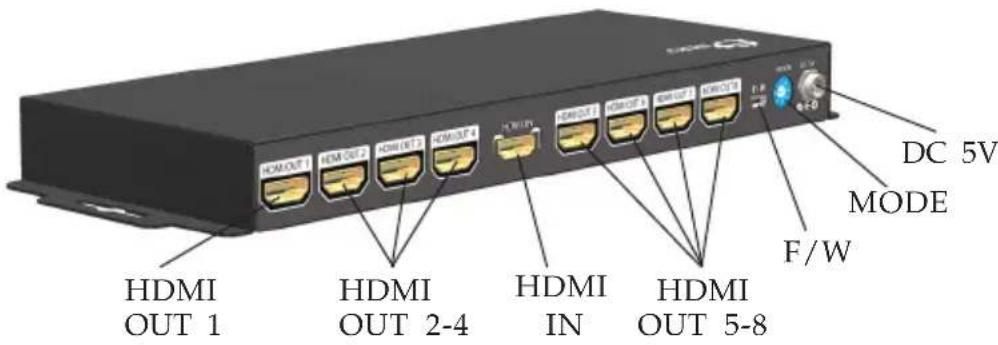

HDMI OUT 1 HDMI OUT 2-4 HDMI IN HDMI OUT 5-8 F/W DC 5V MODE

Figure 1: Rear Panel

• HDMI IN: Connects to your HDMI source device by using an HDMI cable (cable not included)
- HDMI OUT 1-8 (left to right): Connects to your HDMI displays by using HDMI cables (cables not included)
• F/W: For future firmware update
• MODE: Selects alternate EDID modes and functions. See Mode Dial in page 3 & 4
• DC 5V: Power adapter jack for the included 5V power adapter

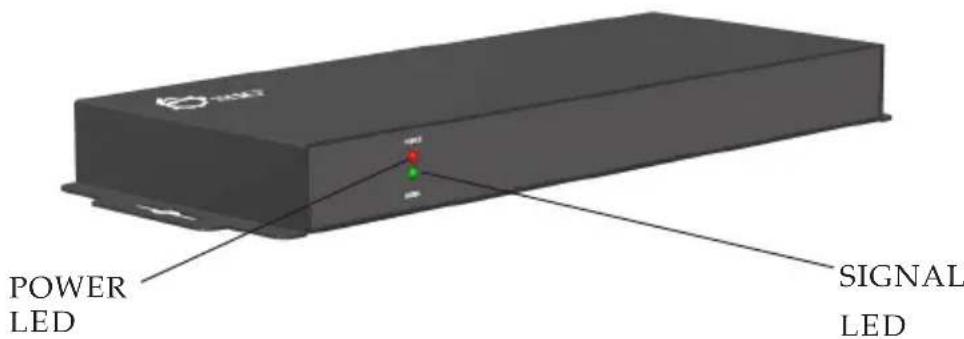

POWER LED SIGNAL LED

Figure 2: Front Panel

• POWER LED: On when the Splitter is powered on
• SIGNAL LED: On when HDMI source is detected

Hardware Installation

1. Power off all devices you plan to connect to the Splitter.
2. Connect your HDMI source's HDMI output to the Splitter's HDMI IN using an HDMI cable (HDMI cable not included).
3. Connect your HDMI displays to the Splitter's HDMI OUT using HDMI cables (HDMI cables not included).
4. Connect the included power adapter to the Splitter's DC 5V power jack and plug it into a reliable power outlet.
5. Power on all of the connected devices.
6. The Splitter is now ready to use.

NOTE: To achieve 3D and 2Kx4K output, make sure this standard is supported by your display(s), and High Speed HDMI cables with Ethernet are used.

Mode Dial

EDID is used to transmit the make, model and characteristics of a monitor to the display adapter of the computer. It is also used by an HDTV to identify it's maximum resolution to the DVD player, A/V receiver or video processor. Use a flat head screwdriver to rotate the Mode Dial to select amongst the options.

0 1 2 3 4 5 6

0: Firmware update
1: EDID Full-HD (1080p@60) - 24bit 2D video & 7.1ch audio
2: EDID Full-HD (1080p@60) - 24bit 2D video & 2ch audio
3: EDID Full-HD (4K2K@30) - 24bit 2D video & 7.1ch audio
4: EDID Full-HD (4K2K@30) - 24bit 2D video
5: EDID HD (1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio
6: Auto EDID mode: Automatically detect and analyze the EDID of all the connected HDMI displays. The HDMI source player will defer to the lowest resolution HDMI display
7: EDID Learning mode: Learns the EDID of the HDMI display connected to HDMI OUT 1 of the Splitter

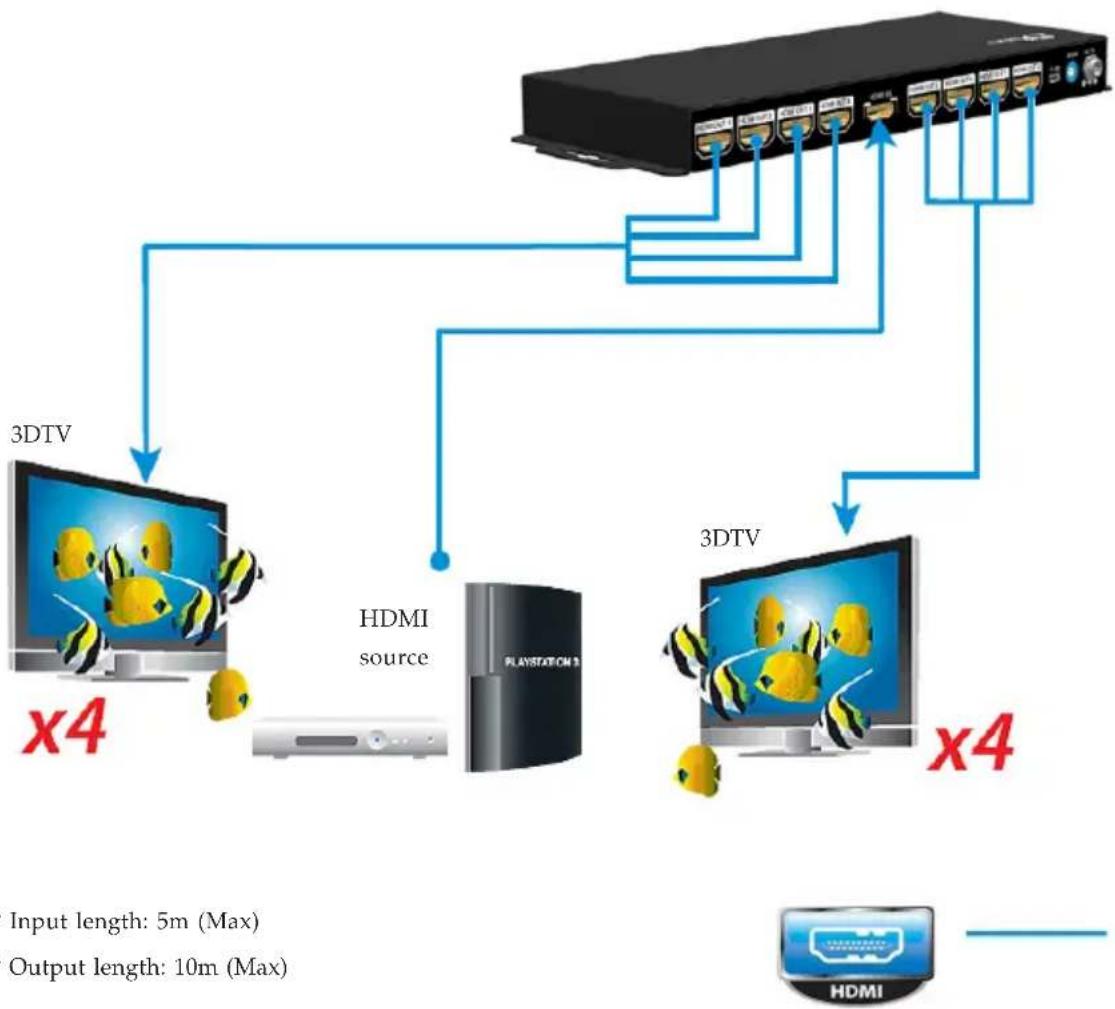

Application

Figure 3: Application

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG's Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away. You can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a 2-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees the product to be free of any defects in materials or workmanship for two (2) years from the date of purchase of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store where you purchased it.

B) If your purchase has passed the store's return policy period, please follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request. Go to www.siig.com, click Support, then Request A Product Replacement to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

• Properly pack the product for shipping. All software, cable(s) and any other accessories that came with the original package must be included.
• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton.

- You are responsible for the cost of shipping to SIIG. Ship the product to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

- SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S. at no cost to the customer.

Founded in 1985, SIIG, Inc. is a leading manufacturer of IT connectivity solutions (including Serial ATA and Ultra ATA Controllers, FireWire, USB, and legacy I/O adapters) that bridge the connection between Desktop/Notebook systems and external peripherals. SIIG continues to grow by adding A/V and Digital Signage connectivity solutions to our extensive portfolio. All centered around the distribution and switching of A/V signals over CAT5/6, these products include matrix switches, distribution amplifiers, extenders, converters, splitters, cabling, and more.

SIIG is the premier one-stop source of upgrades and is committed to providing high quality products while keeping economical and competitive prices. High-quality control standards are evident by one of the lowest defective return rates in the industry. Our products offer comprehensive user manuals, user-friendly features, and most products are backed by a lifetime warranty.

SIIG products can be found in many computer retail stores, mail order catalogs, and e-commerce sites in the Americas, as well as through major distributors, system integrators, and VARs.

PRODUCT NAME

1x8 HDMI Splitter with 4Kx2K & EDID Management

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
