Full-Motion Tablet Suction Mount Holder - Black Installation Guide

Introduction

The Full-Motion Tablet Suction Mount Holder - Black enables you to mount smartphones or tablets onto smooth surfaces easily and quickly.

Specifications

• Product dimensions: 6.50" x 2.76" x 10.43"
  • Product weight: 0.99 lbs (450g)
  • Device holder adjustment: 4" to 12"
• Loading weight capacity: <= 2.20 lbs
• Adjustable height: up to 15.16"

LOT Number Sticker

For future product return or exchange, this LOT number is required. Please keep it for your reference.

LOT Number

Part Number

Key Features and Benefits

• Full motion articulating tablet/smartphone desktop mount frees you from holding the device to maximize your comfort and increase your productivity
- Retractable holding bracket with side openings expands up to 7" to allow easy device installing/removing and cable connection
- Fits most 4" up to 12" smart phones or tablets, including iPhone, iPad, iPad Mini, iPad Air, Kindle, Google Nexus, Samsung Tab series and many others
• Supports 360 ° rotation, multi-direction swivel and tilt for the best ergonomic viewing position
- Articulating aluminum arm allows up to 13" height adjustment
- Dual suction cup mount provides easy and secure installation onto most surfaces without drilling
- Quick release tabs make repositioning convenient

Package Contents

• Full-Motion Tablet Suction Mount Holder - Black
- 3x Hex Wrench
• Installation Guide

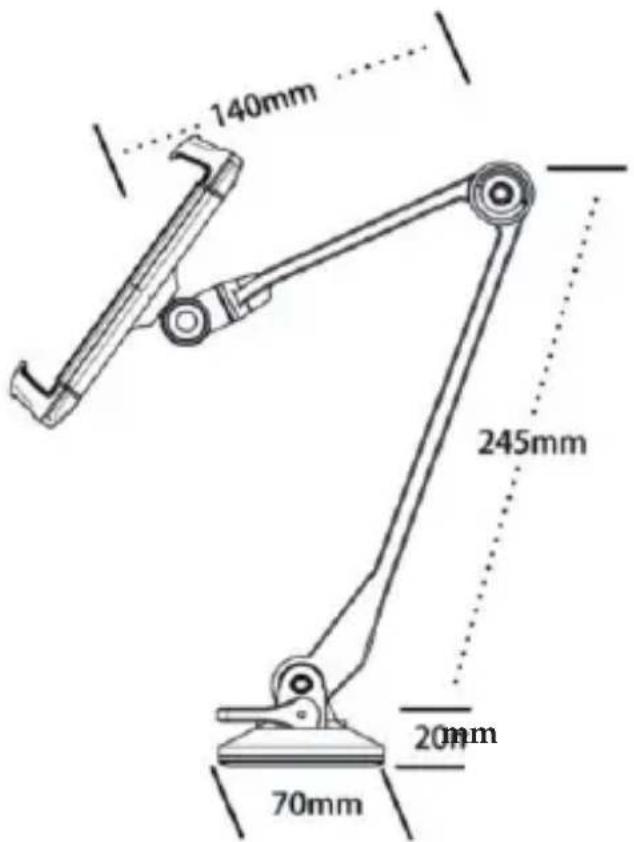

Layout

140mm 245mm 70mm 20mm

125~170mm 165mm

Figure 1: Full-Motion Tablet Suction Mount Holder - Black

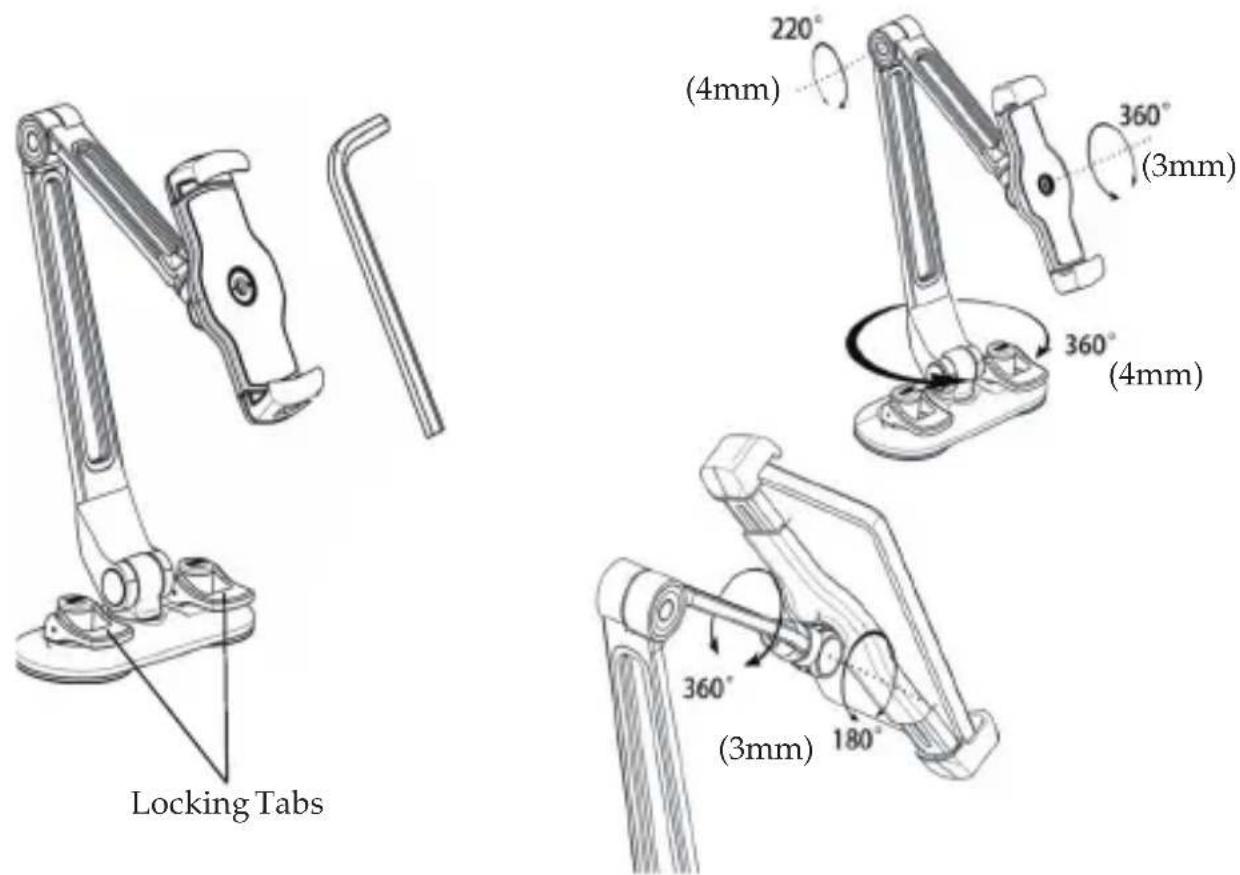

Installation Instructions

1. Remove the transparent protective film from the 2 suction cups, place the mount in the desired position on the desktop.
2. Press the locking tabs down to secure the mount to the desktop.
3. Adjust the device holder to fit your tablet or smartphone, and secure the device in place.
4. Adjust the device holder to the desired position using the included wrench (x3).

Locking Tabs 220° (4mm) 360° (3mm) 360° (4mm) 360° (3mm) 180°

Figure 2

Cable Management

Route the device's charging cable through the port when charging is required.

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Figure 3

Maintenance

After a period of time, the suction cup will lose holding strength due to the accumulation of dirt and dust. It is recommended to remove and clean the suction cup with cold water every 2 months to maintain proper holding strength.

Illustration showing a hand pressing down on a tool and then applying liquid to a circular object (no text or symbols present)

Figure 4

Notice

• DO NOT assemble/disassemble the tablet holder by yourself
• DO NOT wash with hot water
- DO NOT place the suction cup on a rough surface or one prone to vibration or movement, as these conditions may cause the mount to fall unexpectedly
- Keep out of reach of children

Technical Support and Warranty

QUESTIONS? SIIG's Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away. You can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a 1-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees the product to be free of any defects in materials or workmanship for one (1) year from the date of purchase of the product. This warranty is not transferable and is available only to the original purchaser of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store where you purchased from.

B) If your purchase has passed the store's return policy period, please follow the steps below to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

• Properly pack the product for shipping. All accessories that came with the original package must be included
• Include a copy of your original sales receipt inside the package with date of purchase and place of purchase circled and clearly visible
• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton
• You are responsible for the cost of shipping to SIIG. Ship the product to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #: ____

- SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S. at no cost to the customer

Founded in 1985, SIIG, Inc. is a leading manufacturer of IT connectivity solutions (including Serial ATA and Ultra ATA Controllers, FireWire, USB, and legacy I/O adapters) that bridge the connection between Desktop/Notebook systems and external peripherals. SIIG continues to grow by adding A/V and Digital Signage connectivity solutions to our extensive portfolio.

SIIG products offer comprehensive user manuals, many user-friendly features, and are backed by an extensive manufacturer warranty. High quality control standards are evident by the overall ease of installation and compatibility of our products, as well as one of the lowest defective return rates in the industry. SIIG products can be found in computer retail stores, mail order catalogs, through major distributors, system integrators, VARs and through e-commerce sites.
