USER MANUAL PLPTS3X2 Pyle

Two black adjustable table devices with tripod legs, no visible text or symbols

☆☆☆☆☆√☆☆

Height Adjustable Tripod Mount For Laptop, Notebook, Mixer, DJ Equipment, (Pair)

USER MANUAL

Three black mechanical components and five circular washers arranged on a white background (no text or symbols visible)

2 Device Resting Plate 2 Extension Arm 2 Folding Tripod Base 8 Washers

Collection of mechanical components and fasteners, no visible text or symbols

4 Mounting Clamps 8 Wing Nuts 8 Plate Bolts

Close-up of a black metal bracket mounted on a pole, no visible text or symbols

Slide the metal mounting clamps onto both ends of the extension arm. Each side is fitted with rubber grips that the clamps use for holding support. Be sure as to, at least partially, slide the metal mounting clamps to lay over the rubber grips. Use the dual clamp-style knobs on both sides on each of the mounting clamps to secure the angle and placement of the device resting plate.

Close-up of a black electronic device with two metal clamps mounted on a stand (no visible text or symbols)

Use the included hardware to secure the device resting plate with the metal mounting clamps. The holes in the mounting clamp brackets should align with the holes protruding through the base plate. Be sure to use a washer between the wing nut and the metal mounting clamp when securing.

Black background with four red arrows pointing inward toward white dots, no text or symbols present

The plate bolts are to be inserted from the top of the unit, going downward through the device resting plate, and out of the other end to meet the metal mounting brackets. The metal mounting bracket clamps can be adjusted or loosened accordingly to allow for angle/tilt adjustment.

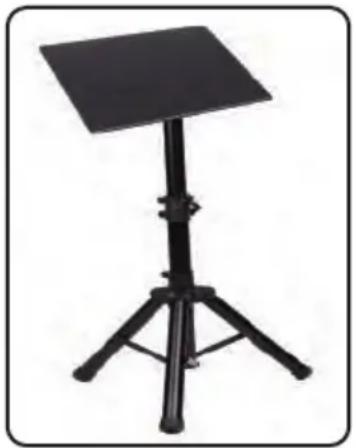

Black adjustable stand with tripod base and flat top (no text or symbols visible)

Slide the assembled extension arm and device resting plate into the assembled folding tripod base with the inserted extension arm fitting insert. The top clamp style knob allow for height adjustment by raising or lowering the unit's extension arm. The lower clamp style knob allows for securing the stand's stability when the tripod legs are extended. The unit also features a safety pin that acts as a backup for the stand's height adjustment safety.

Features:

• Universal Device Stand
- Quick & Easy Setup
- Tripod Floor-Standing Design
• Lightweight, Portable & Reliable
- Quick & Convenient Height Adjustment
- Angle Adjustable Device Tray
• Rugged & Durable Metal Construction
• Disassembles for Travel & Storage
- For On-Stage or In-Studio Use

- Works with Audio/Video Devices, DJ Sound Equipment (Laptops, Notebooks, Mixers, Amplifiers, etc.)

• Used by Musicians, DJs, Performers, Engineers, etc.

What's in the Box:

• (2) Universal Laptop Device Stand

Technical Specs:

• *Some Assembly Required
• Height Adjustable: 28.0" - 50.0" - inches
- Construction Material: Metal Stand, Engineered ABS Shelf
- Shelf / Device Tray Size (L x W): 20.0" x 16.0" -inches

WARNING:

This products can expose you to a chemical or group of chemicals, which may include "Lead And Cadmium" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
