USER MANUAL HT502PR LG

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating.

The openings should be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.

CAUTION:

This product employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Introduction

Maintenance and Service ....3

Before use ....4

Front Panel/Rear Panel ....5

Remote Control ....6

Installation and Setup

TV Connection ....7

Optional Equipment Connection ....8

Antenna Connection ....8

Assembling the speaker stand to the speaker .9

Speaker System Connection....9

Displaying Disc Information on-screen .....10

Initial Settings ....10

General Operation....10-13

LANGUAGE 10

DISPLAY 11

AUDIO 12

5.1 Speaker Setup .....12

LOCK (Parental Control) 13

OTHERS 13

Operation

General features .....14

Additional features .....15

Controlling the TV ....15

Playing an Audio CD or MP3/WMA file .....16

Programmed Playback 16

Viewing a JPEG file ....17

Playing a DivX Movie file ....18

Presetting the Radio Stations .....19

Listening to the Radio .....19

Sleep Timer Setting 20

Dimmer....20

Mute 20

Selecting input source .....20

XTS/XTS pro ....20

VIRTUAL sound 20

Sound Mode ....20

KARAOKE Operation .....21-25

Karaoke Basic Playback .....21

Karaoke Advanced Playback .....21-22

Karaoke MENU Playback .....22-25

REFERENCE

Language Codes ....26

Area Codes 26

Troubleshooting .....27-28

Specifications 29

Maintenance and Service

Refer to the information in this chapter before contacting a service technician.

Handling the unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Do not leave rubber or plastic products in contact with the unit for a long period of time. since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD/CD Receiver is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service center.

Introduction

Before use

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference.

This manual provides information on the operation and maintenance of your DVD/CD Receiver. Should the unit require service, contact an authorized service location.

About the Symbol Display

“ may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific DVD video disc.

Symbol Used in this Manual

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

DVD	DVD
VCD	Video CDs
ACD	Audio CDs
MP3	MP3 files
WMA	WMA files
JPEG	JPEG files
DivX	DivX files

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. U.S. Pat. No.'s. 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and worldwide patents issued and pending. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. Copyright 1996, 2003 Digital Theater Systems, Inc. All Rights Reserved.

Types of Playable Discs

		DVD(8 cm / 12 cm disc)
		Video CD (VCD)(8 cm / 12 cm disc)
		Audio CD(8 cm / 12 cm disc)

In addition, this unit can play a DVD±R, DVD±RW, SVCD and CD-R or CD-RW that contains audio titles, MP3, WMA, JPEG or DivX files.

Notes:

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD-RW, DVD+RW) disc itself, some CD-R/RW (or DVD-RW, DVD+RW) discs may not be played on the unit.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labelled as the same as the rear of the unit or "ALL".

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your DVD player's regional code or the disc cannot play.
• If you try to play a DVD with a different regional code from your player, the message "Check Regional Code" appears on the TV screen.

Front Panel/Rear Panel

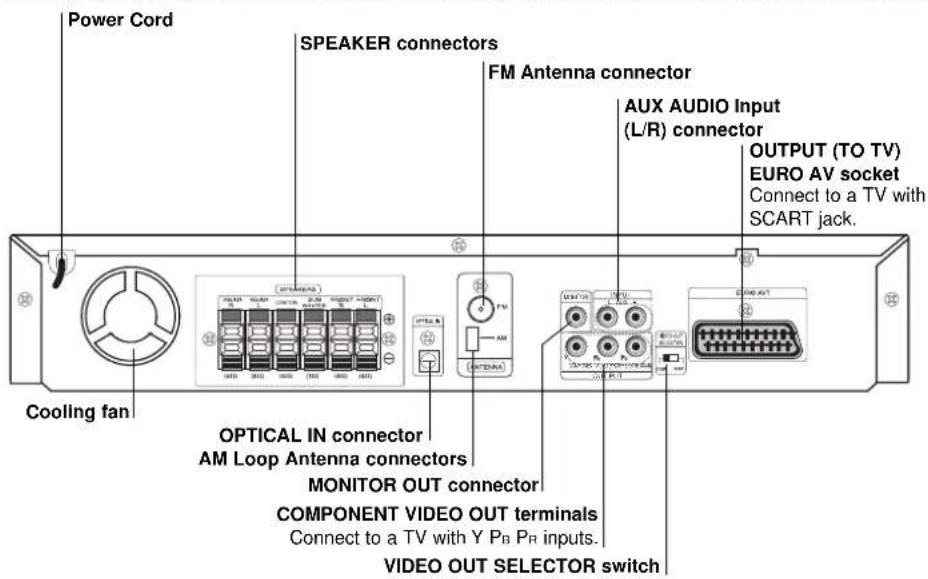

POWER DISC Tray DISPLAY Window VOLUME controller AUDIO IN CONNECTOR USB port Connect to a USB port of a memory device (USB memory etc.) MIC 1/MIC 2 Connect a microphone to MIC 1 or MIC 2 or to both sockets. TUNING(-/+)/ SKIP SEARCH(I◄◄/►►1)/ KEY CONTROL(b)/(#) STOP (■) PAUSE (■)/ MONO/STEREO (ST.) FUNC.(-)/PLAY(►) Press and hold down this button about 3 seconds, then press repeatedly to select other function. OPEN/CLOSE button Remote sensor

Power Cord SPEAKER connectors FM Antenna connector AUX AUDIO Input (L/R) connector OUTPUT (TO TV) EURO AV socket Connect to a TV with SCART jack. COOLING fan OPTICAL IN connector AM Loop Antenna connectors MONITOR OUT connector COMPONENT VIDEO OUT terminals Connect to a TV with Y PB PR inputs. VIDEO OUT SELECTOR switch

Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

Remote Control

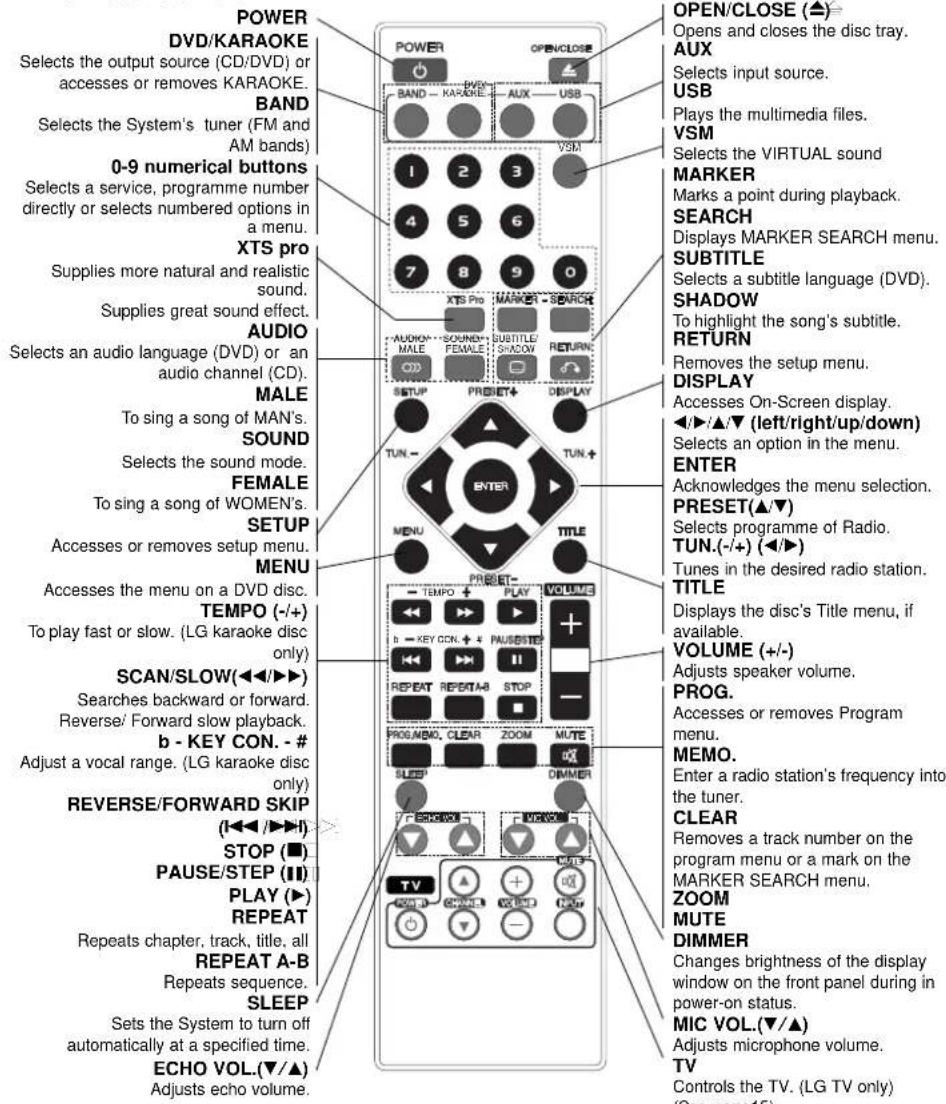

POWER DVD/KARAOKE Selects the output source (CD/DVD) or accesses or removes KARAOKE. BAND Selects the System's tuner (FM and AM bands) 0-9 numerical buttons Selects a service, programme number directly or selects numbered options in a menu. XTS pro Supplies more natural and realistic sound. Supplies great sound effect. AUDIO Selects an audio language (DVD) or an audio channel (CD). MALE To sing a song of MAN's. SOUND Selects the sound mode. FEMALE To sing a song of WOMEN's. SETUP Accesses or removes setup menu. MENU Accesses the menu on a DVD disc. TEMPO (-/+) To play fast or slow. (LG karaoke disc only) SCAN/SLOW(◀◀/▶▶) Searches backward or forward. Reverse/ Forward slow playback. b - KEY CON. - # Adjust a vocal range. (LG karaoke disc only) REVERSE/FORWARD SKIP (1◀◀ /▶▶▶) STOP (■) PAUSE/STEP (III) PLAY (▶) REPEAT Repeats chapter, track, title, all REPEAT A-B Repeats sequence. SLEEP Sets the System to turn off automatically at a specified time. ECHO VOL.(▼/▲) Adjusts echo volume. OPEN/CLOSE (▲) Opens and closes the disc tray. AUX Selects input source. USB Plays the multimedia files. VSM Selects the VIRTUAL sound MARKER Marks a point during playback. SEARCH Displays MARKER SEARCH menu. SUBTITLE Selects a subtitle language (DVD). SHADOW To highlight the song's subtitle. RETURN Removes the setup menu. DISPLAY Accesses On-Screen display. ◀◀/▲/▼ (left/right/up/down) Selects an option in the menu. ENTER Acknowledges the menu selection. PRESET(▲/▼) Selects programme of Radio. TUN.(-/+) (◀/▶) Tunes in the desired radio station. TITLE Displays the disc's Title menu, if available. VOLUME (+/-) Adjusts speaker volume. PROG. Accesses or removes Program menu. MEMO. Enter a radio station's frequency into the tuner. CLEAR Removes a track number on the program menu or a mark on the MARKER SEARCH menu. ZOOM MUTE DIMMER Changes brightness of the display window on the front panel during in power-on status. MIC VOL.(▼/▲) Adjusts microphone volume. TV Controls the TV. (LG TV only) (See page16)

Remote Control Operation Range

Point the remote control at the remote sensor and press the buttons.

● Distance: About 23 ft (7 m) from the front of the remote sensor
- Angle: About 30^ in each direction in front of the remote sensor

Caution

Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).

Remote control battery installation

Remove the battery cover on the rear of the remote control, and insert two R03 (size

AAA) batteries with and aligned correctly.

Installation and Setup

TV Connection

Make one of the following connections, depending on the capabilities of your existing equipment.

Tips:

• Depending on your TV and other equipment you wish to connect, there are various ways you could connect the DVD/CD Receiver. Use one of the connections described below.
• Please refer to the manuals of your TV, VCR, Stereo System or other devices as necessary to make the best connections.

Caution:

• Make sure the DVD/CD Receiver is connected directly to the TV. Select the correct AV input on your TV.
• Do not connect your DVD/CD Receiver to TV via your VCR. The DVD image could be distorted by the copy protection system.

Rear of DVD/CD Receiver

Electrical wiring diagram showing connections between electronic devices, connectors, and terminal blocks with labeled terminals V, C, and T

Rear of TV

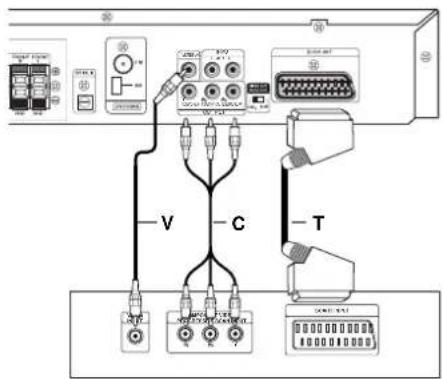

Video connection

Connect the MONITOR OUT jack from the DVD/CD Receiver to the VIDEO IN jack on the TV using the video cable (V).

Component Video connection

Connect the COMPONENT VIDEO OUT jacks from the DVD/CD Receiver to the corresponding jacks on the TV using an Y P B P R cable (C).

SCART connection

Connect the EURO AV OUTPUT (TO TV) socket on the DVD/CD Receiver to the corresponding jacks on the TV using the scart cable (T).

• If your television is a high-definition or "digital ready" television, you may take advantage of the DVD/CD Receiver's progressive scan output for the highest video resolution.
• If your TV does not accept your resolution setting, abnormal picture appears on the screen. Please read owner's manual for TV then set the resolution that your TV can accept.

Notes:

A picture via scart input is not supported.

Caution

VIDEO OUT SELECTOR switch

In power-off state, select either COMPONENT VIDEO OUT (PROGRESSIVE SCAN) or SCART signal of EURO AV TO TV terminal depending on how to connect the unit to the TV.

Optional Equipment Connection

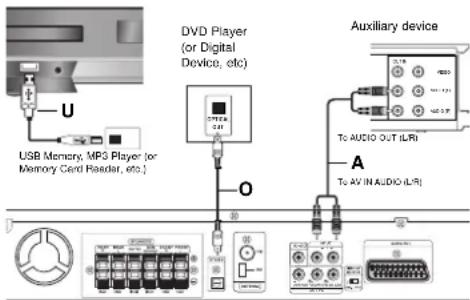

USB Memory, MP3 Player (or Memory Card Reader, etc.) DVD Player (or Digital Device, etc.) Auxiliary device TO AUDIO OUT IL/RI A TO AV IN AUDIO IL/RI

Rear of DVD/CD Receiver

USB connection (U)

Connect the USB port of USB Memory (or MP3 player, etc.) to the USB port on the front of the unit.

Removing the USB Device from the unit

1. Choose a different function mode or press STOP (■) twice in a row.

2. Remove the USB device from the unit.

Notes:

• Don't extract the USB device while operating.
• Music files (MP3/WMA), image files (JPEG) and video files can be played.
  ● This unit can not use a USB HUB.
• Recommended Memory Cards.
  Compact Flash Card (CFC), Micro Drive (MD), Smart Media Card (SMC), Memory Stick (MS), Secure Digital Card (SD), Multi Media Card (MMC), Memory Stick Pro (MS-Pro)

- Compatible with : FAT16, FAT32

- Only use the memory cards recommended.

● Devices which require additional program installation when you have connected the unit to a computer are not supported.

- In case of a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation. Up to four primary partitions of a drive are supported. If there is an extension partition, it will not be supported.

- If the drive of USB device is two or more, a drive folder is displayed on the screen. If you want to move to the initial menu after you select a folder, press RETURN.

- Digital cameras and mobile phones are not supported.

AUX IN connection (A)

Connect a Output of auxiliary device to the AUX AUDIO Input (L/R) Connector.

OPTICAL IN connection (O)

Connect an optical output of DVD Player (or Digital Device etc) to the OPTICAL IN connector.

AUDIO IN connection (D)

Connect a output of portable device (MP3 or PMP etc) to the AUDIO input connector.

To AUDIO IN D To AUDIO OUT

Antenna Connection

Connect the supplied FM/AM antenna for listening to the radio.

• Connect the AM Loop antenna to the AM antenna connector.
• Connect the FM Wire antenna to the FM antenna connector.

Notes:

• To prevent noise pickup, keep the AM Loop antenna away from the DVD/CD Receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM Wire antenna, keep it as horizontal as possible.

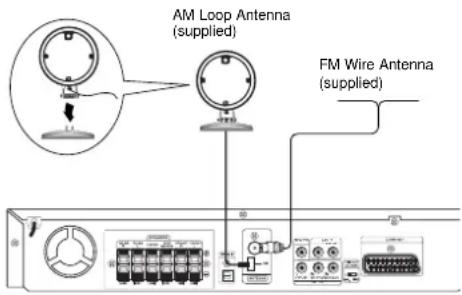

AM Loop Antenna (supplied) FM Wire Antenna (supplied)

Assembling the speaker stand to the speaker

Before connecting the speakers, assemble the speaker stand to the speaker as illustrated.

1. Stick the speaker stand to the speaker.
2. Detach the speaker cover on the rear of the speaker, and then connect the speaker stand and the speaker by screws.
3. Pull the speaker cable through the hole on the speaker stand, and then draw the speaker cable through the hole on the bottom of the speaker stand.
4. Connect the speaker cable to the appropriate terminals on the rear of speaker, and then attach the speaker cover.

Tip:

You can use the speaker without the speaker stand by installing it on the wall.

Hole to hang the speaker on the wall

Speaker System Connection

Connect the speakers using the supplied speaker cables.

To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.).

Notes:

• Be sure to match the speaker cable to the appropriate terminal on the components: + to + and - to -. If the cables are reversed, the sound will be distorted and will lack base.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speakers.

Displaying Disc Information On - screen

You can display various information about the disc loaded on-screen.

1. Press DISPLAY to show various playback information.
   The displayed items differ depending on the disc type or playing status.
2. You can select an item by pressing ▲ / ▼ and change or select the setting by pressing ◀ / ▶
   • Title (Track) – Current title (or track) number/total number of titles (or tracks).
3. Chapter – Current chapter number/total number of chapters.
   • Time – Elapsed playing time.
   • Audio – Selected audio language or channel.
4. Subtitle – Selected subtitle.
   • Angle – Selected angle/total number of angles.
   • Sound – Selected sound mode.

Note:

If any button is not pressed for a few seconds, the on-screen display disappears.

Initial Settings

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see the pages 10 to 13.

To display and exit the Menu:

Press SETUP to display the menu. A second press of SETUP will take you back to initial screen.

To go to the next level:

Press ▶ on the remote control.

To go back to the previous level:

Press ◀ on the remote control.

GENERAL OPERATION

1. Press SETUP. The Setup menu appears.
2. Use ▲ / ▼ to select the desired option then press ▶ to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).
3. Use ▲ / ▼ to select the second desired option and then press ▶ to move to the third level.
4. Use ▲ / ▼ to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.
5. Press SETUP or PLAY to exit the Setup menu.

LANGUAGE

LANGUAGE GSD 3+ English Disc Audio 3+ Original Disc Subtitle 3+ Off Disc Menu 3+ Original

Move Select

OSD

Select a language for the Setup menu and then on-screen display.

Disc Audio / Subtitle / Menu

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

Original – Refers to the original language in which the disc was recorded.

Other – To select another language, press numeric buttons and then ENTER to enter the corresponding 4-digit number according to the language code list on the page 26. If you enter the wrong language code, press CLEAR.

Display

DISPLAY TV Aspect ▶ 16 : 5 Display Mode ▶ Widescroem Progressive Scen ▶ Off Move ▶ Select

TV Aspect

4:3 – Select when a standard 4:3 TV is connected.

16:9 – Select when a 16:9 wide TV is connected.

Display Mode

The display Mode setting works only when the TV Aspect mode is set to "4:3".

Letterbox – Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan – Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

Progressive Scan

Progressive Scan Video provides the highest quality pictures with less flickering.

If you are using the COMPONENT VIDEO OUT jacks, but are connecting the receiver to a standard (analog) television, set Progressive Scan to Off.

If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set Progressive Scan to On.

To Turn ON progressive scan:

Connect component out of the DVD/CD Receiver to the input of your monitor/television, set your television or monitor to Component Input.

1. Select "Progressive Scan" on the DISPLAY menu then press ▶.
2. Select "On" using the ▲ / ▼ buttons.
3. Pressing ENTER will set the player to Progressive scan mode.

Caution:

Once the setting for progressive scan output is entered, an image will only be visible on a progressive scan compatible TV or monitor. If you set Progressive Scan to On in error, you must reset the unit. First, remove the disc in the DVD/CD Receiver. Next, press STOP(■) on the remote control and hold it for five seconds before releasing it. The video output will be restored to the standard setting, and a picture will once again be visible on a conventional analog TV or monitor.

AUDIO

Each DVD disc has a variety of audio output options. Set the receiver's AUDIO options according to the type of audio system you use.

AUDIO ▶ Selects, I Speaker Setup ▶ OnDRC ▶ OnVocal Move Select

Dynamic Range Control (DRC)

With the DVD ^*1 format, you can hear a program's soundtrack in the most accurate and realistic presentation, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). Then, you may listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect. *1:Dolby Digital only

Vocal

Set Vocal to On only when a multi-channel karaoke DVD is playing. The karaoke channels on the disc will mix into normal stereo sound.

5.1 Speaker Setup

Make the following settings for the built-in 5.1 channel surround decoder.

1. Press ENTER, and the 5.1 Speaker Setup menu appears.

AUDIO Speaker Front L Size Small Volume 0 dB Distance 0 m Text CFF Select Move Return Enter

1. Use ◀ / ▶ to select the desired speaker.
2. Adjust options using ▲ / ▼ / ◀ / ▶ buttons.
3. Press ENTER to confirm your selection. Returns to the previous menu.

Speaker selection

Select a speaker that you want to adjust. [Front speaker (Front L), Front speaker (Front R), Center Speaker (Center), Subwoofer (SubWoofer), Rear speaker (Rear L), Rear speaker (Rear R)]

Note:

Certain speaker settings are prohibited by the Dolby Digital licensing agreement.

Size

Since the speaker settings are fixed, you cannot change the settings.

Volume

Press ◀ / ▶ to adjust the output level of the selected speaker. (-5dB \~ 5dB)

Distance

If you connected speakers to your DVD/CD Receiver, setting the Distance lets the speakers know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.

Press ◀ / ▶ to adjust the Distance of the selected speaker. (You can't adjust front / Woofer speakers)

Test

Press ◀ / ▶ to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in the system.

Front Left (Front L) → Center → Front Right (Front R) → Rear Right (Rear R) → Rear Left (Rear L) → SubWoofer

LOCK (Parental Control)

LOCK Rating ▶ Unlock Password ▶ ★★★★ Area Code ▶ KZ Move ▶ Select

Rating

Blocks playback of rated DVDs based on their contents. Not all discs are rated.

1. Select "Rating" on the LOCK menu then press ▶.
2. To access the LOCK options, you must input the password you have created. If you have not yet entered password, you are prompted to do so. Input a password and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR.
3. Select a rating from 1 to 8 using the ▲ / ▼ buttons. Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. Unlock: If you select unlock, parental control is not active and the disc plays in full.
4. Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Password

You can enter or change password.

1. Select Password on the LOCK menu and then press ▶.

2. Follow the step 2 as shown above (Rating). To change the password, press ENTER when the "Change" option is highlighted. Input a password and press ENTER. Enter it again and press ENTER to verify.

3. Press SETUP to exit the menu.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Press SETUP to display the Setup menu.

2. Input the 6-digit number "210499" and press ENTER. The password is cleared.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 26.

1. Select "Area Code" on the LOCK menu then press ▶.

2. Follow the step 2 as shown previous paragraph (Rating).

3. Select the first character using ▲ / ▼ buttons.

4. Press ▶ and select the second character using ▲/▼ buttons.

5. Press ENTER to confirm your Area code selection.

OTHERS

OTHERS PBC ▶ On ▶ SelectDivX(R) Registrable Semi Kamake ▶ On Move ▶ Select

PBC

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played in the same way as Audio CDs.

DivX(R) Registration

We provide you the DivX® VOD (Video On Demand) registration code that allows you to rent and purchase videos based on the DivX® VOD service. For more information, visit www.divx.com/vod.

1. Select "DivX(R) Registration" option and then press ▶.
2. Press ENTER while "Select" is selected and the registration code will appear. Use the registration code to purchase or rent the videos from DivX® VOD service at www.divx.com/vod. Follow the instructions and download the video onto a disc for playback on this unit.
3. Press ENTER to exit.

Note:

All the downloaded videos from DivX® VOD can only be played back on this unit.

Semi Karaoke

• When a chapter/ title / track is fully finished, this function shows the score in the screen with a fanfare sound.
• A vailable discs for the Semi Karaoke function: DVD discs / DVD Karaoke Discs / VCD discs with more than 2 tracks
  On: When you finished singing a score will appear on the screen.
  Off: Fanfare and score do not appears on the screen.

Note:

• This function operate on the DVD/CD mode.
  • The Semi Karaoke function is available only when a microphone is connected.
• Watching movies, "Off" the Semi Karaoke or enjoy it without connecting the MIC at the SET UP menu if the fanfare or score appears during changing a chapter.

Operation

General features

Buttons Operations		Discs
▲ (OPEN / CLOSE)	Opens or closes the disc tray.	ALL
II (PAUSE)	During playback, press II to pause playback.	ALL
	Press II repeatedly to play Frame-by-Frame.	DVD	VCD	DivX
SKIP (I◄◄ / ►►I)	During playback, press SKIP (I◄◄ or ►►I) to go to the next chapter/track or to return to the beginning of the current chapter/track.	ALL
	Press SKIP I◄◄ twice briefly to step back to the previous chapter/track.
SCAN (◄◄ / ►►)	During playback, press SCAN (◄◄ or ►►) repeatedly to select the required scan speed.	DVD	VCD	DivX
	DVD : ◀◄, ◀◄◄, ◀◄◄◄, ◀◄◄◄◄, ◀◄◄◄◄◄ or ►►, ►►►, ►►►►, ►►►►►, ►►►►►►		ACD	MP3
	DivX disc, Video CD : ◀◄, ◀◄◄, ◀◄◄◄, ◀◄◄◄◄ or ►►, ►►►, ►►►►, ►►►►►►			WMA
	WMA/MP3, Audio CD : ◀◄ (X2, X4, X8) or ►► (X2, X4, X8)
REPEAT During playback, press REPEAT repeatedly to select a desired repeat mode. DVD Video discs: Chapter/Title/OffVideo CD, Audio CD, DivX/MP3/WMA discs: Track/All/Off		ALL
REPEAT A-B During playback, press REPEAT A-B to select a point A and a point B and repeats a sequence from point A (Starting point) to point B (End point).Press REPEAT A-B to exit.		DVD	VCD
ZOOM During playback or in the pause mode, press ZOOM to enlarge the video image (3 steps).You can move through the zoomed picture using ◀►▲▼ buttons.		DVD	VCD
TITLE If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appears.		DVD
MENU The disc menu appears on the screen.		DVD
☐ (SUBTITLE) During playback, press SUBTITLE repeatedly to select a desired subtitle language.		DVD	DivX
○○ (AUDIO language) During playback, press AUDIO repeatedly to hear a different audio language or audio track.		DVD	DivX
○○ (AUDIO channel) Press AUDIO repeatedly during playback to hear a different audio channel (STER., LEFT or RIGHT).		VCD
SLOW	In the pause mode, press SCAN (◄◄ or ►►) to select the required speed.DVD : ◀ (1/2, 1/4, 1/8, 1/16) or ► (1/2, 1/4, 1/8, 1/16)Video CD : ► (1/2, 1/4, 1/8, 1/16)	DVD	VCD

Notes on general features:

• Zoom may not work on some DVDs.
• The A-B repeat function is available only in the current title.

Additional features

1.5 times speed playback

You can play at 1.5 times speed.

The 1.5 speed allows you to watch the pictures and listen to the sound quicker than playing at a normal speed on the disc.

1. During playback, press PLAY(▶) to play at 1.5 times speed. "▶X1.5" appears on the screen.

2. Press PLAY(▶) again to exit.

Time Search DivXV

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback.
2. Press ▲ / ▼ to select the time clock icon and “--:--:--” appears.
3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers.
4. Press ENTER to confirm. Playback starts from the selected time.

Marker Search DivXV

To enter a Marker

You can start playback from up to nine memorized points. To enter a marker, press MARKER at the desired point on the disc. The Marker icon appears on the TV screen briefly. Repeat to enter up to nine markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker search menu appears on the screen.
2. Within 10 seconds, press ◀ / ▶ to select a marker number that you want to recall or clear.
3. Press ENTER and playback starts from the marked scene. Or press CLEAR and the marker number is erased from the list.
4. You can play any marker by inputting its number on the marker search menu.

Screen Saver

The screen saver appears when you leave the unit in Stop mode for about five minutes.

Last Scene Memory DVD

This receiver memorizes the last scene from the last disc that is viewed. The last scene remains in the memory even if you remove the disc from the receiver or switch off the receiver. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note:

This receiver does not memorize the scene of a disc if you switch off the receiver before commencing to play the disc.

System Select

You must select the an appropriate system mode for your TV system. If NO DISC appears in the display window, press and hold ■ on the front panel or PAUSE/STEP (■) remote control for more than 5 seconds to be able to select a system (PAL, NTSC).

- When the selected system is not compatible with the system of your TV, normal colour picture may not be displayed.

NTSC: Select when DVD/CD Receiver is connected with NTSC-TV.

PAL: Select when DVD/CD Receiver is connected with PAL-TV.

Controlling the TV

Your remote control is capable of operating your DVD/CD Receiver as well as limited functions of LG TV.

Follow the instructions below to operate your LG TV.

Setting Remote Control Codes for LG TV

1. Hold POWER (TV) and press CHANNEL (▼/▲) button repeatedly until the TV on or off.
2. The POWER (TV), CHANNEL (▼/▲), VOLUME (-/+), and INPUT buttons on remote control are used to operate the LG TV.

Note:

If the remote control does not operate your particular TV, try the other code or use the remote control originally supplied with the LG TV. (LG and Gold Star)

Due to the variety of codes used by manufacturers, OUR COMPANY cannot guarantee that the remote control will operate every LG TV model.

Playing an Audio CD or MP3/WMA file

This unit can play Audio CDs or MP3/WMA files.

MP3/ WMA/ Audio CD

Once you insert an MP3/WMA files recording media or Audio CD a menu appears on the TV screen.

Press ▲ / ▼ to select a track/file and then press PLAY or ENTER, and playback starts. You can use variable playback functions. Refer to the page 14.

ID3 TAG

When playing a file containing information such as track titles, you can see the information by pressing DISPLAY. (Song, Artist, Album, Genre, Comment)

Tips:

• Press MENU to move to the next page.
• On a CD with MP3/WMA and JPEG, you can switch MP3/WMA and JPEG. Press TITLE, and MUSIC or PHOTO word on top of the menu is highlighted.

MP3 / WMA disc compatibility with this player is limited as follows:

• Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)
• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)
• The DVD/CD Receiver cannot read an MP3/WMA file that has a file extension other than “.mp3” / “.wma”.
  • CD-R physical format should be ISO 9660
• If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
• File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
• They should not contain special letters such as / ? * : " < > | etc.
• The total number of files on the disc should be less than 999.

This DVD/CD Receiver requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Programmed Playback

The program function enables you to store your favorite tracks from any disc in the receiver memory. A program can contain 300 tracks.

1. Insert a disc. Audio CD and MP3/WMA Discs:
2. Select a track on the "List" and then press PROG. or select "(Add)" icon and then press ENTER to place the selected track on the "Program" list. Repeat to place additional tracks on the list.

Note:

You can add all tracks in the disc. Select "n _0 →(Add All)" icon then press ENTER.

1. Select the track you want to start playing on the "Program" list. Press MENU to move to the next page.
2. Press PLAY or ENTER to start. Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the "Program" list have played once.
3. To resume normal playback from programmed playback, select a track of AUDIO CD (or MP3/WMA) list and then press PLAY.

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat icon appears.

2. Press REPEAT to select a desired repeat mode.

3. TRACK: repeats the current track

4. ALL: repeats all the tracks on programmed list.
5. Off (No display): does not play repeatedly.

Erasing a Track from "Program" List

1. Use ▲▼ to select the track that you wish to erase from the Program list.
2. Press CLEAR. Alternatively, select "Delete" icon then press ENTER to place the selected track on the Program list. Repeat to erase additional tracks on the list.

Erasing the Complete Program List

Use ▲ / ▼ to select " ^a_0 (Del all)" and then press ENTER.

Note:

The programs are also cleared when the disc is removed.

Viewing a JPEG file

JPEG

This unit can play discs with JPEG files. Before playing JPEG recordings, read the notes on JPEG Recordings on the right.

1. Insert a disc and close the tray. The PHOTO menu appears on the TV screen.

Photo Photo Photo Photo Photo Photo Photo Photo

1. Press ▲ / ▼ to select a folder, and then press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the ▲ / ▼ buttons on the remote to highlight and press ENTER.

2. If you want to view a particular file, press ▲ / ▼ to highlight a file and press ENTER or PLAY. While viewing a file, you can press STOP to move to the previous menu (JPEG menu).

Tips:

- There are four Slide Speed options

(Slow), >> (Normal), >>> (Fast) and II (off). Use ▲/▼/◄/► to highlight the Speed. Then, use ◀/► to select the option you want to use and then press ENTER.

- If you set Speed option to Off, the slide is not active.

Slide Show

Use ▲▼◀▶ to highlight the (Slide Show) then press ENTER.(You can not change resolution)

Still Picture

1. Press PAUSE/STEP during the slide show. The DVD/CD Receiver will now go into the PAUSE mode.

2. To return to the slide show, press PLAY or press PAUSE/STEP again.

Moving to another File

Press SKIP (I◄◄ or ►►) once during viewing a picture to advance to the next or previous file.

Rotating the picture

Press ▲▼◀▶ during showing a picture to rotate the picture clockwise or counter-clockwise.

JPEG disc compatibility with this player is limited as follows:

- Depending upon the size and the number of JPEG files, it could take a long time for the DVD/CD Receiver to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels and burn another disc.

• The total number of files and folders on the disc should be less than 999.

- Some discs may not operate due to a different recording format or the condition of disc.

- Ensure that all the selected files have the ".jpg" extensions when copying into the CD layout.

- If the files have ".jpe" or ".jpeg" extensions, please rename them as ".jpg" file.

- File names without ".jpg" extension will not be able to be read by this DVD/CD Receiver. Even though the files are shown as JPEG image files in Windows Explorer.

Playing a DivX Movie file

Using this DVD/CD Receiver you can play DivX disc.

1. Insert a disc and close the tray. The MOVIE menu appears on the TV screen.

MORF Movie Provider 1 Movie Provider 2 Movie Provider 3 Movie Provider 4 Movie Provider 5 Movie Provider 6 Movie Provider 7 Movie Provider 8

1. Press ▲ / ▼ to select a folder and then press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the ▲ / ▼ buttons on the remote to highlight and press ENTER.
2. If you want to view a particular file, press ▲ / ▼ to highlight a file and press ENTER or PLAY.
3. Press STOP to exit.

Notice for displaying the Divx subtitle

If the subtitle does not display properly during playback, press and hold SUBTITLE for about 3 seconds then press SUBTITLE to select another language code until the subtitle is displayed properly

Tips:

• Press MENU to move to the next page.
• On a CD with MP3/WMA, JPEG and MOVIE file, you can switch MUSIC, PHOTO and MOVIE menu. Press TITLE, and MUSIC, PHOTO and MOVIE word on top of the menu is highlighted.

Notes:

• Be sure to select "SUBTITLE ON" mode by pressing the subtitle file every time before playing a DivX file.
• When the subtile has more than two languages in the file, original subtile is only available.
  ●The DivX file does not work when the microphone is in use.
• You can not adjust sound mode and VIRTUAL sound during the DivX file playing.

DivX disc compatibility with this player is limited as follows:

• Available resolution size of the DivX file is under 800x600 (W x H) pixel.
- The file name of the DivX subtitle is available by 45 characters.
- If there is impossible code to express in the DivX file, it may be displayed as "_" mark on the display.
- If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.
- If the video and audio structure of recorded files are not interleaved, either video or audio is outputted.

playable DivX file

- ".avi ", ".mpg ", ".mpeg ", ".divx"

playable Subtitle format

- SubRip(*.srt/*.txt) SAMI(*.smi) SubStation Alpha(*.ssa/*.txt) MicroDVD(*.sub/*.txt) SubViewer 2.0(*.sub/*.txt) VobSub(*.sub)

playable Codec format

- "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "MP43 ", "3IVX".

playable Audio format

"AC3 ", "DTS ", "PCM ", "MP3 ", "WMA". - Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA) - Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)

Presetting the Radio Stations

You can preset 50 stations for FM and AM (MW). Before tuning, make sure that you have turned down the volume.

1. Press BAND on the remote control until FM or AM (MW) appears in the display window.
2. And then every time you press BAND, FM and AM (MW) changes alternately.
3. Press and hold TUN.(-/+ ) for about two seconds until the frequency indication starts to change, then release. Scanning stops when the DVD/CD Receiver tunes in a station.
4. Press PROG./MEMO. on the remote control. A preset number will flash in the display window.
5. Press PRESET (-/+) on the remote control to select the preset number you want.
6. Press PROG./MEMO. on the remote control again. The station is stored.
7. Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUN.(-/+ ) repeatedly in step 3 to tune in the station manually.

To clear all the stored stations

Press and hold PROG./MEMO. for about two seconds and "ERASE ALL" is appeared in the display window and then press PROG./MEMO. again, the stations are cleared.

- If you have accidentally entered into the "ERASE ALL" mode and you do not wish to clear the memory, do not press any key. After a few seconds, "ERASE ALL" will go off by itself and change to normal mode.

Note:

If all stations have already been entered, the FULL message will appear in the display window for a moment and then a preset number will flash. To change the preset number, follow the steps 5-6 as above.

Listening to the Radio

Preset radio stations in the DVD/CD Receiver's memory first (see "Presetting radio stations" on the left).

1. Press BAND until FM or AM (MW) appears in the display window. The last received station is tuned in.
2. Press PRESET (-/+) repeatedly on the remote control to select the preset station you want. Each time you press the button, the DVD/CD Receiver tunes in one preset station at a time.
3. Adjust the volume by rotating VOLUME on the front panel or by pressing VOLUME + or - on the remote control repeatedly.

To turn off the radio

Press POWER to turn the DVD/CD Receiver off or select another function mode (DVD/CD, AUX, USB).

To listen to non-preset radio stations

• Use manual or automatic tuning in the step 2.
• For manual tuning, press TUN.(-/+) repeatedly.
• For automatic tuning, press and hold TUN.(-/+) for about two seconds on the front panel.

To select a preset radio station directly

You can use the number buttons on the remote control to select a preset radio station directly. For example, to listen to the preset station 4, press 4 on the remote control. To listen to the preset station 19, press 1 and then 9 (within 3 seconds).

For your reference

• If an FM program is noisy
  Press MONO/ST. on the front panel to make "STEREO" disappear in the display window. There will be no stereo effect, but the reception will improve. Press the button again to restore the stereo effect.

• To improve reception

Reorient the supplied antennas.

Sleep Timer Setting

You can set the DVD/CD Receiver to turn off automatically at a specified time.

1. Press SLEEP to set the desired sleep time.

The SLEEP indicator and the sleep time appears in the display window.

2. Each time you press SLEEP the setting changes in the following order.

SLEEP 180 → 150 → 120 → 90 → 80 → 70 → 60 → 50 → 40 → 30 → 20 → 10 → OFF (No display)

Note:

You can check the remaining time before the DVD/CD Receiver turns off.

Press SLEEP. The remaining time appears in the display window.

Dimmer

This function will change the brightness of the display window on the front panel during in power-on status. Press the DIMMER repeatedly.

Mute

Press MUTE to mute your unit.

You can mute your unit in order, for example, to answer the telephone, the "MUTE" indicator flashes in the display window.

Selecting input source

You can use VCRs or other units connected to the AV IN, EURO AV connector or Optical connector. Refer to the Owner's Manual supplied with the unit for further information on the operation.

Press AUX repeatedly on the remote control to select the desired input source.

Each time you press this button, the mode of the function changes in the following sequence:

• AUX : for selecting the analog signal from AUX AUDIO Input (L/R) Connector.
• AUX OPT: for selecting the optical digital signal from OPTICAL IN Connector.
  • TV-AUDIO: for selecting the TV audio signal from SCART.
• AUDIO IN: for selecting the analog signal from AUDIO IN Connector.

Notes

• The Optical input function is available only when the sampling frequency of other unit is 32 - 96kHz.
• You can also select the input source by pressing FUNC. button on the front panel. Press and hold this button for about 3 seconds, then press repeatedly to select other function.

XTS/XTS pro

Each time you press XTS pro the setting changes in the following order.

XTS ON → NORMAL → XTS-P ON...

• XTS-P ON

The unique sound quality of the LG Technology creates the optimum sound for you to play the perfect playback of the original sound and to feel the living sound source.

● XTS ON

When playing the movie with the weak bass sound relatively to the general music, it enforces the sense of sound at woofer for you to satisfy with. In the mode of 2 CH BYPASS, It creates the high display effect by playing the sound source via the rear speakers same as the front speakers.

Note

The XTS mode is temporarily disabled when changing from 2.1 CH to 5.1 CH and it is enabled when changing it to 2.1 CH.

• NORMAL

XTS-P and XTS mode tune off

VIRTUAL sound

Press VSM to set the VIRTUAL sound.

Source Display Effect
2.1 ch. VIRTUAL 3D STEREO
5.1 ch VIRTUAL Multichannel sound

•3D STEREO

Realtime 3D positioned sound rendering technology with stereo sources, optimized for stereo speakers. Listeners may experience amazing virtual surround effects with their own multimedia players.

- Multichannel sound

The Multichannel sound changes the sound in 5.1 ch into a virtual one in the 10.1 ch so that it provides such a feeling that you listen to the sound simultaneously from the right and left speakers and center speaker.

Sound Mode

You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to. (2 ch. sound only)

Press SOUND button repeatedly.

→ THEATER 1 → CHURCH → PL II MOVIE

→ PL II MUSIC → PL II MTRX → BYPASS...

Note:

Initial sound mode is BYPASS.

KARAOKE Operation

You can play KARAOKE (singing along) with karaoke disc by connecting a microphone to the unit.

You can enjoy KARAOKE with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the singer's voice.

Karaoke Basic Playback

1. Check if the system is connected. (Refer to the page 7-9.)
2. Turn on the powers of TV (or Amplifier) and DVD Karaoke and enter to the video mode on TV.
3. Press OPEN/CLOSE (▲) to open the disc tray and load supplied karaoke disc in the tray with the label facing up.
4. Press OPEN/CLOSE (▲) to close the tray. [TV Screen]

1. Connect the microphone to the MIC 1 or MIC 2 jack.

2. Select the melody number you want by pressing NUMERIC buttons.

If you cancel the selected melody number, press the CLEAR.

1. Press PLAY.

The selected melody number is played.

Sing in tone with microphone.

After melody ends, it is stopped automatically and score appears.

Karaoke Advanced Playback

To Adjust MIC Volume

Press MIC VOL.(▲/▼) on the remote control to increase the microphone volume or decrease it. (MIN, 1\~14, MAX steps)

To Adjust ECHO Volume

You can give an echo effect to the sound from the microphones.

Press ECHO VOL. (▲/▼) on the remote control to increase the echo volume or decrease it. (MIN, 1\~14, MAX steps)

Key Control

You can change the key to suit your vocal range. You can adjust the key to 13 steps (6 steps higher, 6 steps lower and the original key).

• The setting appears on the screen.

Press b- KEY CON. - # buttons repeatedly on the remote control to find the key that suits your vocal range.

• To flatten the key one by one, press the KEY CONTROL (b) repeatedly during playback.
• To sharp the key one by one, press the KEY CONTROL (#) repeatedly during playback.
• To return to the original key, press the KEY CONTROL (b/#) repeatedly to appear the original key.

Reserving the Songs

When you want to make a reservation of next melody, you can enjoy the most 8 melodies reservation Without waiting.

1. Press the NUMERIC buttons to reserve melody number you want in the karaoke disc play mode. Melody number appears on the TV screen.
2. Press PROG./MEMO. The melody number is made a reservation.
3. Repeat steps 1-2. You can reserve 8 songs.

Tip:

After the one song finishes its playback, the next song will be playback automatically.

To cancel the reserved song

Each time you press CLEAR, the reserved song will be cancelled one by one.

To cancel or change the wrong reserved song

Press the PROG. to move to the desired position, then press the CLEAR to cancel the reserved song.

Male/Female Function

If you want to sing a song of MAN's or WOMEN's key, press MALE/FEMALE button repeatedly to change MAN's or WOMEN's key.

Tempo Change

You can use this function when you want to play fast or slow.

- Press TEMPO + repeatedly during singing to play faster.

- Press TEMPO - repeatedly during singing slower.

Shadow Function

If the screen caption and the song's subtitle are mixed up, the song's subtitle may be invisible. In this case, to highlight the song's subtitle, press SHADOW. - It will be highlighted by background shadow image.

Karaoke MENU Playback

Preparation

Press MENU on the karaoke mode.

The main MENU appears on the screen.

Main MENU (On the TV screen)

1. Select by pressing ▲▼ on the main menu.
2. Use ◀/▶ to select the desired option then press ENTER.

Вкл: When singing by selection of melody, song score comes out after one piece of song is ended.

To cancel it, select the Выкл

FANFARE ON/OFF ( ) L. ФАНФАРЫ ВКЛ ВЫКЛ

Bek: In condition of POWER ON, scoring fanfare operates. The fanfare sound comes out after singing finished.

To cancel it, select the Выкл

ВКЛ: When singing by selection of melody, song lyric appears on the TV screen.

To cancel it, select the Выkl

CHORUS ON/OFF () 4. БЭК-ВОКАЛ ВКЛ ВЫКЛ

Вкл: When singing by selection of melody, song chorus is heard a sound.

To cancel it, select the Выкл

Note:

To move to the main menu, press MENU.

MUSIC LIST (ОПИСОК КОМПОЗИЦИЙ)

LOCAL SONG () and POPIE PESCHI

SONG ( ) ЗАРУБЕЖНЫЕ ПЕСНИ

1. Select by pressing the позиций

▲/▼ on the main menu.

The LOCAL SONG, POP SONG and CLASSIC menu will be shown on the TV screen.

by pressing the ▲/▼, and press ENTER.

SONG LIST and SINGER LIST menu will be shown on the TV screen.

1. Select and select the initial of the song title you want by pressing the ▲/▼, then press ENTER.

1. Select the song title you want by pressing the ▲/▼, and press ENTER.

СПИСОК ПЕСЕН 0165 10 000 KM 1268 10 KAMK.K 1369 1100 0001 12.85.00 1370 17 .ET ПОЛУРЫЛЬ ПОЛУРЫЛЬ ... ГАЧИМ... АРИЯ ХАМЕЛ... ЧАМФ НУБИЩЕНИЕ ☑ИЗКО

1. Select and select the initial

of the singer you want by pressing the ▲/▼ in the SONG LIST and SINGER LIST menu, and press ENTER.

1. Select the singer you want by pressing the ▲/▼, and press ENTER.

1. Select the song title of the singer you want by pressing the ▲/▼, and press ENTER.

● To move the previous mode, select the by pressing the ▲▼, then press ENTER.

- Press ◀/▶ to move to the page.

Select by pressing the BHA and press ENTER in the LOCAL SONG, POP SONG and CLASSIC menu.

The CLASSIC LIST and COMPOSER LIST menu will be shown on the TV screen.

1. СПИСОК КОМПОЗИЦИЯ 2. СПИСОК КОМПОЗИТОРОВ

CLASSIC LIST ( ). СПИСОК КОМПОЗИЦИЙ

1 Select and select the initial of the song title you want by pressing the ▲/▼, then press ENTER.

2 Select the song title you want by pressing the ▲/▼, and press ENTER.

СПИСОК КОМПОЗИЦИЯ ИО НЕВАНИЕ 2002 ABOUT FOREIGN LAN... SCHUMANN 2003 AIR (HOLBERG) GRIEG 2004 ALMOST TOO SERIOU... SCHUMANN 2005 ARABANK & RONDO C... MARDENSON 2006 ANTRICA'S DANCE (P)... GRIEG 2007 ARABESKE OF 18 SCHUMANN 2008 ARADESQUE NO.1 INV E DEBUSSY 2009 ARADESQUIK NO.2 INV K DRUNNY посударные выбор

COMPOSER LIST ( ). СПИСОК КОМПОЗИТОРОВ

1 Select and select the initial of the composer you want by pressing the ▲/▼ in the CLASSIC LIST and COMPOSER LIST menu, and press ENTER.

2 Select the composer you want by pressing the ▲/▼, and press ENTER.

СПИСОК КОМПОЗИТОРОВ КОМПОЗИТОР BALAKKEV BEETHOVEN BOCCHEKINI BRAHMS

3 Select the song title of the composer you want by pressing the ▲/▼, and press ENTER.

СПИСОК КОМПОЗИТОРОВ КИЙ КИМПОЗИТОР 2016 BAGATEL OP.33 NO.1 BEETHOTHEN 2017 BAGATEL OP.33 NO.4 BEETHOTHEN 2052 FULER ELINE BEETHOTHEN 2904 MOONLIGHT SONATA.. BEETHOTHEN 2905 MOONLIGHT SONATA.. BEETHOTHEN 2906 MOONLIGHT SONATA.. BEETHOTHEN 2923 PATHETIQUEK SONATA.. BEETHOTHEN 2924 PATHETIQUE SONATA.. BEETHOTHEN

Note:

To move the previous mode, select the by pressing the ▲▼, then press ENTER.

1. Select by pressing ▲▼ on the main menu.

1. УСТАНОВКИ 2. СПИООК КОМПОЗИЦИЙ 3. СЛУЧАЙНЫЙ ВЫБОР 4. СОРЕВНОВАНИЕ

1. Press ENTER to begin randomly.

CHALLENGE (СОРЕВНОВАНИЕ)

It has a function which enjoy a song game dividing by two teams of red team & blue team.

1. Select 4. СОРЕВНОВАНИЕ by pressing ▲/▼ on the main menu.

It appears as below.

1. Select KOLICHECTBO ПОПЫТОК by pressing ▲/▼, and select one of NUMERIC buttons 1\~9 by pressing ◀/► to select winner's number.

2. Select желаемый результат by pressing ▲/▼, and select one of 60,70,80 or 90 by pressing ◀/► to select success score.

3. Select CTAPT by pressing ▲▼, then press ENTER.

It appears as below.

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

1. Select number you want by pressing ▲/▼/◄/► and press ENTER.

Sing along with the accompaniment.

1. Repeat step 4-5.

Change the team of red team or blue team alternately.

1. When reaching the targeted winning number, the will be shown on the TV screen.

It appears as below.

ПОЗДРАВЛИЯМ

1. Whether you keep going the song game or not, select 1.ДА or 2.НЕТ by pressing ▲/▼ as below.

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

Language	Code	Language	Code	Language	Code	Language	Code
Abkhazian	6566	Fiji 7074		Lingala	7678	Singhalese	8373
Afar 6565		Finnish	7073	Lithuanian	7684	Slovak 8375
Afrikaans	6570	French	7082	Macedonian	7775	Slovenian	8376
Albanian	8381	Frisian 7089		Malagasy	7771	Somali 8379
Ameharic	6577	Galician	7176	Malay 7783		Spanish	6983
Arabic	6582	Georgian	7565	Malayalam	7776	Sudanese	8385
Armenian	7289	German	6869	Maltese	7784	Swahili	8387
Assamese	6583	Greek	6976	Maori	7773	Swedish	8386
Aymara	6588	Greenlandic	7576	Marathi 7782		Tagalog	8476
Azerbaijani	6590	Guarani	7178	Moldavian	7779	Tajlk	8471
Bashkir 6665		Gujarati	7185	Mongolian	7778	Tamil	8465
Basque	6985	Hausa	7265	Nauru	7865	Tatar 8484
Bengali; Bangla	6678	Hebrew	7387	Nepali	7869	Telugu	8469
Bhutani	6890	Hindi 7273		Norwegian	7879	Thai	8472
Bihari	6672	Hungarian	7285	Oriya	7982	Tibetan 6679
Breton	6682	Icelandic 7383		Panjabi 8065		Tigrinya	8473
Bulgarian	6671	Indonesian	7378	Pashto, Pushto	8083	Tonga	8479
Burmese 7789		Interlingua	7365	Persian	7065	Turkish 8482
Byelorussian	6669	Irish 7165		Polish	8076	Turkmen 8475
Cambodian	7577	Italian 7384		Portuguese	8084	Twi	8487
Catalan	6765	Japanese	7465	Quechua	8185	Ukrainian	8575
Chinese 9072		Javanese	7487	Rhaeto-Romance	8277	Urdu	8582
Corsican 6779		Kannada 7578		Rumanian	8279	Uzbek	8590
Croatian	7282	Kashmiri	7583	Russian	8285	Vietnamese	8673
Czech	6783	Kazakh 7575		Samoan 8377		Volapuk	8679
Danish	6865	Kirghiz 7589		Sanskrit	8365	Welsh	6789
Dutch 7876		Korean	7579	Scots Gaelic	7168	Wolof	8779
English 6978		Kurdish	7585	Serbian	8382	Xhosa	8872
Esperanto	6979	Laothian	7679	Serbo-Croatian	8372	Yiddish 7473
Estonian	6984	Latin	7665	Shona	8378	Yoruba	8979
Faroese 7079		Latvian, Lettish	7686	Sindhi	8368	Zulu	9085

Area Codes

Choose a area code from this list.

Area Code		Area Code		Area Code		Area Code
Afghanistan AF		Ethiopia ET		Malaysia	MY	Saudi Arabia	SA
Argentina AR		Fiji	FJ	Maldives	MV	Senegal	SN
Australia AU		Finland FI		Mexico MX		Singapore SG
Austria AT		France FR		Monaco	MC	Slovak Republic	SK
Belgium BE		Germany	DE	Mongolia	MN	Slovenia	SI
Bhutan BT		Great Britain	GB	Morocco MA		South Africa	ZA
Bolivia BO		Greece	GR	Nepal NP		South Korea	KR
Brazil BR		Greenland	GL	Netherlands	NL	Spain ES
Cambodia KH		Heard and McDonald Islands	HM	Netherlands Antilles	AN	Sri Lanka	LK
Canada CA		Hong Kong	HK	New Zealand	NZ	Sweden SE
Chile CL		Hungary	HU	Nigeria NG		Switzerland CH
China CN		India	IN	Norway	NO	Taiwan TW
Colombia CO		Indonesia	ID	Oman	OM	Thailand	TH
Congo CG		Israel	IL	Pakistan	PK	Turkey TR
Costa Rica CR		Italy	IT	Panama	PA	Uganda UG
Croatia HR		Jamaica	JM	Paraguay PY		Ukraine	UA
Czech Republic	CZ	Japan JP		Philippines	PH	United States	US
Denmark	DK	Kenya KE		Poland PL		Uruguay	UY
Ecuador	EC	Kuwait KW		Portugal	PT	Uzbekistan UZ
Egypt	EG	Libya	LY	Romania	RO	Vietnam	VN
El Salvador	SV	Luxembourg	LU	Russian Federation	RU	Zimbabwe	ZW

Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.

Symptom	Cause	Correction
No power.	The power cord is disconnected.	Plug the power cord securely into the wall outlet.
The power is on, but the DVD/CD Receiver does not work.	No disc is inserted.	Insert a disc. (Check that the DVD or, audio CD indicator in the DVD display is lit.)
No picture.	The TV is not set to receive DVD signal output.	Select the appropriate video input mode on the TV so the picture from the DVD/CD Receiver appears on the TV screen.
	The video cable is not connected securely.	Connect the video cable into the jacks securely.
	The connected TV power is turned off.	Turn on the TV.
There is no sound or only a very low-level sound is heard.	The equipment connected with the audio cable is not set to receive DVD signal output.	Select the correct input mode of the audio receiver so you can hear the sound from the DVD/CD Receiver.
	The audio cables are not connected securely.	Connect the audio cable into the jacks securely.
	The power of the equipment connected with the audio cable is turned off.	Turn on the equipment connected with the audio cable.
	The audio connecting cable is damaged.	Replace it with new one.
The playback picture is poor.	The disc is dirty.	Clean the disc.
The DVD/CD Receiver does not start playback.	No disc is inserted.	Insert a disc. (Check that the DVD, or audio CD indicator in the DVD display is lit.)
	An unplayable disc is inserted.	Insert a playable disc. (Check the disc type, colour system and Regional code.)
	The disc is placed upside down.	Place the disc with the playback side down.
	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.
	The disc is dirty.	Clean the disc.
	A menu is on the TV screen.	Press the SETUP button to turn off the menu screen.
	The Rating level is set.	Cancel the Rating function or change the rating level.
Loud hum or noise is heard.	The disc is dirty.	Clean the disc.
	The speakers and components are connected poorly.	Connect the speakers and components securely.
	The DVD/CD Receiver is located too close to the TV.	Move your TV away from the audio components.
Radio stations cannot be tuned in.	The antenna is positioned or connected poorly.	Connect the antenna securely.
		Adjust the antennas and connect an external antenna if necessary.
	The signal strength of the stations is too weak (when tuning in with automatic tuning).	T une in the station manually.
	No stations have been preset or preset stations have been cleared (when tuning by scanning preset stations).	Preset the stations (page 19).
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the DVD/CD Receiver.	Point the remote control at the remote sensor of the DVD/CD Receiver.
	The remote control is too far from the DVD/CD Receiver.	Use the remote control within about 23 ft (7 m).
	There is an obstacle in the path of the remote control and the DVD/CD Receiver.	Remove the obstacle.
	The batteries in the remote control are flat.	Replace the batteries with new ones.
The front panel display is too dim.	Nothing is displayed on the front panel display.	Press DIMMER on the remote control.

Specifications

GeneralCD/DV		Power supply Refer to main label.
		Power consumption Refer to main label.
		Net Weight 3.6 kg
		External dimensions (W x H x D) 430 x 70 x 311 mm
		Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal
		Operating humidity 5% to 85%
		Laser Semiconductor laser, wavelength 650 nm
		Signal system PAL 625/50, NTSC 525/60
		Frequency response (audio) 200 Hz to 18 kHz
		Signal-to-noise ratio (audio) More than 75 dB (1 kHz, NOP -6 dB, 20 kHz LPF/A-Filter)
		Dynamic range (audio) More than 70 dB
		Harmonic distortion (audio) 0.5 % (1 kHz, at 1W position) (20 kHz LPF)
		Video input	1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1
		Video output	1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1/ SCART (TO TV)
		COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1(PB)/(PR) 0.7 V (p-p), 75 ohms, RCA jack x 1
Tuner	FM	Tuning Range	87.5 - 108.0 MHz or 65.0 - 74.0 MHz, 87.5 - 108.0 MHz
		Intermediate Frequency	10.7 MHz
		Signal-to Noise Ratio	60 dB (Mono)
		Frequency Response	140 - 8,000 Hz
	AM [MW]	Tuning Range 522 - 1,620 kHz or 520 - 1,720 kHz
		Intermediate Frequency	450 kHz
Amplifier		Stereo mode	70 W + 70 W (4Ω at 1 kHz, THD 10 %)
		Surround mode (* Depending on the sound mode settings and the source, there may be no sound output.)	Front: 70 W + 70 W (THD 10 %)Center*: 70 WSurround*: 70 W + 70 W (4Ω at 1 kHz, THD 10 %)Subwoofer*: 150 W (3Ω at 30 Hz, THD 10 %)
		Inputs	AUDIO IN, OPTICAL IN
		Outputs	MONITOR OUT, EURO AV (TO TV) OUTCOMPONENT VIDEO OUT
Speakers			Front Speaker(SH52PR-F) Center speaker(SH52PR-C)
		Type	2 Way 3 Speaker 1 Way 2 Speaker
		Impedance	4 Ω 4 Ω
		Frequency Response	100 - 20000 Hz 150 - 20000 Hz
		Sound Pressure Level	83 dB/W (1m) 85 dB/W (1m)
		Rated Input Power	70 W 70 W
		Max. Input Power	140 W 140 W
		Net Dimensions (W x H x D)	260 x 1225 x 260 mm 330 x 122 x 84 mm
		Net Weight	4.2 kg 1.2 kg
			Rear Speaker(SH52PR-S) Passive Subwoofer(SH52PR-W)
		Type	1 Way 1 Speaker 1 Way 1 Speaker
		Impedance	4 Ω 3 Ω
		Frequency Response	130 - 20000 Hz 40 - 1500 Hz
		Sound Pressure Level	81 dB/W (1m) 82 dB/W (1m)
		Rated Input Power	70 W 150 W
		Max. Input Power	140 W 300 W
		Net Dimensions (W x H x D)	117 x 204 x 87 mm 194 x 397 x 395 mm
		Net Weight	0.69 kg 7.32 kg

* Designs and specifications are subject to change without notice.
