USER MANUAL E-400M Sven

Three black earbuds with different charging cables, shown from different angles (no text or symbols visible)

APPLICATION

SVEN E-400M in-ear earbuds with microphone have the enhanced sound transmission system and cases of earphone cups are made of special aluminum alloy. The microphone and Call acceptance / Pause button are mounted on the cable for the sake of convenience during calls. The flat cable construction reduces its tangling in storage and transportation.

PACKAGE CONTENTS

• In-ear earbuds with microphone – 1 pc
• Spare earpads – 2 pairs
• Clip - 1 pc
• Special box for transporting the in-ear earbuds – 1 pc
• User's Manual – 1 pc
• Warranty card – 1 pc

SAFETY PRECAUTIONS

• Don’t use the in-ear earbuds while driving.
• Don’t use the in-ear earbuds at high volume for a long time (more than 15 minutes), as this may cause hearing impairment.

SPECIAL FEATURES

- Wooden cases of in-ear earbuds cups

- 3.5 mm (4 pin) connector for mobile devices

- Call acceptance / Pause button

- Tangle-free cable with braided fabric

- Two additional pairs of spare earpads

- Clip to fix the cable on garments

• Connect the 4 pin in-ear earbuds connector to the audio output jack of your audio source (phone, smartphone, MP3 player, etc.), as shown in Fig. 1.
• Adjust the in-ear earbuds volume level as desired with the volume control of a sound source.

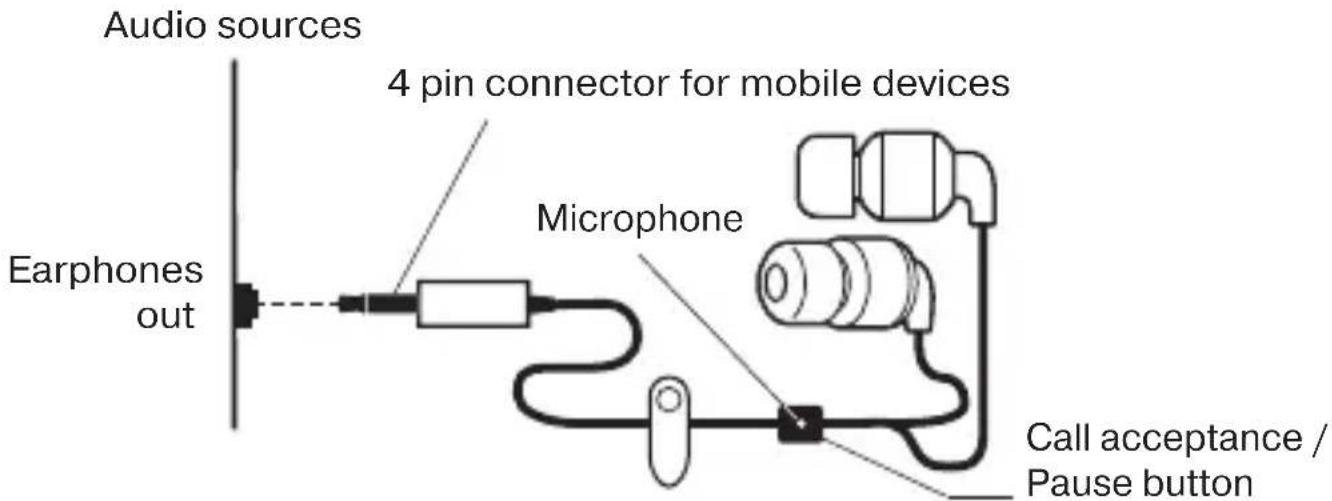

Audio sources 4 pin connector for mobile devices Microphone Earphones out Call acceptance / Pause button

Fig. 1. Connection diagram

TECHNICAL SPECIFICATIONS

Parameter, measurement unit	Value
Sensitivity, dB	headphones: 93 ± 3microphone: -42 ± 3
Impedance, Ohm	16
Frequency range, Hz	headphones: 20 – 20.000microphone: 30 – 16.000
Membrane, mm	∅ 10
Connector type	∅ 3.5 mm (4 pin) stereo mini-jack
Cable length, m	1,2
Weight, g	13

Notes:

• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Technical support is on www.sven.fi.

In-Ear Earbuds with Microphone

SVEN®

YOU WANT - WE CAN

Three black earbuds with metallic case, one with a microphone and the other with a USB plug (no text or symbols visible)

Model: E-400M

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, N° 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
