USER MANUAL GL-B312VL LG

Line drawing of a two-tier refrigerator with LG logo and door handle (no text or symbols)

Owner's Manual

Please read this manual carefully and thoroughly before operating this unit.

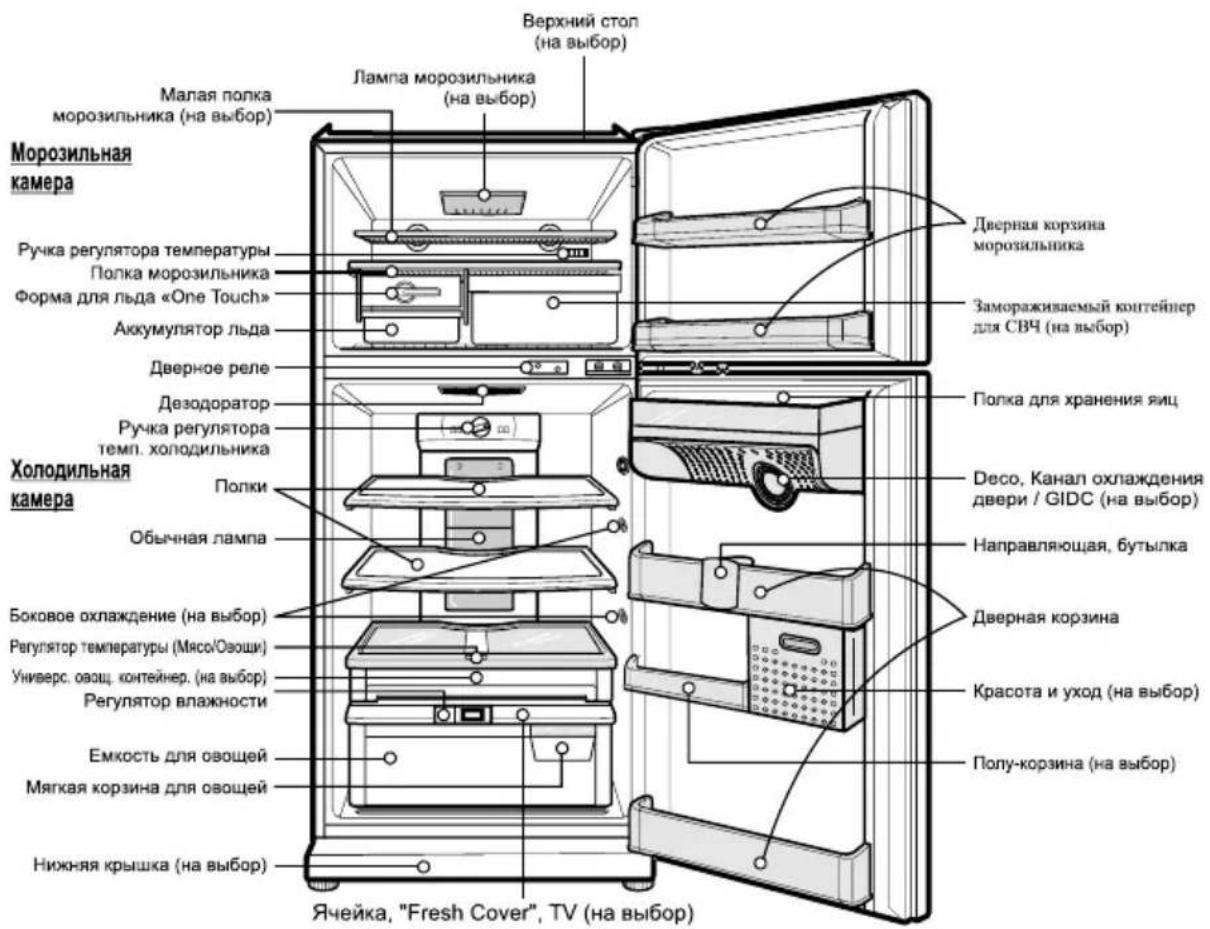

Table Top (Optional) Freezer Small Shelf (Optional) Freezer Lamp (Optional) Freezer Door Basket Freezer Compartment Freezer Temp Control Knob Freezer Shelf One Touch Ice Tray Ice Bank Door Switch Deodorizer Refrigerator Temp. Control Knob Shelves Normal Lamp Refrigerator Compartment Side Cooling (Optional) Temperature Controller (Meat/Veg) Convertible Veg. Box (Optional) Humidity Controller Tray Vegetable Soft Veg. Basket Cover Lower (Optional) Cell, Fresh Cover, TV (Optional) Freezable Microwave Box (Optional) Egg Store Shelf Deco, Duct Door Cooling / GIDC (Optional) Guide, Bottle Door Basket Beauty & Care (Optional) Half Basket (Optional)

• Due to continuous improvements at LGEIL, specifications of refrigerator are subject to change without prior notice.
• If you find out some parts which are not in your unit, the parts are applied to other models.

Important Safety Information

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or you or others or cause damage to the product. All safety messages will be preceded by the safety alert of and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.

Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.

Diagram of a rope knot with two crossed loops (no text or symbols)

Do not allow the power cord bent or pressed by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a refrigerator with a surprised expression and a gift box nearby (no text or symbols)

Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Illustration of a cartoon refrigerator with a smiling face and a broken handle, connected to a broken door (no text or symbols)

Do not extend or modify the length of the power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the

freezer with wet hands.

NO

It may cause frostbite.

Wait for 5 minutes or longer when

reconnecting the plug.

NO

It may cause the operation of the freezer to fail.

After Minutes

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Pull out the power plug not by grasping the

cord but the plug of its end.

It may cause electric shock or short circuit to fire.

CAUTION

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO

Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.

Otherwise, your hands may be slipped to cause injury.

Illustration of four workers in hard hats pulling a large banner (no text or symbols visible)

Do not put any living animal in the refrigerator.

NO

1. When connecting the power

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

• It may cause electric shock or injury.

- When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a smiling book character with a sad expression, accompanied by a distressed child and crossed arms (no text or symbols)

Because opening or closing the door of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

NO

Do not pull out the cord or touch the power plug with wet hands.

• It may cause electric shock or injury.

Illustration of two cartoon girls interacting with a bandage, no text or symbols present

Make sure of grounding.

The incorrect grounding may cause breakdown and electric shock.

Ground Wire Copper Flat More than 30 inches

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. When using the refrigerator

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

NO

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas,

spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration of a smiling rectangular object with arms and legs, interacting with a mechanical device (no text or symbols)

Do not place the lit candle within the refrigerator to deodorize.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and X-shaped door, no text or symbols on the main image.

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

ator. NO

Do not use the combustible spray near the refrigerator.

It may cause fire.

NO

Avoid the heating devices.

It may cause fire.

NO

Do not place flower vase, cup, cosmetics,

medicine or any container with water on the refrigerator.

Cartoon illustration of a smiling rectangular box character with arms and legs, holding a 'NO' sign (no text or symbols on the box itself)

Use the submerged refrigerator after

checking it.

It may cause electric shock or fire.

Cartoon illustration of a child standing next to a large refrigerator with a smiling face (no text or symbols)

It may cause fire, electric shock or injury by dropping down.

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

Cartoon illustration of a person hanging from an open refrigerator with a 'NO' sign, no text or symbols present

2. When using the refrigerator

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

evely. GAS

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a child running with a backpack and a smiling book character (no text or symbols)

When disposing the refrigerator, remove the packing materials from the door.

It may cause to lock out the child.

Cartoon illustration of a smiling refrigerator with a child holding a knife (no text or symbols)

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.

It may cause electric shock or injury.

Cartoon illustration showing a child inside a refrigerator with crossed-out X symbols, and another holding a bar chart below.

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling refrigerator and a girl holding a cup (no text or symbols)

When any strange smell or smoke is detected from the refrigerator, disconnect

the power plug immediately and contact to the service center.

It may cause fire.

Service center

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling book character with arms and legs, standing on a cross symbol (no text or symbols present)

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a book character with a sad expression and a cross symbol (no text or symbols present)

When you want to dispose the refrigerator, contact to the down-block office.

When you want to dispose the large living waste such as electric home appliance and furniture, you'd better contact the local down-block office.

Down-block office

Features

Deodorizer

• By using a catalyst, deodorizing performance is guaranteed.
• Unpleasant odor of food in fresh food compartment is deodorized with no harm to you and the food.

How to use

• As Deodorizer is located in cooling air path for circulating air in fresh food compartment, there is no need for any handling.
• Do not prick the cooling air inlet with a sharp tip because Deodorizer may be damaged.
• When storing food with a strong odour, wrap it or store it in a container with a lid because odour may be passed on to other foods.

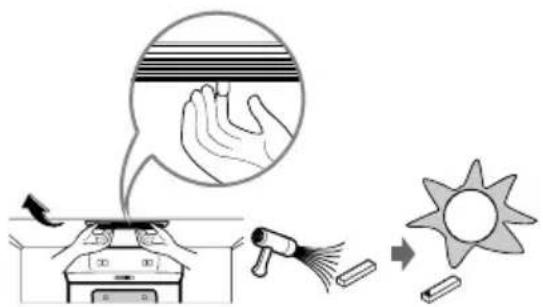

Re-Using of Deodorizer

• Keep distance as odour is strong, Deodorizer can be revived and re-used.
• Separate Deodorizer in ceiling of refrigerator compartment, using hair drier to remove moisture or malodor and oxidize under sunlight to decomposing malodor by ultraviolet.
• Don't try to remove the deodorizer cover, as you may break the catalyst.

Diagram illustrating a hand holding a string above a device, with a sun icon and a brush applying material nearby.

Door Cooling

• Cool air vent is placed on the refrigerator door to provide cool air to the Door Shelves.
• If foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered due to the escape of cool air. So care should be taken during cleaning.

Green Ion Door Cooling (Optional)\*

- The green catechin deodorizer purifies the air and helps stored foods remain fresh longer.

Cool air vent GIDC

- If water of foreign substances enter the cool air vent while cleaning, efficiency will be lowered. In addition, if gasket is damaged, efficiency may be lowered owing to the escape of cool air.

Beauty and Care\*

- It is placed in the refrigerator compartment and can be used for storing medicines and cosmetics.

- Only those medicines which are supposed to be stored in refrigerator.

Technical line drawings of two mechanical components: a rectangular box and a folded panel (no text or symbols)

Freezable Microwave Box (FMB) \*

- Semi air tight boxes placed in the freezer compartment to store food in hygiene condition.

- Boxes are apt to microwave oven and can be used for heating.

Boxes should not be used in microwave oven under grill setting.

ng.

Door Alarm\*

When the door of refrigerator or freezer is opened for 1 minute, an alarm will sound.

Illustration of a child reacting to a ringing refrigerator with a 'NO' sign, no text or symbols present

Egg-cum-Ice Tray\*

It is used for storing the eggs. It can also be used for making the ice.

Isometric line drawing of a rectangular tray with nine circular indentations (no text or symbols)

Soft Veg. Basket\*

Soft Tray veg is placed in Tray Veg. And very usefull to keep small vegetables like Lemon, Chilly Coriander etc.

Simple line drawing of a rectangular container with evenly spaced circular indentations (no text or symbols)

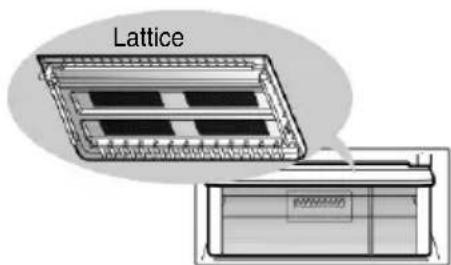

Cell Fresh Crisper\*

It keeps your vegetables fresh by holding moisture & prevents them from getting rotten.

Illustration of a traditional East Asian roof with decorative elements and figures (no text or symbols)

Absor b moisture
↑ Overly humid

Release moisture
↓ Humid deficiency

Lattice

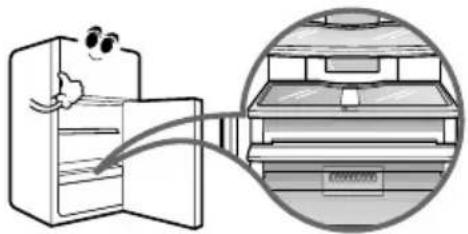

Convertible Veg. Box\*

When the door is opened, the warmer air can't incluence in the fresh zone. So you can store food more fresh in it.

Inserted convertible room must be placed at its position. If door is opened, it can't fill the role of it.

Illustration of a refrigerator with a close-up of its door, showing internal shelving (no text or symbols)

How to use

• Convertible Veg. Box can be used through the control of knob.
• Check the position of knob prior to store the food.
• Do not locate the knob on the middle point.

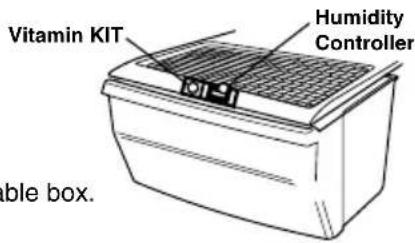

Vitamin Vegetable Drawer (Optional)

● Vitamin KIT used to keep fruits more fresher.
- Please try to keep the kit from getting wet as this would decrease its effectiveness.
- Humidity Controller is for controlling the humidity inside the vegetable box.

Vitamin KIT Humidity Controller ble box.

Installation

Refrigerator should be located properly in ventilated area.

25cm 10cm 10cm 10cm 2.5cm

Levelling of refrigerator should be done with front leg.

Refrigerator should be levelled with front to back inclination for base.

Install this appliance between 10^ C to 43^ C.

If the temperature around the

appliance is too low or high, cooling ability may reduce.

Front Leg

Disposal of Your Old Appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means, the product is covered by the European Directive 2002/96/EC.
2. All electrical & electronics products should be disposed off separately from the municipal waste stream via designated collection facilities appointed by the government of local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
5. This product contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

*In selected models only.

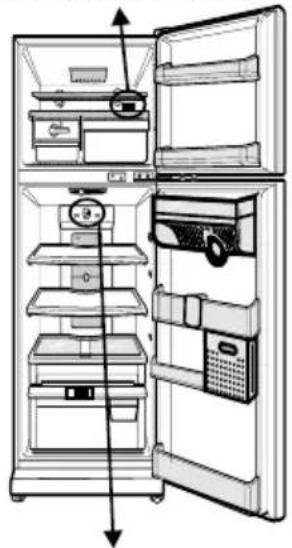

Identification of Controls

TEMPERATURE CONTROL

- Refrigerator and Freezer Compartment Temperature is controlled by Refrigerator Temp. Control Knob and Freezer Control Knob respectively.

- Initially set the Refrigerator Temp. Control Med/normal and the Freezer Temp. Control at Normal.

- Leave it operating for 8 hours to stabilize.

CONTROL EFFECTS

For better use : Please follow the instructions given in the graphics on the right.

	Model with 1to6	Model with 1to8
FOR LESS COOLING	'3'	'5'
NORMAL COOLING	'4'	'6'
FOR MORE COOLING	'5'	'7'
FAST ICE MAKING	'SF'	'SF'

Best Performance For All Seasons

• Set Knob at '4' (if max available is '6')
• Set Knob at '6' (if max available is '8')

FREEZE AIR CONTROL KNOB

Diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

REFRIGERATOR TEMP. CONTROL KNOB

NORMAL MIN 1 2 3 4 5 6 7 MAX

Best Performance For All Seasons Set Knob at '4'

Operating Procedure

DEFROSTING

• Defrosting takes place automatically.
• The defrosted water flows down to the evaporating tray which is located in the lower back side of the refrigerator and is evaporated automatically.

SUPER COOLING

In refrigerator compartment coldest setting in Refrigerator Knob is used for super cooling.

LOCKING / UNLOCKING

Press the lock with key for locking / unlocking

ICE MAKING

One Touch Ice Tray

• To make ice cubes, fill the ice tray with water and insert in its position.

- To remove ice cubes, hold the lever of the tray and turn gently. Then, ice cubes drop in to the ice cube box.

- Fill the water upto water level mark in the ice tray.

Instruction for Bank Ice

Use Bank Ice Only To Store Ice Cubes. Do Not Make Ice In It, As It May Break.

s position. Ice Trays Ice Cube Box

Illustration of a cooking step with a pot pouring liquid into a griddle (no text or symbols)

Lamp Replacement

- Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with one of the same size, shape and wattage.

REFRIGERATOR LAMP

• Unplug the power cord from the outlet.

- Remove refrigerator shelves.

- Remove the cover lamp by pulling outside, then pushing it left/right by finger.

- Make sure the bulbs are cool to the touch. Remove the lamp by turning it counterclockwise.

- Put new lamp and tighten it by turning it clockwise.

• Make sure the bulbs is properly tightened (not loose).

- Put the cover lamp back and push it gently with your thumb till a click sound appears.

ise.

Suggestions on Food Storage

When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating and helps food to keep its taste and nutrients.

Simple line drawing of a bag and a slice of bread (no text or symbols)

Don't keep hot milk or hot food in your refrigerator. This will result in an increased temperature and increase in power consumption.

Never overload your refrigerator or cover the shelves with paper or plastic sheets as it will reduce its efficiency.

Image containing fragmented Chinese characters and a grid pattern, possibly symbolic or illustrative design.

Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperature to rise.

Simple line drawing of a refrigerator with an arrow indicating rotation (no text or symbols)

Close the door properly, make sure that there is no gap between the gasket and the cabinet of your LG refrigerator.

Simple line drawing of a person pointing at a smiling rectangular object (no text or symbols)

Wipe excessive moisture on food or place it inside containers or plastic bags. This will help in retaining its freshness for a longer period of time.

Do not store food which goes bad easily at low temperatures. Such as bananas, pineapples, etc.

Do not store bottles in the freezer compartment - they may break when frozen.

Loading for Freezing - It is recommended to load newly introduced foods on the following position for freezing.

Newly Introduced Food

Avoid placing moist food on deep interior refrigerator shelves. It could freeze upon direct contact with chilled air. To avoid this it is better to store food in the covered container.

Refrigerator Shelf Vegetable Drawer

It is desirable to store moist food (especially vegetable and fruit) in the vegetable storage compartment. If it is necessary to store on a shelf of the refrigerator, put it close to the door away from the back wall of the refrigerator to avoid being frozen by the cool circulating in the refrigerator.

Refrigerator Shelf Vegetable Drawer

When storing eggs in their storage tray, ensure that they are fresh, and always store them in a upright position, which keeps them fresh longer.

Line drawing of six eggs arranged in a tray (no text or symbols)

Feel free to call your LG Customer Information Centre (CIC) / Branch / LG Representative in case your refrigerator has suffered a damage in transit.

It is recommended to use Voltage Stabilizer (0.5KVA) if power fluctuations are frequent and out of specified voltage range (135-290V), Stabilizer usage increases the refrigerator life.

Suggestions

Cleaning

Cleaning of Interior Parts is recommended. Wash all compartments with a mild baking soda solution, then rinse and dry the compartment. Use a lukewarm solution of mild soap or detergent to clean the exterior finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

Illustration of a hand cleaning a refrigerator with an exclamation mark (no text or symbols on the diagram itself)

During Vacations

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odour formation. To operate again, let the refrigerator run for 6-8 hrs. for stabilization.

Shifting

While shifting the refrigerator, two people should carry it for its safety. Fasten the door with tape or lock to prevent opening of the refrigerator.

A B E, e T

Before Calling for Service

Check for yourself

Type of Complaint Probable Cause		Remedy
1. Refrigerator does not work.	-House fuse blown-Power Supply Off.-Stabilizer not working properly	Call an electrician and get it corrected.Check that the refrigerator main supply plug is connected to the wall socket and that the supply is on. Check that the fuse is intact in he supply line.Please plug power cord of refrigerator directly in the wall socket and then check, if it works then get the stabilizer checked by Stabiizer Repairing Centre.
2. Refrigerator attempts to start, does not operate.	-Low Voltage.	Install a line-correcting transformer in the mains, or a Voltage Stabilizer.
3. Refrigerator compartment - Low Cooling	-Restriction of cold air circulation.-Improper thermostat setting of Freezer Temp. Control / Refrigerator Temp.-Control hot air.	Provide space in between the dishes. If the shelves are covered with cloth or polythene, remove it.Set the Refrigerator Temp. Control Knob to colder (Max 5~7) position.Freezer Temp. Control Knob to be adjusted accordingly. At position 9 Freezer will be coldest.Opening and closing of the doors too often will result in hot air from outside rushing into the refrigerator causing the temperature to go up. Reduce the frequency of opening of the doors.Avoid storing hot foods in the refrigerator, cool them to room temperature before placing them inside the refrigerator.
4. Formation of water drops on exterior of refrigerator.	-High humidity during monsoon season.	During the monsoon, when the humidity in the atmosphere reaches around 90% water droplets may form around the sides of the refrigerator cabinet, especially the top portion. This moisture should be wiped off periodically. Contact our serviceman to check the door seal or proper and uniform contact with the cabinet.
5. Refrigerator Compartment — Overcooling	-Incorrect setting of Refrigerator Temp. Control Knob.	Lower the setting (1~3) of Refrigerator Temp. Control Knob to make the Refrigerator Compartment warmer.
6. Smell	-Improper covering and wrapping of food.	Wrap and cover food stuffs properly. Place caps on bottles and other liquid stores.
7. Difficulty in formation of ice and ice-cream.	-Incorrect setting of Freezer Temp. Control Knob.-Bowls used Use Ice trays for ice making	For faster Ice & Ice-cream formation adjust the Freezer Temp. Control Knob to position 9.
8. Noise	-Normal cut-of/ cut-in noise	Whenever refrigerator starts & stop there is noise of Thermostat cut-off/ cut-in & Compressor start/stop. This is a normal phenomenon.
9. Bulb does not glow	-Bulb fused	Bulb is not covered under warranty LG Service Engineer will replace this on cost basis.

Внутренние детали

Diagram of a rope knot with two crossed loops, no text or symbols present

Illustration of a cartoon refrigerator with a wavy mouth and crossed arms, connected to a broken X-shaped object (no text or symbols)

Cartoon illustration of a refrigerator with a surprised expression, accompanied by a gift box and a heart symbol (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a sad face and a child holding a cross (no text or symbols)

Illustration of three workers in hard hats pulling a large banner (no text or symbols visible)

Illustration showing a child holding a dog while being stopped by a smartphone, with a distressed face and 'stop' hand gesture.

Cartoon illustration of a smiling book character holding a hand, with a crossed-out X symbol below (no text or symbols present)

Cartoon illustration of a smiling refrigerator with a 'HET' hand and X-shaped door, no text or symbols present.

Cartoon illustration of a refrigerator with a sad face and a crossed-out bottle, accompanied by a bandaged bag (no text or symbols)

Cartoon illustration of a worker pushing a large refrigerator with steam rising (no text or symbols)

Cartoon illustration of a child running with a briefcase and a smiling book character (no text or symbols)

Cartoon illustration of a smiling refrigerator with a child holding a broom (no text or symbols)

Cartoon illustration of a smiling refrigerator and a girl holding a glass (no text or symbols)

Technical line drawings of two mechanical components: a rectangular box and a vertical panel with internal channels (no text or symbols)

Illustration of a child standing beside a refrigerator with a hand pointing at it (no text or symbols present)

Isometric line drawing of a rectangular tray with multiple circular indentations (no text or symbols)

Simple line drawing of a rectangular container with evenly spaced circular indentations on the side (no text or symbols)

Illustration of a refrigerator with doors open and connected to a rack, showing a close-up of the rack (no text or symbols present)

Как использовать

Front Leg

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

Interior view of a computer room with a person seated at a desk (no visible text or symbols)

Illustration of a container being poured into a rack with a lid (no text or symbols)

Diagram showing hand pressing down on a door panel with directional arrows indicating movement or force

Simple line drawing of a bag and a rolled-up food item (no text or symbols)

Image containing fragmented Chinese characters and crossed-out symbols, possibly a logo or graphic design.

Simple line drawing of a refrigerator with an arrow indicating rotation (no text or symbols)

Simple line drawing of a person pointing at a smiling rectangular object (no text or symbols)

Technical line drawing of a front view of a microwave oven with control panel and fan (no text or symbols)

Line drawing of six eggs arranged in a tray (no text or symbols)

Illustration of a hand cleaning a refrigerator with an exclamation mark (no text or symbols on the diagram itself)

В период отпуска

Cartoon character peeking from behind a wall, holding a phone to reveal a smile (no text or symbols)

Переноска

Illustration showing two workers pulling a large box with a warning symbol and text, likely depicting a safety or operational hazard.

Diagram of a mechanical or electrical component with intersecting wires and a central cross (no text or symbols)

Cartoon illustration of a refrigerator with a surprised expression and a chair nearby (no text or symbols)

Illustration of a refrigerator with a bandage and a cross-shaped object, no text or symbols present

Cartoon illustration of a sad rectangular object with a hand waving, next to a broken box and smoke (no text or symbols)

Cartoon illustration of a sad, anthropomorphic device with arms and legs crossed, accompanied by a distressed child (no text or symbols)

Cartoon illustration showing a child with a crossed-out dog and a man holding up a 'HI' sign, symbolizing food safety or health restrictions.

Illustration of two children playing badminton, one holding a baton and the other standing (no text or symbols)

Cartoon illustration of a sad book character with a 'X' symbol and a hand waving, surrounded by smoke (no text or symbols)

Cartoon illustration of a smiling refrigerator with a 'X' symbol on its door (no text or symbols present)

Cartoon illustration of a refrigerator with a sad face and a boy holding a 'HF' sign, no text or symbols present.

Cartoon illustration of a smiling rectangular character holding a ribbon, with expressive eyes and hands (no text or symbols)

Cartoon illustration of a smiling rectangular book character and a butterfly-like shape (no text or symbols)

Cartoon illustration of a distressed refrigerator and a gift box (no text or symbols)

Cartoon illustration of a smiling refrigerator and a worker (no text or symbols)

Cartoon illustration of a person inside an open refrigerator with a waving hand (no text or symbols)

Cartoon illustration of a child running with a backpack and a smiling book character (no text or symbols)

Cartoon illustration of a smiling refrigerator with a child holding a knife (no text or symbols)

Illustration of a cartoon character inside a box with crossed-out X symbols, standing on a diagonal line (no text or symbols present)

Cartoon illustration of a smiling book character and a girl holding a cup, no text or symbols present

Cartoon illustration of a smiling book character with arms and legs, standing on a cross symbol (no text or symbols present)

Cartoon illustration of a smiling book character with arms and legs, standing next to a crossed-out cross (no text or symbols)

Illustration of a child standing beside a refrigerator with a surprised face (no text or symbols)

Isometric line drawing of a rectangular tray with eight circular indentations (no text or symbols)

Simple line drawing of a rectangular container with evenly spaced circular indentations (no text or symbols)

Illustration of a traditional Chinese garden scene with trees, flowers, and a bowl (no text or symbols)

Illustration of a refrigerator with a hand pointing to its door, connected to an inset image of the refrigerator (no text or symbols present)

Як використовувати

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Line drawing of an open refrigerator with shelves, doors, and appliances (no text or symbols)

Interior view of a computer room with a person seated at a desk (no visible text or symbols)

Illustration of a container being poured into a rack with a lid (no text or symbols)

Diagram showing a hand pressing down on a wall-mounted device with directional arrows indicating movement or force.

Simple line drawing of a smiling bird and a rolled-up food item (no text or symbols)

Image containing fragmented Chinese characters and a grid pattern with crossed-out black lines, possibly symbolizing exclusion or invalid content.

Simple line drawing of a refrigerator with an arrow indicating rotation (no text or symbols)

Simple line drawing of a person pointing at a smiling rectangular object (no text or symbols)

Line drawing of six eggs arranged in a tray (no text or symbols)

Illustration of a hand cleaning a refrigerator with an exclamation mark (no text or symbols on the diagram itself)

В період відпустки

Diagram of a mechanical or electrical component with intersecting wires and a central cross (no text or symbols)

Cartoon illustration of a distressed refrigerator with a fan nearby (no text or symbols)

Illustration of a cartoon refrigerator with a sad face and a crossed-out door, connected to a broken door (no text or symbols)

Cartoon illustration of a sad refrigerator with a hand holding 'KON' and a broken glass, no text or symbols present.

Illustration of three workers in hard hats pulling a large banner (no text or symbols visible)

Cartoon illustration showing a child holding a dog while an adult gestures, with a sign reading 'HAPPY' above.

Cartoon illustration of a smiling book character with a sad expression, accompanied by a child with arms crossed (no text or symbols)

Cartoon illustration of a smiling book character with a sad expression and a large 'X' symbol, no text or symbols present.

Cartoon illustration of a smiling refrigerator with arms crossed out (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and a warning sign, accompanied by a small bottle (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, waving (no text or symbols)

Cartoon illustration showing a smiling refrigerator and a crossed-out book labeled 'EHI' and 'Charmful'

Cartoon illustration of a refrigerator with a sad face and a broken door, accompanied by a star (no text or symbols)

Cartoon illustration of a book character and a gift box, both with steam rising (no text or symbols)

Cartoon illustration of a worker pushing a large refrigerator with steam and clouds (no text or symbols)

Cartoon illustration of a person waving while exiting a refrigerator with a fan (no text or symbols)

Cartoon illustration of two children running with backpacks next to a smiling book (no text or symbols)

Cartoon illustration of a smiling refrigerator with a child holding a knife (no text or symbols)

Illustration of a person inside a refrigerator with crossed-out X-shaped signs, next to a smaller box with a triangle (no text or symbols)

Cartoon illustration of a smiling book character and a girl holding a cup (no text or symbols)

Cartoon illustration of a smiling book character with arms and legs, standing on a cross symbol (no text or symbols present)

Cartoon illustration of a smiling book character with arms and legs, standing with arms crossed out (no text or symbols)

Illustration of a child standing beside a refrigerator with a 'MON' sign, no text or symbols present

Isometric line drawing of a rectangular tray with eight circular indentations (no text or symbols)

Simple line drawing of a rectangular container with evenly spaced circular indentations on the side (no text or symbols)

Illustration of a refrigerator with a close-up of its doors showing the interior shelf (no text or symbols)

Пайдалану жолы

Simple line drawing of a trash bin with no text or symbols

Diagram of an open refrigerator showing internal compartments and doorways (no text or labels)

Interior view of a computer room with a person seated at a desk (no visible text or symbols)

Illustration of a container being poured into a rack with a lid (no text or symbols)

Diagram showing hand pressing down on a wall-mounted device with bidirectional arrows indicating left and right motion.

Simple line drawing of a bag and a slice of bread (no text or symbols)

Simple line drawing of a person pointing at a smiling rectangular object (no text or symbols)

Line drawing of six eggs arranged in a tray (no text or symbols)

Illustration of a hand cleaning a refrigerator with an exclamation mark (no text or symbols on the diagram itself)

Демалыс кезінде
