USER MANUAL GR-M317SGKR LG

Please read this owner's manual thoroughly before operating and keep it handy for reference at all times.

GR-M317SGKR

	Table of contents
Introduction	Entry	3
	Basic safety precautions	3
	Identification of parts	11
Installation	Where to install	12
	Door removal	13
	Door replacement	13

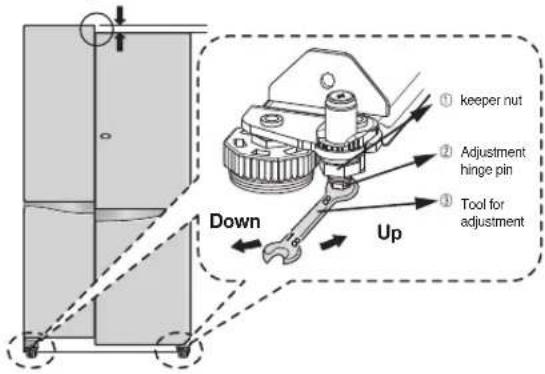

	Height adjustment	14
Operation	Starting	15
	Adjusting the temperatures and functions	15

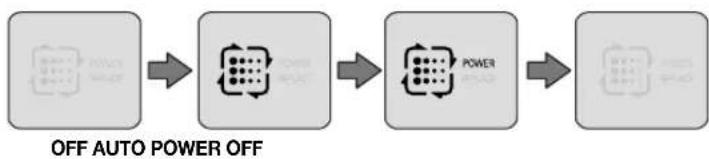

	Fresh Air Filter	18

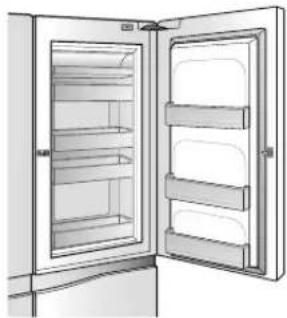

	Smart Eco Door	20
	Door Ice Maker	21
	Shelf	23
	Dairy corner	23
	Egg box	24
	Deodorizer	24
	Freezer/Fridge basket	24
	Fresh compartment	25

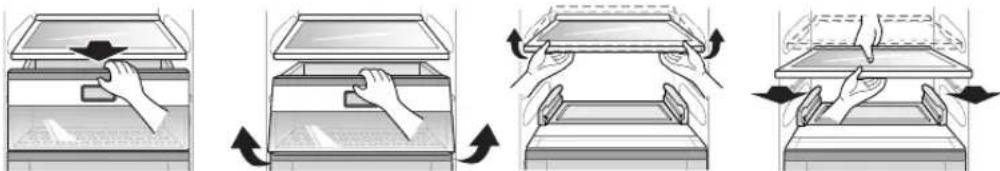

	V Fresh compartment	26

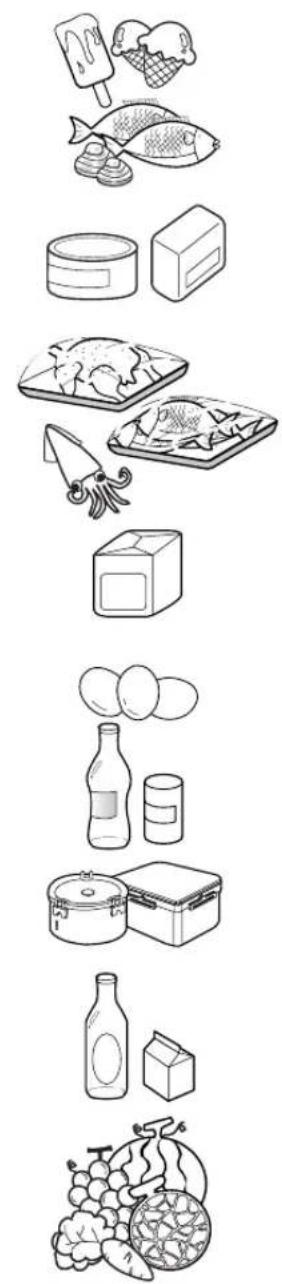

Suggestion on food storage	Location of foods	27
	Storing foods	28
Care and maintenance	General information	29
	Cleaning	29
	Trouble shooting	30
	It is normal...	34
	Product information	35

Entry

The model and serial numbers are found on the inner case or Right side of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here.

Date of purchase :
Dealer purchased from :
Dealer address :
Dealer phone no. :
Model no. :
Serial no. :

Basic safety precautions

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

! DANGER

You will be killed or seriously injured if you don't follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

CAUTION

Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage only.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance.

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one outlet may cause fire.
- The electric leakage breaker may damage food and the dispenser may be leaked.

Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.

Water may be flown into or the plug may be damaged, which causes fire or electric shock.

Cartoon illustration of a sad rectangular character with arrows and a broken square, connected by a broken line (no text or symbols)

Prevent the power cord from being squeezed or imprinted if the refrigerator is pushed in after the power plug is extracted during the installation.

When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way.

It becomes the cause of fire or electric shock.

Do not allow the power cord bent or pressed by the heavy object to be damaged.

It may damage the power cord to cause fire or electric shock.

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by a sofa and a coffee cup (no text or symbols)

Do not extend or modify the length of the power plug.

It causes electric shock or fire by the electric damage of the power cord or others.

Cartoon illustration of a smiling rectangular box character with arms and legs, holding a 'NO' sign (no text or symbols on the box itself)

Unplug the power plug when cleaning, handling or replacing the interior lamp of the refrigerator.

• It may cause electric shock or injury.
• When replacing the interior lamp of the refrigerator, make sure that the rubber ring for preventing the electric spark within the socket is not taken off.

Do not pull out the cord or touch the power plug with wet hands.

It may cause electric shock or injury.

Remove water or dust from the power plug and insert it with the ends of the pins securely connected.

Dust, water or unstable connection may fire or electric shock.

Unplug the power cord from the power outlet for cleaning or other requirements.

It may cause electric shock or injury.

Pull out the power plug not by grasping the cord but the plug of its end.

It may cause electric shock or short circuit to fire.

Make sure of grounding.

Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

Ground Wire Copper Flat More than 30 inches

The incorrect grounding may cause breakdown and electric shock.

Be sure to use grounded exclusive proper voltage consent for the power plug. Be sure to use grounded extension consents when extension consents are used.

It becomes the cause of fire.

When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them.

It may cause electric shock or short circuit to make fire.

Wait for 5 minutes or longer when reconnecting the plug.

It may cause the operation of the freezer to fail.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

2. When using the refrigerator

Do not place the heavy object or the dangerous object (container with liquid) on the refrigerator.

It may be dropped to cause injury, fire or electric shock when opening or closing the door.

Do not install the refrigerator in the wet place or the place which water or rain splashes.

Deterioration of insulation of electric parts may cause electric leakage.

Do not cling to the door or the shelves of the door or the home bar of the freezer or the cool chamber.

It may make the refrigerator fallen down or damage the hands. Especially, do not allow the children to do the above.

Illustration of two cartoon characters running away from a door, separated by a diagonal line (no text or symbols)

When water entered to electric parts inside the product, pull out the power plug, and contact the service center.

It may cause electric shock or fire.

Prevent children from entering the product.

It may endanger the life of a child if the child enters the refrigerator.

Opening and closing the door of the refrigerator vigorously may cause the stored food in the refrigerator basket to fall by shock and hurt the foot, so take precautions.

Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the refrigerator.

It may cause explosion or fire.

Cartoon illustration showing a sad book character reacting to a broken bottle labeled 'Bottle of Water' with a warning symbol.

Do not use drier to dry the inside, nor light a candle to remove odor.

It may cause explosion or fire.

Cartoon illustration of a smiling refrigerator with a 'NO' sign and a windmill symbol (no text or symbols on the refrigerator itself)

Do not store the medicine or the academic materials at the refrigerator.

When the material with the strict temperature control is stored, it may be deteriorated or it may make an unexpected reaction to cause any risk.

Cartoon illustration of a refrigerator with a sad face and a 'NO' sign, accompanied by a distressed character holding a 'NO' sign.

Do not use the combustible spray near the refrigerator.

It may cause fire.

Install in places away from the fire such as the place where flammable gas is leaked.

It may cause fire.

Cartoon illustration of a distressed refrigerator with a 'NO' sign and a gift box (no text or symbols on the main image)

Do not place flower vase, cup, cosmetics, medicine or any container with water on the refrigerator.

It may cause fire, electric shock or injury by dropping down.

In case of thunder and lightning, or not in use for a long period of time, detach the power plug.

There is a danger of electric shock or fire.

Cartoon illustration of a smiling refrigerator with an electrical outlet and a switch (no text or symbols)

Use the submerged refrigerator after checking it.

It may cause electric shock or fire.

Cartoon illustration of a smiling hard hat character and a worker holding a tool, no text or symbols present

When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.

• The explosion by spark may cause fire or burn.
- Because this refrigerator uses natural gas (isobutene, R600a) as the environment-friendly refrigerant, even a small amount (70\~90g) is combustible. When the gas is leaked by the severe damage during delivering, installing or using the refrigerator, any spark may cause fire or burn.

Cartoon illustration of a distressed gas stove with a child opening out, symbolizing energy dissipation (no text or symbols present)

Do not spray water at the outside or the inside of the refrigerator or do not clean it with benzene or thinner.

Deterioration of insulation of electric parts may cause electric shock or fire.

Cartoon illustration of a smiling book character and a girl holding a book, no text or symbols present

When any strange smell or smoke is detected from the refrigerator, disconnect the power plug immediately and contact to the service center.

It may cause fire.

Service center

Do not allow any person except the qualified engineer to disassemble, repair or alter the refrigerator.

It may cause injury, electric shock or fire.

Cartoon illustration of a person reacting to a large refrigerator with a 'NO' sign, no text or symbols present

Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.).

It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.

Cartoon illustration of a smiling book character with arms and legs crossed out, no text or symbols present.

Be careful of the door falling down during disassembly and assembly of the door.

Do not insert refrigerator shelf upside down.

The shelf may fall down and cause injury.

When disposing the refrigerator, remove the packing materials from the door or take off the doors but leave the shelves in place so that children may not easily climb inside.

It may cause to lock out the child.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Install the refrigerator on the solid and level floor.

Installing it on the unstable place may cause death by falling down the refrigerator when opening or closing the door.

Cartoon illustration of a smiling book character with arms and legs, expressing shock (no text or symbols)

Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the refrigerator, the heatproof grill (exhaust hole) at the backside.

It may cause electric shock or injury.

Illustration of two cartoon characters reacting to a door lock, one holding a 'NO' sign and the other with a sad face (no text or symbols)

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

The refrigerant and insulation blowing gas used in the appliance require special disposal procedures. When disposal, please consult with service agent or a similarly qualified person.

This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m^2 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not insert the hands into the ice bucket or the ice dispenser. (only for the model with the dispenser).

Operating the ice maker may cause injury.

Do not touch food or containers at the freezer with wet hands.

It may cause frostbite.

Cartoon illustration of a girl holding a crossed-out door next to a smiling refrigerator with a 'NO' hand gesture (no text or symbols on the main image)

Do not put ice in thin crystal cup or ceramic ware.

It may break cup or ceramic ware to cause injury.

When the electricity is off, remove ice from the ice bucket (only for the model with the dispenser).

The long-time power failure may thaw ice to damage the floor. When the long-time power failure is expected, remove ice from the ice bucket.

Supply the automatic ice maker with drinkable water only (only for the model with the dispenser).

Otherwise, it may cause any risk.

Drinkable water

Do not remove the cover of the automatic ice maker. (Only for the models with automatic ice maker)

The operation mechanic parts of the ice maker may hurt people.

Do not place the food in disorder inside the refrigerator.

The food may fall during opening and closing the door of the refrigerator and hurt people.

Do not put bottle in the freezer.

It may freeze the contents to break the bottle to cause injury.

Do not insert the hands into the bottom of the refrigerator.

The iron plate of the bottom may cause injury.

Cartoon illustration of a boy and a girl reacting to a large block with a cross mark (no text or symbols)

Do not tilt the product while moving the product.

Carry the refrigerator with the handle bar at the bottom of the front and the top of the rear.

Otherwise, your hands may be slipped to cause injury. Because the product is heavy, carrying it alone may hurt people or accidents may occur.

Illustration of three workers in hard hats pulling a large banner (no text or symbols)

Because opening or closing the door or the home bar of the refrigerator may cause injury to the person around it, be careful, please.

Opening or closing the door may cause feet or hands to be caught in the chink in door or the child to be get hurt by the corner.

Do not put any living animal in the refrigerator.

If refrigerator is moved in zigzag direction, it may damage the floor. Please move it only in a straight line direction.

Cartoon illustration of a distressed refrigerator with a crying face and a child running away (no text or symbols)

Two cartoon-style blocks with facial expressions and a wavy line, no text or symbols present

Identification of parts

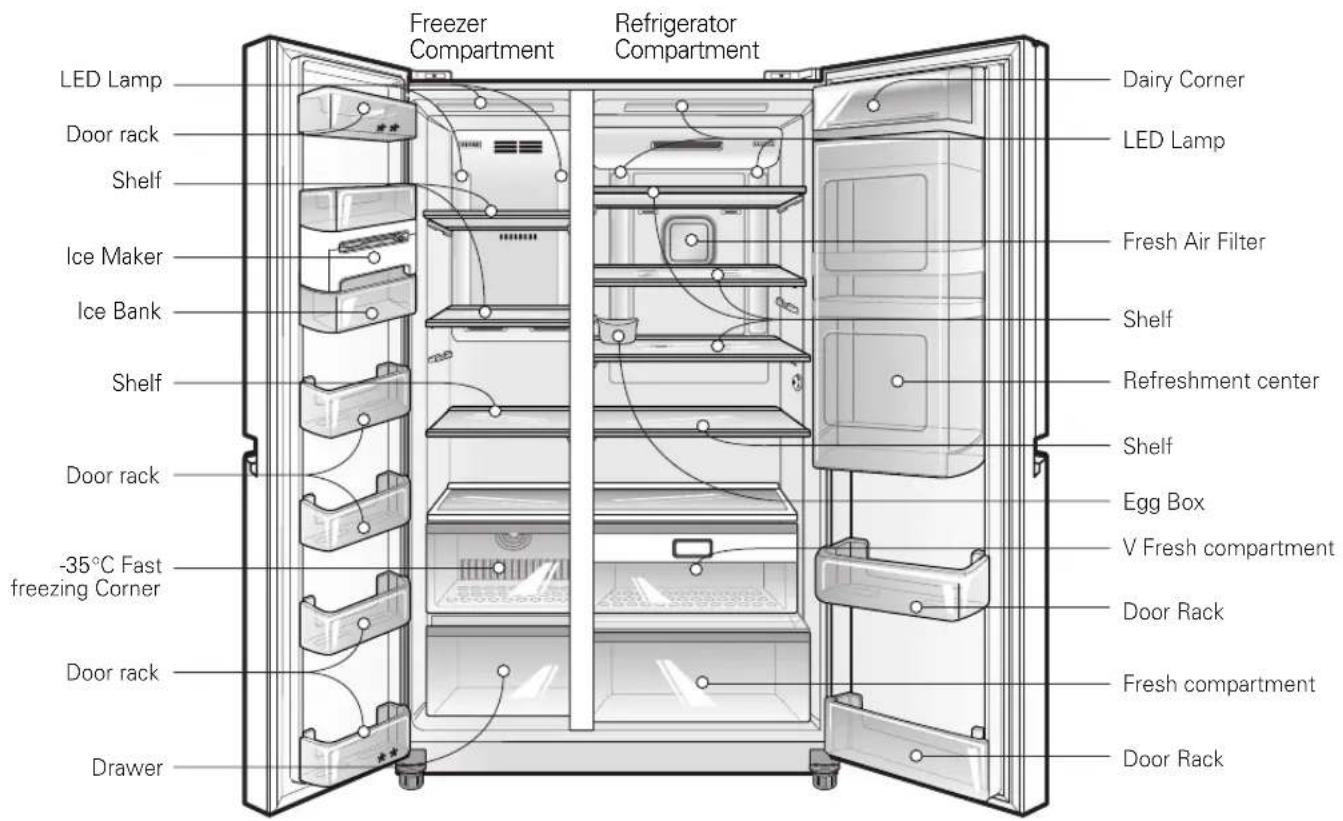

Freezer Compartment Refrigerator Compartment Dairy Corner LED Lamp Ice Maker Ice Bank Shelf Refreshment center Shelf Egg Box V Fresh compartment Door Rack -35°C Fast freezing Corner Door rack Drawer Door rack

NOTE

• Parts, features, and options vary by model. Your model may not include every option.
• To keep a position of inner parts like as baskets, drawers and shelves supplied by manufacturer is the most efficient usage for energy saving.

Select a good location

Where to Install

1. Place your appliance where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the appliance must be leveled.
5. Don't install the appliance below 5°C. It may cause affect the performance.

Disposal of the old appliance

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

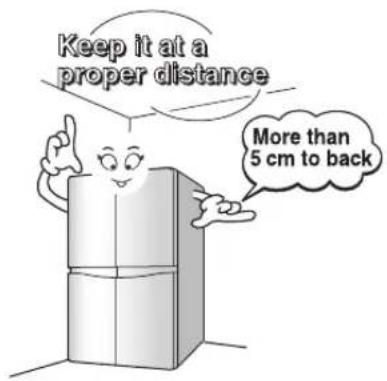

Keep it at a proper distance More than 5 cm to back

Remove the freezer compartment door

Door removal

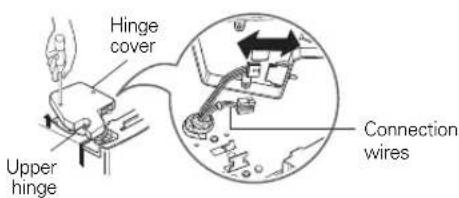

1) Removing the hinge cover by loosening the screws. Separate all connection wires.

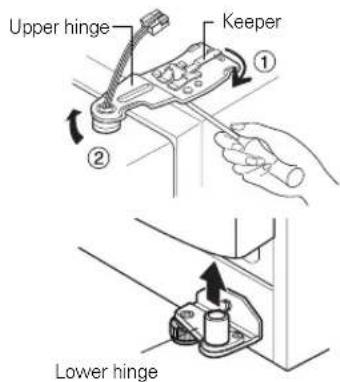

2) Remove the keeper by rotating it counter clockwise (①) and then lifting the upper hinge up (②).

NOTE

• When removing the upper hinge, be careful that the door does not fall forwards.
  3) Remove the freezer compartment door by lifting it upward.

NOTE

- Move the refrigerator compartment door passing through the access door and lay it down.

Hinge cover Upper hinge Connection wires

Keeper Upper hinge

lower hinge

Remove the refrigerator door

1) Loosen the hinge cover screws and remove the cover. Remove connection wire.

Connection wires

2) Remove keeper by rotating it clockwise (①) and then remove the upper hinge by lifting it up (②).

Upper hinge Keeper ① ② Lower hinge

3) Remove the refrigerator compartment door by lifting it up.

Illustration of a worker in hard hat standing beside an open refrigerator inside a room with tiled floor (no text or symbols)

Pass the refrigerator

Pass the refrigerator laterally through the access door as shown in the right figure.

Door replacement

Mount them in the reverse sequence of removal after they pass through the access door.

When the floor is not leveled

Height adjustment

- When the height of the door may not be leveled when the floor is not leveled.

▶When the freezer door is lower – ①

Use the spanner to turn the nut of the height adjustment screw on the left to the counterclockwise direction to level the door.

▶When the fridge door is lower – ②

Use the spanner to turn the nut of the height adjustment screw on the right to the clockwise direction to level the door.

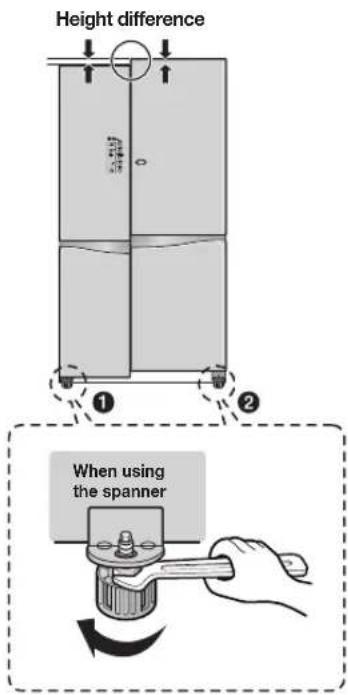

Height difference When using the spanner

When the fridge door is lower than the freezer door

▶When the fridge door is lower than the freezer door while using the refrigerator, level the doors. Height difference

1. Use the ③tool for adjustment on the wide side to turn nut ①( ) in the clockwise direction to loosen the keeper nut.

2. Use the ③tool for adjustment on the narrow side to turn the adjustment hinge pin ②in ( clockwise direction or ( clockwise direction to adjust the height of the fridge and freezer doors.

① keeper nut ② Adjustment hinge pin ③ Tool for adjustment Down Up

1. After aligning the height of the door, turn the keeper nut in counterclockwise direction tightly.

CAUTION

Do not force too hard to level the height. The hinge pin can be pulled out. (Adjustable range of height is a maximum of 2" (5 cm))

After leveling the door height

The refrigerator doors will close smoothly by heightening the front side by adjusting the height adjusting screw. If the doors do not close correctly, performance may be affected.

Next

1. Wipe off all dust accumulated during shipping and clean your appliance thoroughly.
2. Install accessories such as the ice cube box, cover evaporating tray, etc., in their proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.

Starting

When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting.

Adjusting the temperatures and functions

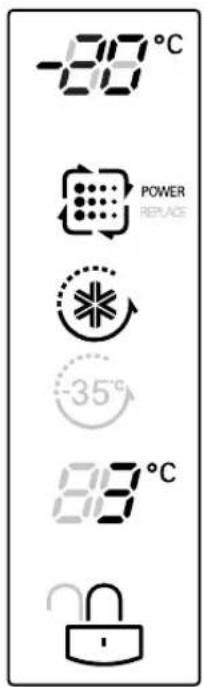

Function display board

Linear Compressor

-88°C POWER REPUCE -35°C 89°C

FREEZER

HYGIENE FRESH

REPLACE 5SECS

EXPRESS FRZ.

REFRIGERATOR

CHILD LOCK

LG Refreshment Center

NOTE

- Your model may not include every option.

Freezer control

Refrigerator control

Express freezer

You can adjust temperature of and freezer room and refrigerator room.

Freezer Compartment temperature adjustment

FREEZER -88°C Setting temperature

-15°C -17°C -18°C -19°C -20°C -21°C -22°C -23°C -24°C

Refrigerator Compartment temperature adjustment

REFRIGERATOR 88°C Setting temperature

5°C 5°C 4°C 3°C 2°C 1°C 0°C

■ The actual inner temperature varies depending on the food status, as the indicated setting temperature is a target temperature, not actual temperature within refrigerator.
- Refrigeration function is weak in the initial time. Please adjust temperature as above after using refrigerator for minimum 2\~3 days.

Please select this function for prompt freezer.

- If you press the ○ button once, the "Express freezer" function is turned on. If you press it once more, the "-35°C Fast freezer" function is turned on.

If you press the button another time, all of the functions are turned off. The "Express freezer", "-35°C Fast freezer", "Off" is set off by pressing the 📄 button

Express freezer ON Express freezer OFF

• The display light goes on if the "Express freezer" function is turned on.
• Prompt freezer function automatically turns off after a fixed time passes.

-35°C Fast freezer

Use fast freezing to store foods such as meat at optimal storage conditions.

• You can quickly freeze foods in the separated drawer.
• The "Express freezer", "-35°C Fast freezer", "Off" is set off by pressing the 📄 button.

-35°C -35°C Fast freezer ON -35°C Fast freezer OFF

Interior view of a refrigerator showing the doors, shelves, and storage compartments (no text or symbols visible)

• The display light goes on if the “-35°C Fast freezer” function is turned on.
• After a certain period of time, the “-35°C Fast freezer” function turns off automatically.

Difference between "-35°C Fast freezer" and "Express freezer"

- Express freezer : Quickly freeze the entire freezer compartment.

Used to freeze a large load of frozen foods. (Continuously operates for up to three hours)

- -35°C Fast freezer: Quickly freeze the '-35°C Fast freezing room' corner (Mid drawer of Freezer). Used to freeze a small amount of meat and fish. (3hours)

Lock

This button stops operation of different button.

- LOCK

Press the 📄 button more than 2 seconds.

- UNLOCK

Press the 📄 button more than 1 seconds.

* If you use the ○ button, none of the other buttons will work until you unlock them.

LOCK UNLOCK

The other functions

Door open warning

• 3 times of warning sounds at the interval of 30 seconds if a minute passes with the door of refrigerator and the hombar door opened or completely closed.
• Please contact with the local service center if warning continue to sound even after closing the door.

Diagnosis (failure detection) function

■ Diagnosis function automatically detects failure when failure is found in product during the use of refrigerator.
- If failure occurs at product, it does not operate though pressing any button and normal indication is not done. In this case, do not turn power off but immediately contact with the local service center. A lot of time are need for service engineer to detect the failed part if turning it off.

Fresh Air Filter

Fresh Air Filter

Fresh Air Filter provides the antibacterial function of removing virus or bacteria as well as the deodorizer function of removing the odor within the refrigerator. The performance test of the Fresh Air Filter has been done and proved through a public certification organization (Intertek).

- The filter can be used for 1-2 years. (This may vary based on the environment of the filter the consumer uses in.)

CAUTION

- When the user switches to AUTO or POWER mode, the LED near the filter will be turned on. Open the refrigerator door to check whether the LED near the filter is turned on. Do not insert the finger or any other alien object inside the fan. It can cause an injury or malfunction.

CAUTION

• Do not wash the Fresh Air Filter as it can deteriorate the performance.
• If the user continues to use the Fresh Air Filter past the time to replace, the antibacterial and deodorizing performance can be deteriorated.
• This filter may not be effective for all bacteria or virus types.
• This is effective for the bacteria growing on inside the refrigerator and not on the food.

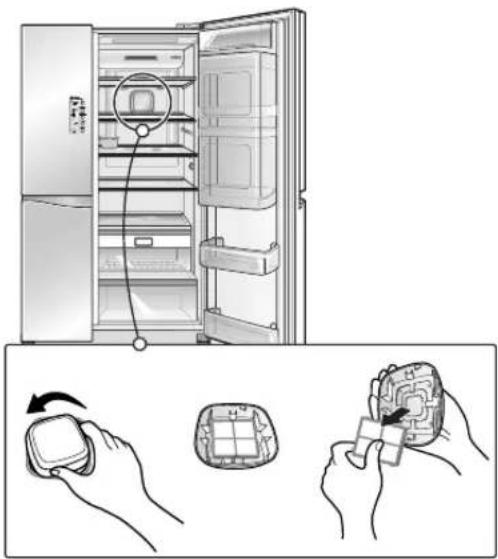

How to remove the old filter

When the Replace lamp is on, replace the filter.

• When the "Replace" lamp is turned on, replace the filter to maintain the performance of the Fresh Air Filter function.
• To replace the filter, press the ○ button on the display panel on the front side of the door and switch to OFF mode.

- Hold the filter cover and rotate counterclockwise to separate the filter cover. Disassemble the Fresh Air Filter inserted inside the filter cover.

REPLACE REPLACE Notification to replace the filter during use When switching to OFF mode

Diagram showing refrigerator interior and appliance installation steps with hand icons and labels

How to install the new filter

CAUTION

Setting the time to replace (Reset)

Switch to use mode

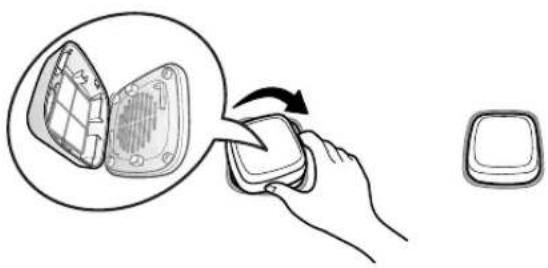

Install the new filter.

- Insert the new Fresh Air Filter in the filter cover so that the white part of the filter and the BACK label is visible.

Line drawing of hands holding a small object with a grid pattern (no text or symbols)

Be careful not to switch the direction of the Fresh Air Filter inserted on the filter cover.

- Align the filter cover where it was originally located and then turn clockwise about 30 degrees to install the filter cover.

Illustration of a hand holding a small device with a magnified inset showing internal components (no text or symbols)

Close the refrigerator door and press the ○ button on the display panel for more than 5 seconds to check that the Replace lamp is turned off.

Notification to replace the filter
Reset time to replace

To use the Fresh Air Filter, press the 📄 button on the display panel to switch to AUTO or POWER mode. (Every time the user presses the button, the function of Fresh Air Filter will switch in the order of OFF → AUTO → POWER → OFF.)

Using the Smart Eco Door

Smart Eco Door

Press the mid left part of the Smart Eco Door until you hear a click sound.

• You can store more food in the larger Smart Eco Door.
• With the larger storage room, you can organize your foods better.

Press until you hear the "Click" sound

Illustration of an open refrigerator with shelves inside (no text or symbols)

How to take out magic space cover

First take out dairy product corner, and then pull up the Smart Eco Door cover to separate and take it out.

*Before the disassembly, please take out the food to empty the refrigerator.

Diagram showing two hands installing or adjusting a door panel with numbered labels ① and ②, indicating different mounting or installation states.

How to disassemble Smart Eco Door Basket

Hold both ends of the basket and lift up the front part of the basket.

- Assemble in the same method as disassembly.

Diagram of a door with two arrows indicating movement or force, showing internal compartments (no text or symbols)

Diagram of a door with three horizontal bars and two arrows indicating movement or assembly (no text or symbols)

How to use moving basket

It can be moved up and down as necessary, and it can be used conveniently.

Illustration of an open refrigerator with a handle and lid, showing shelves and doors (no text or symbols)

Diagram showing hand positioning of a refrigerator with labeled parts and directional arrows indicating movement or positioning.

Illustration of a refrigerator with an open door and a hand inserting a slot (no text or symbols)

• Moving basket moves with upper and lower section together.
  • To move the basket up, hold the center lightly and move it up.
• To move the basket down, hold the bottom of the basket with palm, Press the levers on both sides at the bottom of the lower section upward, and then move it down.
• The bottom section of moving basket can be conveniently opened directly by opening Smart Eco Door.

CAUTION

After placing the basket at desired location, if basket is not leveled, it will sound "click", then move the basket upward lightly until it is fixed.

How to freeze ice

How to use ice tray

CAUTION

How to extract ice

CAUTION

How to take out the ice

Door Ice Maker

• Take out the ice tray, fill it with water, and carefully push it back in with caution not to spill.
• Slowly push it all the way to the back. There is a risk of damage.

level line

(only for applied models)

Interior view of a refrigerator showing open doors, shelves, and a large cabinet (no visible text or symbols)

- Be careful for overflow, and insert water up to 'level line'.

• Do not freeze drinks other than water (barley tea, juices), it may cause malfunction.
• Check if there is remaining ice in the ice making section before filling and freeze water.
• During the inserting of the ice tray after filling with water, take caution not to spill water.
• Fill the water up to the water level line. If too much water is filled, it may be hard to take out the ice or cause malfunction. After filling the water, do not close the freezer door to hard.

- Turn the ice separation lever of the ice making section clockwise.

• If the ice is not falling down smoothly, turn the lever all the way.
• If the lever is turned before the water is completely frozen, ice water that is not completely frozen may fall down into the ice box and ice may stick together.

(It takes about 3 hours for water to completely freeze based on 20^ water temperature.)

Illustration of a hand inserting a spring into a multi-tiered storage unit (no text or symbols)

• If freezer door (door of the ice maker) is frequently opened, warm air enters the freezer, and the time for water to freeze may be delayed.
• There is a little difference for each season.

• Until 24 hours after the first installation, the temperature is not stabilized, and it may take longer for water to freeze.

• Lift the ice box a little bit and take out.

• When inserting ice container back after using it, make sure to check if it is inserted all the way to the back.
• Extracting ice 3 times is suitable for the ice container volume. If ice is extracted more than 3 times, you may not be able to take out the container.

Illustration of a hand placing food into an electric oven with a rack-mounted top (no text or symbols)

How to disassemble the door ice maker

1. Lift and take out the door basket at the top of the door ice maker by holding both end sides.

Illustration of hands installing or adjusting a refrigerator panel with arrows indicating upward movement (no text or symbols)

CAUTION

1. Hold both sides of the ice making section of the door ice maker and pull out upward.

Illustration of hands installing a component labeled '②' into a container (no text or symbols on the diagram itself)

- Disassemble in the order. If the ice making section is disassembled first, it may cause damage.

- When the ice making section is disassembled, hold tight and pull out so that the ice tray does not fall out.

How to disassemble door ice maker

1. Take out and clean the ice tray.

Illustration of a hand inserting a device into a rack (no text or symbols visible)

1. Put it back into the original position after the cleaning.

CAUTION

- Except the ice tray, do not clean with water, but wipe with wet towel and use it after drying it completely. It may cause malfunction.

When it is used as a freezer basket

1. In No. (1) and (2) of how to disassemble door ice maker, put the top door basket back in.

Diagram showing hand positioning a device with labeled step ③ and directional arrows indicating movement

* When door ice maker is not used, the ice container may be used as basket by taking out the ice making section.

How to use

How to disassemble

Shelf

You can store side dish or refrigerated food on the shelf with sufficient space in between the containers.

1. Hold the front part of the shelf and pull it out until it gets blocked by the hooking part.

2. When you cannot pull out the shelf any more, lift it up slightly.

3. While holding the shelf slightly, tilt the shelf to pull it out.

Dairy corner

How to use

How to disassemble

You can store dairy goods such as butter, cheese etc.

Hold the basket with both hands and pull it out by pulling it up(1).

▶ If you close the refrigerator door with the dairy corner left open on the door side, the refrigerator door may not be closed properly. Therefore you must be careful.

Diagram illustrating a device's operation with labeled arrows and a numbered step indicator

Illustration of a hand holding a tablet with a pen and eraser, no text or symbols present

Illustration of a hand holding a tray with scissors and a numbered label (3), no text or symbols present.

Illustration of hands installing or adjusting a door panel with an arrow indicating the step (no text or symbols present)

Illustration of a window frame with a cross symbol on the side panel (no text or symbols present)

Egg box

You can move the egg box to wherever you want.

CAUTION

How to use

How to disassemble

How to use

How to disassemble

How to reassemble

Freezer basket (two stars section)

NOTE

• Never use the egg box as an ice storage bin. It can be broken.
• Never store the egg box in the freezer compartment or fresh compartment.

Deodorizer

With the deodorizer system, you can deodorize the refrigerator and the deodorizer can be reused.

Unscrew the deodorizer cover using (+) driver, and then separate it while pulling the deodorizer cover.

▶How to reuse the deodorizer

You can reuse the deodorizer continuously by drying it well with the hair dryer.

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

Freezer/Fridge basket

You can store small packaged frozen food (Freezer basket), small packaged refrigerated food or beverages (Fridge basket) such as milk, beer etc.

But, do not store ice cream or food to store for a long period of time (Freezer basket) etc.

Hold the basket with both hands and slightly lift up the front part to pull it out.

Hold the basket with both hands and reassemble one side at a time by pushing it in.

Two stars section \*\* (Applicable to some models only)

■ Two stars section means the space stored at -12°C\~-18°C
■ Freezer foods for short-terms storage.

How to use

How to disassemble the upper fresh compartment

How to disassemble the lower fresh compartment

WARNING

How to disassemble upper/lower fresh compartment cover

Fresh compartment

You can store fruits or vegetables.

1. Hold the front handle of the fresh compartment and pull it out until it gets blocked by the hooking part.
2. When you cannot pull out the fresh compartment any more, lift it up slightly to pull it out completely to the front side (outer side).
   * The fresh compartment can be reassembled in the reverse order.

▶When pulling out the lower fresh compartment

Diagram of a container with arrows indicating flow or movement, no text or symbols present

1. Hold the front handle of the fresh compartment and pull it forward.
2. When you cannot pull out the fresh compartment any more, lift it up slightly to pull it out to the front side.

▶When inserting the lower fresh compartment

* When inserting the fresh compartment, always lift the cover up to push it in.

• Always disassemble the fresh compartment using two hands. You can be injured from the weight of the compartment when filled with food.
• When disassembling/reassembling the fresh compartment of the fridge, open the refrigerator door fully.

Hold the cover with both hands and pull it out.

* When disassembling the cover, always disassemble the fresh compartment first.

Illustration of two hands holding a tray with a diamond-shaped object on the surface (no text or symbols)

How to use

V Fresh compartment

Keep Vegetables and Fruits Fresh Longer.

- Store vegetables and fruits in the bigger vegetable drawer with enhanced sealing capability. The new Magic Crisper feature can maintain the vegetable drawer in optimal humidity by absorbing moisture when humidity is high and releasing moisture when humidity is low.

1. Push the sealed vegetable drawer completely until it fully reaches the end.
2. Press the button on the vegetable drawer twice or three times. (Air is released outside the vegetable drawer as many times as you press the button, which enhances the sealing capability.)

* The Magic Crisper on the upper side inside the vegetable drawer helps to keep vegetables and fruits fresh, maintaining optimal humidity through the humidification process (moisture absorption and damp proof).

How to disassemble the V Fresh compartment

1. Pull the V Fresh compartment to the front and slightly lift it up to pull it out.
2. Hold the Case of V Fresh compartment with both hands and slightly lift it up. * To disassemble the case, you must first remove foods on the case.
3. Pull it out to the front.

How to reassemble the V Fresh compartment

1. Align the top of the case to the side rails and push while slightly holding it up.
2. Align the bottom of the case on top of the rails and push while slightly holding it up.
3. Push the compartment fully inside.

WARNING

• You can disassemble/reassemble the freezer drawer in the same method.
• Always disassemble the fresh compartment using two hands. (You can be injured from the weight of the compartment when filled with food.)
• When disassembling/reassembling the fresh compartment or V Fresh compartment of the fridge, open the refrigerator door fully.

Freezer compartment shelf

Freezer compartment door rack

Freezer compartment drawer

Dairy corner

Egg box

Refreshment center

Refrigerator compartment shelf

Refrigerator compartment door rack

Vegetable drawer

Location of foods

(Refer to identification of parts)

Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc..

■ Store small packed frozen food.
■ Temperature is likely to increase as door opens. So, do not store long-term food such ice cream, etc..

■ Store meat, fish, chicken, etc.. after wrapping them with thin foil.
■ Store dry.

Store milk products such as butter, cheese, etc..

Place this egg box in the proper location.

Store foods of frequent use such as beverage, etc..

Store side dishes or other foods at a proper distance.

Store small packed food or beverages such as milk, juice, beer, etc..

Store vegetables or fruits.

Illustration of various food and food items including milk, fish, canned goods, snacks, and fruits (no text or labels)

Storing foods

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, and melons.
• Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher energy consumption.
• When storing the food, cover it with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating, and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, and cause temperatures to rise.
• Never keep too much food in door rack because they may push against by inner racks so that the door cannot be fully closed.

Freezer compartment

CAUTION

Refrigerator compartment

Suggestion for energy saving

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Do not touch the cold foods or containers- especially made of metallic -, with wet hands and place glass products in the freezer compartment.

- That's why you may have chilblains and they may be broken when their inner matters are frozen, causing personal injury.

• Do not put the wet food on the top shelf of the cooling room. It may be frozen by getting the cool air directly.
  ■ Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always store them in an upright position, which keeps them fresh longer.

NOTE

- If you keep the refrigerator in a hot and humid place, frequent opening of the door or storing a lot of vegetables in it may cause dew to form which has no effect on its performance. Remove the dew with dust cloth free from care.

• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause temperature to rise.

Vacation time

Power failure

If you move

Anti condensation pipe

Exterior

Interior

After cleaning

WARNING

General information

During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life.

When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off.

Remove or securely fasten down all loose items inside the refrigerator.

To avoid damaging the height adjusting screws, turn them all the way into the base.

The outside wall of the refrigerator cabinet may sometimes get warm, especially just after installation.

Don't be alarmed. This is due to the anti-condensation pipe, which pumps hot refrigerator to prevent "sweating" on the outer cabinet wall.

CAUTION

• You must check the O-RING, which is made by rubber and prevent electric spark.
• Don't touch lamp, in case of light on the long time. Because it can be very hot.

Cleaning

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator.

Wipe with a clean damp cloth and then dry.

Regular cleaning is recommended. Wash all compartments a baking soda solution or a mild detergent and warm water. Rinse and dry.

NOTE

- Please do not use a dishwasher to clean the lower drawers; the high temperature may cause damage to the baskets which make them unusable.

Please verify that the power cord is not damaged, power plug is not overheated, or power plug is well inserted into the power consent.

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock.

Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface.

Do not touch frozen surfaces with wet or damp hands, because damp object will stick or adhere to extremely cold surfaces.

Trouble shooting

Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Occurrence	Possible cause	Solution
Running of refrigerator
Refrigerator compressor does not run.	Refrigerator control is off.	Set refrigerator control. See setting the controls.
	Refrigerator is in defrost cycle.	This is normal for a fully automatic defrosting refrigerator. The defrost cycle occurs periodically.
	Plug at wall outlet is disconnected.	Make sure plug is tightly pushed into outlet.
	Power outage. Check house lights.	Call local electric company.
Refrigerator runs too much or too long	Refrigerator is larger than the previous one you owned.	This is normal. Larger, more efficient units run longer in these conditions.
	Room or outside weather is hot.	It is normal for the refrigerator to work longer under these conditions.
	Refrigerator has recently been disconnected for a period of time.	It takes some hours for the refrigerator to cool down completely.
	Large amounts of warm or hot food may have been stored recently.	Warm food will cause the refrigerator to run longer until the desired temperature is reached.
	Doors are opened too frequently or too long.	Warm air entering the refrigerator causes it to run longer. Open the door less often.
	Refrigerator or freezer door may be slightly open.	Make sure the refrigerator is level. Keep food and containers from blocking door. See problem section. OPENING/CLOSING of doors.
	Refrigerator control is set too cold.	Set the refrigerator control to a warmer setting until the refrigerator temperature is satisfactory.
	Refrigerator or freezer gasket is dirty, worn, cracked, or poorly fitted.	Clean or change gasket. Leaks in the door seal will cause refrigerator to run longer in order to maintain desired temperatures.
	Thermostat is keeping the refrigerator at a constant temperature.	This is normal. Refrigerator goes on and off to keep the temperature constant.
Refrigerator compressor does not run.	Thermostat is keeping the refrigerator at a constant temperature.	This is normal. The refrigerator goes on and off to keep the temperature constant.
Temperatures are too cold
Temperature in the freezer is too cold but the refrigerator temperature is satisfactory.	Freezer control is set too cold	Set the freezer control to a warmer setting until the freezer temperature is satisfactory.
Temperature in the refrigerator is too cold and the freezer temperature is satisfactory.	Refrigerator control is set too cold.	Set the refrigerator control to a warmer setting
Food stored in drawers freezes.	Refrigerator control is set too cold.	See above solution.
Meat stored in fresh meat drawer freezes.	Meat should be stored at a temperature just below the freezing point of water (32°F, 0°C) for maximum fresh storage time.	It is normal for ice crystals to form due to the moisture content of meat.
Temperatures are too warm
Temperatures in the refrigerator or freezer are too warm.	Freezer control is set too warm.	Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory.
	Refrigerator control is set too warm. Refrigerator control has some effect on freezer temperature.	Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory.
	Doors are opened too frequently or too long.	Warm air enters the refrigerator/ freezer whenever the door is opened. Open the door less often.
	Door is slightly open.	Close the door completely.
	Large amounts of warm or hot food may have been stored recently.	Wait until the refrigerator or freezer has a chance to reach its selected temperature.
	Refrigerator has recently been disconnected for a period of time.	A refrigerator requires some hours to cool down completely.
Temperature in the refrigerator is too warm but the freezer temperature is satisfactory.	Refrigerator control is set too warm.	Set the refrigerator control to a colder setting.
Sound and noise
Louder sound levels when refrigerator is on.	Today's refrigerators have increased storage capacity and maintain more even temperatures.	It is normal for sound levels to be higher.
Louder sound levels when compressor comes on.	Refrigerator operates at higher pressures during the start of the ON cycle.	This is normal. The sound will level off as the refrigerator continues to run.
Vibrating or rattling noise.	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and solid and can adequately support refrigerator.
	Items placed on the top of the refrigerator are vibrating.	Remove items.
	Dishes are vibrating on the shelves in the refrigerator.	It is normal for dishes to vibrate slightly. Move dishes slightly. Make sure refrigerator is level and firmly set on floor.
	Refrigerator is touching wall or cabinets.	Move refrigerator so that it does not touch the wall or refrigerator.
Water/Moisture /Ice inside refrigerator
Moisture collects on the inside walls of the refrigerator.	The weather is hot and humid which increases the rate of frost buildup and internal sweating.	This is normal.
	Door is slightly open.	See problem section opening/closing of doors.
	Door is opened too often or too long.	Open the door less often.
Moisture forms on the outside of the refrigerator or between doors.	Weather is humid.	This is normal in humid weather. When humidity is lower, the moisture should disappear.
	Door is slightly open, causing cold air from the inside the refrigerator to meet warm air from the outside.	This time, close the door completely.
Odors in refrigerator
	Interior needs to be cleaned.	Clean interior with sponge, warm water and baking soda.
	Food with strong odor is in the refrigerator.	Cover food completely.
	Some containers and wrapping materials produce odors.	Use a different container or brand of wrapping materials.
Opening/Closing of doors/Drawers
Door(s) will not close.	Food package is keeping door open.	Move packages that keep door from closing.
Door(s) will not close.	Door was closed too hard, causing other door to open slightly.	Close both doors gently.
	Refrigerator is not level. It rocks on the floor when it is moved slightly.	Adjust the height adjusting screw.
	Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly.	Be sure floor is level and can adequately support refrigerator.Contact carpenter to correct sagging or sloping floor.
	Refrigerator is touching wall or cabinets.	Move refrigerator..
Drawers are difficult to move.	Food is touching shelf on top of the drawer	Keep less food in drawer.
	Track that drawer slides on is dirty.	Clean drawer and track.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

It is Normal...

The following occurrences are normal.

	Occurrence	Solution
Noise	When you hear "Tak" or "Took" sound	This is the sound of various parts expanding/contracting or various control devices operating depending on the temperature change within the refrigerator.
	When you hear "Deureureuk~", "Dulkuk" or "Woong" sound	This is the count of compressor or fan operating when the operation of the refrigerator is starting or ending. This is the same phenomenon of the sound generated when starting or turning off the engine of a car.
	When you hear "Kureureuk" sound of water flowing	This is the sound of refrigerant changing the condition in the freezer/fridge. When the liquid changes to gas, you will hear the sound of water flowing and when gas changes to liquid, you will hear the "Kureureuk" sound.
	When you hear the sound of wind such as "Shoo~" or "Shik" right after you close the door	This is the sound generated when the internal pressure is temporarily lowered when the warm air entered through the fridge or freezer is cooled fast.
	When you hear the vibrating sound	If the refrigerator is installed on wooden floor or wooden wall, or if the refrigerator is not leveled properly, the sound can be loud from the vibration.
	When you hear a loud sound after installing the product for the first time	When you operate the refrigerator for the first time, the refrigerator will operate at high speed to cool fast and the sound can seem louder. When the internal temperature falls below a certain level, the noise will subside.
Door open	When the door is slightly opened after closing the door.	Depending on the fore or speed of closing the fridge or freezer door, the door can open slightly and then get closed. Be careful not to close the door to hard.
	When closing refrigerator door, freezer door open and close.	It is linked between the refrigerator and freezer in order to make cold air circulation. So, When close the refrigerator door, air in the refrigerator go into freezer. It makes freezer door open. Please relax as is not breakdown.
Icing/Dew drops	When there is icing or dew drops formed on the inner or outer side of the refrigerator	When external air flows into the cool inner surface of the refrigerator, icing/dew drops can be formed. Especially, this will happen more easily when you open and close the refrigerator door more frequently. Also if the humidity of the installed location is high or during the rainy season or on a rainy day, dew drops can form on the outer side of the refrigerator. This is a natural phenomenon that occurs during the humid weather. Wipe the water drops with a dry cloth.
Temperature	When the front side of the refrigerator is warm	Heat pipes are installed around the front part of the refrigerator and on the divider of the freezer and fridge to prevent the dew drops from forming. The refrigerator may feel warmer after the installation or during the hot summer, but this is not a problem and you can be rest assured.

Product information

Model			GR-M317SGKR
Producer Category			LG Electronics Refrigerator-Freezer
Capacity (l)	ISO Gross	Total	900
		Freezer	353
		Refrigerator	547
	ISO Storage	Total	821
		Freezer	291
		Refrigerator	530
Weight (kg)	Net / Packing		147/161
	Width x Height x Depth Product		912 x 1785 x 915
		Packing	980 x 1886 x1003
Free standing / Built-in			Free standing
Defrost system			Frost Free
Sound Power (dB)			38
Energy Class			A++
Energy Consumption (kWh/year)			424
Temperature rise time (hr)			16.3
Freezing Capacity (kg/24hr)			11.6
Refrigerant			R600a
Star Rating			***
Climate Class			SN - T

※ Climate Class : SN - T (This appliance is intended to be used at an ambient temperature between 10°C and 43°C.)

LG

Life's Good

8-800-200-7676

0-800-303-000

8-8000-805-805

2255

8-820-0071-1111

8-0200-201

8-800-08-081

800-9990

8-800-120-2222

8-0000-710-005

Россия

Украина

Казахстан

Казахстан
